RENAULT TWINGO 2009 2.G Electrical Equipment - Parking Distance Control Workshop Manual Electrical equipment
"The repair procedures given by the manufacturer in this document are based on the
technical specifications current when it was prepared.
The procedures may be modified as a resu

Page 2 of 43

RENAULT TWINGO 2009 2.G Electrical Equipment - Parking Distance Control Workshop Manual PARKING DISTANCE CONTROL
Fault finding - Introduction
87F
87F - 2V2 MR-413-X44-87F000$066_eng.mif
187F
Vdiag No.: 04 08PARKING DISTANCE CONTROL
Fault finding - Introduction
1. SCOPE OF THIS DOCUMENT
T

Page 3 of 43

RENAULT TWINGO 2009 2.G Electrical Equipment - Parking Distance Control Workshop Manual PARKING DISTANCE CONTROL
Fault finding - Introduction
87F
87F - 3V2 MR-413-X44-87F000$066_eng.mif
Vdiag No.: 04 08
Faults
Faults are declared as either present or stored (depending on whether they app

Page 4 of 43

RENAULT TWINGO 2009 2.G Electrical Equipment - Parking Distance Control Workshop Manual PARKING DISTANCE CONTROL
Fault finding - Introduction
87F
87F - 4V2 MR-413-X44-87F000$066_eng.mif
Vdiag No.: 04 08
4. FAULT FINDING PROCEDURE
Perform a pre-diagnostic on the
system
Print the system f

Page 5 of 43

RENAULT TWINGO 2009 2.G Electrical Equipment - Parking Distance Control Workshop Manual PARKING DISTANCE CONTROL
Fault finding - Introduction
87F
87F - 5V2 MR-413-X44-87F000$066_eng.mif
Vdiag No.: 04 08
4. FAULT FINDING PROCEDURE (continued)
Wiring check
Fault finding problems
Disconnect

Page 6 of 43

RENAULT TWINGO 2009 2.G Electrical Equipment - Parking Distance Control Workshop Manual PARKING DISTANCE CONTROL
Fault finding - Introduction
87F
87F - 6V2 MR-413-X44-87F000$066_eng.mif
Vdiag No.: 04 08
5. FAULT FINDING LOG
You will always be asked for this log:
●when requesting techni

Page 7 of 43

RENAULT TWINGO 2009 2.G Electrical Equipment - Parking Distance Control Workshop Manual PARKING DISTANCE CONTROL
Fault finding - Introduction
87F
87F - 7V2 MR-413-X44-87F000$132_eng.mif

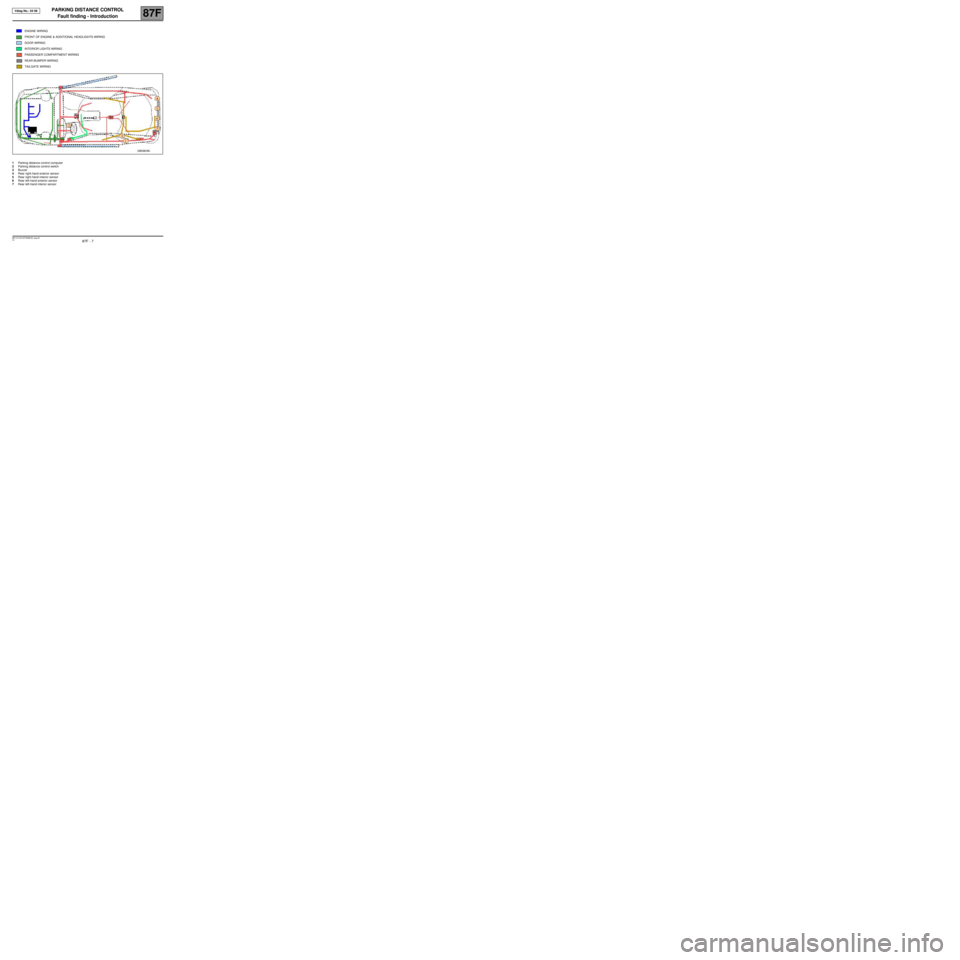

Vdiag No.: 04 08PARKING DISTANCE CONTROL
1Parking distance control computer
2Parking distance control

Page 8 of 43

RENAULT TWINGO 2009 2.G Electrical Equipment - Parking Distance Control Workshop Manual PARKING DISTANCE CONTROL
87F
87F - 8V2 MR-413-X44-87F000$198_eng.mif
Vdiag No.: 04 08PARKING DISTANCE CONTROL
Fault finding - Operating diagram
1: + after ignition feed
2: switch
3: switch warning lig

Page 9 of 43

RENAULT TWINGO 2009 2.G Electrical Equipment - Parking Distance Control Workshop Manual PARKING DISTANCE CONTROL
87F
87F - 9V2 MR-413-X44-87F000$220_eng.mif
Vdiag No.: 04 08PARKING DISTANCE CONTROL
Fault finding - Function
DEACTIVATING THE SYSTEM
–The parking proximity sensor system ca

Page 10 of 43

RENAULT TWINGO 2009 2.G Electrical Equipment - Parking Distance Control Workshop Manual PARKING DISTANCE CONTROL
87F
87F - 10V2 MR-413-X44-87F000$240_eng.mif
Vdiag No.: 04 08PARKING DISTANCE CONTROL
Fault finding - Role of components
Description of operation
The system consists of four s
