diagram RENAULT TWINGO RS 2009 2.G Engine And Peripherals Multimedia Connection Unit Workshop Manual

86D -2V1 MR-413-X44-86D000$010.mif
86D
BIC
Vdiag No.: 14
1. SCOPE OF THIS DOCUMENT
This document presents the fault finding method applicable to all computers with the following specifications:
2. PREREQUISITES FOR FAULT FINDING
Documentation type
Fault finding procedures (this manual):
–Assisted fault finding (integrated into the diagnostic tool), Dialogys.
Wiring Diagrams:
–Visu-Schéma.
Type of diagnostic tools
–CLIP
Special tooling required
3. REMINDERS
Fault finding procedure
To run fault finding on the vehicle computers, switch on the ignition.
Depending on the type of vehicle equipment, proceed as follows:
To cut off + after ignition feed, proceed as follows:Vehicle(s): CLIO III and NEW TWINGOComputer name: MULTIMEDIA CONNECTION
UNIT
Function concerned: MULTIMEDIA
CONNECTION UNITVdiag No.: 14
Special tooling required
Diagnostic tool
Multimeter
Elé. 1681 Universal bornier
For vehicles with key/radio frequency remote control, use the key to switch on the ignition.
For vehicles with Renault cards,
–with the vehicle card in the card reader,
–press and hold the start button (longer than 5 seconds) with start-up conditions not fulfilled,
connect the diagnostic tool and perform the required operations.
For vehicles with key/radiofrequency remote control,use the key to switch off the ignition.
For vehicles with Renault cards,
Press the Start button twice briefly (less than 3 seconds),
Ensure that the + after ignition feed has been cut off by checking that the computer warning lights on the instrument
panel have gone out.
BIC_V14_PRELI
MULTIMEDIA CONNECTION UNIT
Fault finding – Introduction

86D-21
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults using command RZ001 Fault memory.
Deal with any other faults.
V1 MR-413-X44-86D000$090.mif
MULTIMEDIA CONNECTION UNIT
Fault finding – Interpretation of faults86D
BIC
Vdiag No.: 14
DF005
PRESENT
OR
STOREDSUPPLY
1.DEF: Excess voltage
2.DEF: Undervoltage
NOTESConditions for applying fault finding procedures to stored faults:
The fault is declared present after the multimedia system has been switched on.
Special notes:
The undervoltage fault appears if the computer feed voltage is less than or equal to
7.5 V for at least 1 second.
The overvoltage fault appears if the computer feed voltage is greater than or equal to
18.5 V for at least 1 second.
Use the Wiring Diagrams Technical Note for Clio III or New Twingo.
For a vehicle equipped with a Navigation computer, use component 1714, Multimedia
connection unit, for fault finding on the Multimedia interface unit.
Otherwise use component 653, display computer.
1.DEF
NOTESNone.
Check the battery and perform an alternator supply test (see 16A, Starting, Charging).
BIC_V14_DF005

86D-23
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults using command RZ001 Fault memory.
Deal with any other faults.
V1 MR-413-X44-86D000$090.mif
MULTIMEDIA CONNECTION UNIT
Fault finding – Interpretation of faults86D
BIC
Vdiag No.: 14
DF006
PRESENT
OR
STOREDACTIVATION SIGNAL
CO : Open circuit
CC.0: Short circuit to earth
CC.1: Short circuit to + 12 V
NOTESFault finding procedure application conditions:
The fault is declared present after:
The + after ignition feed is activated, then the multimedia system was switched on using
the on/off button.
The fault is declared stored after the vehicle is completely shut off (1 minute after
locking).
If the fault is present, the multimedia functions do not operate.
For a vehicle equipped with a Navigation computer, use component 1714, Multimedia
connection unit, for fault finding on the Multimedia interface unit.
Otherwise use component 653, display computer.
Use the Wiring Diagrams Technical Note for Clio III or New Twingo.
For a vehicle equipped with a Navigation system:
Check the connectors of the multimedia connection unit, component code 1714, of the radio, component
code 261, of the mobile connectivity computer, component code 1959 (depending on equipment), and of the
navigation computer, component code 662.
For a vehicle not equipped with a Navigation system:
Check the connectors of the display, component code 653, of the radio, component code 261, and of the mobile
connectivity computer, component code 1959 (depending on equipment).
If the connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
BIC_V14_DF006

86D-33
AFTER REPAIRRepeat the conformity check from the start.
V1 MR-413-X44-86D000$120.mif
86D
BIC
Vdiag No.: 14
ET009
ET011
ET012
ET020
ET023
ET024
ET025REPEAT BUTTON
+ BUTTON
- BUTTON
MUTE BUTTON
SOURCE BUTTON
MODE BUTTON
TELEPHONE BUTTON
STATUS DEFINITIONPRESSED: This means that the button is pressed.
RELEASED: This means that the button is released.
NOTESThere must be no present or stored faults.
Note: ET009 Repeat button is not present on the New Twingo.
For a vehicle equipped with a Navigation computer, use component 1714, Multimedia
connection unit, for fault finding on the Multimedia interface unit.
Otherwise use component 653, display computer.
Use the Wiring Diagrams Technical Note for Clio III or New Twingo.
Check the condition and connection:
●of the radio control satellite connector, component code 1519 (for Clio III) or component code 325 (for New
Twingo).
●of the display connector, component code 653, or the multimedia connection unit connector, component code
1714, depending on the vehicle equipment.
If the connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
BIC_V14_ET009 / BIC_V14_ET011 / BIC_V14_ET012 / BIC_V14_ET020 / BIC_V14_ET023 / BIC_V14_ET024 / BIC_V14_ET025
MULTIMEDIA CONNECTION UNIT
Fault finding – Interpretation of statuses

86D-35
AFTER REPAIRRepeat the conformity check from the start.
V1 MR-413-X44-86D000$120.mif
MULTIMEDIA CONNECTION UNIT
Fault finding – Interpretation of statuses86D
BIC
Vdiag No.: 14
ET017WHEEL ACTION
STATUS DEFINITIONDownwards: This means that the wheel is turned downwards.
Upwards: This means that the wheel is turned upwards.
Inactive: This means that there is no action on the wheel.
NOTESThere must be no present or stored faults.
For a vehicle equipped with a Navigation computer, use component 1714, Multimedia
connection unit, for fault finding on the Multimedia interface unit.
Otherwise use component 653, display computer.
Use the Wiring Diagrams Technical Note for Clio III or New Twingo.
Check the condition and connection:
●of the radio control satellite connector, component code 1519 (for Clio III) or component code 325 (for New
Twingo).
●of the display connector, component code 653, or the multimedia connection unit connector, component code
1714, depending on the vehicle equipment.
If the connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Using the universal bornier, check the insulation, continuity and the absence of interference resistance on the
following connections:
●34AT between components 1519 (or 325) and 653 (or 1714),
●34AR between components 1519 (or 325) and 653 (or 1714),
●34AS between components 1519 (or 325) and 653 (or 1714),
●34AQ between components 1519 (or 325) and 653 (or 1714),
●34AU between components 1519 (or 325) and 653 (or 1714),
●34AP between components 1519 (or 325) and 653 (or 1714).
●34AO between components 1519 and 653 (or 1714) (only for Clio III).
If the connections are faulty and if there is a repair procedure (see Technical Note 6015A, Electrical wiring
repair, Wiring: Precautions for repair), repair the wiring, otherwise change the wiring.
BIC_V14_ET017

86D-40
AFTER REPAIRWhen communication is established, deal with any faults indicated.
V1 MR-413-X44-86D000$160.mif
86D
BIC
Vdiag No.: 14
ALP 1 No dialogue with the computer
NOTESFor a vehicle equipped with a Navigation computer, use component 1714, Multimedia
connection unit, for fault finding on the Multimedia interface unit.
Otherwise use component 653, display computer.
Use the Wiring Diagrams Technical Note for Clio III or New Twingo.
Try to establish dialogue with a computer on another vehicle to check that the diagnostic tool is not faulty. If the
diagnostic tool is not causing the fault and dialogue cannot be established with any other computer on the same
vehicle, it may be that a faulty computer is disrupting the fault finding line.
Use a process of successive disconnections to locate this computer.
Check the battery voltage, component code 107, and perform the necessary operations to obtain the correct
voltage (12 V < X < 15 V).
Check the presence and condition of the computer supply fuses:
–for New Twingo: F48 (15 A),
–for Clio III: F14 (5 A), F2 (20 A) and unit fuse 710 (15 A).
Check the connection of the display connector, component code 653, or the multimedia connection unit connector,
component code 1714, and the condition of its connections.
If the connector(s) is faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Check that the computer is correctly supplied by checking the following connections:
–BCP4 between components 260 and 653 or 1714,
–BPT between components 645 and 653 or 1714,
–BPT3 between components 260 and 653 or 1714,
–NAM between component 653 or 1714 and earth.
If the connection(s) is faulty and there is a repair procedure (see Technical Note 6015A, Electrical wiring repair,
Wiring: Precautions for repair), repair the wiring, otherwise replace it.
A
BIC_V14_ALP1
MULTIMEDIA CONNECTION UNIT
Fault finding – Fault Finding Chart

86D-42
AFTER REPAIRCarry out another fault finding check on the system.
Deal with any faults.
V1 MR-413-X44-86D000$160.mif
MULTIMEDIA CONNECTION UNIT
Fault finding – Fault Finding Chart86D
BIC
Vdiag No.: 14

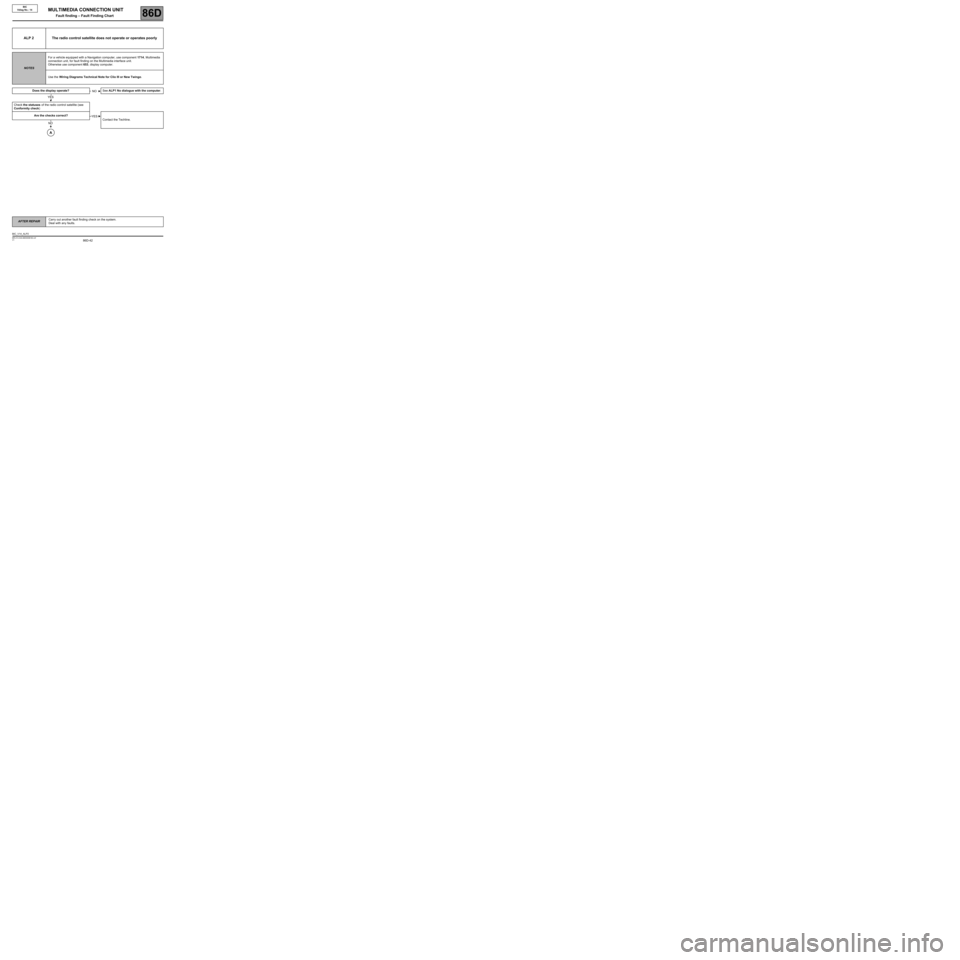

ALP 2 The radio control satellite does not operate or operates poorly
NOTESFor a vehicle equipped with a Navigation computer, use component 1714, Multimedia
connection unit, for fault finding on the Multimedia interface unit.
Otherwise use component 653, display computer.
Use the Wiring Diagrams Technical Note for Clio III or New Twingo.
Does the display operate?See ALP1 No dialogue with the computer.
Check the statuses of the radio control satellite (see
Conformity check)
Are the checks correct?
Contact the Techline.
NO
YES
YES
NO
A
BIC_V14_ALP2
