57A-12
INTERIOR EQUIPMENT
Centre console: Removal - Refitting
57A
REMOVAL
I - REMOVAL PREPARATION OPERATION
aPush the front seats back.
aRemove the gear lever knob.
aUnclip the gear lever gaiter.aCut the plastic clip (1) .
aRemove:
-the plastic clip (1) ,
-the gear lever gaiter. JB1 or JH3
121138
121139
121140

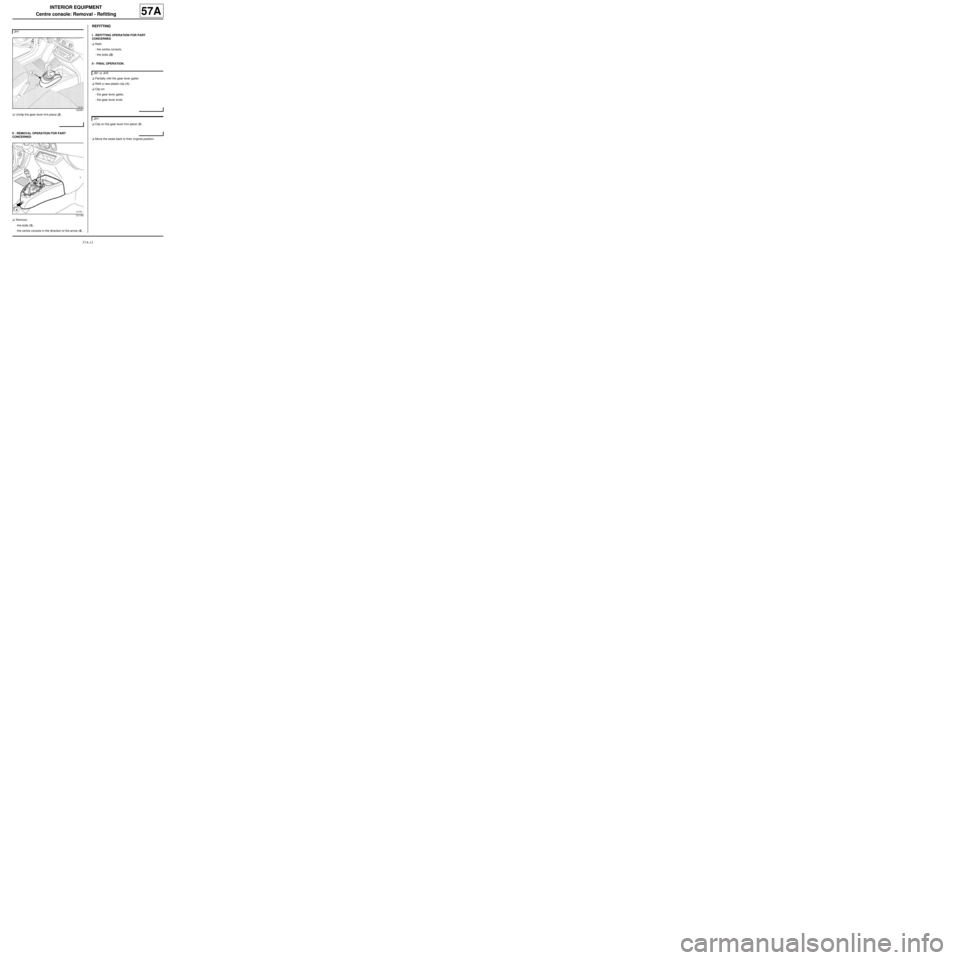

57A-13
INTERIOR EQUIPMENT
Centre console: Removal - Refitting
57A
aUnclip the gear lever trim piece (2) .
II - REMOVAL OPERATION FOR PART
CONCERNED
aRemove:
-the bolts (3) ,
-the centre console in the direction of the arrow (4) .
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
aRefit:
-the centre console,
-the bolts (3) .
II - FINAL OPERATION.
aPartially refit the gear lever gaiter.
aRefit a new plastic clip (1) .
aClip on:
-the gear lever gaiter,
-the gear lever knob.
aClip on the gear lever trim piece (2) .
aMove the seats back to their original position. JH1
122381
121160
JB1 or JH3
JH1
