RENAULT TWIZY 2018 Owners Manual

5.17
OPERATING FAULTS (1/3)
The following advice will enable you to carry out quick, temporary repai\
rs. For safety reasons you should always contact
an approved dealer as soon as possible.
FAULTSPOSSIBLE CAUSES WHAT TO DO
Impossible to charge the
traction battery. No electrical current in domes-
tic sockets or poor connection of
cable to domestic socket. Check your installation (circuit breaker, programmer,
etc.).
Check the connections (power socket, etc.). Please
refer to the information on “Electric vehicle: charging”
in Section 1.
The outdoor temperature is ex-
tremely low. Recharge your vehicle in a more suitable environ-
ment. Please refer to the information on “Electric ve-
hicle: charging” in Section 1.
The cord is defective. Please see an authorised dealer to replace it.
The steering column remains
locked. Steering wheel locked.
Move the steering wheel while pressing the engine
start button (refer to Section 2 “Starting the engine”).
Vibrations. Tyres incorrectly inflated or dam-
aged. Check the tyre pressures. If this is not the problem,
have them checked by an approved Dealer.
The engine performance is
limited. The outdoor temperature is ex-
tremely high. Opt for a calmer driving style.
The traction battery reserve has
been reached. Recharge the traction battery as soon as possible.
Please refer to the information on “Electric vehicle:
charging” in Section 1.
The vehicle will not start. The charging flap is open or not
properly closed. Check that the charging flap is correctly locked. In
other cases, contact an authorised dealer as soon as
possible.

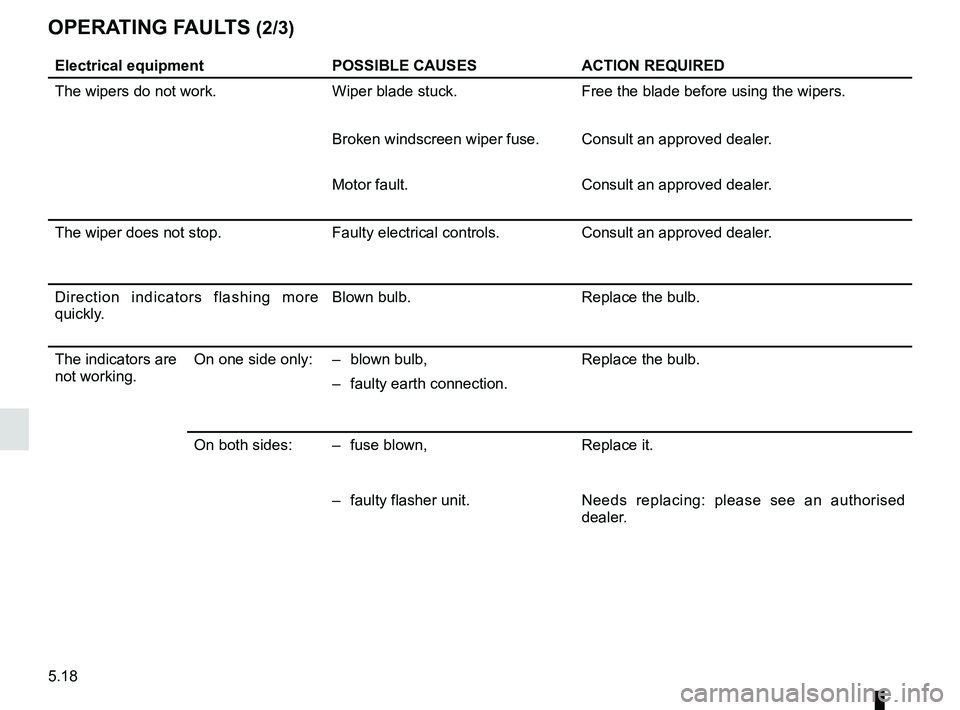

5.18
Electrical equipmentPOSSIBLE CAUSESACTION REQUIRED
The wipers do not work. Wiper blade stuck.Free the blade before using the wipers.
Broken windscreen wiper fuse. Consult an approved dealer.
Motor fault. Consult an approved dealer.
The wiper does not stop. Faulty electrical controls.Consult an approved dealer.
Direction indicators flashing more
quickly. Blown bulb.
Replace the bulb.
The indicators are
not working. On one side only: – blown bulb,
– faulty earth connection. Replace the bulb.
On both sides: – fuse blown, Replace it.
– faulty flasher unit. Needs replacing: please see an authorised
dealer.
OPERATING FAULTS (2/3)

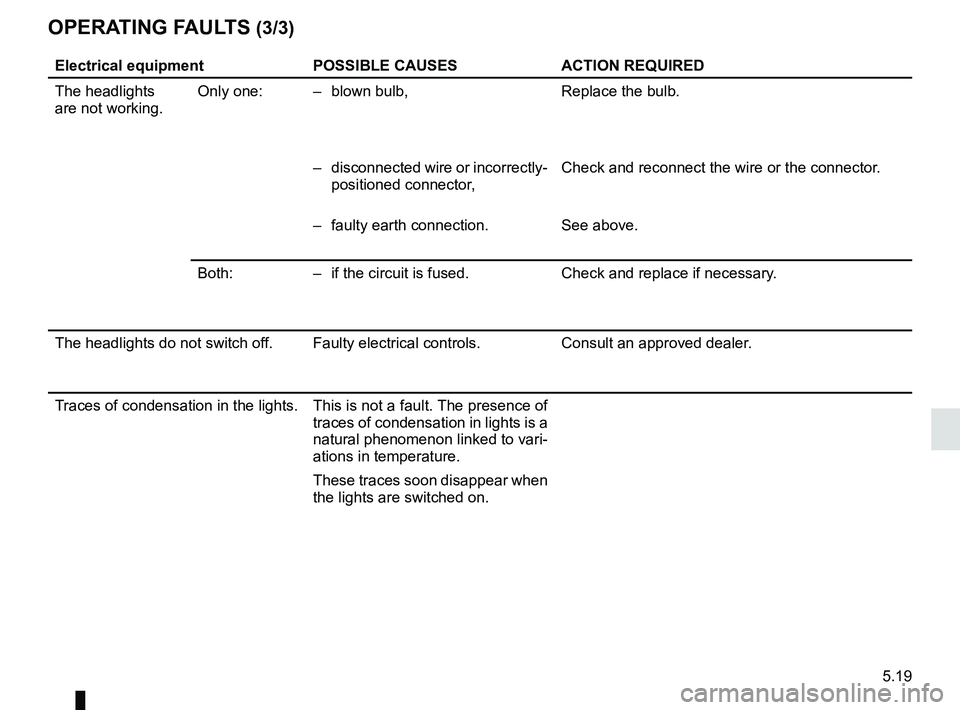

5.19
OPERATING FAULTS (3/3)
Electrical equipmentPOSSIBLE CAUSESACTION REQUIRED
The headlights
are not working. Only one: – blown bulb,
Replace the bulb.
– disconnected wire or incorrectly- positioned connector, Check and reconnect the wire or the connector.
– faulty earth connection. See above.
Both: – if the circuit is fused. Check and replace if necessary.
The headlights do not switch off. Faulty electrical controls. Consult an approved dealer.
Traces of condensation in the lights. This is not a fault. The presence of traces of condensation in lights is a
natural phenomenon linked to vari-
ations in temperature.
These traces soon disappear when
the lights are switched on.

5.20

6.1
Section 6: Technical specifications
Vehicle identification plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . 6.2
Engine identification plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . 6.3
Engine specification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . 6.3
Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.4
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.5
Replacement parts and repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . 6.6
Service sheets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.7
Anticorrosion check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . 6.13

6.2

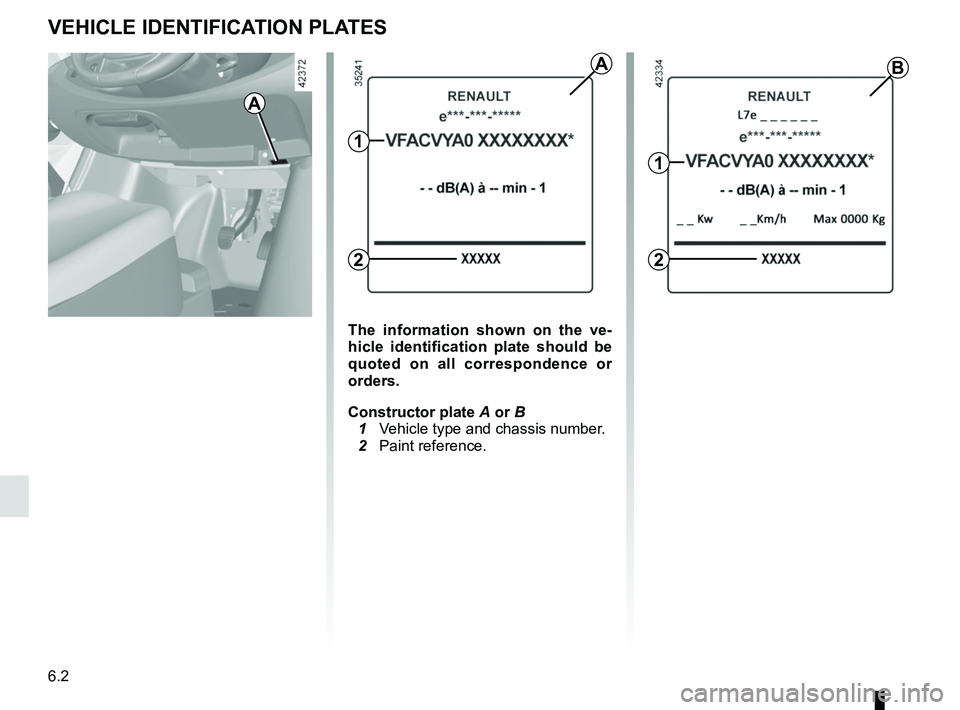

VEHICLE IDENTIFICATION PLATES
A
A
The information shown on the ve-
hicle identification plate should be
quoted on all correspondence or
orders.
Constructor plate A or B
1 Vehicle type and chassis number.
2 Paint reference.
1
2
B
1
2

6.3

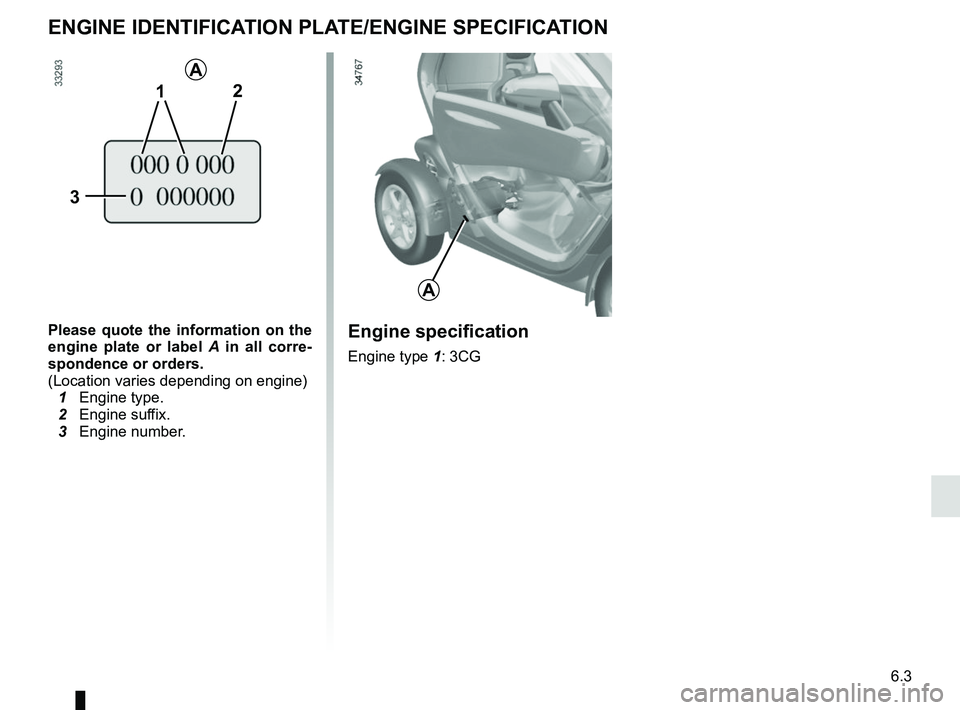

ENGINE IDENTIFICATION PLATE/ENGINE SPECIFICATION
Please quote the information on the
engine plate or label A in all corre-
spondence or orders.
(Location varies depending on engine)
1 Engine type.
2 Engine suffix.
3 Engine number.
A
2
3
1
A
Engine specification
Engine type 1: 3CG

6.4

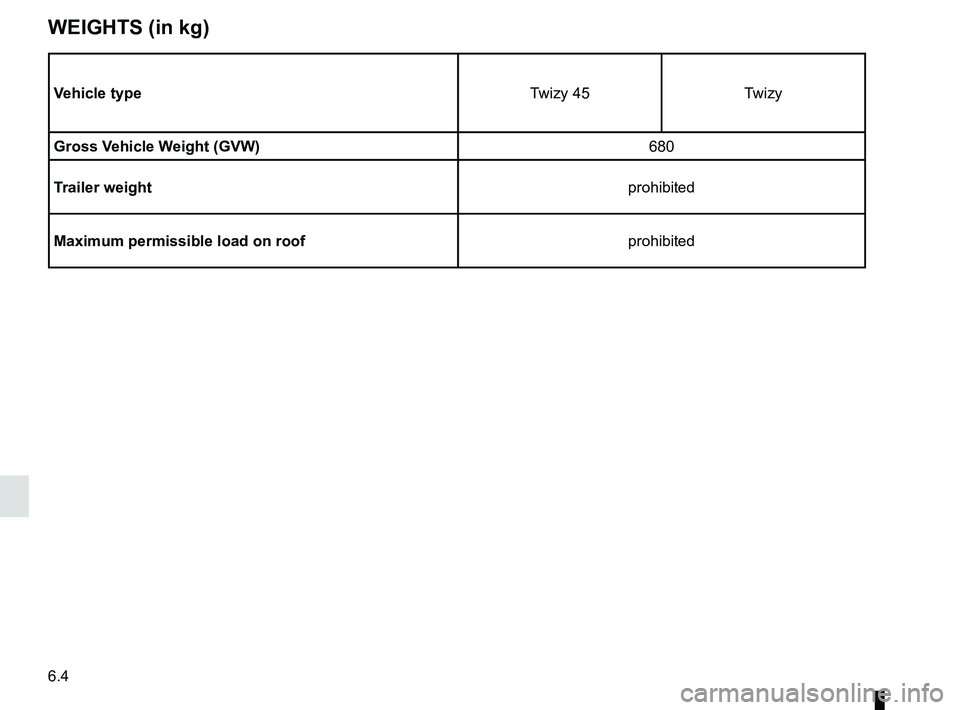

WEIGHTS (in kg)
Vehicle typeTwizy 45 Twizy
Gross Vehicle Weight (GVW) 680
Trailer weight prohibited
Maximum permissible load on roof prohibited

6.5

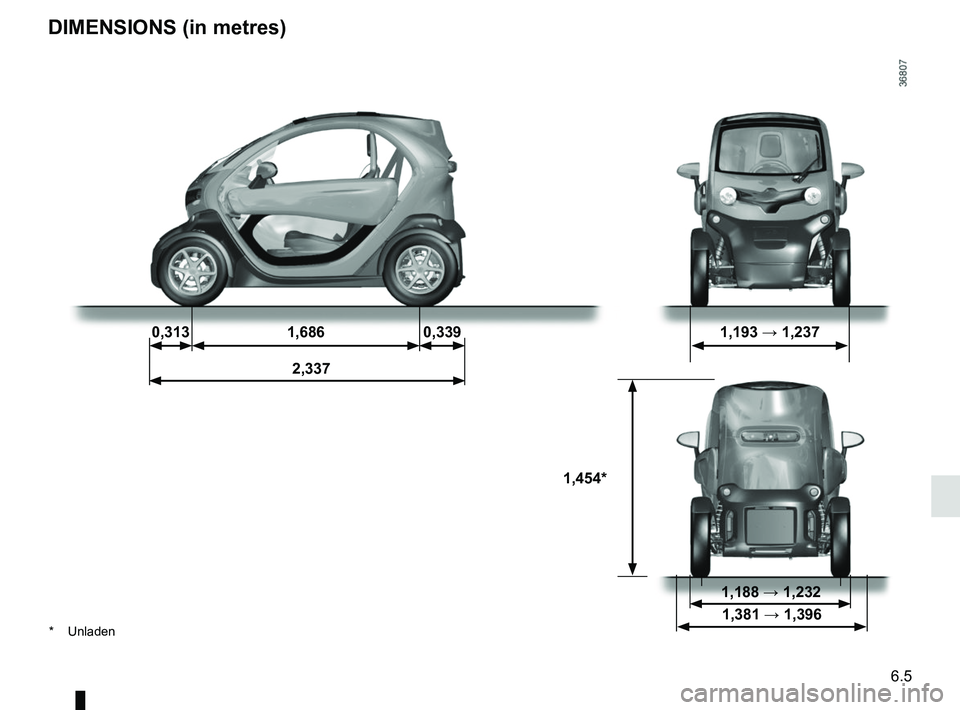

DIMENSIONS (in metres)
0,3131,686 0,339 1,193 → 1,237
2,337
1,454*
1,188 → 1,232
1,381 → 1,396* Unladen

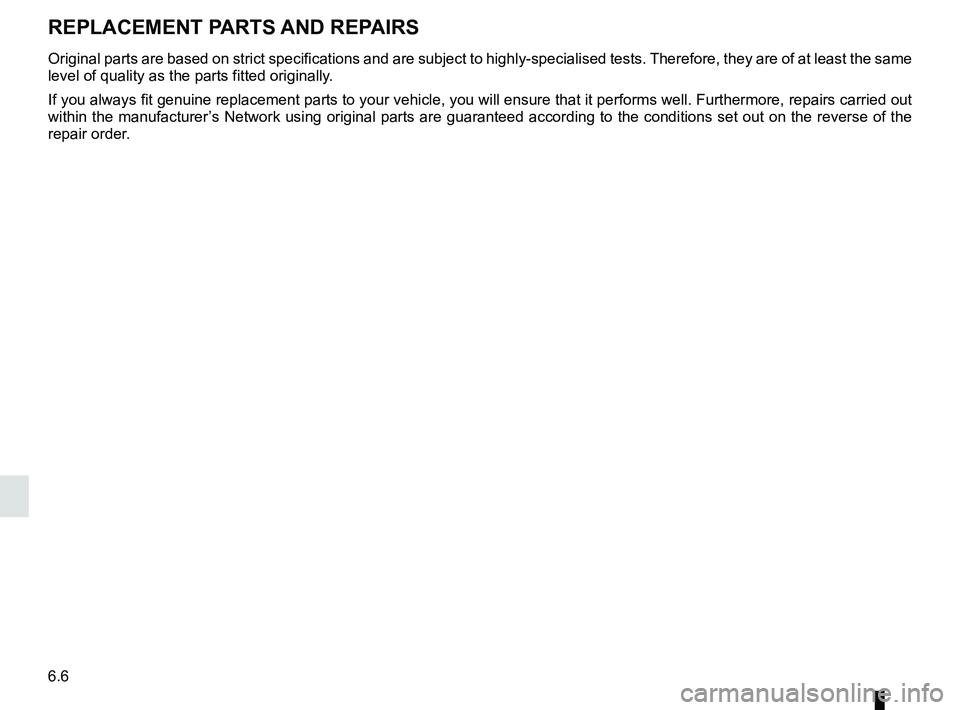

6.6
Original parts are based on strict specifications and are subject to hig\
hly-specialised tests. Therefore, they are of at least the same
level of quality as the parts fitted originally.
If you always fit genuine replacement parts to your vehicle, you will en\
sure that it performs well. Furthermore, repairs carried out
within the manufacturer’s Network using original parts are guaranteed according to the condition\
s set out on the reverse of the
repair order.
REPLACEMENT PARTS AND REPAIRS
