Sécurité enfants : installation du siège enfant (E33 - X33 - Renault)
ENG_NU_865-6_E33_Renault_1
² Seat not suitable for fitting child
seats.³ Check the status of the air bag
before fitting a child seat or allowing a
passenger to use the seat.
Using a child safety system
which is not approved for
this vehicle will not correctly
protect the baby or child.
They risk serious or even fatal injury.

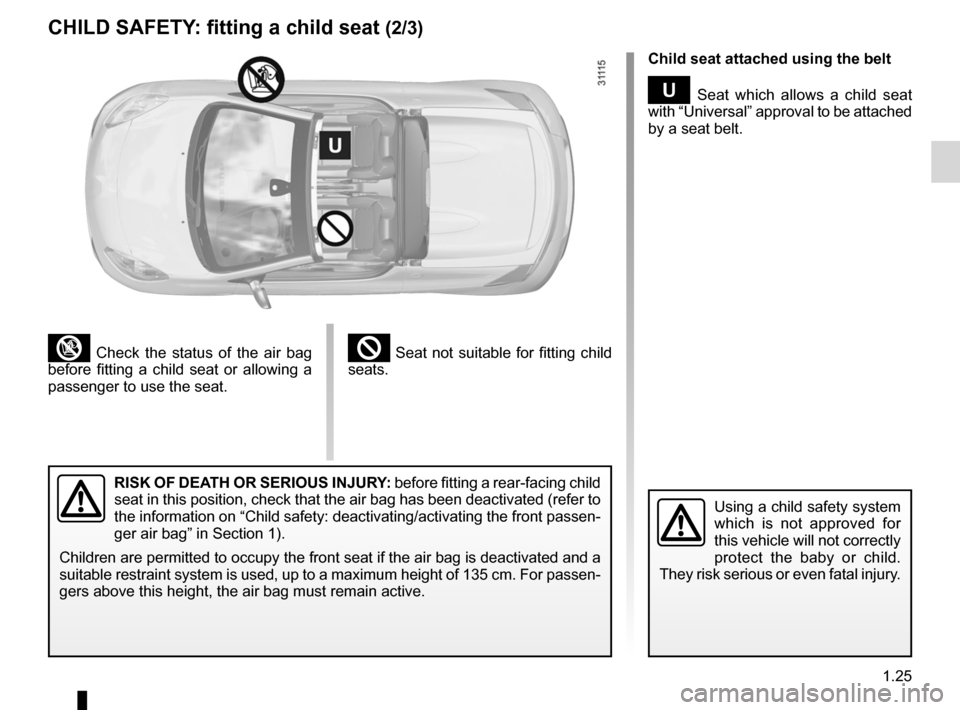

CHILD SAFETY : fitting a child seat (2/3)
Child seat attached using the belt
¬ Seat which allows a child seat
with “Universal” approval to be attached
by a seat belt.
RISK OF DEATH OR SERIOUS INJURY: before fitting a rear-facing child
seat in this position, check that the air bag has been deactivated (refer to
the information on “Child safety: deactivating/activating the front passen-
ger air bag” in Section 1).
Children are permitted to occupy the front seat if the air bag is deactivated and a
suitable restraint system is used, up to a maximum height of 135 cm. For passen -
gers above this height, the air bag must remain active.
Page 32 of 185
1.26
ENG_UD20474_3
Sécurité enfants : installation du siège enfant (E33 - X33 - Renault)
ENG_NU_865-6_E33_Renault_1

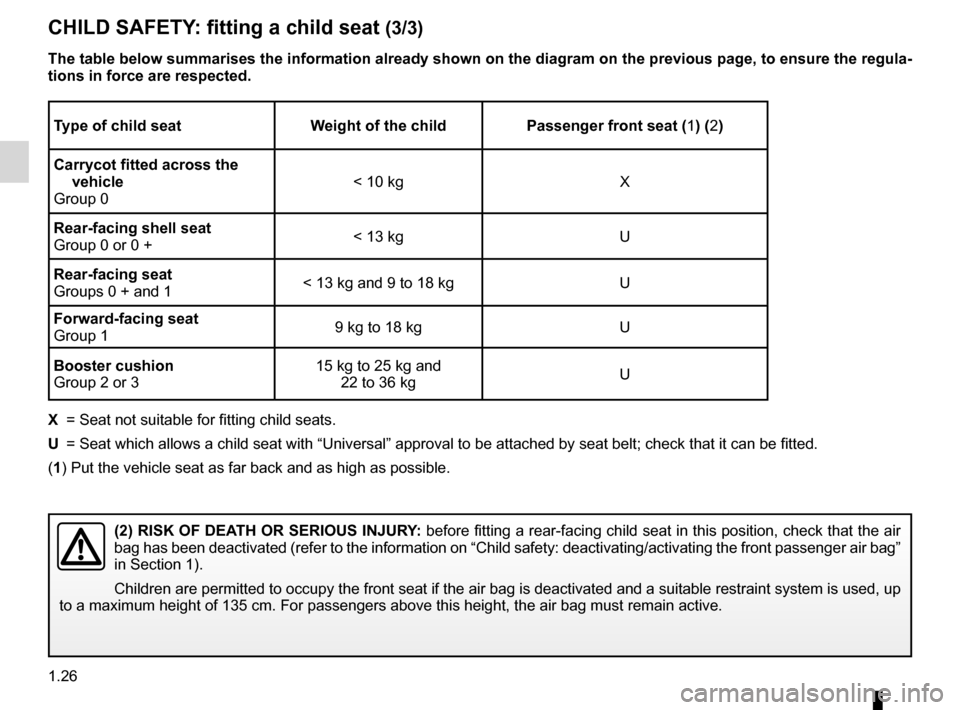

CHILD SAFETY : fitting a child seat (3/3)
Type of child seat Weight of the childpassenger front seat (1) (2)
Carrycot fitted across the vehicle
Group 0 < 10 kg
X
Rear-facing shell seat
Group 0 or 0 + < 13 kg
U
Rear-facing seat
Groups 0 + and 1 < 13 kg and 9 to 18 kg
U
Forward-facing seat
Group 1 9 kg to 18 kg
U
Booster cushion
Group 2 or 3 15 kg to 25 kg and
22 to 36 kg U
X = Seat not suitable for fitting child seats.
U = Seat which allows a child seat with “Universal” approval to be attached by seat belt; check that it can be fitted.
(1) Put the vehicle seat as far back and as high as possible.
(2) RISK OF DEATH OR SERIOUS INJURY: before fitting a rear-facing child seat in this position, check that the air
bag has been deactivated (refer to the information on “Child safety: deactivating/activating the front passenger air bag”
in Section 1).
Children are permitted to occupy the front seat if the air bag is deactivated and a suitable restraint system is used, up
to a maximum height of 135 cm. For passengers above this height, the air bag must remain active.
The table below summarises the information already shown on the diagram on the previous page, to ensure the regula-
tions in force are respected.
Page 33 of 185
1.27
ENG_UD21752_3
Sécurité enfants : désactivation/activation airbag passager avant (E33 - X33 - Renault)
ENG_NU_865-6_E33_Renault_1
deactivating/activating the front passenger air bag
The passenger air bag must
be activated or deactivated
with the ignition off .
If it is interfered with when
the vehicle is being driven, indicator
lights
å and © will come
on.
Switch the ignition off then on again
to reset the air bag in accordance
with the lock.

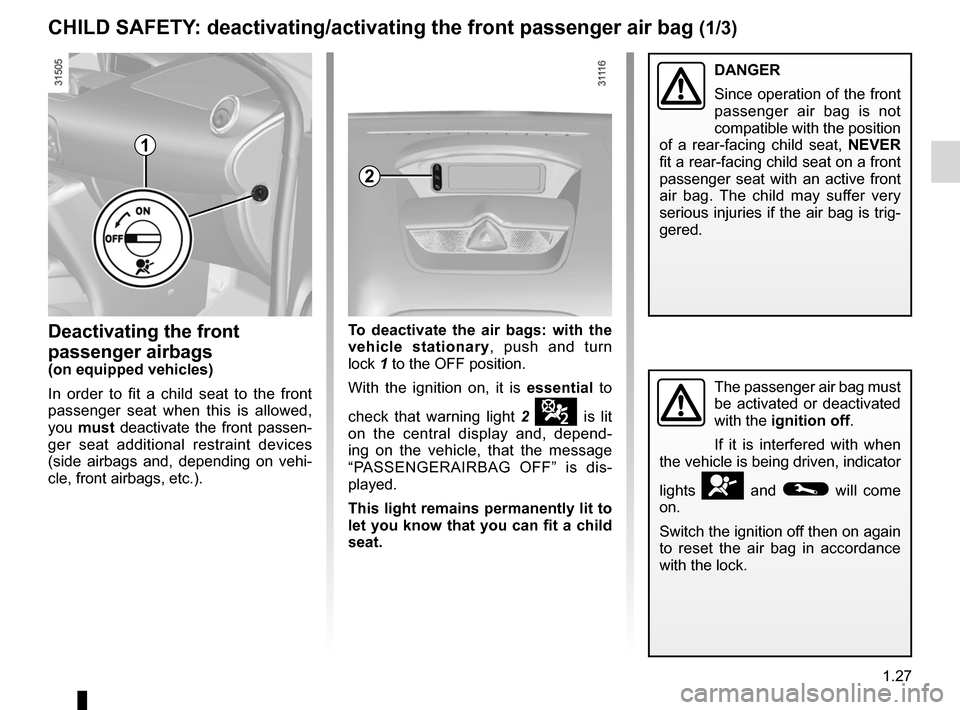

CHILD SAFETY : deactivating/activating the front passenger air bag (1/3)
Deactivating the front
passenger airbags
(on equipped vehicles)
In order to fit a child seat to the front
passenger seat when this is allowed,
you must deactivate the front passen-
ger seat additional restraint devices
(side airbags and, depending on vehi -
cle, front airbags, etc.).
2
To deactivate the air bags: with the
vehicle stationary , push and turn
lock 1 to the OFF position.
With the ignition on, it is essential to
check that warning light 2
¹ is lit
on the central display and, depend -
ing on the vehicle, that the message
“ PASSENGERAIRBAG OFF ” is dis-
played.
This light remains permanently lit to
let you know that you can fit a child
seat.
1
DANGER
Since operation of the front
passenger air bag is not
compatible with the position
of a rear-facing child seat, NEVER
fit a rear-facing child seat on a front
passenger seat with an active front
air bag. The child may suffer very
serious injuries if the air bag is trig-
gered.
Page 34 of 185
1.28
ENG_UD21752_3
Sécurité enfants : désactivation/activation airbag passager avant (E33 - X33 - Renault)
ENG_NU_865-6_E33_Renault_1
Jaune NoirNoir texte
CHILD SAFETY : deactivating/activating the front passenger air bag (2/3)
DANGER
Since operation of the front
passenger air bag is not
compatible with the position
of a rear-facing child seat, NEVER
fit a rear-facing child seat on a front
passenger seat with an active front
air bag. The child may suffer very
serious injuries if the air bag is trig-
gered.

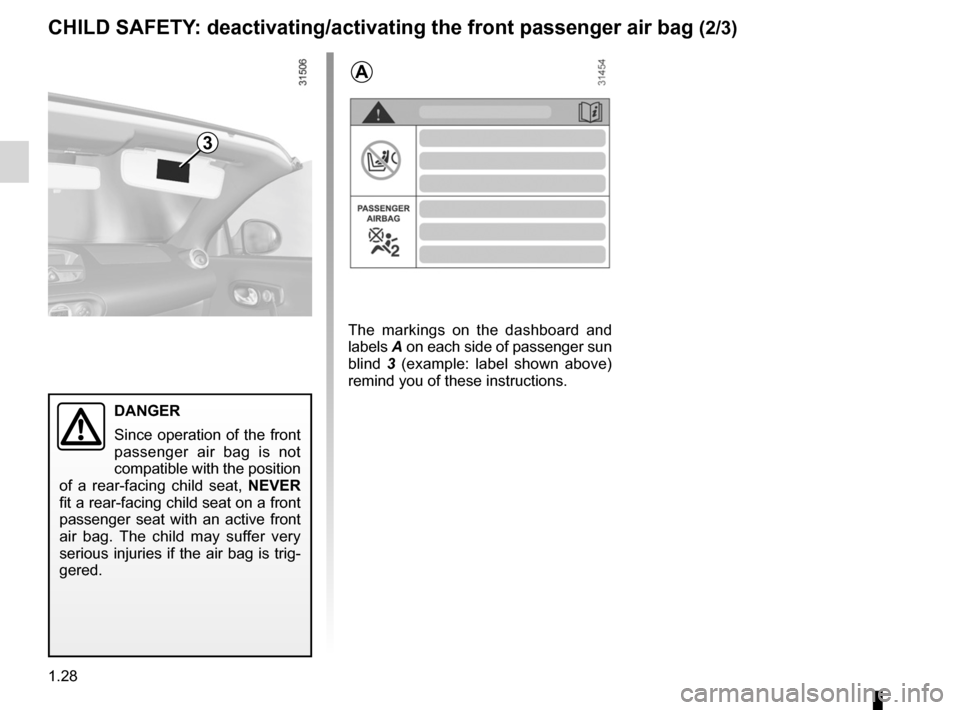

The markings on the dashboard and
labels A on each side of passenger sun
blind 3 (example: label shown above)
remind you of these instructions.
A
3
Page 35 of 185
JauneNoirNoir texte
1.29
ENG_UD21752_3
Sécurité enfants : désactivation/activation airbag passager avant (E33 - X33 - Renault)
ENG_NU_865-6_E33_Renault_1

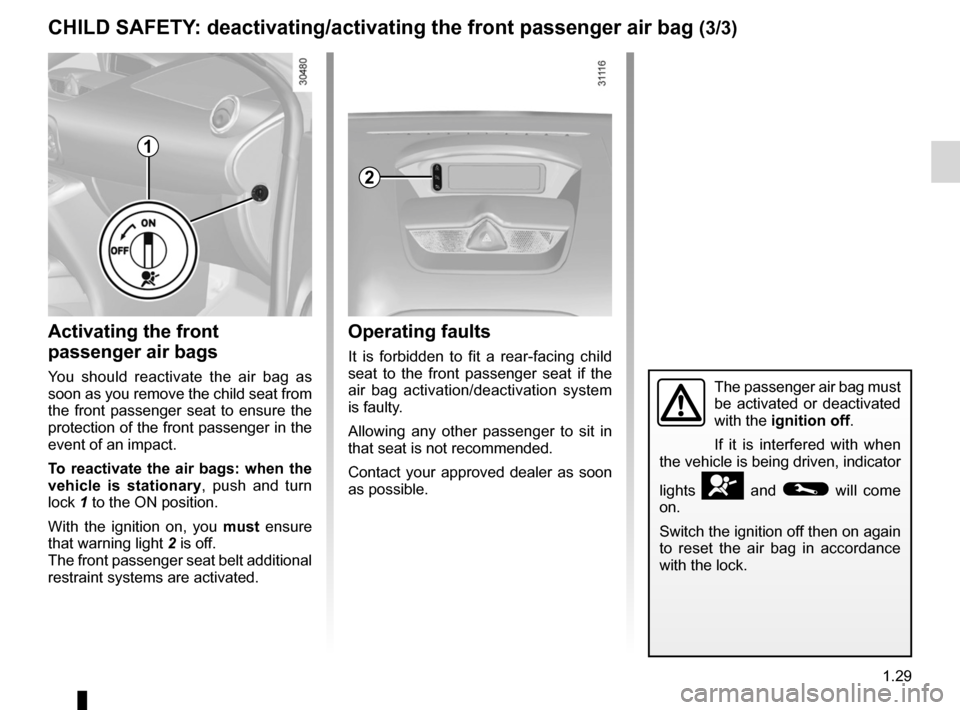

CHILD SAFETY : deactivating/activating the front passenger air bag (3/3)
The passenger air bag must
be activated or deactivated
with the ignition off.
If it is interfered with when
the vehicle is being driven, indicator
lights
å and © will come
on.
Switch the ignition off then on again
to reset the air bag in accordance
with the lock.
Operating faults
It is forbidden to fit a rear-facing child
seat to the front passenger seat if the
air bag activation/deactivation system
is faulty.
Allowing any other passenger to sit in
that seat is not recommended.
Contact your approved dealer as soon
as possible.
Activating the front
passenger air bags
You should reactivate the air bag as
soon as you remove the child seat from
the front passenger seat to ensure the
protection of the front passenger in the
event of an impact.
To reactivate the air bags: when the
vehicle is stationary , push and turn
lock 1 to the ON position.
With the ignition on, you must ensure
that warning light 2 is off.
The front passenger seat belt additional
restraint systems are activated.
2
1
Page 36 of 185
driver’s position .................................... (up to the end of the DU)
controls ................................................. (up to the end of the DU)
dashboard ............................................. (up to the end of the DU)
1.30
ENG_UD11168_1
Poste de conduite direction à gauche (E33 - X33 - Renault)
ENG_NU_865-6_E33_Renault_1
Jaune NoirNoir texte
Driving position

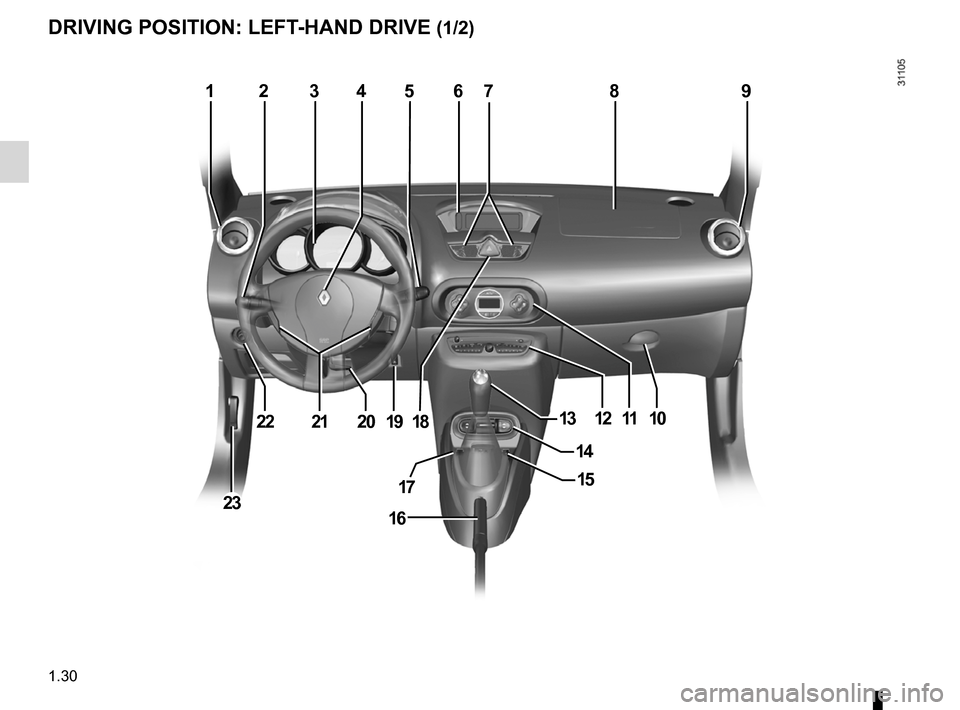

DRIVING pOSITION: LEFT -HAND DRIVE (1/2)
123457689
101112
14
1319182122
23
20
16
1517
Page 37 of 185
JauneNoirNoir texte
1.31
ENG_UD11168_1
Poste de conduite direction à gauche (E33 - X33 - Renault)
ENG_NU_865-6_E33_Renault_1
DRIVING pOSITION: LEFT -HAND DRIVE (2/2)

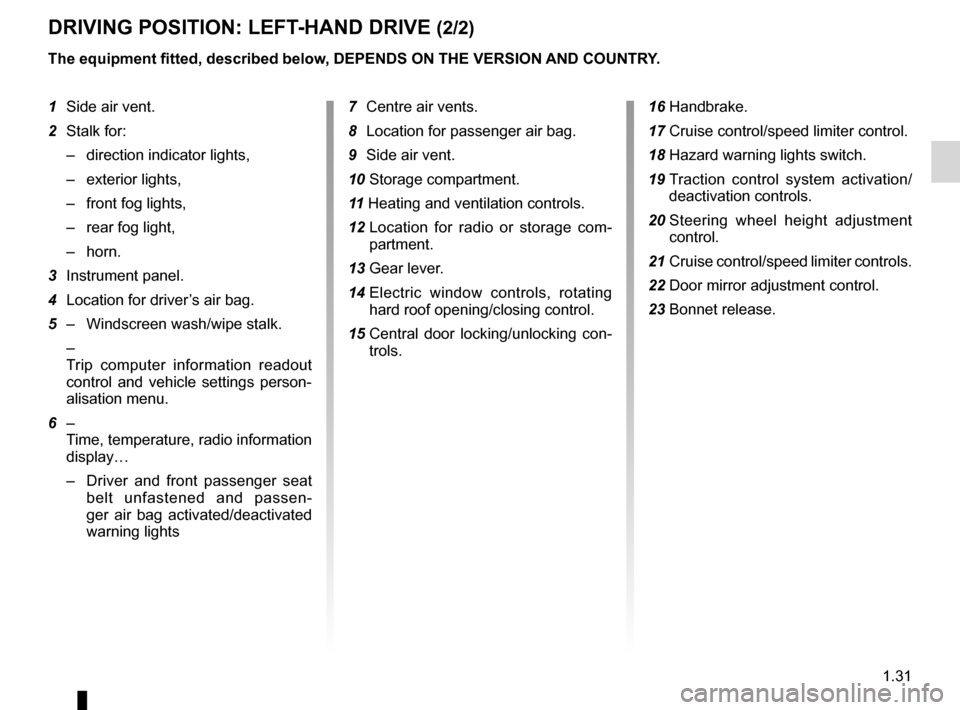

1 Side air vent.
2 Stalk for:
– direction indicator lights,
– exterior lights,
– front fog lights,
– rear fog light,
– horn.
3 Instrument panel.
4 Location for driver’s air bag.
5 – Windscreen wash/wipe stalk.
–
Trip computer information readout
control and vehicle settings person-
alisation menu.
6 –
Time, temperature, radio information
display…
– Driver and front passenger seat
belt unfastened and passen -
ger air bag activated/deactivated
warning lights
The equipment fitted, described below, DEpENDS ON THE VERSION AND COUNTRY.
16 Handbrake.
17 Cruise control/speed limiter control.
18 Hazard warning lights switch.
19 Traction control system activation/
deactivation controls.
20 Steering wheel height adjustment
control.
21 Cruise control/speed limiter controls.
22 Door mirror adjustment control.
23 Bonnet release.
7
Centre air vents.
8 Location for passenger air bag.
9 Side air vent.
10 Storage compartment.
11 Heating and ventilation controls.
12 Location for radio or storage com -
partment.
13 Gear lever.
14 Electric window controls, rotating
hard roof opening/closing control.
15 Central door locking/unlocking con -
trols.
Page 38 of 185
driver’s position .................................... (up to the end of the DU)
controls ................................................. (up to the end of the DU)
dashboard ............................................. (up to the end of the DU)
1.32
ENG_UD11169_1
Poste de conduite direction à droite (E33 - X33 - Renault)
ENG_NU_865-6_E33_Renault_1
Jaune NoirNoir texte

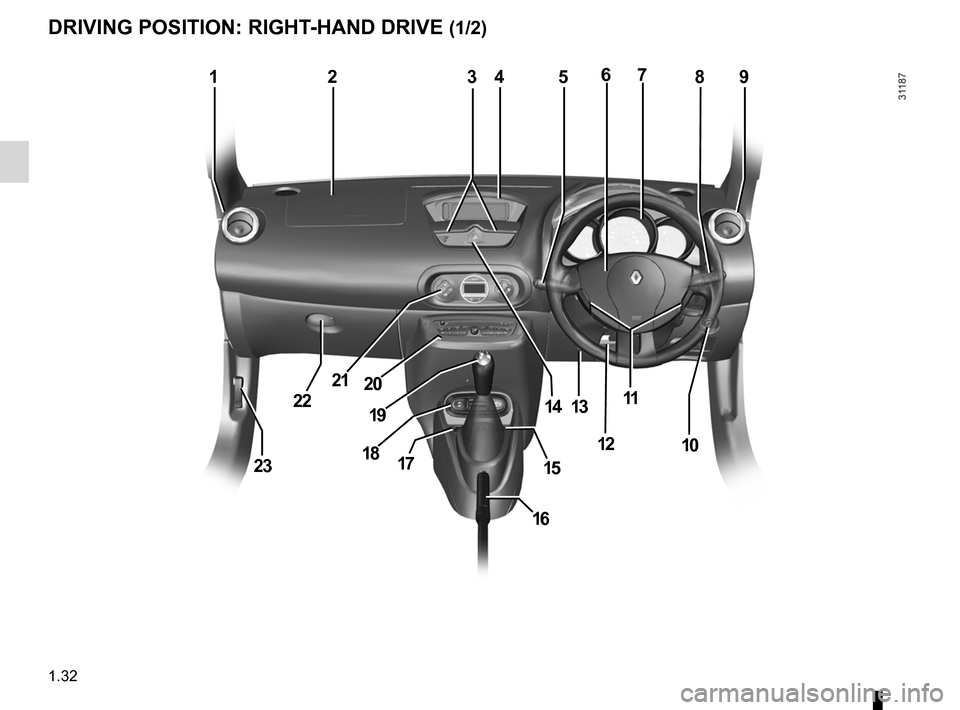

DRIVING pOSITION: RIGHT -HAND DRIVE (1/2)
1234859
2211
67
13
12
14
15
16
1718
19
2021
23
10
Page 39 of 185
JauneNoirNoir texte
1.33
ENG_UD11169_1
Poste de conduite direction à droite (E33 - X33 - Renault)
ENG_NU_865-6_E33_Renault_1
DRIVING pOSITION: RIGHT -HAND DRIVE (2/2)
The equipment fitted, described below, DEpENDS ON THE VERSION AND COUNTRY.
1 Side air vent.
2 Location for passenger air bag.
3 Centre air vents.
4 –
Time, temperature, radio information
display…
– Driver and front passenger seat
belt unfastened and passen -
ger air bag activated/deactivated
warning lights
5 Stalk for:
– direction indicator lights,
– exterior lights,
– front fog lights,
– rear fog light,
– horn.
6 Location for driver’s air bag. 7
Instrument panel.
8 – Windscreen wash/wipe stalk.
–
Trip computer information readout
control and vehicle settings person-
alisation menu.
9 Side air vent.
10 Door mirror adjustment control.
11 Cruise control/speed limiter controls.
12 Steering wheel height adjustment
control.
13 Traction control system activation/
deactivation controls.
14 Hazard warning lights switch. 15
Central door locking/unlocking con -
trols.
16 Handbrake.
17 Central door locking/unlocking con -
trols.
18 Electric window controls, rotating
hard roof opening/closing control.
19 Gear lever.
20 Location for radio or storage com -
partment.
21 Heating and ventilation controls.
22 Storage compartment.
23 Bonnet release.
Page 40 of 185
instrument panel ................................... (up to the end of the DU)
warning lights ........................................ (up to the end of the DU)
driver’s position .................................... (up to the end of the DU)
trip computer and warning system ........(up to the end of the DU)
indicators: instrument panel ............................. (up to the end of the DU)
display .................................................. (up to the end of the DU)
operating faults ..................................... (up to the end of the DU)
control instruments ............................... (up to the end of the DU)
indicators ............................................................... (current page)
lights: fog lights .......................................................... (current page)
lights: dipped beam headlights ................................... (current page)
lights: direction indicators ........................................... (current page)
lights: main beam headlights ...................................... (current page)
handbrake .............................................................. (current page)
1.34
ENG_UD20502_3
Tableau de bord : témoins lumineux (E33 - X33 - Renault)
ENG_NU_865-6_E33_Renault_1
Jaune NoirNoir texte
Warning lights
Instrument panel A: you can adjust
the brightness from the trip computer
and warning system.

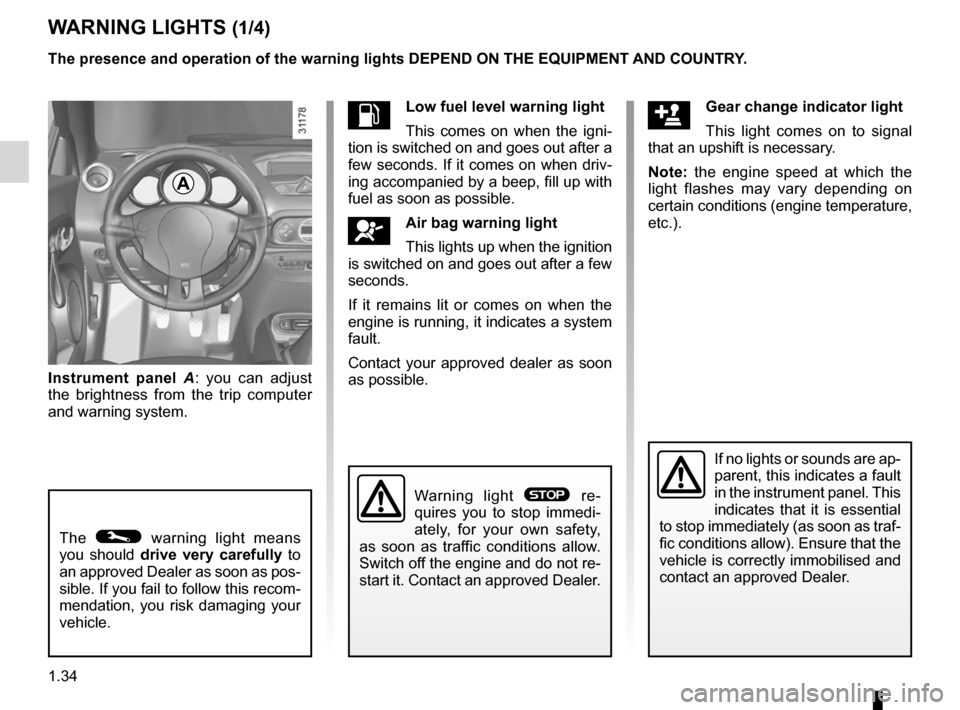

W ARNING LIGHTS (1/4)
LLow fuel level warning light
This comes on when the igni -
tion is switched on and goes out after a
few seconds. If it comes on when driv-
ing accompanied by a beep, fill up with
fuel as soon as possible.
åAir bag warning light
This lights up when the ignition
is switched on and goes out after a few
seconds.
If it remains lit or comes on when the
engine is running, it indicates a system
fault.
Contact your approved dealer as soon
as possible.
?Gear change indicator light
This light comes on to signal
that an upshift is necessary.
Note: the engine speed at which the
light flashes may vary depending on
certain conditions (engine temperature,
etc.).
If no lights or sounds are ap-
parent, this indicates a fault
in the instrument panel. This
indicates that it is essential
to stop immediately (as soon as traf-
fic conditions allow). Ensure that the
vehicle is correctly immobilised and
contact an approved Dealer.
The © warning light means
you should drive very carefully to
an approved Dealer as soon as pos-
sible. If you fail to follow this recom-
mendation, you risk damaging your
vehicle.
Warning light ® re -
quires you to stop immedi -
ately, for your own safety,
as soon as traffic conditions allow.
Switch off the engine and do not re-
start it. Contact an approved Dealer.
The presence and operation of the warning lights DEpEND ON THE EQUIpMENT AND COUNTRY.
A
