clock setting RENAULT WIND 2012 1.G Owners Manual

clock ..................................................... (up to the end of the DU)
clock ..................................................... (up to the end of the DU)
external temperature ............................ (up to the end of the DU)
indicators: exterior temperature indicator .......................... (current page)
1.49
ENG_UD11174_1
Heure et température extérieure (E33 - X33 - Renault)
ENG_NU_865-6_E33_Renault_1
Clock and exterior temperature
External temperature
indicator
As ice formation is related
to climatic exposure, local
air humidity and temperature, the
external temperature alone is not
sufficient to detect ice.

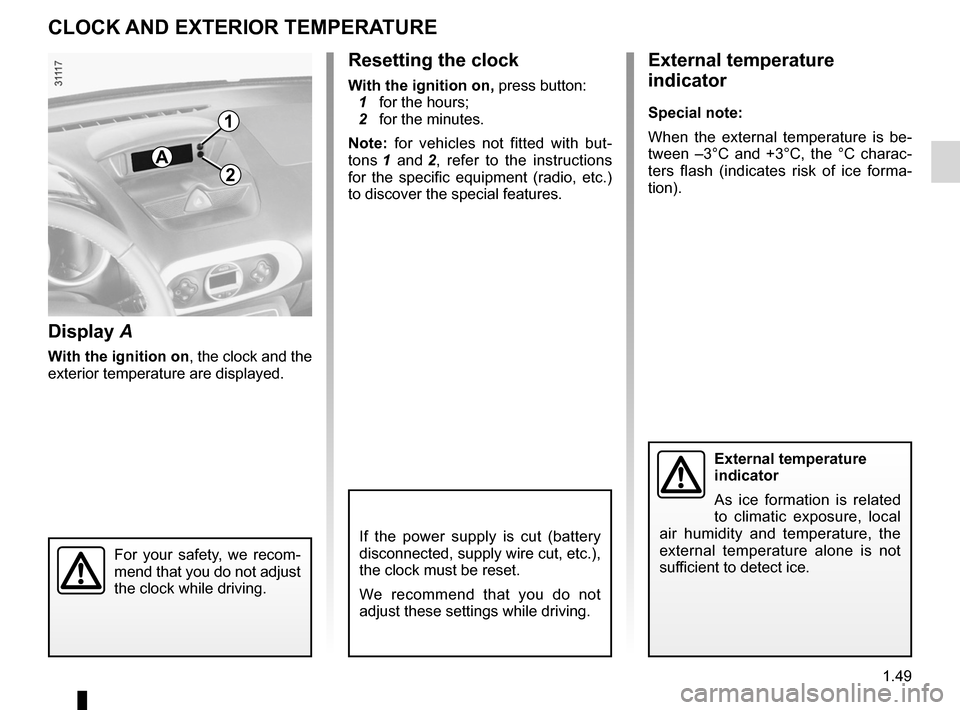

CLOCK AND EXTERIOR TEMpERATURE
Display A
With the ignition on, the clock and the
exterior temperature are displayed.
For your safety, we recom -
mend that you do not adjust
the clock while driving.
A
1
2
If the power supply is cut (battery
disconnected, supply wire cut, etc.),
the clock must be reset.
We recommend that you do not
adjust these settings while driving.
External temperature
indicator
Special note:
When the external temperature is be -
tween –3°C and +3°C, the °C charac -
ters flash (indicates risk of ice forma -
tion).
Resetting the clock
With the ignition on, press button:
1 for the hours;
2 for the minutes.
Note: for vehicles not fitted with but -
tons 1 and 2 , refer to the instructions
for the specific equipment (radio, etc.)
to discover the special features.

7.1
FRA_UD30001_7
Index (E33 - X33 - Renault)
ENG_NU_865-6_E33_Renault_7
AlphAbeticAl index (1/4)
A
ABS .............................................................. 1.35, 2.10 → 2.12
accessories........................................................................ 5.25
accessories socket ............................................................ 3.23
additional methods of restraint .....................1.15 → 1.17, 1.19
side protection ............................................................. 1.18
to the front seat belts ....................................... 1.15 → 1.17
adjusting your driving position ........................................... 1.12
air bag ........................................................... 1.15 → 1.19, 1.35
air conditioning ........................................................ 3.8 → 3.18
air vents ...................................................................... 3.6 – 3.7
anti-corrosion check .............................................. 6.14 → 6.18
anti-corrosion protection ......................................... 4.12 – 4.13
anti-lock braking system: ABS ...............................2.10 → 2.12
antipollution advice .................................................................. 2.6 → 2.8
armrest: front .............................................................................. 3.22
ashtray ............................................................................... 3.23
ASR (traction control) ............................................ 2.10 → 2.12
audible and visual signals .................................................. 1.51
b
batteries ............................................................................. 5.24
battery ................................................................................ 4.11
troubleshooting ................................................. 5.22 – 5.23
bonnet ......................................................................... 4.2 – 4.3
brake fluid ............................................................................ 4.8
bulbs changing .......................................................... 5.14 → 5.16
c
catalytic converter ................................................................ 2.4
central door locking .................................................... 1.5, 1.10
changing a bulb ..................................................... 5.14 → 5.16
changing a wheel ........................................................ 5.7 – 5.8changing gear
...................................................................... 2.5
child restraint/seat ............................. 1.20 – 1.21, 1.23 → 1.26
child safety ................1.2 – 1.3, 1.20 – 1.21, 1.23 → 1.26, 3.19
child seats .......................................... 1.20 – 1.21, 1.23 → 1.26
children ................................... 1.2 – 1.3, 1.6 – 1.7, 1.20 – 1.21
children (safety) ................................................................. 3.19
cigar lighter ........................................................................ 3.23
cleaning: inside the vehicle .............................................. 4.14 – 4.15
outside the vehicle ............................................ 4.12 – 4.13
clock .................................................................................. 1.49
closing the doors ........................................................ 1.6 – 1.7
control instruments ................................................ 1.34 → 1.40
controls .................................................................. 1.30 → 1.33
coolant ........................................................................ 1.38, 4.7
courtesy light ................................................. 3.20, 5.17 – 5.18
courtesy mirrors ................................................................. 3.20
cruise control ......................................................... 2.13 → 2.19
cruise control-speed limiter.................................... 2.13 → 2.19
d
dashboard .............................................................. 1.30 → 1.33
daytime running lights ........................................................ 1.52
demisting rear screen ..................................................................... 3.9
dimensions .......................................................................... 6.4
display ................................................................... 1.34 → 1.39
doors .................................................................. 1.6 – 1.7, 1.10
doors/tailgate ..................................................... 1.6 – 1.7, 1.10
driver’s position ..................................................... 1.30 → 1.37
driving ........................................... 2.2, 2.4 → 2.8, 2.10 → 2.19
driving position settings ............................................................ 1.12 → 1.14
e
electric windows ................................................................ 3.19
