Page 7 of 185
1.1
ENG_UD29993_7
Sommaire 1 (E33 - X33 - Renault)
ENG_NU_865-6_E33_Renault_1
Section 1: Getting to know your vehicle
Key, radio frequency remote control: general information, use, deadlocking . . . . . . . . . . . . . . . . . . 1.2
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.6
Automatic locking when driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.10
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.12
Additional methods of restraint: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.15
to the front seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.15
side protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.18
Child safety: general information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.20
choosing a child seat mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.23
fitting a child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.24
deactivating, activating the front passenger airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.27
Driving position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.30
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.34
on-board computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.40
Steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.48
Power-assisted steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.48
Clock and exterior temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.49
Door mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.50
Audible and visual signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.51
Exterior lighting and signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.52
Windscreen washers and wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.54
Fuel tank (filling with fuel) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.56
Page 41 of 185
ABS ....................................................................... (current page)
air bag .................................................................... (current page)
variable power-assisted steering ........................... (current page)
JauneNoirNoir texte
1.35
ENG_UD20502_3
Tableau de bord : témoins lumineux (E33 - X33 - Renault)
ENG_NU_865-6_E33_Renault_1
W ARNING LIGHTS (2/4)
kDipped beam headlight tell -
tale
áMain beam headlight tell-tale
light
gFront fog light tell-tale light
fRear fog light tell-tale light
cLeft-hand direction indicator
tell-tale light
bRight-hand direction indica -
tor tell-tale light
ÄWarning light for monitoring
exhaust gas
On equipped vehicles, the light comes
on when the ignition is switched on then
goes out.
– If it lights up continuously accompa -
nied by the
© indicator light, con-
sult an approved dealer as soon as
possible;
– If it flashes, reduce the engine speed
until the light stops flashing. Contact an
approved dealer as soon as possible.
Refer to “Emission control, fuel econ -
omy and driving advice” in section 2.
2
Door status warning light
It lights up when the ignition is
switched on and a door is open
or not properly closed.
ΔSpeed limiter and cruise
control indicator lights
See the information on the “Speed lim-
iter” and “Cruise control” in Section 2.
©Warning light
This lights up when the igni -
tion is switched on and goes out after a
few seconds. It may come on with other
warning lights on the instrument panel.
If it lights up when the vehicle is being
driven, it is advisable to stop at an ap-
proved dealer soon.
The presence and operation of the warning lights DEpEND ON THE EQUIpMENT AND COUNTRY.
Page 53 of 185
1.47
ENG_UD24363_1
Ordinateur de bord : messages d’alerte (E33 - X33 - Renault)
ENG_NU_865-6_E33_Renault_1
These appear with the ® warning light and require you to stop immediately, for your own safety, as soon as traffic
conditions allow. Stop your engine and do not restart it. Contact an approved Dealer.
Examples of warning messages are given in the following pages. Note: the messages appear on the display either individually
or alternately (when there are several messages to be displayed), and may be accompanied by a warning light and/or a beep.
Examples of messages Interpretation of messages
“INJECTION FAULT” Indicates that the vehicle has a serious engine fault.
“STEERING FAULT” Indicates a fault in the vehicle’s power-assisted steering.
“LOW BATTERY” Indicates a fault with the battery charging circuit.
“BRAKING FAULT” Indicates a fault in the braking circuit.
“OIL pRESSURE FAULT” Indicates an oil pressure fault.
“ENGINE OVERHEATING” Indicates that the engine is overheating.
TRIp COMpUTER : warning messages
Page 54 of 185
steering wheeladjustment ...................................... (up to the end of the DU)
power-assisted steering ........................(up to the end of the DU)
power-assisted steering ........................(up to the end of the DU)
1.48
ENG_UD11167_1
Volant de direction (E33 - X33 - Renault)
ENG_NU_865-6_E33_Renault_1
Operating faults
The steering may become stiff when
driving or when the steering wheel is
turned repeatedly. This is due to the
power assistance overheating. In this
case, it must be allowed to cool down.power-assisted steering
Variable power-assisted steering
The variable power-assisted steering
system is equipped with an electronic
control system which alters the level of
assistance to suit the vehicle speed.
Steering is made easier during parking
manoeuvres (for added comfort) whilst
the force needed to steer increases
progressively as the speed rises (for
enhanced safety at high speeds).
Steering wheel
Power-assisted steering
STEERING WHEEL/pOWER-ASSISTED STEERING
Never leave the steering wheel at
full lock while stationary.
Never switch off the igni -
tion when travelling down -
hill, and avoid doing so in
normal driving (assistance
is not provided).
With the engine switched off, or if
there is a system fault, it is still pos-
sible to turn the steering wheel. The
force required will be greater.
Adjusting the steering wheel
Depending on the vehicle, the steering
wheel position is adjustable.
Hold the steering wheel with one hand,
lift lever 1 and position the steering
wheel as desired. Lower the lever to
lock the steering wheel.
Make sure that the steering wheel is
correctly locked.
For safety reasons, only
adjust the steering wheel
when the vehicle is station-
ary.
1
Page 75 of 185
JauneNoirNoir texte
2.11
ENG_UD11192_1
Dispositifs de correction de conduite (E33 - X33 - Renault)
ENG_NU_865-6_E33_Renault_2

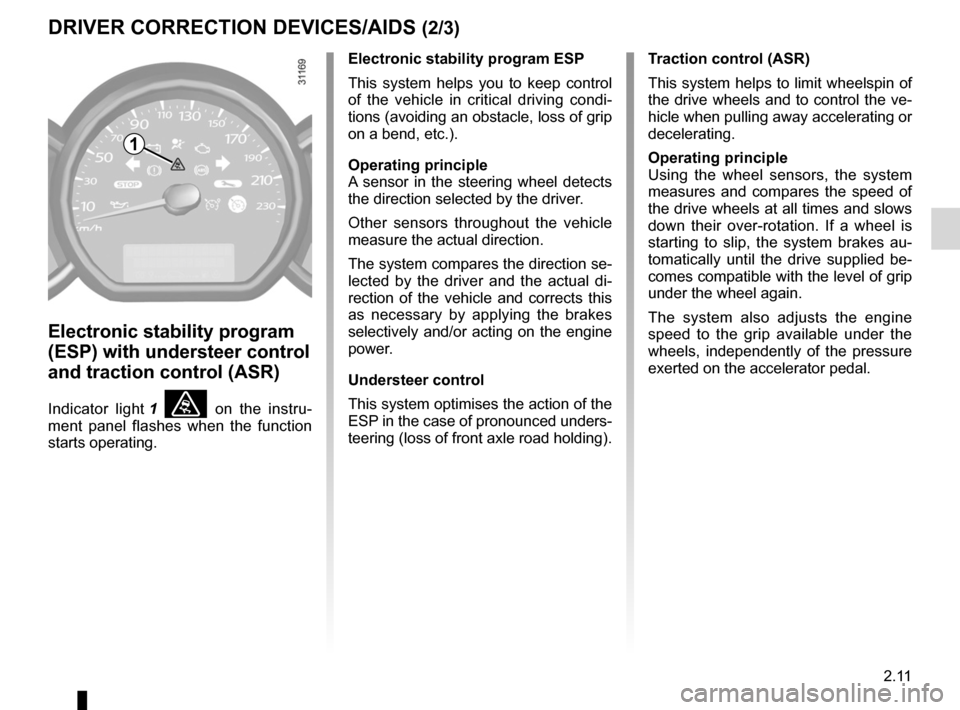

DRIVER coRREctIoN DEVIcES/AIDS (2/3)
Electronic stability program
(ESP) with understeer control
and traction control (ASR)
Indicator light 1 ù on the instru -
ment panel flashes when the function
starts operating. Electronic stability program ESP
This system helps you to keep control
of the vehicle in critical driving condi
-
tions (avoiding an obstacle, loss of grip
on a bend, etc.).
operating principle
A sensor in the steering wheel detects
the direction selected by the driver.
Other sensors throughout the vehicle
measure the actual direction.
The system compares the direction se-
lected by the driver and the actual di -
rection of the vehicle and corrects this
as necessary by applying the brakes
selectively and/or acting on the engine
power.
Understeer control
This system optimises the action of the
ESP in the case of pronounced unders -
teering (loss of front axle road holding). t
raction control (ASR)
This system helps to limit wheelspin of
the drive wheels and to control the ve-
hicle when pulling away accelerating or
decelerating.
operating principle
Using the wheel sensors, the system
measures and compares the speed of
the drive wheels at all times and slows
down their over-rotation. If a wheel is
starting to slip, the system brakes au -
tomatically until the drive supplied be -
comes compatible with the level of grip
under the wheel again.
The system also adjusts the engine
speed to the grip available under the
wheels, independently of the pressure
exerted on the accelerator pedal.
1
Page 146 of 185
5.20
ENG_UD24358_4
Fusibles (E33 - X33 - Renault)
ENG_NU_865-6_E33_Renault_5
Jaune NoirNoir texte
allocation of fuses (dePendIng On tHe eQuIPment LeVeL)
Fuses (2/3)
numbers allocation numbersallocation numbersallocation
1 and 2 Windscreen wiper. 11Direction indicator lights/
Diagnostic socket. 19Location reserved for
additional equipment.
3 Power-assisted steering. 12Power supply/Instrument
panel. 20
Front and rear fog lights.
4 Location reserved for
additional equipment. 13
Dipped beam headlights.
21Main beam headlights/
Horn.
14 Central door locking
5 Brake light/Speed limiter. 15Side lights.
22Location reserved for
additional equipment.
6 Reversing lights/door mirror
control/alarm siren. 16Location reserved for
additional equipment.
7 Air bag.
17Heated rear screen/Heated
door mirrors. 23
Electric windows.
24 Location reserved for
additional equipment.
8 Passenger compartment
electrical unit/transponder.
9 Injection/fuel pump. 18Interior lighting/courtesy
light/automatic climate
control. 25
Dipped beam headlights/
rear fog light.
10 ABS/ASR/ESP 26Sunroof.
Page 157 of 185
JauneNoirNoir texte
5.31
ENG_UD20505_2
Anomalie de fonctionnement (E33 - X33 - Renault)
ENG_NU_865-6_E33_Renault_5
OPeratIng F auLts (4/7)
On the road POssIBLe causesWHat tO dO
Steering becomes heavy. Assistance overheating.Leave to cool.
Faulty power-assisted steering. Consult an approved dealer.
The engine overheats. The coolant
temperature warning light comes on (or
the indicator needle is in the red area). Coolant pump: belt stretched or
broken.
Engine cooling fan not working.Stop the vehicle, switch off the engine and
contact an approved Dealer.
Coolant leaks. Check the condition of hoses and the
tightness of the clips.
Check the expansion bottle: it should
contain coolant. If it does not, top it up
(once it has cooled). Take care not
to scald yourself. This action is only
temporary; consult your approved Dealer
as soon as possible.
radiator: If there is a significant lack of coolant, remember that it must never be topped up using cold coolant while
the engine is very warm. After any procedure on the vehicle which has involved even partial draining of the cooling
system, it must be refilled with a new mixture prepared in the correct proportions. Reminder: only products approved
by our Technical Department may be used for this purpose.
Page 181 of 185
JauneNoirNoir texte
7.3
FRA_UD30001_7
Index (E33 - X33 - Renault)
ENG_NU_865-6_E33_Renault_7
AlphAbeticAl index (3/4)
l
levels:
brake fluid ...................................................................... 4.8
coolant .................................................................. 1.38, 4.7
fuel ............................................................................... 1.38
windscreen washer reservoir ......................................... 4.9
lifting the vehicle changing a wheel .................................................. 5.7 – 5.8
lighting: exterior .............................................................. 1.52 – 1.53
instrument panel .......................................................... 1.52
interior ...................................................... 3.20, 5.17 – 5.18
lights mobile directional ......................................................... 1.53
lights: brake lights .................................................................. 5.14
dipped beam headlights ...................................... 1.34, 1.52
direction indicators ..................................... 1.34, 1.51, 5.14
fog lights ............................................................. 1.34, 5.14
hazard warning ............................................................ 1.51
main beam headlights ......................................... 1.34, 1.53
number plate lights ...................................................... 5.15
reversing lights ............................................................. 5.14
side lights ............................................................ 1.52, 5.14
locking the doors .............................................. 1.2 → 1.7, 1.10
M
maintenance ........................................................................ 2.6
maintenance: bodywork .......................................................... 4.12 – 4.13
interior trim ........................................................ 4.14 – 4.15
mechanical .........................................4.2 – 4.3, 6.8 → 6.13
mileage before service ....................................... 6.8 → 6.13
map reading lights ............................................................. 3.20
methods of restraint in addition to the front seat belts ..............
1.15 → 1.17 methods of restraint in addition to the seat belts
... 1.15 → 1.19
multimedia equipment ....................................................... 3.26
n
navigation .......................................................................... 3.26
navigation system .............................................................. 3.26
O
oil change .................................................................. 4.4 → 4.6
opening the doors ....................................................... 1.6 – 1.7
operating faults ................................ 1.34 → 1.37, 5.28 → 5.34
p
paintwork maintenance ..................................................... 4.12 – 4.13
reference ........................................................................ 6.2
power-assisted steering ..................................................... 1.48
practical advice .................................... 2.6 → 2.8, 5.28 → 5.34
pretensioners ..................................................................... 1.15
puncture .............................................................. 5.2, 5.6 → 5.8
R
radio................................................................................... 3.26
rear screen demisting ....................................................................... 3.9
rear screen de-icing/demisting .......................................... 3.15
rear view mirrors ................................................................ 1.50
RENAULT ANTI-INTRUDER DEVICE (RAID) ...................1.10
replacement parts ................................................................ 6.7
reverse gear selecting ......................................................................... 2.5
running in ............................................................................. 2.2
S
seat belt pretensioners .......................................... 1.15 → 1.17
seat belts ............................................................... 1.12 → 1.19
Page 182 of 185
7.4
FRA_UD30001_7
Index (E33 - X33 - Renault)
ENG_NU_865-6_E33_Renault_7
Jaune NoirNoir texte
AlphAbeticAl index (4/4)
see-me-home lighting ........................................................ 1.53
service sheets .......................................................... 6.8 → 6.13
side indicator lights changing bulbs ............................................................. 5.15
side protection devices ...................................................... 1.18
signals and lights .................................................... 1.52 – 1.53
special features of petrol vehicles ....................................... 2.4
speed limiter .......................................................... 2.13 → 2.15
starting the engine ............................................................... 2.3
steering wheel adjustment ................................................................... 1.48
storage compartment .............................................. 3.21 – 3.22
storage compartments ............................................ 3.21 – 3.22
sun visor ............................................................................ 3.20
sunroof ............................................................................... 3.19
t
tailgate ............................................................................... 3.24
tanks and reservoirs brake fluid ...................................................................... 4.8
coolant ........................................................................... 4.7
tanks and reservoirs: windscreen washer ........................................................ 4.9
technical specifications .............................. 6.2 → 6.4, 6.6 – 6.7
telephone ........................................................................... 3.26
temperature regulation .......................................... 3.12 → 3.18
tool kit .................................................................................. 5.6
towing breakdown ................................................................... 5.27
towing equipment ......................................................... 3.25
towing a caravan ........................................................ 3.25, 6.6
towing equipment fitting ............................................................................ 3.25
towing hitch ........................................................................ 5.27
towing rings ..................................................... 1.21, 1.23, 3.25
towing weights ..................................................................... 6.6traction control: ASR
.............................................. 2.10 → 2.12
transporting children .......................... 1.20 – 1.21, 1.23 → 1.26
transporting objects in the luggage compartment ........................................ 3.25
trims ..................................................................................... 5.6
trip computer and warning system ................1.34 → 1.37, 1.40
tyre inflation kit ........................................................... 5.3 → 5.5
tyre pressure ............................................................. 4.10, 5.10
tyre pressures .................................................................... 4.10
tyres ......................................................... 2.8, 4.10, 5.9 → 5.11
V
variable power-assisted steering ....................................... 1.35
vehicle identification ................................................... 6.2 – 6.3
vehicle identification plates ......................................... 6.2 – 6.3
ventilation ................................................................ 3.8 → 3.18
W
warning buzzer .................................................. 1.6, 1.51, 1.53
warning lights ................................................ 1.34 → 1.37, 1.40
washing .................................................................. 4.12 – 4.13
weights ................................................................................ 6.6
wheelbrace .......................................................................... 5.6
wheels (safety) ........................................................ 5.9 → 5.11
windscreen de-icing/demisting .......................................... 3.15
windscreen washer .......................................... 1.54 – 1.55, 4.9
windscreen washer/wiper ....................................... 1.54 – 1.55
wiper blades ...................................................................... 5.26
wipers ..................................................................... 1.54 – 1.55
blades .......................................................................... 5.26
