CHILD SAFETY: deactivating, activating the front passenger airbag (1/3)
Deactivating the front
passenger airbags
(on equipped vehicles)
You must  deactivate the devices in ad-
dition to the fron

Page 62 of 220

RENAULT ZOE 2017 1.G Repair Manual 1.56
3
CHILD SAFETY: deactivating, activating the front passenger airbag (2/3)
The markings on the dashboard and
labels A on each side of the passen-
ger sun visor  3 (example: label shown
above) re

Page 63 of 220

RENAULT ZOE 2017 1.G Repair Manual 1.57
CHILD SAFETY: deactivating, activating the front passenger airbag (3/3)
Activating the front
passenger air bags
You should reactivate the airbags as
soon as you remove the child seat from
the

Page 64 of 220

RENAULT ZOE 2017 1.G Repair Manual 1.58
DRIVING POSITION: LEFT-HAND DRIVE (1/2)
1234571221
131416
19
15
18
21
24
23222520
89106
17
11

Page 65 of 220

RENAULT ZOE 2017 1.G Repair Manual 1.59
DRIVING POSITION: LEFT-HAND DRIVE (2/2)
The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY.
1 Side air vent.
2  Side window demister outlet.
3 Stalk for:
–  direction ind

Page 66 of 220

RENAULT ZOE 2017 1.G Repair Manual 1.60
DRIVING POSITION: RIGHT-HAND DRIVE (1/2)
231011
19
182
13
20
12
14
5
15
1
23
7
18
9
21
2224
25
6
1617
4

Page 67 of 220

RENAULT ZOE 2017 1.G Repair Manual 1.61
DRIVING POSITION: RIGHT-HAND DRIVE (2/2)
The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY.
1 Side air vent.
2  Side window demister outlet.
3  Location for passenger air

Page 68 of 220

RENAULT ZOE 2017 1.G Repair Manual 1.62
Instrument panel A : lights up when
the headlamps are switched on. The
brightness can be adjusted by turning
the control knob  1.
In some cases, the appearance of a
warning light is accompani

Page 69 of 220

RENAULT ZOE 2017 1.G Repair Manual 1.63

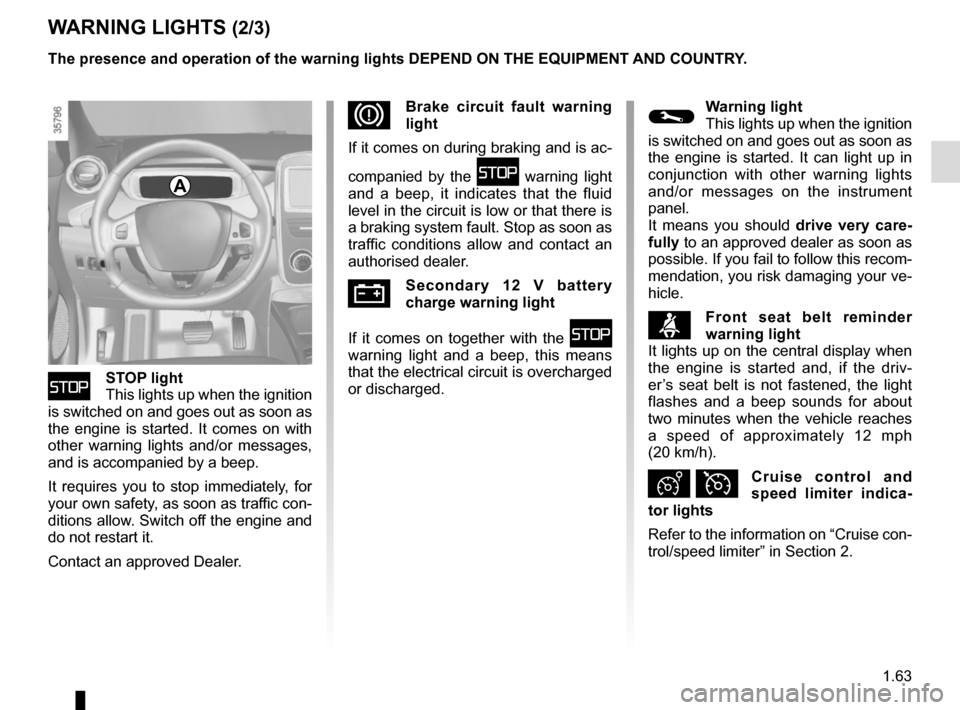

WARNING LIGHTS (2/3)
ûSTOP light
This lights up when the ignition
is switched on and goes out as soon as
the engine is started. It comes on with
other warning lights and/or messages,
and is

Page 70 of 220

RENAULT ZOE 2017 1.G Repair Manual 1.64
Electrotechnical system
warning light
When the warning light comes on, this
indicates that the traction battery tem-
perature is too low or that the engine or
traction battery temperature i
