SAAB 9-2X 2006 Owners Manual
Manufacturer: SAAB, Model Year: 2006, Model line: 9-2X, Model: SAAB 9-2X 2006Pages: 322, PDF Size: 11.42 MB
Page 261 of 322
Maintenance and service
11 - 2 3
11
– CONTINUED –

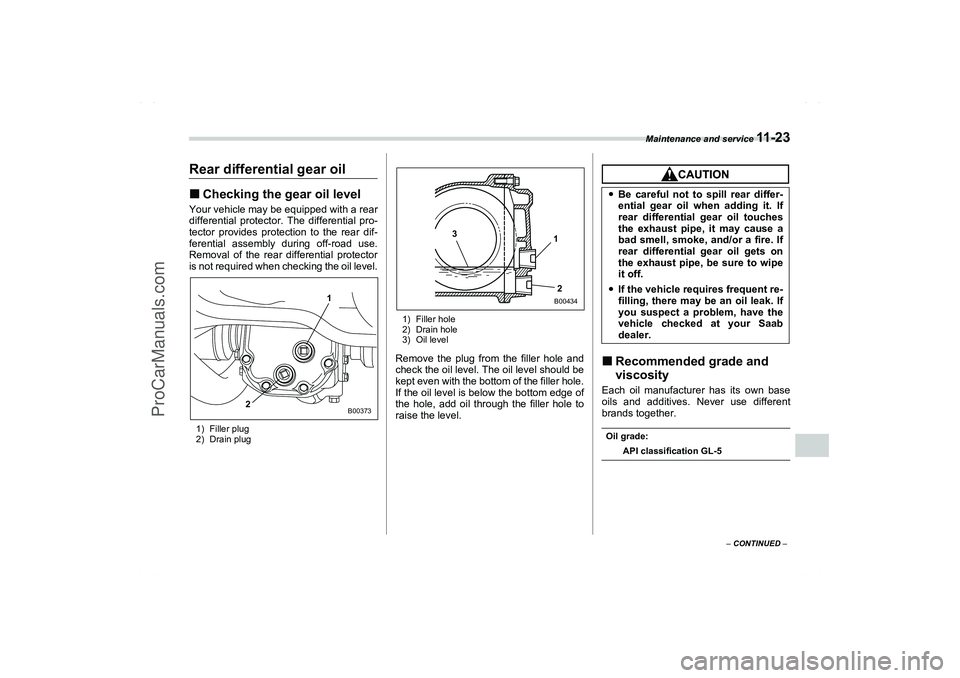

Rear differential gear oilChecking the gear oil levelYour vehicle may be equipped with a rear
differential protector. The differential pro-
tector provides protection to the rear dif-
ferential assembly during off-road use.
Removal of the rear differential protector
is not required when checking the oil level.1) Filler plug
2) Drain plug1) Filler hole
2) Drain hole
3) Oil level
Remove the plug from the filler hole and
check the oil level. The oil level should be
kept even with the bottom of the filler hole.
If the oil level is below the bottom edge of
the hole, add oil through the filler hole to
raise the level.
Recommended grade and
viscosityEach oil manufacturer has its own base
oils and additives. Never use different
brands together.Oil grade:
API classification GL-5
21
B00373
3
1
2
B00434
Be careful not to spill rear differ-
ential gear oil when adding it. If
rear differential gear oil touches
the exhaust pipe, it may cause a
bad smell, smoke, and/or a fire. If
rear differential gear oil gets on
the exhaust pipe, be sure to wipe
it off.
If the vehicle requires frequent re-
filling, there may be an oil leak. If
you suspect a problem, have the
vehicle checked at your Saab
dealer.
A1910BE-A-GSAAB.book Page 23 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

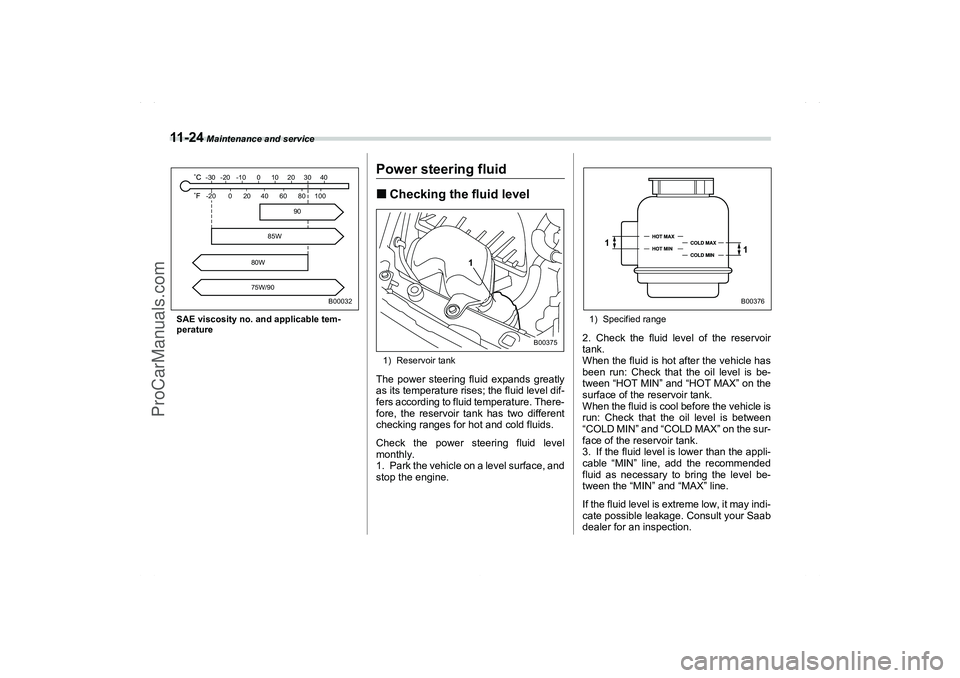

Page 262 of 322
11 - 2 4
Maintenance and service
SAE viscosity no. and applicable tem-
perature
Power steering fluidChecking the fluid level1) Reservoir tankThe power steering fluid expands greatly
as its temperature rises; the fluid level dif-
fers according to fluid temperature. There-
fore, the reservoir tank has two different
checking ranges for hot and cold fluids.
Check the power steering fluid level
monthly.
1. Park the vehicle on a level surface, and
stop the engine.
1) Specified range2. Check the fluid level of the reservoir
tank.
When the fluid is hot after the vehicle has
been run: Check that the oil level is be-
tween “HOT MIN” and “HOT MAX” on the
surface of the reservoir tank.
When the fluid is cool before the vehicle is
run: Check that the oil level is between
“COLD MIN” and “COLD MAX” on the sur-
face of the reservoir tank.
3. If the fluid level is lower than the appli-
cable “MIN” line, add the recommended
fluid as necessary to bring the level be-
tween the “MIN” and “MAX” line.
If the fluid level is extreme low, it may indi-
cate possible leakage. Consult your Saab
dealer for an inspection.
-30 -20 -10 0 10 20 30 40
-20 0 6020
80W
75W/9080 100 40
85W90
B00032
1
B00375
1
1
B00376
A1910BE-A-GSAAB.book Page 24 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com
Page 263 of 322
Maintenance and service
11 - 2 5
11
– CONTINUED –

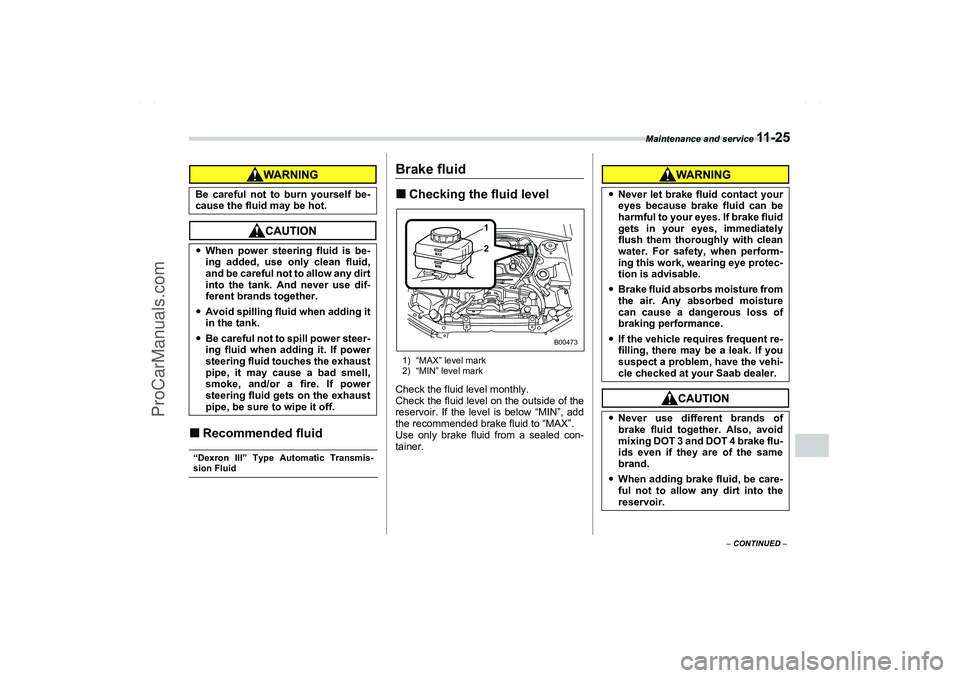

Recommended fluid“Dexron III” Type Automatic Transmis-sion Fluid
Brake fluidChecking the fluid level1) “MAX” level mark
2) “MIN” level markCheck the fluid level monthly.
Check the fluid level on the outside of the
reservoir. If the level is below “MIN”, add
the recommended brake fluid to “MAX”.
Use only brake fluid from a sealed con-
tainer.
Be careful not to burn yourself be-
cause the fluid may be hot.
When power steering fluid is be-
ing added, use only clean fluid,
and be careful not to allow any dirt
into the tank. And never use dif-
ferent brands together.
Avoid spilling fluid when adding it
in the tank.
Be careful not to spill power steer-
ing fluid when adding it. If power
steering fluid touches the exhaust
pipe, it may cause a bad smell,
smoke, and/or a fire. If power
steering fluid gets on the exhaust
pipe, be sure to wipe it off.
MAXMINMIN
1
2
B00473
Never let brake fluid contact your
eyes because brake fluid can be
harmful to your eyes. If brake fluid
gets in your eyes, immediately
flush them thoroughly with clean
water. For safety, when perform-
ing this work, wearing eye protec-
tion is advisable.
Brake fluid absorbs moisture from
the air. Any absorbed moisture
can cause a dangerous loss of
braking performance.
If the vehicle requires frequent re-
filling, there may be a leak. If you
suspect a problem, have the vehi-
cle checked at your Saab dealer.
Never use different brands of
brake fluid together. Also, avoid
mixing DOT 3 and DOT 4 brake flu-
ids even if they are of the same
brand.
When adding brake fluid, be care-
ful not to allow any dirt into the
reservoir.
A1910BE-A-GSAAB.book Page 25 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com
Page 264 of 322
11 - 2 6
Maintenance and service

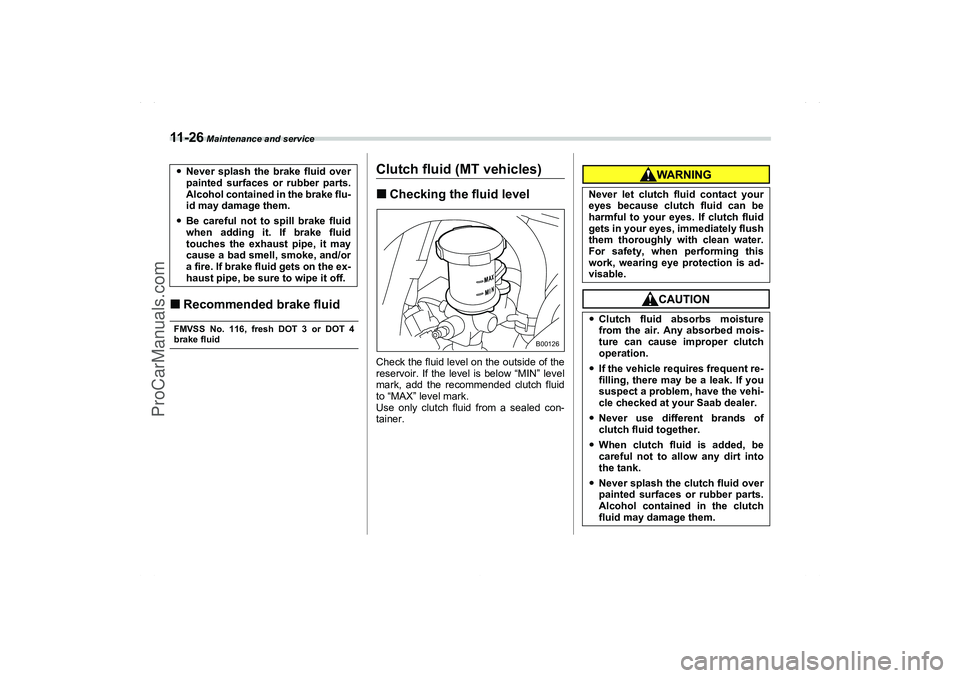

Recommended brake fluidFMVSS No. 116, fresh DOT 3 or DOT 4brake fluid
Clutch fluid (MT vehicles)Checking the fluid levelCheck the fluid level on the outside of the
reservoir. If the level is below “MIN” level
mark, add the recommended clutch fluid
to “MAX” level mark.
Use only clutch fluid from a sealed con-
tainer.
Never splash the brake fluid over
painted surfaces or rubber parts.
Alcohol contained in the brake flu-
id may damage them.
Be careful not to spill brake fluid
when adding it. If brake fluid
touches the exhaust pipe, it may
cause a bad smell, smoke, and/or
a fire. If brake fluid gets on the ex-
haust pipe, be sure to wipe it off.
B00126
Never let clutch fluid contact your
eyes because clutch fluid can be
harmful to your eyes. If clutch fluid
gets in your eyes, immediately flush
them thoroughly with clean water.
For safety, when performing this
work, wearing eye protection is ad-
visable.
Clutch fluid absorbs moisture
from the air. Any absorbed mois-
ture can cause improper clutch
operation.
If the vehicle requires frequent re-
filling, there may be a leak. If you
suspect a problem, have the vehi-
cle checked at your Saab dealer.
Never use different brands of
clutch fluid together.
When clutch fluid is added, be
careful not to allow any dirt into
the tank.
Never splash the clutch fluid over
painted surfaces or rubber parts.
Alcohol contained in the clutch
fluid may damage them.
A1910BE-A-GSAAB.book Page 26 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com
Page 265 of 322
Maintenance and service
11 - 2 7
11
– CONTINUED –

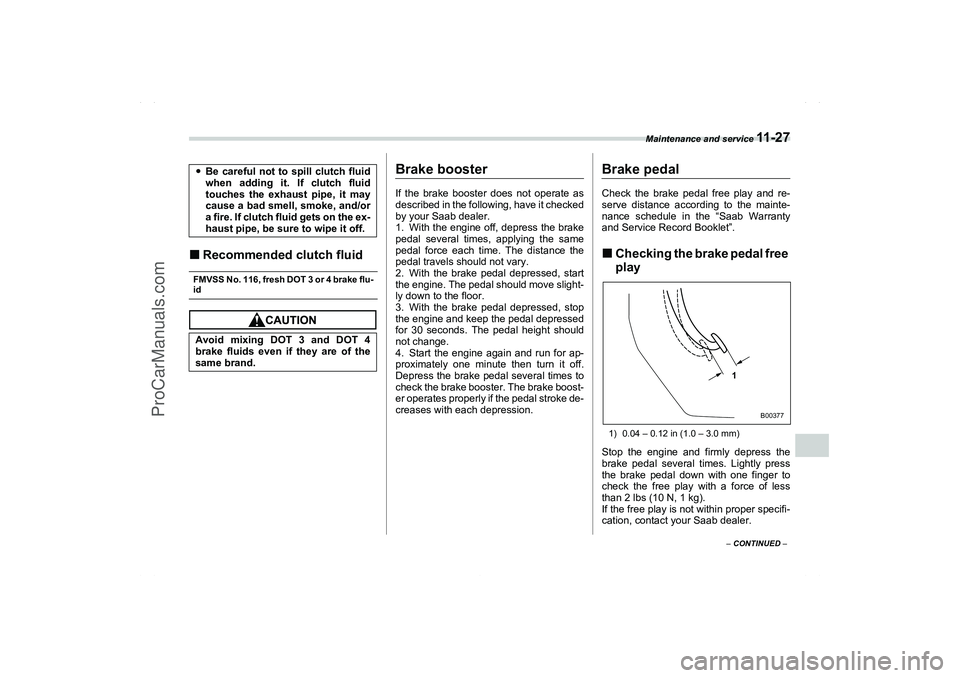

Recommended clutch fluidFMVSS No. 116, fresh DOT 3 or 4 brake flu-id
Brake boosterIf the brake booster does not operate as
described in the following, have it checked
by your Saab dealer.
1. With the engine off, depress the brake
pedal several times, applying the same
pedal force each time. The distance the
pedal travels should not vary.
2. With the brake pedal depressed, start
the engine. The pedal should move slight-
ly down to the floor.
3. With the brake pedal depressed, stop
the engine and keep the pedal depressed
for 30 seconds. The pedal height should
not change.
4. Start the engine again and run for ap-
proximately one minute then turn it off.
Depress the brake pedal several times to
check the brake booster. The brake boost-
er operates properly if the pedal stroke de-
creases with each depression.
Brake pedalCheck the brake pedal free play and re-
serve distance according to the mainte-
nance schedule in the “Saab Warranty
and Service Record Booklet”.Checking the brake pedal free
play1) 0.04 – 0.12 in (1.0 – 3.0 mm)Stop the engine and firmly depress the
brake pedal several times. Lightly press
the brake pedal down with one finger to
check the free play with a force of less
than 2 lbs (10 N, 1 kg).
If the free play is not within proper specifi-
cation, contact your Saab dealer. Be careful not to spill clutch fluid
when adding it. If clutch fluid
touches the exhaust pipe, it may
cause a bad smell, smoke, and/or
a fire. If clutch fluid gets on the ex-
haust pipe, be sure to wipe it off.
Avoid mixing DOT 3 and DOT 4
brake fluids even if they are of the
same brand.
1
B00377
A1910BE-A-GSAAB.book Page 27 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com
Page 266 of 322
11 - 2 8
Maintenance and service

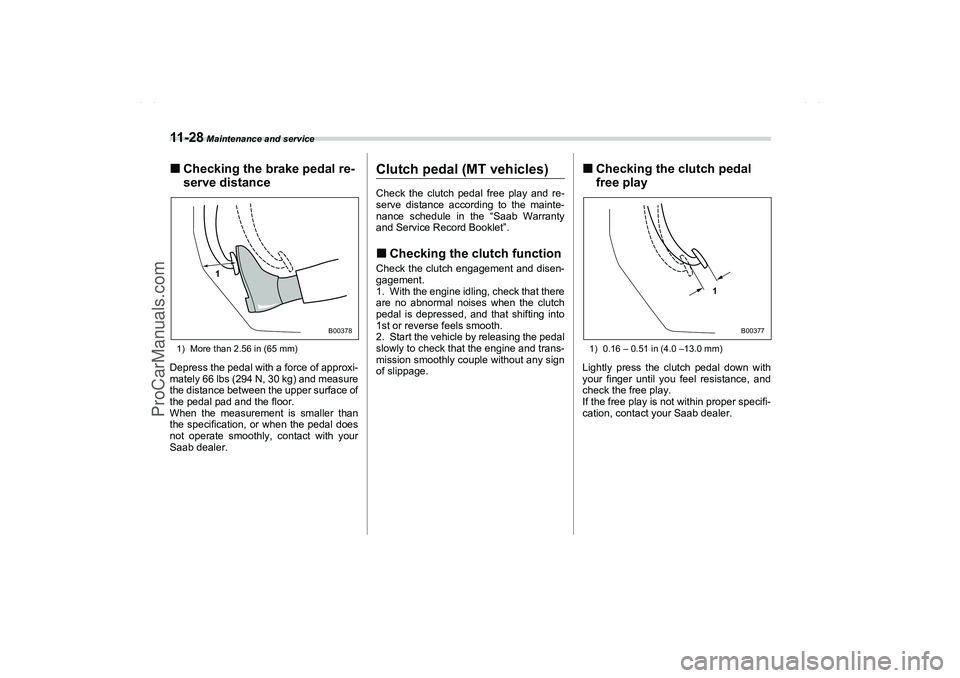

Checking the brake pedal re-
serve distance1) More than 2.56 in (65 mm)Depress the pedal with a force of approxi-
mately 66 lbs (294 N, 30 kg) and measure
the distance between the upper surface of
the pedal pad and the floor.
When the measurement is smaller than
the specification, or when the pedal does
not operate smoothly, contact with your
Saab dealer.
Clutch pedal (MT vehicles)Check the clutch pedal free play and re-
serve distance according to the mainte-
nance schedule in the “Saab Warranty
and Service Record Booklet”.Checking the clutch functionCheck the clutch engagement and disen-
gagement.
1. With the engine idling, check that there
are no abnormal noises when the clutch
pedal is depressed, and that shifting into
1st or reverse feels smooth.
2. Start the vehicle by releasing the pedal
slowly to check that the engine and trans-
mission smoothly couple without any sign
of slippage.
Checking the clutch pedal
free play1) 0.16 – 0.51 in (4.0 –13.0 mm)Lightly press the clutch pedal down with
your finger until you feel resistance, and
check the free play.
If the free play is not within proper specifi-
cation, contact your Saab dealer.
1
B00378
1
B00377
A1910BE-A-GSAAB.book Page 28 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com
Page 267 of 322
Maintenance and service
11 - 2 9
11
– CONTINUED –

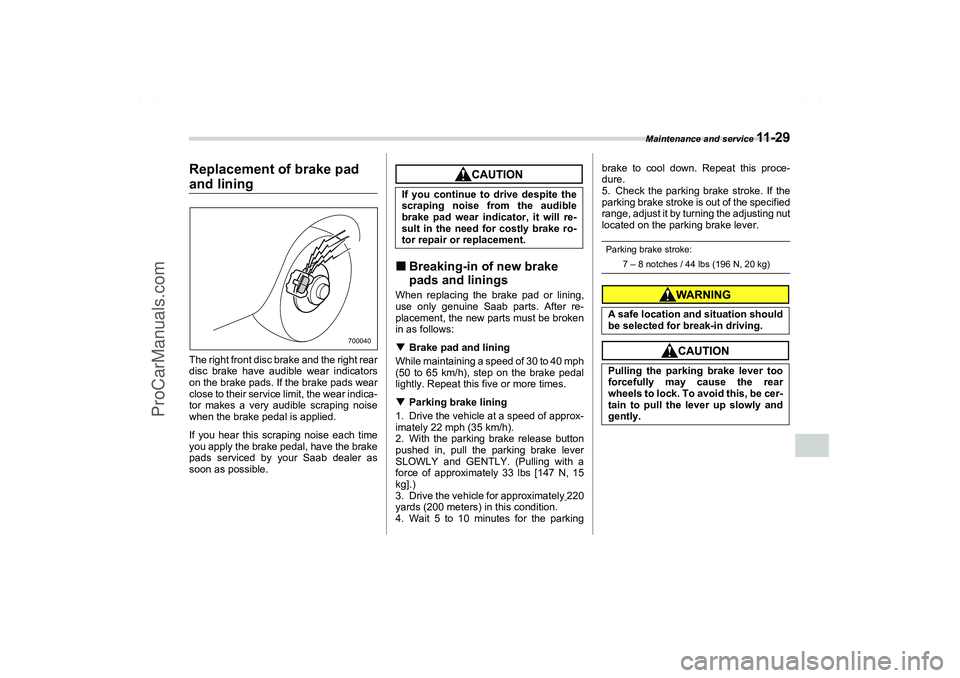

Replacement of brake pad and liningThe right front disc brake and the right rear
disc brake have audible wear indicators
on the brake pads. If the brake pads wear
close to their service limit, the wear indica-
tor makes a very audible scraping noise
when the brake pedal is applied.
If you hear this scraping noise each time
you apply the brake pedal, have the brake
pads serviced by your Saab dealer as
soon as possible.
Breaking-in of new brake
pads and liningsWhen replacing the brake pad or lining,
use only genuine Saab parts. After re-
placement, the new parts must be broken
in as follows:
Brake pad and lining
While maintaining a speed of 30 to 40 mph
(50 to 65 km/h), step on the brake pedal
lightly. Repeat this five or more times.
Parking brake lining
1. Drive the vehicle at a speed of approx-
imately 22 mph (35 km/h).
2. With the parking brake release button
pushed in, pull the parking brake lever
SLOWLY and GENTLY. (Pulling with a
force of approximately 33 lbs [147 N, 15
kg].)
3. Drive the vehicle for approximately
220
yards (200 meters) in this condition.
4. Wait 5 to 10 minutes for the parkingbrake to cool down. Repeat this proce-
dure.
5. Check the parking brake stroke. If the
parking brake stroke is out of the specified
range, adjust it by turning the adjusting nut
located on the parking brake lever.
Parking brake stroke:
7 – 8 notches / 44 lbs (196 N, 20 kg)
700040
If you continue to drive despite the
scraping noise from the audible
brake pad wear indicator, it will re-
sult in the need for costly brake ro-
tor repair or replacement.
A safe location and situation should
be selected for break-in driving.
Pulling the parking brake lever too
forcefully may cause the rear
wheels to lock. To avoid this, be cer-
tain to pull the lever up slowly and
gently.
A1910BE-A-GSAAB.book Page 29 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com
Page 268 of 322

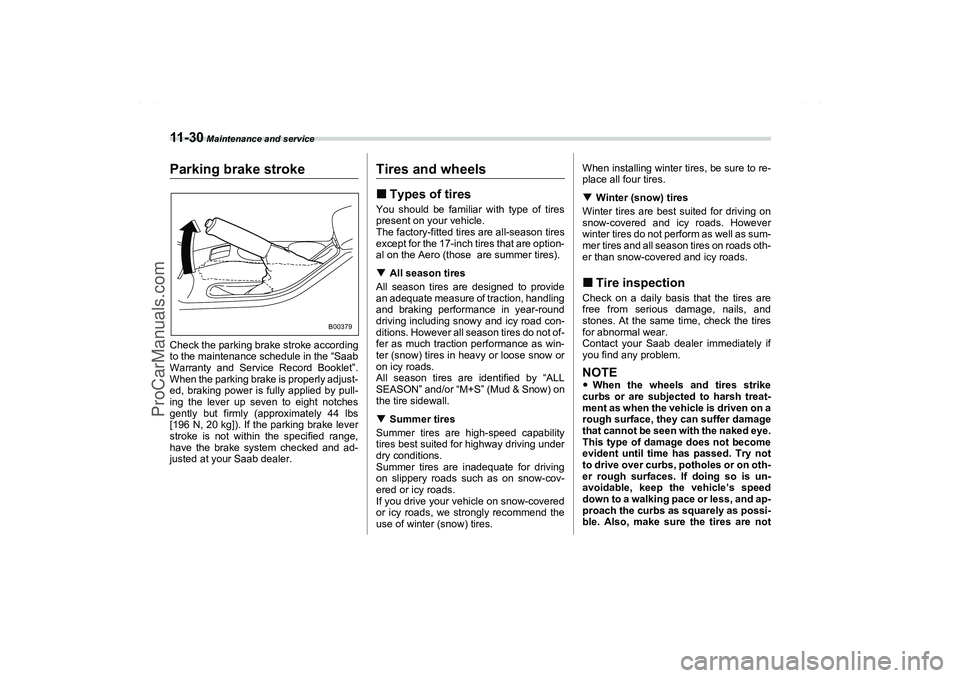

11 - 3 0
Maintenance and service
Parking brake strokeCheck the parking brake stroke according
to the maintenance schedule in the “Saab
Warranty and Service Record Booklet”.
When the parking brake is properly adjust-
ed, braking power is fully applied by pull-
ing the lever up seven to eight notches
gently but firmly (approximately 44 lbs
[196 N, 20 kg]). If the parking brake lever
stroke is not within the specified range,
have the brake system checked and ad-
justed at your Saab dealer.
Tires and wheelsTypes of tiresYou should be familiar with type of tires
present on your vehicle.
The factory-fitted tires are all-season tires
except for the 17-inch tires that are option-
al on the Aero (those are summer tires).
All season tires
All season tires are designed to provide
an adequate measure of traction, handling
and braking performance in year-round
driving including snowy and icy road con-
ditions. However all season tires do not of-
fer as much traction performance as win-
ter (snow) tires in heavy or loose snow or
on icy roads.
All season tires are identified by “ALL
SEASON” and/or “M+S” (Mud & Snow) on
the tire sidewall.
Summer tires
Summer tires are high-speed capability
tires best suited for highway driving under
dry conditions.
Summer tires are inadequate for driving
on slippery roads such as on snow-cov-
ered or icy roads.
If you drive your vehicle on snow-covered
or icy roads, we strongly recommend the
use of winter (snow) tires.When installing winter tires, be sure to re-
place all four tires.
Winter (snow) tires
Winter tires are best suited for driving on
snow-covered and icy roads. However
winter tires do not perform as well as sum-
mer tires and all season tires on roads oth-
er than snow-covered and icy roads.
Tire inspectionCheck on a daily basis that the tires are
free from serious damage, nails, and
stones. At the same time, check the tires
for abnormal wear.
Contact your Saab dealer immediately if
you find any problem.NOTEWhen the wheels and tires strike
curbs or are subjected to harsh treat-
ment as when the vehicle is driven on a
rough surface, they can suffer damage
that cannot be seen with the naked eye.
This type of damage does not become
evident until time has passed. Try not
to drive over curbs, potholes or on oth-
er rough surfaces. If doing so is un-
avoidable, keep the vehicle’s speed
down to a walking pace or less, and ap-
proach the curbs as squarely as possi-
ble. Also, make sure the tires are not
B00379
A1910BE-A-GSAAB.book Page 30 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com
Page 269 of 322

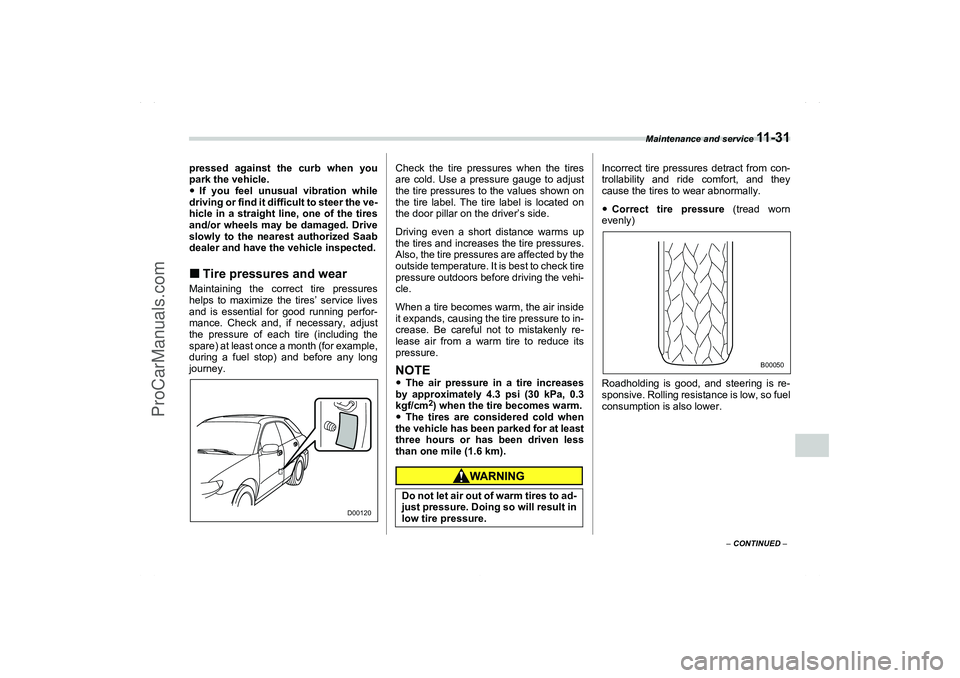

Maintenance and service
11 - 3 1
11
– CONTINUED –
pressed against the curb when you
park the vehicle.
If you feel unusual vibration while
driving or find it difficult to steer the ve-
hicle in a straight line, one of the tires
and/or wheels may be damaged. Drive
slowly to the nearest authorized Saab
dealer and have the vehicle inspected.Tire pressures and wearMaintaining the correct tire pressures
helps to maximize the tires’ service lives
and is essential for good running perfor-
mance. Check and, if necessary, adjust
the pressure of each tire (including the
spare) at least once a month (for example,
during a fuel stop) and before any long
journey.Check the tire pressures when the tires
are cold. Use a pressure gauge to adjust
the tire pressures to the values shown on
the tire label. The tire label is located on
the door pillar on the driver’s side.
Driving even a short distance warms up
the tires and increases the tire pressures.
Also, the tire pressures are affected by the
outside temperature. It is best to check tire
pressure outdoors before driving the vehi-
cle.
When a tire becomes warm, the air inside
it expands, causing the tire pressure to in-
crease. Be careful not to mistakenly re-
lease air from a warm tire to reduce its
pressure.
NOTEThe air pressure in a tire increases
by approximately 4.3 psi (30 kPa, 0.3
kgf/cm
2) when the tire becomes warm.
The tires are considered cold when
the vehicle has been parked for at least
three hours or has been driven less
than one mile (1.6 km).
Incorrect tire pressures detract from con-
trollability and ride comfort, and they
cause the tires to wear abnormally.
Correct tire pressure (tread worn
evenly)
Roadholding is good, and steering is re-
sponsive. Rolling resistance is low, so fuel
consumption is also lower.
D00120
Do not let air out of warm tires to ad-
just pressure. Doing so will result in
low tire pressure.
B00050
A1910BE-A-GSAAB.book Page 31 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com
Page 270 of 322

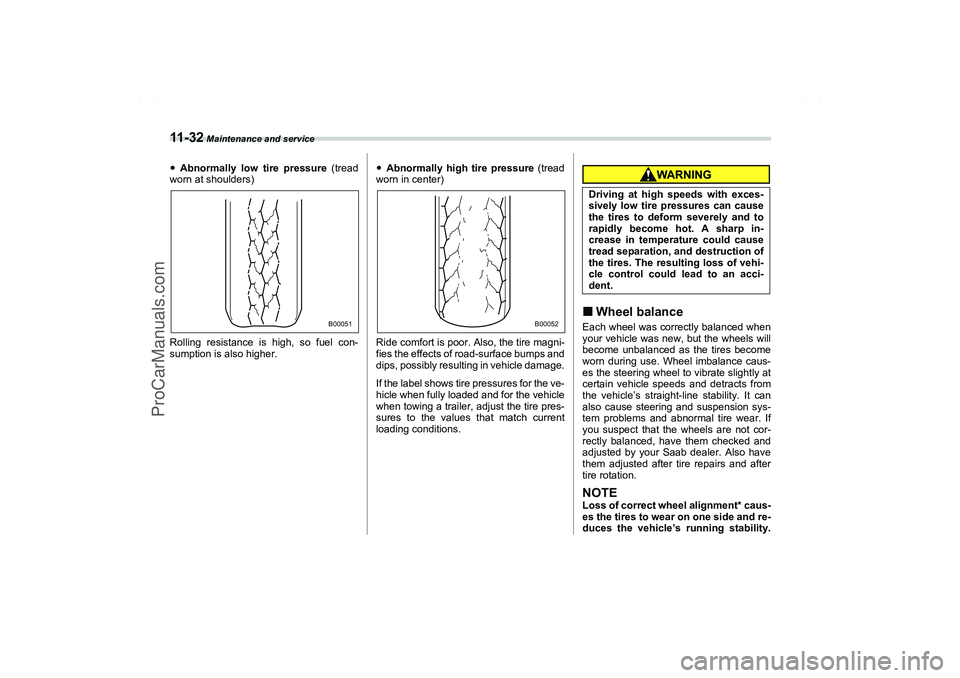

11 - 3 2
Maintenance and service
Abnormally low tire pressure (tread
worn at shoulders)
Rolling resistance is high, so fuel con-
sumption is also higher.Abnormally high tire pressure (tread
worn in center)
Ride comfort is poor. Also, the tire magni-
fies the effects of road-surface bumps and
dips, possibly resulting in vehicle damage.
If the label shows tire pressures for the ve-
hicle when fully loaded and for the vehicle
when towing a trailer, adjust the tire pres-
sures to the values that match current
loading conditions.
Wheel balanceEach wheel was correctly balanced when
your vehicle was new, but the wheels will
become unbalanced as the tires become
worn during use. Wheel imbalance caus-
es the steering wheel to vibrate slightly at
certain vehicle speeds and detracts from
the vehicle’s straight-line stability. It can
also cause steering and suspension sys-
tem problems and abnormal tire wear. If
you suspect that the wheels are not cor-
rectly balanced, have them checked and
adjusted by your Saab dealer. Also have
them adjusted after tire repairs and after
tire rotation.NOTELoss of correct wheel alignment* caus-
es the tires to wear on one side and re-
duces the vehicle’s running stability.
B00051
B00052
Driving at high speeds with exces-
sively low tire pressures can cause
the tires to deform severely and to
rapidly become hot. A sharp in-
crease in temperature could cause
tread separation, and destruction of
the tires. The resulting loss of vehi-
cle control could lead to an acci-
dent.
A1910BE-A-GSAAB.book Page 32 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com
