SAAB 9-2X 2006 Owners Manual

In case of emergency
9-15
9

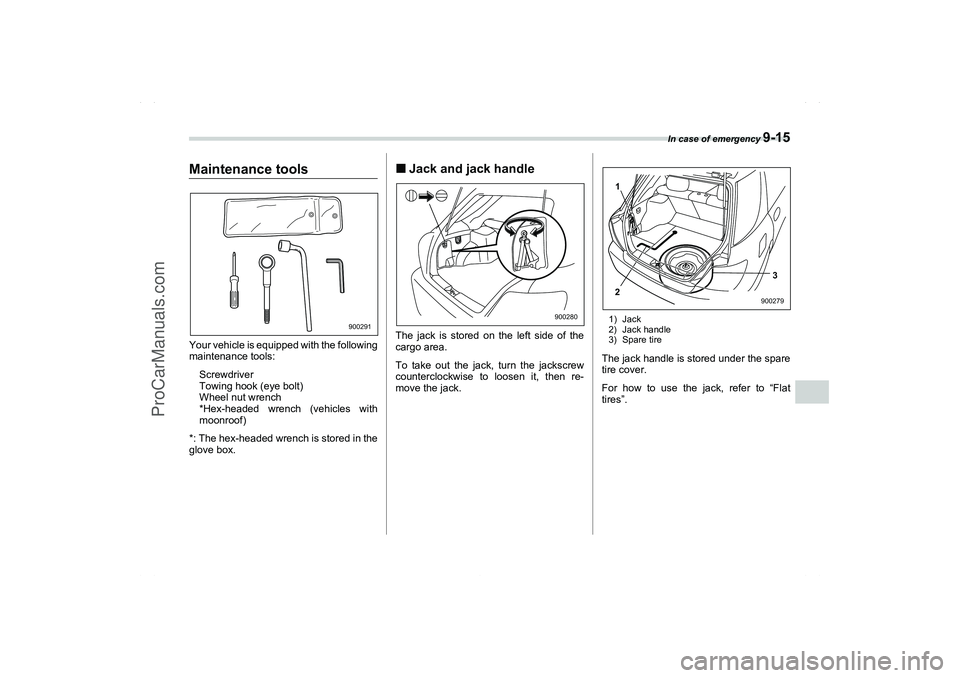

Maintenance toolsYour vehicle is equipped with the following
maintenance tools:
Screwdriver
Towing hook (eye bolt)
Wheel nut wrench
*Hex-headed wrench (vehicles with
moonroof)
*: The hex-headed wrench is stored in the
glove box.

Jack and jack handleThe jack is stored on the left side of the
cargo area.
To take out the jack, turn the jackscrew
counterclockwise to loosen it, then re-
move the jack.
1) Jack
2) Jack handle
3) Spare tireThe jack handle is stored under the spare
tire cover.
For how to use the jack, refer to “Flat
tires”.
900291
900280
23 1
900279
A1910BE-A-GSAAB.book Page 15 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

A1910BE-A-GSAAB.book Page 16 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

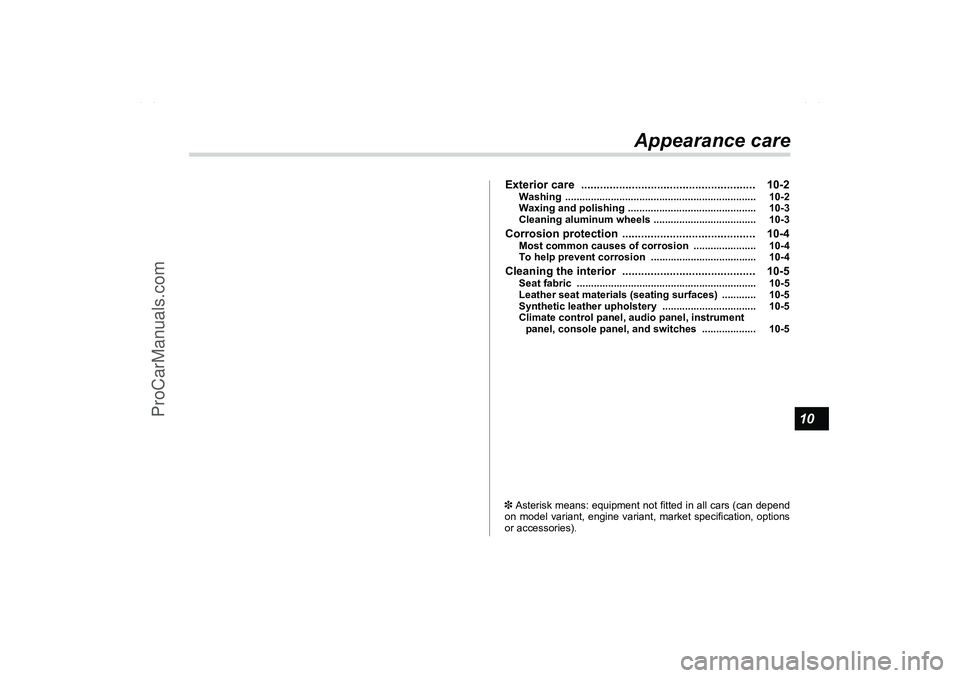

10
Appearance care
Exterior care ....................................................... 10-2
Washing ................................................................... 10-2
Waxing and polishing ............................................. 10-3
Cleaning aluminum wheels .................................... 10-3
Corrosion protection .......................................... 10-4
Most common causes of corrosion ...................... 10-4
To help prevent corrosion ..................................... 10-4
Cleaning the interior .......................................... 10-5
Seat fabric ............................................................... 10-5
Leather seat materials (seating surfaces) ............ 10-5
Synthetic leather upholstery ................................. 10-5
Climate control panel, audio panel, instrument
panel, console panel, and switches ................... 10-5
3 Asterisk means: equipment not fitted in all cars (can depend
on model variant, engine variant, market specification, options
or accessories)
.
A1910BE-A-GSAAB.book Page 1 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

10-2
Appearance care
Appearance care

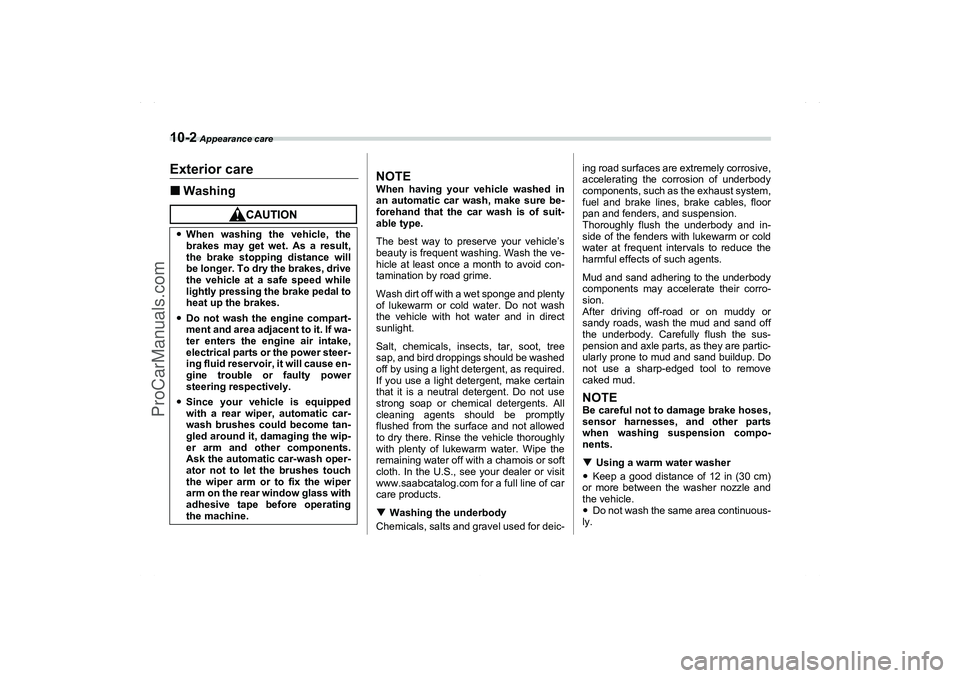

Exterior care
Washing
NOTEWhen having your vehicle washed in
an automatic car wash, make sure be-
forehand that the car wash is of suit-
able type.
The best way to preserve your vehicle’s
beauty is frequent washing. Wash the ve-
hicle at least once a month to avoid con-
tamination by road grime.
Wash dirt off with a wet sponge and plenty
of lukewarm or cold water. Do not wash
the vehicle with hot water and in direct
sunlight.
Salt, chemicals, insects, tar, soot, tree
sap, and bird droppings should be washed
off by using a light detergent, as required.
If you use a light detergent, make certain
that it is a neutral detergent. Do not use
strong soap or chemical detergents. All
cleaning agents should be promptly
flushed from the surface and not allowed
to dry there. Rinse the vehicle thoroughly
with plenty of lukewarm water. Wipe the
remaining water off with a chamois or soft
cloth. In the U.S., see your dealer or visit
www.saabcatalog.com for a full line of car
care products.

Washing the underbody
Chemicals, salts and gravel used for deic-ing road surfaces are extremely corrosive,
accelerating the corrosion of underbody
components, such as the exhaust system,
fuel and brake lines, brake cables, floor
pan and fenders, and suspension.
Thoroughly flush the underbody and in-
side of the fenders with lukewarm or cold
water at frequent intervals to reduce the
harmful effects of such agents.
Mud and sand adhering to the underbody
components may accelerate their corro-
sion.
After driving off-road or on muddy or
sandy roads, wash the mud and sand off
the underbody. Carefully flush the sus-
pension and axle parts, as they are partic-
ularly prone to mud and sand buildup. Do
not use a sharp-edged tool to remove
caked mud.
NOTEBe careful not to damage brake hoses,
sensor harnesses, and other parts
when washing suspension compo-
nents.

Using a warm water washer

Keep a good distance of 12 in (30 cm)
or more between the washer nozzle and
the vehicle.

Do not wash the same area continuous-
ly.
When washing the vehicle, the
brakes may get wet. As a result,
the brake stopping distance will
be longer. To dry the brakes, drive
the vehicle at a safe speed while
lightly pressing the brake pedal to
heat up the brakes.

Do not wash the engine compart-
ment and area adjacent to it. If wa-
ter enters the engine air intake,
electrical parts or the power steer-
ing fluid reservoir, it will cause en-
gine trouble or faulty power
steering respectively.

Since your vehicle is equipped
with a rear wiper, automatic car-
wash brushes could become tan-
gled around it, damaging the wip-
er arm and other components.
Ask the automatic car-wash oper-
ator not to let the brushes touch
the wiper arm or to fix the wiper
arm on the rear window glass with
adhesive tape before operating
the machine.
A1910BE-A-GSAAB.book Page 2 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

Appearance care
10-3
10

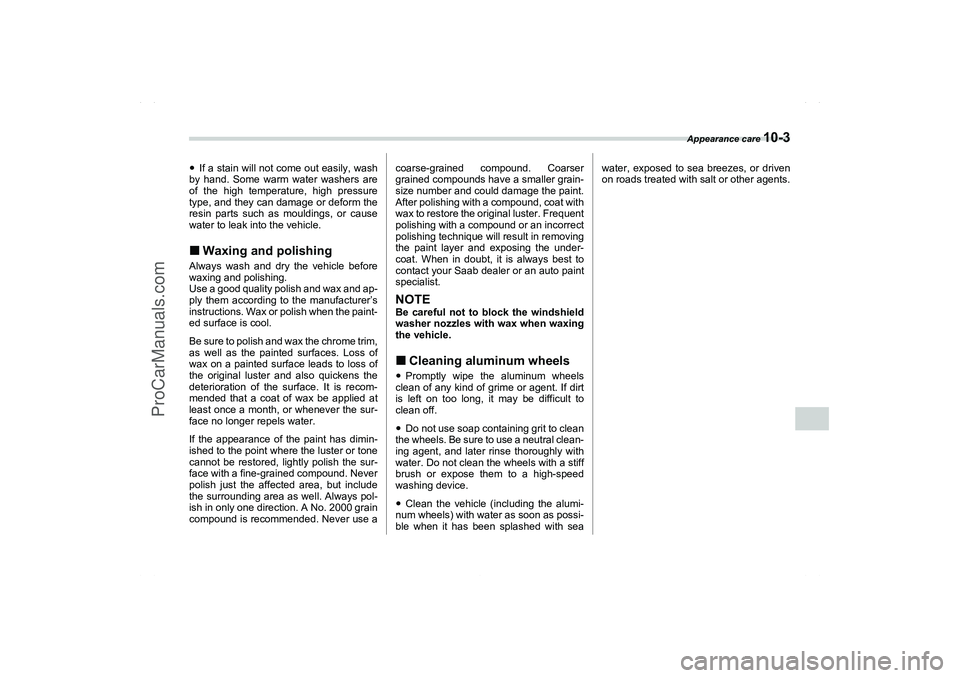

If a stain will not come out easily, wash
by hand. Some warm water washers are
of the high temperature, high pressure
type, and they can damage or deform the
resin parts such as mouldings, or cause
water to leak into the vehicle.
Waxing and polishingAlways wash and dry the vehicle before
waxing and polishing.
Use a good quality polish and wax and ap-
ply them according to the manufacturer’s
instructions. Wax or polish when the paint-
ed surface is cool.
Be sure to polish and wax the chrome trim,
as well as the painted surfaces. Loss of
wax on a painted surface leads to loss of
the original luster and also quickens the
deterioration of the surface. It is recom-
mended that a coat of wax be applied at
least once a month, or whenever the sur-
face no longer repels water.
If the appearance of the paint has dimin-
ished to the point where the luster or tone
cannot be restored, lightly polish the sur-
face with a fine-grained compound. Never
polish just the affected area, but include
the surrounding area as well. Always pol-
ish in only one direction. A No. 2000 grain
compound is recommended. Never use acoarse-grained compound. Coarser
grained compounds have a smaller grain-
size number and could damage the paint.
After polishing with a compound, coat with
wax to restore the original luster. Frequent
polishing with a compound or an incorrect
polishing technique will result in removing
the paint layer and exposing the under-
coat. When in doubt, it is always best to
contact your Saab dealer or an auto paint
specialist.
NOTEBe careful not to block the windshield
washer nozzles with wax when waxing
the vehicle.
Cleaning aluminum wheels
Promptly wipe the aluminum wheels
clean of any kind of grime or agent. If dirt
is left on too long, it may be difficult to
clean off.

Do not use soap containing grit to clean
the wheels. Be sure to use a neutral clean-
ing agent, and later rinse thoroughly with
water. Do not clean the wheels with a stiff
brush or expose them to a high-speed
washing device.

Clean the vehicle (including the alumi-
num wheels) with water as soon as possi-
ble when it has been splashed with seawater, exposed to sea breezes, or driven
on roads treated with salt or other agents.
A1910BE-A-GSAAB.book Page 3 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

10-4
Appearance care

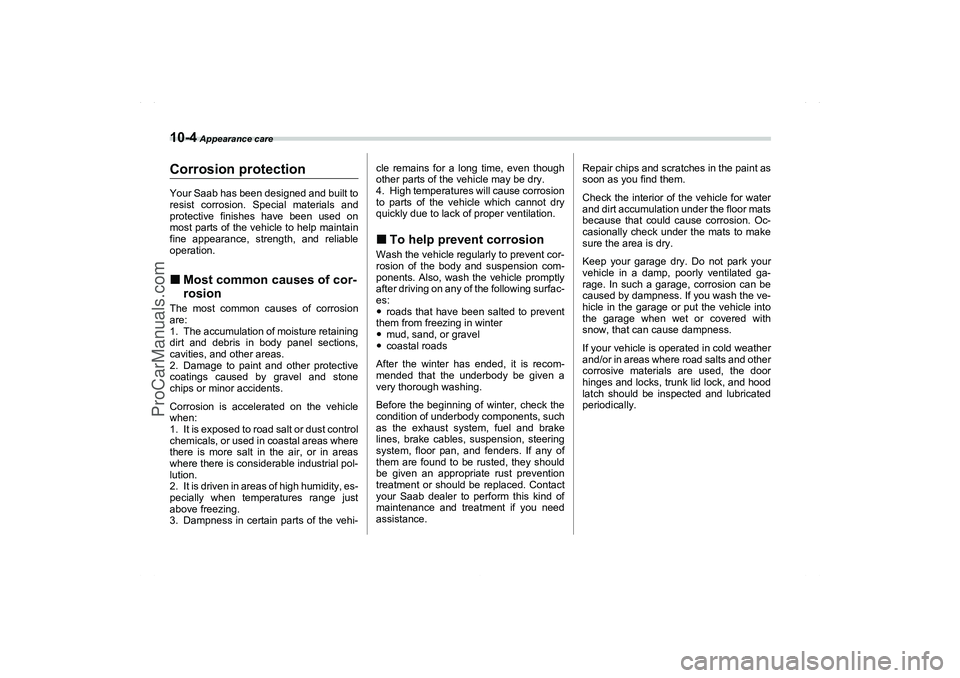

Corrosion protectionYour Saab has been designed and built to
resist corrosion. Special materials and
protective finishes have been used on
most parts of the vehicle to help maintain
fine appearance, strength, and reliable
operation.
Most common causes of cor-
rosionThe most common causes of corrosion
are:
1. The accumulation of moisture retaining
dirt and debris in body panel sections,
cavities, and other areas.
2. Damage to paint and other protective
coatings caused by gravel and stone
chips or minor accidents.
Corrosion is accelerated on the vehicle
when:
1. It is exposed to road salt or dust control
chemicals, or used in coastal areas where
there is more salt in the air, or in areas
where there is considerable industrial pol-
lution.
2. It is driven in areas of high humidity, es-
pecially when temperatures range just
above freezing.
3. Dampness in certain parts of the vehi-cle remains for a long time, even though
other parts of the vehicle may be dry.
4. High temperatures will cause corrosion
to parts of the vehicle which cannot dry
quickly due to lack of proper ventilation.

To help prevent corrosionWash the vehicle regularly to prevent cor-
rosion of the body and suspension com-
ponents. Also, wash the vehicle promptly
after driving on any of the following surfac-
es:

roads that have been salted to prevent
them from freezing in winter

mud, sand, or gravel

coastal roads
After the winter has ended, it is recom-
mended that the underbody be given a
very thorough washing.
Before the beginning of winter, check the
condition of underbody components, such
as the exhaust system, fuel and brake
lines, brake cables, suspension, steering
system, floor pan, and fenders. If any of
them are found to be rusted, they should
be given an appropriate rust prevention
treatment or should be replaced. Contact
your Saab dealer to perform this kind of
maintenance and treatment if you need
assistance.Repair chips and scratches in the paint as
soon as you find them.
Check the interior of the vehicle for water
and dirt accumulation under the floor mats
because that could cause corrosion. Oc-
casionally check under the mats to make
sure the area is dry.
Keep your garage dry. Do not park your
vehicle in a damp, poorly ventilated ga-
rage. In such a garage, corrosion can be
caused by dampness. If you wash the ve-
hicle in the garage or put the vehicle into
the garage when wet or covered with
snow, that can cause dampness.
If your vehicle is operated in cold weather
and/or in areas where road salts and other
corrosive materials are used, the door
hinges and locks, trunk lid lock, and hood
latch should be inspected and lubricated
periodically.
A1910BE-A-GSAAB.book Page 4 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

Appearance care
10-5
10

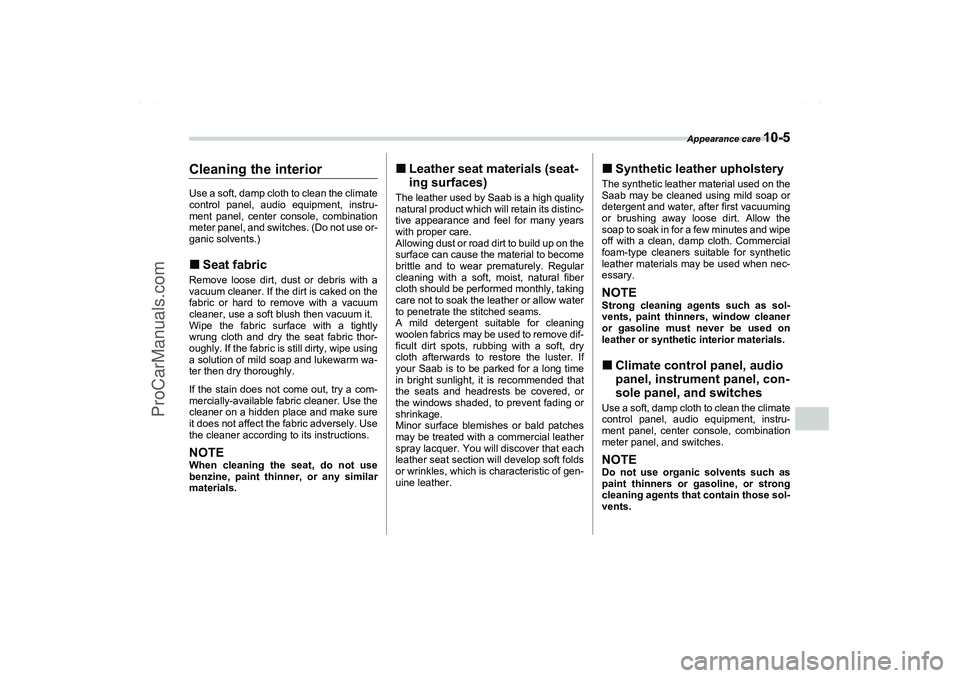

Cleaning the interiorUse a soft, damp cloth to clean the climate
control panel, audio equipment, instru-
ment panel, center console, combination
meter panel, and switches. (Do not use or-
ganic solvents.)
Seat fabricRemove loose dirt, dust or debris with a
vacuum cleaner. If the dirt is caked on the
fabric or hard to remove with a vacuum
cleaner, use a soft blush then vacuum it.
Wipe the fabric surface with a tightly
wrung cloth and dry the seat fabric thor-
oughly. If the fabric is still dirty, wipe using
a solution of mild soap and lukewarm wa-
ter then dry thoroughly.
If the stain does not come out, try a com-
mercially-available fabric cleaner. Use the
cleaner on a hidden place and make sure
it does not affect the fabric adversely. Use
the cleaner according to its instructions.NOTEWhen cleaning the seat, do not use
benzine, paint thinner, or any similar
materials.

Leather seat materials (seat-
ing surfaces)The leather used by Saab is a high quality
natural product which will retain its distinc-
tive appearance and feel for many years
with proper care.
Allowing dust or road dirt to build up on the
surface can cause the material to become
brittle and to wear prematurely. Regular
cleaning with a soft, moist, natural fiber
cloth should be performed monthly, taking
care not to soak the leather or allow water
to penetrate the stitched seams.
A mild detergent suitable for cleaning
woolen fabrics may be used to remove dif-
ficult dirt spots, rubbing with a soft, dry
cloth afterwards to restore the luster. If
your Saab is to be parked for a long time
in bright sunlight, it is recommended that
the seats and headrests be covered, or
the windows shaded, to prevent fading or
shrinkage.
Minor surface blemishes or bald patches
may be treated with a commercial leather
spray lacquer. You will discover that each
leather seat section will develop soft folds
or wrinkles, which is characteristic of gen-
uine leather.

Synthetic leather upholsteryThe synthetic leather material used on the
Saab may be cleaned using mild soap or
detergent and water, after first vacuuming
or brushing away loose dirt. Allow the
soap to soak in for a few minutes and wipe
off with a clean, damp cloth. Commercial
foam-type cleaners suitable for synthetic
leather materials may be used when nec-
essary.NOTEStrong cleaning agents such as sol-
vents, paint thinners, window cleaner
or gasoline must never be used on
leather or synthetic interior materials.
Climate control panel, audio
panel, instrument panel, con-
sole panel, and switchesUse a soft, damp cloth to clean the climate
control panel, audio equipment, instru-
ment panel, center console, combination
meter panel, and switches.NOTEDo not use organic solvents such as
paint thinners or gasoline, or strong
cleaning agents that contain those sol-
vents.
A1910BE-A-GSAAB.book Page 5 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

A1910BE-A-GSAAB.book Page 6 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

111
Maintenance and service
Maintenance schedule ....................................... 11-3
Maintenance precautions .................................. 11-3
Before checking or servicing in the engine
compartment ........................................................ 11-4
When you do checking or servicing in the engine
compartment while the engine is running ......... 11-4
Engine hood ....................................................... 11-4
Engine compartment overview ......................... 11-6
Non-turbo models ................................................... 11-6
Turbo models .......................................................... 11-7
Engine oil ............................................................ 11-8
Checking the oil level ............................................. 11-8
Changing the oil and oil filter ................................ 11-8
Recommended grade and viscosity ..................... 11-11
Recommended grade and viscosity under severe
driving conditions ................................................ 11-11
Synthetic oil ............................................................ 11-12
Cooling system .................................................. 11-12
Cooling fan, hose and connections ...................... 11-12
Engine coolant ........................................................ 11-13
Air cleaner element ............................................ 11-15
Replacing the air cleaner element ......................... 11-16
Spark plugs ......................................................... 11-18
Recommended spark plugs ................................... 11-18
Drive belts ........................................................... 11-18
Manual transmission oil .................................... 11-19
Checking the oil level ............................................. 11-19
Recommended grade and viscosity ..................... 11-20
Automatic transmission fluid ............................ 11-20
Checking the fluid level .......................................... 11-20
Recommended fluid ............................................... 11-21
Front differential gear oil (AT vehicles) ............ 11-22
Checking the oil level ............................................. 11-22
Recommended grade and viscosity ..................... 11-22
Rear differential gear oil .................................... 11-23
Checking the gear oil level .................................... 11-23
Recommended grade and viscosity ..................... 11-23
Power steering fluid ........................................... 11-24
Checking the fluid level .......................................... 11-24
Recommended fluid ............................................... 11-25
Brake fluid ........................................................... 11-25
Checking the fluid level .......................................... 11-25
Recommended brake fluid ..................................... 11-26
Clutch fluid (MT vehicles) .................................. 11-26
Checking the fluid level .......................................... 11-26
Recommended clutch fluid .................................... 11-27
Brake booster ..................................................... 11-27
Brake pedal ......................................................... 11-27
Checking the brake pedal free play ...................... 11-27
Checking the brake pedal reserve distance ......... 11-28
Clutch pedal (MT vehicles) ................................ 11-28
Checking the clutch function ................................ 11-28
Checking the clutch pedal free play ..................... 11-28
Replacement of brake pad and lining ............... 11-29
Breaking-in of new brake pads and linings .......... 11-29
Parking brake stroke .......................................... 11-30
A1910BE-A-GSAAB.book Page 1 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com

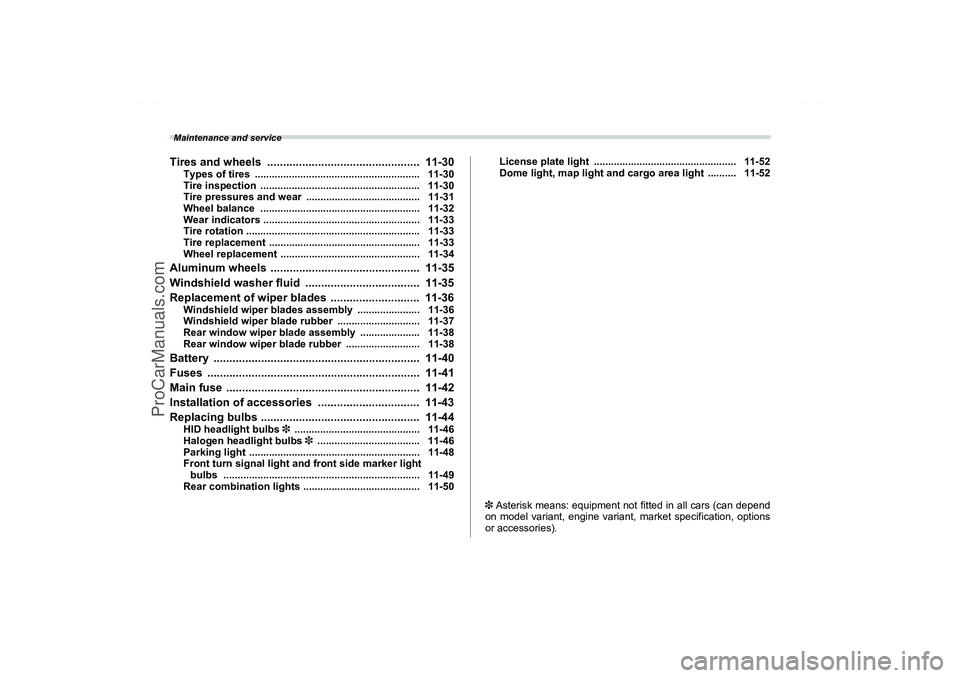

Maintenance and serviceTires and wheels ................................................ 11-30
Types of tires .......................................................... 11-30
Tire inspection ........................................................ 11-30
Tire pressures and wear ........................................ 11-31
Wheel balance ........................................................ 11-32
Wear indicators ....................................................... 11-33
Tire rotation ............................................................. 11-33
Tire replacement ..................................................... 11-33
Wheel replacement ................................................. 11-34
Aluminum wheels ............................................... 11-35
Windshield washer fluid .................................... 11-35
Replacement of wiper blades ............................ 11-36
Windshield wiper blades assembly ...................... 11-36
Windshield wiper blade rubber ............................. 11-37
Rear window wiper blade assembly ..................... 11-38
Rear window wiper blade rubber .......................... 11-38
Battery ................................................................. 11-40
Fuses ................................................................... 11-41
Main fuse ............................................................. 11-42
Installation of accessories ................................ 11-43
Replacing bulbs .................................................. 11-44
HID headlight bulbs 3 ............................................ 11-46
Halogen headlight bulbs 3 .................................... 11-46
Parking light ............................................................ 11-48
Front turn signal light and front side marker light
bulbs ..................................................................... 11-49
Rear combination lights ......................................... 11-50License plate light .................................................. 11-52
Dome light, map light and cargo area light .......... 11-52
3 Asterisk means: equipment not fitted in all cars (can depend
on model variant, engine variant, market specification, options
or accessories)
.
A1910BE-A-GSAAB.book Page 2 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com
