SAAB 9-3 2000 Owner's Manual

21 Safety
Folding booster seata Pull the upper part of the release strap
out and fold up the seat itself. Make sure
that it is locked firmly in its folded-up
position.
b Press the booster seat’s headrest all the
way down.
c Press in the latches on the car’s regular
head restraint. Remove it, rotate it 180°
and remount it. Make certain it is locked
correctly.
WARNING
 Use only the vehicle’s lap and shoul-
der belt system when restraining the
child in the booster seat.
 The seat must not be modified or
changed in any way.
 Do not leave a child alone in a car with-
out supervision.
 The car’s regular head restraint must
always be turned 180° back to its orig-
inal position after the integrated
booster seat is folded away.
 Check that the belt is not twisted or
rubbing against any sharp edges.
WARNING
Failure to follow all the manufacturer’s
instructions on the use of this child
restraint system can cause your child to
strike the vehicle´s interior during a
sudden stop or crash.Label in integrated booster cushion
ProCarManuals.com

22 SafetyAirbag (Supplemental
Restraint System
"SRS") The supplementary restraint system (SRS)
comprises an airbag in the steering wheel,
a front passenger airbag and side airbags in
the front seats.
The system supplements the protection
provided by the safety belts to further
enhance the safety of occupants.
If a fault is detected in the SRS, the
AIR BAG warning light on the main instru-
ment panel will come on (see pages 56 and
24). When the system is triggered by impact of a
frontal collision, the airbags in the steering
wheel and passenger side of the dash board
are inflated, after which they deflate through
vents in the back of the bags.
The entire process takes less than
0.1 second – literally, faster than the blink-
ing of an eye.
These airbags are triggered only by moder-
ate to severe frontal or near-frontal colli-
sions. They will not be activated by minor
front-end impacts, rear-end or side impacts,
or by the car rolling over.
Side airbags, see page 27.
WARNING
To reduce risk of injury:
Always wear your safety belt.
Always adjust your seat so that you
are as far back as possible but still
able to reach the steering wheel and
controls comfortably.
 Children 12 and under or shorter than
55 inches (140 cm) should always
travel in the rear as the vehicle is
equipped with an airbag on the pas-
senger side.
IB827
Airbag in course of inflation (driver’s side)
IB826
SRS (airbag) system with belt
pretensioners 1 Electronic control module and sensor
2 Belt pretensioners (for both front safety belts)
3 Steering wheel with integral airbag
4 Recess for airbag on passenger’s side
ProCarManuals.com

23 Safety
WARNING
 Even if the car is equipped with an
SRS (airbag), safety belts must still
always be worn by all occupants.
 Note that because an airbag inflates
and deflates extremely rapidly, it will
not provide protection against a
second impact occurring in the same
incident. Always use your safety belt.
 Always sit with the whole of your back
in contact with the backrest of the seat,
and with your seat as far back as is
practical. This is to reduce the risk of
injury from contact with the backrest of
the seat when the airbag inflates and
also because the airbag needs space
in which to inflate.
 Never attach anything to the steering
wheel or passenger side of the instru-
ment panel, as this could result in
injury if the airbag should inflate. The
same applies to anything you might
have in your mouth, such as a pipe, for
instance.
 Some components of the airbag will
be hot for a short time. In some circum-
stances the airbag can cause burns or
abrasions to the body when the airbag
inflates/deflates.
 Never rest your hands or forearms on
the steering-wheel center padding.
 If the AIR BAG warning light remains
on after the car has been started or
comes on while you are driving, have
the car checked immediately by an
authorized Saab dealer. The warning
light could signify that the airbags may
not inflate in a crash, or they could
even inflate without a crash.
Operation of the airbag in a front-end
collision.
Moment of impact.
Sensor detects
retardation and
sends a signal via
the control module to
a gas generator that
inflates the airbag.
The inflating airbag
cushions the driver.
Airbag now fully
inflated.
The steering column
has collapsed and
the airbag starts to
deflate. IB828
ProCarManuals.com

24 SafetyFront passenger seat The airbags are interconnected and have a
common warning light, AIR BAG. The pas-
senger airbag module is housed in the
fascia above the glove compartment and is
marked ”SRS AIR BAG”.
Both airbags will be inflated in the event of a
moderate to severe frontal, or near-frontal
collision, even if the passenger seat is unoc-
cupied.
AIR BAG warning light
SRS servicingThe SRS must be inspected as part of the
normal service program but otherwise may
be regarded as maintenance-free.
WARNING
Never secure a rear-facing child seat in
the right front seat of a car equipped with
a passenger airbag. Inflation of the airbag
in the event of an accident could seriously
injure or kill a child.
WARNING
 Children 12 and under can be killed by
the airbag.
 The back seat is the safest place for
children.
 Never allow a child to stand in front of
the seat or to sit on the lap of a
front-seat passenger. Serious injury or
death could result if the airbag is
inflated in a collision.
 Never place anything on the dash or in
front of the seat as, in addition to being
a hazard to passengers, this could
interfere with the function of the airbag
in the event of an accident. The same
applies to the mounting of accessories
on the dash.
 Keep feet on the floor - never put feet
up on the dash, on the seat or out of
the window.
 Do not carry anything in your lap.
WARNING
 If the airbag readiness light stays on
after you start your vehicle, it means
the airbag system may not be working
properly.
 The airbags in your vehicle may not
inflate in a crash, or they could even
inflate without a crash.
 To help avoid injury to yourself or
others, have your vehicle serviced
right away if the airbag readiness light
stays on after you start your vehicle.
ProCarManuals.com

25 Safety
Scrapping or working on airbag and
belt pretensioners Frequently asked questions on func-
tion of the airbag
Do you still need to wear a
safety b
elt if air-
bags are fitted?
Yes, always! The airbag merely supple-
ments the car’s normal safety system.
Moreover, the airbag will only be actuated in
a moderate to severe frontal, or near-frontal
collision, which means, of course, that it pro-
vides no protection in minor frontal colli-
sions, major rear-end or side-on collisions
or if the car rolls over.
The safety belts help reduce the chance of
the car occupants from being thrown around
and injured inside the car.
But they also ensure that, if a collision
occurs in which the airbags are inflated, the
airbag will make the optimum contact with
the occupant, i.e. square on from the front.
If the occupant meets the airbag in an offset
position, the protection afforded will be
reduced.
In addition, airbags provide no protection
against a secondary impact occurring in the
same incident. So there is no doubt about
the benefit of wearing safety belts at all
times.
Do not sit too close to the airbag: it needs
room to inflate.
The airbag inflates very quickly and power-
fully in order to protect an adult person in a
serious frontal collision.
How do I position the seat to leave room for
the airbag to inflate?Don’t have your seat too far forward.
Recline the seat back to increase the dis-
tance between you and the airbag. For short
drivers, special accessory pedal extensions
are available through your Saab dealer.
Airbags inflate extremely rapidly and with
great force - to be fast enough to protect an
adult in the seat. When does the airbag inflate? The airbag will only be inflated under certain
predetermined conditions in a moderate to
severe frontal, or near-frontal collision,
depending on such factors as the force and
angle of the impact, the speed of the car on
impact, and the resistance to deformation of
the impacting object.
The airbag can only be activated once in the
same incident.
Do not attempt to drive the car after an
airbag has been inflated, even if it is possi-
ble. What won’t trigger the airbag? The airbag will not be activated in all
front-end collisions. For instance, if the car
has hit something relatively soft and yielding
(e.g. a snow drift or a hedge) or a solid
object at a low impact speed, the airbag will
not necessarily be triggered.
WARNING
 Under no circumstances should any
modifications be made that affect the
steering wheel or the airbag’s electri-
cal circuitry.
 Before starting any welding work on
the car, always disconnect the nega-
tive (–) battery lead and cover the con-
ductor.
 Airbags and belt pretensioners must
be deployed under controlled condi-
tions before the car is scrapped or any
of the system’s components are
removed. Airbags or belt pretension-
ers that have been deployed as a
result of an accident must be replaced
by new ones.
 Airbag-system components must
never be transferred for use in another
vehicle.
 All work involving the scrapping or
replacement of airbags or belt preten-
sioners must only be carried out by
knowledgeable personnel.
ProCarManuals.com

26 SafetyHow loud is the inflation? The noise of the inflation is certainly loud,
but it is very short-lived and will not damage
your hearing. For a short time afterwards
you could experience a buzzing noise in
your ears.
Most people who have experienced it
cannot remember the noise of the inflation
at all - all they remember is the noise of the
crash. Can you still use a child seat in the front if a
passenger airbag is installed? Definitely not!
Children 12 and under can be injured or
killed by the airbag.
The BACK SEAT is the SAFEST place for
children.
NEVER put a child seat in the front.
Are the smoke and fumes given off when the
airbag operates at all harmful? Most people who have remained in a car
with little or no ventilation for several min-
utes complained only of minor irritation of
the throat and eyes. Avoid as far as possible
getting dust on your skin as there is a risk of
skin irritation.
If this trouble persists, you should consult a
doctor.
If you suffer from asthma, the incident may
bring on an attack, in which case you should
follow the normal procedure advised by
your doctor. It is advisable to consult a
doctor afterwards.
What should I do if the AIR-BAG warning
light comes on? If the warning light is on, it means that a fault
has been detected in the system. The
airbag cannot be relied on to operate as
intended and it might even be activated
erroneously. You should therefore take the
car to an authorized Saab dealer as soon as
possible.
WARNING
When an airbag is inflated there is dust in
the air.
Because the dust/smoke can, in certain
cases, cause irritation to the skin, the fol-
lowing precautions should be taken:
 As soon as possible, wash any
exposed skin using a mild soap and
water.
 If there is irritation of the eyes, flush
them liberally with clean water for at
least 20 minutes.
ProCarManuals.com

27 Safety
Side airbagSide airbags are housed inside the back-
rests of the front seats and are designed to
protect the driver and front passenger in the
event of a side impact.
In a side impact, only the airbag on that side
will be activated, and only then if certain pre-
determined conditions are met such as the
force and angle of the impact, the speed of
the car on impact, and at which point on the
car’s side the impact occurs.
The sensors, which are fitted in the front
doors, sense the rise in pressure caused by
the door panel being pressed in during an
impact condition. The side airbag trigger will
be commanded based on the characteris-
tics of this pressure rise.
WARNING
 This car is equipped with side airbags
and no extra interior trim should be fit-
ted. Failure to observe this warning
could result in the side airbags not
inflating as intended and thus not pro-
viding the intended protection either.
 Never place any object in the area that
would be occupied by the inflated air-
bag.
 For optimum protection, sit upright in
the seat, with your safety belt correctly
fastened.
 The sensors for the side airbags are
fitted in the doors.
 We advise against doing any work on
the doors that could affect the mois-
ture barrier in the door or the airbag
sensors. It is essential that the mois-
ture barrier (thick plastic film) in the
door is not damaged in any way.
 Improvement of the anticorrosion
treatment of the doors should only be
carried out by an authorized Saab
dealer. Otherwise there is a risk that
the side impact sensor and the mois-
ture barrier in the door could be dam-
aged.
 The side airbags will inflate only in the
event of a side impact; not in the event
of a front or rear-end collision or of the
car’s rolling over.
 Damage to the seat cover, or the seat
seam, in the area of the side airbag
must immediately be repaired by an
authorized Saab dealer.
 Do not modify the speaker installation
in the front doors or install speakers
other than those specifically approved
by Saab.
IB986
IB987
Side airbag, components 1 Side airbags (SRS)
2 Sensor
3 Moisture barrier
4 Label on seat
ProCarManuals.com

28 Safety
ProCarManuals.com

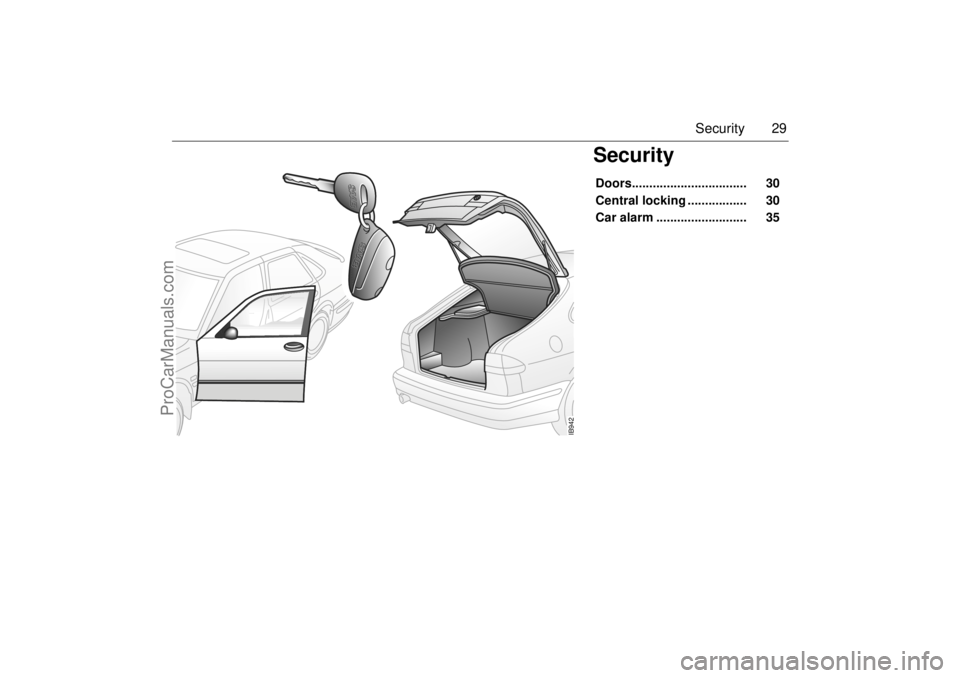

29 Security
SecurityDoors................................. 30
Central locking ................. 30
Car alarm .......................... 35
IB942
ProCarManuals.com

30 SecurityDoorsOpening handleOpen the door by lifting the opening handle
from below.
If the door is stuck (e.g. if frozen), hold the
handle from above to secure a better grip.
Central locking Key / Remote control The key fits all the locks on the car. The
spare key without the black key grip only fits
the door locks.
The key supplied with the car has a code
number on a black plastic tag that needs to
be quoted for ordering additional keys. You
should therefore make a careful note of the
number.
The key contains a unique electronic code
for your car. When the key is inserted in the
ignition, the code is checked. If it matches,
the car can be started.
Two keys/remote controls are supplied with
the car. It is possible to have up to four at
one time that are coded for your car. If one
is lost, contact your authorized Saab dealer
to obtain a replacement. If an additional
remote or key is to be added, all of the orig-
inal keys and remotes must be brought to
the dealer so that the control module can
‘’learn” to recognize the new components.
For this reason, we strongly advise you to
take two keys with you on long journeys and
to keep them separate.The remote control contains delicate elec-
tronics and should therefore not be exposed
to water or handled roughly.
WARNING
Leaving children or pets unattended in a
locked car is dangerous. It is also danger-
ous to leave children in a vehicle with the
ignition key. A child or others could be
badly injured or even killed.
IB844
Door handle
I B 111 6
123
Remote control 1To lock
2 To unlock
3 To unlock trunk lid
To open trunk lid (Convertible)
ProCarManuals.com
