197 Car care
When it is time to raise the car, apply the
jack to one of the four jacking points (front or
rear) located beneath the sills.
If a floor jack is used it can be applied to the
standard jacking points used by the dealer
or centrally under the front of the engine
subframe. If the car is equipped with a trailer
hitch, the jack can also be placed under the
hitch. 1 Put the car in 1st gear (automatic trans-
mission: move selector to the P position)
and apply the parking brake.
Saab 9-3 Viggen: The front and rear
jacking points are located behind covers
that must be removed.
2 Wind the jack up to a suitable height
before placing it under the recess in the
sill.
3 Make sure that the jack fully engages
the recess in the sill and that the base of
the jack is steady and flat on the ground.
4 Turn the jack handle clockwise until it
just begins to lift the car. 5 Remove the wheel cover (where appli-
cable). Loosen the wheel bolts by half a
turn.
6 Turn the jack handle to raise the wheel
clear of the ground. Remove the wheel
bolts and lift off the wheel.
7 Fit the wheel and screw in the bolts in the
sequence shown (opposite pairs).
Tighten the studs enough for the studs
and wheel to be seated correctly.
See page 199 for sequence.NOTEDo not position the jack under the rear
axle or under the rear floor.

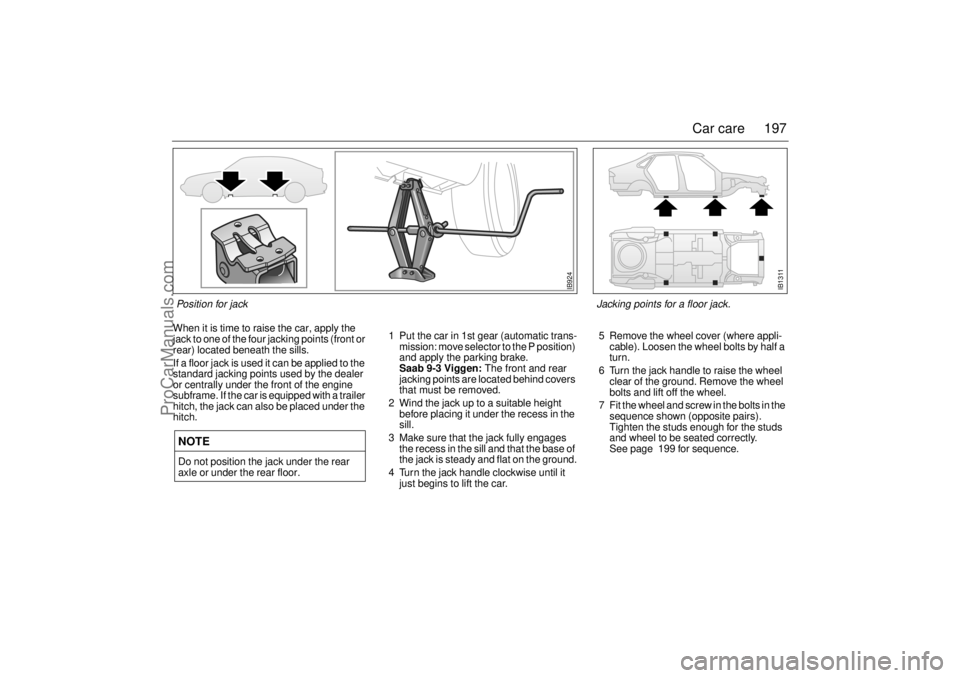

IB1311
Jacking points for a floor jack.
IB924
Pos i ti o n for j ack
