41 Security
Car alarmThe car alarm (anti-theft system) is acti-
vated/deactivated when the car is
locked/unlocked by the key (remote or by
the key in the driver´s door.
All the doors plus trunk lid and hood are
monitored by microswitches, and win-
dow-glass sensors will trigger the alarm if
any glass is broken.
Electronic starting interlock (immobilizer),
see page 42.
The car alarm is armed 10 seconds after the
car has been locked by the remote control.
During this ten-second delay period, the
doors, trunk lid and hood may still be
opened without the alarm being triggered.
The LED indicator on the dash will be on
continuously during this period, at the end of
which it will start to flash (once every third
second) when the alarm arms. If a door or the trunk lid or hood has been left
open when the car is locked, the LED on the
dash will flash (three times per second) for
ten seconds to indicate that something is
wrong.
Check to ensure that all the doors, plus
trunk lid and hood, are closed properly.
If the fault persists (LED flashing when
renewed attempt made to activate the car
alarm by remote locking), lock the car using
the key in the driver´s door instead. The car
alarm may not have been activated and you
should get in touch with an authorized Saab
dealer.
Be sure everyone using the car is familiar
with how both the car alarm and the locking
system work. This will avoid the alarm being
triggered inadvertently.
If the alarm is tripped (the direction indica-
tors are flashing and the siren is on) it can
be turned off by unlocking the car using the
button.
WARNING
Leaving children or pets unattended in a
locked car is dangerous. It is also danger-
ous to leave children in a vehicle with the
ignition key. A child or others could be
badly injured or even killed.
IB1524
3
2 1
Remote control 1 Activate/lock
2 Deactivate/unlock
3 Deactivate trunk, sensors/unlock trunk lid
ProCarManuals.com
Page 42 of 260
42 SecurityActivating the car alarmThe car alarm cannot be activated if the
driver’s door is open or if the ignition switch
is in position ON.
If, on the other hand, one of the other doors
or the trunk or hood is open or opened and
not closed again during the 10-second
delay period, it will be excluded from the
alarm function.
If it is then closed, a new delay period of ten
seconds will start, and the door (or trunk or
hood) will once again be secured by the
alarm system.
As usual, the LED will be on continuously
during the new delay period and will start to
flash every three seconds after the 10-sec-
ond period has elapsed.
Window glass sensorThe car-alarm (anti-theft system) incorpo-
rates a sensor that monitors the window
glass for the sound of breakage. The sensor
is fitted inside the rear dome light (on Con-
vertibles: in the front interior light).
To avoid false alarms, such as the alarm
being triggered by children or pets left inside
the car, the sensor can be temporarily dis-
abled.
To disable the sensor
To disable the sensor, first turn off the igni-
tion and remove the key from the switch.
Next, press and hold the NIGHT PANEL
button until ”DOOR ALARM ONLY” appears
on the SID and a chime sounds. The car
alarm must now be activated within three
minutes, or the glass sensor will become
active again.
The glass sensor will be enabled again
automatically the next time the car is
unlocked. The sensor can also be enabled
again by repeating the procedure for dis-
abling it. When the sensor has been
enabled, ”FULL THEFT ALARM” will
appear on the SID.
If a fault is detected in the glass sensor,
”SERVICE THEFT ALARM” will appear on
the SID.
9-3 Convertible: when the car is parked
with the soft top down, the glass sensor will
be automatically disabled.
Electronic starting interlock
(immobilizer)When the key is inserted in the ignition, a
signal is sent to the receiver. If the signal is
verified, the engine can be started.
Each time the key is removed from the igni-
tion, the electronic immobilizer is activated.
If a fault is detected (e.g. in the transmitter)
”KEY NOT ACCEPTED” will appear on the
SID.
In this case, you can still start the car if you
turn the ignition key to ON and press one of
the buttons on the key.
Take the car to an authorized Saab dealer to
have the system checked.
The LED on the top of the dash dou-
ble-flashes when the car is immobilized.
ProCarManuals.com
Page 43 of 260
43 Security
Alarm signals When the car alarm is armed, it will be trig-
gered if any door, the trunk lid or hood, is
opened, or if a window is broken.
The alarm will also be triggered if an attempt
is made to bypass or short-circuit the igni-
tion switch, or to disconnect the battery.
If the alarm is triggered, the following alarm
signals will be set off:
Flashing of hazard warning lights for five
minutes.
Siren wailing for 30 seconds.
The alarm signals will stop if the alarm is
deactivated (car unlocked) during the alarm
period.
Panic-functionIn the car alarm system is a function called
"Panic-function".
To activate panic function:
Push and hold one of the buttons on the
key for 2 seconds, or if you are sitting
inside the car...
Push the LOCK-switch on the center con-
sole for 2 seconds (not Convertibles).
These actions will trigger the alarm (hazard
warning lights and siren).
To deactivate panic function:
Push one of the buttons on thekey.
Push the LOCK-switch in the center con-
sole.
Turn the key in one of the doors or
Turn the ignition to ON.
When the panic-function is activated the car
will be locked/unlocked depending upon
which button was pushed.
When the ignition is ON the panic-function
cannot be activated.
NOTE It is possible to inadvertently deacti-
vate the car alarm and at the same
time unlock the car, if the button on the
key is pressed by mistake when the
car is still within its range.
When locking the car by remote con-
trol in extremely cold weather, it is
advisable to check that the lock
system has operated properly. To do
so, check that the interior locking but-
tons are all down.
If not, unlock and relock the car again.
ProCarManuals.com
Page 44 of 260
44 SecurityOverview of functions
Alarm signals may differ between model variants for different coun-
tries.
Some of the car-alarm functions can be reprogrammed – con-
sult your Saab dealer for further details (see page 255). Locking/
activation Hazard warning lights flash once (0.5 seconds).
Horn chirps once.
The LED will come on for 10 seconds.
Unlocking/
deactivation Hazard warning lights flash twice.
Horn chirps twice.
The LED will come on for two seconds.
Unlocking/
deactivation of
trunk lid alarm Hazard warning lights flash three times.
Horn chirps three times.
The LED will flash three times per second for
10 seconds.
Alarm triggered Hazard warning lights flash for 5 min.
Siren wails for 30 seconds.
To switch off the alarm, deactivate the system in
the normal way (unlocking) by unlocking the
door with the key or the remote
Window-glass
sensor The sensor detects if any window is broken and
triggers the alarm.
To disable the sensor, see page 42.
Key The range of the key is normally 5-10 yds.
(5-10 metres), although it can be substantially
more than this in ideal conditions.
If the key is not working, it may be because the
code signal has not been synchronized with that
in the control module for the car alarm. To rectify
this, press the unlock button on the key at least
four times in quick succession. When it is recog-
nized, the door locks will cycle.
If a key is lost, the new one will have to be pro-
grammed (all keys must be present) to match the
car’s unique security code. Get in touch with an
authorized Saab dealer. Battery for key The battery for the key will normally have a life of
4 years. When the battery needs changing,
”REPLACE KEY BATTERY” will appear on the
SID.
After fitting a new battery, press the unlock but-
ton on the key at least four times (when the car
is in its range) in succession, so that the car
alarm can recognize the signals from the trans-
mitter.
Car-battery
voltage If the battery is disconnected while the alarm is
active (car is locked), for example during an
attempt to steal the car, the alarm will be trig-
gered.
ProCarManuals.com
Page 45 of 260
45 Security
Overview of, LED signals and SID messagesSome signals may differ between model variants for different
countries.Status LED signal
Activation (during 10-second delay). Comes on for 10 seconds.
Alarm activated (after delay). Flashes once every third
second.
Deactivation. Comes on for 2 seconds.
Alarm not activated. Off.
Door, trunk lid or hood open or
opened during delay period.Flashes three times per sec-
ond for 10 seconds.
Unlocking the trunk lid. Flashes three times per sec-
ond for 10 seconds.
Closing of door, trunk lid or hood
after delay period.Comes on for 10 seconds.
Car immobilized but not locked.
Car alarm not activated.Flashes twice at three sec-
onds intervals.
Fault in a switch serving doors, hood
or trunk lid.Flashing (instead of being
on continuously) during
delay period.
SID message Reason/action
SERVICE THEFT ALARM Probably a faulty sensor or siren.
Have the car checked by an author-
ized Saab dealer.
KEY NOT ACCEPTED Fault in key transmitter or in igni-
tion-switch receiver. Turn ignition
switch to ON and press one of the
buttons on the remote control. Start
the engine.
Have the car checked by an author-
ized Saab dealer.
REPLACE KEY BATTERY Fit a new battery in the key.
DOOR ALARM ONLY Window-glass sensor is disabled.
FULL THEFT ALARM Window-glass sensor is included in
circuit.
REMOTE KEY
TRANSPONDRTurn the ignition key to position ON
and then press the button for open-
ing the trunk lid. SID displays the
number of keys (remote key) and
transmitters (transponders) coded to
the car.
ProCarManuals.com
Page 46 of 260
46 SecurityThis device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) must accept any interference
received, including interference that may cause undesired oper-
ation.
Changes or modifications not expressly approved by the manu-
facturer could void the user´s authority to operate the equipment.
Canada only:
This device complies with RSS-210 of Industry Canada. Opera-
tion is subject to the following two conditions: (1) this device may
not cause interference, and (2) this device must accept any inter-
ference, including interference that may cause undesired opera-
tion of the device.
ProCarManuals.com
Page 47 of 260
47 Convertible
ConvertibleGeneral safety instruc-
tions ................................ 48
Folding the soft top ......... 49
Raising the soft top ......... 51
Manual raising of the soft
top ................................... 52
Fault messages in SID ..... 54
Central operation of the
windows, 9-3 Convertible 55
Trunk, 9-3 Convertible ..... 56
Rear seat ........................... 56
Cleaning the soft top, 9-3
Convertible ..................... 57
Interior lighting................. 58
Manually opening the fuel
filler door ........................ 58
IB1361
ProCarManuals.com
Page 48 of 260
48 ConvertibleConvertibleGeneral safety instructions• Never touch the hinges and struts of the
soft top nor the upper beam of the wind-
shield while operating the soft top.
After raising the soft top, always check
that it is properly secured to the top beam
of the windshield with the soft top locking
device before driving the car away.
After folding it down you should check that
the tonneau cover latches have engaged
properly. Otherwise it may come loose
while you are driving and cause injury.
Do not operate the soft top with passen-
gers in the rear seat or bystanders right
next to the car. There is a risk of head inju-
ries while the soft top is in motion.
Remove child car seats and children
before operating the soft top.
Don’t operate the soft top in temperatures
below 23°F (-5°C). Note that certain automatic carwashes
can do damage to fabric soft tops. This
applies to carwashes that use mechanical
feelers bearing against the body. We
advise against washing a Saab 9-3 Con-
vertible in automatic carwashes.
Note that certain automatic car washes
can cause water to leak in places that nor-
mally would not leak. Do not direct high
pressure streams of water at the seals for
the conver tible top.
Roof racks and ski holders must not be
mounted on the soft top.
Under no circumstances should anything
be put into the storage space for the soft
top (under the tonneau cover) since this
could cause obstruction when the soft top
is being folded away.
See that no luggage is resting against the
soft top stowage space since this could
interfere with the rasing and folding of the
soft top. When the soft top is being operated, low-
ering or raising should be completed. Do
not leave the soft top partially raised or
lowered: after 20 seconds it will quickly
"settle down" when the hydraulic pres-
sure is automatically released.
It is important that the telescopic locking
handle is completely pushed in when the
soft top is closed.
Fold down any auxilliary mounted
antenna before raising the top to avoid
possible antenna or top damage (e.g.,
OnStar cellular antenna on windshield of
Conver tible).
ProCarManuals.com
Page 49 of 260
49 Convertible
Folding the soft topBefore operating the soft top, read through
the section ” General safety instructions” on
page 48.
1 Start the engine and let it idle.
2 Release the locking handle to free the
two hooks.
Pull the handle straight backwards.
Pull the handle down, releasing the
hooks.
Raise the handle up.
WARNING
Do not touch the hinges or struts of the
soft top during folding, because of the
pinch hazard.
Do not operate the soft top with pas-
sengers in the rear seat or bystanders
right next to the car, because of the
risk of head injuries.
After lowering the top, make sure the
soft top cover has locked properly. NOTEIf you drive away while the soft top is
being raised or lowered it will stop when
the car exceeds 6 mph (10 km/h). The
motion of the car and the resulting wind
can seriously damage the components of
the soft top system and may cause per-
sonal injury.
IB837

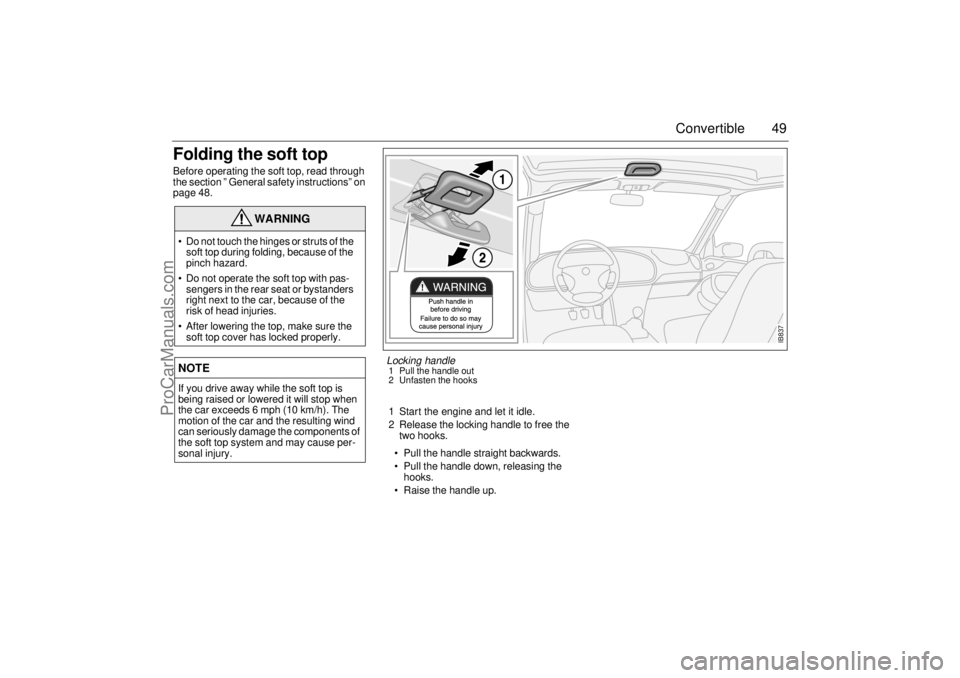

Locking handle 1 Pull the handle out
2 Unfasten the hooks
ProCarManuals.com
Page 50 of 260
50 Convertible3 Slide the ROOF button backwards until
the soft top is completely folded away,
the tonneau cover is closed and the SID
has given an OK signal (beep). Slide
the ROOF button backwards a second
time to lower the windows.
4 Check that there are no fault messages
on the SID; see page 54. NOTEAfter folding the top down you should
check that the front of the tonneau cover
is locked at the front on both sides before
driving away.
IB839
IB838

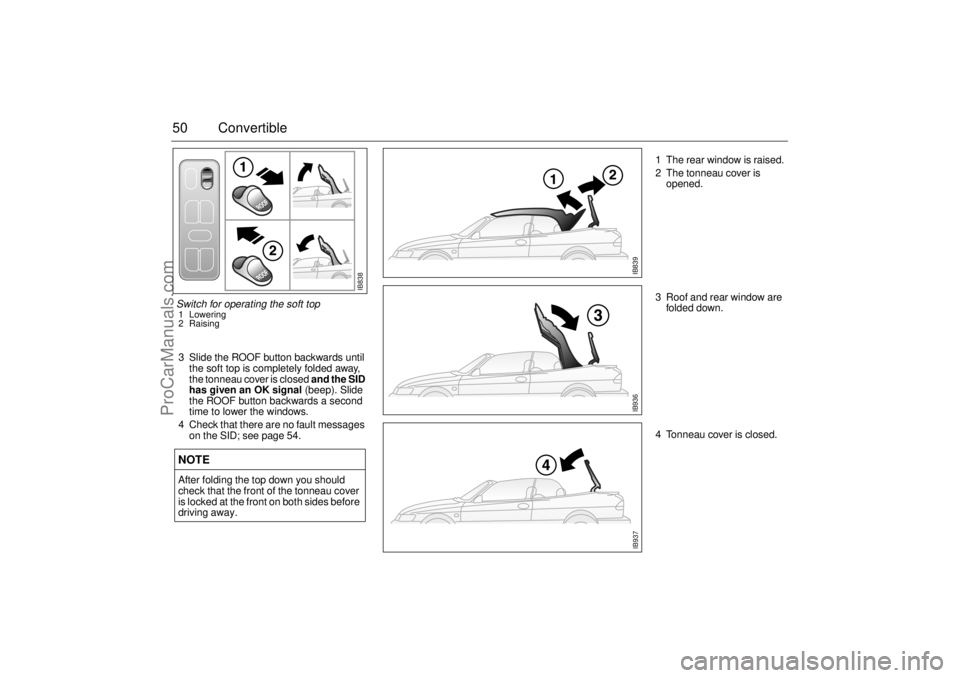

Switch for operating the soft top 1 Lowering
2 Raising
1 The rear window is raised.
2 The tonneau cover is
opened.
3 Roof and rear window are
folded down.
4 Tonneau cover is closed.
IB936IB937
ProCarManuals.com
