12 SafetySafety belts Three-point inertia-reel safety belts are pro-
vided for all seats. The results of studies show that it is equally
important to wear safety belts in the rear
seat as in the front seats.
Safety-belt reminder When the ignition is switched on, the ”fasten
belts” reminder will light up until the driver
fastens the safety belt. In addition an audi-
ble signal sounds for 6 seconds, or until the
driver fastens his belt.
WARNING
Safety belts must be worn at all times by
all car occupants. Child safety, see page
19.
Check that the locking tongue is properly
locked in the belt lock.
WARNING
In the event of a crash, the rear-seat pas-
sengers can be thrown forward against
the front seat backrests, imposing much
higher stresses on the front seat passen-
gers and belts and resulting in needless
injury to everyone in the car.
WARNING
For safety reasons, you should adjust
safety belts only while the car is station-
ary.
FASTEN BELTS
IB1302
ProCarManuals.com

13 Safety
Safety-belt pretensionersThe belts of the front seats are fitted with
automatic pretensioners, which are acti-
vated in the event of a severe frontal crash
or very violent rear-end crash. They serve to
reduce the forward movement of the body
by tensioning the belt.
The belt pretensioners do not activate in
less violent frontal or rear-end crashes.
Correct position for safety belt  The lap part of the belt should be pulled
as tightly as comfortable and as low as
possible across the hips, so that it is just
touching the top of the thighs. The shoul-
der belt should be well in on the shoulder
but not touching the neck.
 Check to ensure that the belt is not twisted
or rubbing against any sharp edges.
 There should not be any slack in the belt.
Pull the belt tight – particularly important
when thick outer clothing is worn. Refrain from tilting the backrest more than
necessary, as the safety belt provides
better protection when the seat is in the
more upright position.
 Only one person per safety belt!
 For most of the time a safety belt is worn,
the retractor will allow the wearer freedom
of movement. The retractor locks up auto-
matically if the belt is jerked or withdrawn
sharply, the car tilts, the brakes are
applied hard or a crash occurs.
WARNING
If the car is involved in a crash, the safety
belts, belt pretensioners and other com-
ponents must be inspected by an autho-
rized Saab dealer and replaced as neces-
sary.
Never make any alterations or repairs to
the safety belt yourself but visit an author-
ized Saab dealer.
WARNING
Proper positioning of the safety belt is
extremely important. An out of position
safety belt can result in the wearer sliding
underneath the belt in a crash (submarin-
ing) and injury can result from the lap por-
tion cutting into the abdomen.
WARNING
If two people share a belt, they risk injury
by being crushed together in the event of
a crash.
IB816

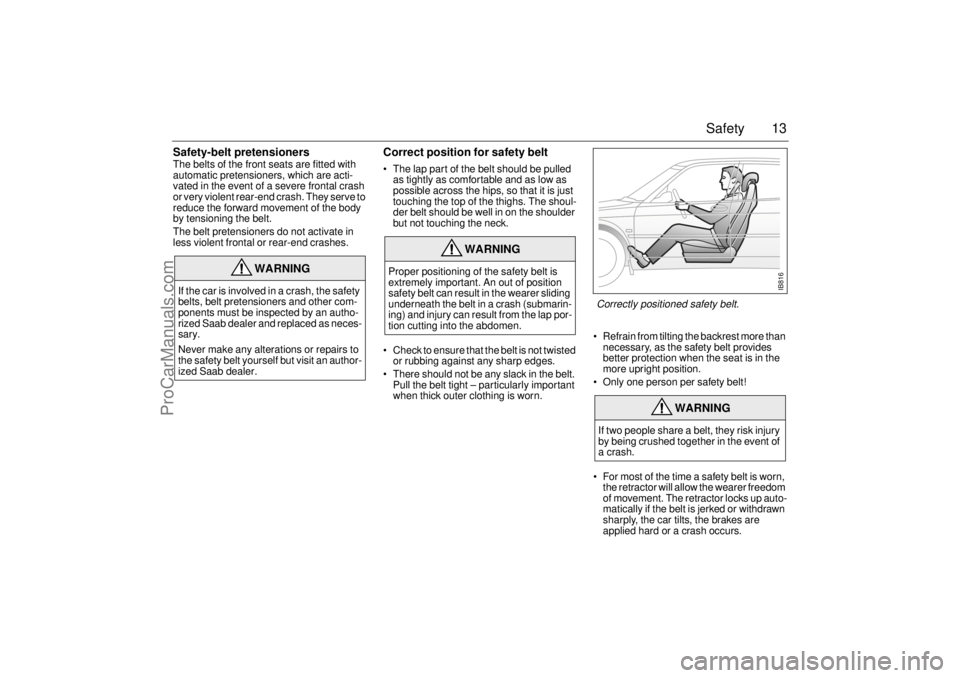

Correctly positioned safety belt.
ProCarManuals.com

18 SafetyHead restraintThe front seats in the Saab 9-3 are
equipped with Saab Active Head Restraints
(SAHRs). These reduce the risk of whiplash
injury if the car is hit from behind.
In the event of a rear-end crash, the body is
forced back against the backrest. This, in
turn, causes the mechanism to press the
head restraint forward and upward, thus lim-
iting the backward movement of the head.
The SAHR is a mechanical system, actu-
ated by body weight. The mechanism is built
into the top of the backrest, where it is con-
nected to the head restraint.
Because the SAHR is mechanically oper-
ated, it does not need to be replaced after a
minor rear-end crash.The head restraint can be raised or lowered
and is adjustable in various positions.
 Raising: grasp the head restraint on both
sides and pull it straight up.
 Lowering: depress the catch on the
left-hand side of the attaching point and
press the head restraint down.
WARNING
Adjust the head restraint so that the head
is well supported and the center of the
head restraint is at ear height, thus reduc-
ing the likelihood of neck injury in a crash.
IB400
ProCarManuals.com

19 Safety
Child safety
Car safety tips Protect your children from getting
trapped in the trunk of a car
For Trunk Release Handle see page 39 and
143.
WARNING
 NEVER put a rear-facing child seat in
the front.
 Children must
always be suitably
restrained in the car.
All child restraints and
booster seats are
designed to be
secured in vehicle
seats by the lap belt of a lap-shoulder
belt or LATCH. If the child restraint is
not properly secured, a child can be
injured in a crash.
 Children 12 and under can be killed by
the airbag.
 According to crash statistics, the
BACK SEAT is SAFER for properly
restrainen children than the front seat.
 Sit as far back as possible from the air
bag.
WARNING
 Never leave your children unattended
in a car, even for a short time.
– Children can suffer heat stroke - per-
haps die - in a matter of minutes.
– Children can put the car into gear and
hurt themselves or others.
 At gas stations, take the keys from the
car while filling the tank.
 Never allow children to climb on top of -
or under motor vehicles.
 Always look for children before backing
your motor vehicle out of a garage or
driveway.
 To avoid carbon monoxide poisoning,
never let a car idle in the garage.
 Supervise young children around buck-
ets of water while washing your car.
Small children can drown in seconds in
less than an inch of water.
WARNING
 Teach your kids not to play in or around
cars.
 Watch your children when loading or
unloading the car so they don´t get
locked in by mistake.
 Always lock the doors and trunk of your
car, and keep the keys out of children´s
sight and reach.
 Keep the rear fold-down seats closed
to help prevent kids from getting into
the trunk from inside the car.
ProCarManuals.com

20 SafetyThe same attention must be given to child
safety in the car as is given to adults.
Saab recommends rearward facing child
restraints for children up to 3 years old.
Children travel most safely when properly
restrained, but restraints must be suitable
for the size of the child. Always follow the
child seat/booster cushion manufacturer´s
instructions when installing these devices in
your vehicle.
Make sure you are acquainted with the
legal requirements for seating children
in the car.
Make sure that it is possible to fit a child
restraint in accordance with the manufac-
turer’s child seat instructions.
When fitting child seats in cars you must
always read the instructions supplied by
the manufacturer.
IB1683

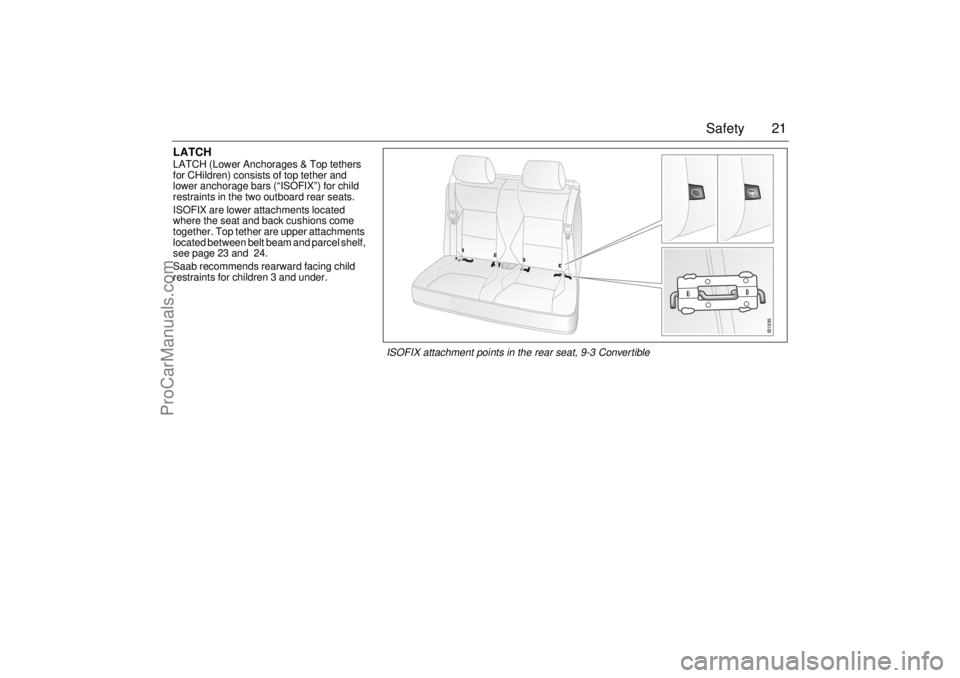

Illustration showing lower attachments (ISOFIX) in the rear seat.
Top tethers are located behind the head restraints, one for each seat position, see page
23 and 24.
ProCarManuals.com

21 Safety
LATCHLATCH (Lower Anchorages & Top tethers
for CHildren) consists of top tether and
lower anchorage bars (“ISOFIX”) for child
restraints in the two outboard rear seats.
ISOFIX are lower attachments located
where the seat and back cushions come
together. Top tether are upper attachments
located between belt beam and parcel shelf,
see page 23 and 24.
Saab recommends rearward facing child
restraints for children 3 and under.
IB1899
ISOFIX attachment points in the rear seat, 9-3 Convertible
ProCarManuals.com

22 SafetyLATCH installationTo facilitate the proper fitting of new spe-
cially-designed child restraints rigid lower
anchorages (ISOFIX) have been installed to
the vehicle that shall be used with the top
tether anchorages in the two outboard rear
seating positions. There is an additional top
tether anchorage for the center rear seating
position used together with the safety belt.
LATCH is a U.S./Canadian government
standard for an uniform method of fitting
child restraints without using the standard
safety belts. Only certain child restraints are
equipped to utilize these rigid lower anchor-
ages behind where the seat cushion and
seat back come together. LATCH child
seats also utilize a top tether strap that is
found on some newer child seats that still
require installation with the standard safety
belts.
There are two bars attached to the car body
for each specially designed LATCH child
restraint. A small label is located on the seat
back just above each attachment bar to
facilitate installing the child restraint. The
label contains a circle or a rearward facing
child restraint. 1 Place the child restraint on one of the
designated outboard rear seat cush-
ions.
2 Press the child restraint rearward, lining
up the restraint attachment arms with
the labels.
3 Follow the child restraint instructions to
confirm that both restraint arms are
properly attached to the bars.
4 Attach the top tether strap to the in-car
anchorage and tighten according to the
restraint instructions, see page 23 and
24.
5 Pull the child restraint to make a second
check that restraint is securely attached
at both the lower anchorage bars and
the top tether strap.
For the top tether, only use the strap sup-
plied with the child restraint.
Always follow the installation instructions
supplied with the child restraint.
The availability of LATCH child restraints is
limited.
Child restraints using rigid lower anchor-
ages (ISOFIX) cannot be fitted where a inte-
grated booster seat is installed.
When fitting child seats in cars you must
always read the instructions supplied by
the car seat manufacturer.
IB1684IB1685
Rigid 2-point lower attachment with top
tether
Semi-rigid 2-point lower attachment with
top tether
ProCarManuals.com

28 SafetyAirbag (Supplemental
Restraint System
"SRS") The Supplementary Restraint System
(SRS) comprises an airbag in the steering
wheel, a front passenger airbag and side
airbags in the front seats.
The system supplements the protection
provided by the safety belts to further
enhance the safety of occupants.
If a fault is detected in the SRS, the
AIR BAG warning light on the main instru-
ment panel will come on (see pages 62 and
32). When the system is triggered by impact of a
frontal crash, the airbags in the steering
wheel and passenger side of the dash board
are inflated, after which they deflate through
vents in the back of the bags.
The entire process takes less than
0.1 second – literally, faster than the blink-
ing of an eye.
These airbags are triggered only by moder-
ate to severe frontal or near-frontal crashes.
They will not be activated by minor front-end
impacts, rear-end or side impacts, or by the
car rolling over.
Side airbags, see page 30.
WARNING
To reduce risk of injury:
Always wear your safety belt.
Always adjust your seat so that you
are as far back as possible but still
able to reach the steering wheel and
controls comfortably.
 Children 12 and under or shorter than
55 inches (140 cm) should always
travel in the rear as the vehicle is
equipped with an airbag on the pas-
senger side.
IB827
Airbag in course of inflation (driver’s side)
IB1597
5
1
4
2
6
3
2
6
5
SRS (airbag) system with belt
pretensioners 1 Electronic control module and sensor
2 Belt pretensioners (for both front safety belts)
3 Steering wheel with integral airbag
4 Recess for airbag on passenger’s side
5 Sensor, side airbag
6 Side airbag
ProCarManuals.com

31 Safety
Side airbags are housed inside the back-
rests of the front seats and are designed to
protect the driver and front passenger in the
event of a side impact.
In a side impact, only the airbag on that side
will be activated, and only then if certain pre-
determined conditions are met such as the
force and angle of the impact, the speed of
the car on impact, and at which point on the
car’s side the impact occurs.
The sensors, which are fitted in the front
doors, sense the rise in pressure caused by
the door panel being pressed in during an
impact condition. The side airbag trigger will
be commanded based on the characteris-
tics of this pressure rise.  The sensors for the side airbags are
fitted in the front doors.
 We advise against doing any work on
the doors that could affect the mois-
ture barrier in the door or the airbag
sensors. It is essential that the mois-
ture barrier (thick plastic film) in the
front door is not damaged in any way.
 Improvement of the anticorrosion
treatment of the doors should only be
carried out by an authorized Saab
dealer. Otherwise there is a risk that
the side impact sensor and the mois-
ture barrier in the door could be dam-
aged.
 The side airbags will inflate only in the
event of a side impact; not in the event
of a front or rear-end crash or of the
car’s rolling over.
 Wear and damage to the seat cover,
or the seat seam, in the area of the
side airbag must immediately be
repaired by an authorized Saab
dealer.
 Do not modify the speaker installation
in the front doors or install speakers
other than those specifically approved
by Saab.
IB1707
Side airbag, components 1 Side airbags (SRS)
2 Sensor
3 Moisture barrier
4 Text on seat
IB1892
Accessories and other equipment must
not be fitted to the surfaces marked as
these are where the airbags may inflate in
the event of a crash.
ProCarManuals.com
