technical data SAAB 9-3 2004 User Guide

274 Technical dataBrake system
Hydraulic unit for soft top, ConvertibleFoot brake (ABS)____________________ Hydraulic disc
brakes with vacuum
servo unit. Diago-
nally split circuits;
ventilated discs on
front wheels (some
variants also have
ventilated rear
discs). EBD function
(see page 161).
Park brake _________________________ Acts on rear wheels
Brake fluid _________________________ To DOT 4.
Do not use DOT 5.Disc diameter:
Front ____________________________ 11.22 in.
(285 mm) **)
Front (certain variants only) *) ________ 11.89 in.
(302 mm) **)
Rear ____________________________ 10.94 in. (278 mm)
Rear (certain variants only) *) ________ 11.49 in.
(292 mm) **)
Total friction area of brake pads:
Front ____________________________ 9.30 in.² (60 cm²)
Rear ____________________________ 4.96 in.² (32 cm²)
*)15" wheels and 16" aluminium wheels
must not be fitted to these variants since
the diameter of the brake discs does not
allow this.
**) ventilated
Oil capacity _______________________ 0.6 qt. (0.6 l)
Oil type __________________________ CHF 11S
ProCarManuals.com

275 Technical data
Wheels and tires Summer tires
6.5 x 15" _________________________ 205/65 R15 94 H
6.5 x 16" _________________________ 215/55 R16 93 H
7 x 17"___________________________ 225/45 R17 94 W
RF/XL
Always contact a Saab dealer if you plan to fit other wheels or
tires than those fitted as standard.
Winter (snow) tires:
6.5 x 15" wheel ____________________ 205/65 R15 91 Q
M+S
6.5 x 16" wheel ____________________ 205/55 R16 91 Q
M+S or
215/55 R16 93 Q
7 x 17" wheel _____________________ 225/45 R17 94 Q
M+S RF/XL
Compact spare:
Wheel ___________________________ 4 x 16"
Tire _____________________________ 125/85 R16 99 M
Pressure _________________________ 420 kPa (60 psi)
Maximum life______________________ 2200 miles
(3500 km)
Maximum speed ___________________ 50 mph (80 km/h)
NOTICESnow chains:
Snow chains must not be fitted to the rear wheels, and may only
be used with the following wheel-tire combinations:
Wheels Tires
6.5 x 15"_______ 205/65 R15 M+S or
205/65 R15
6.5 x 16"_______ 205/55 R16 M+S or
215/55 R16
Contact your Saab dealer regarding suitable snow chains.
Max. permissible speed with snow chains fitted is 30 mph
(50 km/h).
Snow chains must not be fitted to wheels larger than 17".NOTICEWheels larger than 17" must not be fitted for reasons stated on
page 234.
Exercise care when driving on uneven roads or against the curb
if the car is heavily laden. This particularly applies to cars with
17" wheels.
Permitted wheel offset is 41 mm.
ProCarManuals.com

276 Technical dataRecommended tire/engine combinations*) Not recommended in combination with sport chassis.
RF/XL = Reinforced (or Extra Load) tire.
2.0t 2.0 Turbo
Summer tires
205/65 R15 94 H x –
215/55 R16 93 H x –
225/45 R17 94 W RF/XL x x
Winter (snow) tires
205/65 R15 94 Q x –
205/55 R16 91 Q *) x x
215/55 R16 93 Q x x
225/45 R17 94 Q RF/XL x x
Wheel sizes
6.5 x 15" x –
6.5 x 16" x x
7 x 17" x x
ProCarManuals.com

277 Technical data
Recommended lowest tire pressure, cold tiresTire size Load/speed
mph (km/h)
*)
Front
kPa/psiRear
kPa/psi
Summer tires
205/65 R15 94 H 1–3 pers./0–100 (0–160)
4–5 pers./0–100 (0–160)
1–5 pers./100– (160–)220/32
220/32
260/38220/32
220/32
260/38
215/55 R16 93 H 1–3 pers./0–100 (0–160)
4–5 pers./0–100 (0–160)
1–5 pers./100– (160–)240/35
240/35
280/41220/32
220/32
260/38
225/45 R17 94 W
RF/XL1–3 pers./0–120 (0–190)
4–5 pers./0–120 (0–190)
1–5 pers./120– (190–)240/35
240/35
280/41240/35
240/35
280/41
Winter tires
205/65 R15 91 Q 1–3 pers./0–100 (0–160)
4–5 pers./0–100 (0–160)240/35
280/41240/35
280/41
205/55 R16 91 Q 1–3 pers./0–100 (0–160)
4–5 pers./0–100 (0–160)240/35
280/41240/35
280/41
215/55 R16 93 Q 1–3 pers./0–100 (0–160)
4–5 pers./0–100 (0–160)240/35
280/41240/35
280/41
225/45 R17 94 Q
RF/XL1–3 pers./0–100 (0–160)
4–5 pers./0–100 (0–160)250/36
290/42250/36
290/42
Spare wheel
125/85 R16 99 M Max 50 (80) 420/60 420/60
*) Do not exceed posted speed limits.
By cold tires is meant tires that are the same temperature as the sur-
rounding air temperature.
The values for tire pressure in table above are for tires at 68°F
(20°C).
The tire pressure will increase as the tires become warm (e.g. during
highway driving), and decrease as they cool.
When the temperature of the tires increases or decreases by 10
degrees the tire pressure will correspondingly increase or decrease
by 2 psi/10 kPa.
ProCarManuals.com

278 Technical data

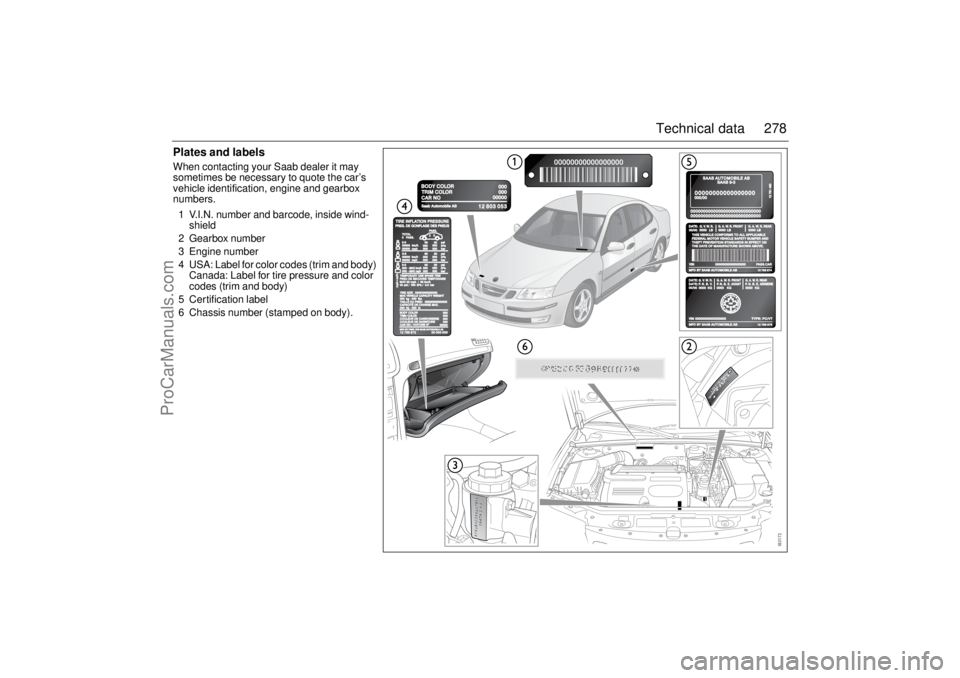

Plates and labelsWhen contacting your Saab dealer it may
sometimes be necessary to quote the car’s
vehicle identification, engine and gearbox
numbers.
1 V.I.N. number and barcode, inside wind-
shield
2 Gearbox number
3 Engine number
4 USA: Label for color codes (trim and body)
Canada: Label for tire pressure and color
codes (trim and body)
5 Certification label
6 Chassis number (stamped on body).
ProCarManuals.com

279 Technical data1 Region ________Y = Nor thern Europe
2 Country _______S = Sweden
3 Manufacturer ___3 = Saab Automobile AB
4 Product line ____F = 9-3
5 Model series ___B = 9-3 Linear
D = 9-3 Arc
F = 9-3 Vector6 Body version ___4 = 4-door
2 = Convertible
7 Gearbox _______5 = 5-speed manual
6 = 6-speed manual
9 = 5-speed automatic
8 Engine variant __S = 2.0t
Y = 2.0 Turbo
9 Check digit_____0-9 or X
10 Model year ____4 = 2004
11 Factory _______1 = Trollhättan
6 = Graz
12 Serial number __000001-999999 Position: 1234567891011 12
||||||||| | | |
Vehicle identifi-
cation number:Y S 3 F D 4 9 Y X 4 1 016584
||||||
1 2 3 4 5 6 = identification codes for certain chassis components
ProCarManuals.com

280 Technical dataSeveral of the systems in your Saab
can be customized to better suit
your individual needs. Contact your
Saab dealerCentral locking system
Some functions are governed by legal
requirements and cannot therefore be
reprogrammed.
Consult a Saab dealer for further informa-
tion.
Listed below are a number of examples of
programmable functions.
 Audible confirmation of arming/disarming
the car alarm.
 Automatic unlocking when car stopped
and remote control removed from the igni-
tion switch.
 Trunk lid locked when car driven off or
30 s after being shut.
 Length of audible and visual acknowl-
edgements.
 Possibility to have the trunk lid unlocked
when doors unlocked, yes/no.Car alarm
Listed below are a number of examples of
programmable functions.
 Cabin lighting switched on when the car
alarm is tripped.
 Panic function can be enabled on cars
without car alarm.
Courtesy Headlamp Feature
 The length of time the lights are on.
 Whether the reversing light or tail lights
should come on as well as the dipped
beam.Automatic Climate System (ACC)
 To prevent the smell of washer fluid from
entering the car, recirculation can be acti-
vated automatically while the windshield
is washed. The recirculation symbol will
however not light up. This function is
optional; contact a Saab dealer.
 To increase the flow of air to the panel and
floor vents, the defroster vents can be
deselected (may desirable in hot
climates).
Convertible: A/C compressor not
switched off when the soft top is open.
ProCarManuals.com

281 Technical data
Warning and indications that can be
shown on the SIDSymbol Text
Antilock brake malfunction.
Contact Saab dealer.
Brake malfunction.
Make a safe stop.
Contact Saab dealer.
Brake fluid level low.
Make a safe stop.
Contact Saab dealer.
Release parking brake.
Oil pressure low.
Make a safe stop.
Turn off engine.
Engine malfunction.
Contact Saab dealer.
Reduced engine power.
Contact Saab dealer.
Coolant level low.
Refill.
Hot engine.
Make a safe stop.
Run engine on idle.
Airbag malfunction.
Contact Saab dealer.
Use your seatbelt.
Gearbox malfunction.
Limited performance.
Contact Saab dealer.
Gearbox too hot.
Make a safe stop.
Open hood to cool down.
Battery not charging.
Make a safe stop.
Contact Saab dealer.
A/C off due to high engine
temperature.
Headlight levelling
malfunction.
Contact Saab dealer.
Tap brakes lightly before
using cruise control.
Traction control failure.
Contact Saab dealer.
Stability control failure.
Contact Saab dealer.
Washer fluid level low.
Refill.
Key not accepted.
Contact Saab dealer.
Remote control battery low.
2: standard key
0: valet key
Key No: 1
Lock system failure.
Contact Saab dealer.
Steering lock malfunc.
Make a safe stop.
Contact Saab dealer.
Steering wheel locked.
Pull out key, turn steering
wheel. Try again.
Immobilizer failure.
Try starting again.
Contact Saab dealer.
Theft protection failure.
Contact Saab dealer.
Alarm has been triggered
since being armed.
Rear left seat backrest
unlocked.
Rear right seat backrest
unlocked.
ProCarManuals.com

282 Technical data
Parking assistance
Contact Saab dealer.
Parking assistance sensor
interference.
Close doors.
Left brake light failure
Left high beam failure.
Left low beam failure.
Rear fog light failure.
Right brake light failure.
Right high beam failure.
Right low beam failure.
High mounted brake light
failure.
Left front turn signal
failure.
Left rear turn signal
failure.
Right front turn signal
failure.
Right rear turn signal
failure.
Left rear position light
failure.
Right rear position light
failure.
Tire pressure
system failure.
Contact Saab dealer.
Tire pressure low,
rear left.
Check tires.
Tire pressure low,
rear right.
Check tires.
Tire pressure low,
front right.
Check tires.
Tire pressure low,
front left.
Check tires.
Flat tire rear left.
Make a safe stop.
Flat tire rear right.
Make a safe stop.
Flat tire front left.
Make a safe stop.
Flat tire front right.
Make a safe stop.
Time for service.
ProCarManuals.com

284 IndexDriving in cold climates
___________ 175
Driving in deep water
____________ 183
Driving in hot climates ____________ 177
Driving techniques
______________ 173
Driving with a heavy load on hilly
roads
________________________ 155
Driving with a load
______________ 183
Driving with a roof load ___________ 182
Driving with the compact spare wheel
187
Driving with the trunk lid open
______ 183
EEDR
_________________________ 266
ESP, anti-skid system
____________ 165
Easy entry, Convertible ____________ 65
Economical motoring
____________ 173
Electric engine heater ____________ 174
Electric heating, front seats
___ 102
, 111
Electric windows
________________ 117
Electric windows, Convertible
_______ 69
Electrical system, technical data ____ 272
Electrically adjustable seats
________ 18
Electronic Stability Program (ESP)
__ 165
Electronic steering wheel lock
_____ 142
Emergency opening of the narrow
backrest
_____________________ 138
Emergency operation of the sunroof
_ 122
Engine bay, cleaning
____________ 249
Engine heater
__________________ 174
Engine immobilizer
_______________ 47Engine number
_________________ 278
Engine oil, checking
_____________ 196
Engine oil, grade
________________ 270
Engine oil, volume _______________ 271
Engine temperature gauge
_________ 80
Engine, description
______________ 193
Engine, technical data ____________ 270
Engines
_______________________ 271
Event Data Recorder
____________ 266
Extra electrical socket ____________ 126
FFacilitating entry to rear seat,
Convertible
____________________ 65
Factors affecting fuel consumption
__ 173
Filler cap
______________________ 148
Filling up ______________________ 147
Flat spots, tires
_________________ 232
Floor jack
_____________________ 246
Folding down the rear seat
________ 134
Front fog lights
__________________ 93
Front towing eye ________________ 184
Fuel gauge
_____________________ 81
Fuel grade _____________________ 271
Functions, car alarm
______________ 51
Fuse panel in luggage compartment
_225
Fuse table
_____________________ 224
Fuses
________________________ 222
GGDO, garage door opener
_________ 130
Gear selector indicator, automatic
transmission
___________________ 82
Gearbox number ________________ 278
General safety instructions,
Convertible
____________________ 54
Glove compartment
______________ 126
Glove compartment lighting
________ 219
HHandbrake
_____________________ 167
Hazard warning lights
_____________ 94
Head restraint, Convertible
_________ 66
Head restraints
__________________ 20
Headlight flasher _________________ 92
Headlight levelling ________________ 91
Headlights
______________________ 91
Heated door mirrors
_____________ 102
Hood
_________________________ 192
Horn __________________________ 116
Horn button
____________________ 116
IIf a tire goes flat
_________________ 237
Ignition switch
__________________ 140
Immobilizer
_____________________ 47
ProCarManuals.com
