High beam, halogenLeft-hand side
1 Lift aside the hose running along the side of the battery cover.
2 Release the two retainers (a quarter of a turn counterclockwise)
in the leading edge of the cover and remove the cover.
3 Pull up the washer fluid filler pipe.
4 Remove the air pipe from the front edge of the battery box.
5 Pull up the fuse panel in front of the battery (certain variants),
see page 228.
Both sides
1 Remove the cover from the rear of the headlight.
2 Twist the bulb holder counterclockwise and withdraw the holder
from the reflector.
3 Change the bulb without touching the glass with your fingers.
Insert the bulb holder into the reflector and twist it clockwise until
it locks.4 Refit the cover over the rear of the headlight.
Left-hand side
5 Refit the air pipe to the front of the battery box.
6 Refit the washer fluid filler pipe.
7 Refit the battery cover.
NOTICEDo not fit bulbs with a higher rating than 55 W as this could
damage the headlight reflector. Furthermore, the car’s wiring is
not designed to cope with higher wattages.
Retainers on the battery cover Changing the high beam bulb
ProCarManuals.com

212 Car careParking lightsThe parking light bulb is located in the same
reflector as the main beam bulb.
1 Lift aside the hose running along the
side of the battery cover.
2 Remove the battery cover.
3 Remove the cover from the rear of the
headlight.
4 Withdraw the bulb holder from the lamp
unit.
5 Fit the new bulb.
6 Refit the cover over the rear of the head-
light.
7 Refit the battery cover.
Front turn signal bulbsLeft-hand side:
1 Lift aside the hose running along the
side of the battery cover.
2 Release the two retainers on the battery
cover and remove the cover.
3 Pull up the washer fluid filler pipe.
4 Remove the air pipe from the front edge
of the battery box.Both sides:
1 The bulb holder has a bayonet fitting.
Turn the bulb holder counterclockwise
and withdraw it.
2 The bulb also has a bayonet fitting.
Press in the bulb and twist it counter-
clockwise.
3 Fit the new bulb.
4 To facilitate fitting, look in through the
headlight lens when fitting the bulb.
Check that the new bulb is firmly seated.
Left-hand side:
5 Refit the washer fluid filler pipe.
6 Refit the battery cover.
ProCarManuals.com

213 Car care
Side-mounted turn signal bulbs1 Slide the lamp fitting forward so that its
rear end can be pulled out.
2 Turn the bulb holder counterclockwise
and withdraw it from the lamp fitting.
Change the bulb.
3 To fit, engage the two catches on the
rear edge of the lamp fitting with the
edge of the opening. Then press in the
front edge of the lamp fitting so that the
groove in the spring engages the plastic
edge.
Front fog lights
1 Undo one screw in the wheel housing.
Lower the air shield.
2 Remove the protective cover. Release
the two spring clips securing the bulb.
3 Unplug the connector.
4 Change the bulb. Try not to touch the
glass part of the bulb with your fingers.
The height of the beam can be adjusted
using a screwdriver inserted through the
hole in the lower grille adjacent to the lens.
WARNING
Never crawl under a car that is
supported only by a jack.
 Always use axle stands. Refer to
the information on jacks on pages 245
and 246.
ProCarManuals.com

214 Car careSide marker lights1 Slide the lens rearward so that its front
part can be pulled out.
2 Fit the new bulb.
3 When refitting, make sure that the
groove in the spring engages the plastic
edge of the bumper trim.
Taillights, Sport Sedan1 Turn signals
2 Taillights/stop lights
3 Reversing lights
4 Rear fog light (left-hand side)
5 High-mounted stop light
Taillights, Convertible1 Turn signals
2 Taillights/stop lights
3 Reversing lights
4 Rear fog light (left-hand side)
5 High-mounted stop light
ProCarManuals.com

215 Car care
Stop lights, taillights and turn signal
bulbs, Sport Sedan1 Lower the cover in the trim behind the
lights.
2 Lift the plastic lug on the lamp housing
that secures the bulb holder.
3 Carefully remove the entire bulb holder
unit from the lamp housing. Change the
bulb.
4 Refit the bulb holder. Press the bulb
holder home so that the plastic lug
snaps into place.
Stop lights, taillights and turn signal
bulbs, Convertible1 Remove the cover.
2 Carefully remove the bulb holder with
the broken bulb.The bulb holder has a
bayonet fitting.
3 Change the bulb.
4 Refit the bulb holder and cover.If a brake light bulb fails, the adjacent tail-
light will act as a brake light to ensure traffic
safety. Change the broken bulb when possi-
ble.
ProCarManuals.com

216 Car careReversing lights and rear fog light,
Sport SedanRemoving the trunk lid trim
1 Remove the two screws securing the
grab handle to the inside of the trunk lid.
2 Unlock the plastic rivets by pressing in
the center of each rivet. Pull out the
rivets by taking hold of the rivet’s collar.
You can use the button on the handle of the
screwdriver supplied with the car to unlock
the rivets.Changing bulbs
1 Press down the plastic lug on the bulb
holder.
2 Carefully remove the entire bulb holder
unit from the lamp housing. Change the
bulb.
3 Refit the bulb holder. Press the lug so
that it snaps into place.
To refit the trunk lid trim
1 Withdraw the center of the rivets.
2 Fit the trim in place on the trunk lid.
3 Fit the rivets. Lock the rivets in place by
pressing the center buttons in until flush
with the collar.
Reversing lights and rear fog lights,

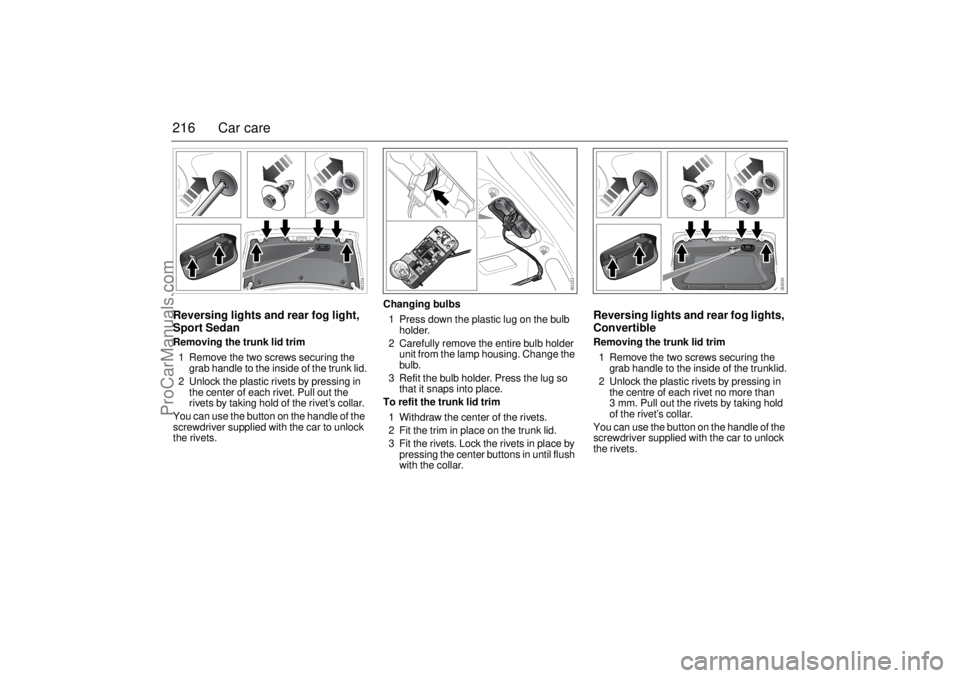

ConvertibleRemoving the trunk lid trim
1 Remove the two screws securing the
grab handle to the inside of the trunklid.
2 Unlock the plastic rivets by pressing in
the centre of each rivet no more than
3 mm. Pull out the rivets by taking hold
of the rivet’s collar.
You can use the button on the handle of the
screwdriver supplied with the car to unlock
the rivets.
ProCarManuals.com

217 Car care
Changing bulbs
1 Carefully remove the bulb holder with
the broken bulb. The bulb holder has a
bayonet fitting.
2 Fit the new bulb.
3 Refit the bulb holder.
To refit the trunk lid trim
1 Withdraw the center of the rivets.
2 Fit the trim in place on the trunk lid.
3 Fit the rivets. Lock the rivets in place by
pressing the center buttons in until flush
with the collar.

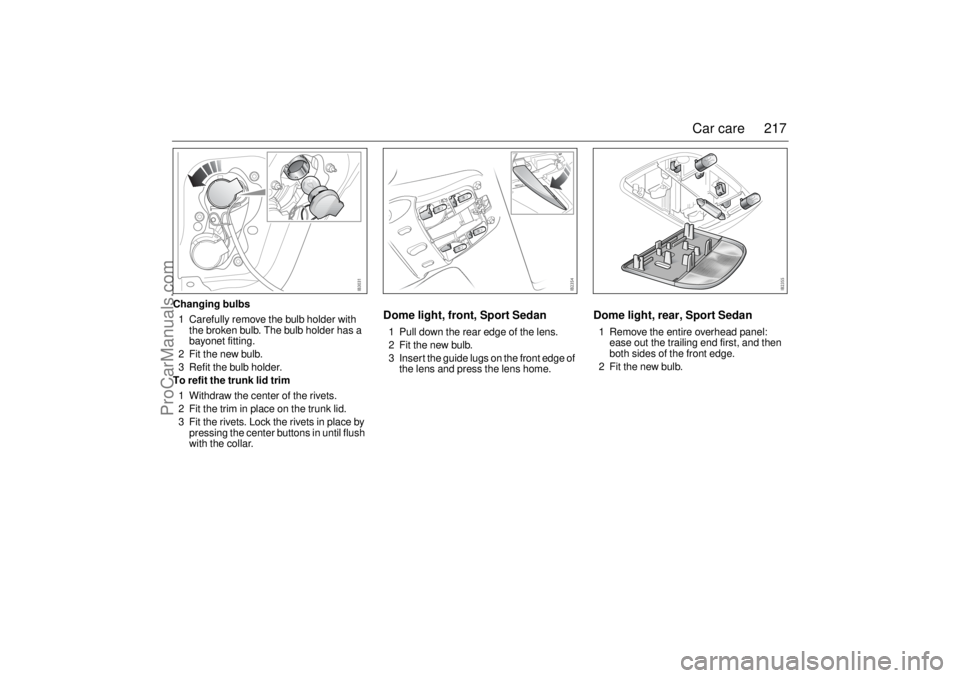

Dome light, front, Sport Sedan1 Pull down the rear edge of the lens.
2 Fit the new bulb.
3 Insert the guide lugs on the front edge of
the lens and press the lens home.
Dome light, rear, Sport Sedan1 Remove the entire overhead panel:
ease out the trailing end first, and then
both sides of the front edge.
2 Fit the new bulb.
ProCarManuals.com

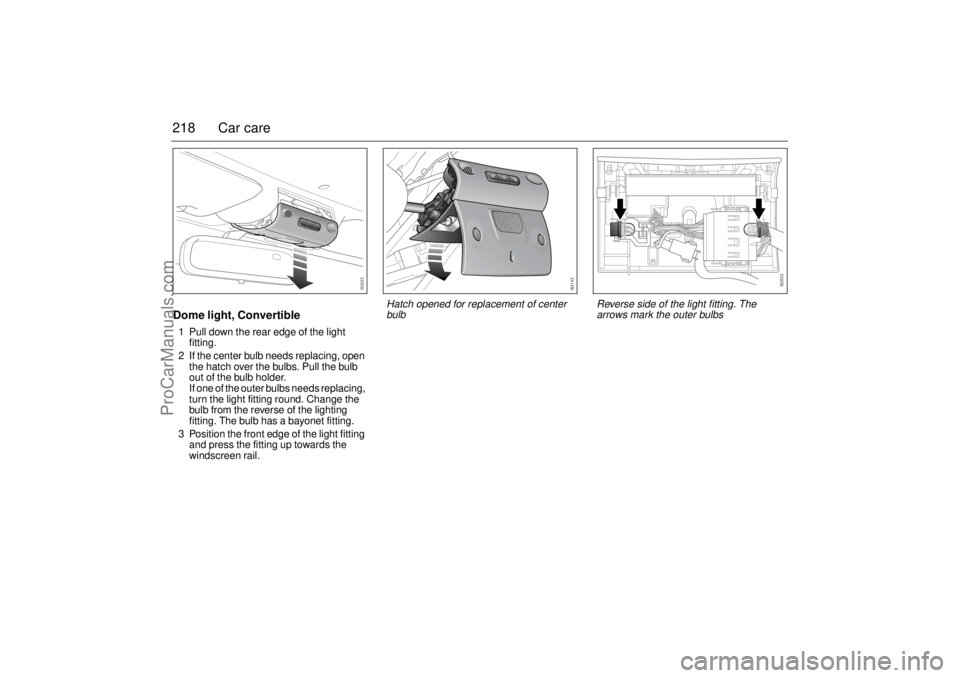

218 Car careDome light, Convertible1 Pull down the rear edge of the light
fitting.
2 If the center bulb needs replacing, open
the hatch over the bulbs. Pull the bulb
out of the bulb holder.
If one of the outer bulbs needs replacing,
turn the light fitting round. Change the
bulb from the reverse of the lighting
fitting. The bulb has a bayonet fitting.
3 Position the front edge of the light fitting
and press the fitting up towards the
windscreen rail.
Hatch opened for replacement of center
bulbReverse side of the light fitting. The
arrows mark the outer bulbs
ProCarManuals.com

219 Car care

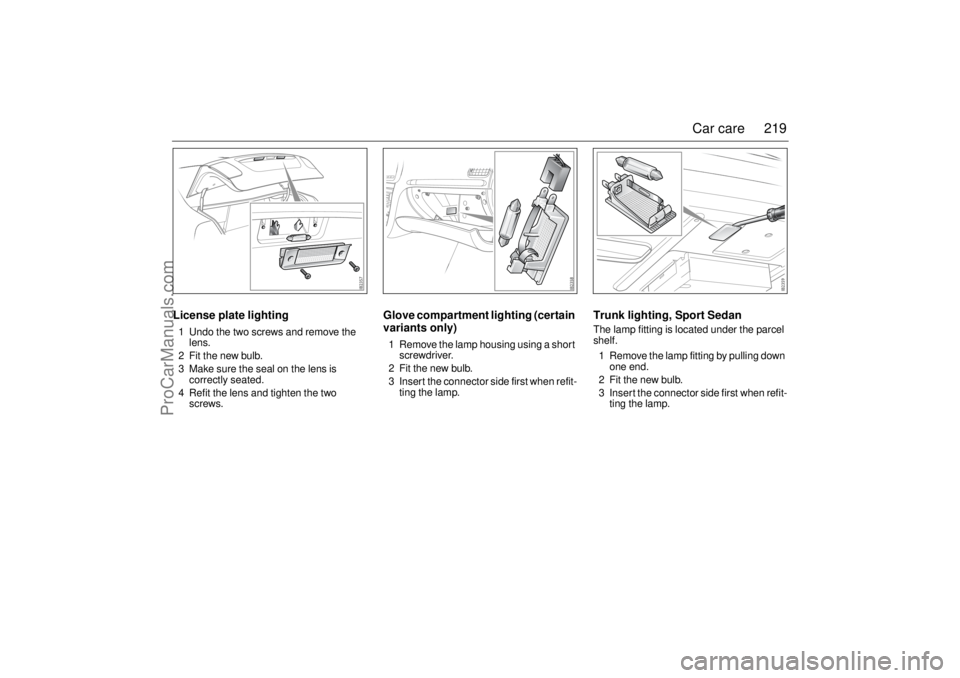

License plate lighting1 Undo the two screws and remove the
lens.
2 Fit the new bulb.
3 Make sure the seal on the lens is
correctly seated.
4 Refit the lens and tighten the two
screws.
Glove compartment lighting (certain
variants only)1 Remove the lamp housing using a short
screwdriver.
2 Fit the new bulb.
3 Insert the connector side first when refit-
ting the lamp.
Trunk lighting, Sport SedanThe lamp fitting is located under the parcel
shelf.
1 Remove the lamp fitting by pulling down
one end.
2 Fit the new bulb.
3 Insert the connector side first when refit-
ting the lamp.
ProCarManuals.com

220 Car careTrunk lighting, Convertible1 Remove the lamp in the rear end first.
2 Change the bulb.
3 Insert the connector side first when refit-
ting the lamp.
Courtesy/floor lighting (certain
variants only)1 Release one edge of the lamp fitting
using a screwdriver.
2 Fit the new bulb.
3 Insert the connector side first when refit-
ting the lamp.
Other bulbsIf any other bulbs need changing, we rec-
ommend that you visit a Saab dealer.
