sensor SAAB 9-3 2006 Owner's Manual

192 Starting and drivingError messages
If the system malfunctions, the following
message will appear on the SID:
If the system is subject to interference, the
following message will be shown on the
SID:
If this message appears, clean the sensors.
The sensors are located in the black trim on
the rear bumper The system can be switched off using
Profiler.
1 Press the CUSTOMIZE button to go to
Profiler.
2 Select Park Assistance using the
INFO dial.
3 Press in the INFO dial.
4 Select SPA on or SPA off.
5 Confirm this selection by pressing the
INFO dial.Explanation of SPA on and SPA off.
Parking assistance
malfunction.
Contact Saab dealer.
Parking assistance sensor
interference.
Park Assistance
SPA onSPA off
SPA on
Saab Parking Assistance is activated
automatically when reverse is
engaged. The system warns of objects
behind the car.
If a trailer is hitched up and correctly
connected to the trailer connector, the
system will be deactivated automati-
cally. You can also deactivate the sys-
tem temporarily with the CLEAR button
if reverse has been engaged and the
system is active.
SPA off
Saab Parking Assistance deactivated.
93U S M 06.book Page 192 Friday, February 18, 2005 1:15 PM
ProCarManuals.com

219 Car care
Engine oilChecking the oil levelCheck the engine oil level regularly.
1 Park the car on a level ground.
2 Switch off the engine and wait for
2–5 minutes. The engine should be at
normal operating temperature.
3 Take the dipstick out and wipe it off with
a clean rag before carrying out the
check.
The level must not be below the MIN mark
on the dipstick, but nor should it be above
the MAX mark. Excess engine oil could
result in abnormal oil consumption.
The distance between the MIN and MAX
marks is equivalent to 1.0 qt (1.0 l).2.0 Turbo (210 hk): The engine oil level is
checked each time the engine is started. If
the oil level is low, the following message
appears on the SID:
f this occurs the oil level must be checked
first. If the level is too low then it must be
topped up.V6: The engine has an oil level sensor that
checks the oil level when the engine is
running. If the oil level drops too low, the
following message appears on the SID:
f this occurs the oil level must be checked
first. If the level is too low then it must be
topped up.NOTICEToo high oil level can damage the engine.
Low engine oil level.
Fill oil now.
Low engine oil level.
Fill oil now.
Oil filler cap and dipstick, 4-cyl engine
Oil filler cap and dipstick, V6 engine
93U S M 06.book Page 219 Friday, February 18, 2005 1:15 PM
ProCarManuals.com

233 Car careXenon headlight, dipped beam3Xenon headlights produce roughly two times as much light as halo-
gen bulbs and have a significantly longer service life.
The lamp units consist of a gas discharge lamp containing xenon.
When the lights are switched on a very high voltage activates the
xenon gas. The lamps soon reach full intensity.
Cars with xenon headlights have automatic levelling. The levelling
system is comprised of two sensors, one on the front suspension
and one on the rear suspension, and a control unit by the engine bay
fuse box. Headlight alignment is adjusted automatically to the car’s
load to prevent dazzling drivers in oncoming traffic.
If a fault is detected in the system, the following message will be dis-
played on the SID:
WARNING
Xenon headlights are high tension. All work on xenon headlights,
including changing bulbs, must be carried out by dealer person-
nel.
Headlight levelling
malfunction.
Contact Saab dealer.
We recommend you to contact a Saab
dealer to have a xenon headlight changed
93U S M 06.book Page 233 Friday, February 18, 2005 1:15 PM
ProCarManuals.com

249 Car care
Fuse panel in end of fasciaNo. Amp. Function
1 15 Steering wheel lock
2 5 Steering column unit; ignition switch
310 Hands-free3; CD-player3/CD-changer in cabin3;
SID
410 Main instrument unit; manual climate control;
automatic climate control (ACC)3
57.5 Control module in front doors; Park Brake Shift Lock
(automatic transmission)
6 7.5 Brake light switch
7 20 Dash fuse panel; fuel filler door
8 30 Control module in passenger front door
9 10 Dash fuse panel
1030 Trailer socket3; electrical socket in storage com-
partment between seats3
11 10 Data link connection (diagnostics)
12 15 Interior lighting incl. glove box
13 10 Accessories
1420 Radio, sound system I3; control panel,
Infotainment System3
15 30 Control module in driver’s door
16 5 Passenger Sensing System
17 - -
18 7.5 Manual climate control3
19 - -
20 7.5 Headlight levelling switch3
217.5 Hands-free3; brake light switch; manual climate
control3; clutch pedal switch
22 30 Cigarette lighter3
23 40 Cabin fan
24 7.5 Airbag control module
25 - -
26 5 Yaw sensor (cars with ESP)
27 - -
93U S M 06.book Page 249 Friday, February 18, 2005 1:15 PM
ProCarManuals.com

250 Car care

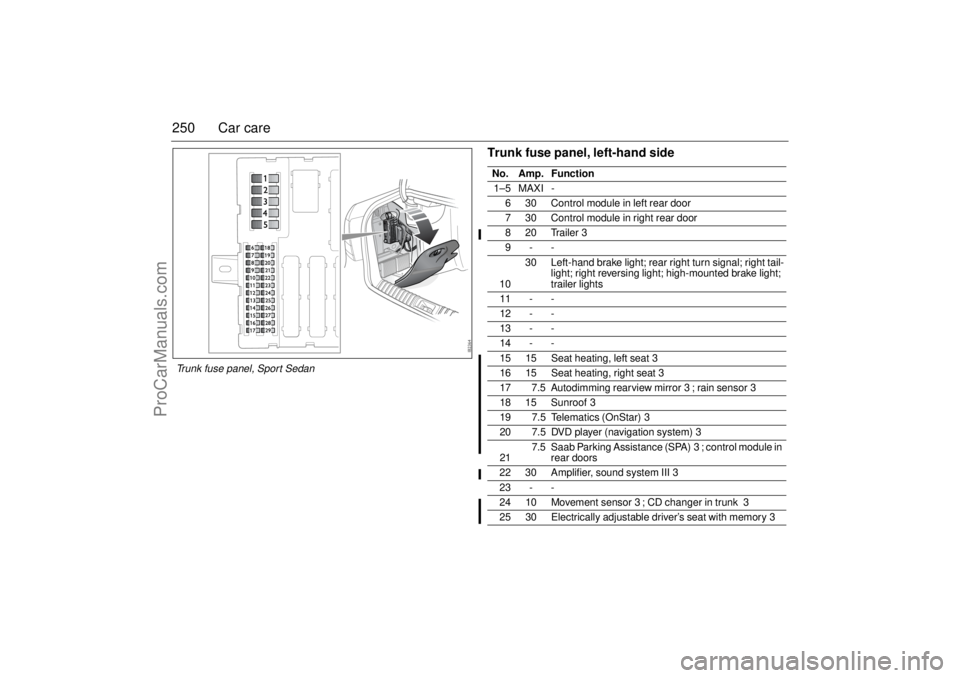

Trunk fuse panel, left-hand sideNo. Amp. Function
1–5 MAXI -
6 30 Control module in left rear door
7 30 Control module in right rear door
820Trailer3
9--
1030 Left-hand brake light; rear right turn signal; right tail-
light; right reversing light; high-mounted brake light;
trailer lights
11 - -
12 - -
13 - -
14 - -
15 15 Seat heating, left seat3
16 15 Seat heating, right seat3
17 7.5 Autodimming rearview mirror3; rain sensor3
18 15 Sunroof3
19 7.5 Telematics (OnStar)3
20 7.5 DVD player (navigation system)3
217.5 Saab Parking Assistance (SPA)3; control module in
rear doors
22 30 Amplifier, sound system III3
23 - -
24 10 Movement sensor3; CD changer in trunk 3
25 30 Electrically adjustable driver’s seat with memory3
Trunk fuse panel, Sport Sedan93U S M 06.book Page 250 Friday, February 18, 2005 1:15 PM
ProCarManuals.com

253 Car care
Fuse panel in front of battery3
Relays
R 1 Washer fluid pump, windshield
R2 -
R3 -
R4 -
R 5 Flash-to-pass
R6 Horn
R7 -
R8 Starter motor
R 9 Windshield wipers ON/OFF
R10 Washer fluid pump, rear window3
R11 Ignition +15
R12 Windshield wipers, high/low speed
R13 -
R14 Washer fluid pump, headlights3
R15 -
R16 -
No. Amp. Function
1 - Air pump, secondary air3
220 Fuel pump; preheated oxygen sensors (lambda
probe)
310A/C compressor
430Main relay
Relays
1-
2 A/C-compressor
3 Preheated oxygen sensors (lambda probe)
4 Main relay, engine (ECM/EVAP/injectors)
93U S M 06.book Page 253 Friday, February 18, 2005 1:15 PM
ProCarManuals.com

254 Car careAutomatic tire pressure
monitoring3The pressure monitoring system consists of
a sensor in each wheel, a detector in three
wheel housings and a receiver. The sensors
are located inside the wheels directly adja-
cent to the air valves.Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recom-
mended by the vehicle manufacturer on the
vehicle placard or tire inflation pressure
label. (If your vehicle has tires of a different
size than the size indicated on the vehicle
placard or tire inflation pressure label, you
should consult the appropriate section of
this owner’s manual to determine the proper
tire inflation pressure, see page 306.) When
the low tire pressure telltale is illuminated,
one or more of your tires is significantly
underinflated.
You should stop and check your tires as
soon as possible, and inflate them to the
proper pressure. Driving on a significantly
under-inflated tire causes the tire to over-
heat and can lead to tire failure.
WARNING
The system is intended to aid the driver.
The driver is always ultimately responsi-
ble for ensuring that the tire pressure is
correct.
For optimum safety, economy and
comfort, check the tires regularly, even if
the automatic tire pressure monitoring
system has not issued an alarm
NOTICEGreat care must be taken when changing
tires so as not to damage the sensors that
are integrated in the valves.
 Remove the rear side first.
 Start removing the tire at a point oppo-
site the valve.
 Do not allow the tire removal equip-
ment to come closer than approx.
10 cm to the valve.
 Start and finish fitting approx. 4 in.
(10 cm) from the valve.
 Do not inflate the tire to above
700 kPa/100 psi.
93U S M 06.book Page 254 Friday, February 18, 2005 1:15 PM
ProCarManuals.com

255 Car care
Under-inflation also reduces fuel efficiency
and tire tread life, and may affect the vehi-
cle’s handling and stopping ability.
Your vehicle has also been equipped with a
TPMS malfunction telltale to indicate when
the system is not operating properly. When
the malfunction telltale is illuminated, the
system may not be able to detect or signal
low tire pressure as intended. TPMS mal-
functions may occur for a variety of reasons,
including the installation of incompatible
replacement tires on the vehicle. Always
check the TPMS malfunction telltale after
replacing one or more tires on your vehicle
to ensure that the replacement tires are
compatible with the TPMS.
Tire pressure information is sent wirelessly
to the receiver.
The system checks the tire pressure when
the car is travelling over 18 mph (30 km/h).
The system is “self-learning”, which means
that the position of the wheels can be
changed without requiring adjustments to
the monitoring system. The spare wheel
does not have a sensor.
The sensor batteries have an average life of
10 years. The batteries cannot be changed
but require the sensor units to be replaced.
The system does not warn if a tire is overin-
flated.If the tire pressure drops
If the tire pressure drops 25% or more below
highest recommended pressure (see tire
pressure label on page 267), the SID will
issue a warning as to which tire is affected.
Adjust the tire pressure as soon as possible.If the vehicle is equipped with a different
wheel size than those fitted as standard and
therefore should use a different recom-
mended highest tire pressure the owner
shall contact a workshop to have the system
recalibrated. We recommend that you
contact a Saab dealer. Low tire pressure,
front left.
Make a safe stop.
Valve without sensor
Valve with sensor
93U S M 06.book Page 255 Friday, February 18, 2005 1:15 PM
ProCarManuals.com

256 Car careIf the tire pressure continues to drop, the
SID will issue a warning alarm when the
pressure is an additional 0.2 bar below the
first warning level.
Reduce speed (avoid heavy braking and
violent steering wheel movements) and
stop the car as soon as it is safe to do so.
Change the wheel.Malfunction
The message shown above will be dis-
played on the SID if:
 a wheel without pressure sensor is fitted
(e.g. spare wheel)
 one, two or three pressure sensors are
broken or missing
 two or more detectors are missing or
broken
 the receiver malfunctions
 a fault arises in the system.
The message shown above is not displayed
if none of the wheels have sensors, such as
if winter wheels without sensors are fitted.
TiresYour new vehicle comes with high-quality
tires made by a leading tire manufacturer. If
you ever have questions about your tire
warranty and where to obtain service, see
your Saab Warranty and Service Record
Booklet for details. Low tire pressure.
front left.
Check tires.
Tire pressure
system failure.
Contact Saab dealer.
WARNING
Poor maintained and improperly used
tires are dangerous.
 Overloading your tires can cause
overheating as a result of too much
friction. You could have an blow-out
and a serious accident. See “Loading
Your Vehicle” on page 267.
 Underinflated tires pose the same
danger as overloaded tires. The
resulting accident could cause serious
injury. Check all tires frequently to
maintain the recommended pressure.
Tire pressure should be checked
when your tires are cold.
 Overinflated tires are more likely to be
cut, punctured or broken by a sudden
impact – such as when you hit a
pothole. Keep tires at the recom-
mended pressure.
 Worn, old tires can cause accidents. If
your tread is badly worn, or if your tires
have been damaged, replace them.
93U S M 06.book Page 256 Friday, February 18, 2005 1:15 PM
ProCarManuals.com

278 Car carethoroughly at the end of winter. Clean the
underside of the car by hand if the car is usu-
ally washed in an automatic car wash with-
out special facilities for underbody cleaning.
Never wash or leave the car to dry in the
sun, but wipe it dry with a chamois leather
immediately after washing to avoid smears
and streaks.
Clean the inside of window glass using a
proprietary window cleaner. This is particu-
larly important when the car is new, as
upholstery and trim have a tendency to
sweat a little at first.
Keep the glass well polished, as this helps
to prevent misting.
Clean the outside of the windows with Saab
washer fluid. This is especially important if
the car has been washed in an automatic
car wash, as sometimes a wax treatment is
used that can contaminate the windshield
and impair the performance of the wipers.
In the U.S., Saab offers a full complement of
car care products. See your dealer or visit
us at www.saabcatalog.com.Convertible:
 Wash the soft top with a mild soap solu-
tion and lukewarm water. For spot clean-
ing the top, a finger nail brush can also be
used. Stroke the brush in the direction of
the fabric, not across the threads.
 If a pressure washer is used be heedful of
the following recommendations:
 on the lower part of the car (not higher
than the door handles): max pressure
of 100 bar and not closer than 8 in.
(20 cm).
 on the upper part of the car: tax pres-
sure of 100 bar and not closer than
32 in. (80 cm).
 Do not use any drying chemicals or water-
proofing agents.
 Avoid automatic car washes.
NOTICE Try your brakes on leaving a car wash.
Wet brake discs reduce the perfor-
mance of the brakes.
 Fixed antennae, such as for a mobile
phone, must be removed if the car
goes through an automatic car wash.
 Cars with Saab Parking Assistance:
Do not spray the sensors or closer
than 8 in. (20 cm) to the sensors with
a pressure washer, as this can
damage them.
93U S M 06.book Page 278 Friday, February 18, 2005 1:15 PM
ProCarManuals.com
