SAAB 9-3 2007 Owners Manual

291 Technical data
Recommended tire/engine combinationsRF/XL = Reinforced (or Extra Load) tire.
NOTICESnow chains:
Snow chains must not be fitted to the rear wheels, and may only
be used with the following wheel-tire combinations:
Wheels Tires
6.5 x 16"_______ 215/55 R16 M+S or
215/55 R16
Contact your Saab dealer regarding suitable snow chains.
Max. permissible speed with snow chains fitted is 30 mph
(50 km/h).
Snow chains must not be fitted to wheels larger than 16".NOTICEWheels larger than 17" must not be fitted for reasons stated on
page 245.
Exercise care when driving on uneven roads or against the curb
if the car is heavily laden. This particularly applies to cars with
17" wheels.
Permitted wheel offset is 41 mm.
2.0 Turbo V6 engine
All season tires
215/55 R16 97 H RF/XL x –
235/45 R17 94 V x x
Summer tires
235/45 R17 94 W – x
Winter (snow) tires
215/55 R16 93 Q x x
235/45 R17 94 Q x x
Wheel sizes
6.5 x 16" x –
7.5 x 17" x x
93_U S _M 07.book Page 291 W ednesday, April 12, 2006 9:30 AM
ProCarManuals.com

292 Technical dataRecommended lowest tire pressure, cold tires
Tire size Load/speed
mph (km/h)
*
Front
psi/kPaRear
psi/kPa
All season tires
215/55 R16 97 H
RF/XL1–3 pers./0–100 (0–160)
4–5 pers./0–100 (0–160)
1–5 pers./100– (160–)35/240
35/240
41/28035/240
35/240
41/280
235/45 R17 94 V 1–3 pers./0–100 (0–160)
4–5 pers./0–100 (0–160)
1–5 pers./100– (160–)35/240
35/240
41/28035/240
35/240
41/280
Summer tires
235/45 R17 94 W 1–3 pers./0–120 (0–190)
4–5 pers./0–120 (0–190)
1–5 pers./120– (190–)35/240
35/240
41/28035/240
35/240
41/280
Winter tires
215/55 R16 93 Q 1–3 pers./0–100 (0–160)
4–5 pers./0–100 (0–160)35/240
41/28035/240
41/280
235/45 R17 94Q 1–3 pers./0–100 (0–160)
4–5 pers./0–100 (0–160)36/250
42/29036/250
42/290
Compact spare
3
125/85 R16 99 M Max 50 (80) 60/420 60/420
Spare wheel
3
215/55 R16 93V When the car has the same tire size, the
same load/speed information applies as for
the original tires.
* Do not exceed posted speed limits.
By cold tires is meant tires that are the same temperature as the sur-
rounding air temperature.
The values for tire pressure in table above are for tires at 68°F
(20°C).
The tire pressure will increase as the tires become warm (e.g. during
highway driving), and decrease as they cool.
When the temperature of the tires increases or decreases by 10
degrees the tire pressure will correspondingly increase or decrease
by 2 psi/10 kPa.
93_U S _M 07.book Page 292 W ednesday, April 12, 2006 9:30 AM
ProCarManuals.com

293 Technical data

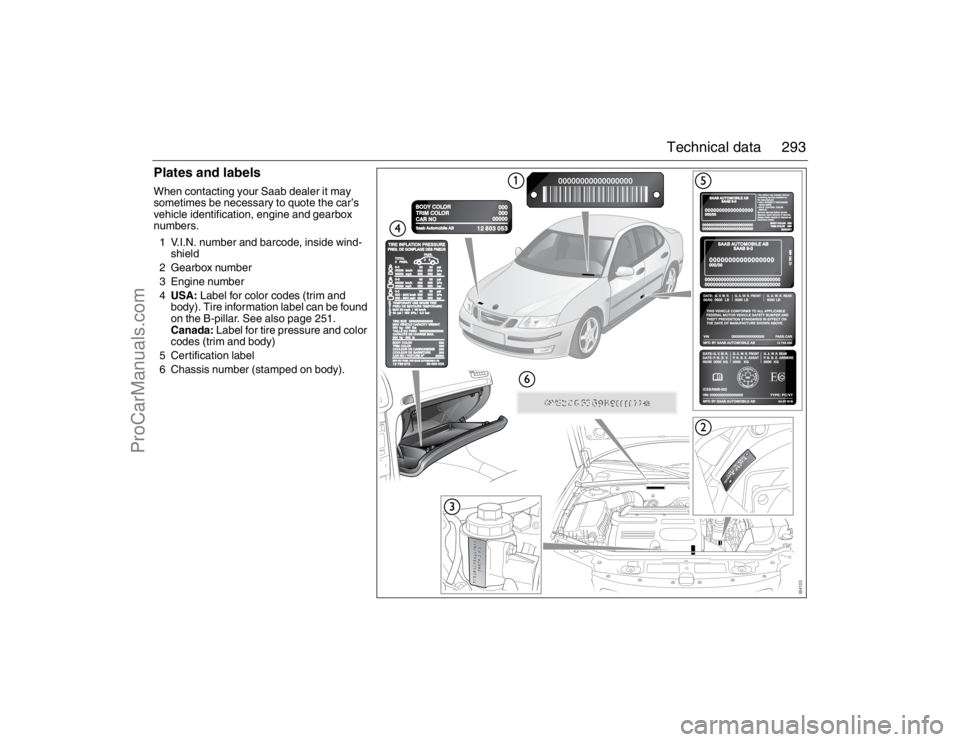

Plates and labelsWhen contacting your Saab dealer it may
sometimes be necessary to quote the car’s
vehicle identification, engine and gearbox
numbers.
1 V.I.N. number and barcode, inside wind-
shield
2 Gearbox number
3 Engine number
4USA: Label for color codes (trim and
body). Tire information label can be found
on the B-pillar. See also page 251.
Canada: Label for tire pressure and color
codes (trim and body)
5 Certification label
6 Chassis number (stamped on body).93_U S _M 07.book Page 293 W ednesday, April 12, 2006 9:30 AM
ProCarManuals.com

294 Technical data1 Region ________Y = Nor thern Europe
2 Country _______S = Sweden
3 Manufacturer ___3 = Saab Automobile AB
4 Product line ____F = 9-3
5 Model series ___B = 9-3 Linear
D = 9-3 Arc
F = 9-3 Aero6 Body version ___4 = 4-door
7 = Convertible
5 = 5-door
7 Gearbox _______5 = 5-speed manual
6 = 6-speed manual
9 = 5-speed automatic
1 = 6-speed automatic
8 Engine variant __Y = 2.0 Turbo
U = V6 engine
9 Check digit _____0-9 or X
10 Model year ____7 = 2007
11 Factory _______1 = Trollhättan
6 = Graz
12 Serial number __000001-999999
Position: 1234567891011 12
||||||||| | | |
Vehicle identifi-
cation number:Y S 3 F D 4 9 Y X 7 1 016584
| |||||
1 2 3 4 5 6 = identification codes for certain chassis components
93_U S _M 07.book Page 294 W ednesday, April 12, 2006 9:30 AM
ProCarManuals.com

295 Technical data
Several of the systems in your
Saab can be customized to better
suit your individual needs.
Contact your Saab dealerCentral locking system
Some functions are governed by legal
requirements and cannot therefore be
reprogrammed.
We recommend that you consult a Saab
dealer for further information.
Listed below are a number of examples of
programmable functions.
Audible confirmation of arming/disarming
the car alarm.
Automatic unlocking when car stopped
and remote control removed from the igni-
tion switch.
Trunk lid locked when car driven off or
30 s after being shut.Courtesy Headlamp Feature
The length of time the lights are on.
Whether the reversing light or tail lights
should come on as well as the dipped
beam.
Automatic Climate System (ACC)
Convertible: A/C compressor not
switched off when the soft top is open.93_U S _M 07.book Page 295 W ednesday, April 12, 2006 9:30 AM
ProCarManuals.com

296 Technical dataWarning and indications that can
be shown on the SIDWhich warnings and indications that can be
shown depends on engine variant and car
specification.
Symbol Text
Antilock brake malfunc.
Contact service.
Brake malfunction.
Make a safe stop.
Brake fluid level low.
Make a safe stop.
Release park brake.
Oil pressure low.
Make a safe stop.
Low engine oil level.
Fill oil now.
Reduced engine power.
Contact service.
Limited performance.
Coolant level low.
Refill.
Hot engine. Make a
safe stop. Idle engine.
Airbag malfunction.
Contact service.
Gearbox malfunction.
Limited performance.
Gearbox too hot. Make a
safe stop. Open hood.
Battery not charging.
Make a safe stop.
Headlight levelling
malfunction.
Tap brakes lightly
before using cruise ctrl.
Traction control failure.
Contact service.
Stability control failure.
Contact service.
Washer fluid level low.
Refill.
Key not accepted.
Contact service.
Remote control battery
low. Replace battery.
Number of keys:
Active key number:
Steering lock malfunc.
Make a safe stop.
Pull out key, turn
steering wheel. Restart.
Theft protection failure.
Contact service.
Alarm tripped during
last arming period.
Rear left seat
backrest unlocked.
Rear right seat
backrest unlocked.
Parking assistance
malfunction. Service.
Parking assistance
sensor interference.
93_U S _M 07.book Page 296 W ednesday, April 12, 2006 9:30 AM
ProCarManuals.com

297 Technical data
Close doors.
Left brake light failure
Left high beam failure.
Left low beam failure.
Rear fog light failure.
Right brake light failure.
Right high beam failure.
Right low beam failure.
High mounted stop
light failure.
Left front turn signal
failure.
Left rear turn signal
failure.
Right front turn signal
failure.
Right rear turn signal
failure.
Right side-mounted
turn signal failure.
Left side-mounted
turn signal failure.
Left front position
light failure.
Right front position
light failure.
Left front fog light
failure.
Right front fog light
failure.
Left reversing light
failure.
Right reversing light
failure.
License plate light
failure.
Left rear taillight
failure.
Right rear taillight
failure.
Time for service.
93_U S _M 07.book Page 297 W ednesday, April 12, 2006 9:30 AM
ProCarManuals.com

298 Technical data(This page has been left blank.)93_U S _M 07.book Page 298 W ednesday, April 12, 2006 9:30 AM
