fuse box SAAB 9-3 2007 Owners Manual

5

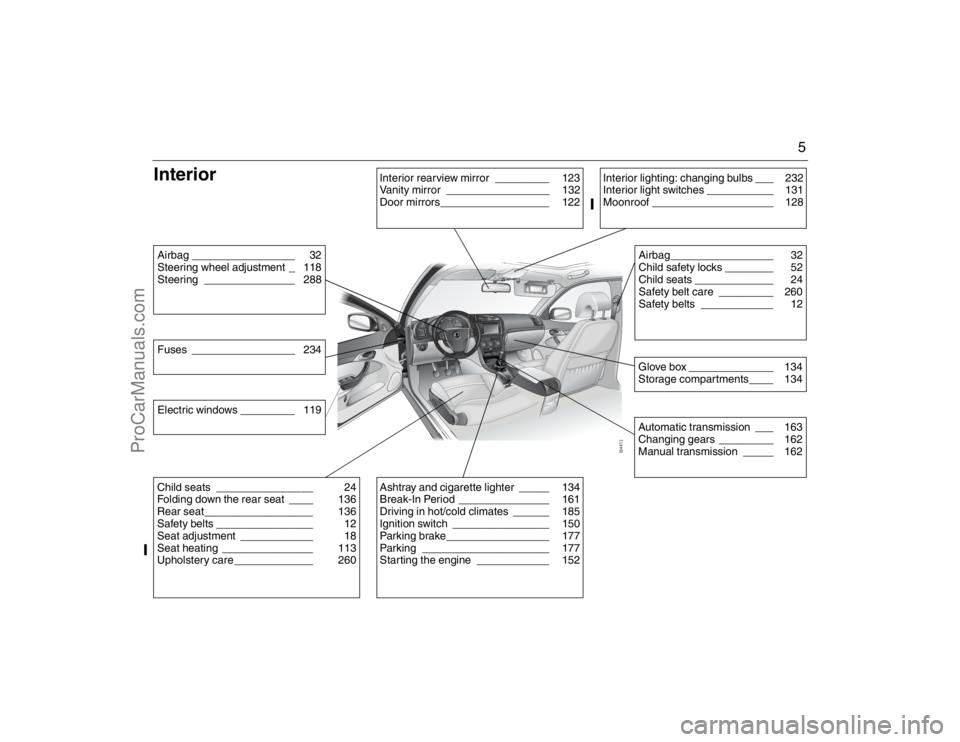

InteriorAirbag _________________ 32
Steering wheel adjustment _ 118
Steering _______________ 288
Interior rearview mirror _________ 123
Vanity mirror _________________ 132
Door mirrors__________________ 122
Airbag_________________ 32
Child safety locks ________ 52
Child seats _____________ 24
Safety belt care _________ 260
Safety belts ____________ 12Glove box ______________ 134
Storage compartments____ 134Automatic transmission ___ 163
Changing gears _________ 162
Manual transmission _____ 162
Child seats ________________ 24
Folding down the rear seat ____ 136
Rear seat__________________ 136
Safety belts ________________ 12
Seat adjustment ____________ 18
Seat heating _______________ 113
Upholstery care _____________ 260
Interior lighting: changing bulbs ___ 232
Interior light switches ___________ 131
Moonroof ____________________ 128
Ashtray and cigarette lighter _____ 134
Break-In Period _______________ 161
Driving in hot/cold climates ______ 185
Ignition switch ________________ 150
Parking brake_________________ 177
Parking _____________________ 177
Starting the engine ____________ 152
Fuses _________________ 234Electric windows _________ 11993_U S _M 07.book Page 5 W ednesday, April 12, 2006 9:30 AM
ProCarManuals.com

6Engine bay, 4-cylColor code______________ 293
Engine number __________ 293
Gearbox number _________ 293
Warning labels __________ 8
Vehicle identification number 293Alternator_______________ 216
Drive belt _______________ 216
Exhaust emission control __ 155
Ignition system __________ 286
Simple troubleshooting (ACC) 268
Spark plugs _____________ 286
Turbo gauge ____________ 88Engine oil: checking level __ 207Automatic transmission _________ 163
Transmission: technical data _____ 287
Manual transmission ___________ 162
Battery ______________________ 213
Battery charge ________________ 213
Jump starting _________________ 198
Engine: description ____________ 202
Engine: technical data __________ 283
Important considerations for driving 154
Oil grade and viscosity__________ 284
Topping-up fluid _________ 218
Wash/wipe stalk switch____ 101
Washer fluid ____________ 218
Washer jets ____________ 218
Power steering ________________ 212
Fluid: checking/topping up _______ 212
Coolant: checking/topping-up ____ 209
Driving in hot climates __________ 187
Radiator _____________________ 283
Temperature gauge ____________ 88
Changing a fuse _________ 234
Fuse table _____________ 239
Fuses _________________ 234
Relays ________________ 239ABS brakes_____________ 170
Brake pads _____________ 211
Brake system ___________ 289
Brake fluid______________ 211
93_U S _M 07.book Page 6 W ednesday, April 12, 2006 9:30 AM
ProCarManuals.com

7
Engine bay, 2.8 V6Power steering___________ 212
Fluid: checking/topping up__ 212Vehicle identification
number ________________ 293
Colour code _____________ 293
Engine number __________ 293
Warning labels___________ 8
Gearbox number _________ 293Exhaust emission control __ 155
Drive belt _______________ 216
Simple troubleshooting (ACC) 268
Alternator_______________ 216
Turbo gauge ____________ 88
Spark plugs _____________ 286
Ignition system __________ 286Automatic transmission _________ 163
Manual gearbox_______________ 162
Gearbox: technical data_________ 287
Engine: description ____________ 202
Engine oil: topping up __________ 207
Oil grade and viscosity__________ 284
Engine: technical data __________ 283
Important considerations
for driving ___________________ 154Engine oil: checking level________ 207
Battery ______________________ 213
Battery charge ________________ 213
Jump starting _________________ 198
Wash/wipe stalk switch ____ 101
Topping-up fluid _________ 218
Washer jets_____________ 218
Washer fluid ____________ 218Changing a fuse _________ 236
Fuses _________________ 234
Relays ________________ 239
Fuse table ______________ 236ABS brakes_____________ 171
Brake pads _____________ 289
Brake system ___________ 170
Brake fluid______________ 211
Cooling system, coolant capacity__ 283
Coolant: checking/topping-up ____ 209
Driving in hot climates __________ 187
Temperature gauge ____________ 88
93_U S _M 07.book Page 7 W ednesday, April 12, 2006 9:30 AM
ProCarManuals.com

97 Instruments and controls
SwitchesThe parking lights and daytime running
lights come on automatically when the igni-
tion switch is in the ON position.
High beam can not be activated in this posi-
tion but headlight flasher can.
The parking lights can be turned on irre-
spective of the position of the ignition
switch. If the parking lights are on and the
driver’s door is opened, a reminder to turn
them off will sound.
Do not use the parking lights alone while
driving.
The parking lights may be used in combina-
tion with the front fog lights (see page 99).
Low beam headlights are turned on when
the ignition switch is turned to ON and
turned off when the switch is turned back to
LOCK.
Headlight levelling3Cars with xenon headlights are equipped
with an automatic headlight levelling sys-
tem, which self-calibrates each time the
vehicle is started.
If a fault arises in the automatic headlight
levelling system, the headlights will be
angled down to avoid dazzling drivers in
oncoming traffic. Adjust your speed accord-
ingly as the range of the headlights will be
reduced. Check fuse 20 in the engine bay
fuse box (see page 239).
A fault in the system will produce the follow-
ing message on the Saab Information Dis-
play (SID):
Special equipment is required for adjusting
the basic headlight alignment.
Daytime Running Lights
Parking lights
Headlights
Headlight levelling
malfunction.
Light switches
93_U S _M 07.book Page 97 W ednesday, April 12, 2006 9:30 AM
ProCarManuals.com

166 Starting and drivingCars with 5-speed transmission
In this mode, only 2nd and 5th gears are
available. Select 2nd gear when driving at
low speeds and 5th gear at higher speeds.
2nd gear must be selected manually. Select
5th gear manually or move the selector
lever to D, see page 168.
Cars with 6-speed transmission3
The car may be totally powerless. If this is
case, have the car transported to a work-
shop to have the problem rectified.
The car may feel weak but can be driven
carefully to a workshop to have the prob-
lem rectified.
Drivability may barely be affected.
Irrespective of the drivability of the car, the
car must be taken to a workshop to have the
problem checked and rectified.Temporary override of Park Brake Shift
Lock
1 Apply the parking brake.
2 Lift up the rubber mat in the storage
compartment ahead of the selector
lever.
3 Under the floor of the storage compart-
ment is a yellow plastic lever. Use a thin
tool, such as a screwdriver, to press and
hold the plastic lever while moving the
selector lever from P to N.
4 Remove the tool.
5 Release the parking brake if the car is to
be moved immediately, otherwise it
should remain on.
Check fuse 6 in the engine bay fuse box.
If the fuse is OK the battery may be dead.
Contact a workshop to have the problem
checked and rectified. We recommend that
you contact a Saab dealer.
NOTICEDue to electrical problems it may not be
possible to move the selector lever out of
the park position, even if the ignition is
ON. If for some reason the selector lever
has to be moved out of the park position
(i.e. to tow the car a short distance) do as
described below.
Temporary override of Park Brake Shift
Lock
93_U S _M 07.book Page 166 W ednesday, April 12, 2006 9:30 AM
ProCarManuals.com

200 Starting and drivingUsing a battery charger3/starter
unitTo avoid damaging the car’s electrical
system and electronics, the following rules
must be followed when charging the battery
or jump starting the car.
If the charger or starter unit can be set to
different voltages (6V/12V/18V/24V), 12V
must be selected.
Follow the manufacturer’s instructions
supplied with the charger or starter unit.
No other apparatus that are grounded or
connected to the mains must be
connected to the car during charging or
jump starting.
The charger or starter unit must under no
conditions produce a voltage greater
than:
16V continuous
18V for 60 min.
If you are unsure about the charge rating of
the unit, disconnect the battery clamp from
the positive terminal before connecting the
unit to the battery.
For long tripsBefore starting off on a long journey, it is
advisable to have your car inspected by
your Saab dealer.
Obtain a few important items to take along
on your journey, such as spare bulbs, wiper
blades, fuses, a drive belt (poly-V-belt) and
the like.
You can check some points yourself before-
hand:
Check that no oil or fuel leaks out of the
engine or gearbox/transmission.
Check the coolant and power steering
fluid levels. Check also for leaks.
Inspect the drive belt (poly-V-belt) and
replace if it shows any signs of wear.
Check the battery charge.
Check the tires for tread pattern and air
pressure, including the compact spare
tire.
Take an extra remote control and keep it
separate.
Check the brakes.
Check all bulbs.
Check for the presence of the tool kit and
jack in the car.
93_U S _M 07.book Page 200 W ednesday, April 12, 2006 9:30 AM
ProCarManuals.com

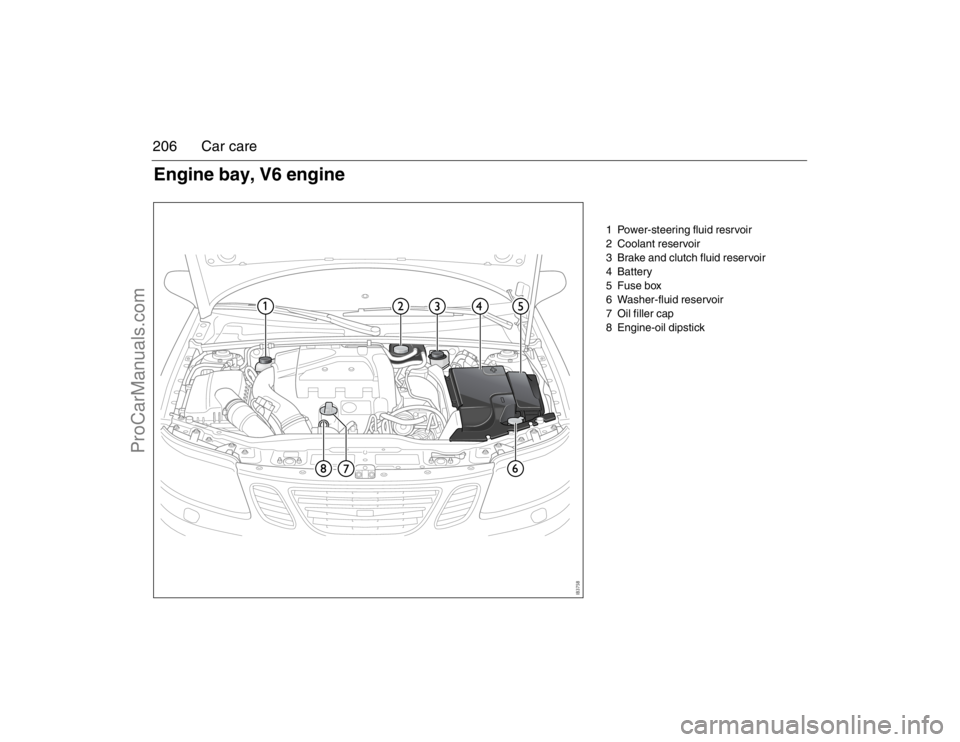

205 Car care
1 Oil filler cap
2 Coolant reservoir
3 Brake and clutch fluid reservoir
4Battery
5 Fuse box
6 Washer-fluid reservoir
7 Power-steering fluid reservoir
8 Engine-oil dipstick
Engine bay, 4-cyl engine93_U S _M 07.book Page 205 W ednesday, April 12, 2006 9:30 AM
ProCarManuals.com

206 Car care
1 Power-steering fluid resrvoir
2 Coolant reservoir
3 Brake and clutch fluid reservoir
4Battery
5 Fuse box
6 Washer-fluid reservoir
7 Oil filler cap
8 Engine-oil dipstick
Engine bay, V6 engine93_U S _M 07.book Page 206 W ednesday, April 12, 2006 9:30 AM
ProCarManuals.com

220 Car care

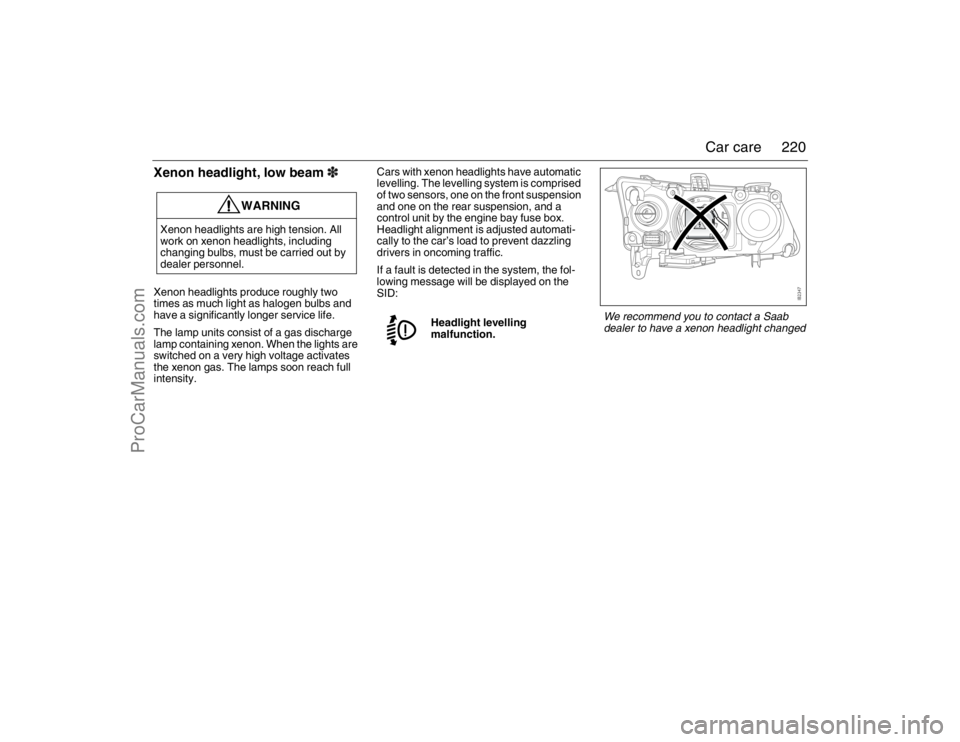

Xenon headlight, low beam3Xenon headlights produce roughly two
times as much light as halogen bulbs and
have a significantly longer service life.
The lamp units consist of a gas discharge
lamp containing xenon. When the lights are
switched on a very high voltage activates
the xenon gas. The lamps soon reach full
intensity.Cars with xenon headlights have automatic
levelling. The levelling system is comprised
of two sensors, one on the front suspension
and one on the rear suspension, and a
control unit by the engine bay fuse box.
Headlight alignment is adjusted automati-
cally to the car’s load to prevent dazzling
drivers in oncoming traffic.
If a fault is detected in the system, the fol-
lowing message will be displayed on the
SID:
WARNING
Xenon headlights are high tension. All
work on xenon headlights, including
changing bulbs, must be carried out by
dealer personnel.
Headlight levelling
malfunction.
We recommend you to contact a Saab
dealer to have a xenon headlight changed
93_U S _M 07.book Page 220 W ednesday, April 12, 2006 9:30 AM
ProCarManuals.com

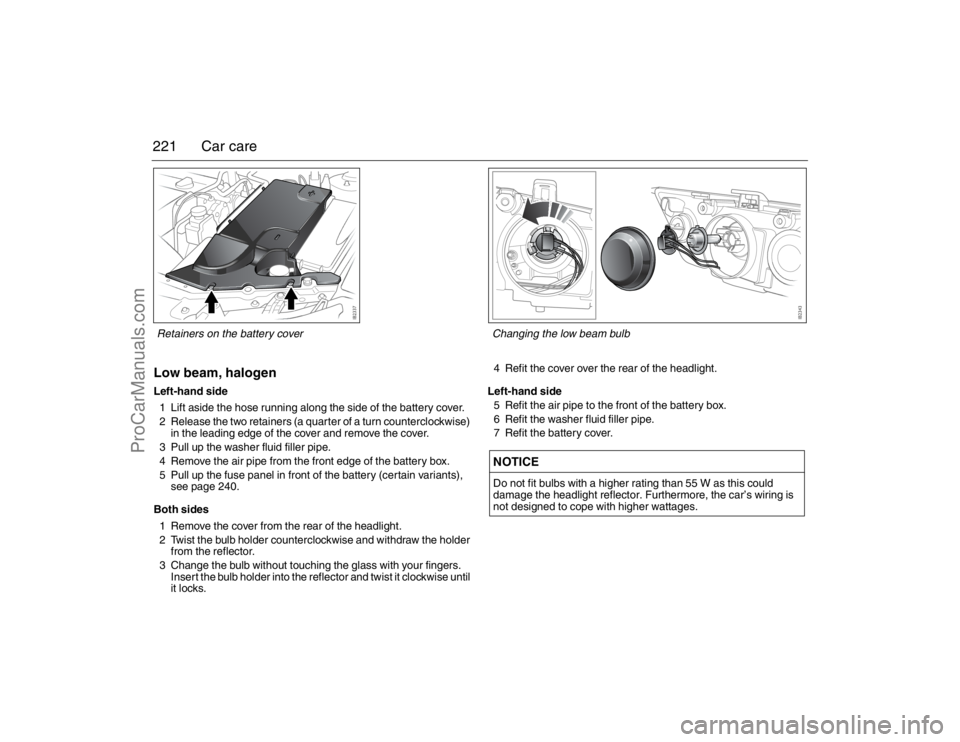

221 Car careLow beam, halogenLeft-hand side
1 Lift aside the hose running along the side of the battery cover.
2 Release the two retainers (a quarter of a turn counterclockwise)
in the leading edge of the cover and remove the cover.
3 Pull up the washer fluid filler pipe.
4 Remove the air pipe from the front edge of the battery box.
5 Pull up the fuse panel in front of the battery (certain variants),
see page 240.
Both sides
1 Remove the cover from the rear of the headlight.
2 Twist the bulb holder counterclockwise and withdraw the holder
from the reflector.
3 Change the bulb without touching the glass with your fingers.
Insert the bulb holder into the reflector and twist it clockwise until
it locks.4 Refit the cover over the rear of the headlight.
Left-hand side
5 Refit the air pipe to the front of the battery box.
6 Refit the washer fluid filler pipe.
7 Refit the battery cover.
NOTICEDo not fit bulbs with a higher rating than 55 W as this could
damage the headlight reflector. Furthermore, the car’s wiring is
not designed to cope with higher wattages.
Retainers on the battery cover Changing the low beam bulb93_U S _M 07.book Page 221 W ednesday, April 12, 2006 9:30 AM
ProCarManuals.com
