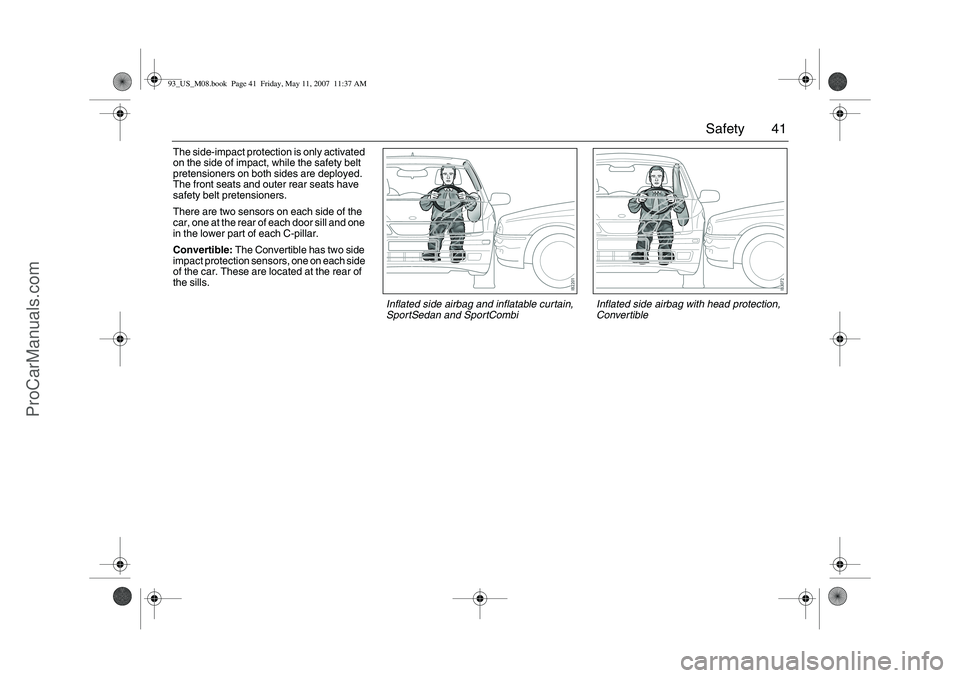

41 Safety
The side-impact protection is only activated
on the side of impact, while the safety belt
pretensioners on both sides are deployed.
The front seats and outer rear seats have
safety belt pretensioners.
There are two sensors on each side of the
car, one at the rear of each door sill and one
in the lower part of each C-pillar.
Convertible: The Convertible has two side
impact protection sensors, one on each side
of the car. These are located at the rear of
the sills.
Inflated side airbag and inflatable curtain,
SportSedan and SportCombi
Inflated side airbag with head protection,
Convertible
93_US_M08.book Page 41 Friday, May 11, 2007 11:37 AM
ProCarManuals.com
Page 42 of 320

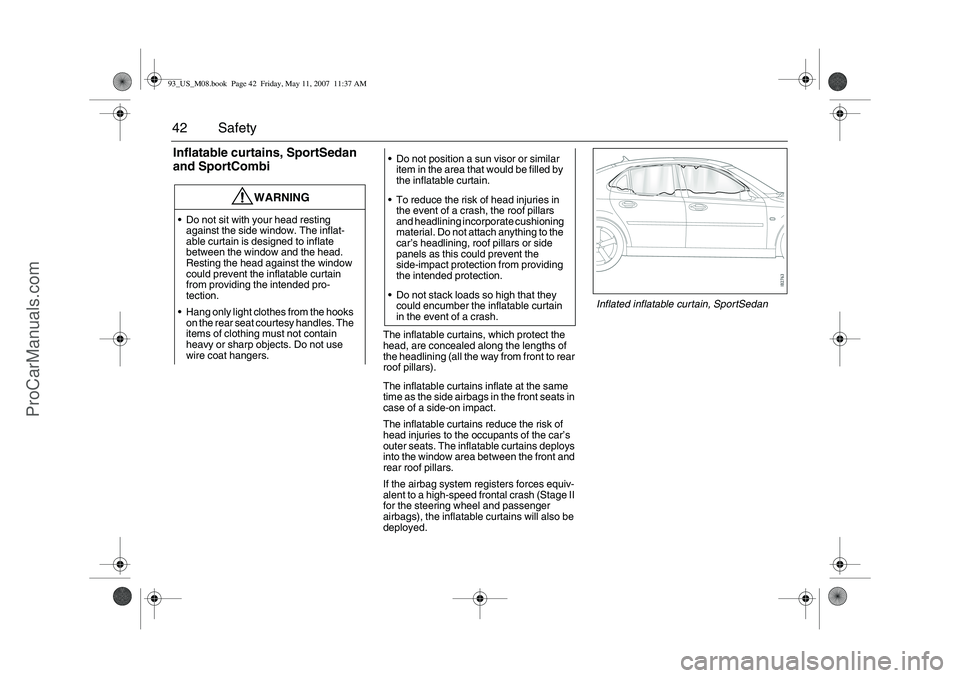

42 SafetyInflatable curtains, SportSedan
and SportCombi
The inflatable curtains, which protect the
head, are concealed along the lengths of
the headlining (all the way from front to rear
roof pillars).
The inflatable curtains inflate at the same
time as the side airbags in the front seats in
case of a side-on impact.
The inflatable curtains reduce the risk of
head injuries to the occupants of the car’s
outer seats. The inflatable curtains deploys
into the window area between the front and
rear roof pillars.
If the airbag system registers forces equiv-
alent to a high-speed frontal crash (Stage II
for the steering wheel and passenger
airbags), the inflatable curtains will also be
deployed.
WARNING
Do not sit with your head resting
against the side window. The inflat-
able curtain is designed to inflate
between the window and the head.
Resting the head against the window
could prevent the inflatable curtain
from providing the intended pro-
tection.
Hang only light clothes from the hooks
on the rear seat courtesy handles. The
items of clothing must not contain
heavy or sharp objects. Do not use
wire coat hangers.
Do not position a sun visor or similar
item in the area that would be filled by
the inflatable curtain.
To reduce the risk of head injuries in
the event of a crash, the roof pillars
and headlining incorporate cushioning
material. Do not attach anything to the
car’s headlining, roof pillars or side
panels as this could prevent the
side-impact protection from providing
the intended protection.
Do not stack loads so high that they
could encumber the inflatable curtain
in the event of a crash.
Inflated inflatable curtain, SportSedan
93_US_M08.book Page 42 Friday, May 11, 2007 11:37 AM
ProCarManuals.com
Page 43 of 320

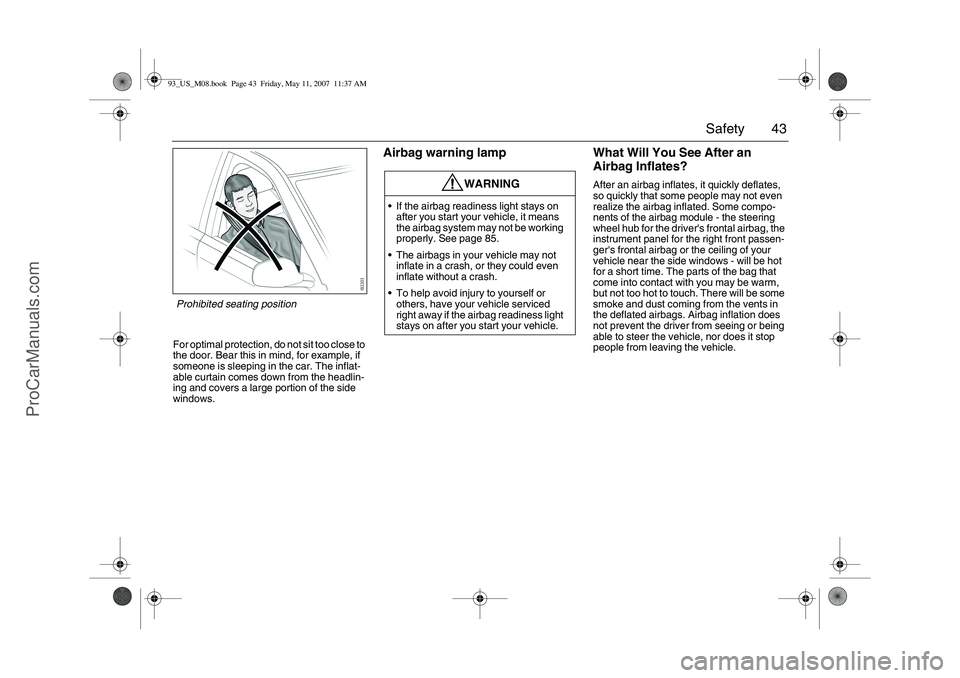

43 Safety
For optimal protection, do not sit too close to
the door. Bear this in mind, for example, if
someone is sleeping in the car. The inflat-
able curtain comes down from the headlin-
ing and covers a large portion of the side
windows.
Airbag warning lamp What Will You See After an
Airbag Inflates?
After an airbag inflates, it quickly deflates,
so quickly that some people may not even
realize the airbag inflated. Some compo-
nents of the airbag module - the steering
wheel hub for the driver's frontal airbag, the
instrument panel for the right front passen-
ger's frontal airbag or the ceiling of your
vehicle near the side windows - will be hot
for a short time. The parts of the bag that
come into contact with you may be warm,
but not too hot to touch. There will be some
smoke and dust coming from the vents in
the deflated airbags. Airbag inflation does
not prevent the driver from seeing or being
able to steer the vehicle, nor does it stop
people from leaving the vehicle.
WARNING
If the airbag readiness light stays on
after you start your vehicle, it means
the airbag system may not be working
properly. See page 85.
The airbags in your vehicle may not
inflate in a crash, or they could even
inflate without a crash.
To help avoid injury to yourself or
others, have your vehicle serviced
right away if the airbag readiness light
stays on after you start your vehicle.
Prohibited seating position93_US_M08.book Page 43 Friday, May 11, 2007 11:37 AM
ProCarManuals.com
Page 44 of 320

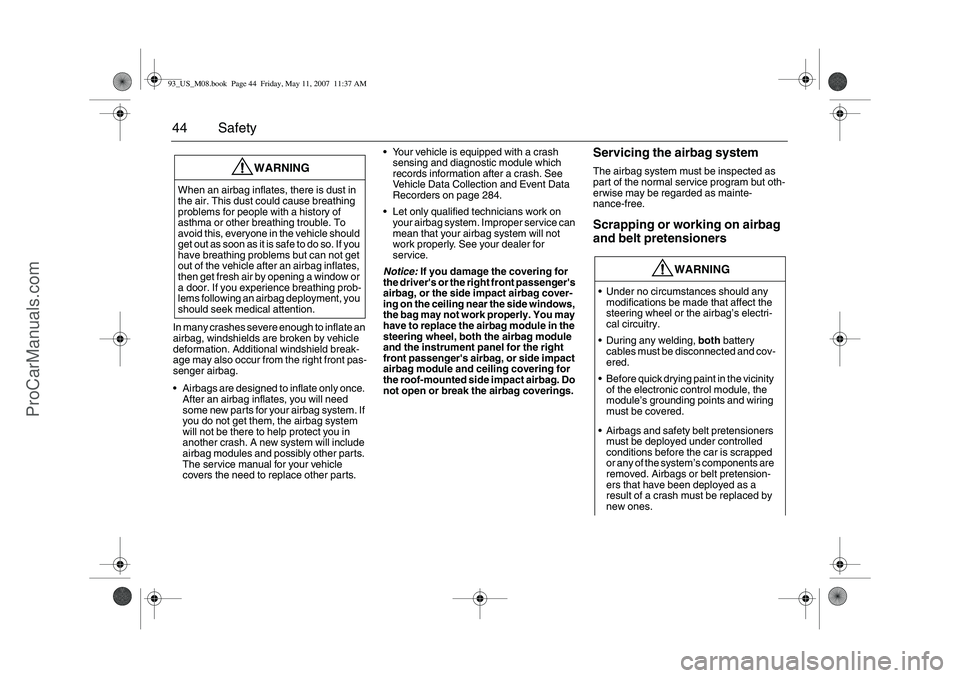

44 SafetyIn many crashes severe enough to inflate an
airbag, windshields are broken by vehicle
deformation. Additional windshield break-
age may also occur from the right front pas-
senger airbag.
Airbags are designed to inflate only once.
After an airbag inflates, you will need
some new parts for your airbag system. If
you do not get them, the airbag system
will not be there to help protect you in
another crash. A new system will include
airbag modules and possibly other parts.
The service manual for your vehicle
covers the need to replace other parts.Your vehicle is equipped with a crash
sensing and diagnostic module which
records information after a crash. See
Vehicle Data Collection and Event Data
Recorders on page 284.
Let only qualified technicians work on
your airbag system. Improper service can
mean that your airbag system will not
work properly. See your dealer for
service.
Notice: If you damage the covering for
the driver's or the right front passenger's
airbag, or the side impact airbag cover-
ing on the ceiling near the side windows,
the bag may not work properly. You may
have to replace the airbag module in the
steering wheel, both the airbag module
and the instrument panel for the right
front passenger's airbag, or side impact
airbag module and ceiling covering for
the roof-mounted side impact airbag. Do
not open or break the airbag coverings.
Servicing the airbag systemThe airbag system must be inspected as
part of the normal service program but oth-
erwise may be regarded as mainte-
nance-free.Scrapping or working on airbag
and belt pretensioners
WARNING
When an airbag inflates, there is dust in
the air. This dust could cause breathing
problems for people with a history of
asthma or other breathing trouble. To
avoid this, everyone in the vehicle should
get out as soon as it is safe to do so. If you
have breathing problems but can not get
out of the vehicle after an airbag inflates,
then get fresh air by opening a window or
a door. If you experience breathing prob-
lems following an airbag deployment, you
should seek medical attention.
WARNING
Under no circumstances should any
modifications be made that affect the
steering wheel or the airbag’s electri-
cal circuitry.
During any welding, both battery
cables must be disconnected and cov-
ered.
Before quick drying paint in the vicinity
of the electronic control module, the
module’s grounding points and wiring
must be covered.
Airbags and safety belt pretensioners
must be deployed under controlled
conditions before the car is scrapped
or any of the system’s components are
removed. Airbags or belt pretension-
ers that have been deployed as a
result of a crash must be replaced by
new ones.
93_US_M08.book Page 44 Friday, May 11, 2007 11:37 AM
ProCarManuals.com
Page 45 of 320

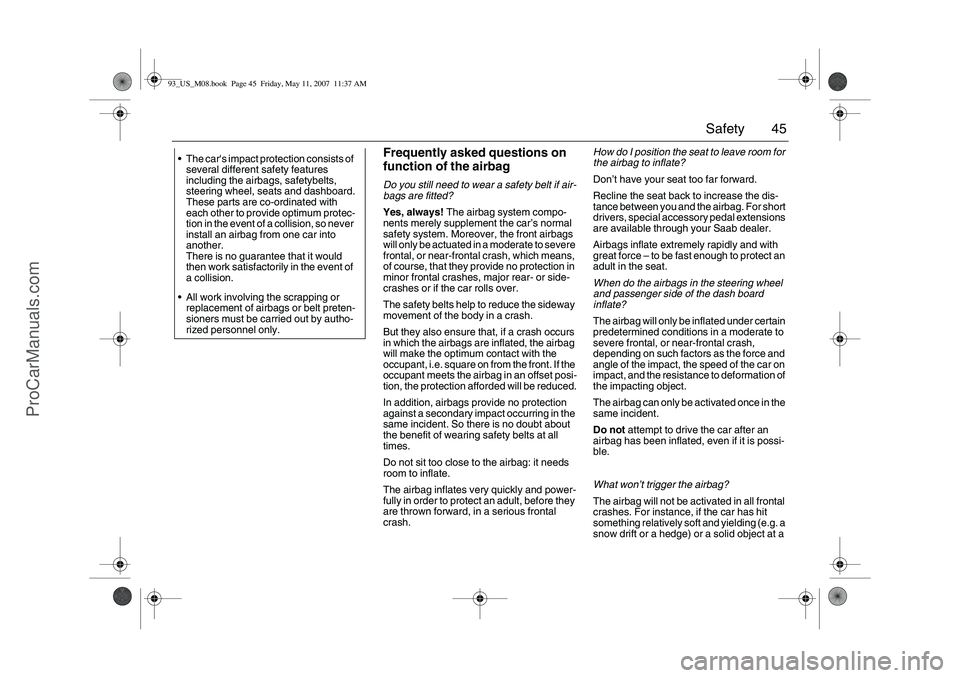

45 Safety
Frequently asked questions on
function of the airbagDo you still need to wear a safety belt if air-
bags are fitted?
Yes, always! The airbag system compo-
nents merely supplement the car’s normal
safety system. Moreover, the front airbags
will only be actuated in a moderate to severe
frontal, or near-frontal crash, which means,
of course, that they provide no protection in
minor frontal crashes, major rear- or side-
crashes or if the car rolls over.
The safety belts help to reduce the sideway
movement of the body in a crash.
But they also ensure that, if a crash occurs
in which the airbags are inflated, the airbag
will make the optimum contact with the
occupant, i.e. square on from the front. If the
occupant meets the airbag in an offset posi-
tion, the protection afforded will be reduced.
In addition, airbags provide no protection
against a secondary impact occurring in the
same incident. So there is no doubt about
the benefit of wearing safety belts at all
times.
Do not sit too close to the airbag: it needs
room to inflate.
The airbag inflates very quickly and power-
fully in order to protect an adult, before they
are thrown forward, in a serious frontal
crash.How do I position the seat to leave room for
the airbag to inflate?
Don’t have your seat too far forward.
Recline the seat back to increase the dis-
tance between you and the airbag. For short
drivers, special accessory pedal extensions
are available through your Saab dealer.
Airbags inflate extremely rapidly and with
great force – to be fast enough to protect an
adult in the seat.
When do the airbags in the steering wheel
and passenger side of the dash board
inflate?
The airbag will only be inflated under certain
predetermined conditions in a moderate to
severe frontal, or near-frontal crash,
depending on such factors as the force and
angle of the impact, the speed of the car on
impact, and the resistance to deformation of
the impacting object.
The airbag can only be activated once in the
same incident.
Do not attempt to drive the car after an
airbag has been inflated, even if it is possi-
ble.
What won’t trigger the airbag?
The airbag will not be activated in all frontal
crashes. For instance, if the car has hit
something relatively soft and yielding (e.g. a
snow drift or a hedge) or a solid object at a The car's impact protection consists of
several different safety features
including the airbags, safetybelts,
steering wheel, seats and dashboard.
These parts are co-ordinated with
each other to provide optimum protec-
tion in the event of a collision, so never
install an airbag from one car into
another.
There is no guarantee that it would
then work satisfactorily in the event of
a collision.
All work involving the scrapping or
replacement of airbags or belt preten-
sioners must be carried out by autho-
rized personnel only.
93_US_M08.book Page 45 Friday, May 11, 2007 11:37 AM
ProCarManuals.com
Page 46 of 320

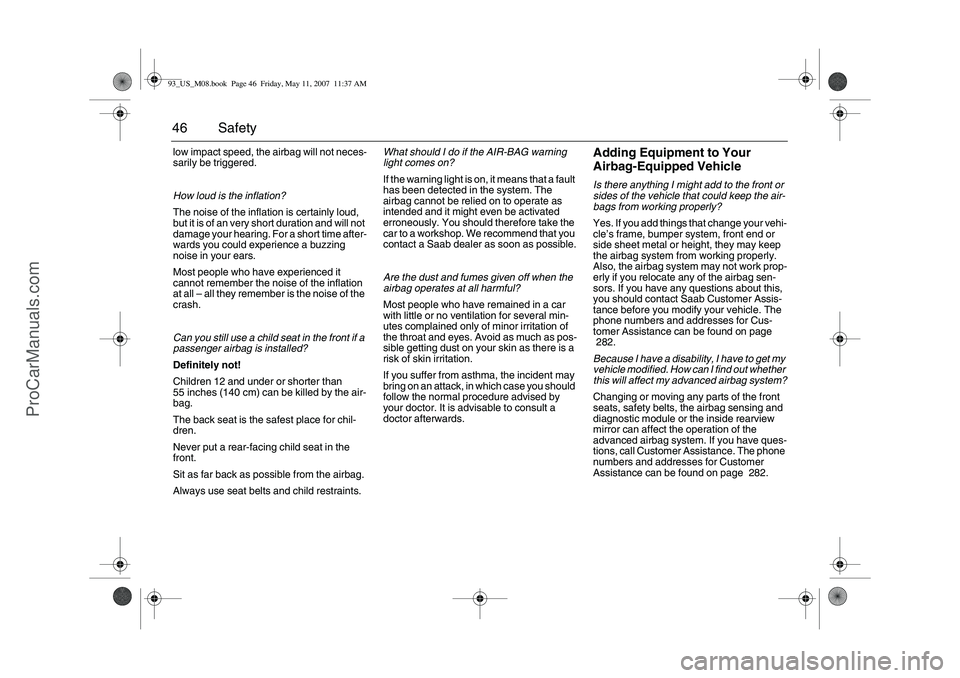

46 Safetylow impact speed, the airbag will not neces-
sarily be triggered.
How loud is the inflation?
The noise of the inflation is certainly loud,
but it is of an very short duration and will not
damage your hearing. For a short time after-
wards you could experience a buzzing
noise in your ears.
Most people who have experienced it
cannot remember the noise of the inflation
at all – all they remember is the noise of the
crash.
Can you still use a child seat in the front if a
passenger airbag is installed?
Definitely not!
Children 12 and under or shorter than
55 inches (140 cm) can be killed by the air-
bag.
The back seat is the safest place for chil-
dren.
Never put a rear-facing child seat in the
front.
Sit as far back as possible from the airbag.
Always use seat belts and child restraints.What should I do if the AIR-BAG warning
light comes on?
If the warning light is on, it means that a fault
has been detected in the system. The
airbag cannot be relied on to operate as
intended and it might even be activated
erroneously. You should therefore take the
car to a workshop. We recommend that you
contact a Saab dealer as soon as possible.
Are the dust and fumes given off when the
airbag operates at all harmful?
Most people who have remained in a car
with little or no ventilation for several min-
utes complained only of minor irritation of
the throat and eyes. Avoid as much as pos-
sible getting dust on your skin as there is a
risk of skin irritation.
If you suffer from asthma, the incident may
bring on an attack, in which case you should
follow the normal procedure advised by
your doctor. It is advisable to consult a
doctor afterwards.
Adding Equipment to Your
Airbag-Equipped VehicleIs there anything I might add to the front or
sides of the vehicle that could keep the air-
bags from working properly?
Yes. If you add things that change your vehi-
cle’s frame, bumper system, front end or
side sheet metal or height, they may keep
the airbag system from working properly.
Also, the airbag system may not work prop-
erly if you relocate any of the airbag sen-
sors. If you have any questions about this,
you should contact Saab Customer Assis-
tance before you modify your vehicle. The
phone numbers and addresses for Cus-
tomer Assistance can be found on page
282.
Because I have a disability, I have to get my
vehicle modified. How can I find out whether
this will affect my advanced airbag system?
Changing or moving any parts of the front
seats, safety belts, the airbag sensing and
diagnostic module or the inside rearview
mirror can affect the operation of the
advanced airbag system. If you have ques-
tions, call Customer Assistance. The phone
numbers and addresses for Customer
Assistance can be found on page 282.
93_US_M08.book Page 46 Friday, May 11, 2007 11:37 AM
ProCarManuals.com
Page 47 of 320
47 Security
Doors ________________ 48
Central locking ________ 48
Car alarm _____________ 56
Security
3Asterisk means: equipment not fitted in all cars
(can depend on model variant, engine variant,
market specification, options or accessories).93_US_M08.book Page 47 Friday, May 11, 2007 11:37 AM
ProCarManuals.com
Page 48 of 320

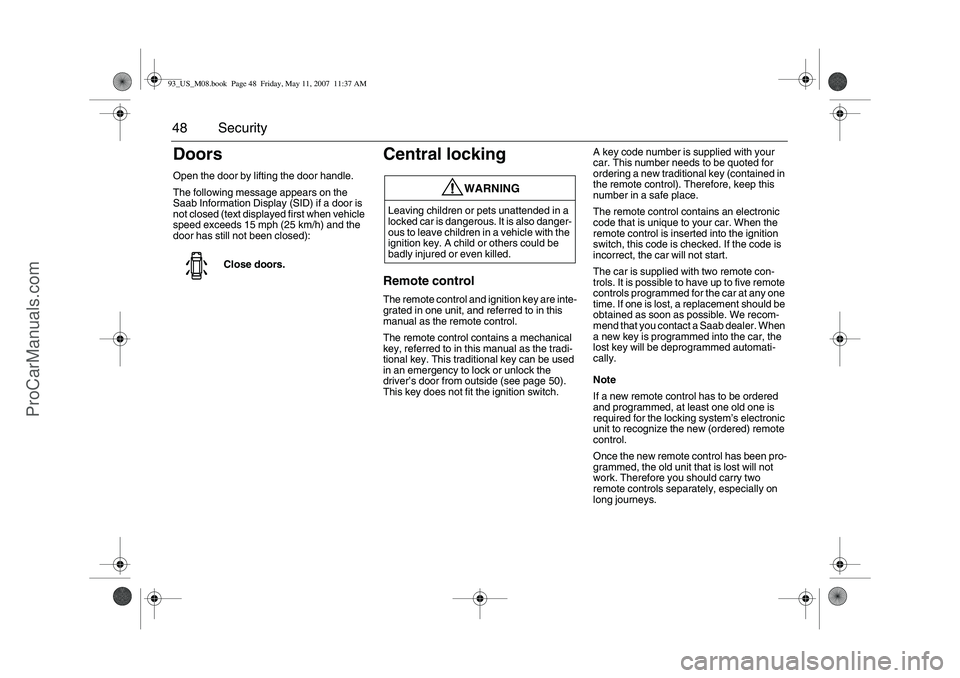

48 SecurityDoorsOpen the door by lifting the door handle.
The following message appears on the
Saab Information Display (SID) if a door is
not closed (text displayed first when vehicle
speed exceeds 15 mph (25 km/h) and the
door has still not been closed):
Central lockingRemote controlThe remote control and ignition key are inte-
grated in one unit, and referred to in this
manual as the remote control.
The remote control contains a mechanical
key, referred to in this manual as the tradi-
tional key. This traditional key can be used
in an emergency to lock or unlock the
driver’s door from outside (see page 50).
This key does not fit the ignition switch.A key code number is supplied with your
car. This number needs to be quoted for
ordering a new traditional key (contained in
the remote control). Therefore, keep this
number in a safe place.
The remote control contains an electronic
code that is unique to your car. When the
remote control is inserted into the ignition
switch, this code is checked. If the code is
incorrect, the car will not start.
The car is supplied with two remote con-
trols. It is possible to have up to five remote
controls programmed for the car at any one
time. If one is lost, a replacement should be
obtained as soon as possible. We recom-
mend that you contact a Saab dealer. When
a new key is programmed into the car, the
lost key will be deprogrammed automati-
cally.
Note
If a new remote control has to be ordered
and programmed, at least one old one is
required for the locking system’s electronic
unit to recognize the new (ordered) remote
control.
Once the new remote control has been pro-
grammed, the old unit that is lost will not
work. Therefore you should carry two
remote controls separately, especially on
long journeys. Close doors.
WARNING
Leaving children or pets unattended in a
locked car is dangerous. It is also danger-
ous to leave children in a vehicle with the
ignition key. A child or others could be
badly injured or even killed.
93_US_M08.book Page 48 Friday, May 11, 2007 11:37 AM
ProCarManuals.com
Page 49 of 320

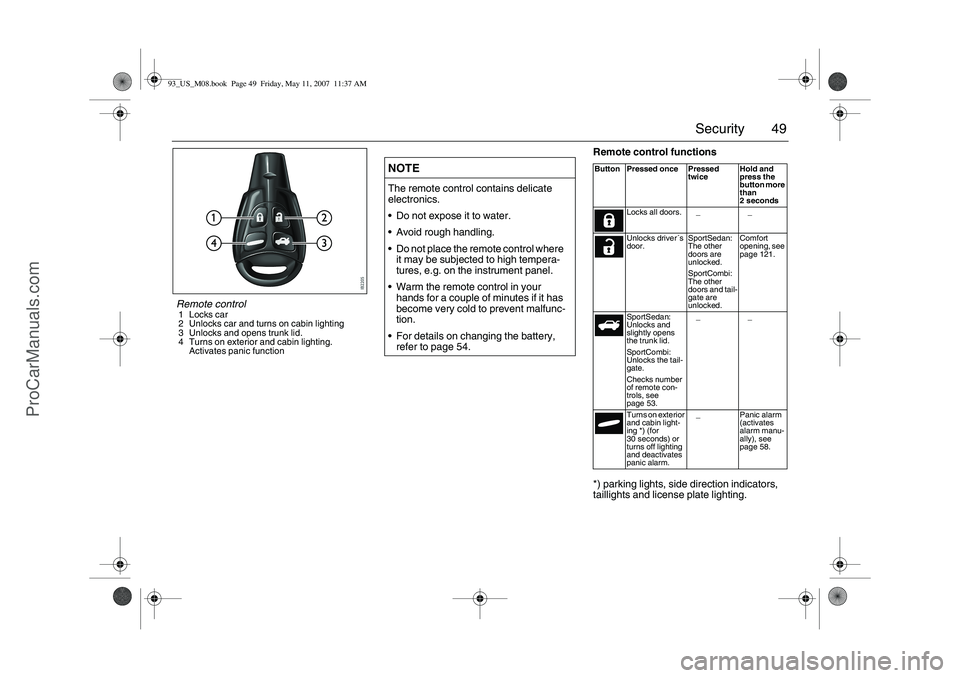

49 Security
Remote control functions
*) parking lights, side direction indicators,
taillights and license plate lighting.
NOTEThe remote control contains delicate
electronics.
Do not expose it to water.
Avoid rough handling.
Do not place the remote control where
it may be subjected to high tempera-
tures, e.g. on the instrument panel.
Warm the remote control in your
hands for a couple of minutes if it has
become very cold to prevent malfunc-
tion.
For details on changing the battery,
refer to page 54.
Button Pressed once Pressed
twiceHold and
press the
button more
than
2 seconds
Locks all doors. _ _
Unlocks driver´s
door.SportSedan:
The other
doors are
unlocked.
SportCombi:
The other
doors and tail-
gate are
unlocked.Comfort
opening, see
page 121.
SportSedan:
Unlocks and
slightly opens
the trunk lid.
SportCombi:
Unlocks the tail-
gate.
Checks number
of remote con-
trols, see
page 53.__
Turns on exterior
and cabin light-
ing *) (for
30 seconds) or
turns off lighting
and deactivates
panic alarm._ Panic alarm
(activates
alarm manu-
ally), see
page 58.
Remote control1 Locks car
2 Unlocks car and turns on cabin lighting
3 Unlocks and opens trunk lid.
4 Turns on exterior and cabin lighting.
Activates panic function93_US_M08.book Page 49 Friday, May 11, 2007 11:37 AM
ProCarManuals.com
Page 50 of 320

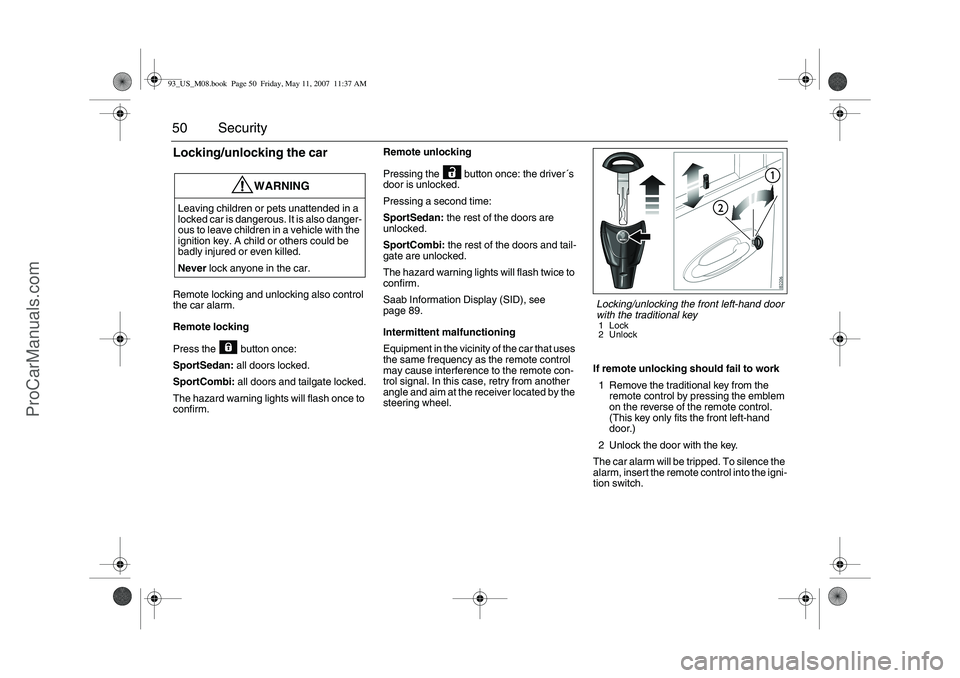

50 SecurityLocking/unlocking the carRemote locking and unlocking also control
the car alarm.
Remote locking
Press the button once:
SportSedan: all doors locked.
SportCombi: all doors and tailgate locked.
The hazard warning lights will flash once to
confirm.Remote unlocking
Pressing the button once: the driver´s
door is unlocked.
Pressing a second time:
SportSedan: the rest of the doors are
unlocked.
SportCombi: the rest of the doors and tail-
gate are unlocked.
The hazard warning lights will flash twice to
confirm.
Saab Information Display (SID), see
page 89.
Intermittent malfunctioning
Equipment in the vicinity of the car that uses
the same frequency as the remote control
may cause interference to the remote con-
trol signal. In this case, retry from another
angle and aim at the receiver located by the
steering wheel.If remote unlocking should fail to work
1 Remove the traditional key from the
remote control by pressing the emblem
on the reverse of the remote control.
(This key only fits the front left-hand
door.)
2 Unlock the door with the key.
The car alarm will be tripped. To silence the
alarm, insert the remote control into the igni-
tion switch.
WARNING
Leaving children or pets unattended in a
locked car is dangerous. It is also danger-
ous to leave children in a vehicle with the
ignition key. A child or others could be
badly injured or even killed.
Never lock anyone in the car.
Locking/unlocking the front left-hand door
with the traditional key1Lock
2 Unlock
93_US_M08.book Page 50 Friday, May 11, 2007 11:37 AM
ProCarManuals.com
