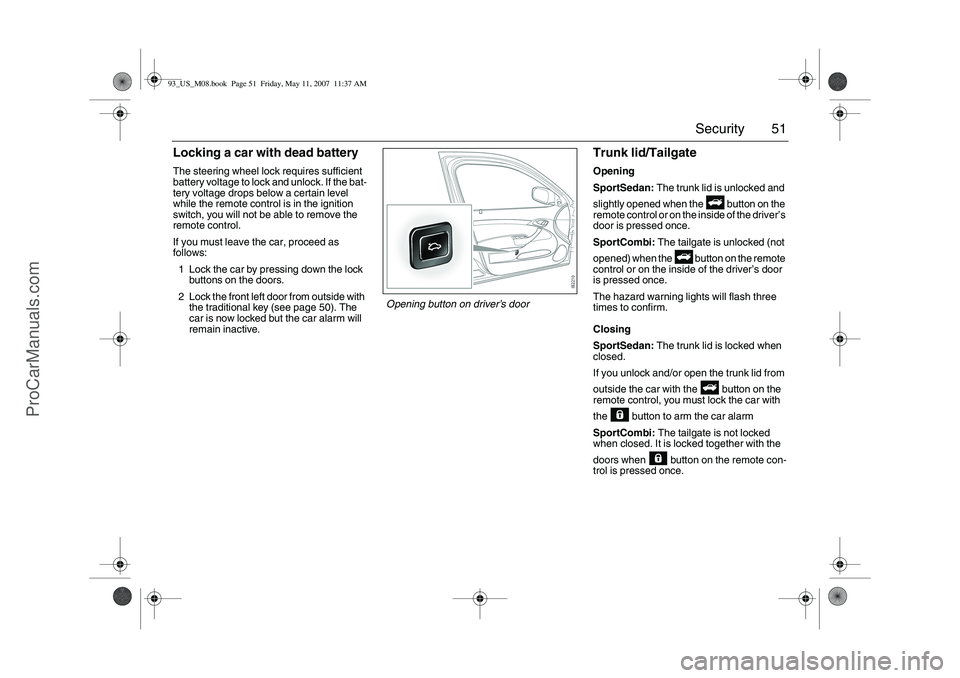

51 Security
Locking a car with dead batteryThe steering wheel lock requires sufficient
battery voltage to lock and unlock. If the bat-
tery voltage drops below a certain level
while the remote control is in the ignition
switch, you will not be able to remove the
remote control.
If you must leave the car, proceed as
follows:
1 Lock the car by pressing down the lock
buttons on the doors.
2 Lock the front left door from outside with
the traditional key (see page 50). The
car is now locked but the car alarm will
remain inactive.
Trunk lid/TailgateOpening
SportSedan: The trunk lid is unlocked and
slightly opened when the button on the
remote control or on the inside of the driver’s
door is pressed once.
SportCombi: The tailgate is unlocked (not
opened) when the button on the remote
control or on the inside of the driver’s door
is pressed once.
The hazard warning lights will flash three
times to confirm.
Closing
SportSedan: The trunk lid is locked when
closed.
If you unlock and/or open the trunk lid from
outside the car with the button on the
remote control, you must lock the car with
the button to arm the car alarm
SportCombi: The tailgate is not locked
when closed. It is locked together with the
doors when button on the remote con-
trol is pressed once.
Opening button on driver’s door
93_US_M08.book Page 51 Friday, May 11, 2007 11:37 AM
ProCarManuals.com
Page 52 of 320

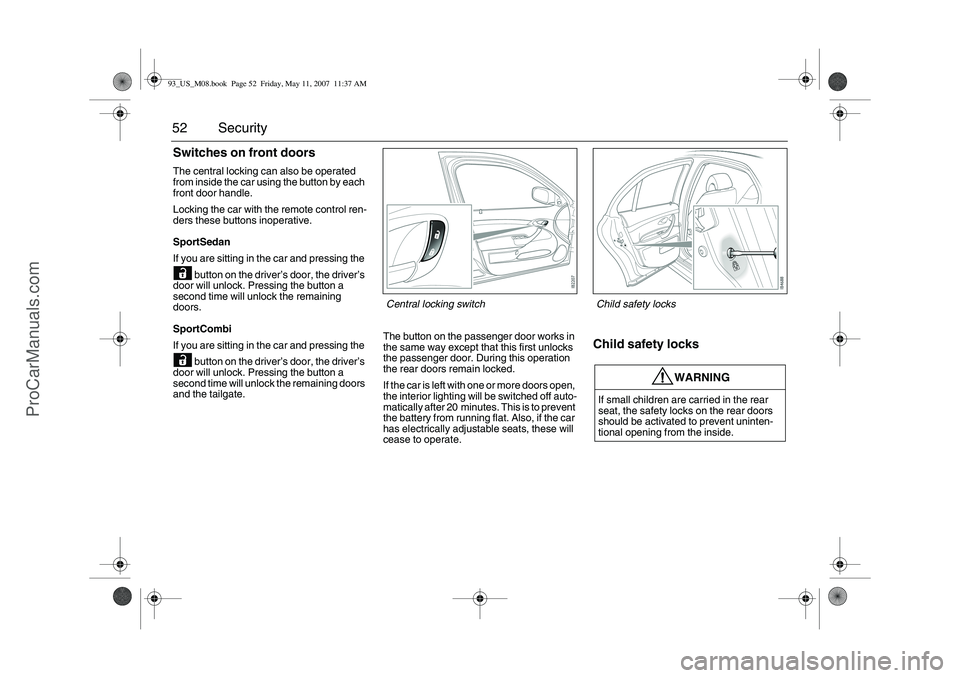

52 SecuritySwitches on front doorsThe central locking can also be operated
from inside the car using the button by each
front door handle.
Locking the car with the remote control ren-
ders these buttons inoperative.
SportSedan
If you are sitting in the car and pressing the
button on the driver’s door, the driver’s
door will unlock. Pressing the button a
second time will unlock the remaining
doors.
SportCombi
If you are sitting in the car and pressing the
button on the driver’s door, the driver’s
door will unlock. Pressing the button a
second time will unlock the remaining doors
and the tailgate.The button on the passenger door works in
the same way except that this first unlocks
the passenger door. During this operation
the rear doors remain locked.
If the car is left with one or more doors open,
the interior lighting will be switched off auto-
matically after 20 minutes. This is to prevent
the battery from running flat. Also, if the car
has electrically adjustable seats, these will
cease to operate.
Child safety locks
WARNING
If small children are carried in the rear
seat, the safety locks on the rear doors
should be activated to prevent uninten-
tional opening from the inside.
Central locking switch
Child safety locks
93_US_M08.book Page 52 Friday, May 11, 2007 11:37 AM
ProCarManuals.com
Page 53 of 320

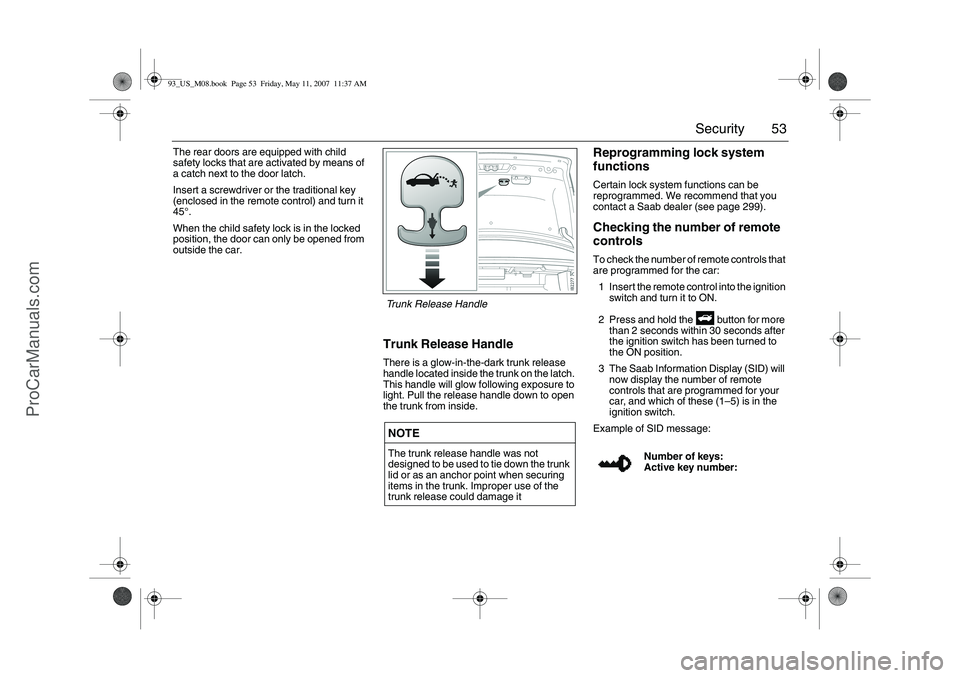

53 Security
The rear doors are equipped with child
safety locks that are activated by means of
a catch next to the door latch.
Insert a screwdriver or the traditional key
(enclosed in the remote control) and turn it
45°.
When the child safety lock is in the locked
position, the door can only be opened from
outside the car.
Trunk Release HandleThere is a glow-in-the-dark trunk release
handle located inside the trunk on the latch.
This handle will glow following exposure to
light. Pull the release handle down to open
the trunk from inside.
Reprogramming lock system
functionsCertain lock system functions can be
reprogrammed. We recommend that you
contact a Saab dealer (see page 299).Checking the number of remote
controlsTo check the number of remote controls that
are programmed for the car:
1 Insert the remote control into the ignition
switch and turn it to ON.
2 Press and hold the button for more
than 2 seconds within 30 seconds after
the ignition switch has been turned to
the ON position.
3 The Saab Information Display (SID) will
now display the number of remote
controls that are programmed for your
car, and which of these (1–5) is in the
ignition switch.
Example of SID message:
NOTEThe trunk release handle was not
designed to be used to tie down the trunk
lid or as an anchor point when securing
items in the trunk. Improper use of the
trunk release could damage it
Number of keys:
Active key number:
Trunk Release Handle
93_US_M08.book Page 53 Friday, May 11, 2007 11:37 AM
ProCarManuals.com
Page 54 of 320

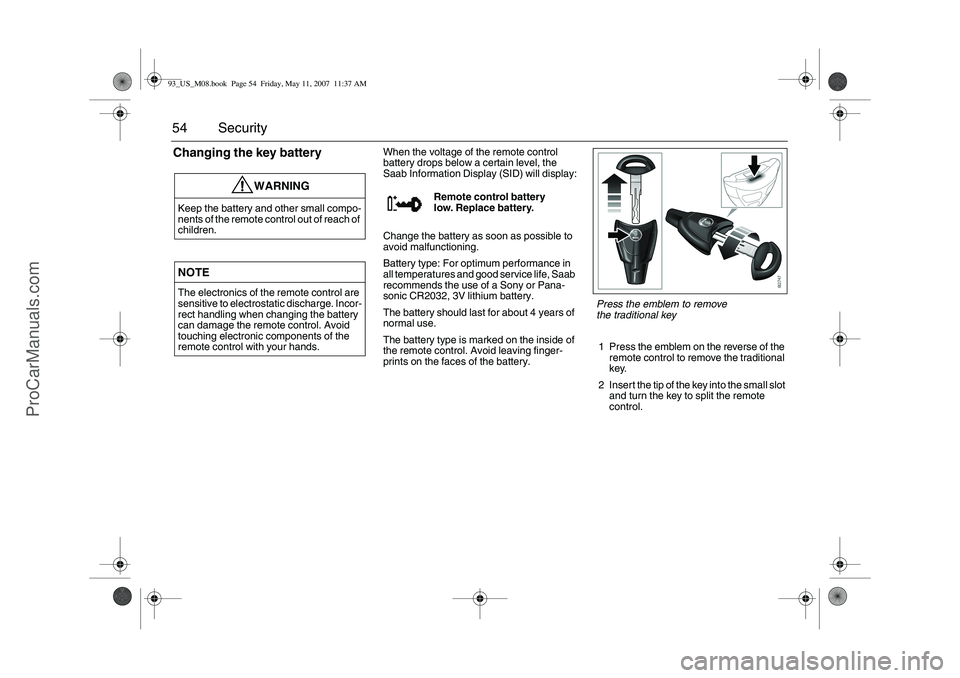

54 SecurityChanging the key battery
When the voltage of the remote control
battery drops below a certain level, the
Saab Information Display (SID) will display:
Change the battery as soon as possible to
avoid malfunctioning.
Battery type: For optimum performance in
all temperatures and good service life, Saab
recommends the use of a Sony or Pana-
sonic CR2032, 3V lithium battery.
The battery should last for about 4 years of
normal use.
The battery type is marked on the inside of
the remote control. Avoid leaving finger-
prints on the faces of the battery.1 Press the emblem on the reverse of the
remote control to remove the traditional
key.
2 Insert the tip of the key into the small slot
and turn the key to split the remote
control.
WARNING
Keep the battery and other small compo-
nents of the remote control out of reach of
children.NOTEThe electronics of the remote control are
sensitive to electrostatic discharge. Incor-
rect handling when changing the battery
can damage the remote control. Avoid
touching electronic components of the
remote control with your hands.
Remote control battery
low. Replace battery.
Press the emblem to remove
the traditional key
93_US_M08.book Page 54 Friday, May 11, 2007 11:37 AM
ProCarManuals.com
Page 55 of 320

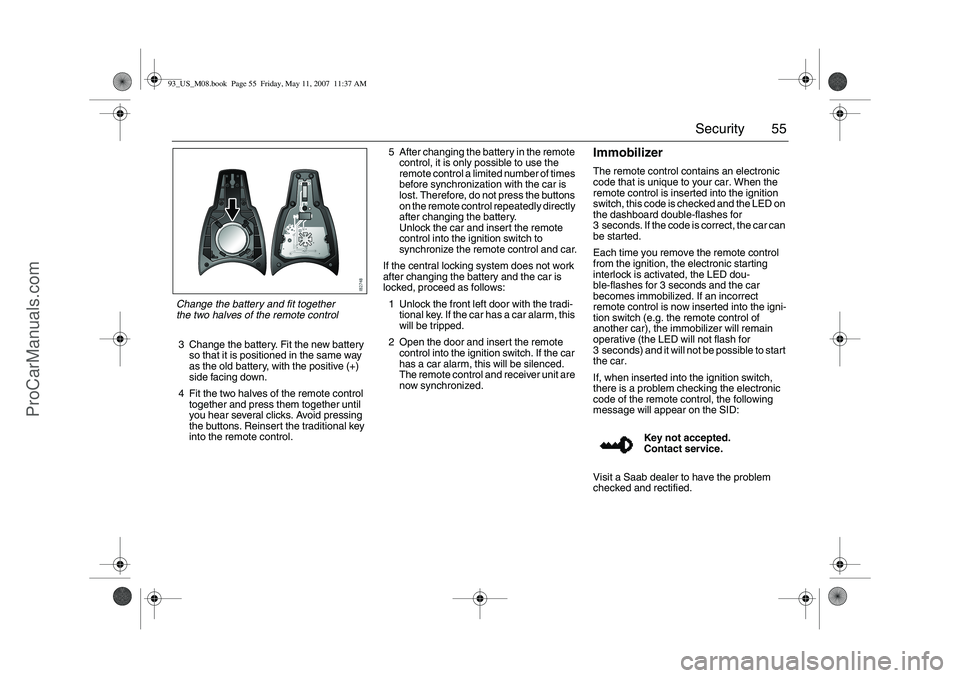

55 Security
3 Change the battery. Fit the new battery
so that it is positioned in the same way
as the old battery, with the positive (+)
side facing down.
4 Fit the two halves of the remote control
together and press them together until
you hear several clicks. Avoid pressing
the buttons. Reinsert the traditional key
into the remote control.5 After changing the battery in the remote
control, it is only possible to use the
remote control a limited number of times
before synchronization with the car is
lost. Therefore, do not press the buttons
on the remote control repeatedly directly
after changing the battery.
Unlock the car and insert the remote
control into the ignition switch to
synchronize the remote control and car.
If the central locking system does not work
after changing the battery and the car is
locked, proceed as follows:
1 Unlock the front left door with the tradi-
tional key. If the car has a car alarm, this
will be tripped.
2 Open the door and insert the remote
control into the ignition switch. If the car
has a car alarm, this will be silenced.
The remote control and receiver unit are
now synchronized.
ImmobilizerThe remote control contains an electronic
code that is unique to your car. When the
remote control is inserted into the ignition
switch, this code is checked and the LED on
the dashboard double-flashes for
3 seconds. If the code is correct, the car can
be started.
Each time you remove the remote control
from the ignition, the electronic starting
interlock is activated, the LED dou-
ble-flashes for 3 seconds and the car
becomes immobilized. If an incorrect
remote control is now inserted into the igni-
tion switch (e.g. the remote control of
another car), the immobilizer will remain
operative (the LED will not flash for
3 seconds) and it will not be possible to start
the car.
If, when inserted into the ignition switch,
there is a problem checking the electronic
code of the remote control, the following
message will appear on the SID:
Visit a Saab dealer to have the problem
checked and rectified.Key not accepted.
Contact service.
Change the battery and fit together
the two halves of the remote control93_US_M08.book Page 55 Friday, May 11, 2007 11:37 AM
ProCarManuals.com
Page 56 of 320

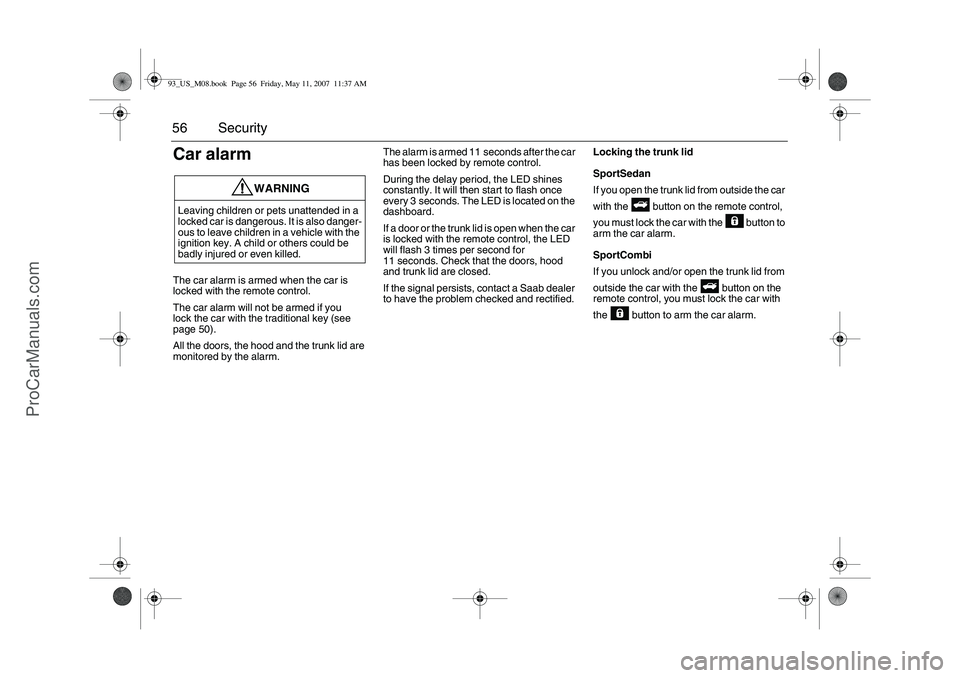

56 SecurityCar alarmThe car alarm is armed when the car is
locked with the remote control.
The car alarm will not be armed if you
lock the car with the traditional key (see
page 50).
All the doors, the hood and the trunk lid are
monitored by the alarm.The alarm is armed 11 seconds after the car
has been locked by remote control.
During the delay period, the LED shines
constantly. It will then start to flash once
every 3 seconds. The LED is located on the
dashboard.
If a door or the trunk lid is open when the car
is locked with the remote control, the LED
will flash 3 times per second for
11 seconds. Check that the doors, hood
and trunk lid are closed.
If the signal persists, contact a Saab dealer
to have the problem checked and rectified.Locking the trunk lid
SportSedan
If you open the trunk lid from outside the car
with the button on the remote control,
you must lock the car with the button to
arm the car alarm.
SportCombi
If you unlock and/or open the trunk lid from
outside the car with the button on the
remote control, you must lock the car with
the button to arm the car alarm.
WARNING
Leaving children or pets unattended in a
locked car is dangerous. It is also danger-
ous to leave children in a vehicle with the
ignition key. A child or others could be
badly injured or even killed.93_US_M08.book Page 56 Friday, May 11, 2007 11:37 AM
ProCarManuals.com
Page 57 of 320

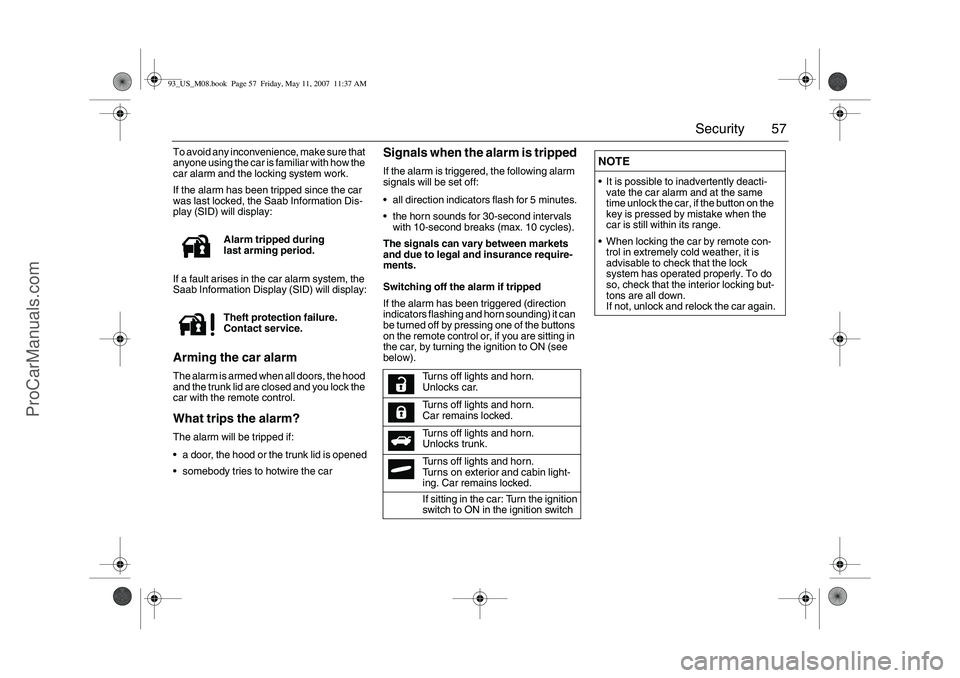

57 Security
To avoid any inconvenience, make sure that
anyone using the car is familiar with how the
car alarm and the locking system work.
If the alarm has been tripped since the car
was last locked, the Saab Information Dis-
play (SID) will display:
If a fault arises in the car alarm system, the
Saab Information Display (SID) will display:Arming the car alarmThe alarm is armed when all doors, the hood
and the trunk lid are closed and you lock the
car with the remote control.What trips the alarm?The alarm will be tripped if:
a door, the hood or the trunk lid is opened
somebody tries to hotwire the car
Signals when the alarm is trippedIf the alarm is triggered, the following alarm
signals will be set off:
all direction indicators flash for 5 minutes.
the horn sounds for 30-second intervals
with 10-second breaks (max. 10 cycles).
The signals can vary between markets
and due to legal and insurance require-
ments.
Switching off the alarm if tripped
If the alarm has been triggered (direction
indicators flashing and horn sounding) it can
be turned off by pressing one of the buttons
on the remote control or, if you are sitting in
the car, by turning the ignition to ON (see
below). Alarm tripped during
last arming period.
Theft protection failure.
Contact service.
Turns off lights and horn.
Unlocks car.
Turns off lights and horn.
Car remains locked.
Turns off lights and horn.
Unlocks trunk.
Turns off lights and horn.
Turns on exterior and cabin light-
ing. Car remains locked.
If sitting in the car: Turn the ignition
switch to ON in the ignition switch
NOTEIt is possible to inadvertently deacti-
vate the car alarm and at the same
time unlock the car, if the button on the
key is pressed by mistake when the
car is still within its range.
When locking the car by remote con-
trol in extremely cold weather, it is
advisable to check that the lock
system has operated properly. To do
so, check that the interior locking but-
tons are all down.
If not, unlock and relock the car again.
93_US_M08.book Page 57 Friday, May 11, 2007 11:37 AM
ProCarManuals.com
Page 58 of 320

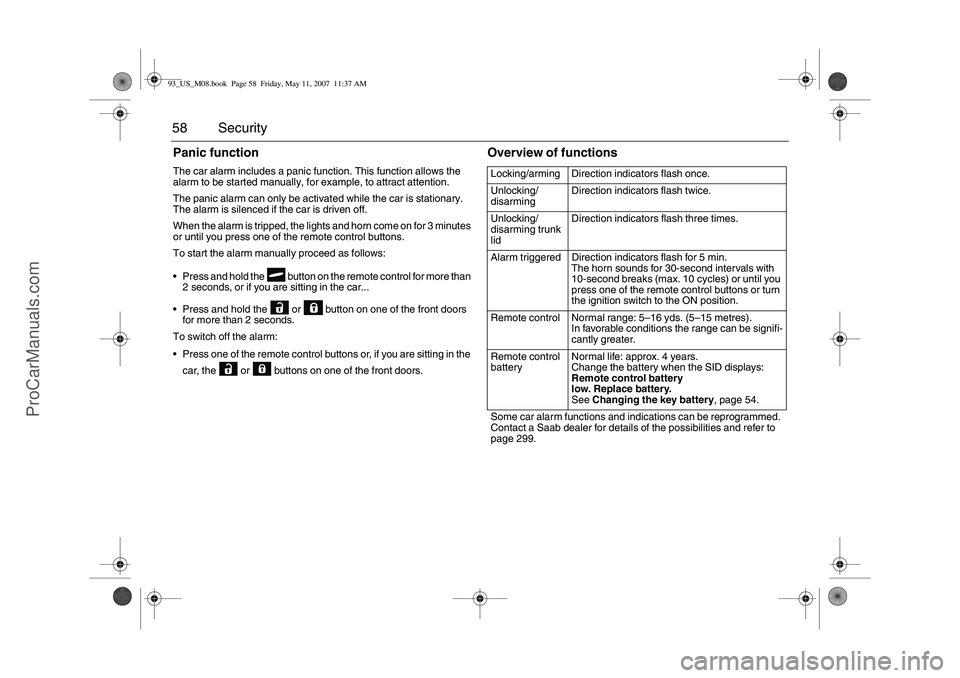

58 SecurityPanic functionThe car alarm includes a panic function. This function allows the
alarm to be started manually, for example, to attract attention.
The panic alarm can only be activated while the car is stationary.
The alarm is silenced if the car is driven off.
When the alarm is tripped, the lights and horn come on for 3 minutes
or until you press one of the remote control buttons.
To start the alarm manually proceed as follows:
Press and hold the button on the remote control for more than
2 seconds, or if you are sitting in the car...
Press and hold the or button on one of the front doors
for more than 2 seconds.
To switch off the alarm:
Press one of the remote control buttons or, if you are sitting in the
car, the or buttons on one of the front doors.
Overview of functionsLocking/arming Direction indicators flash once.
Unlocking/
disarmingDirection indicators flash twice.
Unlocking/
disarming trunk
lidDirection indicators flash three times.
Alarm triggered Direction indicators flash for 5 min.
The horn sounds for 30-second intervals with
10-second breaks (max. 10 cycles) or until you
press one of the remote control buttons or turn
the ignition switch to the ON position.
Remote control Normal range: 5–16 yds. (5–15 metres).
In favorable conditions the range can be signifi-
cantly greater.
Remote control
batteryNormal life: approx. 4 years.
Change the battery when the SID displays:
Remote control battery
low. Replace battery.
See Changing the key battery, page 54.
Some car alarm functions and indications can be reprogrammed.
Contact a Saab dealer for details of the possibilities and refer to
page 299.
93_US_M08.book Page 58 Friday, May 11, 2007 11:37 AM
ProCarManuals.com
Page 59 of 320

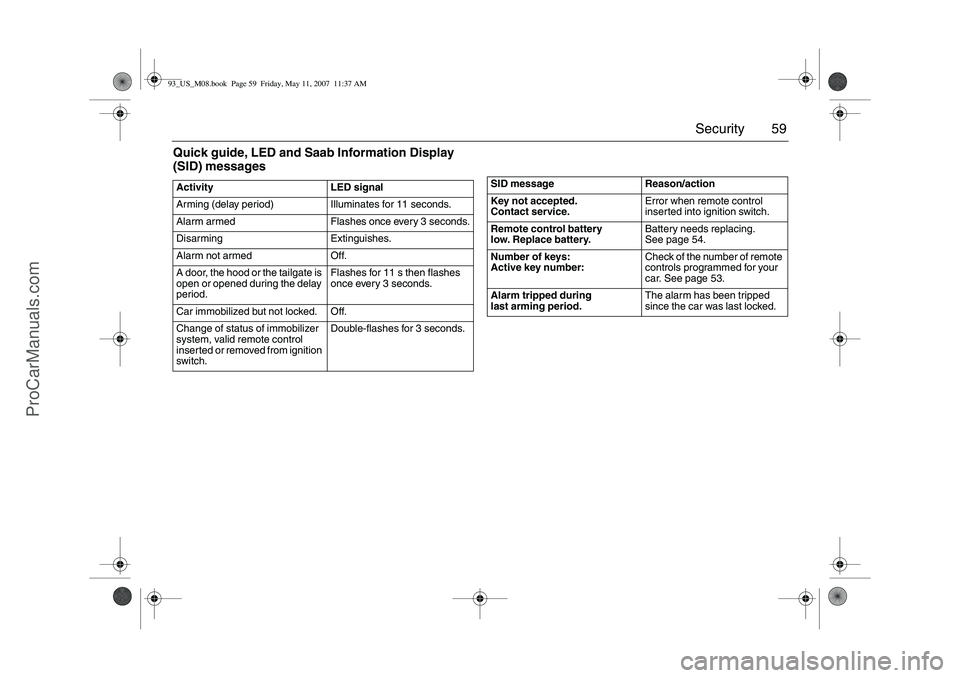

59 Security
Quick guide, LED and Saab Information Display
(SID) messagesActivity LED signal
Arming (delay period) Illuminates for 11 seconds.
Alarm armed Flashes once every 3 seconds.
Disarming Extinguishes.
Alarm not armed Off.
A door, the hood or the tailgate is
open or opened during the delay
period.Flashes for 11 s then flashes
once every 3 seconds.
Car immobilized but not locked. Off.
Change of status of immobilizer
system, valid remote control
inserted or removed from ignition
switch.Double-flashes for 3 seconds.
SID message Reason/action
Key not accepted.
Contact service.Error when remote control
inserted into ignition switch.
Remote control battery
low. Replace battery.Battery needs replacing.
Seepage54.
Number of keys:
Active key number:Check of the number of remote
controls programmed for your
car. See page 53.
Alarm tripped during
last arming period.The alarm has been tripped
since the car was last locked.
93_US_M08.book Page 59 Friday, May 11, 2007 11:37 AM
ProCarManuals.com
Page 60 of 320

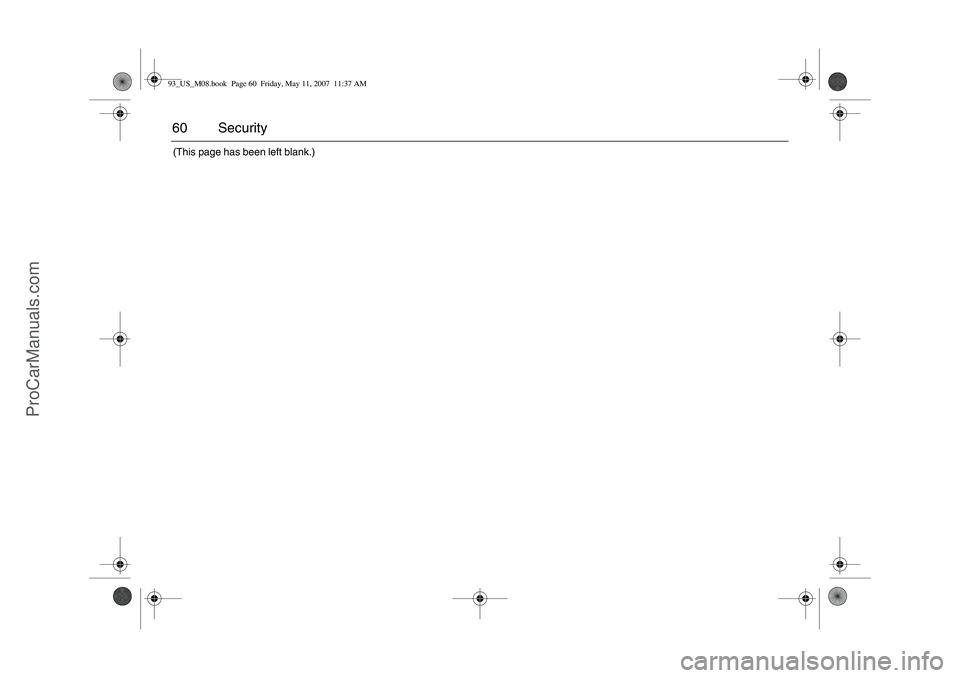

60 Security(This page has been left blank.)93_US_M08.book Page 60 Friday, May 11, 2007 11:37 AM
ProCarManuals.com
