windshield wipers SAAB 9-3 2008 Owners Manual

10
No sparks,
flames or
smokingBuckle up
Refer to
the Owner’s
ManualAirbag
Shield eyesNever place a
rear-facing
child seat in
this seat
Keep out of
reach of
childrenElectric
windows
Battery acid
contains sul-
phuric acidDeactivating
of rear window
switches
Risk of
explosive gasCentral
locking, lock
Central
locking,
unlock
Trunk lid,
opening
HeadlightsWindshield
wipers
Direction
indicatorsWindshield
washers
Parking lights Defroster
Hazard warn-
ing lightsRear window
heating
Front fog lights Cabin fan
Rear fog light
Coolant tem-
peratureRadiator fan
No charge to
batteryFuel
Foot brakeAutomatic Tire
Pressure
Monitoring
System
Coolant level
Engine oil
pressure
ABS brakes
TCS/ESP
®

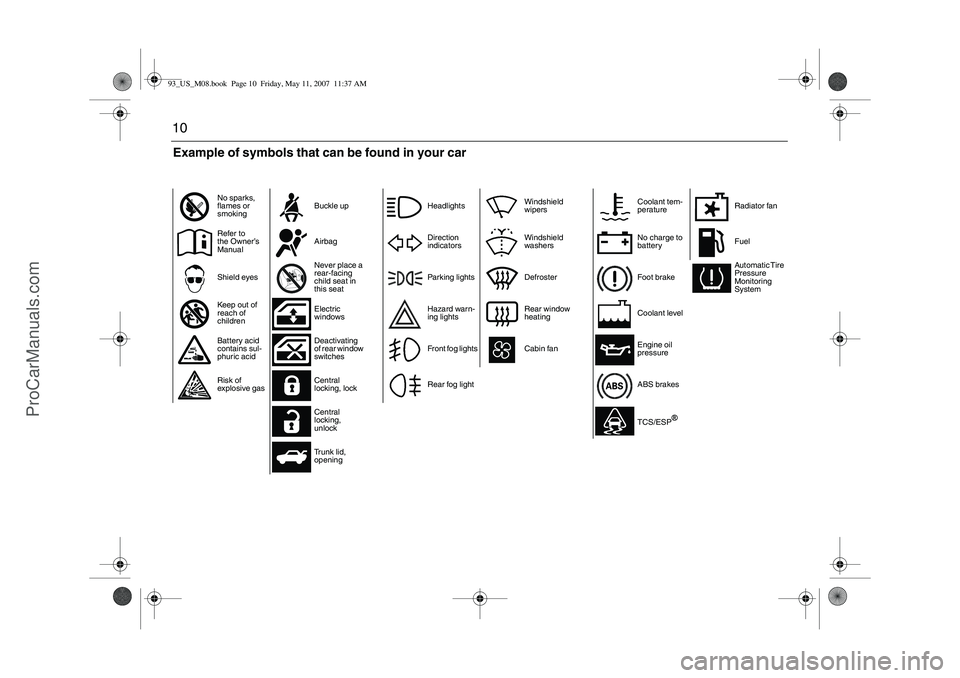

Example of symbols that can be found in your car93_US_M08.book Page 10 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

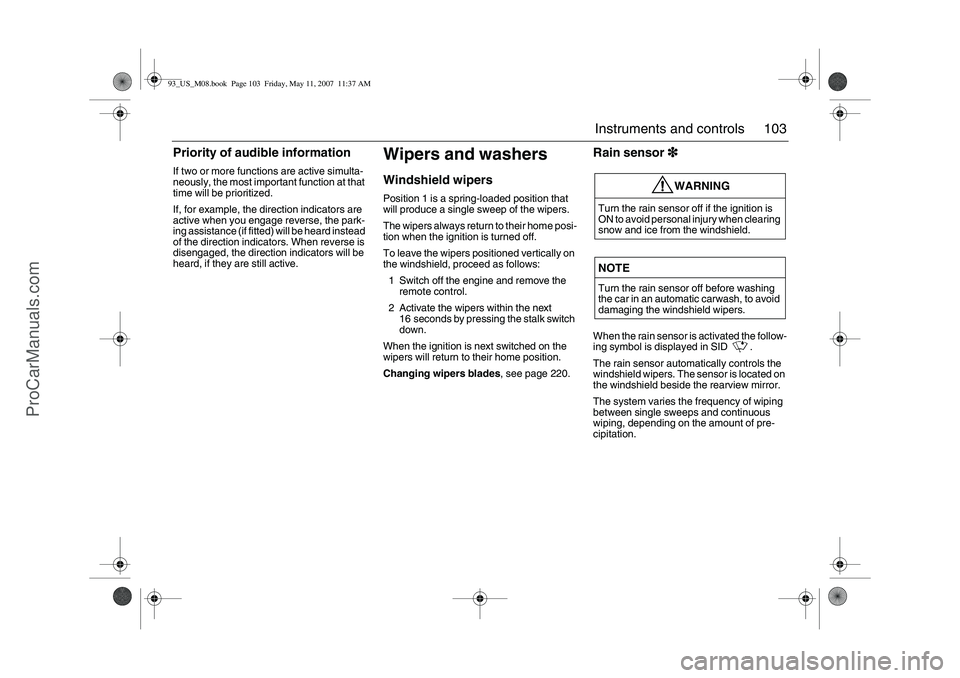

103 Instruments and controls
Priority of audible informationIf two or more functions are active simulta-
neously, the most important function at that
time will be prioritized.
If, for example, the direction indicators are
active when you engage reverse, the park-
ing assistance (if fitted) will be heard instead
of the direction indicators. When reverse is
disengaged, the direction indicators will be
heard, if they are still active.
Wipers and washersWindshield wipersPosition 1 is a spring-loaded position that
will produce a single sweep of the wipers.
The wipers always return to their home posi-
tion when the ignition is turned off.
To leave the wipers positioned vertically on
the windshield, proceed as follows:
1 Switch off the engine and remove the
remote control.
2 Activate the wipers within the next
16 seconds by pressing the stalk switch
down.
When the ignition is next switched on the
wipers will return to their home position.
Changing wipers blades, see page 220.
Rain sensor3
33 3When the rain sensor is activated the follow-
ing symbol is displayed in SID .
The rain sensor automatically controls the
windshield wipers. The sensor is located on
the windshield beside the rearview mirror.
The system varies the frequency of wiping
between single sweeps and continuous
wiping, depending on the amount of pre-
cipitation.
WARNING
Turn the rain sensor off if the ignition is
ON to avoid personal injury when clearing
snow and ice from the windshield.NOTETurn the rain sensor off before washing
the car in an automatic carwash, to avoid
damaging the windshield wipers.
93_US_M08.book Page 103 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

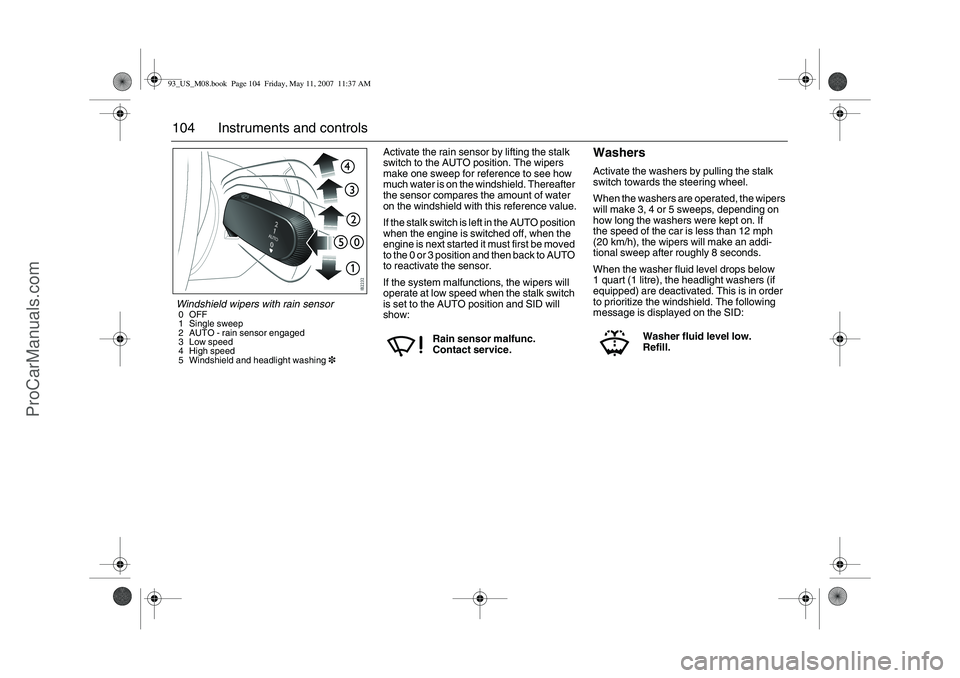

104 Instruments and controls
Activate the rain sensor by lifting the stalk
switch to the AUTO position. The wipers
make one sweep for reference to see how
much water is on the windshield. Thereafter
the sensor compares the amount of water
on the windshield with this reference value.
If the stalk switch is left in the AUTO position
when the engine is switched off, when the
engine is next started it must first be moved
to the 0 or 3 position and then back to AUTO
to reactivate the sensor.
If the system malfunctions, the wipers will
operate at low speed when the stalk switch
is set to the AUTO position and SID will
show:
WashersActivate the washers by pulling the stalk
switch towards the steering wheel.
When the washers are operated, the wipers
will make 3, 4 or 5 sweeps, depending on
how long the washers were kept on. If
the speed of the car is less than 12 mph
(20 km/h), the wipers will make an addi-
tional sweep after roughly 8 seconds.
When the washer fluid level drops below
1 quart (1 litre), the headlight washers (if
equipped) are deactivated. This is in order
to prioritize the windshield. The following
message is displayed on the SID:
Rain sensor malfunc.
Contact service.
Washer fluid level low.
Refill.
Windshield wipers with rain sensor0OFF
1 Single sweep
2 AUTO - rain sensor engaged
3 Low speed
4 High speed
5 Windshield and headlight washing393_US_M08.book Page 104 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

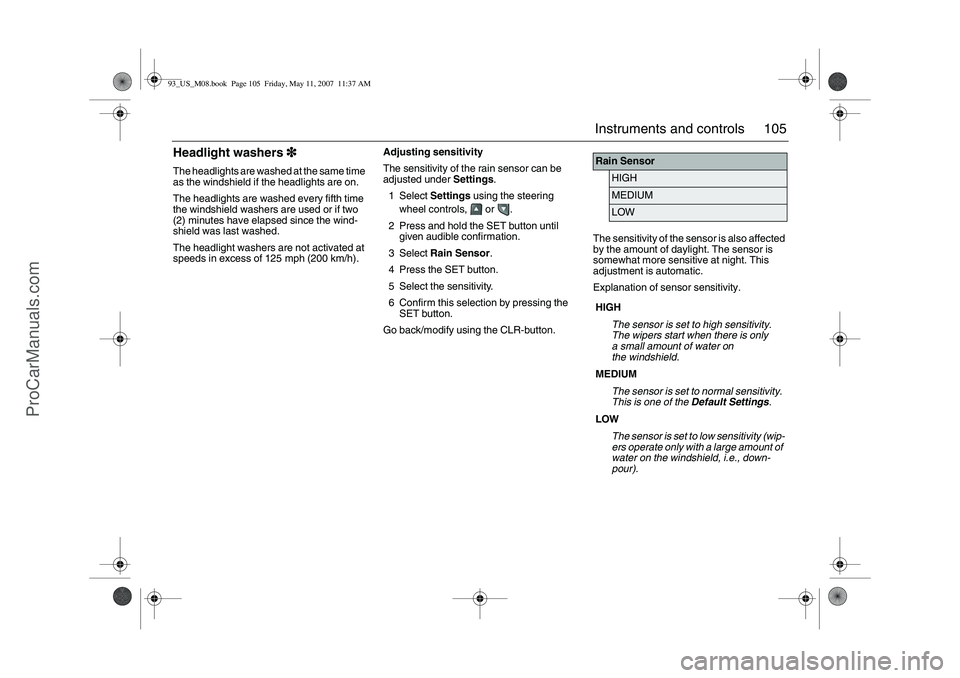

105 Instruments and controls
Headlight washers3
33 3The headlights are washed at the same time
as the windshield if the headlights are on.
The headlights are washed every fifth time
the windshield washers are used or if two
(2) minutes have elapsed since the wind-
shield was last washed.
The headlight washers are not activated at
speeds in excess of 125 mph (200 km/h).Adjusting sensitivity
The sensitivity of the rain sensor can be
adjusted under Settings.
1Select Settings using the steering
wheel controls, or .
2 Press and hold the SET button until
given audible confirmation.
3Select Rain Sensor.
4 Press the SET button.
5 Select the sensitivity.
6 Confirm this selection by pressing the
SET button.
Go back/modify using the CLR-button.The sensitivity of the sensor is also affected
by the amount of daylight. The sensor is
somewhat more sensitive at night. This
adjustment is automatic.
Explanation of sensor sensitivity.
Rain Sensor
HIGHMEDIUMLOW
HIGH
The sensor is set to high sensitivity.
The wipers start when there is only
a small amount of water on
the windshield.
MEDIUM
The sensor is set to normal sensitivity.
This is one of the Default Settings.
LOW
The sensor is set to low sensitivity (wip-
ers operate only with a large amount of
water on the windshield, i.e., down-
pour).
93_US_M08.book Page 105 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

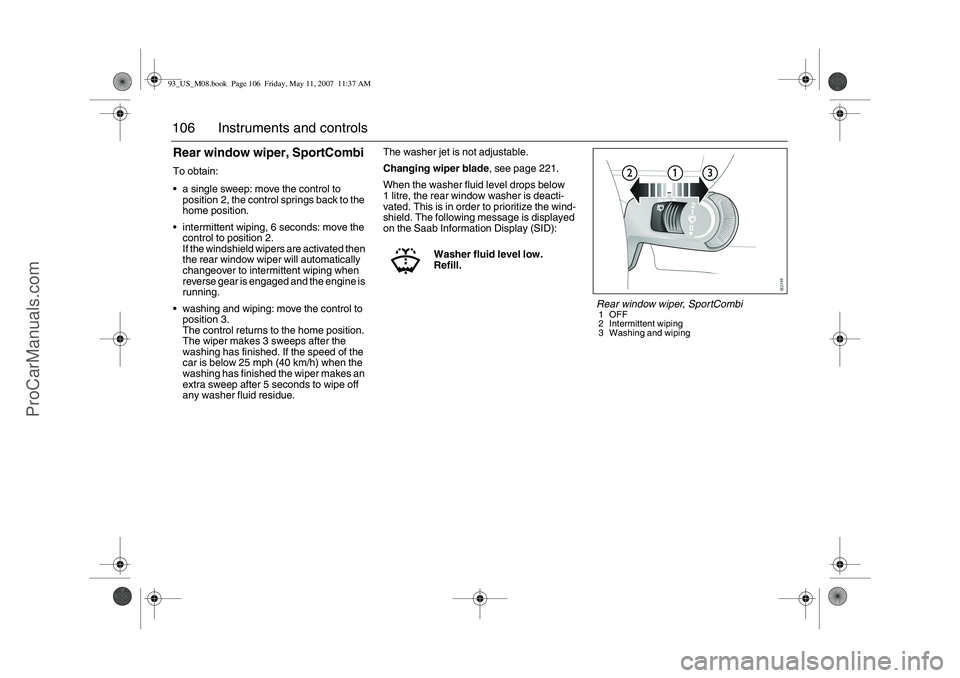

106 Instruments and controlsRear window wiper, SportCombiTo obtain:
a single sweep: move the control to
position 2, the control springs back to the
home position.
intermittent wiping, 6 seconds: move the
control to position 2.
If the windshield wipers are activated then
the rear window wiper will automatically
changeover to intermittent wiping when
reverse gear is engaged and the engine is
running.
washing and wiping: move the control to
position 3.
The control returns to the home position.
The wiper makes 3 sweeps after the
washing has finished. If the speed of the
car is below 25 mph (40 km/h) when the
washing has finished the wiper makes an
extra sweep after 5 seconds to wipe off
any washer fluid residue.The washer jet is not adjustable.
Changing wiper blade, see page 221.
When the washer fluid level drops below
1 litre, the rear window washer is deacti-
vated. This is in order to prioritize the wind-
shield. The following message is displayed
on the Saab Information Display (SID):
Washer fluid level low.
Refill.
Rear window wiper, SportCombi1OFF
2 Intermittent wiping
3 Washing and wiping
93_US_M08.book Page 106 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

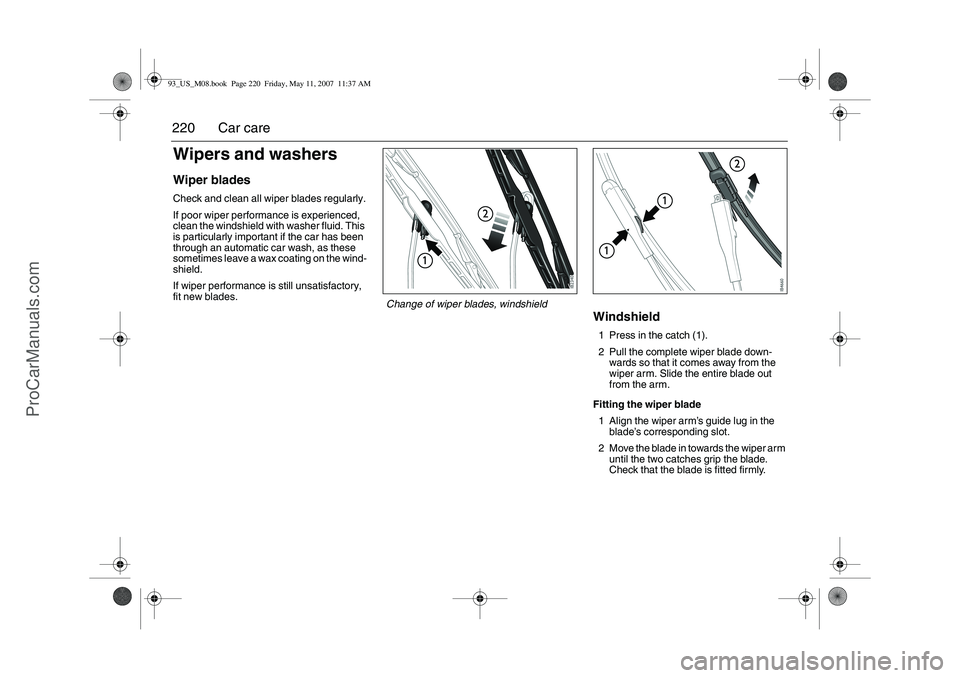

220 Car careWipers and washersWiper bladesCheck and clean all wiper blades regularly.
If poor wiper performance is experienced,
clean the windshield with washer fluid. This
is particularly important if the car has been
through an automatic car wash, as these
sometimes leave a wax coating on the wind-
shield.
If wiper performance is still unsatisfactory,
fit new blades.
Windshield1 Press in the catch (1).
2 Pull the complete wiper blade down-
wards so that it comes away from the
wiper arm. Slide the entire blade out
from the arm.
Fitting the wiper blade
1 Align the wiper arm’s guide lug in the
blade’s corresponding slot.
2 Move the blade in towards the wiper arm
until the two catches grip the blade.
Check that the blade is fitted firmly.
Change of wiper blades, windshield
93_US_M08.book Page 220 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

243 Car care

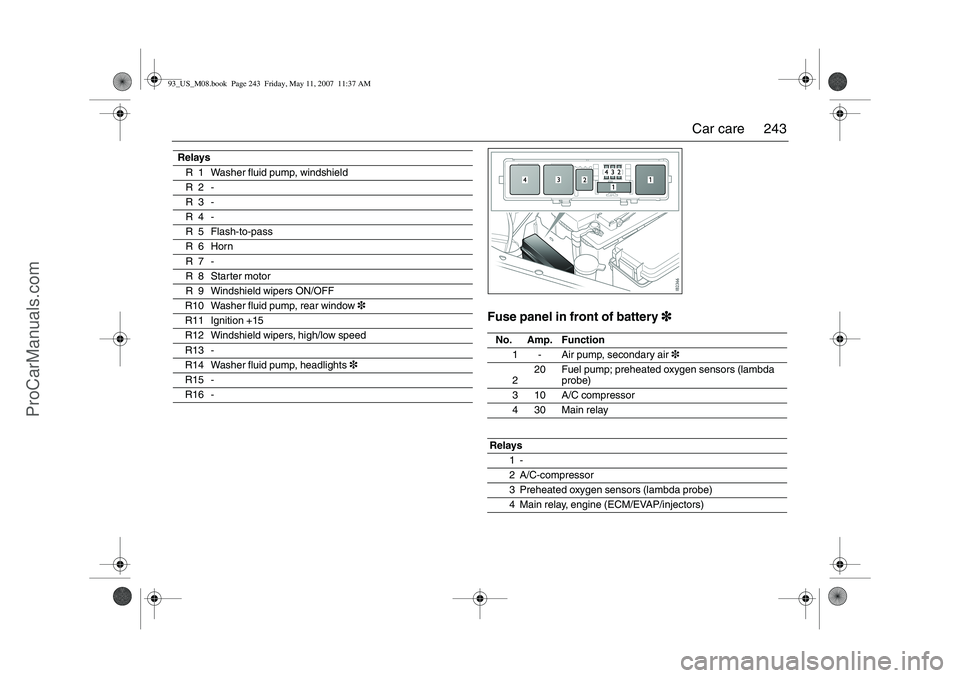

Fuse panel in front of battery3
33 3
Relays
R 1 Washer fluid pump, windshield
R2 -
R3 -
R4 -
R 5 Flash-to-pass
R6 Horn
R7 -
R8 Starter motor
R 9 Windshield wipers ON/OFF
R10 Washer fluid pump, rear window3
R11 Ignition +15
R12 Windshield wipers, high/low speed
R13 -
R14 Washer fluid pump, headlights3
R15 -
R16 -
No. Amp. Function
1 - Air pump, secondary air3
220 Fuel pump; preheated oxygen sensors (lambda
probe)
3 10 A/C compressor
4 30 Main relay
Relays
1-
2 A/C-compressor
3 Preheated oxygen sensors (lambda probe)
4 Main relay, engine (ECM/EVAP/injectors)
93_US_M08.book Page 243 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

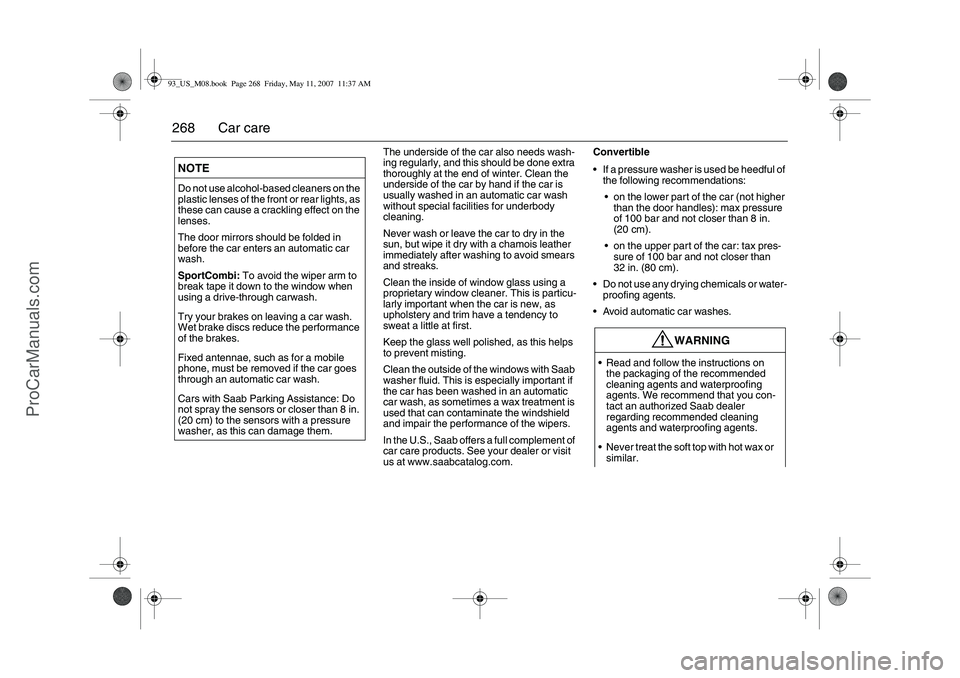

268 Car care
The underside of the car also needs wash-
ing regularly, and this should be done extra
thoroughly at the end of winter. Clean the
underside of the car by hand if the car is
usually washed in an automatic car wash
without special facilities for underbody
cleaning.
Never wash or leave the car to dry in the
sun, but wipe it dry with a chamois leather
immediately after washing to avoid smears
and streaks.
Clean the inside of window glass using a
proprietary window cleaner. This is particu-
larly important when the car is new, as
upholstery and trim have a tendency to
sweat a little at first.
Keep the glass well polished, as this helps
to prevent misting.
Clean the outside of the windows with Saab
washer fluid. This is especially important if
the car has been washed in an automatic
car wash, as sometimes a wax treatment is
used that can contaminate the windshield
and impair the performance of the wipers.
In the U.S., Saab offers a full complement of
car care products. See your dealer or visit
us at www.saabcatalog.com.Convertible
If a pressure washer is used be heedful of
the following recommendations:
on the lower part of the car (not higher
than the door handles): max pressure
of 100 bar and not closer than 8 in.
(20 cm).
on the upper part of the car: tax pres-
sure of 100 bar and not closer than
32 in. (80 cm).
Do not use any drying chemicals or water-
proofing agents.
Avoid automatic car washes.
NOTEDo not use alcohol-based cleaners on the
plastic lenses of the front or rear lights, as
these can cause a crackling effect on the
lenses.
The door mirrors should be folded in
before the car enters an automatic car
wash.
SportCombi: To avoid the wiper arm to
break tape it down to the window when
using a drive-through carwash.
Try your brakes on leaving a car wash.
Wet brake discs reduce the performance
of the brakes.
Fixed antennae, such as for a mobile
phone, must be removed if the car goes
through an automatic car wash.
Cars with Saab Parking Assistance: Do
not spray the sensors or closer than 8 in.
(20 cm) to the sensors with a pressure
washer, as this can damage them.
WARNING
Read and follow the instructions on
the packaging of the recommended
cleaning agents and waterproofing
agents. We recommend that you con-
tact an authorized Saab dealer
regarding recommended cleaning
agents and waterproofing agents.
Never treat the soft top with hot wax or
similar.
93_US_M08.book Page 268 Friday, May 11, 2007 11:37 AM
ProCarManuals.com

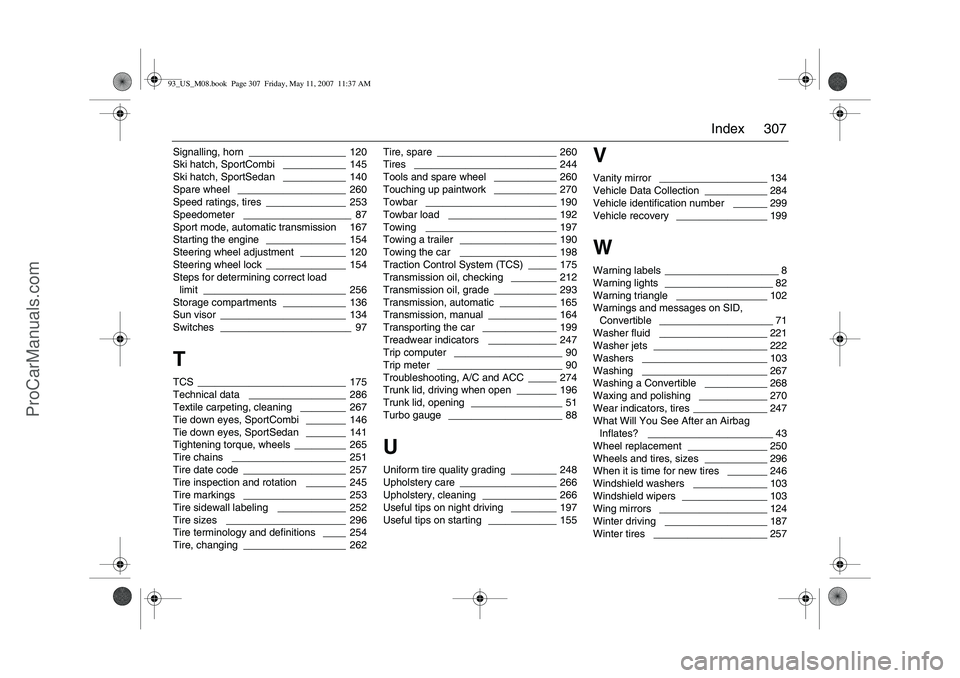

307 Index
Signalling, horn
_________________ 120
Ski hatch, SportCombi
___________ 145
Ski hatch, SportSedan ___________ 140
Spare wheel
___________________ 260
Speed ratings, tires
______________ 253
Speedometer
___________________ 87
Sport mode, automatic transmission

167
Starting the engine
______________ 154
Steering wheel adjustment
________ 120
Steering wheel lock
______________ 154
Steps for determining correct load
limit
_________________________ 256
Storage compartments
___________ 136
Sun visor
______________________ 134
Switches _______________________ 97
TTCS
__________________________ 175
Technical data
_________________ 286
Textile carpeting, cleaning
________ 267
Tie down eyes, SportCombi _______ 146
Tie down eyes, SportSedan _______ 141
Tightening torque, wheels
_________ 265
Tire chains
____________________ 251
Tire date code __________________ 257
Tire inspection and rotation
_______ 245
Tire markings
__________________ 253
Tire sidewall labeling
____________ 252
Tire sizes
_____________________ 296
Tire terminology and definitions
____ 254
Tire, changing
__________________ 262Tire, spare
_____________________ 260
Tires
_________________________ 244
Tools and spare wheel
___________ 260
Touching up paintwork ___________ 270
Towbar
_______________________ 190
Towbar load
___________________ 192
Towing
_______________________ 197
Towing a trailer
_________________ 190
Towing the car _________________ 198
Traction Control System (TCS)
_____ 175
Transmission oil, checking
________ 212
Transmission oil, grade
___________ 293
Transmission, automatic __________ 165
Transmission, manual
____________ 164
Transporting the car
_____________ 199
Treadwear indicators ____________ 247
Trip computer
___________________ 90
Trip meter
______________________ 90
Troubleshooting, A/C and ACC
_____ 274
Trunk lid, driving when open
_______ 196
Trunk lid, opening
________________ 51
Turbo gauge
____________________ 88
UUniform tire quality grading
________ 248
Upholstery care
_________________ 266
Upholstery, cleaning
_____________ 266
Useful tips on night driving
________ 197
Useful tips on starting
____________ 155
VVanity mirror
___________________ 134
Vehicle Data Collection
___________ 284
Vehicle identification number
______ 299
Vehicle recovery
________________ 199
WWarning labels
____________________ 8
Warning lights ___________________ 82
Warning triangle ________________ 102
Warnings and messages on SID,
Convertible
____________________ 71
Washer fluid ___________________ 221
Washer jets
____________________ 222
Washers
______________________ 103
Washing ______________________ 267
Washing a Convertible
___________ 268
Waxing and polishing
____________ 270
Wear indicators, tires _____________ 247
What Will You See After an Airbag
Inflates?
______________________ 43
Wheel replacement
______________ 250
Wheels and tires, sizes ___________ 296
When it is time for new tires
_______ 246
Windshield washers
_____________ 103
Windshield wipers
_______________ 103
Wing mirrors
___________________ 124
Winter driving __________________ 187
Winter tires
____________________ 257
93_US_M08.book Page 307 Friday, May 11, 2007 11:37 AM
ProCarManuals.com
