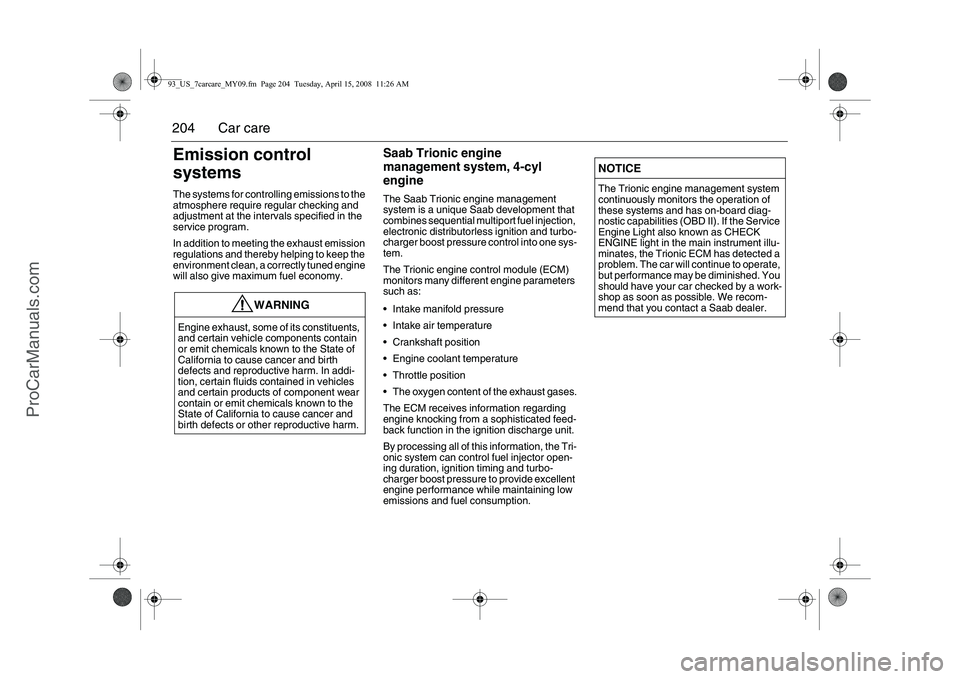

204 Car careEmission control
systemsThe systems for controlling emissions to the
atmosphere require regular checking and
adjustment at the intervals specified in the
service program.
In addition to meeting the exhaust emission
regulations and thereby helping to keep the
environment clean, a correctly tuned engine
will also give maximum fuel economy.
Saab Trionic engine
management system, 4-cyl
engineThe Saab Trionic engine management
system is a unique Saab development that
combines sequential mult iport fuel injection,
electronic distributorless ignition and turbo-
charger boost pressure control into one sys-
tem.
The Trionic engine control module (ECM)
monitors many different engine parameters
such as:
 Intake manifold pressure
 Intake air temperature
 Crankshaft position
 Engine coolant temperature
 Throttle position
 The oxygen content of the exhaust gases.
The ECM receives information regarding
engine knocking from a sophisticated feed-
back function in the ignition discharge unit.
By processing all of this information, the Tri-
onic system can control fuel injector open-
ing duration, ignition timing and turbo-
charger boost pressure to provide excellent
engine performance while maintaining low
emissions and fuel consumption.
WARNING
Engine exhaust, some of its constituents,
and certain vehicle components contain
or emit chemicals known to the State of
California to cause cancer and birth
defects and reproductive harm. In addi-
tion, certain fluids contained in vehicles
and certain products of component wear
contain or emit chemicals known to the
State of California to cause cancer and
birth defects or other reproductive harm.
NOTICEThe Trionic engine management system
continuously monitors the operation of
these systems and has on-board diag-
nostic capabilities (OBD II). If the Service
Engine Light also known as CHECK
ENGINE light in the main instrument illu-
minates, the Trionic ECM has detected a
problem. The car will continue to operate,
but performance may be diminished. You
should have your car checked by a work-
shop as soon as possible. We recom-
mend that you contact a Saab dealer.
93_US_7carcare_MY09.fm Page 204 Tuesday, April 15, 2008 11:26 AM
ProCarManuals.com

205
Car care

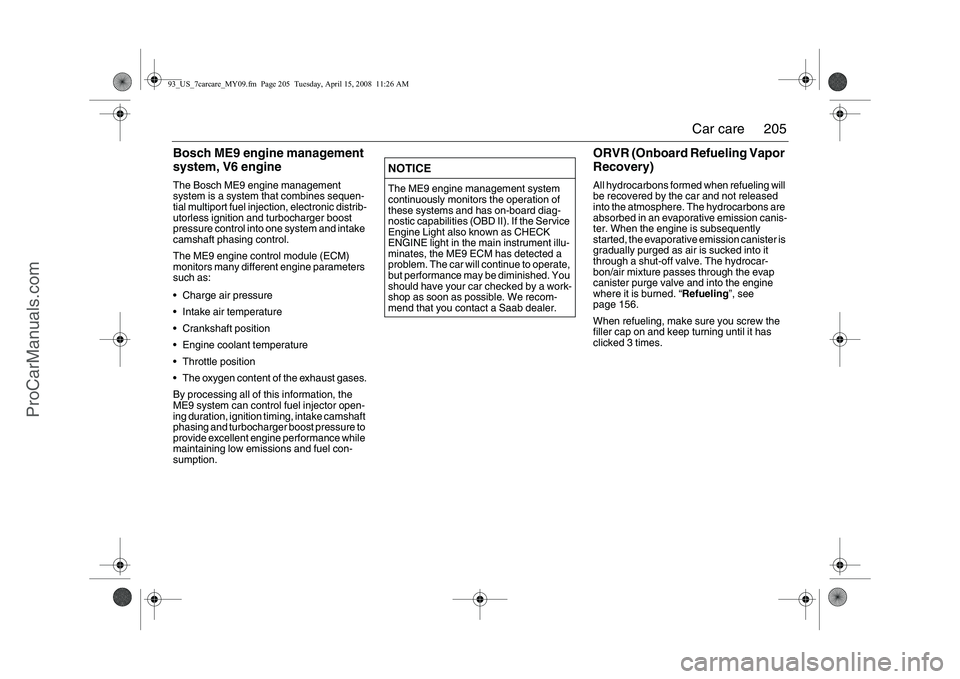

Bosch ME9 engine management
system, V6 engineThe Bosch ME9 engine management
system is a system that combines sequen-
tial multiport fuel injection, electronic distrib-
utorless ignition and turbocharger boost
pressure control into one system and intake
camshaft phasing control.
The ME9 engine control module (ECM)
monitors many different engine parameters
such as:
 Charge air pressure
 Intake air temperature
 Crankshaft position
 Engine coolant temperature
 Throttle position
 The oxygen content of the exhaust gases.
By processing all of this information, the
ME9 system can contro l fuel injector open-
ing duration, ignition timing, intake camshaft
phasing and turbocharger boost pressure to
provide excellent engine performance while
maintaining low emissions and fuel con-
sumption.
ORVR (Onboard Refueling Vapor
Recovery)All hydrocarbons formed when refueling will
be recovered by the car and not released
into the atmosphere. The hydrocarbons are
absorbed in an evaporative emission canis-
ter. When the engine is subsequently
started, the evaporative emission canister is
gradually purged as air is sucked into it
through a shut-off va lve. The hydrocar-
bon/air mixture passes through the evap
canister purge valve and into the engine
where it is burned. “ Refueling”, see
page 156.
When refueling, make sure you screw the
filler cap on and keep turning until it has
clicked 3 times.
NOTICEThe ME9 engine management system
continuously monitors the operation of
these systems and has on-board diag-
nostic capabilities (OBD II). If the Service
Engine Light also known as CHECK
ENGINE light in the main instrument illu-
minates, the ME9 ECM has detected a
problem. The car will continue to operate,
but performance may be diminished. You
should have your car checked by a work-
shop as soon as possible. We recom-
mend that you contact a Saab dealer.
93_US_7carcare_MY09.fm Page 205 Tuesday, April 15, 2008 11:26 AM
ProCarManuals.com

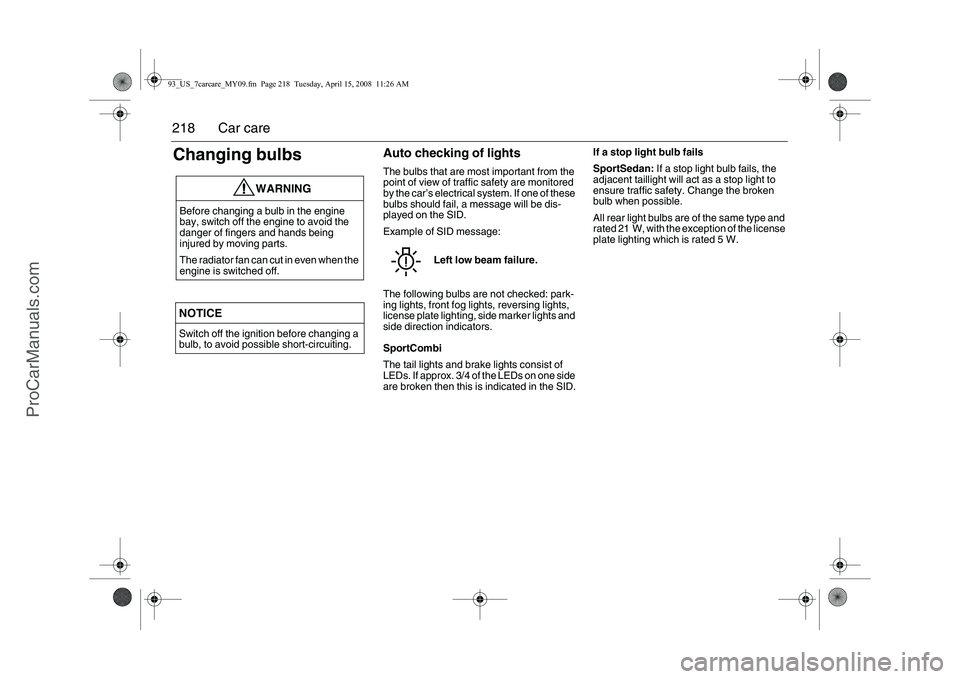

218 Car careChanging bulbs
Auto checking of lightsThe bulbs that are most important from the
point of view of traffic safety are monitored
by the car’s electrical system. If one of these
bulbs should fail, a message will be dis-
played on the SID.
Example of SID message:
The following bulbs are not checked: park-
ing lights, front fog lights, reversing lights,
license plate lighting, side marker lights and
side direction indicators.
SportCombi
The tail lights and brake lights consist of
LEDs. If approx. 3/4 of the LEDs on one side
are broken then this is indicated in the SID. If a stop light bulb fails
SportSedan:
If a stop light bulb fails, the
adjacent taillight will act as a stop light to
ensure traffic safety. Change the broken
bulb when possible.
All rear light bulbs are of the same type and
rated 21 W, with the exception of the license
plate lighting which is rated 5 W.
WARNING
Before changing a bulb in the engine
bay, switch off the engine to avoid the
danger of fingers and hands being
injured by moving parts.
The radiator fan can cut in even when the
engine is switched off.NOTICESwitch off the ignition before changing a
bulb, to avoid possible short-circuiting.
Left low beam failure.
93_US_7carcare_MY09.fm Page 218 Tuesday, April 15, 2008 11:26 AM
ProCarManuals.com

274 Car carecompressor uses a lubricant that circu-
lates with the coolant.
Note
The A/C system cannot be switched on
when the outside temperature is below 32°F
(0°C). Turn on the A/ C system when the car
is standing in a warm place. Simplest is to
always have the A/C button pressed in. The
A/C system will then cu t in automatically
when the outside temperature is high
enough.
Headlight aimingThe vehicle has a visual optical headlight
aiming system equippe d with vertical
aiming device. The aim has been preset at
the factory and should normally not need
further adjustments.
If your headlights are damaged in a crash,
the headlight aim may be affected. If you
believe your headlights need to be
re-aimed, we recommend that you take it to
your Saab dealer for service. However, it is
possible for you to re-aim your headlights as
described in the following procedure. To check the aim, the vehicle should be
properly prepared as follows:
 The vehicle shall be placed so that the
headlights are 25 ft (7.6 m) from a light
colored wall or other flat surface. The
aiming area should be darkened, this will
improve your ability to see the beam of the
low beam headlight being aimed.
An optical headlamp aimer can also be
used and will than replace the wall.
 The vehicle must have all four wheels on a perfectly level surface which is level all
the way to the wall or other flat surface.
 The vehicle should be placed so it is perpendicular to the wall or other flat
surface.
 The vehicle should be unloaded and fuel tank full, and one person or 160 lbs.
(75 kg) on the drivers seat.
 The vehicle should be fully assembled and all other work stopped while headlight
aiming is being done.
 The vehicle should not have any snow, ice or mud attached to it.
 Tires should be inflated to the prescribed pressure.
 Close all doors.
 Rock the vehicle to stabilize the suspen- sion.
Headlight aiming is done with the vehicle
low beam lamps. The high beam lamps will
WARNING
Before checking/adjusting the headlight
aiming, switch off the engine to avoid
danger of fingers and hands being injured
by moving parts.
The radiator fan can start up even when
the engine is switched off.NOTICETo make sure that your headlights are
aimed properly read all instructions
before beginning. Failure to follow these
instructions could cause damage to
headlight parts or a not correctly aimed
headlight.
93_US_7carcare_MY09.fm Page 274 Tuesday, April 15, 2008 11:26 AM
ProCarManuals.com

294 Technical dataWarning and indications that can
be shown on the SIDWhich warnings and indications that can be
shown depends on engine variant and car
specification.
The warnings/indications that contain an
exclamation mark are shown together with
a warning or check light in the main instru-
ment panel.
Symbol Text
Antilock brake malfunc.
Contact service.
Brake malfunction.
Make a safe stop.
Brake fluid level low.
Make a safe stop.
Release park brake.
Oil pressure low.
Make a safe stop.
Low engine oil level.
Fill oil now.
Reduced engine power.
Contact service.
Tighten fuel filler cap.
Limited performance.
Coolant level low.
Refill.
Hot engine. Make a
safe stop. Idle engine.
Airbag malfunction.
Contact service.
Gearbox too hot. Make a
safe stop. Open hood.
Battery not charging.
Make a safe stop.
Headlight levelling
malfunction.
Cornering headlights
malfunction
Tap brakes lightly
before using cruise ctrl.
Traction control failure.
Contact service.
Stability control failure.
Contact service.
Turn on the lights.
Washer fluid level low.
Refill.
Rain sensor malfunc.
Contact service.
Key not accepted.
Contact service.
Remote control battery
low. Replace battery.
Number of keys:
Active key number:
Steering lock malfunc.
Make a safe stop.
Pull out key, turn
steering wheel. Restart.
Theft protection failure.
Contact service.
Alarm tripped during
last arming period.
93_US_MY09.book Page 294 Tuesday, April 15, 2008 10:30 AM
ProCarManuals.com

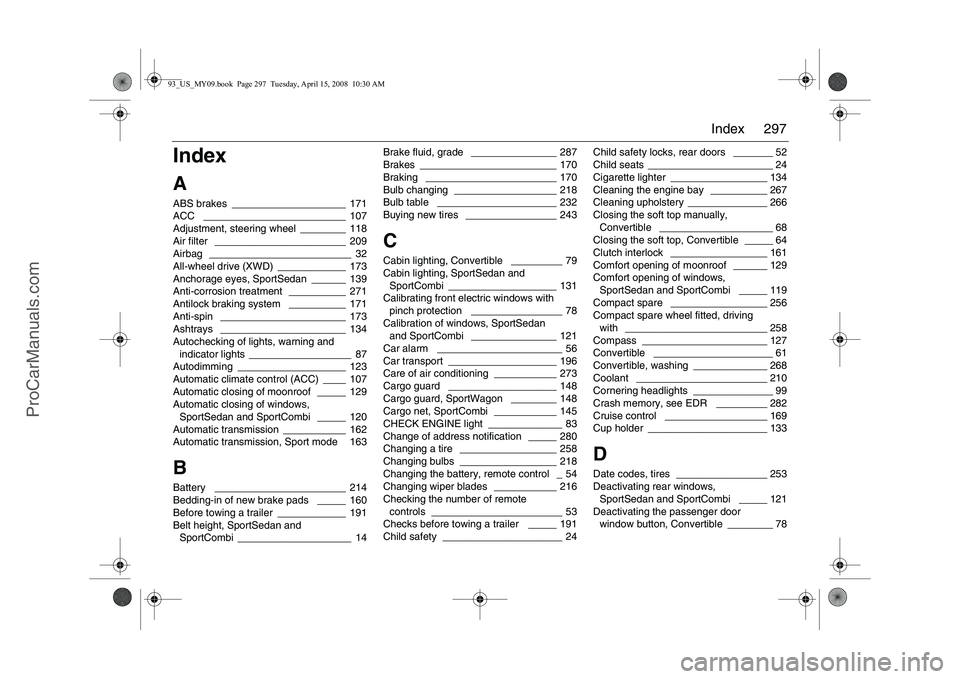

297 Index
IndexAABS brakes
____________________ 171
ACC
_________________________ 107
Adjustment, steering wheel
________ 118
Air filter
_______________________ 209
Airbag
_________________________ 32
All-wheel drive (XWD)
____________ 173
Anchorage eyes, SportSedan
______ 139
Anti-corrosion treatment
__________ 271
Antilock braking system __________ 171
Anti-spin
______________________ 173
Ashtrays ______________________ 134
Autochecking of lights, warning and
indicator lights
__________________ 87
Autodimming
___________________ 123
Automatic climate control (ACC)
____ 107
Automatic closing of moonroof
_____ 129
Automatic closing of windows,
SportSedan and SportCombi _____ 120
Automatic transmission
___________ 162
Automatic transmission, Sport mode

163
BBattery
_______________________ 214
Bedding-in of new brake pads
_____ 160
Before towing a trailer
____________ 191
Belt height, SportSedan and
SportCombi
____________________ 14Brake fluid, grade
_______________ 287
Brakes
________________________ 170
Braking _______________________ 170
Bulb changing
__________________ 218
Bulb table
_____________________ 232
Buying new tires
________________ 243
CCabin lighting, Convertible
_________ 79
Cabin lighting, SportSedan and
SportCombi
___________________ 131
Calibrating front electric windows with
pinch protection
________________ 78
Calibration of windows, SportSedan
and SportCombi _______________ 121
Car alarm
______________________ 56
Car transport ___________________ 196
Care of air conditioning
___________ 273
Cargo guard
___________________ 148
Cargo guard, SportWagon
________ 148
Cargo net, SportCombi
___________ 145
CHECK ENGINE light _____________ 83
Change of address notification
_____ 280
Changing a tire
_________________ 258
Changing bulbs _________________ 218
Changing the battery, remote control
_54
Changing wiper blades
___________ 216
Checking the number of remote
controls
_______________________ 53
Checks before towing a trailer
_____ 191
Child safety
_____________________ 24Child safety locks, rear doors
_______ 52
Child seats
______________________ 24
Cigarette lighter
_________________ 134
Cleaning the engine bay
__________ 267
Cleaning upholstery
______________ 266
Closing the soft top manually,
Convertible
____________________ 68
Closing the soft top, Convertible
_____ 64
Clutch interlock
_________________ 161
Comfort opening of moonroof
______ 129
Comfort opening of windows,
SportSedan and SportCombi _____ 119
Compact spare
_________________ 256
Compact spare wheel fitted, driving
with
_________________________ 258
Compass
______________________ 127
Convertible _____________________ 61
Convertible, washing
_____________ 268
Coolant
_______________________ 210
Cornering headlights
______________ 99
Crash memory, see EDR
_________ 282
Cruise control
__________________ 169
Cup holder
_____________________ 133
DDate codes, tires
________________ 253
Deactivating rear windows,
SportSedan and SportCombi
_____ 121
Deactivating the passenger door
window button, Convertible
________ 78
93_US_MY09.book Page 297 Tuesday, April 15, 2008 10:30 AM
ProCarManuals.com

298 IndexDeactivating the rear window
switches
_____________________ 121
Deep water, driving through
_______ 193
Definitions and terminology, tire ____ 250
Determining correct load, tires
_____ 252
Direction indicator stalk switch _____ 101
Direction indicators
______________ 101
Dome light, Convertible
__________ 228
Dome light, SportSedan __________ 228
Donor battery, boost starting
______ 197
Door handles
___________________ 48
Door mirrors
___________________ 122
Drive belt
______________________ 215
Driver’s seat with memory
_________ 21
Driving in cold climates
___________ 185
Driving in deep water
____________ 193
Driving in hot climates ____________ 187
Driving techniques
______________ 183
Driving with a compact wheel fitted
_258
Driving with a heavy load on hilly
roads
________________________ 164
Driving with a load
______________ 192
Driving with a roof load ___________ 192
Driving with the trunk lid open
______ 193
EEDR (Event Data Recorders)
______ 282
ESP®
________________________ 175
Easy entry, Convertible
____________ 73
Economical motoring
____________ 183
Electrical system, technical data
____ 287Electrically adjustable seats
________ 20
Electric engine heater
____________ 184
Electric heating, front seats
________ 114
Electric windows
________________ 119
Electric windows, Convertible
_______ 77
Electronic Stability Program
_______ 175
Electronic steering wheel lock ______ 151
Emergency opening of the narrow
backrest, SportSedan
___________ 140
Emergency operation of the moonroof
130
Engine bay, cleaning
_____________ 267
Engine heater
__________________ 184
Engine immobilizer
_______________ 55
Engine management system
______ 204
Engine number
_________________ 292
Engine oil, checking
_____________ 208
Engine oil, grade
________________ 286
Engine temperature gauge
_________ 88
Engine, description
______________ 203
Engine, technical data ____________ 286
Engines
_______________________ 287
Event Data Recorders (EDR)
______ 282
Extra electrical socket
____________ 134
FFacilitating entry to rear seat,
Convertible
____________________ 73
Factors affecting fuel consumption
__ 183
Filler cap
______________________ 157
Filling a portable fuel container
_____ 158
Filling up
______________________ 156Flat spots, tires
_________________ 242
Floor jack
______________________ 259
Folding down the rear seat backrest,
SportCombi
___________________ 141
Folding down the rear seat,
SportSedan ___________________ 136
Front fog lights __________________ 100
Front towing eye ________________ 194
Fuel cap
_______________________ 157
Fuel container
__________________ 158
Fuel gauge
_____________________ 89
Fuel grade _____________________ 287
Fuel information
_________________ 158
Functions, car alarm
______________ 58
Fuse panel in luggage compartment
_236
Fuse table
_____________________ 235
Fuses
_________________________ 233
GGDO, garage door opener
_________ 123
Gearbox number
________________ 292
General safety instructions,
Convertible
____________________ 62
Glove box
_____________________ 134
Glovebox lighting
________________ 229
HHandbrake
_____________________ 177
Hazard warning lights
____________ 102
Head restraint, Convertible
_________ 74
Head restraints
__________________ 23
93_US_MY09.book Page 298 Tuesday, April 15, 2008 10:30 AM
ProCarManuals.com

300 IndexPPanic function, car alarm
__________ 58
Park Brake Shift Lock
____________ 163
Park Brake Shift Lock, temporary
override
______________________ 166
Parking
_______________________ 177
Parking aid ____________________ 180
Parking brake __________________ 177
Parking on a hill ________________ 178
Pinch protection, electric windows,
SportSedan and SportCombi
_____ 120
Pinch protection, moonroof
________ 130
Plates and labels, location ________ 292
Polishing and waxing
____________ 270
Poly-V-belt
____________________ 215
Portable fuel container
___________ 158
Position lights
___________________ 98
Power steering fluid, checking
_____ 213
Pressure gauge
_________________ 88
Pressure, tires
__________________ 240
Profiles, customized settings
_______ 94
QQuality grading, tires
_____________ 244
Quick guide, remote control
________ 49
RRain sensor
____________________ 103
Raising the soft top manually,
Convertible ____________________ 68Reading lights, Convertible
_________ 79
Rear fog light
___________________ 101
Rear seat, folding down, SportCombi
141
Rear seat, safety belts
____________ 17
Rear seats, folding down, SportSedan
136
Rear towing eye
________________ 194
Rear windows, deactivating,
SportSedan and SportCombi
_____ 121
Rearview mirrors
________________ 122
Recommendations for automatic
transmission, towing a trailer
_____ 189
Recommendations for manual gearbox,
towing a trailer
________________ 190
Recommended snow chains
_______ 288
Refueling
______________________ 156
Reinstalling the fuel cap
__________ 157
Remote control
__________________ 48
Remote locking malfunction
________ 50
Replacement, wheel
_____________ 246
Reporting safety defects __________ 281
Rev counter
_____________________ 87
Reversing lights
________________ 102
Rollover Pop-up Bars, Convertible
___ 76
Roof lighting, SportSedan and
SportCombi
___________________ 131
Roof lighting, changing
___________ 228
Running-in
_____________________ 160
SSaab Information Display
__________ 89
Saab Parking Assistance _________ 180Safety belts
_____________________ 12
Safety belts, rear seat, SportSedan
and SportCombi
________________ 17
SAHR, head restraint _____________ 23
SDM
_________________________ 282
SID
___________________________ 89
SPA __________________________ 180
Seat belts
______________________ 12
Seat belts in rear seat, Convertible
___ 75
Seat belts, care
_________________ 266
Seat belts, checking
_____________ 266
Seats
__________________________ 18
Securing a load
_________________ 139
Sentronic, manual gear selection
___ 168
Service Engine Lamp
_____________ 83
Service costs
___________________ 279
Service information
______________ 280
Service intervals
________________ 278
Service record retention
__________ 279
Signalling, horn
_________________ 118
Ski hatch, SportCombi
____________ 143
Ski hatch, SportSedan ____________ 138
Spare wheel
___________________ 256
Speed ratings, tires
______________ 249
Speedometer
____________________ 87
Sport mode, automatic transmission
_163
Starting the engine
______________ 152
Steering wheel adjustment
________ 118
Steering wheel lock
______________ 151
Steps for determining correct load
limit
_________________________ 252
Storage compartments
___________ 134
93_US_MY09.book Page 300 Tuesday, April 15, 2008 10:30 AM
ProCarManuals.com
