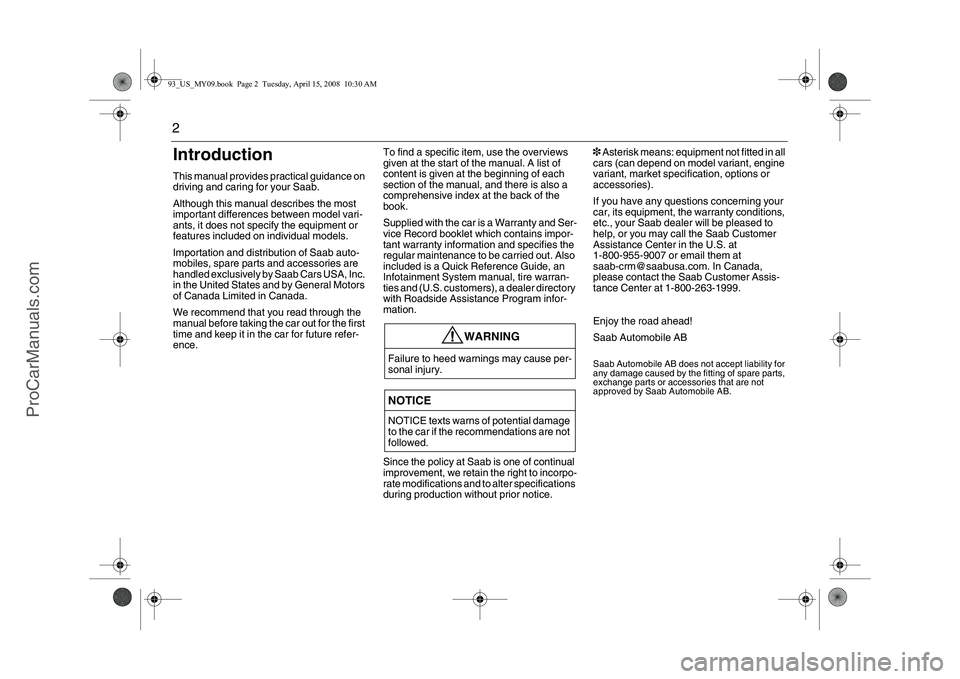

2IntroductionThis manual provides practical guidance on
driving and caring for your Saab.
Although this manual describes the most
important differences between model vari-
ants, it does not specify the equipment or
features included on individual models.
Importation and distribution of Saab auto-
mobiles, spare parts and accessories are
handled exclusively by Saab Cars USA, Inc.
in the United States and by General Motors
of Canada Limited in Canada.
We recommend that you read through the
manual before taking the car out for the first
time and keep it in the car for future refer-
ence.To find a specific item, use the overviews
given at the start of the manual. A list of
content is given at the beginning of each
section of the manual, and there is also a
comprehensive index at the back of the
book.
Supplied with the car is a Warranty and Ser-
vice Record booklet which contains impor-
tant warranty information and specifies the
regular maintenance to be carried out. Also
included is a Quick Reference Guide, an
Infotainment System manual, tire warran-
ties and (U.S. customers), a dealer directory
with Roadside Assistance Program infor-
mation.
Since the policy at Saab is one of continual
improvement, we retain the right to incorpo-
rate modifications and to alter specifications
during production without prior notice.3 Asterisk means: equipment not fitted in all
cars (can depend on model variant, engine
variant, market specification, options or
accessories).
If you have any questions concerning your
car, its equipment, the warranty conditions,
etc., your Saab dealer will be pleased to
help, or you may call the Saab Customer
Assistance Center in the U.S. at
1-800-955-9007 or email them at
[email protected]. In Canada,
please contact the Saab Customer Assis-
tance Center at 1-800-263-1999.
Enjoy the road ahead!
Saab Automobile AB
Saab Automobile AB does not accept liability for
any damage caused by the fitting of spare parts,
exchange parts or accessories that are not
approved by Saab Automobile AB.
WARNING
Failure to heed warnings may cause per-
sonal injury.NOTICENOTICE texts warns of potential damage
to the car if the recommendations are not
followed.
93_US_MY09.book Page 2 Tuesday, April 15, 2008 10:30 AM
ProCarManuals.com
Page 3 of 304
3
Instrument panelChanging bulbs __________ 218
Front fog lights___________ 100
Headlight levelling ________ 98
High/low beam __________ 99
Parking lights____________ 98
Rear fog light ____________ 101Cruise Control ___________ 169
Direction indicators _______ 101
High/Low beam switch ____ 99
Fuel gauge __________________ 89
Odometer and trip meter ________ 90
Speedometer ________________ 87
Tachometer __________________ 87
Temperature gauge ____________ 88
Turbo gauge _________________ 88
Warning and indicator lights _____ 82
Saab Information Display (SID) ___ 89Power Outlet _________________ 134
Cigarette lighter _______________ 134
Washers and wipers ______ 103
Washer fluid ____________ 217
Replacing wiper blades ___ 216Automatic climate control __ 107
Hazard warning lights_____ 102
Seat heating, ACC _______ 114
Car care and maintenance _ 273
93_US_MY09.book Page 3 Tuesday, April 15, 2008 10:30 AM
ProCarManuals.com
Page 4 of 304

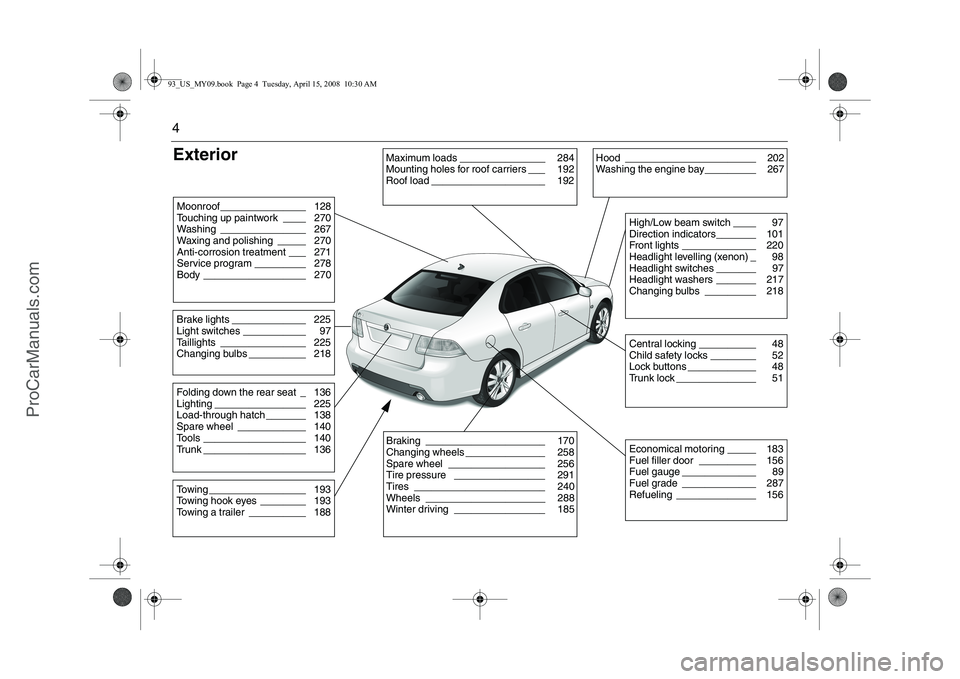

4ExteriorMoonroof_______________ 128
Touching up paintwork ____ 270
Washing _______________ 267
Waxing and polishing _____ 270
Anti-corrosion treatment ___ 271
Service program _________ 278
Body __________________ 270Brake lights _____________ 225
Light switches ___________ 97
Taillights _______________ 225
Changing bulbs __________ 218Towing _________________ 193
Towing hook eyes ________ 193
Towing a trailer __________ 188Folding down the rear seat _ 136
Lighting ________________ 225
Load-through hatch _______ 138
Spare wheel ____________ 140
Tools __________________ 140
Trunk __________________ 136
Maximum loads _______________ 284
Mounting holes for roof carriers ___ 192
Roof load ____________________ 192
Hood _______________________ 202
Washing the engine bay_________ 267
Central locking __________ 48
Child safety locks ________ 52
Lock buttons ____________ 48
Trunk lock ______________ 51High/Low beam switch ____ 97
Direction indicators_______ 101
Front lights _____________ 220
Headlight levelling (xenon) _ 98
Headlight switches _______ 97
Headlight washers _______ 217
Changing bulbs _________ 218Economical motoring _____ 183
Fuel filler door __________ 156
Fuel gauge _____________ 89
Fuel grade _____________ 287
Refueling ______________ 156
Braking _____________________ 170
Changing wheels ______________ 258
Spare wheel _________________ 256
Tire pressure ________________ 291
Tires _______________________ 240
Wheels _____________________ 288
Winter driving ________________ 185
93_US_MY09.book Page 4 Tuesday, April 15, 2008 10:30 AM
ProCarManuals.com
Page 5 of 304
5
InteriorAirbag _________________ 32
Steering wheel adjustment _ 118
Interior rear view mirror _________ 123
Vanity mirror _________________ 132
Door mirrors__________________ 122
Safety belts ____________ 12
Airbag_________________ 32
Child safety locks ________ 52
Child seats _____________ 24
Safety belt care _________ 266Glove box ______________ 134
Storage compartments ____ 134Automatic transmission ___ 162
Changing gears _________ 161
Manual transmission _____ 161
Safety belts __________________ 12
Child seats __________________ 24
Folding down the rear seat ______ 136
Rear seat ____________________ 136
Seat adjustment ______________ 18
Seat heating _________________ 114
Upholstery care _______________ 266
Interior light switches ___________ 131
Moonroof ____________________ 128
Interior lighting: changing bulbs ___ 231
Ignition switch ________________ 150
Starting the engine ____________ 152
Power Outlet _________________ 134
Break-In Period _______________ 160
Driving in hot/cold climates ______ 185
Parking brake_________________ 177
Parking _____________________ 177
Fuses _________________ 233Electric windows _________ 11993_US_MY09.book Page 5 Tuesday, April 15, 2008 10:30 AM
ProCarManuals.com
Page 6 of 304
6Engine bay, 4-cylColor code______________ 292
Engine number __________ 292
Gearbox number _________ 292
Warning labels __________ 8
Vehicle identification number 292Ignition system __________ 287
Alternator_______________ 215
Drive belt _______________ 215
Exhaust emission control __ 154
Simple troubleshooting (ACC) 273
Spark plugs _____________ 287
Turbo gauge ____________ 88Engine oil: checking level __ 208Automatic transmission _________ 162
Manual transmission ___________ 161
Battery ______________________ 214
Jump starting _________________ 197
Battery charge ________________ 214
Oil grade and viscosity__________ 286
Engine: description ____________ 203
Engine: technical data __________ 286
Important considerations for driving 153
Wash/wipe stalk switch____ 103
Washer fluid ____________ 217
Washer jets ____________ 217
Topping-up fluid _________ 217
Power steering ________________ 213
Fluid: checking/topping up _______ 213
Coolant: checking/topping-up ____ 210
Driving in hot climates __________ 187
Radiator _____________________ 286
Temperature gauge ____________ 88
Fuse table _____________ 238
Changing a fuse _________ 233
Fuses _________________ 233
Relays ________________ 238ABS brakes_____________ 170
Brake pads _____________ 212
Brake system ___________ 287
Brake fluid______________ 212
93_US_MY09.book Page 6 Tuesday, April 15, 2008 10:30 AM
ProCarManuals.com
Page 7 of 304
7
Engine bay, 2.8 V6Power steering___________ 213
Fluid: checking/topping up__ 213Vehicle identification
number ________________ 292
Color code ______________ 292
Engine number __________ 292
Warning labels___________ 8
Gearbox number _________ 292Ignition system __________ 287
Exhaust emission control __ 154
Drive belt _______________ 215
Simple troubleshooting (ACC) 273
Alternator_______________ 215
Turbo gauge ____________ 88
Spark plugs _____________ 287Automatic transmission _________ 162
Manual transmission ___________ 161
Oil grade and viscosity__________ 286
Engine: description ____________ 203
Engine oil: topping up __________ 208
Engine: technical data __________ 286
Important considerations
for driving ___________________ 153Engine oil: checking level________ 208
Battery ______________________ 214
Jump starting _________________ 197
Battery charge ________________ 214
Wash/wipe stalk switch ____ 103
Topping-up fluid _________ 217
Washer jets_____________ 217
Washer fluid ____________ 217Fuse table ______________ 235
Changing a fuse _________ 235
Fuses _________________ 233
Relays ________________ 238ABS brakes_____________ 171
Brake pads _____________ 287
Brake system ___________ 170
Brake fluid______________ 212
Cooling system, coolant capacity__ 286
Coolant: checking/topping-up ____ 210
Driving in hot climates __________ 187
Temperature gauge ____________ 88
93_US_MY09.book Page 7 Tuesday, April 15, 2008 10:30 AM
ProCarManuals.com
Page 8 of 304

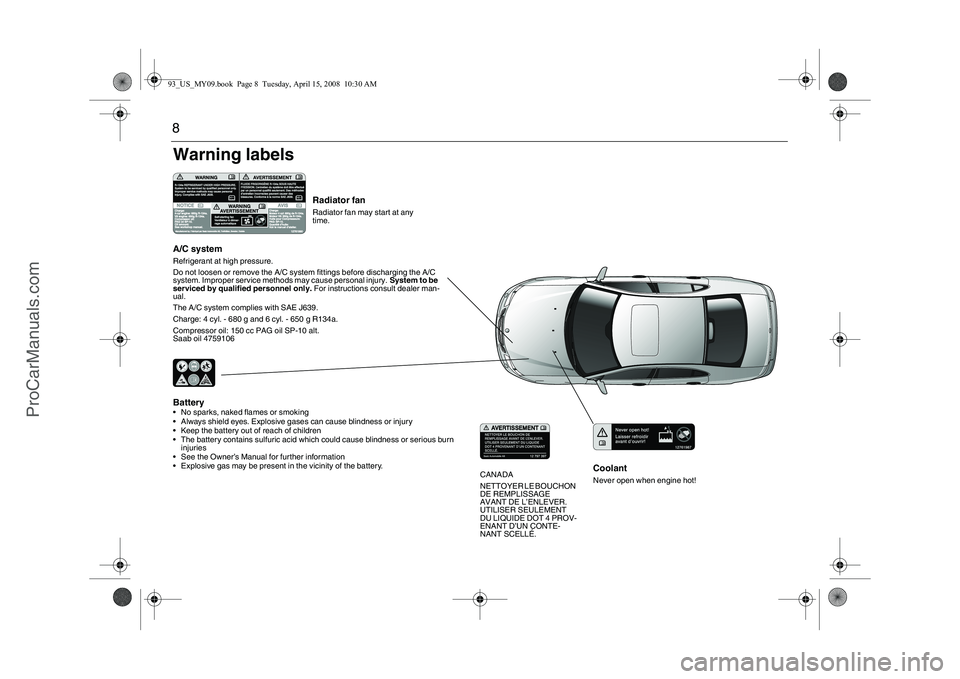

8
CoolantNever open when engine hot!
Radiator fanRadiator fan may start at any
time.
Battery• No sparks, naked flames or smoking
Always shield eyes. Explosive gases can cause blindness or injury
Keep the battery out of reach of children
The battery contains sulfuric acid which could cause blindness or serious burn
injuries
See the Owner’s Manual for further information
Explosive gas may be present in the vicinity of the battery.Warning labelsA/C systemRefrigerant at high pressure.
Do not loosen or remove the A/C system fittings before discharging the A/C
system. Improper service methods may cause personal injury.
System to be
serviced by qualified personnel only. For instructions consult dealer man-
ual.
The A/C system complies with SAE J639.
Charge: 4 cyl. - 680 g and 6 cyl. - 650 g R134a.
Compressor oil: 150 cc PAG oil SP-10 alt.
Saab oil 4759106
CANADA
NETTOYER LE BOUCHON
DE REMPLISSAGE
AVANT DE L’ENLEVER.
UTILISER SEULEMENT
DU LIQUIDE DOT 4 PROV-
ENANT D’UN CONTE-
NANT SCELLÉ.
93_US_MY09.book Page 8 Tuesday, April 15, 2008 10:30 AM
ProCarManuals.com
Page 9 of 304
9

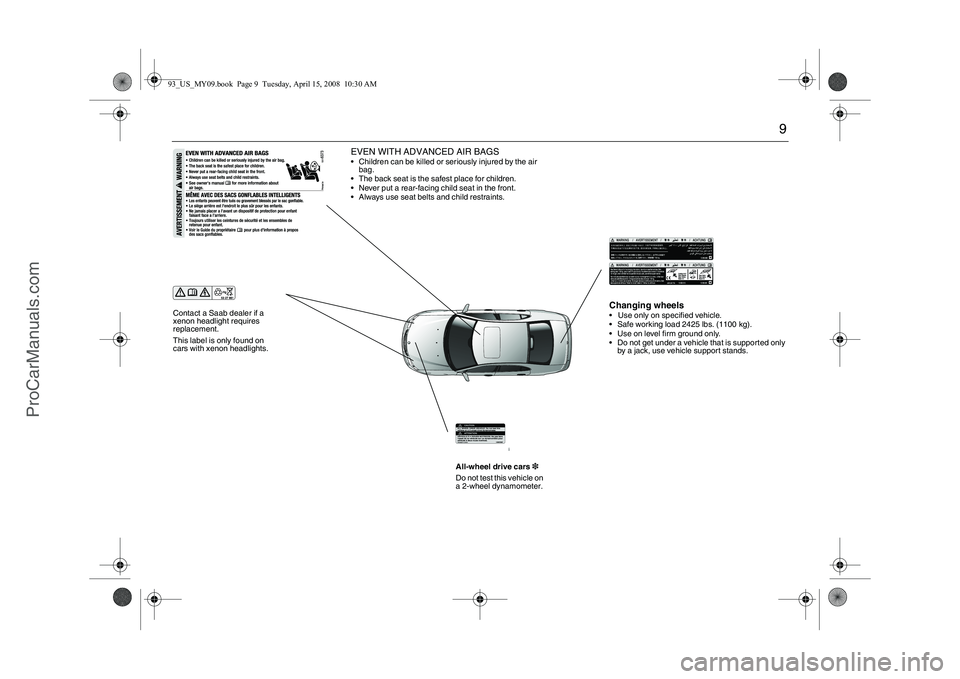

Changing wheels Use only on specified vehicle.
Safe working load 2425 lbs. (1100 kg).
Use on level firm ground only.
Do not get under a vehicle that is supported only
by a jack, use vehicle support stands.
Contact a Saab dealer if a
xenon headlight requires
replacement.
This label is only found on
cars with xenon headlights.
EVEN WITH ADVANCED AIR BAGS Children can be killed or seriously injured by the air
bag.
The back seat is the safest place for children.
Never put a rear-facing child seat in the front.
Always use seat belts and child restraints.
All-wheel drive cars3
Do not test this vehicle on
a 2-wheel dynamometer.
93_US_MY09.book Page 9 Tuesday, April 15, 2008 10:30 AM
ProCarManuals.com
Page 10 of 304
10
No sparks,
flames or
smokingBuckle up
Refer to
the Owner’s
ManualAirbag
Shield eyesNever place a
rear-facing
child seat in
this seat
Keep out of
reach of
childrenElectric
windows
Battery acid
contains sul-
furic acidDeactivating
of rear window
switches
Risk of
explosive gasCentral
locking, lock
Central
locking,
unlock
Trunk lid,
opening
HeadlightsWindshield
wipers
Direction
indicatorsWindshield
washers
Parking lights Defroster
Hazard warn-
ing lightsRear window
heating
Front fog lights Cabin fan
Rear fog light
Coolant tem-
peratureRadiator fan
No charge to
batteryFuel
Foot brakeAutomatic Tire
Pressure
Monitoring
System
Coolant level
Engine oil
pressure
ABS brakes
TCS/ESP
®
Example of symbols that can be found in your car93_US_MY09.book Page 10 Tuesday, April 15, 2008 10:30 AM
ProCarManuals.com
