21 Safety

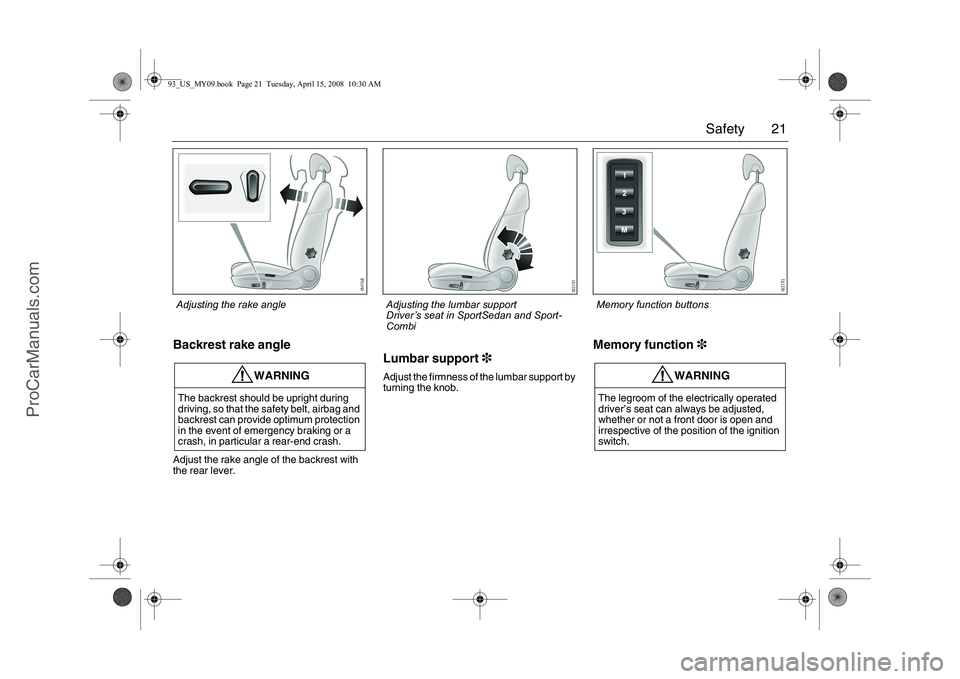

Backrest rake angleAdjust the rake angle of the backrest with
the rear lever.
Lumbar support3Adjust the firmness of the lumbar support by
turning the knob.
Memory function3
WARNING
The backrest should be upright during
driving, so that the safety belt, airbag and
backrest can provide optimum protection
in the event of emergency braking or a
crash, in particular a rear-end crash.
WARNING
The legroom of the electrically operated
driver’s seat can always be adjusted,
whether or not a front door is open and
irrespective of the position of the ignition
switch.
Adjusting the rake angle Adjusting the lumbar support
Driver’s seat in SportSedan and Sport-
CombiMemory function buttons93_US_MY09.book Page 21 Tuesday, April 15, 2008 10:30 AM
ProCarManuals.com

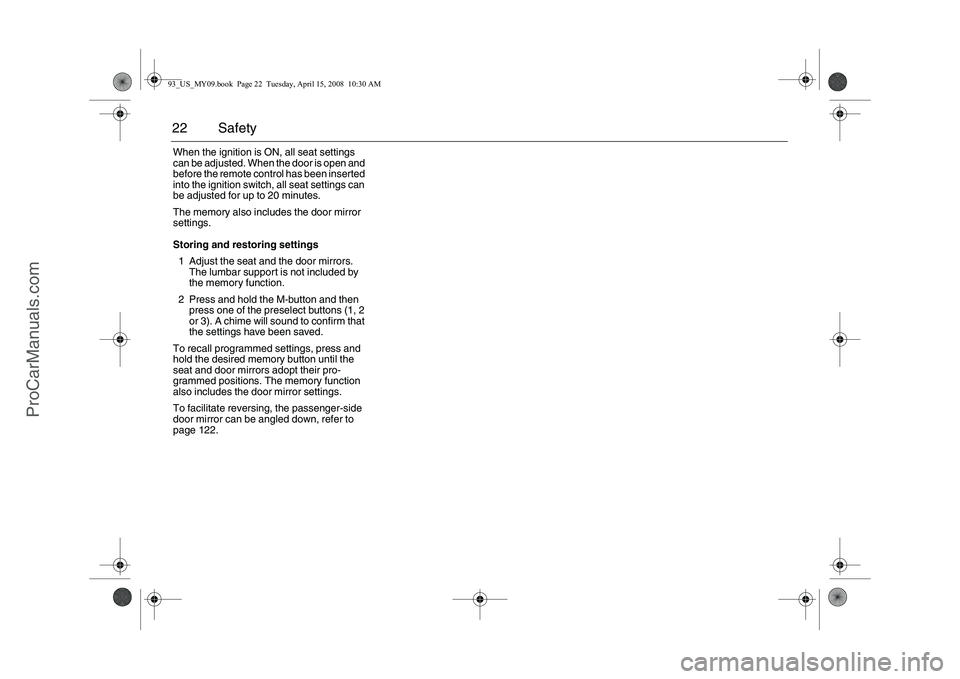

22 SafetyWhen the ignition is ON, all seat settings
can be adjusted. When the door is open and
before the remote control has been inserted
into the ignition switch, all seat settings can
be adjusted for up to 20 minutes.
The memory also includes the door mirror
settings.
Storing and restoring settings
1 Adjust the seat and the door mirrors.
The lumbar support is not included by
the memory function.
2 Press and hold the M-button and then
press one of the preselect buttons (1, 2
or 3). A chime will sound to confirm that
the settings have been saved.
To recall programmed settings, press and
hold the desired memory button until the
seat and door mirrors adopt their pro-
grammed positions. The memory function
also includes the door mirror settings.
To facilitate reversing, the passenger-side
door mirror can be angled down, refer to
page 122.93_US_MY09.book Page 22 Tuesday, April 15, 2008 10:30 AM
ProCarManuals.com

23 Safety

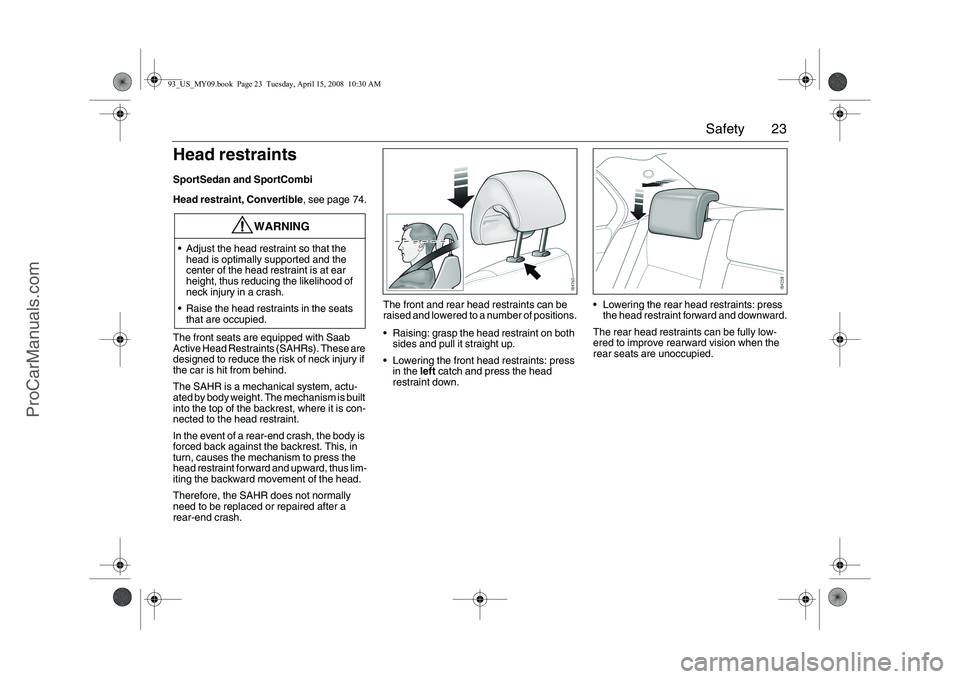

Head restraintsSportSedan and SportCombi
Head restraint, Convertible, see page 74.
The front seats are equipped with Saab
Active Head Restraints (SAHRs). These are
designed to reduce the risk of neck injury if
the car is hit from behind.
The SAHR is a mechanical system, actu-
ated by body weight. The mechanism is built
into the top of the backrest, where it is con-
nected to the head restraint.
In the event of a rear-end crash, the body is
forced back against the backrest. This, in
turn, causes the mechanism to press the
head restraint forward and upward, thus lim-
iting the backward movement of the head.
Therefore, the SAHR does not normally
need to be replaced or repaired after a
rear-end crash.The front and rear head restraints can be
raised and lowered to a number of positions.
 Raising: grasp the head restraint on both
sides and pull it straight up.
 Lowering the front head restraints: press
in the left catch and press the head
restraint down. Lowering the rear head restraints: press
the head restraint forward and downward.
The rear head restraints can be fully low-
ered to improve rearward vision when the
rear seats are unoccupied.
WARNING
 Adjust the head restraint so that the
head is optimally supported and the
center of the head restraint is at ear
height, thus reducing the likelihood of
neck injury in a crash.
 Raise the head restraints in the seats
that are occupied.93_US_MY09.book Page 23 Tuesday, April 15, 2008 10:30 AM
ProCarManuals.com

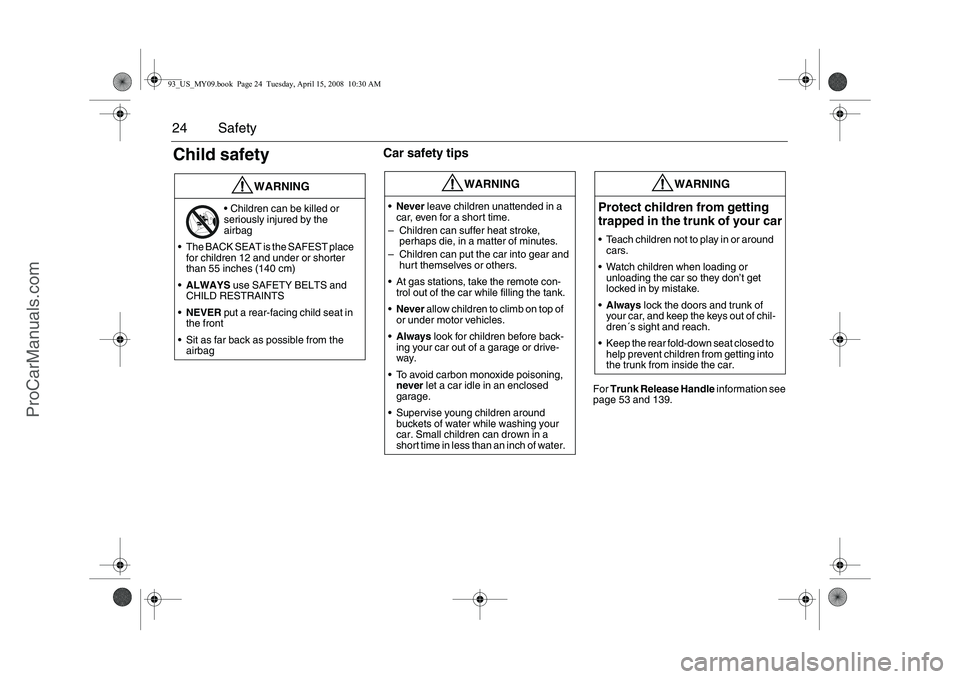

24 SafetyChild safety
Car safety tips
For Trunk Release Handle information see
page 53 and 139.
WARNING
 Children can be killed or
seriously injured by the
airbag
 The BACK SEAT is the SAFEST place
for children 12 and under or shorter
than 55 inches (140 cm)
ALWAYS use SAFETY BELTS and
CHILD RESTRAINTS
NEVER put a rear-facing child seat in
the front
 Sit as far back as possible from the
airbag
WARNING
Never leave children unattended in a
car, even for a short time.
– Children can suffer heat stroke,
perhaps die, in a matter of minutes.
– Children can put the car into gear and
hurt themselves or others.
 At gas stations, take the remote con-
trol out of the car while filling the tank.
Never allow children to climb on top of
or under motor vehicles.
Always look for children before back-
ing your car out of a garage or drive-
way.
 To avoid carbon monoxide poisoning,
never let a car idle in an enclosed
garage.
 Supervise young children around
buckets of water while washing your
car. Small children can drown in a
short time in less than an inch of water.
WARNING
Protect children from getting
trapped in the trunk of your car Teach children not to play in or around
cars.
 Watch children when loading or
unloading the car so they don’t get
locked in by mistake.
Always lock the doors and trunk of
your car, and keep the keys out of chil-
dren´s sight and reach.
 Keep the rear fold-down seat closed to
help prevent children from getting into
the trunk from inside the car.
93_US_MY09.book Page 24 Tuesday, April 15, 2008 10:30 AM
ProCarManuals.com

25 Safety

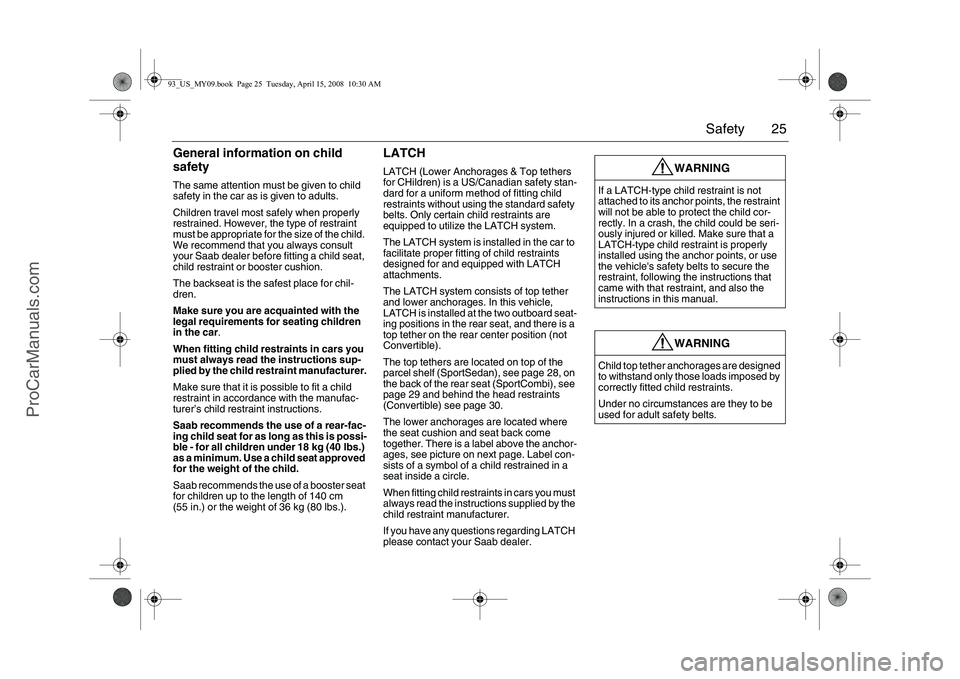

General information on child
safetyThe same attention must be given to child
safety in the car as is given to adults.
Children travel most safely when properly
restrained. However, the type of restraint
must be appropriate for the size of the child.
We recommend that you always consult
your Saab dealer before fitting a child seat,
child restraint or booster cushion.
The backseat is the safest place for chil-
dren.
Make sure you are acquainted with the
legal requirements for seating children
in the car.
When fitting child restraints in cars you
must always read the instructions sup-
plied by the child restraint manufacturer.
Make sure that it is possible to fit a child
restraint in accordance with the manufac-
turer’s child restraint instructions.
Saab recommends the use of a rear-fac-
ing child seat for as long as this is possi-
ble - for all children under 18 kg (40 lbs.)
as a minimum. Use a child seat approved
for the weight of the child.
Saab recommends the use of a booster seat
for children up to the length of 140 cm
(55 in.) or the weight of 36 kg (80 lbs.).
LATCHLATCH (Lower Anchorages & Top tethers
for CHildren) is a US/Canadian safety stan-
dard for a uniform method of fitting child
restraints without using the standard safety
belts. Only certain child restraints are
equipped to utilize the LATCH system.
The LATCH system is installed in the car to
facilitate proper fitting of child restraints
designed for and equipped with LATCH
attachments.
The LATCH system consists of top tether
and lower anchorages. In this vehicle,
LATCH is installed at the two outboard seat-
ing positions in the rear seat, and there is a
top tether on the rear center position (not
Convertible).
The top tethers are located on top of the
parcel shelf (SportSedan), see page 28, on
the back of the rear seat (SportCombi), see
page 29 and behind the head restraints
(Convertible) see page 30.
The lower anchorages are located where
the seat cushion and seat back come
together. There is a label above the anchor-
ages, see picture on next page. Label con-
sists of a symbol of a child restrained in a
seat inside a circle.
When fitting child restraints in cars you must
always read the instructions supplied by the
child restraint manufacturer.
If you have any questions regarding LATCH
please contact your Saab dealer.
WARNING
If a LATCH-type child restraint is not
attached to its anchor points, the restraint
will not be able to protect the child cor-
rectly. In a crash, the child could be seri-
ously injured or killed. Make sure that a
LATCH-type child restraint is properly
installed using the anchor points, or use
the vehicle's safety belts to secure the
restraint, following the instructions that
came with that restraint, and also the
instructions in this manual.
WARNING
Child top tether anchorages are designed
to withstand only those loads imposed by
correctly fitted child restraints.
Under no circumstances are they to be
used for adult safety belts.
93_US_MY09.book Page 25 Tuesday, April 15, 2008 10:30 AM
ProCarManuals.com

26 Safety

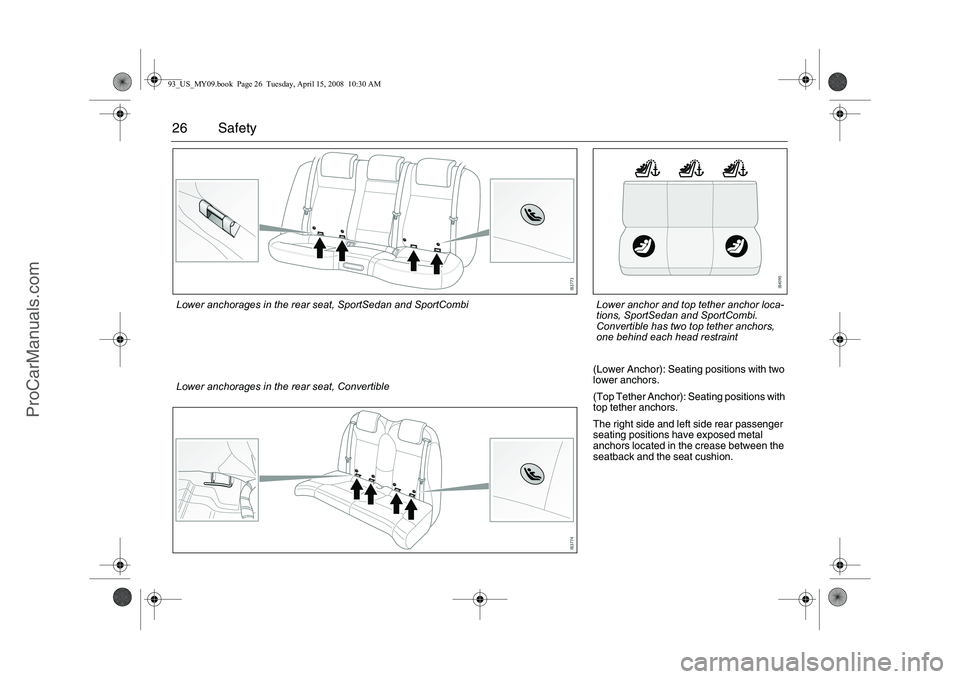

(Lower Anchor): Seating positions with two
lower anchors.
(Top Tether Anchor): Seating positions with
top tether anchors.
The right side and left side rear passenger
seating positions have exposed metal
anchors located in the crease between the
seatback and the seat cushion.
Lower anchorages in the rear seat, SportSedan and SportCombiLower anchorages in the rear seat, Convertible
Lower anchor and top tether anchor loca-
tions, SportSedan and SportCombi.
Convertible has two top tether anchors,
one behind each head restraint
93_US_MY09.book Page 26 Tuesday, April 15, 2008 10:30 AM
ProCarManuals.com

27 Safety

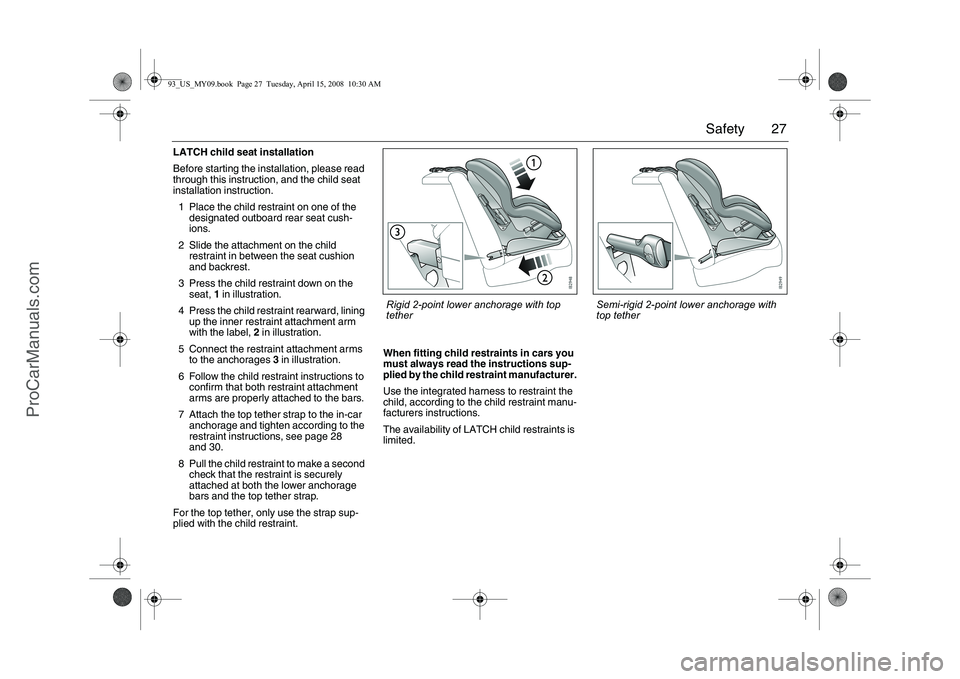

LATCH child seat installation
Before starting the installation, please read
through this instruction, and the child seat
installation instruction.
1 Place the child restraint on one of the
designated outboard rear seat cush-
ions.
2 Slide the attachment on the child
restraint in between the seat cushion
and backrest.
3 Press the child restraint down on the
seat, 1 in illustration.
4 Press the child restraint rearward, lining
up the inner restraint attachment arm
with the label, 2 in illustration.
5 Connect the restraint attachment arms
to the anchorages 3 in illustration.
6 Follow the child restraint instructions to
confirm that both restraint attachment
arms are properly attached to the bars.
7 Attach the top tether strap to the in-car
anchorage and tighten according to the
restraint instructions, see page 28
and 30.
8 Pull the child restraint to make a second
check that the restraint is securely
attached at both the lower anchorage
bars and the top tether strap.
For the top tether, only use the strap sup-
plied with the child restraint.When fitting child restraints in cars you
must always read the instructions sup-
plied by the child restraint manufacturer.
Use the integrated harness to restraint the
child, according to the child restraint manu-
facturers instructions.
The availability of LATCH child restraints is
limited.
Rigid 2-point lower anchorage with top
tetherSemi-rigid 2-point lower anchorage with
top tether
93_US_MY09.book Page 27 Tuesday, April 15, 2008 10:30 AM
ProCarManuals.com

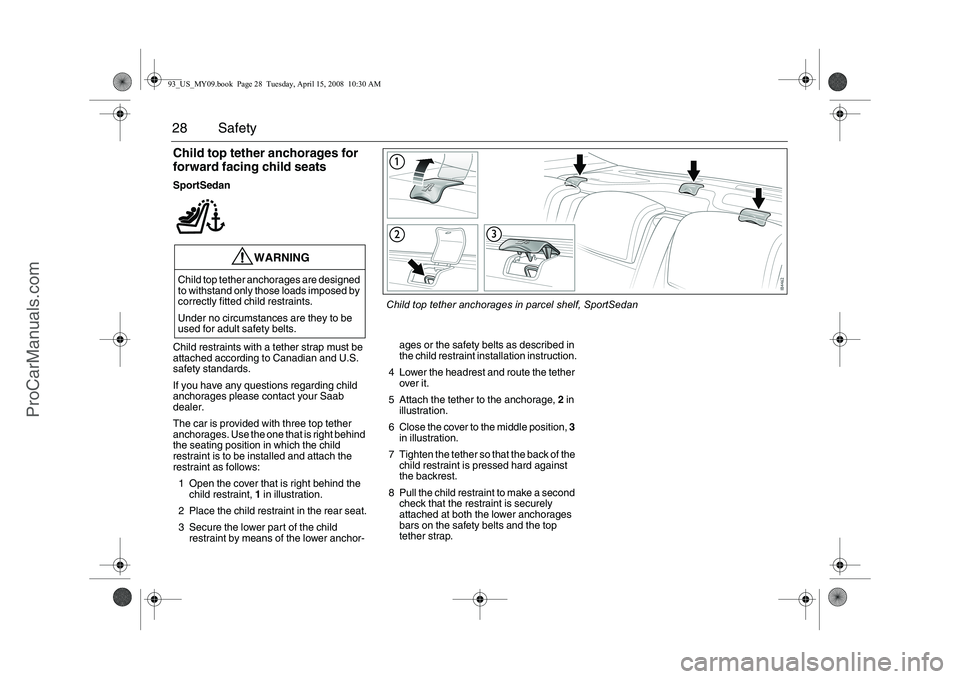

28 SafetyChild top tether anchorages for
forward facing child seatsSportSedan
Child restraints with a tether strap must be
attached according to Canadian and U.S.
safety standards.
If you have any questions regarding child
anchorages please contact your Saab
dealer.
The car is provided with three top tether
anchorages. Use the one that is right behind
the seating position in which the child
restraint is to be installed and attach the
restraint as follows:
1 Open the cover that is right behind the
child restraint, 1 in illustration.
2 Place the child restraint in the rear seat.
3 Secure the lower part of the child
restraint by means of the lower anchor-ages or the safety belts as described in
the child restraint installation instruction.
4 Lower the headrest and route the tether
over it.
5 Attach the tether to the anchorage, 2 in
illustration.
6 Close the cover to the middle position, 3
in illustration.
7 Tighten the tether so that the back of the
child restraint is pressed hard against
the backrest.
8 Pull the child restraint to make a second
check that the restraint is securely
attached at both the lower anchorages
bars on the safety belts and the top
tether strap.
WARNING
Child top tether anchorages are designed
to withstand only those loads imposed by
correctly fitted child restraints.
Under no circumstances are they to be
used for adult safety belts.
Child top tether anchorages in parcel shelf, SportSedan
93_US_MY09.book Page 28 Tuesday, April 15, 2008 10:30 AM
ProCarManuals.com

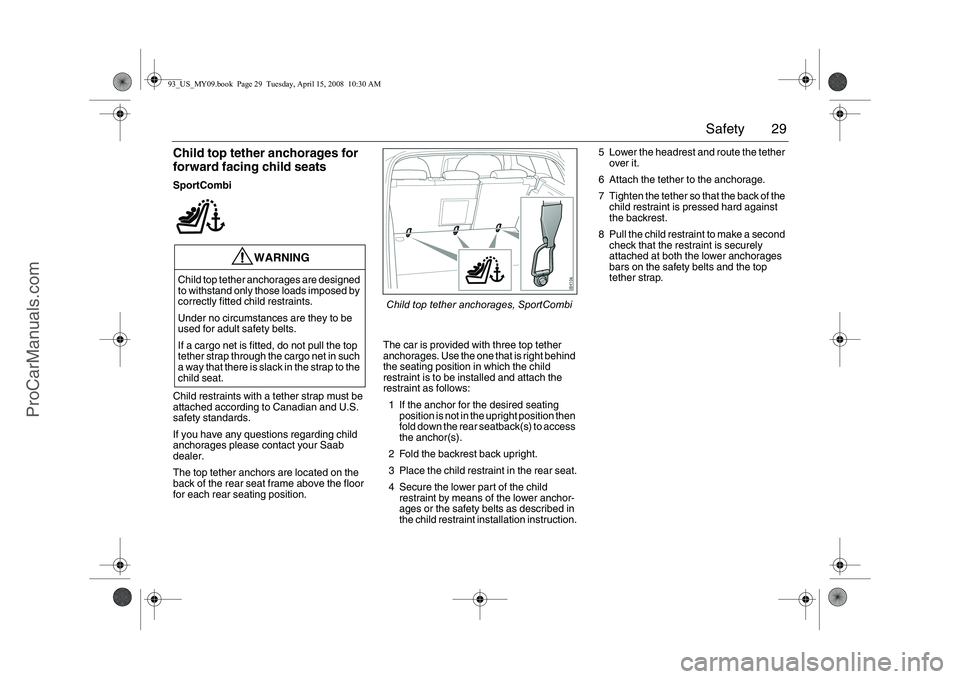

29 Safety
Child top tether anchorages for
forward facing child seatsSportCombi
Child restraints with a tether strap must be
attached according to Canadian and U.S.
safety standards.
If you have any questions regarding child
anchorages please contact your Saab
dealer.
The top tether anchors are located on the
back of the rear seat frame above the floor
for each rear seating position.The car is provided with three top tether
anchorages. Use the one that is right behind
the seating position in which the child
restraint is to be installed and attach the
restraint as follows:
1 If the anchor for the desired seating
position is not in the upright position then
fold down the rear seatback(s) to access
the anchor(s).
2 Fold the backrest back upright.
3 Place the child restraint in the rear seat.
4 Secure the lower part of the child
restraint by means of the lower anchor-
ages or the safety belts as described in
the child restraint installation instruction.5 Lower the headrest and route the tether
over it.
6 Attach the tether to the anchorage.
7 Tighten the tether so that the back of the
child restraint is pressed hard against
the backrest.
8 Pull the child restraint to make a second
check that the restraint is securely
attached at both the lower anchorages
bars on the safety belts and the top
tether strap.
WARNING
Child top tether anchorages are designed
to withstand only those loads imposed by
correctly fitted child restraints.
Under no circumstances are they to be
used for adult safety belts.
If a cargo net is fitted, do not pull the top
tether strap through the cargo net in such
a way that there is slack in the strap to the
child seat.
Child top tether anchorages, SportCombi
93_US_MY09.book Page 29 Tuesday, April 15, 2008 10:30 AM
ProCarManuals.com

30 SafetyChild top tether anchorages for
forward facing child seatsConvertible
Child restraints with a tether strap must be
attached according to Canadian and U.S.
safety standards.
If you have any questions regarding child
anchorages please contact your Saab
dealer.
The car is provided with two top tether
anchorages. Use the one that is right behind
the seating position in which the child
restraint is to be installed and attach the
restraint as follows:
1 Remove the head restraint on the seat-
ing position where the child restraint
shall be fitted.
2 Place the child restraint in the rear seat.3 Secure the lower part of the child
restraint by means of the lower anchor-
ages or the safety belts as described in
the child restraint installation instruction.
4 Attach the tether to the anchorage.
5 Tighten the tether so that the back of the
child restraint is pressed hard against
the backrest.
6 Pull the child restraint to make a second
check that the restraint is securely
attached at both the lower anchorages
bars on the safety belts and the top
tether strap.7 Put the head restraint back on and make
sure it is securely mounted. Adjust it in
its highest position.
WARNING
Child top tether anchorages are designed
to withstand only those loads imposed by
correctly fitted child restraints.
Under no circumstances are they to be
used for adult safety belts.
WARNING
If the size of the child restraint makes it
impossible to put the head restraint back
on, place it in the trunk.
How to take away the head restraint1 Raise the head restraint
2 Push the catch forward and pull the head
restraint straight upward
Top tether anchorages in the rear seat
93_US_MY09.book Page 30 Tuesday, April 15, 2008 10:30 AM
ProCarManuals.com
