SAAB 9-3 2009 Owners Manual

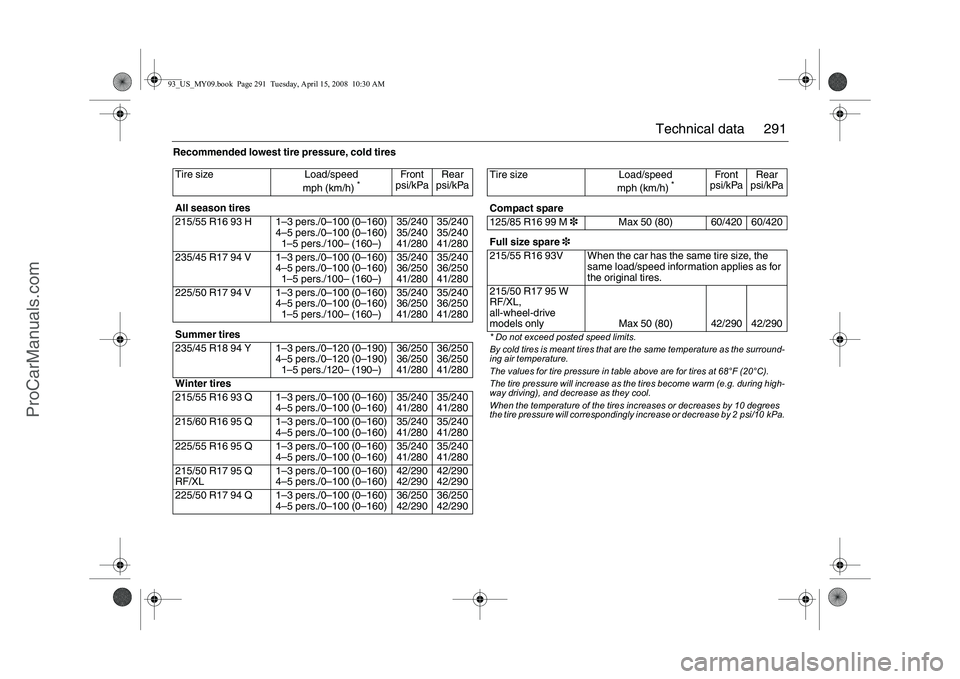

291 Technical data
Recommended lowest tire pressure, cold tires
Tire size Load/speed
mph (km/h)
*
Front
psi/kPaRear
psi/kPa
All season tires
215/55 R16 93 H 1–3 pers./0–100 (0–160)
4–5 pers./0–100 (0–160)
1–5 pers./100– (160–)35/240
35/240
41/28035/240
35/240
41/280
235/45 R17 94 V 1–3 pers./0–100 (0–160)
4–5 pers./0–100 (0–160)
1–5 pers./100– (160–)35/240
36/250
41/28035/240
36/250
41/280
225/50 R17 94 V 1–3 pers./0–100 (0–160)
4–5 pers./0–100 (0–160)
1–5 pers./100– (160–)35/240
36/250
41/28035/240
36/250
41/280
Summer tires
235/45 R18 94 Y 1–3 pers./0–120 (0–190)
4–5 pers./0–120 (0–190)
1–5 pers./120– (190–)36/250
36/250
41/28036/250
36/250
41/280
Winter tires
215/55 R16 93 Q 1–3 pers./0–100 (0–160)
4–5 pers./0–100 (0–160)35/240
41/28035/240
41/280
215/60 R16 95 Q 1–3 pers./0–100 (0–160)
4–5 pers./0–100 (0–160)35/240
41/28035/240
41/280
225/55 R16 95 Q 1–3 pers./0–100 (0–160)
4–5 pers./0–100 (0–160)35/240
41/28035/240
41/280
215/50 R17 95 Q
RF/XL1–3 pers./0–100 (0–160)
4–5 pers./0–100 (0–160)42/290
42/29042/290
42/290
225/50 R17 94 Q 1–3 pers./0–100 (0–160)
4–5 pers./0–100 (0–160)36/250
42/29036/250
42/290
Tire size Load/speed
mph (km/h)
*
Fr o nt
psi/kPaRear
psi/kPa
Compact spare
125/85 R16 99 M 3Max 50 (80) 60/420 60/420
Full size spare 3
215/55 R16 93V When the car has the same tire size, the
same load/speed information applies as for
the original tires.
215/50 R17 95 W
RF/XL,
all-wheel-drive
models only Max 50 (80) 42/290 42/290
* Do not exceed posted speed limits.
By cold tires is meant tires that are the same temperature as the surround-
ing air temperature.
The values for tire pressure in table above are for tires at 68°F (20°C).
The tire pressure will increase as the tires become warm (e.g. during high-
way driving), and decrease as they cool.
When the temperature of the tires increases or decreases by 10 degrees
the tire pressure will correspondingly increase or decrease by 2 psi/10 kPa.
93_US_MY09.book Page 291 Tuesday, April 15, 2008 10:30 AM
ProCarManuals.com

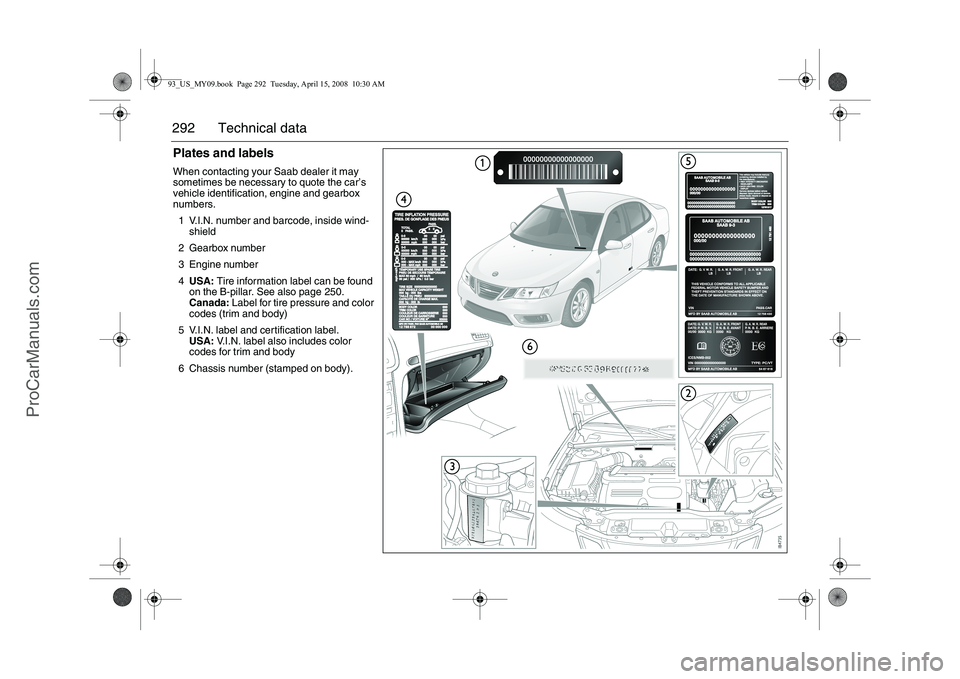

292 Technical dataPlates and labelsWhen contacting your Saab dealer it may
sometimes be necessary to quote the car’s
vehicle identification, engine and gearbox
numbers.
1 V.I.N. number and barcode, inside wind-
shield
2 Gearbox number
3 Engine number
4USA: Tire information label can be found
on the B-pillar. See also page 250.
Canada: Label for tire pressure and color
codes (trim and body)
5 V.I.N. label and certification label.
USA: V.I.N. label also includes color
codes for trim and body
6 Chassis number (stamped on body).93_US_MY09.book Page 292 Tuesday, April 15, 2008 10:30 AM
ProCarManuals.com

293 Technical data
Customized systemsSeveral of the systems in your Saab can be
customized to better suit your individual
needs. Contact your Saab dealer
Central locking system
Some functions are governed by legal
requirements and cannot therefore be
reprogrammed.
We recommend that you consult a Saab
dealer for further information.
Listed below are a number of examples of
programmable functions.
 Audible confirmation of arming/disarming
the car alarm
 Automatic unlocking when car stopped
and remote control removed from the igni-
tion switch
 Trunk lid locked when car driven off or
30 seconds after being shut.Courtesy Headlamp Feature
 The length of time the lights are on
 Whether the reversing light or tail lights
should come on as well as the dipped
beam.
Automatic Climate System (ACC)
Convertible: A/C compressor not
switched off when the soft top is open.93_US_MY09.book Page 293 Tuesday, April 15, 2008 10:30 AM
ProCarManuals.com

294 Technical dataWarning and indications that can
be shown on the SIDWhich warnings and indications that can be
shown depends on engine variant and car
specification.
The warnings/indications that contain an
exclamation mark are shown together with
a warning or check light in the main instru-
ment panel.
Symbol Text
Antilock brake malfunc.
Contact service.
Brake malfunction.
Make a safe stop.
Brake fluid level low.
Make a safe stop.
Release park brake.
Oil pressure low.
Make a safe stop.
Low engine oil level.
Fill oil now.
Reduced engine power.
Contact service.
Tighten fuel filler cap.
Limited performance.
Coolant level low.
Refill.
Hot engine. Make a
safe stop. Idle engine.
Airbag malfunction.
Contact service.
Gearbox too hot. Make a
safe stop. Open hood.
Battery not charging.
Make a safe stop.
Headlight levelling
malfunction.
Cornering headlights
malfunction
Tap brakes lightly
before using cruise ctrl.
Traction control failure.
Contact service.
Stability control failure.
Contact service.
Turn on the lights.
Washer fluid level low.
Refill.
Rain sensor malfunc.
Contact service.
Key not accepted.
Contact service.
Remote control battery
low. Replace battery.
Number of keys:
Active key number:
Steering lock malfunc.
Make a safe stop.
Pull out key, turn
steering wheel. Restart.
Theft protection failure.
Contact service.
Alarm tripped during
last arming period.
93_US_MY09.book Page 294 Tuesday, April 15, 2008 10:30 AM
ProCarManuals.com

295 Technical data
Rear left seat
backrest unlocked.
Rear right seat
backrest unlocked.
Parking assistance
malfunction. Service.
Parking assistance
sensor interference.
Close doors.
Left brake light failure
Left high beam failure.
Left low beam failure.
Rear fog light failure.
Right brake light failure.
Right high beam failure.
Right low beam failure.
High mounted stop
light failure.
Left front turn signal
failure.
Left rear turn signal
failure.
Right front turn signal
failure.
Right rear turn signal
failure.
Right side-mounted
turn signal failure.
Left side-mounted
turn signal failure.
Left front position
light failure.
Right front position
light failure.
Left front fog light
failure.
Right front fog light
failure.
Left reversing light
failure.
Right reversing light
failure.
License plate light
failure.
Left rear taillight
failure.
Right rear taillight
failure.
Right side day-time
running light failure.
Left side day-time
running light failure.
Tire pressure low,
rear left. Check tires.
Tire pressure low,
rear right. Check tires.
Tire pressure low,
front right. Check tires.
93_US_MY09.book Page 295 Tuesday, April 15, 2008 10:30 AM
ProCarManuals.com

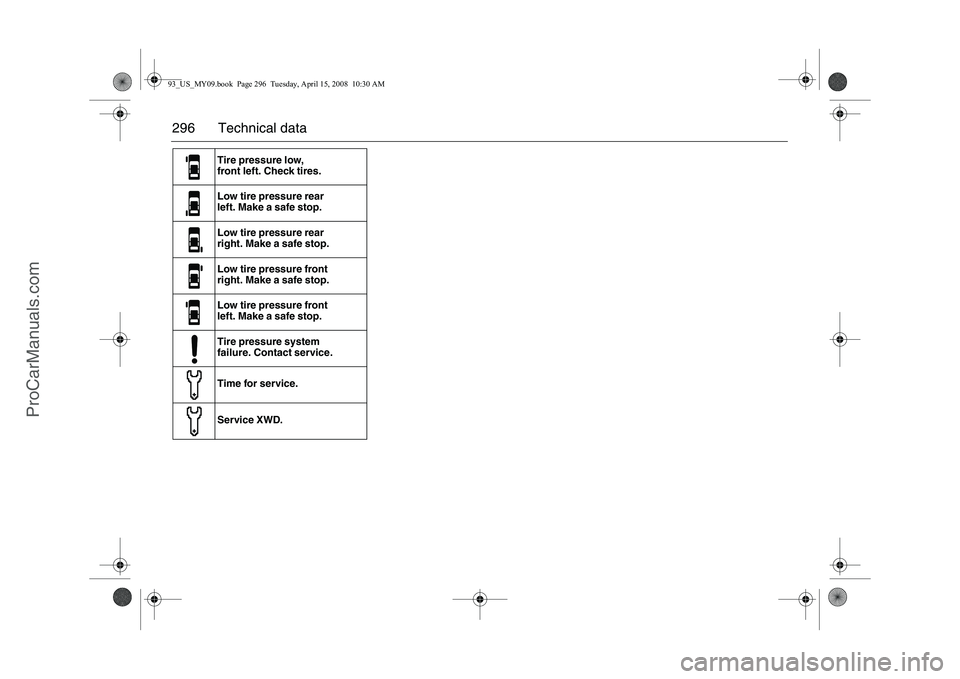

296 Technical data
Tire pressure low,
front left. Check tires.
Low tire pressure rear
left. Make a safe stop.
Low tire pressure rear
right. Make a safe stop.
Low tire pressure front
right. Make a safe stop.
Low tire pressure front
left. Make a safe stop.
Tire pressure system
failure. Contact service.
Time for service.
Service XWD.
93_US_MY09.book Page 296 Tuesday, April 15, 2008 10:30 AM
ProCarManuals.com

297 Index
IndexAABS brakes
____________________ 171
ACC
_________________________ 107
Adjustment, steering wheel
________ 118
Air filter
_______________________ 209
Airbag
_________________________ 32
All-wheel drive (XWD)
____________ 173
Anchorage eyes, SportSedan
______ 139
Anti-corrosion treatment
__________ 271
Antilock braking system __________ 171
Anti-spin
______________________ 173
Ashtrays ______________________ 134
Autochecking of lights, warning and
indicator lights
__________________ 87
Autodimming
___________________ 123
Automatic climate control (ACC)
____ 107
Automatic closing of moonroof
_____ 129
Automatic closing of windows,
SportSedan and SportCombi _____ 120
Automatic transmission
___________ 162
Automatic transmission, Sport mode

163
BBattery
_______________________ 214
Bedding-in of new brake pads
_____ 160
Before towing a trailer
____________ 191
Belt height, SportSedan and
SportCombi
____________________ 14Brake fluid, grade
_______________ 287
Brakes
________________________ 170
Braking _______________________ 170
Bulb changing
__________________ 218
Bulb table
_____________________ 232
Buying new tires
________________ 243
CCabin lighting, Convertible
_________ 79
Cabin lighting, SportSedan and
SportCombi
___________________ 131
Calibrating front electric windows with
pinch protection
________________ 78
Calibration of windows, SportSedan
and SportCombi _______________ 121
Car alarm
______________________ 56
Car transport ___________________ 196
Care of air conditioning
___________ 273
Cargo guard
___________________ 148
Cargo guard, SportWagon
________ 148
Cargo net, SportCombi
___________ 145
CHECK ENGINE light _____________ 83
Change of address notification
_____ 280
Changing a tire
_________________ 258
Changing bulbs _________________ 218
Changing the battery, remote control
_54
Changing wiper blades
___________ 216
Checking the number of remote
controls
_______________________ 53
Checks before towing a trailer
_____ 191
Child safety
_____________________ 24Child safety locks, rear doors
_______ 52
Child seats
______________________ 24
Cigarette lighter
_________________ 134
Cleaning the engine bay
__________ 267
Cleaning upholstery
______________ 266
Closing the soft top manually,
Convertible
____________________ 68
Closing the soft top, Convertible
_____ 64
Clutch interlock
_________________ 161
Comfort opening of moonroof
______ 129
Comfort opening of windows,
SportSedan and SportCombi _____ 119
Compact spare
_________________ 256
Compact spare wheel fitted, driving
with
_________________________ 258
Compass
______________________ 127
Convertible _____________________ 61
Convertible, washing
_____________ 268
Coolant
_______________________ 210
Cornering headlights
______________ 99
Crash memory, see EDR
_________ 282
Cruise control
__________________ 169
Cup holder
_____________________ 133
DDate codes, tires
________________ 253
Deactivating rear windows,
SportSedan and SportCombi
_____ 121
Deactivating the passenger door
window button, Convertible
________ 78
93_US_MY09.book Page 297 Tuesday, April 15, 2008 10:30 AM
ProCarManuals.com

298 IndexDeactivating the rear window
switches
_____________________ 121
Deep water, driving through
_______ 193
Definitions and terminology, tire ____ 250
Determining correct load, tires
_____ 252
Direction indicator stalk switch _____ 101
Direction indicators
______________ 101
Dome light, Convertible
__________ 228
Dome light, SportSedan __________ 228
Donor battery, boost starting
______ 197
Door handles
___________________ 48
Door mirrors
___________________ 122
Drive belt
______________________ 215
Driver’s seat with memory
_________ 21
Driving in cold climates
___________ 185
Driving in deep water
____________ 193
Driving in hot climates ____________ 187
Driving techniques
______________ 183
Driving with a compact wheel fitted
_258
Driving with a heavy load on hilly
roads
________________________ 164
Driving with a load
______________ 192
Driving with a roof load ___________ 192
Driving with the trunk lid open
______ 193
EEDR (Event Data Recorders)
______ 282
ESP®
________________________ 175
Easy entry, Convertible
____________ 73
Economical motoring
____________ 183
Electrical system, technical data
____ 287Electrically adjustable seats
________ 20
Electric engine heater
____________ 184
Electric heating, front seats
________ 114
Electric windows
________________ 119
Electric windows, Convertible
_______ 77
Electronic Stability Program
_______ 175
Electronic steering wheel lock ______ 151
Emergency opening of the narrow
backrest, SportSedan
___________ 140
Emergency operation of the moonroof
130
Engine bay, cleaning
_____________ 267
Engine heater
__________________ 184
Engine immobilizer
_______________ 55
Engine management system
______ 204
Engine number
_________________ 292
Engine oil, checking
_____________ 208
Engine oil, grade
________________ 286
Engine temperature gauge
_________ 88
Engine, description
______________ 203
Engine, technical data ____________ 286
Engines
_______________________ 287
Event Data Recorders (EDR)
______ 282
Extra electrical socket
____________ 134
FFacilitating entry to rear seat,
Convertible
____________________ 73
Factors affecting fuel consumption
__ 183
Filler cap
______________________ 157
Filling a portable fuel container
_____ 158
Filling up
______________________ 156Flat spots, tires
_________________ 242
Floor jack
______________________ 259
Folding down the rear seat backrest,
SportCombi
___________________ 141
Folding down the rear seat,
SportSedan ___________________ 136
Front fog lights __________________ 100
Front towing eye ________________ 194
Fuel cap
_______________________ 157
Fuel container
__________________ 158
Fuel gauge
_____________________ 89
Fuel grade _____________________ 287
Fuel information
_________________ 158
Functions, car alarm
______________ 58
Fuse panel in luggage compartment
_236
Fuse table
_____________________ 235
Fuses
_________________________ 233
GGDO, garage door opener
_________ 123
Gearbox number
________________ 292
General safety instructions,
Convertible
____________________ 62
Glove box
_____________________ 134
Glovebox lighting
________________ 229
HHandbrake
_____________________ 177
Hazard warning lights
____________ 102
Head restraint, Convertible
_________ 74
Head restraints
__________________ 23
93_US_MY09.book Page 298 Tuesday, April 15, 2008 10:30 AM
ProCarManuals.com

299 Index
Headlight flasher
_________________ 99
Headlight levelling ________________ 98
Headlights
______________________ 98
Hood
_________________________ 202
Horn _________________________ 118
Horn button
____________________ 118
IIf a tire goes flat
________________ 247
Ignition switch
__________________ 150
Immobilizer
_____________________ 55
Important considerations for driving
_153
Important information, petrol-engined
cars with catalytic converters
_____ 154
Indicator lights
___________________ 82
Inflation, tires __________________ 240
Information about fuel
____________ 158
Instrument illumination, adjusting
___ 100
Interior lighting, Convertible
________ 79
Interior lighting, SportSedan and
SportCombi
___________________ 131
Interior rearview mirror
___________ 123
Intermittent malfunctioning, central
locking
_______________________ 50
JJump starting
__________________ 197
KKey
___________________________ 48
Kick-down
_____________________ 164
LLabeling, tire sidewall
____________ 248
Labels and plates, location
________ 292
Lashing eyes, SportCombi ________ 144
Lashing eyes, SportSedan ________ 139
Laying the car up
_______________ 179
LATCH (child safety) ______________ 25
Leather upholstery, cleaning
_______ 266
Lighting in luggage compartment,
Convertible
____________________ 79
Limp-home
____________________ 154
Limp-home, automatic transmission
_165
Load carriers, roof
_______________ 192
Load indices, tires _______________ 249
Loading your vehicle _____________ 250
Load-through hatch, SportCombi
___ 143
Load-through hatch, SportSedan ___ 138
Locking a car with flat battery
_______ 51
Locks
__________________________ 48
Long-term parking
_______________ 179
Luggage compartment
___________ 136
Luggage compartment lighting,
Convertible
____________________ 79
Luggage compartment lighting,
SportSedan _______________ 132
, 140Luggage compartment lighting,
changing
_____________________ 230
MMain instrument panel
_____________ 82
Main/dipped beam
________________ 99
Maintenance schedule
___________ 278
Malfunction Indicator Lamp
_________ 83
Manual gear selection
____________ 168
Manual gearbox
_________________ 161
Manual tripping of car alarm
________ 58
Materials used in the car, reclamation
272
MAXI fuses
____________________ 234
Memory, driver’s seat
_____________ 21
Messages on SID, Convertible
______ 71
Milometer
_______________________ 90
Moonroof ______________________ 128
Mug holder ____________________ 133
NNew tires, buying
________________ 243
Number plate lighting, changing
____ 229
OORVR
________________________ 205
Opening handles
_________________ 48
Opening the soft top, Convertible
____ 64
Outside mirrors
_________________ 122
Owner assistance _______________ 280
93_US_MY09.book Page 299 Tuesday, April 15, 2008 10:30 AM
ProCarManuals.com

300 IndexPPanic function, car alarm
__________ 58
Park Brake Shift Lock
____________ 163
Park Brake Shift Lock, temporary
override
______________________ 166
Parking
_______________________ 177
Parking aid ____________________ 180
Parking brake __________________ 177
Parking on a hill ________________ 178
Pinch protection, electric windows,
SportSedan and SportCombi
_____ 120
Pinch protection, moonroof
________ 130
Plates and labels, location ________ 292
Polishing and waxing
____________ 270
Poly-V-belt
____________________ 215
Portable fuel container
___________ 158
Position lights
___________________ 98
Power steering fluid, checking
_____ 213
Pressure gauge
_________________ 88
Pressure, tires
__________________ 240
Profiles, customized settings
_______ 94
QQuality grading, tires
_____________ 244
Quick guide, remote control
________ 49
RRain sensor
____________________ 103
Raising the soft top manually,
Convertible ____________________ 68Reading lights, Convertible
_________ 79
Rear fog light
___________________ 101
Rear seat, folding down, SportCombi
141
Rear seat, safety belts
____________ 17
Rear seats, folding down, SportSedan
136
Rear towing eye
________________ 194
Rear windows, deactivating,
SportSedan and SportCombi
_____ 121
Rearview mirrors
________________ 122
Recommendations for automatic
transmission, towing a trailer
_____ 189
Recommendations for manual gearbox,
towing a trailer
________________ 190
Recommended snow chains
_______ 288
Refueling
______________________ 156
Reinstalling the fuel cap
__________ 157
Remote control
__________________ 48
Remote locking malfunction
________ 50
Replacement, wheel
_____________ 246
Reporting safety defects __________ 281
Rev counter
_____________________ 87
Reversing lights
________________ 102
Rollover Pop-up Bars, Convertible
___ 76
Roof lighting, SportSedan and
SportCombi
___________________ 131
Roof lighting, changing
___________ 228
Running-in
_____________________ 160
SSaab Information Display
__________ 89
Saab Parking Assistance _________ 180Safety belts
_____________________ 12
Safety belts, rear seat, SportSedan
and SportCombi
________________ 17
SAHR, head restraint _____________ 23
SDM
_________________________ 282
SID
___________________________ 89
SPA __________________________ 180
Seat belts
______________________ 12
Seat belts in rear seat, Convertible
___ 75
Seat belts, care
_________________ 266
Seat belts, checking
_____________ 266
Seats
__________________________ 18
Securing a load
_________________ 139
Sentronic, manual gear selection
___ 168
Service Engine Lamp
_____________ 83
Service costs
___________________ 279
Service information
______________ 280
Service intervals
________________ 278
Service record retention
__________ 279
Signalling, horn
_________________ 118
Ski hatch, SportCombi
____________ 143
Ski hatch, SportSedan ____________ 138
Spare wheel
___________________ 256
Speed ratings, tires
______________ 249
Speedometer
____________________ 87
Sport mode, automatic transmission
_163
Starting the engine
______________ 152
Steering wheel adjustment
________ 118
Steering wheel lock
______________ 151
Steps for determining correct load
limit
_________________________ 252
Storage compartments
___________ 134
93_US_MY09.book Page 300 Tuesday, April 15, 2008 10:30 AM
ProCarManuals.com
