SAAB 9-5 2000 Owner's Guide

31 Security
Security Doors................................... 32
Central locking ................... 32
Car alarm ............................ 38

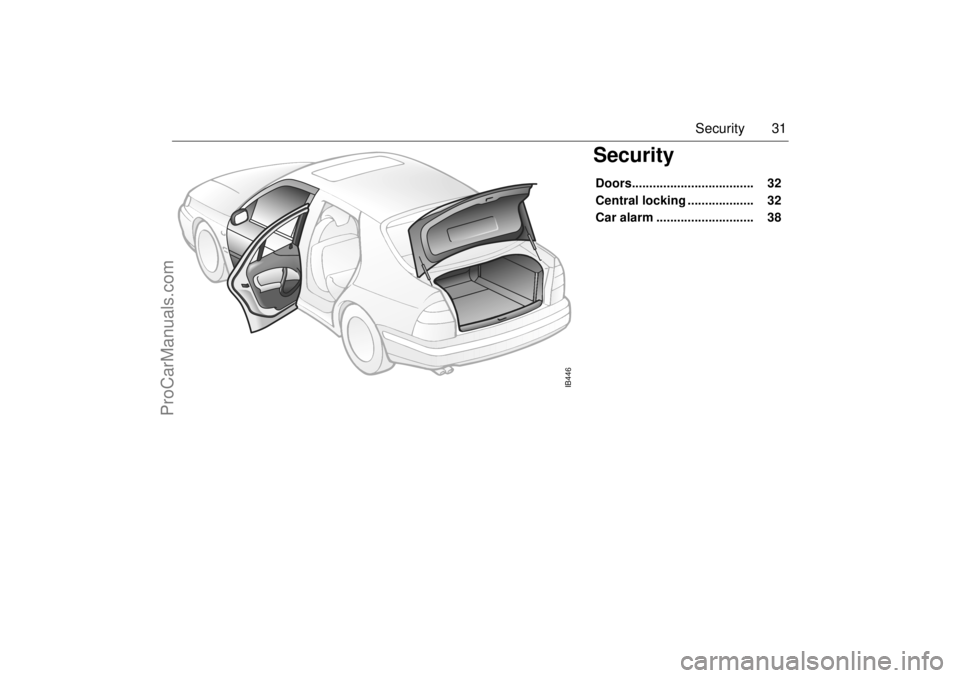

IB446
ProCarManuals.com

32 SecurityDoorsDoor handlesPull the handle to open the door.
If the door is stuck (e.g. if frozen), hold the
handle from above to secure a better grip.
Central locking

Key / Remote control The key fits all the locks on the car.
The key supplied with the car has a code
number that needs to be quoted for ordering
additional keys. You should therefore make
a careful note of the number.
The key contains a unique electronic code
for your car. When the key is inserted in the
ignition, the code is checked. If it matches,
the car can be started.
Two keys/remote controls are supplied with
the car. It is possible to have up to four at
one time that are coded for your car. If one
is lost, contact your authorized Saab dealer
to obtain a replacement.
WARNING
Leaving children or pets unattended in a
locked car is dangerous. It is also danger-
ous to leave children in a vehicle with the
ignition key. A child or others could be
badly injured or even killed.
IB447
Door handle Key / Remote control
1To lock
2 To unlock
3 Opening the trunk (9-5 Sedan)
Unlocking the tailgate (9-5 Wagon)
I B 111 6
123
ProCarManuals.com

33 Security
If a new key/remote control is to be
obtained, one of the original ones is needed
so that the control module can learn to rec-
ognize the replacement key. For this rea-
son, we strongly advise you to take two keys
with you on long journeys and to keep them
separate. Electronic starting interlock
(immobilizer)Each time the key is removed from the igni-
tion, the electronic starting interlock is acti-
vated and the car is thus immobilized, see
also page 39.)
Locking/unlocking the car To lock by remote control (1)
Press once on the control: all doors
locked.
Hazard warning lights flash once
(0.5 seconds) and horn chirps once.
The tailgate cannot be opened using the
switch on the driver´s door.
To unlock by remote control (2)
Press once on the control: the driver´s
door unlocked.
Press twice on the control: all doors
unlocked.
Hazard warning lights flash twice and horn
chirps twice.Locking by key (1)
Turn the key clockwise: all doors locked.
The trunk cannot be opened using the
switch on the driver’s door.
Unlocking by key (2)
Turn the key counterclockwise once: the
driver´s door will unlock.
Turn the key counterclockwise twice: all
doors unlocked.
IB449
12
Locking/unlocking by key 1To lock
2 To unlock
I B 111 7
2
1
Locking/unlocking by remote control.
Illustration shows the separate remote1 To lock
2 To unlock
ProCarManuals.com

34 SecurityThe central locking can also be operated
from inside the car by means of the
switch on the center console.
 To lock all doors: press the symbol side of
the switch once.
 To unlock the driver´s door: press the
switch once.
 To unlock all doors: press the switch
twice.
This switch is inoperative when the car is
locked from the outside.
The interior locking buttons on each door
affect only the respective door.If the car is left with the doors open, the inte-
rior lighting and the courtesy lights in the
doors will be switched off automatically after
20 minutes, to prevent a flat battery.

Opening with keyThe driver´s door can be opened mechani-
cally with the key (e.g. defective remote
control or discharged battery).
The car alarm is disarmed when the driver´s
door is unlocked (opened) with the key.
WARNING
Having the doors locked when you are
driving will reduce the likelihood of:
 Passengers, especially children,
opening doors and falling out of the
car.
 Intruders entering the car when it is
moving slowly or stopped.
 Being thrown out of the car in a crash.
IB451
Switch for operation of central locking
ProCarManuals.com

35 Security
Changing the remote-control
batteryWhen the battery in the remote control is
running low, the following message will
appear on the SID: ”REPLACE KEY BAT-
TERY”. To acknowledge the message,
press CLEAR on the SID. You should
change the battery as soon as possible,
before the remote control is unable to func-
tion properly. The battery life is 3-4 years in
normal use.
Battery type: Panasonic CR 2032, 3V lith-
ium. Avoid putting fingerprints on the flat
sides of the battery.
After fitting a new battery, press the unlock
button on the remote control at least 5 times
in succession while the car is within the
range of the remote control, so that the car
alarm can recognize the signals from the
control.
Hand in the old battery for disposal when
you buy the new one. These batteries con-
tain substances that are environmentally
hazardous.
Child safety locksThe rear doors are equipped with child
safety locks that are operated by means of
a catch adjacent to the door lock.
Insert a key and turn the catch 45° clockwise
or counterclockwise as indicated by the
label on the door.
When the child safety catch is in the locked
position, the door cannot be opened from
the inside.
For the tailgate safety lock, see page 37.
I B 111 8
Change of battery, remote control1Battery
2 Control module
IB455
Child safety lock on rear doors
ProCarManuals.com

36 SecurityTrunk lid lock, 9-5 SedanThe trunk lid lock is independent of the cen-
tral-locking system. The trunk lid release
switch on the driver’s door is inoperative
when the car is locked from outside by
remote control or key.
Press the switch on the driver’s door to
unlock the trunk lid.
The trunk lid is locked automatically when
closed.To unlock it from outside, press on the
remote control or use the key.
When the remote control is used, the hazard
warning lights will flash three times and the
horn chirps three times to confirm that the
trunk lid has been unlocked.
Tailgate, 9-5 WagonThe tailgate is not unlocked when the other
car doors are unlocked.
Unlocking
The tailgate is unlocked with:
 The button on the driver’s door (if the car
is unlocked).
 The button on the remote control.
 The key in the tailgate lock.
Unlocking with the remote control is con-
firmed by the warning lamps flashing three
times.
The tailgate unlocking button on the
driver’s door is inoperative when the car is
locked.
IB457
Trunk lid switch
I B 111 9
Opening the trunk with the key,
9-5 Sedan
IB1224
Unlocking the tailgate with a key,
9-5 Wagon
ProCarManuals.com

37 Security
Locking
The tailgate is locked in the following ways:
 By locking all the car doors with the
button on the remote control.
 With the button on the centre con-
sole.
 With the key in the driver’s door.
Safety lock The tailgate has a safety lock which is acti-
vated with a button to the right of the tailgate
lock.
When the button is moved to the left, the tail-
gate can only be opened from the outside,
assuming that the locking button (LOCK) by
the inside opening handle has not been
pushed in.
Some central locking functions can
be adjusted to better fit your individ-
ual needs, see page 237.
WARNING
If small children are carried in the rear
seat, the safety locks on the tailgate and
rear doors should be activated to prevent
unintentional opening from the inside.
IB1225
Safety lock
IB1223
Locking button by the tailgate inside open-
ing handle.
The tailgate is locked when closed if the
button LOCK is pushed in before the tail-
gate is closed.
ProCarManuals.com

38 SecurityCar alarm The car alarm (anti-theft system) is acti-
vated/deactivated when the car is
locked/unlocked by the remote control or by
the key, see page 33.
The antenna for the alarm system is located
in the center console.
All the doors plus trunk lid and hood are
monitored by microswitches, and win-
dow-glass sensors will trigger the alarm if
any glass is broken. Electronic starting interlock (immobilizer),
see page 39.
The car alarm is armed 10 seconds after the
car has been locked by the remote control.
During this ten-second delay period, the
doors, trunk lid and hood may still be
opened without the alarm being triggered.
The LED indicator on the instrument panel
fascia will be on continuously during this
period, at the end of which it will start to flash
(once every third second). If a door or the trunk lid or hood has been left
open when the car is locked, the LED on the
fascia will flash (three times per second) for
ten seconds to indicate that something is
wrong.
Check to ensure that all the doors, plus
trunk lid and hood, are closed properly.
If the fault persists (LED flashing when
renewed attempt made to activate the car
alarm by remote control), lock the car using
the key instead. The car alarm will not have
been activated and you should get in touch
with an authorized Saab dealer.
To avert inconvenience caused by the
alarm being triggered inadvertently, make
sure that anyone else using the car is famil-
iar with how both the car alarm and the lock-
ing system work.
WARNING
Leaving children or pets unattended in a
locked car is dangerous. It is also danger-
ous to leave children in a vehicle with the
ignition key. A child or others could be
badly injured or even killed.
I B 111 6
123
Remote control 1 Activate/lock
2 Deactivate/unlock
3 Unlock boot/tailgate
ProCarManuals.com

39 Security
Activating the car alarm The car alarm (anti-theft system) is
activated/deactivated when the car is
locked/unlocked by the remote control or by
the key.
The car alarm cannot be activated if the
driver’s door is open or if the ignition switch
is in position ON.
If, on the other hand, one of the other doors
or the trunk or hood is open or opened and
not closed again during the 10-seconds
delay period, it will be excluded from the
alarm function.
If it is then closed, a new delay period of ten
seconds will start, and the door (or trunk or
hood will once again be secured by the
alarm system.
As usual, the LED will be on continuously
during the new delay period and will start to
flash once every third second after the
10-seconds period has elapsed.
Window-glass sensorThe car-alarm system incorporates a
sensor that monitors the window glass for
the sound of breakage. The sensor is fitted
inside the rear dome light.
To avoid false alarms, such as the alarm
being triggered by children or pets left inside
the car, the sensor can be temporarily dis-
abled.
To disable the sensor
To disable the sensor, first ensure that the
ignition has been switched off and key
removed from the switch. Then, press and
hold the NIGHT PANEL button until ”DOOR
ALARM ONLY” appears on the SID and a
chime sounds. The car alarm must now be
activated within three minutes, or the glass
sensor will become active again.
The glass sensor will be enabled again
automatically when the car is next unlocked.
The sensor can also be enabled again by
repeating the procedure for disabling it.
When the sensor has been enabled, ”FULL
THEFT ALARM” will appear on the SID.
If a fault is detected in the glass sensor,
”SERVICE THEFT ALARM” will appear on
the SID.
Electronic starting interlock
(immobilizer) When the key is inserted in the ignition, a
signal is sent to the receiver. If the signal is
verified, the engine can be started.
Each time the key is removed from the igni-
tion, the electronic immobilizer is activated.
This means that the car cannot be started
without the correct key is inserted in the igni-
tion and the immobilizer is thus deactivated.
If a fault is detected (e.g. in the transmitter)
”KEY NOT ACCEPTED” will appear on the
SID.
In this case, you can still start the car if you
turn the ignition key to ON and press one of
the buttons on the remote control (providing
that the receiver gets the right signal from
the remote control).
Take the car to an authorized Saab dealer to
have the system checked.
The LED double-flashes when the car is
immobilized.
ProCarManuals.com

40 SecurityAlarm signals When the car alarm is armed, it will be trig-
gered if any door, or the trunk lid or hood, is
opened or if a window is broken.
The alarm will also be triggered if an attempt
is made to bypass or short-circuit the igni-
tion switch, or to disconnect the battery.
If the alarm is triggered, the following alarm
signals will be set off:
 Flashing of hazard warning lights for five
minutes.
 Siren wailing for 30 seconds.
The alarm signals will stop if the alarm is
deactivated (car unlocked) during the alarm
period.
The alarm siren has a long-life battery
(approx. 10 years), see "SERVICE THEFT
ALARM", on page 42. When the battery
goes dead, the siren must be replaced: it is
not possible to change the batteries.
Panic-functionIn the car alarm system is a function called
"Panic-function".
To activate panic function:
 Push and hold one of the buttons on the
remote control for 2 seconds, or if you are
sitting inside the car
 Push the LOCK-switch on the center con-
sole for 2 seconds.
These actions will trigger the alarm (hazard
warning lights and siren).
To deactivate panic function:
 Push one of the buttons on the remote
control, push the LOCK-switch in the
center console, turn the key in one of the
doors or turn the ignition to ON.
When the panic-function is activated the car
will be locked/unlocked depending upon
which button was pushed.
When the ignition is ON the panic-function
cannot be activated.
NOTE It is possible to inadvertently deacti-
vate the car alarm and at the same
time unlock the car, if the button on the
remote control is pressed by mistake
when the control is still within range of
the car.
 When locking the car by remote con-
trol in extremely cold weather, it is
advisable to check that the lock
system has operated properly. To do
so, check that the interior locking but-
tons are all down.
If not, unlock and relock the car again.
ProCarManuals.com
