high beam SAAB 9-5 2004 Owners Manual

3
Instrument panel
IB1080
Indicator and warning lights ______ 54
Speedometer _________________ 61
Odometer and trip meter ________ 60
Fuel gauge___________________ 61
Temperature gauge ____________ 61
Parking lights____________ 69
High/low beam __________ 69
Daytime running lights_____ 69
Instrument illumination ____ 71
Changing bulbs __________ 215Turn signal and lane change
indicators ______________ 71
High beam flasher ________ 69
Cruise control ___________ 167Front fog lights (certain mod-
els) ___________________ 72
Ashtrays (accessory) ___________ 131
Cigarette lighters (accessory) ____ 132
Saab Information Display (SID) ___ 63
Night panel___________________ 67
Clock _______________________ 68
Wipers and washers ______ 73
Rear-window wiper (9-5
Wagon) _______________ 74
Rain sensing wipers (option) 73
Washers _______________ 214
Wipers and washers ______ 213Saab 9-5 Audio System ___ 85
Steering-wheel controls ___ 102Hazard warning lights_____ 72Automatic climate control
(ACC) ________________ 75
Air conditioning (ACC) ____ 252
Electric heating, front seats ______ 15
Ventilated front seats ___________ 15Steering-wheel controls ___ 102
Sentronic, manual mode ___ 163
ProCarManuals.com

4Exterior
IB1736
Driving with a roof rack load______ 183
Fitting the roof carriers (accessory) 183
Maximum roof load ____________ 270
Rearview mirror _______________ 122
Hood _______________________ 200
Engine compartment: washing ___ 255
Central locking __________ 40
Trunk lid lock, 9-5 Sedan __ 44
Tailgate, 9-5 SportWagon __ 45
Child safety locks ________ 43
Car alarm ______________ 46Headlights _____________ 69
High/low beam __________ 69
Turn signal and lane change
indicators______________ 71
Headlight washers (certain
models) _______________ 73
Changing bulbs _________ 215
Fuel gauge___________________ 61
Fuel filler flap _________________ 153
Refueling ____________________ 154
Economical motoring ___________ 174
Fuel ________________________ 272
b Tires pressure ________________ 279
Wheels and tires ______________ 278
Braking______________________ 168
Driving in cold weather__________ 176
Compact spare tire_____________ 246
Changing a wheel _____________ 247
Trunk _______________________ 135
Folding the rear seat, 9-5 Sedan __ 135
Folding the rear seat, 9-5 Wagon _ 138
Trunk Release Handle __________ 144
Spare wheel and tools __________ 145
Compact spare tire ____________ 246Towing a trailer __________ 178
Towing the car ___________ 188
Rear towing eye _________ 189Headlights ______________ 69
Rear light cluster, 9-5 Sedan 220
Rear lights clusters, 9-5
Wagon ________________ 222
Changing bulbs __________ 215Sunroof ________________ 128
Washing the car _________ 254
Waxing and polishing _____ 255
Touching up the paint _____ 255
Anti-corrosion treatment ___ 256
ProCarManuals.com

58 Instruments and controls
Indicator, cruise control
This light shows when the cruise-control
system is active (see page 167).
Indicator, high beam
This light shows when the headlights are on
high beam (see page 69).
Indicator, rear fog light
This light shows when the rear fog light is on
(see page 70).
The rear fog light is switched off automat-
ically when the engine is switched off. When
the fog light is next needed, it will have to be
switched on manually again.
The rear fog light consists of one light so it
should not be mistaken for brake lights.
Xenon headlight fault
indicator
(certain variants only)
This light indicates that there is a fault in the
Xenon headlight system, which consists of
xenon headlights and an automatic levelling
system.
If a fault arises in the Xenon headlight sys-
tem, the headlights will be angled down to
avoid dazzling drivers in oncoming traffic.
Adjust your speed accordingly as visibility
will be reduced.
Indicator, open door
If a door has not been closed properly, the
pictogram will indicate the door concerned
(or tailgate).
Indicator, SPORT-mode
automatic transmission
This light will come on in cars with automatic
transmission when the S (SPORT) button
on the selector lever has been pressed
(position N or D) see page 166.
In this mode, the gear changes occur later,
at higher engine revs, giving the engine and
transmission a sportier feel.
To cancel the SPORT mode, press the S
button on the selector lever again. The
mode is also deselected automatically
w h e n t h e s e l e c t o r l e v e r i s m o v e d t o P , R , M
or L.
Indicator, WINTER-mode
automatic transmission
This light shows when the WINTER mode
has been selected in cars with automatic
transmission (see page 166).
In the WINTER mode, the car pulls away in
3rd gear, to help prevent wheelspin on an
icy road.
To cancel the WINTER mode, press the W
button.
NOTICEIf the Xenon headlight fault indicator lights
up, have your car checked as soon as
possible at an authorized Saab dealer.
If you do not rectify the problem, nighttime
visibility will be poor since the range of the
headlights is reduced.
ProCarManuals.com

69 Instruments and controls
Switches
Daytime running lights
The parking lights and daytime running
lights come on automatically when the igni-
tion switch is ON.
Note to owners in the U.S.: If you do not
want Daytime Running Lights, this feature
can be disconnected: switch off the engine
and remove fuse No. 35 (see page 229).
Note to owners in Canada: Daytime Run-
ning Lights must not be disconnected as
they are a Canadian Federal legal require-
ment.
Parking lights
The parking lights can be switched on
regardless of the position of the ignition
switch. Do not use parking lights when driv-
ing.
Note: The lighting switch must be in parking
light or headlight position (low beam posi-
tion only) to operate the fog lights (see page
72).
Headlights
The headlights come on automatically when
the ignition is ON and go off when the igni-
tion switch is turned to the LOCK position.
The parking lights, however, can be on
when the ignition switch is in the LOCK posi-
tion. High/low beamTo switch between high and low beam, pull
the control stalk fully towards you
(position 2). When the high beam is on, the
indicator on the main instrument panel will
be illuminated.

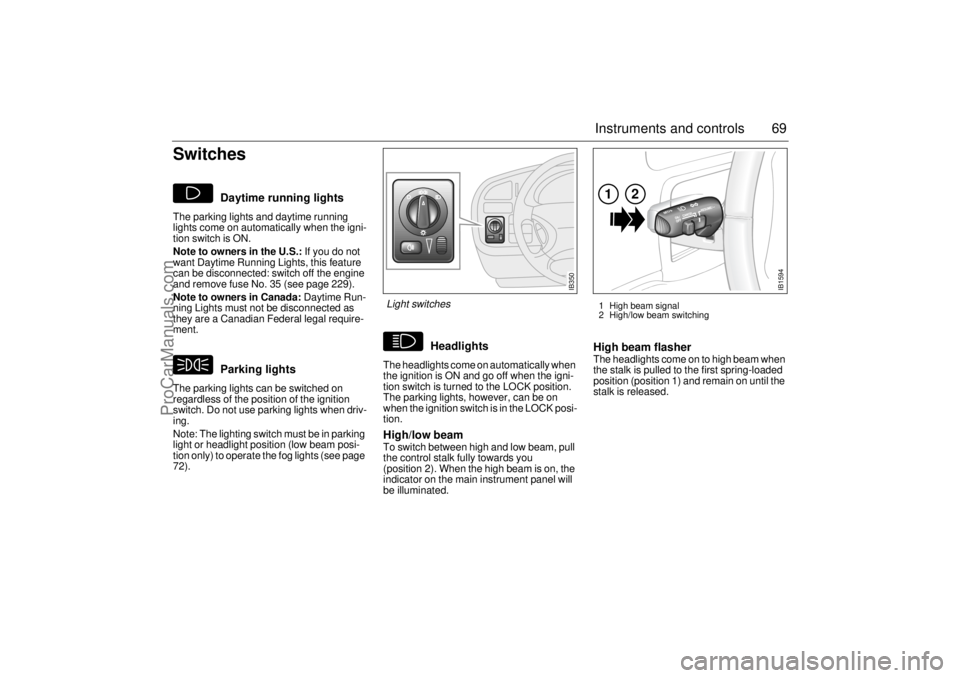

High beam flasher The headlights come on to high beam when
the stalk is pulled to the first spring-loaded
position (position 1) and remain on until the
stalk is released.
IB1594
121 High beam signal
2 High/low beam switching
IB350
Light switches
ProCarManuals.com

70 Instruments and controlsCourtesy Headlight FeatureA delay function allows the headlights to
remain on low beam for about 30 seconds
after the driver’s door has been closed.
To activate this function,
 Switch off the ignition and remove the key
 Open the driver’s door
 Pull the high/low beam control stalk
towards the steering wheel like you are
flashing the high beam, see page 69. The
low beam headlights will now come on
immediately after the driver’s door has
been closed (within 30 seconds) and will
remain on for about 30 seconds.
The length of time for this function can be
adjusted by your authorized Saab dealer.
Rear fog lightPress the button to switch on the rear fog
light, which will only come on if the head-
lights are on.
The rear fog light will go off automatically
when the engine is switched off. When the
fog light is next needed, it will have to be
switched on manually again.
The rear fog light consists of one light so it
should not be mistaken for brake lights.
Make sure you are familiar with the appli-
cable provincial/state law regarding the
use of rear fog lights.

WARNING
In poor visibility, avoid following the tail
lights of the vehicle in front. If the vehicle
stops suddenly, you may be unable to
avoid a crash and therefore risk injury to
yourself and others.
IB351
Rear fog light
ProCarManuals.com

73 Instruments and controls

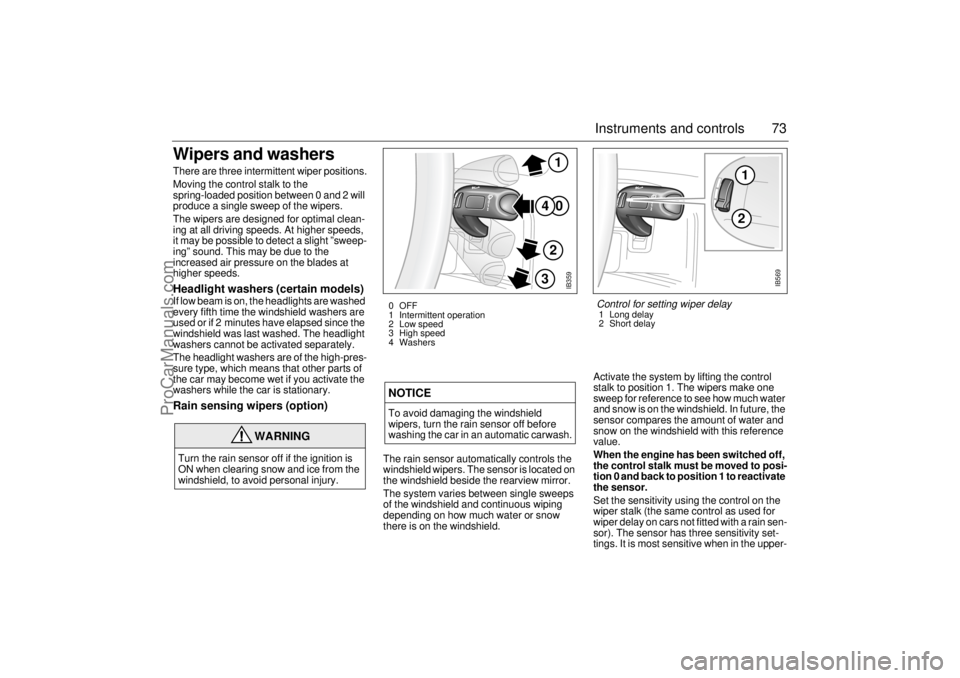

Wipers and washers There are three intermittent wiper positions.
Moving the control stalk to the
spring-loaded position between 0 and 2 will
produce a single sweep of the wipers.
The wipers are designed for optimal clean-
ing at all driving speeds. At higher speeds,
it may be possible to detect a slight ”sweep-
ing” sound. This may be due to the
increased air pressure on the blades at
higher speeds.Headlight washers (certain models)If low beam is on, the headlights are washed
every fifth time the windshield washers are
used or if 2 minutes have elapsed since the
windshield was last washed. The headlight
washers cannot be activated separately.
The headlight washers are of the high-pres-
sure type, which means that other parts of
the car may become wet if you activate the
washers while the car is stationary.Rain sensing wipers (option)
The rain sensor automatically controls the
windshield wipers. The sensor is located on
the windshield beside the rearview mirror.
The system varies between single sweeps
of the windshield and continuous wiping
depending on how much water or snow
there is on the windshield.Activate the system by lifting the control
stalk to position 1. The wipers make one
sweep for reference to see how much water
and snow is on the windshield. In future, the
sensor compares the amount of water and
snow on the windshield with this reference
value.
When the engine has been switched off,
the control stalk must be moved to posi-
tion 0 and back to position 1 to reactivate
the sensor.
Set the sensitivity using the control on the
wiper stalk (the same control as used for
wiper delay on cars not fitted with a rain sen-
sor). The sensor has three sensitivity set-
tings. It is most sensitive when in the upper-
WARNING
Turn the rain sensor off if the ignition is
ON when clearing snow and ice from the
windshield, to avoid personal injury.
NOTICETo avoid damaging the windshield
wipers, turn the rain sensor off before
washing the car in an automatic carwash.
IB359
0
41
2
3
0 OFF
1 Intermittent operation
2 Low speed
3 High speed
4 Washers
12
IB569
Control for setting wiper delay1 Long delay
2 Short delay
ProCarManuals.com

216 Car care and technical informationHeadlight bulb for high beam (Halogen)On cars equipped with Xenon lamps the Halogen lamps are used
only for high beam flasher if the daytime running lights are deacti-
vated and the headlight switch is in the off position (otherwise Xenon
lamp is utilized):
1 Unscrew the cover from the back of the lamp unit. To improve
accessibility to the right-hand headlight, hold aside the induction
air hose. To improve accessibility to the left-hand headlight,
remove the battery cover. Release the two clips along the long
sides of the cover.
2 Unplug the connector.
3 To remove the spring clip, push it in and then move it to the right.
4 Remove the bulb.
5 Without touching the glass with your fingers, insert the new bulb.
6 Line up the bulb with the guide in the reflector and secure it with
the spring clip. Look through the headlight lens to help fit the bulb
correctly.
7 Plug in the connector.
8 Screw on the cover. Make sure that the guide on the cover is
aligned with the recess in the lamp housing.
IB1785
IB1883
Make sure the cover is correctly fitted before locking it in place
ProCarManuals.com

229 Car care and technical information
Fuse panel in instrument panel
# Amp Function
A 30 Trailer lights
B 10 Automatic transmission
C 7.5 Electric door mirrors; DICE: manual beam length
adjustment
115Brake lights
2 15 Reversing lights
3 10 Parking lights, left
4 10 Parking lights, right
5 7.5 DICE / TWICE
6 30 Electric windows, right; trailer charging
6B 7.5 Brake lights, trailer
7 10 Engine injectors
8 15 Trunk lighting; trunk lock; door lighting, circulation
pump; parking assistant; SID
9 15 Audio System; CD changer
10 15 Heating, rear seat; sunroof, remote control receiver
11 30 Electrically adjusted passenger seat
12 7.5 Automatic transmission
13 20 Audio System, amplifier
14 30 Ignition system, engine
15 20 Fuel pump
16 20 DICE (direction indicators)
16B – –
17 20 Engine-management system; main instrument;
DICE/TWICE
18 40 Door-mirror heating; rear-window heating
19 10 OnStar; Telematics
20 15 ACC; interior lighting; rear fog light; high beam flasher
21 10 Audio System; rear-view mirror; load angle sensor
(cars with xenon); navigation (accessory); Cruise
Control
22 40 Interior fan
23 15 Central locking; navigation (accessory); door mirror
memory
24 40 Air pump (3.0t V6 only)
25 30 Electrically adjustable driver’s seat; fuel-filler flap
26 7,5 Driver seat memory; mirrors memory; sunroof; park-
ing assistant; seatbelt reminder
IB2439
BC123456 A
14
121110987
13
6B
1516
2324
222120191817
16B25262728293031
3635343332
393837
ProCarManuals.com

231 Car care and technical information

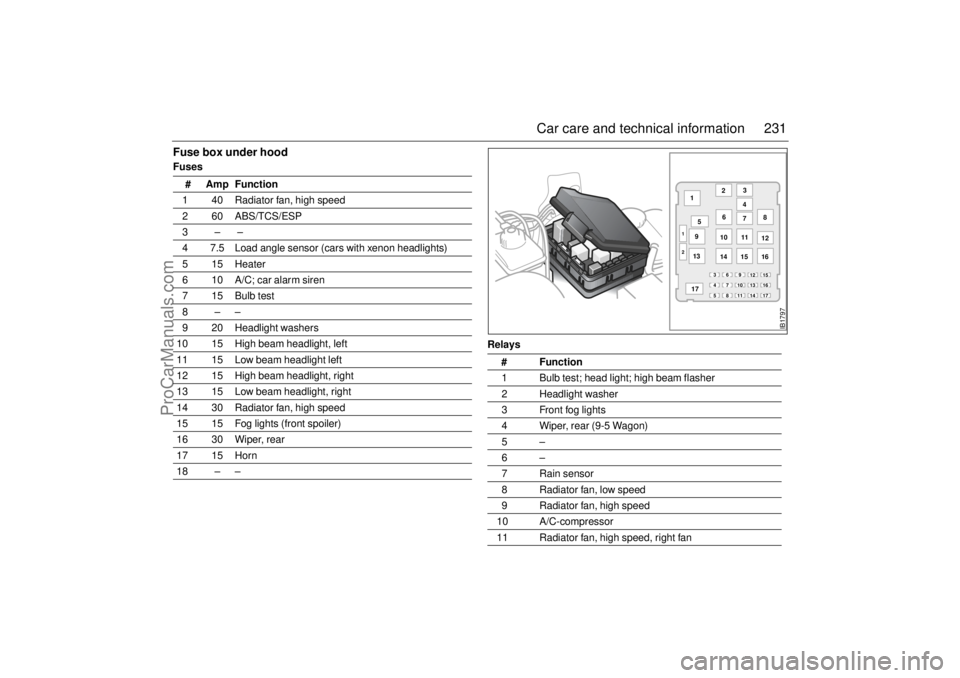

Fuse box under hoodFuses
Relays # Amp Function
1 40 Radiator fan, high speed
2 60 ABS/TCS/ESP
3– –
4 7.5 Load angle sensor (cars with xenon headlights)
5 15 Heater
6 10 A/C; car alarm siren
7 15 Bulb test
8––
9 20 Headlight washers
10 15 High beam headlight, left
11 15 Low beam headlight left
12 15 High beam headlight, right
13 15 Low beam headlight, right
14 30 Radiator fan, high speed
15 15 Fog lights (front spoiler)
16 30 Wiper, rear
17 15 Horn
18 – –
# Function
1 Bulb test; head light; high beam flasher
2 Headlight washer
3 Front fog lights
4 Wiper, rear (9-5 Wagon)
5–
6–
7 Rain sensor
8 Radiator fan, low speed
9 Radiator fan, high speed
10 A/C-compressor
11 Radiator fan, high speed, right fan
43
2
IB1797
2 1
14 1312 7 6
5 1
15 168
11
10 9
178 5
17 14 11 7 4
16 13 69
10 3
15 12
ProCarManuals.com

232 Car care and technical information12 Horn
13 Extra lights (accessory)
14 High beam headlight
15 Low beam headlight
16 –
17 Windshield wipers
IB1798
Location of wallet for spare bulbs and
fuses (accessory)
ProCarManuals.com
