SAAB 9-5 2005 Owners Manual

199 Car care and technical information
Headlight bulb for low beam (Halogen)1 Unscrew the cover from the back of the lamp unit. To improve
accessibility to the right-hand headlight, hold aside the induction
air hose. To improve accessibility to the left-hand headlight,
remove the battery cover. Release the two clips along the long
sides of the cover.
2 Unplug the connector.
3 To remove the spring clip, push it in and then move it to the right.
4 Remove the bulb.
5 Without touching the glass with your fingers, insert the new bulb.
Look through the headlight lens to help fit the bulb correctly.
6 Line up the bulb with the guide in the reflector and secure it with
the spring clip.
7 Plug in the connector.
8 Screw on the cover. Make sure that the guide on the cover is
aligned with the recess in the lamp housing.
IB1786
IB1882
Make sure the cover is correctly fitted before locking it in place
IB1910
Contact an aut-
horized Saab
workshop if a
Xenon head-
light requires
replacement
ProCarManuals.com

200 Car care and technical informationParking-light bulb(cars with halogen low beam)The parking-light bulb is adjacent to the bulb
for low beam.
1 Unscrew the cover from the back of the
lamp unit.
2 Withdraw the bulb holder.
3 Change the bulb.
Parking-light bulb(cars with xenon low beam)The parking-light bulb is next to the bulb for
xenon low beam.
1 Unscrew the cover from the back of the
lamp unit.
2 Take hold of the lamp leads and pull out
the bulb holder. The lamp leads are rein-
forced to facilitate changing bulbs.
3 Change the bulb. Look through the
headlight lens to help fit the bulb cor-
rectly.
IB1787
Parking-light bulb (cars with halogen low
beam)
IB1909
Parking-light bulb (cars with xenon low
beam)
ProCarManuals.com

201 Car care and technical information
Front fog lights(if equipped)1 From under the front bumper, grip the
bulb holder and twist counterclockwise.
2 Unplug the connector.
3 Change the bulb.
Refit in the reverse order.
WARNING
Never
crawl under a car that is supported
only by a jack. Always use axle stands.
Refer to the information on jacks on
page 231.
IB1788
Front fog lights
Front fog lights, Aero
ProCarManuals.com

202 Car care and technical informationFront turn signal and side marker
lights bulbsTo change the bulb, the complete lamp unit
has to be removed.
1 Depress the catch, accessed from the
engine bay.
2 Carefully pull out the lamp unit.
3 The bulb holder has a bayonet fitting.
Grip the holder and twist it counterclock-
wise.
4 Withdraw the bulb holder from the lamp
unit.
5 The bulb also has a bayonet fitting.
Press in the bulb and twist it counter-
clockwise.
6 Fit the new bulb and check that it is cor-
rectly seated.
To re-install the lamp unit1 Align the catch with the recess in the
lamp housing holder.
2 Press the lamp housing towards the
headlight slightly and press the housing
towards the rear of the car.
3 Make sure the locating pin and the two
plastic lugs enter their respective holes.
4 Press the lamp housing until it click into
place.
IB1875
Catch seen from engine bay, left-hand
side
IB1790
IB1876
Catch seen from engine bay, right-hand
side
IB1789
2
13
3
Front turn signal bulb1Catch
2 Bayonet pin
3 Plastic lugs
ProCarManuals.com

203 Car care and technical information
Rear light cluster, 9-5 SedanThe bulbs for the lamps in the rear light clus-
ter are accessed from the luggage compart-
ment.
1 Lower the flap (secured with catches).
2 Squeeze the two plastic lugs and
remove the bulb holder.
3 The bulb has a bayonet fitting. Press in
the bulb and twist it counterclockwise.
4 Change the bulb.
IB516
IB1791
12
3
2
3
5
6
4
1
4
IB1792
1
1
2
3
2
6
4
4
52
2
3
Rear light clusters, 9-5 SportWagon1 Direction indicators
2 Taillights
3 Stop lights and taillights
4 Reversing lights
5 Rear fog light
6 High-mounted brake light
Rear light clusters, 9-5 Sedan1 Direction indicators
2 Taillights
3 Stop lights and taillights
4 Reversing lights
5 Rear fog light
6 High-mounted brake light
ProCarManuals.com

204 Car care and technical informationTrunk lid light and taillights,
9-5 SedanBefore changing bulbs in the trunk, you
must first release the trim at the foot of the
trunk. This involves removing the handle
and the three trim fasteners (studs).
1 Unscrew the handle on the inside of the
tailgate.
2 Using the peg in the top of the screwdri-
ver handle, push in the button in the
center of the studs.
3 Remove the studs.
Changing bulbs 1 Squeeze together the silver plastic lug
and the electrical connection and with-
draw the lamp holder.
2 The bulb has a bayonet fitting. Press in
the bulb and twist it counterclockwise.
3 Change the bulb.
Refitting the trim 1 Reset the studs by pushing back the
center buttons so that they protrude by
0.2 inch (5 mm).
2 Insert the studs through the trim and tail-
gate panel. Press the center buttons in,
flush with the collar.
3 Screw the handle back onto the trunk.
IB1877
IB518
ProCarManuals.com

205 Car care and technical information

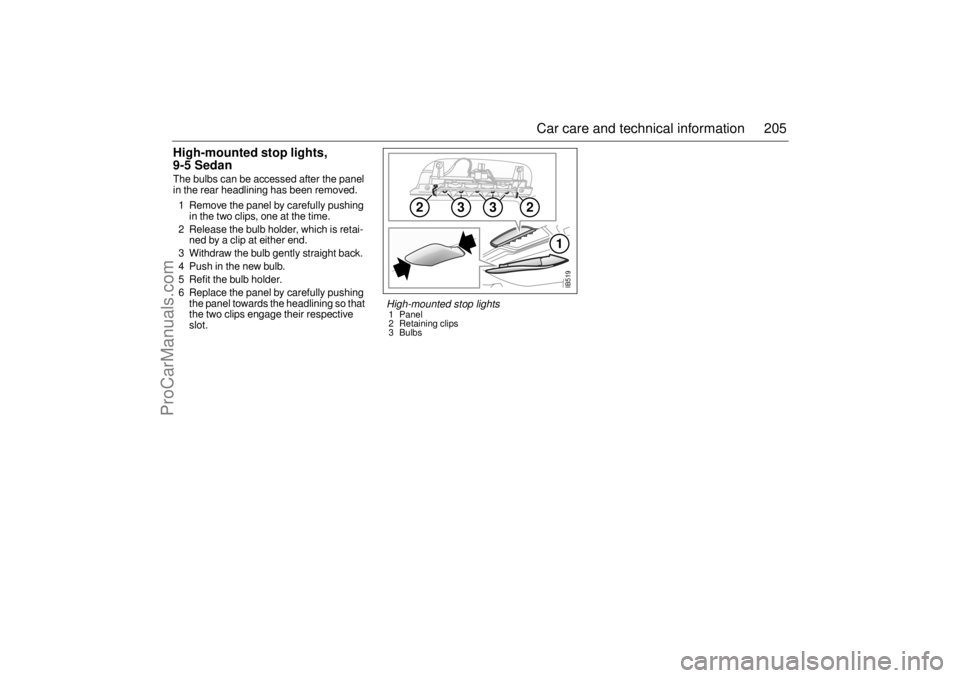

High-mounted stop lights,
9-5 SedanThe bulbs can be accessed after the panel
in the rear headlining has been removed.
1 Remove the panel by carefully pushing
in the two clips, one at the time.
2 Release the bulb holder, which is retai-
ned by a clip at either end.
3 Withdraw the bulb gently straight back.
4 Push in the new bulb.
5 Refit the bulb holder.
6 Replace the panel by carefully pushing
the panel towards the headlining so that
the two clips engage their respective
slot.
3
2
2
3
1
IB519
High-mounted stop lights1 Panel
2 Retaining clips
3 Bulbs
ProCarManuals.com

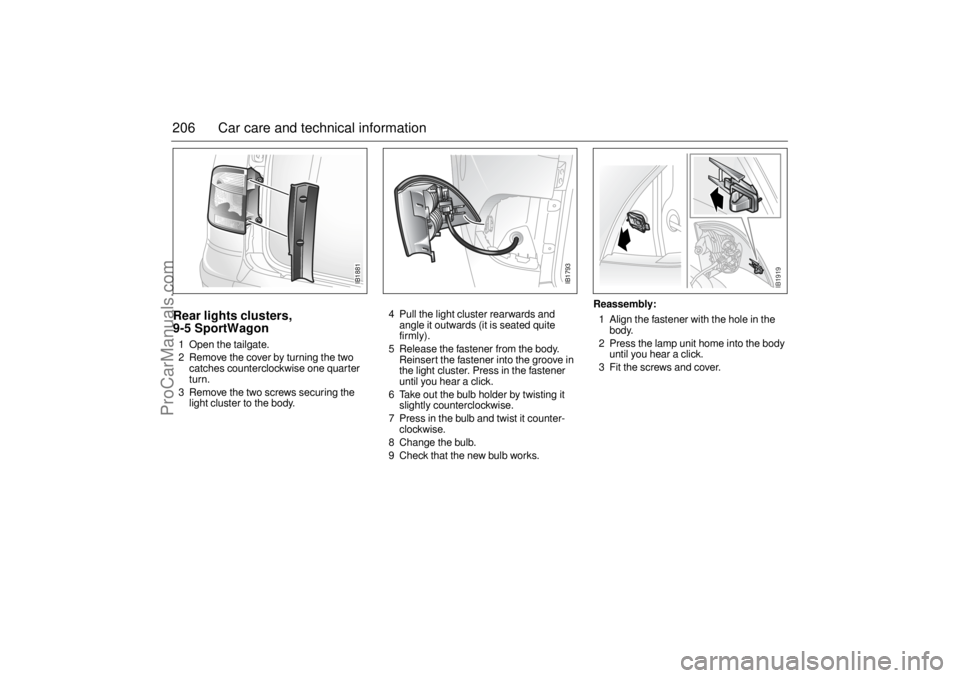

206 Car care and technical informationRear lights clusters,
9-5 SportWagon1 Open the tailgate.
2 Remove the cover by turning the two
catches counterclockwise one quarter
turn.
3 Remove the two screws securing the
light cluster to the body. 4 Pull the light cluster rearwards and
angle it outwards (it is seated quite
firmly).
5 Release the fastener from the body.
Reinsert the fastener into the groove in
the light cluster. Press in the fastener
until you hear a click.
6 Take out the bulb holder by twisting it
slightly counterclockwise.
7 Press in the bulb and twist it counter-
clockwise.
8 Change the bulb.
9 Check that the new bulb works.
Reassembly:1 Align the fastener with the hole in the
body.
2 Press the lamp unit home into the body
until you hear a click.
3 Fit the screws and cover.
IB1793
IB1919
IB1881
ProCarManuals.com

207 Car care and technical information
Tailgate bulbs, 9-5 SportWagon1 Turn the lock a quarter turn (90 °) with a
screwdriver or the ignition key.
2 Open and remove the cover.
3 Take out the bulb holder by twisting it
slightly counterlockwise.
4 Press in the bulb and twist it
counterclockwise.
5 Change the bulb.
6 Check that the new bulb is working.
Reassembly:1 Place the two ”hinges” in the recess in
the tailgate.
2 Then push the ”hinges” into the recess
and close the cover.
3 Turn the lock a quarter turn.
IB1227
IB1228
ProCarManuals.com

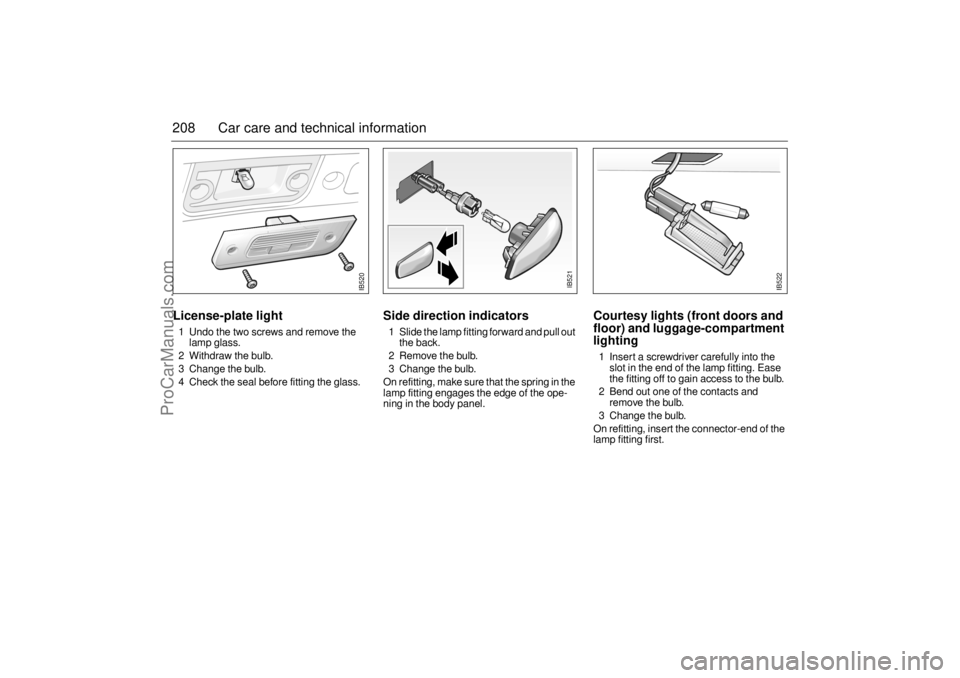

208 Car care and technical informationLicense-plate light 1 Undo the two screws and remove the
lamp glass.
2 Withdraw the bulb.
3 Change the bulb.
4 Check the seal before fitting the glass.
Side direction indicators 1 Slide the lamp fitting forward and pull out
the back.
2 Remove the bulb.
3 Change the bulb.
On refitting, make sure that the spring in the
lamp fitting engages the edge of the ope-
ning in the body panel.
Courtesy lights (front doors and
floor) and luggage-compartment
lighting 1 Insert a screwdriver carefully into the
slot in the end of the lamp fitting. Ease
the fitting off to gain access to the bulb.
2 Bend out one of the contacts and
remove the bulb.
3 Change the bulb.
On refitting, insert the connector-end of the
lamp fitting first.
IB521
IB522
IB520
