SAAB 9-5 2006 Owners Manual

211 Car care and technical information
Rear light cluster, 9-5 SedanThe bulbs for the lamps in the rear light clus-
ter are accessed from the luggage compart-
ment.
1 Lower the flap (secured with catches).
2 Squeeze the plastic lugs and remove the
bulb holder.
3 The bulb has a bayonet fitting. Press in
the bulb and twist it counterclockwise.
4 Change the bulb.
IB3906
IB3907
12
4
5
1
3
2
IB3908
1
1
2
4
5
3
3
2
Rear light clusters, 9-5 SportCombi1 Direction indicators
2 Stop lights and taillights
3 Reversing lights
4 Rear fog light
5 High-mounted brake light
Rear light clusters, 9-5 Sedan1 Direction indicators
2 Stop lights and taillights
3 Reversing lights
4 Rear fog light
5 High-mounted brake light
95usM06.book Page 211 Thursday, November 17, 2005 8:59 AM
ProCarManuals.com

212 Car care and technical informationTrunk lid light and taillights,
9-5 SedanBefore changing bulbs in the trunk, you
must first release the trim at the foot of the
trunk. This involves removing the handle
and the three trim fasteners (studs).
1 Unscrew the handle on the inside of the
tailgate.
2 Using the peg in the top of the screw-
driver handle, push in the button in the
center of the studs.
3 Remove the studs.
Changing bulbs
1 Squeeze together the silver plastic lug
and the electrical connection and with-
draw the lamp holder.
2 The bulb has a bayonet fitting. Press in
the bulb and twist it counterclockwise.
3 Change the bulb.Refitting the trim
1 Reset the studs by pushing back the
center buttons so that they protrude by
0.2 inch (5 mm).
2 Insert the studs through the trim and tail-
gate panel. Press the center buttons in,
flush with the collar.
3 Screw the handle back onto the trunk.
IB3909
IB518
95usM06.book Page 212 Thursday, November 17, 2005 8:59 AM
ProCarManuals.com

213 Car care and technical information
High-mounted stop lights,
9-5 SedanThe bulbs can be accessed after the panel
in the rear headlining has been removed.
1 Remove the panel by carefully pushing
in the two clips, one at the time.
2 Release the bulb holder, which is
retained by a clip at either end.
3 Withdraw the bulb gently straight back.
4 Push in the new bulb.
5 Refit the bulb holder.
6 Replace the panel by carefully pushing
the panel towards the headlining so that
the two clips engage their respective
slot.
Rear lights clusters,
9-5 SportCombi1 Open the tailgate.
2 Remove the two screws securing the
light cluster to the body.
3
2
2
3
1
IB519
High-mounted stop lights1 Panel
2 Retaining clips
3 Bulbs
IB3911
95usM06.book Page 213 Thursday, November 17, 2005 8:59 AM
ProCarManuals.com

214 Car care and technical information3 Remove the two screws securing the
light cluster to the body.
4 Pull the light cluster rearwards and
angle it outwards (it is seated quite
firmly).
5 Release the fastener from the body.
Reinsert the fastener into the groove in
the light cluster. Press in the fastener
until you hear a click.
6 Take out the bulb holder.
7 Press in the bulb and twist it counter-
clockwise.
8 Change the bulb.
9 Check that the new bulb works.Reassembly:
1 Align the fastener with the hole in the
body.
2 Press the lamp unit home into the body
until you hear a click.
3 Fit the screws.
IB3912
IB3913
95usM06.book Page 214 Thursday, November 17, 2005 8:59 AM
ProCarManuals.com

215 Car care and technical information

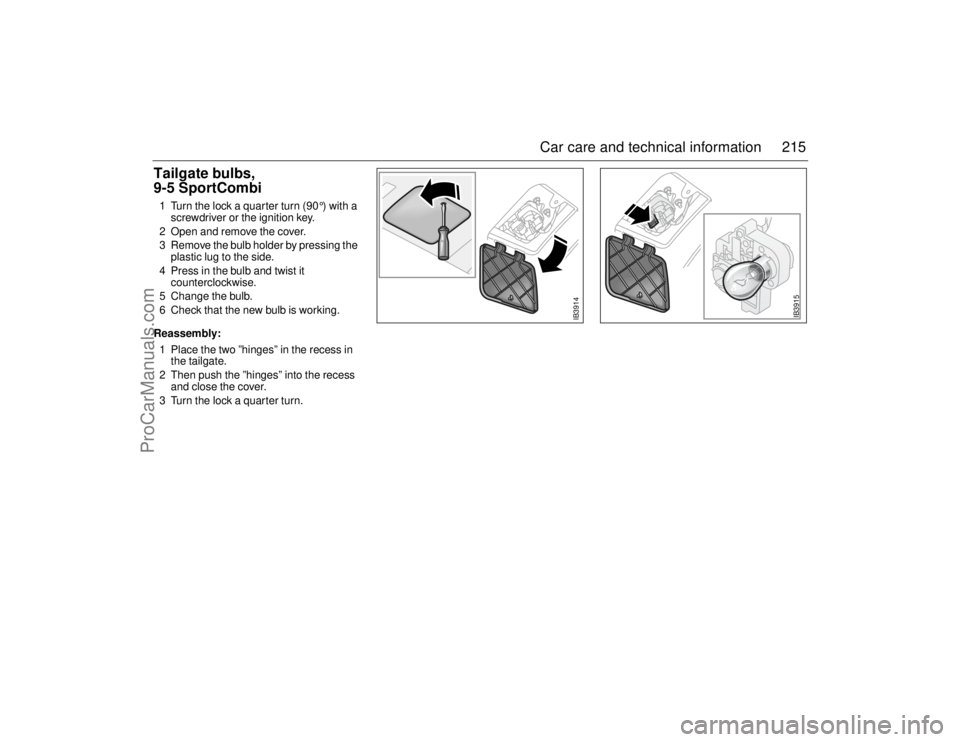

Tailgate bulbs,
9-5 SportCombi1 Turn the lock a quarter turn (90 °) with a
screwdriver or the ignition key.
2 Open and remove the cover.
3 Remove the bulb holder by pressing the
plastic lug to the side.
4 Press in the bulb and twist it
counterclockwise.
5 Change the bulb.
6 Check that the new bulb is working.
Reassembly:
1 Place the two ”hinges” in the recess in
the tailgate.
2 Then push the ”hinges” into the recess
and close the cover.
3 Turn the lock a quarter turn.
IB3914
IB3915
95usM06.book Page 215 Thursday, November 17, 2005 8:59 AM
ProCarManuals.com

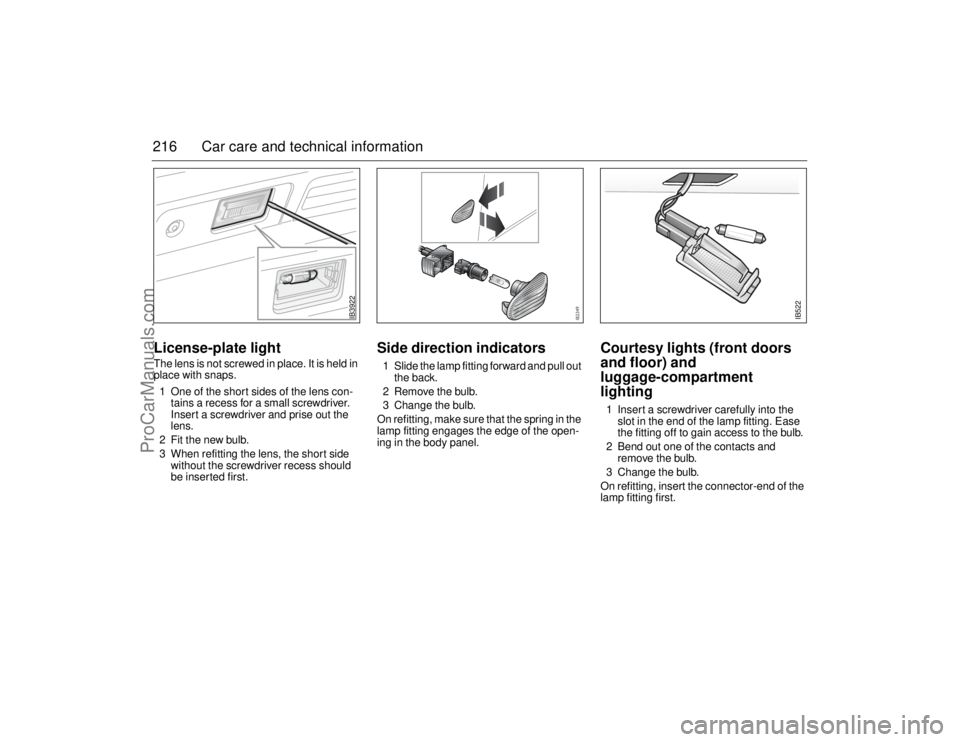

216 Car care and technical informationLicense-plate lightThe lens is not screwed in place. It is held in
place with snaps.
1 One of the short sides of the lens con-
tains a recess for a small screwdriver.
Insert a screwdriver and prise out the
lens.
2 Fit the new bulb.
3 When refitting the lens, the short side
without the screwdriver recess should
be inserted first.
Side direction indicators 1 Slide the lamp fitting forward and pull out
the back.
2 Remove the bulb.
3 Change the bulb.
On refitting, make sure that the spring in the
lamp fitting engages the edge of the open-
ing in the body panel.
Courtesy lights (front doors
and floor) and
luggage-compartment
lighting 1 Insert a screwdriver carefully into the
slot in the end of the lamp fitting. Ease
the fitting off to gain access to the bulb.
2 Bend out one of the contacts and
remove the bulb.
3 Change the bulb.
On refitting, insert the connector-end of the
lamp fitting first.
IB522
IB3922
95usM06.book Page 216 Thursday, November 17, 2005 8:59 AM
ProCarManuals.com

217 Car care and technical information

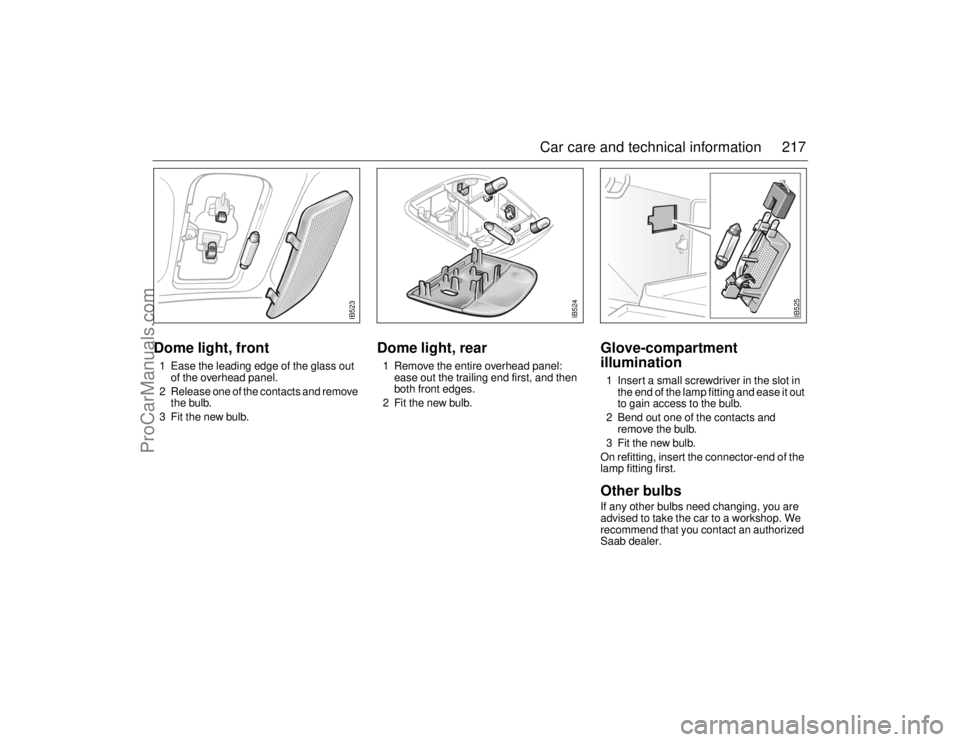

Dome light, front1 Ease the leading edge of the glass out
of the overhead panel.
2 Release one of the contacts and remove
the bulb.
3 Fit the new bulb.
Dome light, rear1 Remove the entire overhead panel:
ease out the trailing end first, and then
both front edges.
2 Fit the new bulb.
Glove-compartment
illumination1 Insert a small screwdriver in the slot in
the end of the lamp fitting and ease it out
to gain access to the bulb.
2 Bend out one of the contacts and
remove the bulb.
3 Fit the new bulb.
On refitting, insert the connector-end of the
lamp fitting first.Other bulbs If any other bulbs need changing, you are
advised to take the car to a workshop. We
recommend that you contact an authorized
Saab dealer.
IB524
IB525
IB523
95usM06.book Page 217 Thursday, November 17, 2005 8:59 AM
ProCarManuals.com

218 Car care and technical information

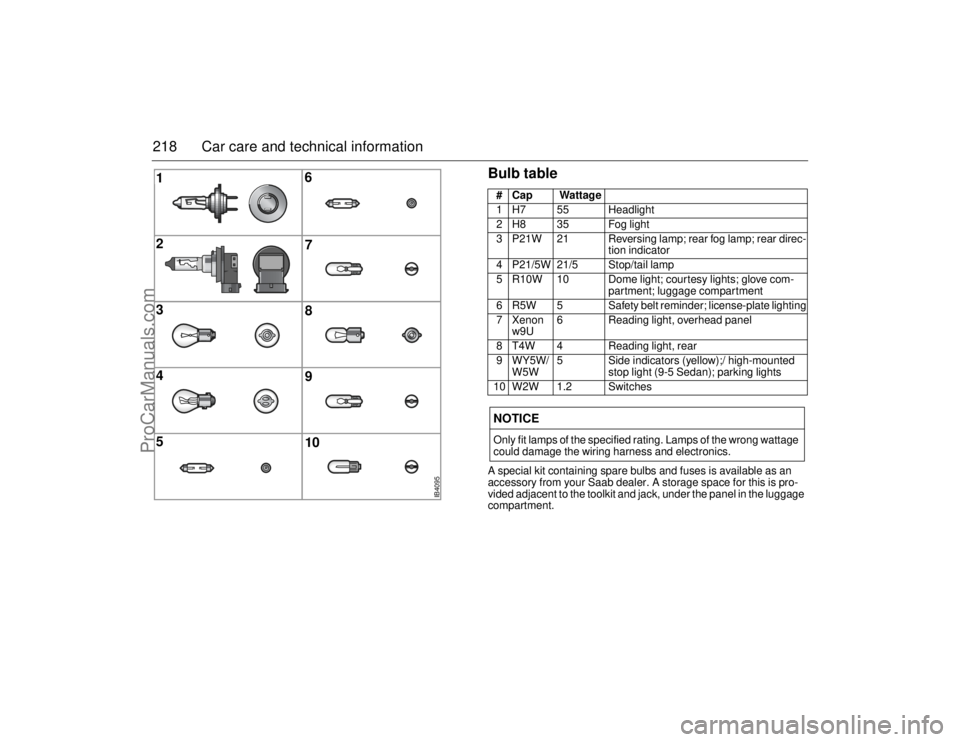

Bulb tableA special kit containing spare bulbs and fuses is available as an
accessory from your Saab dealer. A storage space for this is pro-
vided adjacent to the toolkit and jack, under the panel in the luggage
compartment.# Cap Wattage
1 H7 55 Headlight
2 H8 35 Fog light
3 P21W 21 Reversing lamp; rear fog lamp; rear direc-
tion indicator
4 P21/5W 21/5 Stop/tail lamp
5 R10W 10 Dome light; courtesy lights; glove com-
partment; luggage compartment
6 R5W 5 Safety belt reminder; license-plate lighting
7 Xenon
w9U6 Reading light, overhead panel
8 T4W 4 Reading light, rear
9WY5W/
W5W5 Side indicators (yellow);/ high-mounted
stop light (9-5 Sedan); parking lights
10 W2W 1.2 SwitchesNOTICEOnly fit lamps of the specified rating. Lamps of the wrong wattage
could damage the wiring harness and electronics.
12345
678910
IB4095
95usM06.book Page 218 Thursday, November 17, 2005 8:59 AM
ProCarManuals.com

219 Car care and technical information

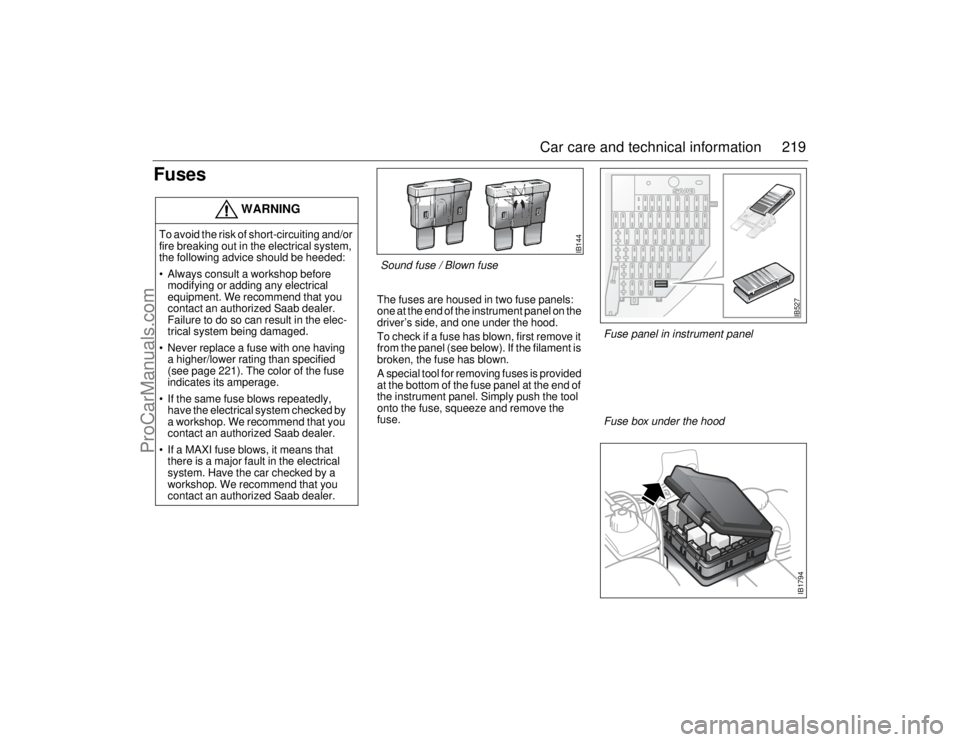

Fuses
The fuses are housed in two fuse panels:
one at the end of the instrument panel on the
driver’s side, and one under the hood.
To check if a fuse has blown, first remove it
from the panel (see below). If the filament is
broken, the fuse has blown.
A special tool for removing fuses is provided
at the bottom of the fuse panel at the end of
the instrument panel. Simply push the tool
onto the fuse, squeeze and remove the
fuse.
WARNING
To avoid the risk of short-circuiting and/or
fire breaking out in the electrical system,
the following advice should be heeded:
 Always consult a workshop before
modifying or adding any electrical
equipment. We recommend that you
contact an authorized Saab dealer.
Failure to do so can result in the elec-
trical system being damaged.
 Never replace a fuse with one having
a higher/lower rating than specified
(see page 221). The color of the fuse
indicates its amperage.
 If the same fuse blows repeatedly,
have the electrical system checked by
a workshop. We recommend that you
contact an authorized Saab dealer.
 If a MAXI fuse blows, it means that
there is a major fault in the electrical
system. Have the car checked by a
workshop. We recommend that you
contact an authorized Saab dealer.
IB527
Fuse panel in instrument panel
IB1794
Fuse box under the hood
IB144
Sound fuse / Blown fuse
95usM06.book Page 219 Thursday, November 17, 2005 8:59 AM
ProCarManuals.com

220 Car care and technical informationMaxi fusesThe Maxi fuses are housed in the fuse box
under the hood. These fuses can be
checked in the same way as the other fuses.
The Maxi fuses are designed to protect the
car’s electrical system from being dam-
aged. Each Maxi fuse protects a number of
electrical circuits and functions and there-
fore has a higher rating (amperage) than the
standard fuses. No spare Maxi fuses are
supplied with the car.
DICE / TWICEDICE = Dashboard Integrated Central Elec-
tronics
TWICE = Theft-Warning Central Electronics
DICE and TWICE are electronic control
modules that monitor and control a variety
of functions:
DICE controls (among other things):
 Front lights and interior lighting
 Instrument illumination
 Intermittent wiper operation
 Electric heating of rear window and door
mirrors
 Cooling fans
TWICE controls (among other things):
 Central locking.
 Car alarm (Anti-theft system)
 Engine immobilizer
 Autochecking of lights.
 Electric heating of rear seat
 Safety belt reminder
 Electrically adjustable passenger seatThe DICE and TWICE control modules are
linked to a data bus, which is basically an
information carrier that allows information to
be exchanged between all the control mod-
ules and components connected to the bus.
If a fault occurs in any of these components,
diagnostic faults codes are set in the rele-
vant control module, which facilitates fault
diagnosis. We recommend that you contact
an authorized Saab dealer.
The scan tool connector for fault diagnosis
is located under the instrument panel on the
drivers side.
NOTICEIf a Maxi fuse blows, it means that there is
a major fault in the electrical system.
Have the car checked without delay by a
workshop. We recommend that you con-
tact an authorized Saab dealer.
IB1795
Maxi fuses under the hood 95usM06.book Page 220 Thursday, November 17, 2005 8:59 AM
