SAAB 9-5 2006 Owners Manual

201 Car care and technical information
Power steering fluidCheck the level of the power steering fluid in
the reservoir regularly, in accordance with
the service program.
The wheels should point forward during the
check.
Clean around the cap before it is
unscrewed. Clean the dipstick. Screw in the
cap completely again before checking the
level.
The oil should lie between the MAX and MIN
marks when the oil temperature is about
70°F (+20°C). If the oil is colder the level can
be lower, and in higher temperatures the
level can be higher, both of which are
acceptable.
Top up with ”Power Steering Fluid CHF 11S
or CHF 202”.
Air filter
WARNING
 Do not fill the power steering fluid to
above the MAX mark. Too much fluid
can result in leakage.
 Power steering fluid on hot engine
components constitutes a fire risk.
WARNING
 For Service and Repair, parts equiva-
lent to those used by Saab should be
used.
 Be aware that some non standard
replacement parts may put you in an
unsafe condition, even if they might fit.
IB501
Power steering fluid reservoir
95usM06.book Page 201 Thursday, November 17, 2005 8:59 AM
ProCarManuals.com

202 Car care and technical informationBattery
The battery is provided with a cover to pro-
tect it from radiated heat. If the battery is
exposed to high temperatures, its life will be
shortened. To remove the cover, release
the two clips along its long sides.
The cover fits the standard battery installed
in the car. If a new battery is to be fitted,
make sure that its dimensions are the same
as the standard one.
The battery is maintenance free and should
be changed if the electrolyte level is too low.
The indicator on the top side of the battery
will be white if the battery needs replacing.
The fluid level and the charge level should
be checked regularly.
If frequent short journeys are made, the bat-
tery may need to be given a booster charge.
This can be done either using a battery
charger or by taking the car for a long run.
A car with a standard equipment specifica-
tion and a fully charged battery can be left
for up to 40 days and still have a sufficient
charge for starting. If extra equipment is fit-
ted, such as a car phone, the charge may
only be sufficient for about 15 days.
WARNING
 Work on the battery may entail an
explosion hazard, since the battery
gives off hydrogen which forms an
explosive mixture with the oxygen in
the air.
For this reason, always avoid sparks
or open flames when working near the
battery.
 The battery contains corrosive sulfuric
acid. Always wear a face mask or
goggles when working on the battery.
 If battery acid gets into the eyes or
splashes the skin or clothing, wash the
affected area liberally with water.
If acid gets into the eyes or a large
quantity makes contact with the skin,
seek medical help.
 Battery posts, terminals and related
accessories contain lead and lead
compounds. Wash your hands after
handling.
NOTICEA discharged battery can freeze and frac-
ture. Batteries should therefore always be
stored away from frost.
IB3129

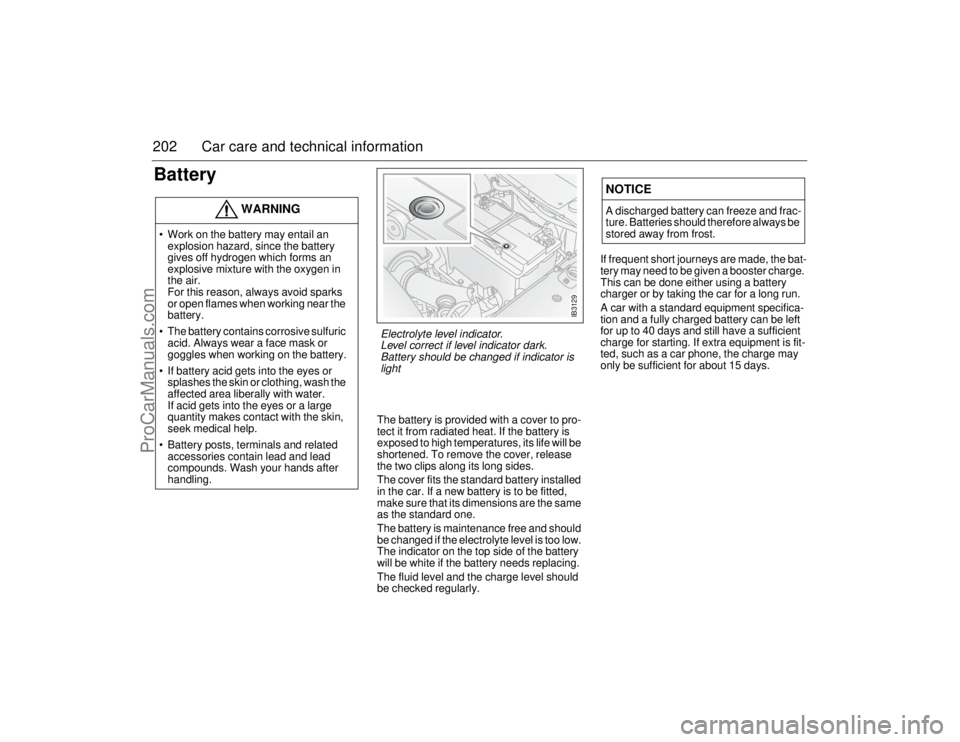

Electrolyte level indicator.
Level correct if level indicator dark.
Battery should be changed if indicator is
light
95usM06.book Page 202 Thursday, November 17, 2005 8:59 AM
ProCarManuals.com

203 Car care and technical information
Charging/replacing the
battery Connect the positive lead to the positive (+)
battery terminal (red), and the negative lead
to a good ground point, e.g. the lifting lug at
the front of the engine.
To remove the battery, always disconnect
the negative (black) lead first and reconnect
it last when fitting the new battery.
The battery size must comply with DIN
53735 MFI 230/2.16.

NOTICETo avert the danger of short-circuiting
between the positive (+) terminal on the
battery and the inlet manifold on the
engine, always disconnect the negative
(–) battery lead first and reconnect it last.
NOTICE If boost charging never use anything
but a 12-volt charger, see page 190.
 Never reverse the polarity of the bat-
tery by connecting the leads to the
wrong terminals. The red, positive
lead connects to the positive (+) termi-
nal, and the black, negative lead to the
negative (–) terminal.
 Serious damage can occur to the car´s
electrical system if a battery or alterna-
tor lead is disconnected while the
engine is running.
 The nut on the battery clamp should
be tightened to a torque of 10 Nm.
IB3131

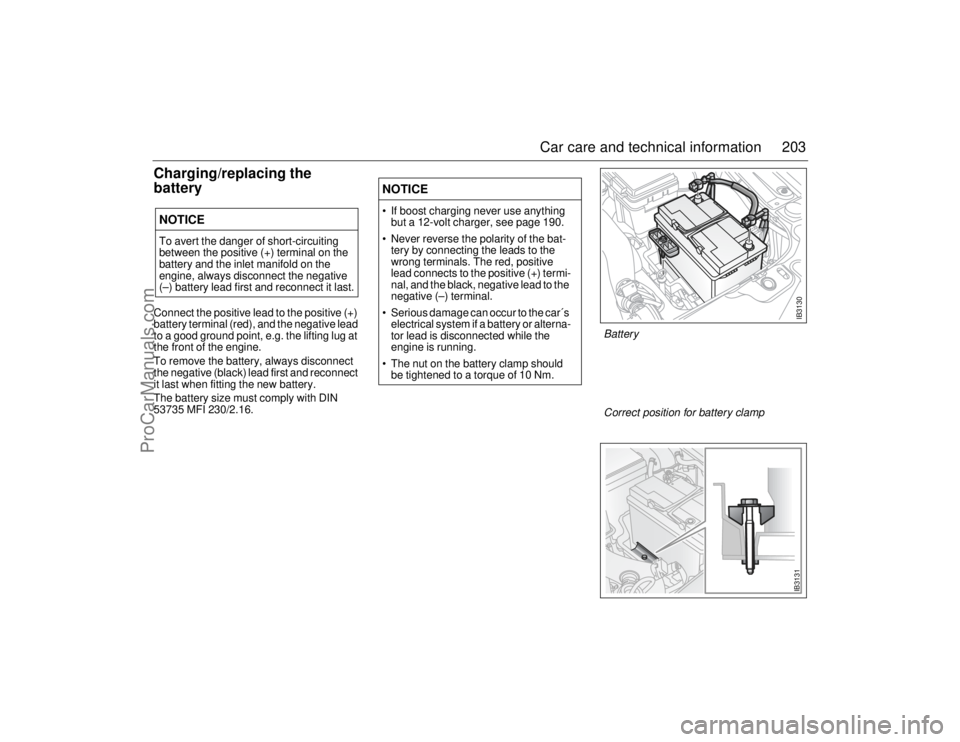

Correct position for battery clamp
IB3130
Battery
95usM06.book Page 203 Thursday, November 17, 2005 8:59 AM
ProCarManuals.com

204 Car care and technical informationDrive belts
The alternator is situated on the right-hand
side of the engine, adjacent to the bulkhead.
It is driven via a Poly-V-belt from the crank-
shaft pulley.
The Poly-V-belt also drives the water pump,
the A/C compressor and the steering servo
pump.
The belt tension is critical and is adjusted
automatically by the belt tensioner.
See also page 59, ”Warning, charging”.
WARNING
 Keep hands and clothing clear of drive
belts when engine is running.
 Always stop the engine before
inspecting drive belt.
 The radiator fan is electric and can
start even when the engine is
switched off.NOTICESerious damage can be done to the car’s
electrical system if an alternator lead is
disconnected while the engine is running.
IB929
Routing of the drive belt
95usM06.book Page 204 Thursday, November 17, 2005 8:59 AM
ProCarManuals.com

205 Car care and technical information
Wipers and washersCheck and clean all wiper blades regularly.
If poor wiper performance is experienced,
clean the windshield with
;





 9 This is particularly important if the
car has been through an automatic car
wash, as these sometimes leave a wax
coating on the windshield.
If wiper performance is still unsatisfactory,
fit new blades.
Changing the windshield
wiper bladesLift the wiper arm off the windshield
1 Depress the catch.
2 Pull the complete blade assembly down
to free it from the wiper arm, and then lift
it off the arm.
Washer jets The washer jets can be adjusted and, if
necessary, unclogged by means of a pin.

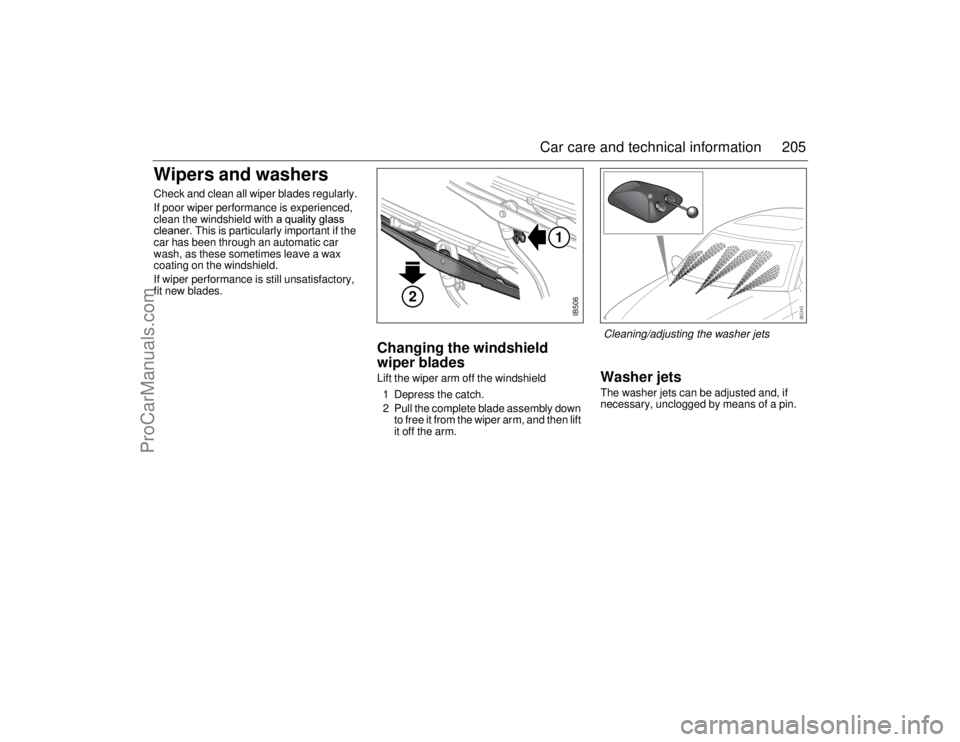

IB506
2
1
Cleaning/adjusting the washer jets
95usM06.book Page 205 Thursday, November 17, 2005 8:59 AM
ProCarManuals.com

206 Car care and technical information
WashersThe washer-fluid reservoir holds 6.4 quarts
(6 liters). When
"Washer fluid level low.
Refill."
comes up on the SID, the reservoir is down
to about 1 quart (1 liter) of fluid. Add at least
50 % of washer- fluid to water to prevent
freezing and for effective cleaning.
WARNING
Take care not to spill washer fluid
concentrate onto hot surfaces. Washer
fluid concentrate contains flammable
ingredients such as alcohol.

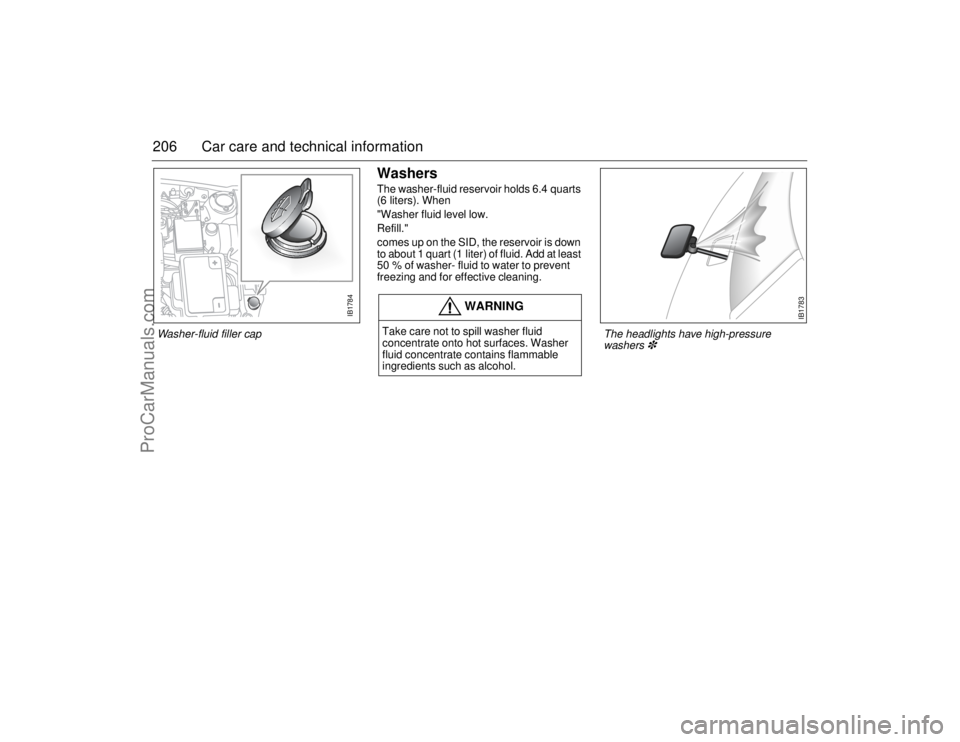

IB1784
Washer-fluid filler cap
IB1783
The headlights have high-pressure
washers

95usM06.book Page 206 Thursday, November 17, 2005 8:59 AM
ProCarManuals.com

207 Car care and technical information
Changing bulbsCheck that the new bulb is working when finished.
Use only "Long Life" bulbs.
Headlight aiming, see page 250.
Xenon headlight




Xenon headlights produce roughly twice as much light as halogen
bulbs and have a significantly longer service life.
The lamp units consist of a gas discharge lamp containing xenon.
When the lights are switched on a very high voltage activates the
xenon gas. The lamps soon reach full intensity.
Cars with xenon headlights have automatic levelling. The levelling
system comprises two sensors on the front axle, one on the rear axle
and a control unit under the headlight housing. Headlight alignment
is regulated automatically to prevent dazzling oncoming traffic.
Alignment is also adjusted during braking.
WARNING
Before changing a bulb in the engine bay, switch off the engine to
avoid danger of fingers and hands being injured by moving parts.
The radiator fan can start up even when the engine is switched off.
Xenon headlights




are high voltage and must therefore be
changed at a workshop. We recommend that you contact an
authorized Saab workshop. Work involving high-voltage
components is potentially lethal.NOTICE Since the headlight lenses are made of plastic, rinse dried-on
dirt with water and allow it time to soften up before cleaning
the lenses. Avoid rubbing the lenses when dry and never use
solvents.
 Use de-icer spray instead of scraping the ice off.
NOTICE Do not fit bulbs with a higher rating than 55 W, since the head-
light reflector and the wiring of the car are not designed for a
higher wattage.
 Switch off the ignition before changing a bulb, to avoid possi-
ble short-circuiting.
 Do not touch the glass of the bulbs with your fingers. The oil
on your skin can shorten the life of the bulb.
95usM06.book Page 207 Thursday, November 17, 2005 8:59 AM
ProCarManuals.com

208 Car care and technical informationHeadlight bulb for high beam (Halogen)On cars equipped with Xenon lamps the Halogen lamps are used
only for high beam flasher if the daytime running lights are deacti-
vated and the headlight switch is in the off position (otherwise Xenon
lamp is utilized):
1 Remove the cover from the back of the lamp unit. To improve
accessibility to the right-hand side, hold back the induction air
hose. To improve accessibility to the left-hand side, remove the
battery cover. Release the two clips along the long sides of the
cover.
2 Hold the connector and move the bulb up and down slightly while
pulling it out.
3 Detach the connector from the bulb.
4 Fit the new bulb in the connector without touching the lens with
fingers.
5 Align and fit the bulb in its guide in the reflector by moving it up
and down slightly while pushing it forward.
6Fit the cover.

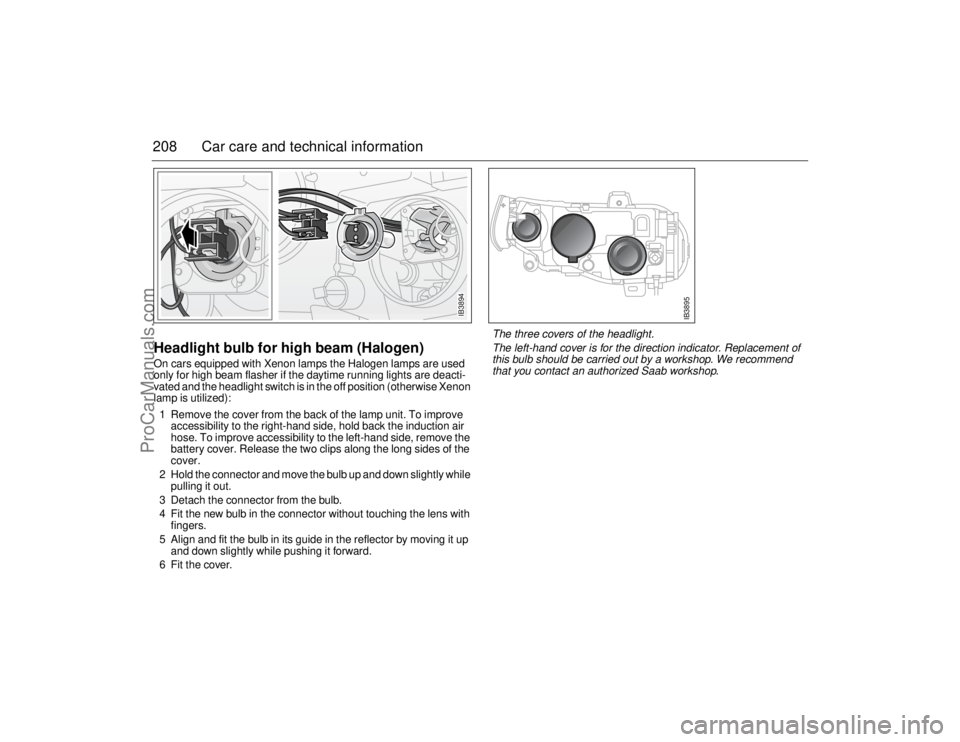

IB3894
IB3895
The three covers of the headlight.
The left-hand cover is for the direction indicator. Replacement of
this bulb should be carried out by a workshop. We recommend
that you contact an authorized Saab workshop.
95usM06.book Page 208 Thursday, November 17, 2005 8:59 AM
ProCarManuals.com

209 Car care and technical information
Headlight bulb for low beam (Halogen)1 Take off the cover from the back of the lamp unit. To improve
accessibility to the right-hand headlight, hold aside the induction
air hose. To improve accessibility to the left-hand headlight,
remove the battery cover. Release the two clips along the long
sides of the cover.
2 Unplug the connector.
3 To remove the spring clip, push it in and then move it to the right.
4 Remove the bulb.
5 Without touching the glass with your fingers, insert the new bulb.
6 Line up the bulb with the guide in the reflector and secure it with
the spring clip.
7 Plug in the connector.
8Fit the cover.
Low beam bulb




On certain variants the low beam bulb is fitted in the same way as
the high beam bulb, without spring clips, see previous page.

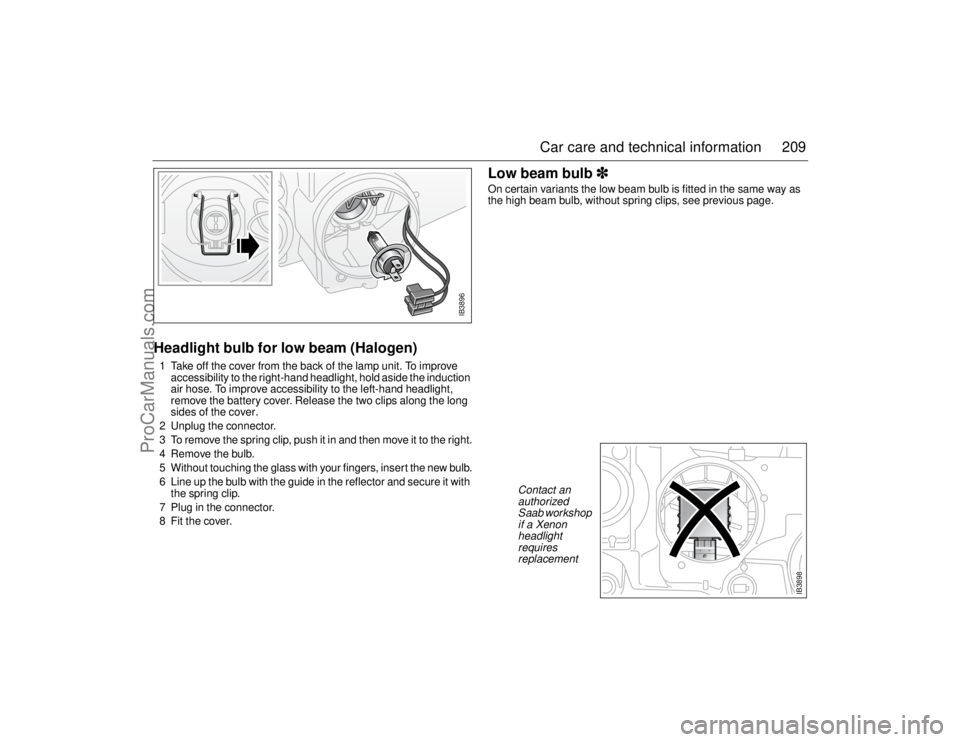

IB3896
IB3898
Contact an
authorized
Saab workshop
if a Xenon
headlight
requires
replacement
95usM06.book Page 209 Thursday, November 17, 2005 8:59 AM
ProCarManuals.com

210 Car care and technical informationParking-light bulbThe parking light bulb is situated in the lower
edge of the lamp housing.
The bulb holder has been extended to facil-
itate replacement.

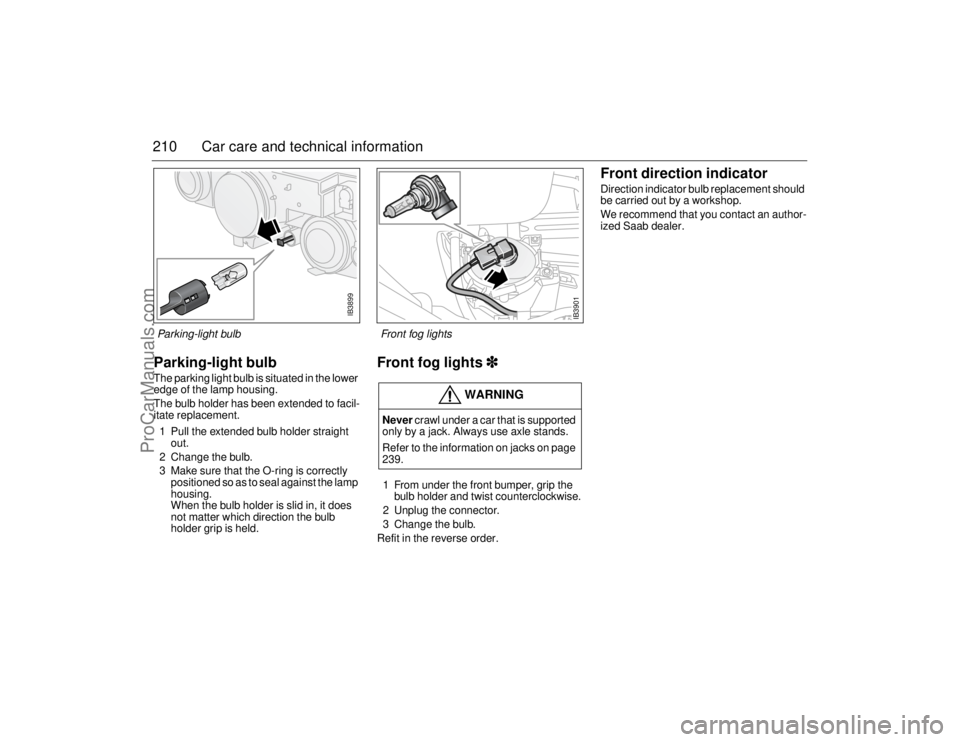

1 Pull the extended bulb holder straight
out.
2 Change the bulb.
3 Make sure that the O-ring is correctly
positioned so as to seal against the lamp
housing.
When the bulb holder is slid in, it does
not matter which direction the bulb
holder grip is held.
Front fog lights




1 From under the front bumper, grip the
bulb holder and twist counterclockwise.
2 Unplug the connector.
3 Change the bulb.
Refit in the reverse order.
Front direction indicatorDirection indicator bulb replacement should
be carried out by a workshop.
We recommend that you contact an author-
ized Saab dealer.
WARNING
Never crawl under a car that is supported
only by a jack. Always use axle stands.
Refer to the information on jacks on page
239.
IB3899
Parking-light bulb
IB3901
Front fog lights
95usM06.book Page 210 Thursday, November 17, 2005 8:59 AM
ProCarManuals.com
