SAAB 9-5 2007 Owners Manual

201 Car care and technical information
Drive belts
The alternator is situated on the right-hand
side of the engine, adjacent to the bulkhead.
It is driven via a Poly-V-belt from the crank-
shaft pulley.
The Poly-V-belt also drives the water pump,
the A/C compressor and the steering servo
pump.
The belt tension is critical and is adjusted
automatically by the belt tensioner.
See also page 59, ”Warning, charging”.
WARNING
Keep hands and clothing clear of drive
belts when engine is running.
Always stop the engine before
inspecting drive belt.
The radiator fan is electric and can
start even when the engine is
switched off.NOTICESerious damage can be done to the car’s
electrical system if an alternator lead is
disconnected while the engine is running.
IB929

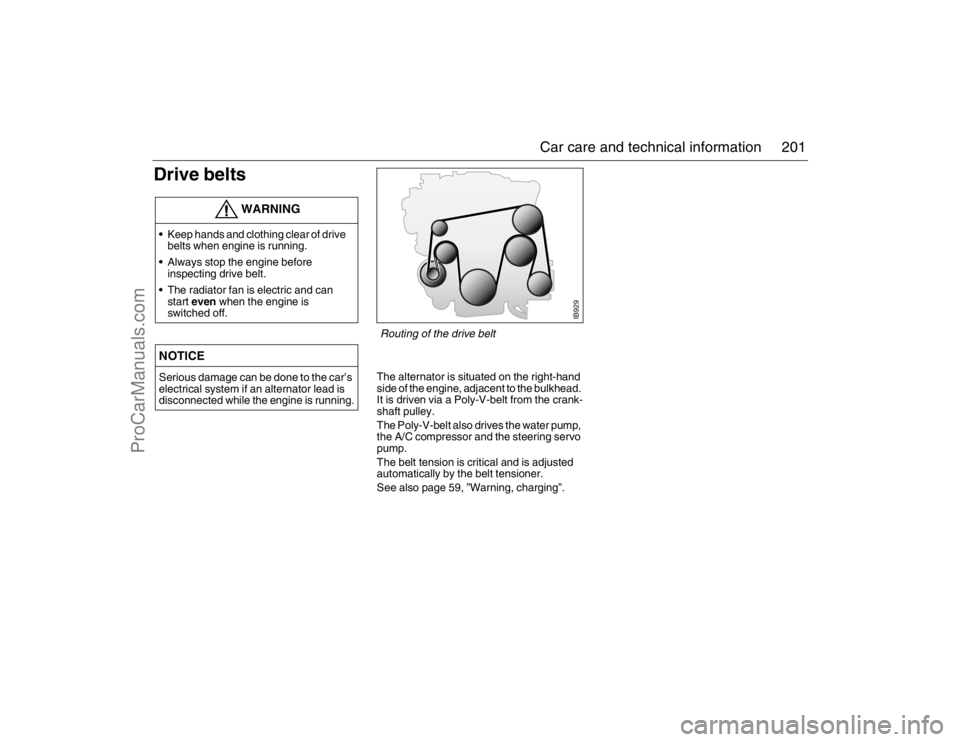

Routing of the drive belt
95_U S _M 07.book Page 201 Friday, June 9, 2006 8:58 AM
ProCarManuals.com

202 Car care and technical informationWipers and washersCheck and clean all wiper blades regularly.
If poor wiper performance is experienced,
clean the windshield with a quality glass
cleaner. This is particularly important if the
car has been through an automatic car
wash, as these sometimes leave a wax
coating on the windshield.
If wiper performance is still unsatisfactory,
fit new blades.

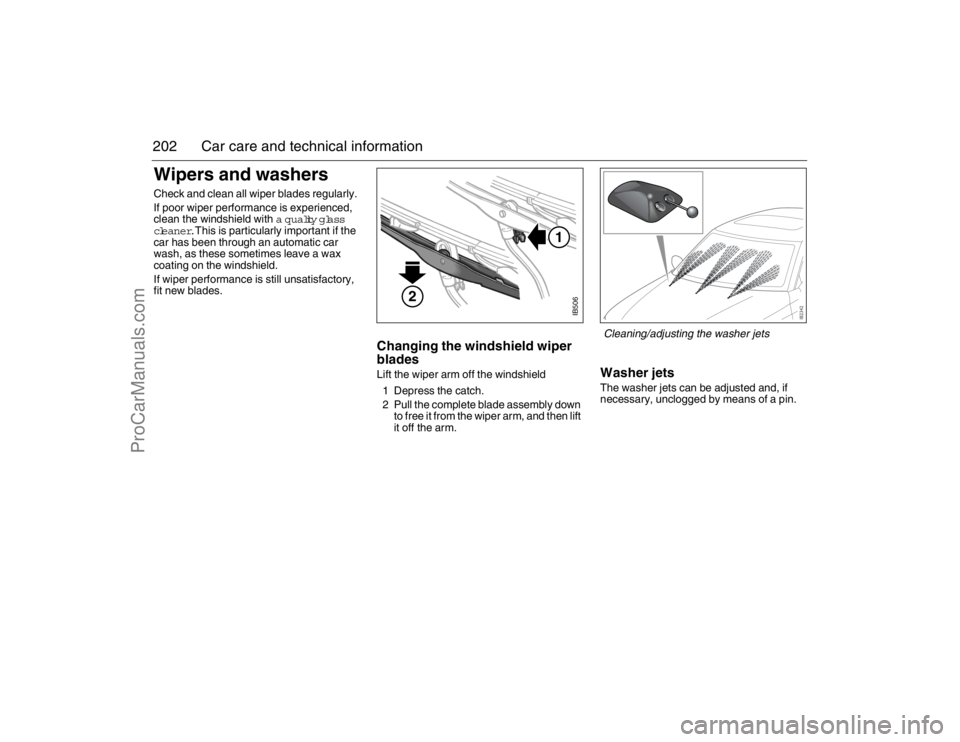

Changing the windshield wiper
bladesLift the wiper arm off the windshield
1 Depress the catch.
2 Pull the complete blade assembly down
to free it from the wiper arm, and then lift
it off the arm.
Washer jets The washer jets can be adjusted and, if
necessary, unclogged by means of a pin.
IB506
2
1
Cleaning/adjusting the washer jets
95_U S _M 07.book Page 202 Friday, June 9, 2006 8:58 AM
ProCarManuals.com

203 Car care and technical information
WashersThe washer-fluid reservoir holds 6.4 quarts
(6 liters). When
"Washer fluid level low.
Refill."
comes up on the SID, the reservoir is down
to about 1 quart (1 liter) of fluid. Add at least
50 % of washer- fluid to water to prevent
freezing and for effective cleaning.
WARNING
Take care not to spill washer fluid
concentrate onto hot surfaces. Washer
fluid concentrate contains flammable
ingredients such as alcohol.
IB1784

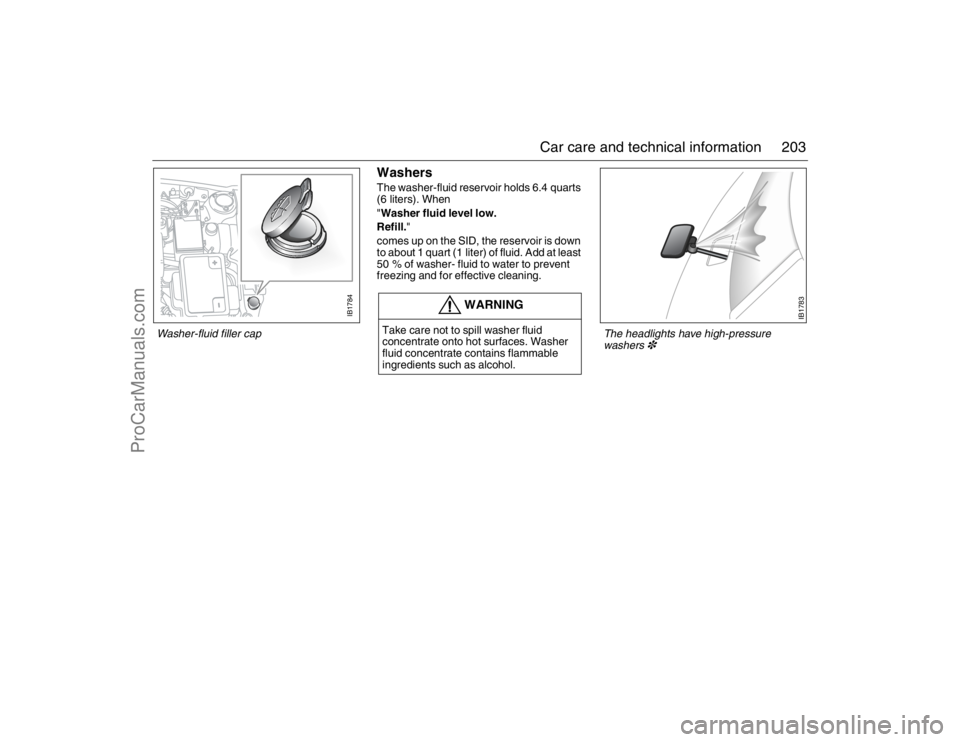

Washer-fluid filler cap
IB1783
The headlights have high-pressure
washers
3
95_U S _M 07.book Page 203 Friday, June 9, 2006 8:58 AM
ProCarManuals.com

204 Car care and technical informationChanging bulbs
Check that the new bulb is working when fin-
ished.
Use only "Long Life" bulbs.
Headlight aiming, see page 247.
Xenon headlight3Xenon headlights produce roughly twice as
much light as halogen bulbs and have a sig-
nificantly longer service life.
The lamp units consist of a gas discharge
lamp containing xenon. When the lights are
switched on a very high voltage activates
the xenon gas. The lamps soon reach full
intensity.
Cars with xenon headlights have automatic
levelling. The levelling system comprises
two sensors on the front axle, one on the
rear axle and a control unit under the head-
light housing. Headlight alignment is regu-
lated automatically to prevent dazzling
oncoming traffic. Alignment is also adjusted
during braking.
WARNING
Before changing a bulb in the engine bay,
switch off the engine to avoid danger of
fingers and hands being injured by
moving parts.
The radiator fan can start up even when
the engine is switched off.
Xenon headlights3 are high voltage
and must therefore be changed at a
workshop. We recommend that you
contact an authorized Saab work-
shop. Work involving high-voltage
components is potentially lethal.NOTICE Since the headlight lenses are made
of plastic, rinse dried-on dirt with
water and allow it time to soften up
before cleaning the lenses. Avoid
rubbing the lenses when dry and
never use solvents.
Use de-icer spray instead of scraping
the ice off.
NOTICE Do not fit bulbs with a higher rating
than 55 W, since the headlight reflec-
tor and the wiring of the car are not
designed for a higher wattage.
Switch off the ignition before chang-
ing a bulb, to avoid possible short-cir-
cuiting.
Do not touch the glass of the bulbs
with your fingers. The oil on your skin
can shorten the life of the bulb.
95_U S _M 07.book Page 204 Friday, June 9, 2006 8:58 AM
ProCarManuals.com

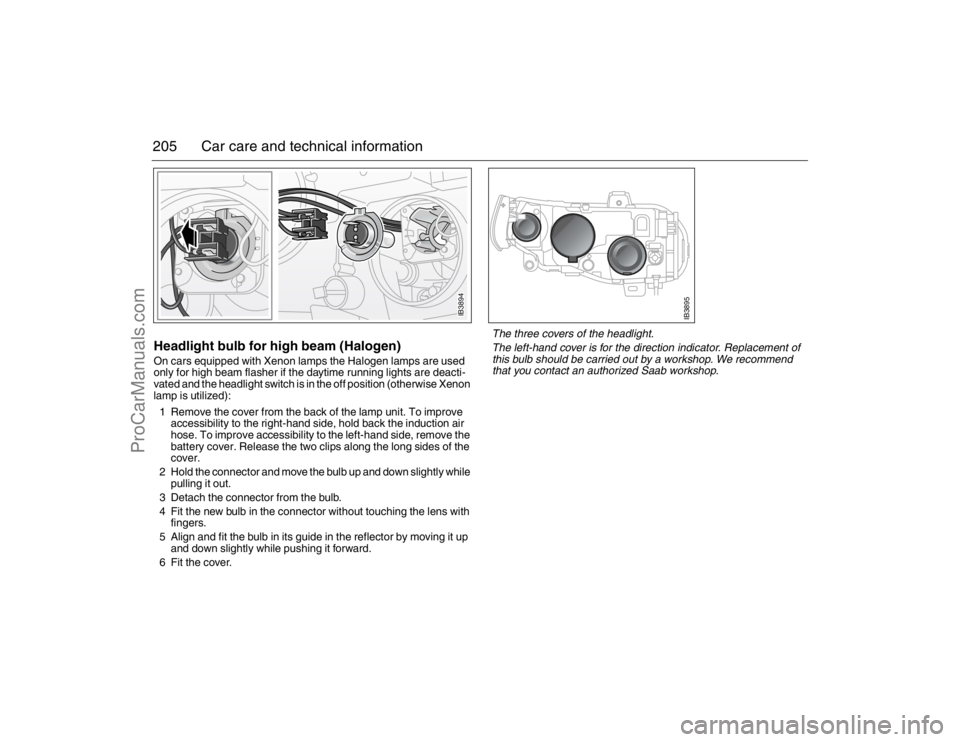

205 Car care and technical informationHeadlight bulb for high beam (Halogen)On cars equipped with Xenon lamps the Halogen lamps are used
only for high beam flasher if the daytime running lights are deacti-
vated and the headlight switch is in the off position (otherwise Xenon
lamp is utilized):
1 Remove the cover from the back of the lamp unit. To improve
accessibility to the right-hand side, hold back the induction air
hose. To improve accessibility to the left-hand side, remove the
battery cover. Release the two clips along the long sides of the
cover.
2 Hold the connector and move the bulb up and down slightly while
pulling it out.
3 Detach the connector from the bulb.
4 Fit the new bulb in the connector without touching the lens with
fingers.
5 Align and fit the bulb in its guide in the reflector by moving it up
and down slightly while pushing it forward.
6Fit the cover.
IB3894
IB3895
The three covers of the headlight.
The left-hand cover is for the direction indicator. Replacement of
this bulb should be carried out by a workshop. We recommend
that you contact an authorized Saab workshop.
95_U S _M 07.book Page 205 Friday, June 9, 2006 8:58 AM
ProCarManuals.com

206 Car care and technical information
Headlight bulb for low beam (Halogen)1 Take off the cover from the back of the lamp unit. To improve
accessibility to the right-hand headlight, hold aside the induction
air hose. To improve accessibility to the left-hand headlight,
remove the battery cover. Release the two clips along the long
sides of the cover.
2 Unplug the connector.
3 To remove the spring clip, push it in and then move it to the right.
4 Remove the bulb.
5 Without touching the glass with your fingers, insert the new bulb.
6 Line up the bulb with the guide in the reflector and secure it with
the spring clip.
7 Plug in the connector.
8Fit the cover.
Low beam bulb3On certain variants the low beam bulb is fitted in the same way as
the high beam bulb, without spring clips, see previous page.
IB3896
IB3898
Contact an
authorized
Saab workshop
if a Xenon
headlight
requires
replacement
95_U S _M 07.book Page 206 Friday, June 9, 2006 8:58 AM
ProCarManuals.com

207 Car care and technical information

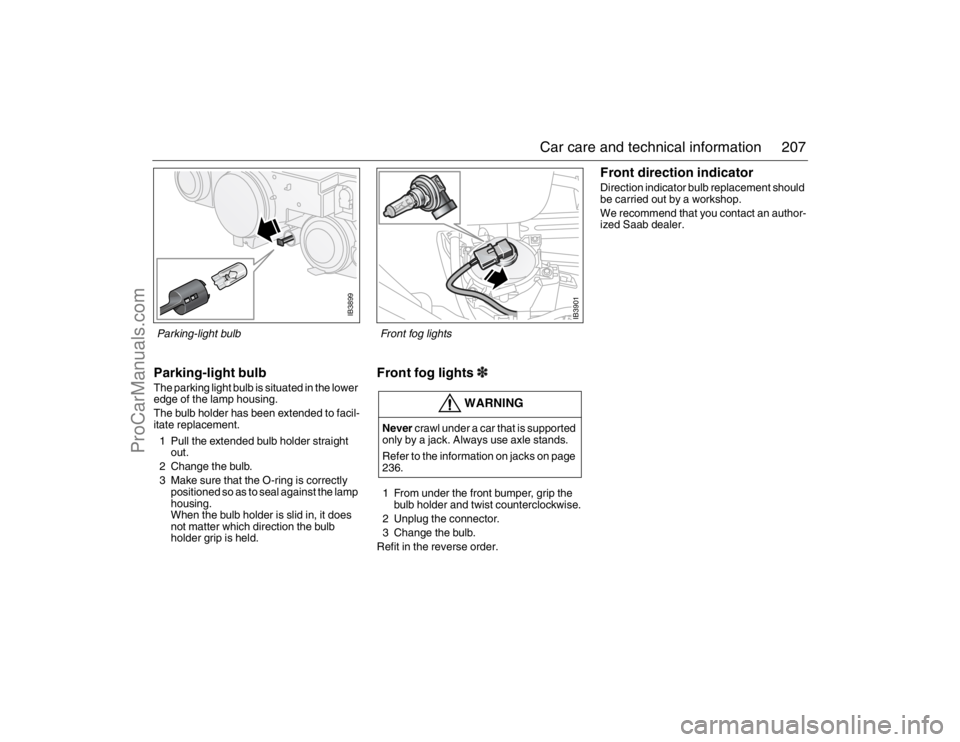

Parking-light bulbThe parking light bulb is situated in the lower
edge of the lamp housing.
The bulb holder has been extended to facil-
itate replacement.
1 Pull the extended bulb holder straight
out.
2 Change the bulb.
3 Make sure that the O-ring is correctly
positioned so as to seal against the lamp
housing.
When the bulb holder is slid in, it does
not matter which direction the bulb
holder grip is held.
Front fog lights31 From under the front bumper, grip the
bulb holder and twist counterclockwise.
2 Unplug the connector.
3 Change the bulb.
Refit in the reverse order.
Front direction indicatorDirection indicator bulb replacement should
be carried out by a workshop.
We recommend that you contact an author-
ized Saab dealer.
WARNING
Never crawl under a car that is supported
only by a jack. Always use axle stands.
Refer to the information on jacks on page
236.
IB3899
Parking-light bulb
IB3901
Front fog lights
95_U S _M 07.book Page 207 Friday, June 9, 2006 8:58 AM
ProCarManuals.com

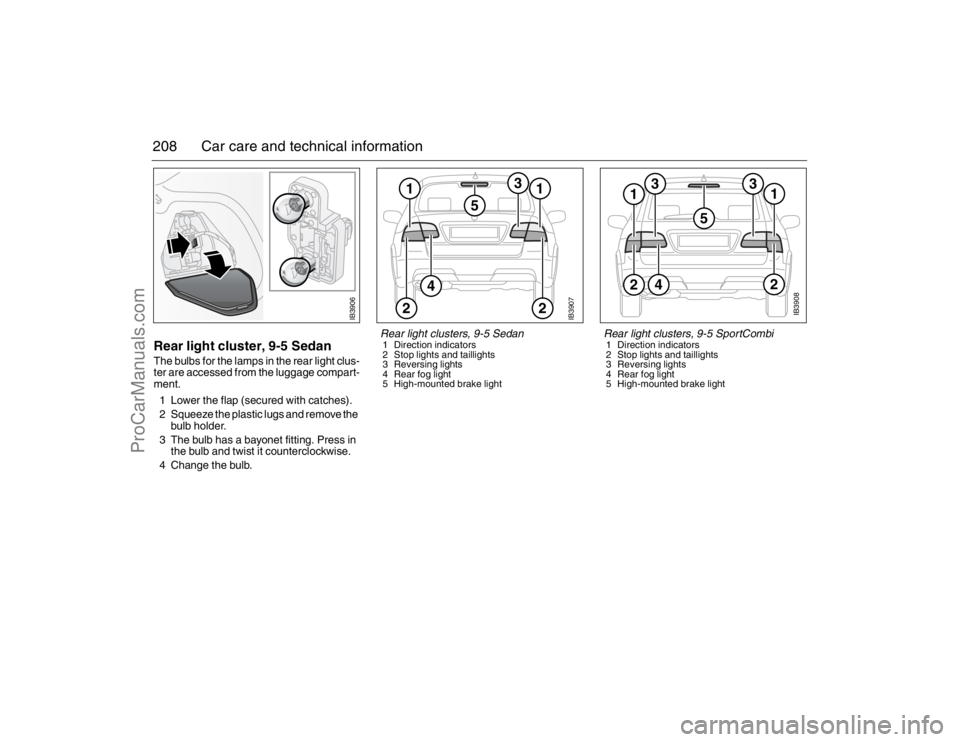

208 Car care and technical informationRear light cluster, 9-5 SedanThe bulbs for the lamps in the rear light clus-
ter are accessed from the luggage compart-
ment.
1 Lower the flap (secured with catches).
2 Squeeze the plastic lugs and remove the
bulb holder.
3 The bulb has a bayonet fitting. Press in
the bulb and twist it counterclockwise.
4 Change the bulb.
IB3906
IB3907
12
4
5
1
3
2
IB3908
1
1
2
4
5
3
3
2
Rear light clusters, 9-5 SportCombi1 Direction indicators
2 Stop lights and taillights
3 Reversing lights
4 Rear fog light
5 High-mounted brake light
Rear light clusters, 9-5 Sedan1 Direction indicators
2 Stop lights and taillights
3 Reversing lights
4 Rear fog light
5 High-mounted brake light
95_U S _M 07.book Page 208 Friday, June 9, 2006 8:58 AM
ProCarManuals.com

209 Car care and technical information

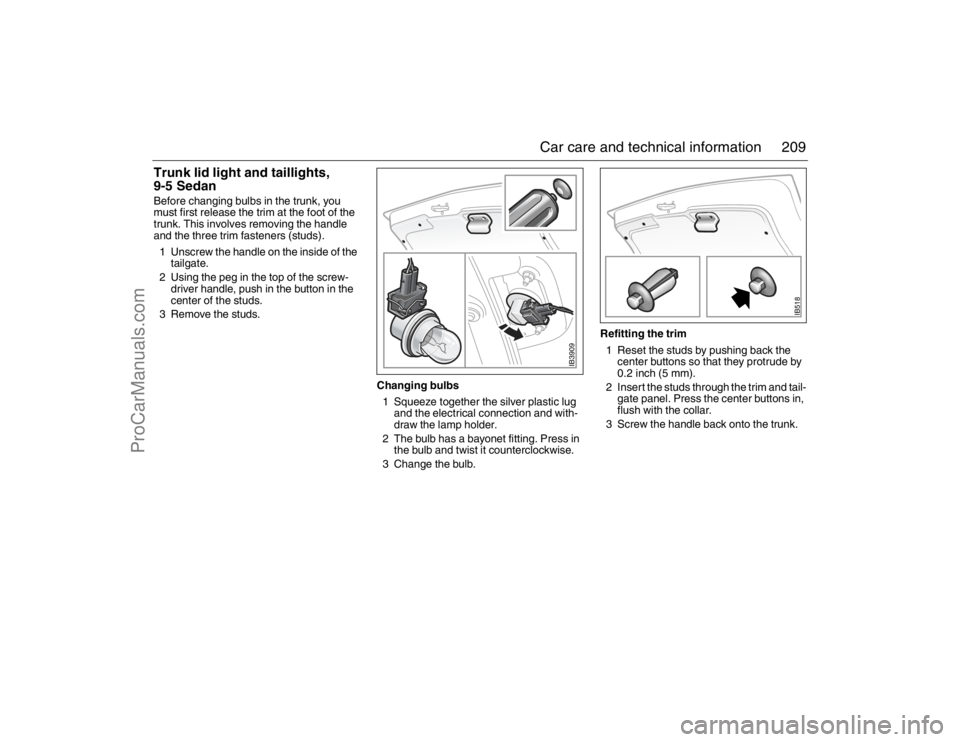

Trunk lid light and taillights,
9-5 SedanBefore changing bulbs in the trunk, you
must first release the trim at the foot of the
trunk. This involves removing the handle
and the three trim fasteners (studs).
1 Unscrew the handle on the inside of the
tailgate.
2 Using the peg in the top of the screw-
driver handle, push in the button in the
center of the studs.
3 Remove the studs.
Changing bulbs
1 Squeeze together the silver plastic lug
and the electrical connection and with-
draw the lamp holder.
2 The bulb has a bayonet fitting. Press in
the bulb and twist it counterclockwise.
3 Change the bulb.Refitting the trim
1 Reset the studs by pushing back the
center buttons so that they protrude by
0.2 inch (5 mm).
2 Insert the studs through the trim and tail-
gate panel. Press the center buttons in,
flush with the collar.
3 Screw the handle back onto the trunk.
IB3909
IB518
95_U S _M 07.book Page 209 Friday, June 9, 2006 8:58 AM
ProCarManuals.com

210 Car care and technical informationHigh-mounted stop lights,
9-5 SedanThe bulbs can be accessed after the panel
in the rear headlining has been removed.
1 Remove the panel by carefully pushing
in the two clips, one at the time.
2 Release the bulb holder, which is
retained by a clip at either end.
3 Withdraw the bulb gently straight back.
4 Push in the new bulb.
5 Refit the bulb holder.
6 Replace the panel by carefully pushing
the panel towards the headlining so that
the two clips engage their respective
slot.
Rear lights clusters,
9-5 SportCombi1 Open the tailgate.
2 Remove the two screws securing the
light cluster to the body.
3
2
2
3
1
IB519
High-mounted stop lights1 Panel
2 Retaining clips
3 Bulbs
IB3911
95_U S _M 07.book Page 210 Friday, June 9, 2006 8:58 AM
