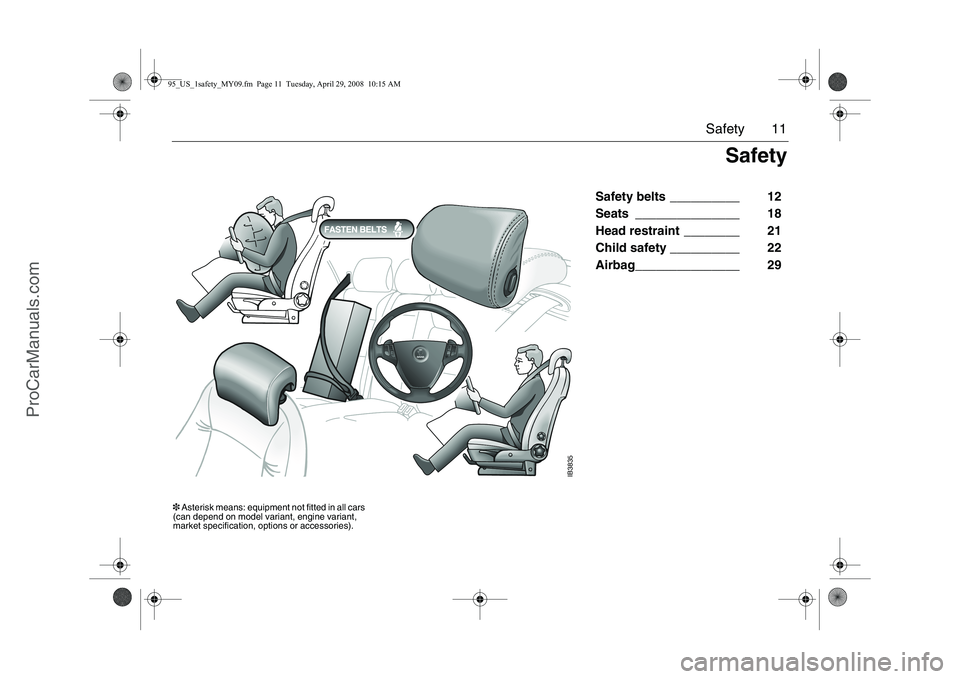

SAAB 9-5 2009 User Guide

11
Safety
Safety belts __________ 12
Seats _______________ 18
Head restraint ________ 21
Child safety __________ 22
Airbag_______________ 29
IB3835
Safety
3 Asterisk means: equipment not fitted in all cars
(can depend on model variant, engine variant,
market specification, options or accessories).95_US_1safety_MY09.fm Page 11 Tuesday, April 29, 2008 10:15 AM
ProCarManuals.com

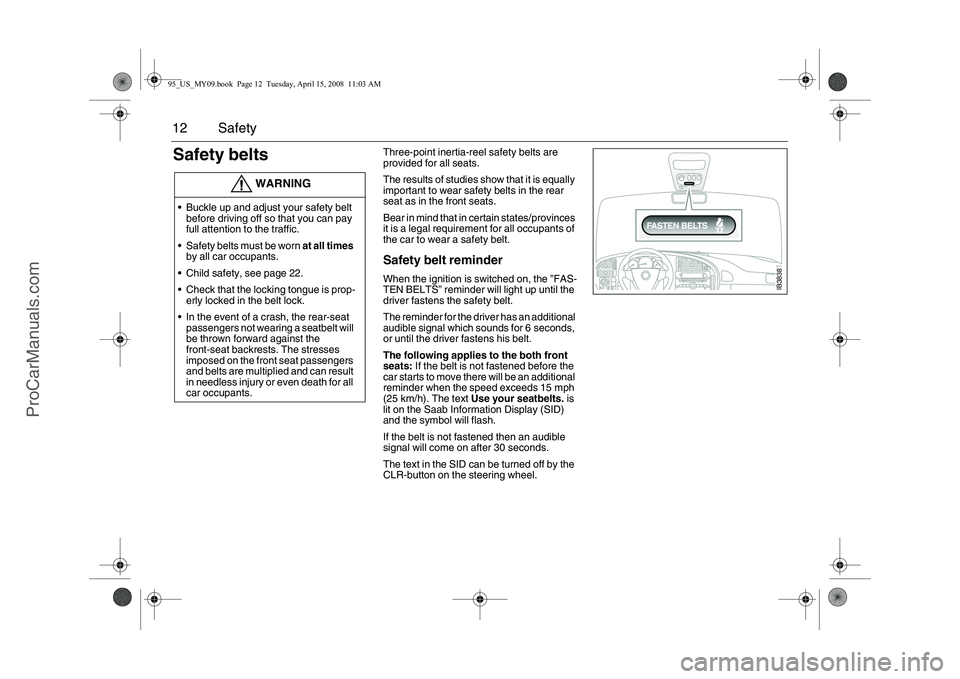

12 SafetySafety belts
Three-point inertia-reel safety belts are
provided for all seats.
The results of studies show that it is equally
important to wear safety belts in the rear
seat as in the front seats.
Bear in mind that in certain states/provinces
it is a legal requirement for all occupants of
the car to wear a safety belt.Safety belt reminderWhen the ignition is switched on, the ”FAS-
TEN BELTS” reminder will light up until the
driver fastens the safety belt.
The reminder for the driver has an additional
audible signal which sounds for 6 seconds,
or until the driver fastens his belt.
The following applies to the both front
seats: If the belt is not fastened before the
car starts to move there will be an additional
reminder when the speed exceeds 15 mph
(25 km/h). The text Use your seatbelts. is
lit on the Saab Information Display (SID)
and the symbol will flash.
If the belt is not fastened then an audible
signal will come on after 30 seconds.
The text in the SID can be turned off by the
CLR-button on the steering wheel.
WARNING
 Buckle up and adjust your safety belt
before driving off so that you can pay
full attention to the traffic.
 Safety belts must be worn at all times
by all car occupants.
 Child safety, see page 22.
 Check that the locking tongue is prop-
erly locked in the belt lock.
 In the event of a crash, the rear-seat
passengers not wearing a seatbelt will
be thrown forward against the
front-seat backrests. The stresses
imposed on the front seat passengers
and belts are multiplied and can result
in needless injury or even death for all
car occupants.
FASTEN BELTS
IB3838
95_US_MY09.book Page 12 Tuesday, April 15, 2008 11:03 AM
ProCarManuals.com

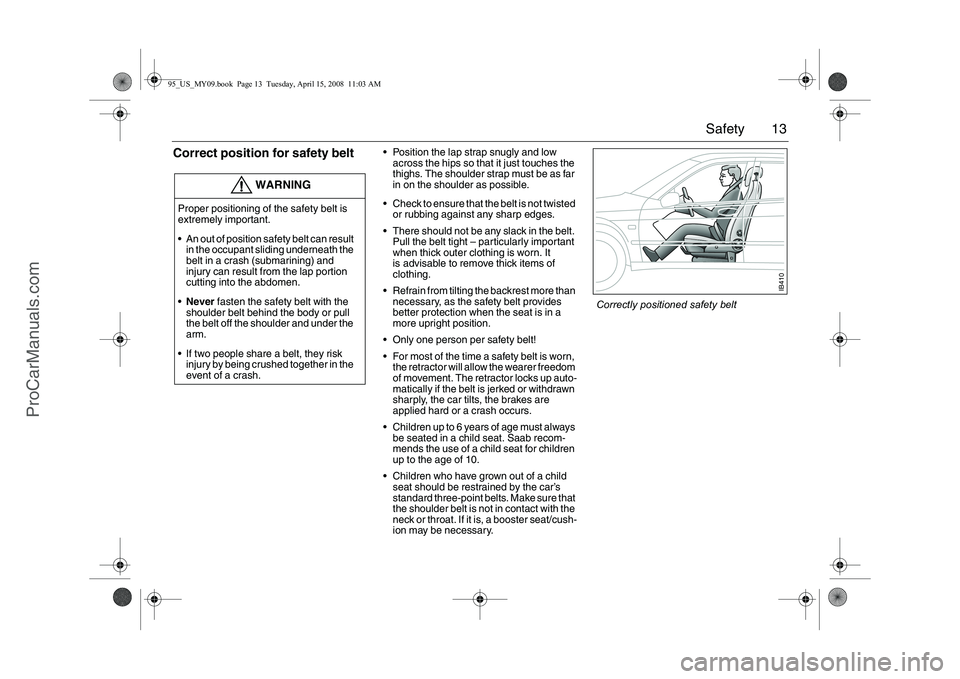

13 Safety
Correct position for safety belt
 Position the lap strap snugly and low
across the hips so that it just touches the
thighs. The shoulder strap must be as far
in on the shoulder as possible.
 Check to ensure that the belt is not twisted
or rubbing against any sharp edges.
 There should not be any slack in the belt.
Pull the belt tight – particularly important
when thick outer clothing is worn. It
is advisable to remove thick items of
clothing.
 Refrain from tilting the backrest more than
necessary, as the safety belt provides
better protection when the seat is in a
more upright position.
 Only one person per safety belt!
 For most of the time a safety belt is worn,
the retractor will allow the wearer freedom
of movement. The retractor locks up auto-
matically if the belt is jerked or withdrawn
sharply, the car tilts, the brakes are
applied hard or a crash occurs.
 Children up to 6 years of age must always
be seated in a child seat. Saab recom-
mends the use of a child seat for children
up to the age of 10.
 Children who have grown out of a child
seat should be restrained by the car’s
standard three-point belts. Make sure that
the shoulder belt is not in contact with the
neck or throat. If it is, a booster seat/cush-
ion may be necessary.
WARNING
Proper positioning of the safety belt is
extremely important.
 An out of position safety belt can result
in the occupant sliding underneath the
belt in a crash (submarining) and
injury can result from the lap portion
cutting into the abdomen.
Never fasten the safety belt with the
shoulder belt behind the body or pull
the belt off the shoulder and under the
arm.
 If two people share a belt, they risk
injury by being crushed together in the
event of a crash.
IB410
Correctly positioned safety belt
95_US_MY09.book Page 13 Tuesday, April 15, 2008 11:03 AM
ProCarManuals.com

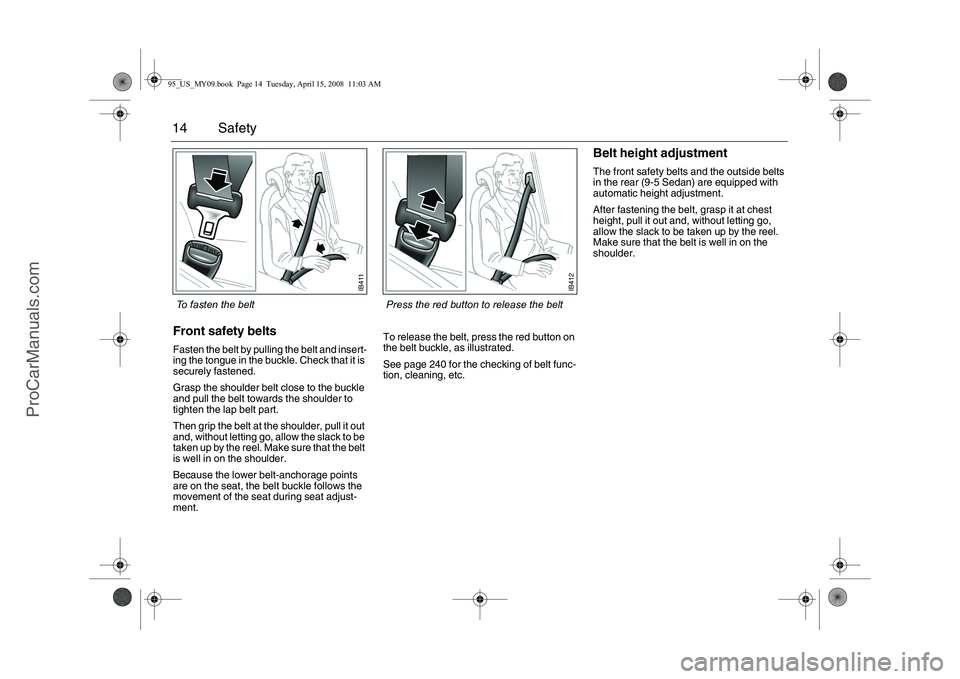

14 SafetyFront safety belts Fasten the belt by pulling the belt and insert-
ing the tongue in the buckle. Check that it is
securely fastened.
Grasp the shoulder belt close to the buckle
and pull the belt towards the shoulder to
tighten the lap belt part.
Then grip the belt at the shoulder, pull it out
and, without letting go, allow the slack to be
taken up by the reel. Make sure that the belt
is well in on the shoulder.
Because the lower belt-anchorage points
are on the seat, the belt buckle follows the
movement of the seat during seat adjust-
ment.To release the belt, press the red button on
the belt buckle, as illustrated.
See page 240 for the checking of belt func-
tion, cleaning, etc.
Belt height adjustmentThe front safety belts and the outside belts
in the rear (9-5 Sedan) are equipped with
automatic height adjustment.
After fastening the belt, grasp it at chest
height, pull it out and, without letting go,
allow the slack to be taken up by the reel.
Make sure that the belt is well in on the
shoulder.
IB411
To fasten the belt
IB412
Press the red button to release the belt
95_US_MY09.book Page 14 Tuesday, April 15, 2008 11:03 AM
ProCarManuals.com

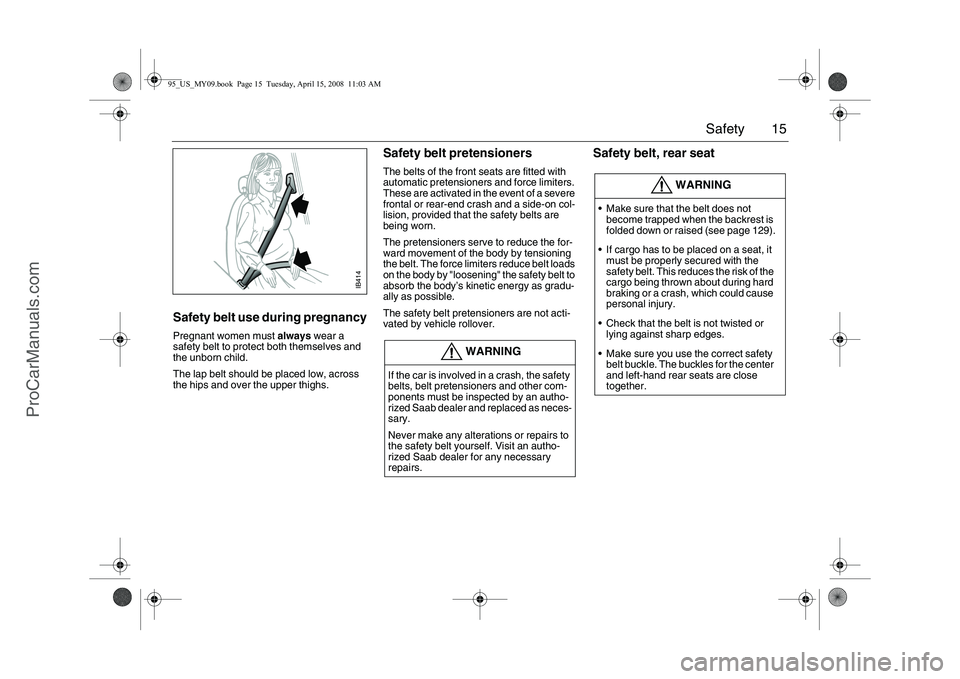

15 Safety
Safety belt use during pregnancyPregnant women must always wear a
safety belt to protect both themselves and
the unborn child.
The lap belt should be placed low, across
the hips and over the upper thighs.
Safety belt pretensionersThe belts of the front seats are fitted with
automatic pretensioners and force limiters.
These are activated in the event of a severe
frontal or rear-end crash and a side-on col-
lision, provided that the safety belts are
being worn.
The pretensioners serve to reduce the for-
ward movement of the body by tensioning
the belt. The force limiters reduce belt loads
on the body by "loosening" the safety belt to
absorb the body’s kinetic energy as gradu-
ally as possible.
The safety belt pretensioners are not acti-
vated by vehicle rollover.
Safety belt, rear seat
WARNING
If the car is involved in a crash, the safety
belts, belt pretensioners and other com-
ponents must be inspected by an autho-
rized Saab dealer and replaced as neces-
sary.
Never make any alterations or repairs to
the safety belt yourself. Visit an autho-
rized Saab dealer for any necessary
repairs.
WARNING
 Make sure that the belt does not
become trapped when the backrest is
folded down or raised (see page 129).
 If cargo has to be placed on a seat, it
must be properly secured with the
safety belt. This reduces the risk of the
cargo being thrown about during hard
braking or a crash, which could cause
personal injury.
 Check that the belt is not twisted or
lying against sharp edges.
 Make sure you use the correct safety
belt buckle. The buckles for the center
and left-hand rear seats are close
together.
IB414
95_US_MY09.book Page 15 Tuesday, April 15, 2008 11:03 AM
ProCarManuals.com

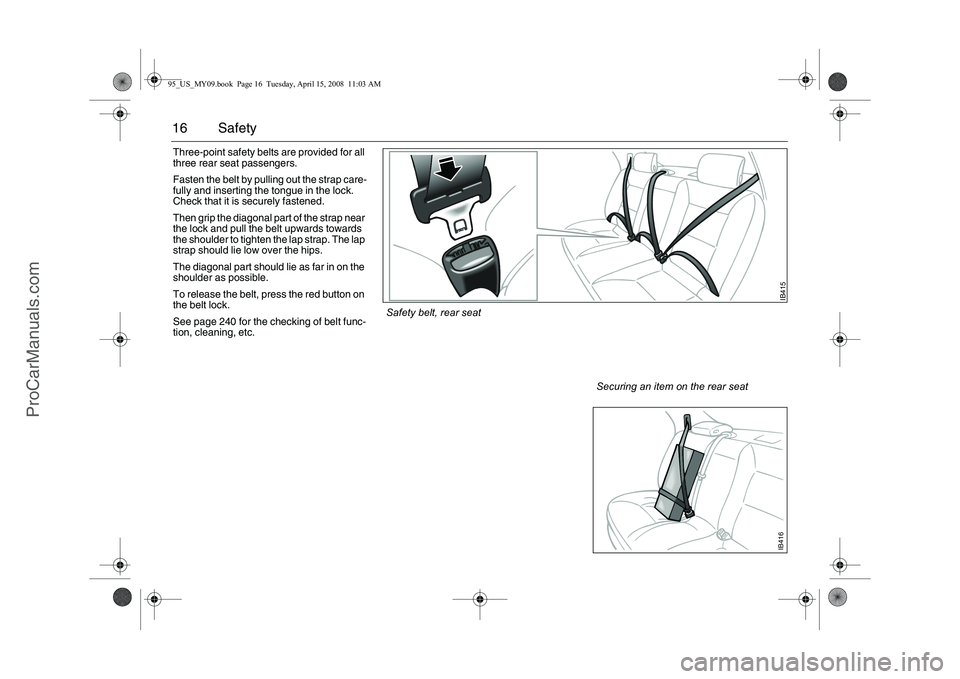

16 SafetyThree-point safety belts are provided for all
three rear seat passengers.
Fasten the belt by pulling out the strap care-
fully and inserting the tongue in the lock.
Check that it is securely fastened.
Then grip the diagonal part of the strap near
the lock and pull the belt upwards towards
the shoulder to tighten the lap strap. The lap
strap should lie low over the hips.
The diagonal part should lie as far in on the
shoulder as possible.
To release the belt, press the red button on
the belt lock.
See page 240 for the checking of belt func-
tion, cleaning, etc.
IB???IB415
Safety belt, rear seat
IB416
Securing an item on the rear seat
95_US_MY09.book Page 16 Tuesday, April 15, 2008 11:03 AM
ProCarManuals.com

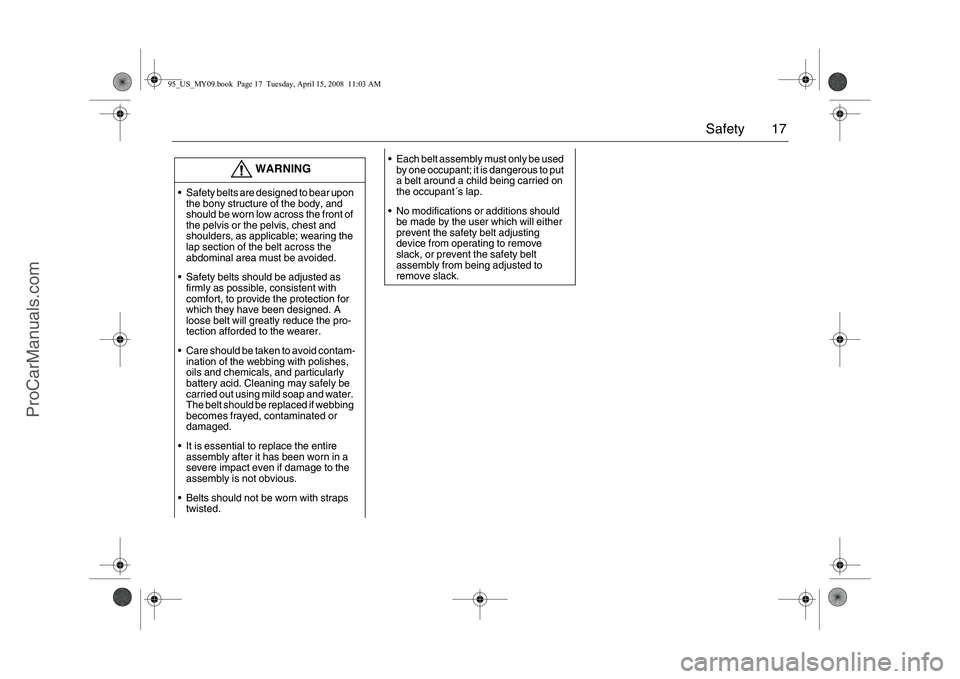

17 Safety
WARNING
 Safety belts are designed to bear upon
the bony structure of the body, and
should be worn low across the front of
the pelvis or the pelvis, chest and
shoulders, as applicable; wearing the
lap section of the belt across the
abdominal area must be avoided.
 Safety belts should be adjusted as
firmly as possible, consistent with
comfort, to provide the protection for
which they have been designed. A
loose belt will greatly reduce the pro-
tection afforded to the wearer.
 Care should be taken to avoid contam-
ination of the webbing with polishes,
oils and chemicals, and particularly
battery acid. Cleaning may safely be
carried out using mild soap and water.
The belt should be replaced if webbing
becomes frayed, contaminated or
damaged.
 It is essential to replace the entire
assembly after it has been worn in a
severe impact even if damage to the
assembly is not obvious.
 Belts should not be worn with straps
twisted.
 Each belt assembly must only be used
by one occupant; it is dangerous to put
a belt around a child being carried on
the occupant´s lap.
 No modifications or additions should
be made by the user which will either
prevent the safety belt adjusting
device from operating to remove
slack, or prevent the safety belt
assembly from being adjusted to
remove slack.
95_US_MY09.book Page 17 Tuesday, April 15, 2008 11:03 AM
ProCarManuals.com

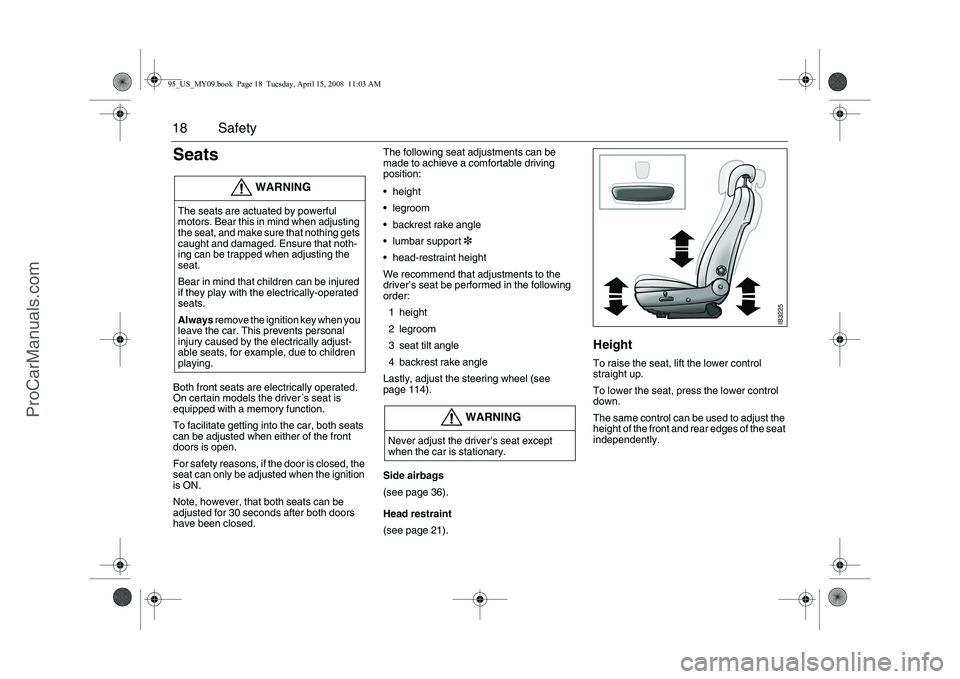

18 SafetySeats Both front seats are electrically operated.
On certain models the driver´s seat is
equipped with a memory function.
To facilitate getting into the car, both seats
can be adjusted when either of the front
doors is open.
For safety reasons, if the door is closed, the
seat can only be adjusted when the ignition
is ON.
Note, however, that both seats can be
adjusted for 30 seconds after both doors
have been closed. The following seat adjustments can be
made to achieve a comfortable driving
position:
 height
legroom
 backrest rake angle
 lumbar support3
 head-restraint height
We recommend that adjustments to the
driver’s seat be performed in the following
order:
1height
2 legroom
3 seat tilt angle
4 backrest rake angle
Lastly, adjust the steering wheel (see
page 114).
Side airbags
(see page 36).
Head restraint
(see page 21).
HeightTo raise the seat, lift the lower control
straight up.
To lower the seat, press the lower control
down.
The same control can be used to adjust the
height of the front and rear edges of the seat
independently.
WARNING
The seats are actuated by powerful
motors. Bear this in mind when adjusting
the seat, and make sure that nothing gets
caught and damaged. Ensure that noth-
ing can be trapped when adjusting the
seat.
Bear in mind that children can be injured
if they play with the electrically-operated
seats.
Always remove the ignition key when you
leave the car. This prevents personal
injury caused by the electrically adjust-
able seats, for example, due to children
playing.
WARNING
Never adjust the driver’s seat except
when the car is stationary.
IB3225
95_US_MY09.book Page 18 Tuesday, April 15, 2008 11:03 AM
ProCarManuals.com

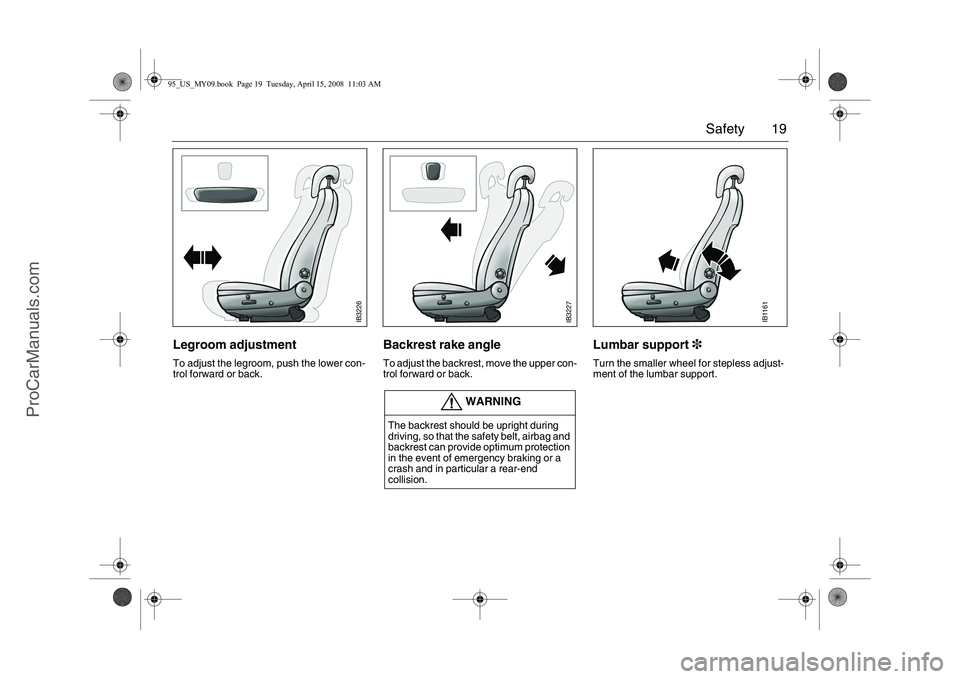

19 Safety
Legroom adjustmentTo adjust the legroom, push the lower con-
trol forward or back.
Backrest rake angleTo adjust the backrest, move the upper con-
trol forward or back.
Lumbar support3Turn the smaller wheel for stepless adjust-
ment of the lumbar support.
WARNING
The backrest should be upright during
driving, so that the safety belt, airbag and
backrest can provide optimum protection
in the event of emergency braking or a
crash and in particular a rear-end
collision.
IB3226
IB3227
IB1161
95_US_MY09.book Page 19 Tuesday, April 15, 2008 11:03 AM
ProCarManuals.com

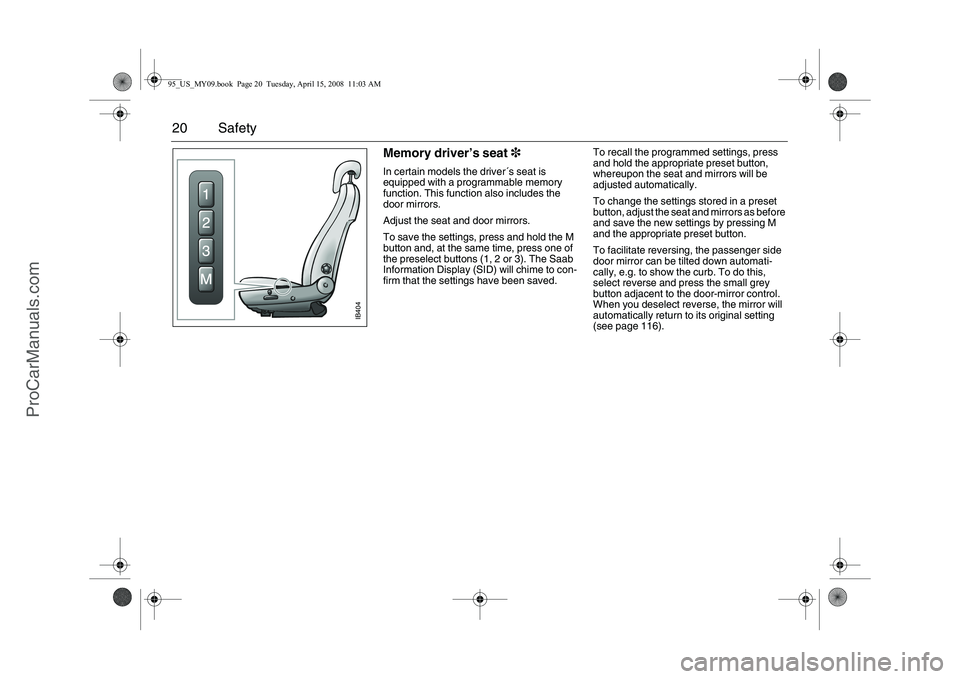

20 Safety
Memory driver’s seat3In certain models the driver´s seat is
equipped with a programmable memory
function. This function also includes the
door mirrors.
Adjust the seat and door mirrors.
To save the settings, press and hold the M
button and, at the same time, press one of
the preselect buttons (1, 2 or 3). The Saab
Information Display (SID) will chime to con-
firm that the settings have been saved.To recall the programmed settings, press
and hold the appropriate preset button,
whereupon the seat and mirrors will be
adjusted automatically.
To change the settings stored in a preset
button, adjust the seat and mirrors as before
and save the new settings by pressing M
and the appropriate preset button.
To facilitate reversing, the passenger side
door mirror can be tilted down automati-
cally, e.g. to show the curb. To do this,
select reverse and press the small grey
button adjacent to the door-mirror control.
When you deselect reverse, the mirror will
automatically return to its original setting
(see page 116).
IB404
95_US_MY09.book Page 20 Tuesday, April 15, 2008 11:03 AM
ProCarManuals.com
