A. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 339.
B. Engine Coolant Recovery Tank. SeeCooling
System on page 349.
C. Windshield Washer Fluid Reservoir. See
“Adding Washer Fluid” underWindshield
Washer Fluid on page 357.
D. Power Steering Fluid Reservoir. SeePower
Steering Fluid on page 356.
E. Automatic Transmission Fluid Dipstick (Out of
View). See “Checking the Fluid Level” under
Automatic Transmission Fluid on page 341.
F. Engine Oil Dipstick. See “Checking Engine Oil”
underEngine Oil on page 334.G. Radiator Pressure Cap. SeeRadiator Pressure
Cap on page 347.
H. Engine Oil Fill Cap. See “When to Add Engine
Oil” underEngine Oil on page 334.
I. Remote Negative (−) Terminal (Marked GND).
SeeJump Starting on page 362.
J. Brake Master Cylinder Reservoir. See “Brake
Fluid” underBrakes on page 358.
K. Battery. SeeBattery on page 361.
L. Engine Compartment Fuse Block. SeeEngine
Compartment Fuse Block on page 435.
331
ProCarManuals.com

A. Engine Coolant Recovery Tank. SeeCooling
System on page 349.
B. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 339.
C. Windshield Washer Fluid Reservoir. See
“Adding Washer Fluid” underWindshield
Washer Fluid on page 357.
D. Engine Oil Dipstick. See “Checking Engine Oil”
underEngine Oil on page 334.
E. Automatic Transmission Fluid Dipstick. See
“Checking the Fluid Level” underAutomatic
Transmission Fluid on page 341.
F. Engine Oil Fill Cap. See “When to Add Engine
Oil” underEngine Oil on page 334.G. Radiator Pressure Cap. SeeRadiator Pressure
Cap on page 347.
H. Remote Negative (−) Terminal (Marked GND).
SeeJump Starting on page 362.
I. Power Steering Fluid Reservoir. SeePower
Steering Fluid on page 356.
J. Brake Master Cylinder Reservoir. See “Brake
Fluid” underBrakes on page 358.
K. Engine Compartment Fuse Block. SeeEngine
Compartment Fuse Block on page 435.
L. Battery. SeeBattery on page 361.
333
ProCarManuals.com

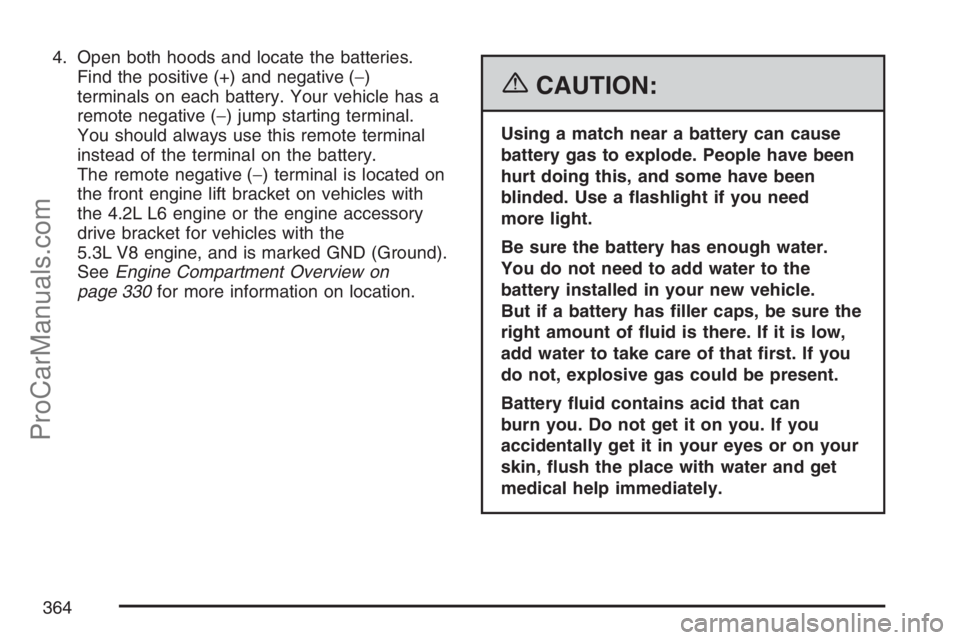

4. Open both hoods and locate the batteries.
Find the positive (+) and negative (−)
terminals on each battery. Your vehicle has a
remote negative (−) jump starting terminal.
You should always use this remote terminal
instead of the terminal on the battery.
The remote negative (−) terminal is located on
the front engine lift bracket on vehicles with
the 4.2L L6 engine or the engine accessory
drive bracket for vehicles with the
5.3L V8 engine, and is marked GND (Ground).
SeeEngine Compartment Overview on
page 330for more information on location.
{CAUTION:
Using a match near a battery can cause
battery gas to explode. People have been
hurt doing this, and some have been
blinded. Use a ashlight if you need
more light.
Be sure the battery has enough water.
You do not need to add water to the
battery installed in your new vehicle.
But if a battery has ller caps, be sure the
right amount of uid is there. If it is low,
add water to take care of that rst. If you
do not, explosive gas could be present.
Battery uid contains acid that can
burn you. Do not get it on you. If you
accidentally get it in your eyes or on your
skin, ush the place with water and get
medical help immediately.
364
ProCarManuals.com

8. Now connect the black negative (−) cable to
the negative (−) terminal of the good battery.
Use a remote negative (−) terminal if the
vehicle has one.
Do not let the other end touch anything until
the next step. The other end of the negative (−)
cable does not go to the dead battery.
It goes to a heavy, unpainted metal engine
part or to the remote negative (−) terminal on
the vehicle with the dead battery. Your
vehicle has a remote negative (−) terminal,
marked GND, for this purpose.The remote negative (−) terminal is located
on the front engine lift bracket for the
4.2L L6 engine, and on the accessory drive
bracket for the 5.3L V8 engine.
9. Connect the other end of the negative (−)
cable to the remote negative (−) terminal
on the vehicle with the dead battery.
10. Now start the vehicle with the good battery
and run the engine for a while.
11. Try to start the vehicle that had the dead
battery. If it will not start after a few tries,
it probably needs service.
4.2L L6 Engine5.3L V8 Engine
366
