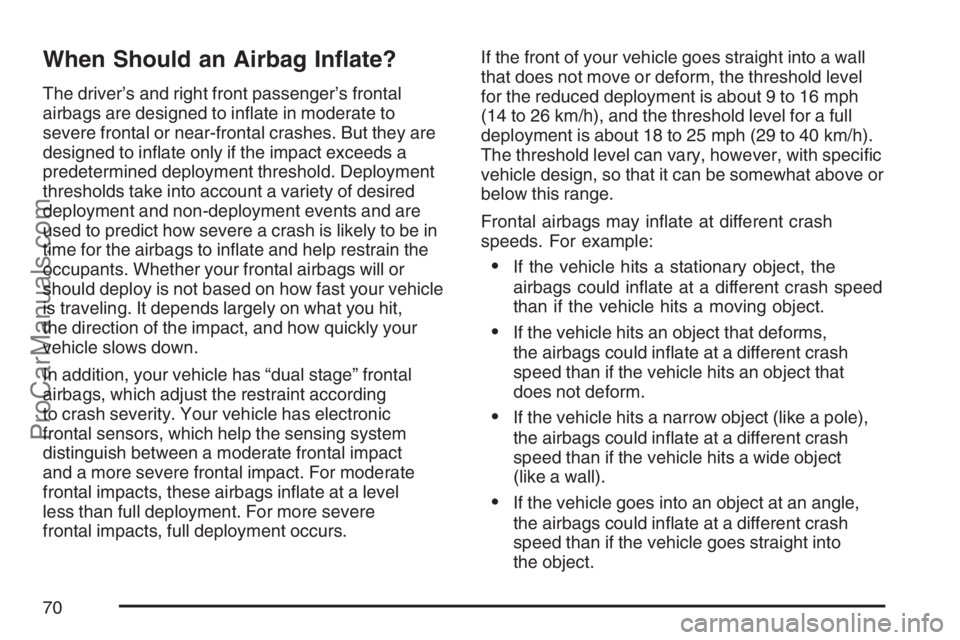

Page 70 of 498
When Should an Airbag In ate?
The driver’s and right front passenger’s frontal
airbags are designed to in ate in moderate to
severe frontal or near-frontal crashes. But they are
designed to in ate only if the impact exceeds a
predetermined deployment threshold. Deployment
thresholds take into account a variety of desired
deployment and non-deployment events and are
used to predict how severe a crash is likely to be in
time for the airbags to in ate and help restrain the
occupants. Whether your frontal airbags will or
should deploy is not based on how fast your vehicle
is traveling. It depends largely on what you hit,
the direction of the impact, and how quickly your
vehicle slows down.
In addition, your vehicle has “dual stage” frontal
airbags, which adjust the restraint according
to crash severity. Your vehicle has electronic
frontal sensors, which help the sensing system
distinguish between a moderate frontal impact
and a more severe frontal impact. For moderate
frontal impacts, these airbags in ate at a level
less than full deployment. For more severe
frontal impacts, full deployment occurs.If the front of your vehicle goes straight into a wall
that does not move or deform, the threshold level
for the reduced deployment is about 9 to 16 mph
(14 to 26 km/h), and the threshold level for a full
deployment is about 18 to 25 mph (29 to 40 km/h).
The threshold level can vary, however, with speci c
vehicle design, so that it can be somewhat above or
below this range.
Frontal airbags may in ate at different crash
speeds. For example:
If the vehicle hits a stationary object, the
airbags could in ate at a different crash speed
than if the vehicle hits a moving object.
If the vehicle hits an object that deforms,
the airbags could in ate at a different crash
speed than if the vehicle hits an object that
does not deform.
If the vehicle hits a narrow object (like a pole),
the airbags could in ate at a different crash
speed than if the vehicle hits a wide object
(like a wall).
If the vehicle goes into an object at an angle,
the airbags could in ate at a different crash
speed than if the vehicle goes straight into
the object.
70
ProCarManuals.com

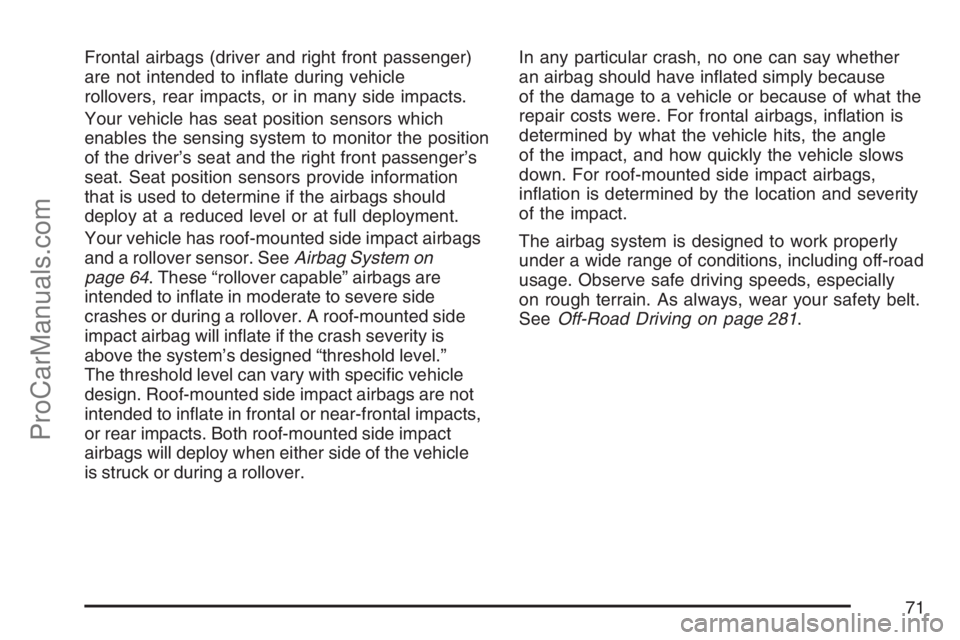

Page 71 of 498
Frontal airbags (driver and right front passenger)
are not intended to in ate during vehicle
rollovers, rear impacts, or in many side impacts.
Your vehicle has seat position sensors which
enables the sensing system to monitor the position
of the driver’s seat and the right front passenger’s
seat. Seat position sensors provide information
that is used to determine if the airbags should
deploy at a reduced level or at full deployment.
Your vehicle has roof-mounted side impact airbags
and a rollover sensor. SeeAirbag System on
page 64. These “rollover capable” airbags are
intended to in ate in moderate to severe side
crashes or during a rollover. A roof-mounted side
impact airbag will in ate if the crash severity is
above the system’s designed “threshold level.”
The threshold level can vary with speci c vehicle
design. Roof-mounted side impact airbags are not
intended to in ate in frontal or near-frontal impacts,
or rear impacts. Both roof-mounted side impact
airbags will deploy when either side of the vehicle
is struck or during a rollover.In any particular crash, no one can say whether
an airbag should have in ated simply because
of the damage to a vehicle or because of what the
repair costs were. For frontal airbags, in ation is
determined by what the vehicle hits, the angle
of the impact, and how quickly the vehicle slows
down. For roof-mounted side impact airbags,
in ation is determined by the location and severity
of the impact.
The airbag system is designed to work properly
under a wide range of conditions, including off-road
usage. Observe safe driving speeds, especially
on rough terrain. As always, wear your safety belt.
SeeOff-Road Driving on page 281.
71
ProCarManuals.com

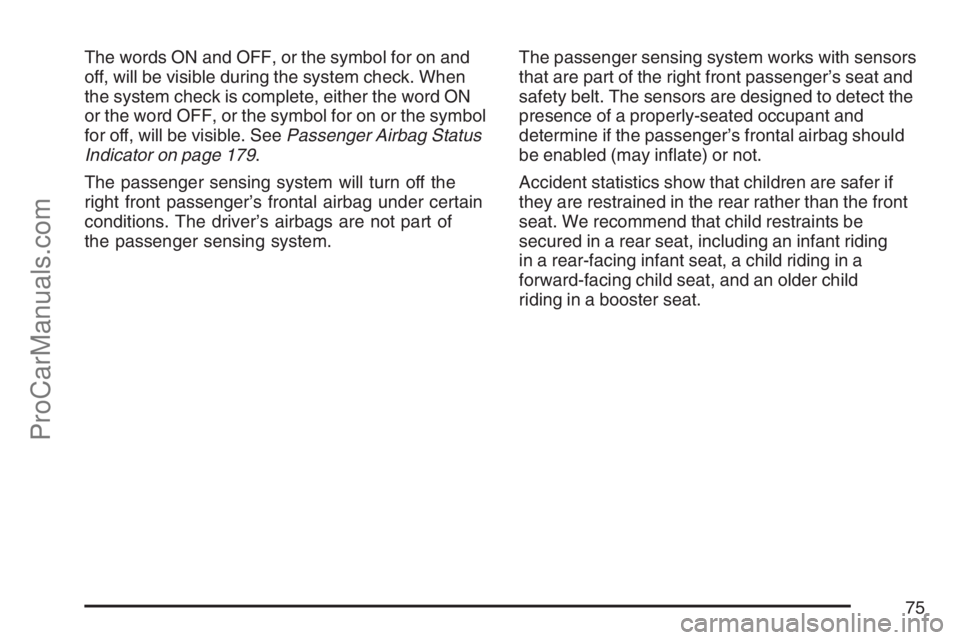

Page 75 of 498
The words ON and OFF, or the symbol for on and
off, will be visible during the system check. When
the system check is complete, either the word ON
or the word OFF, or the symbol for on or the symbol
for off, will be visible. SeePassenger Airbag Status
Indicator on page 179.
The passenger sensing system will turn off the
right front passenger’s frontal airbag under certain
conditions. The driver’s airbags are not part of
the passenger sensing system.The passenger sensing system works with sensors
that are part of the right front passenger’s seat and
safety belt. The sensors are designed to detect the
presence of a properly-seated occupant and
determine if the passenger’s frontal airbag should
be enabled (may in ate) or not.
Accident statistics show that children are safer if
they are restrained in the rear rather than the front
seat. We recommend that child restraints be
secured in a rear seat, including an infant riding
in a rear-facing infant seat, a child riding in a
forward-facing child seat, and an older child
riding in a booster seat.
75
ProCarManuals.com
Page 81 of 498
{CAUTION:
For up to 10 seconds, after the ignition is
turned off and the battery is disconnected,
an airbag can still in ate during improper
service. You can be injured if you are
close to an airbag when it in ates. Avoid
yellow connectors. They are probably part
of the airbag system. Be sure to follow
proper service procedures, and make sure
the person performing work for you is
quali ed to do so.
The airbag system does not need regular
maintenance.
Adding Equipment to Your
Airbag-Equipped Vehicle
Q:Is there anything I might add to the front
or sides of the vehicle that could keep the
airbags from working properly?
A:Yes. If you add things that change your
vehicle’s frame, bumper system, height, front
end or side sheet metal, they may keep the
airbag system from working properly. Also, the
airbag system may not work properly if you
relocate any of the airbag sensors. If you have
any questions about this, you should contact
Customer Assistance before you modify your
vehicle. The phone numbers and addresses for
Customer Assistance are in Step Two of the
Customer Satisfaction Procedure in this
manual. SeeCustomer Satisfaction Procedure
on page 466.
81
ProCarManuals.com
Page 161 of 498
Daytime Running Lamps (DRL)
Daytime Running Lamps (DRL) can make it easier
for others to see the front of your vehicle during
the day. DRL can be helpful in many different
driving conditions, but they can be especially
helpful in the short periods after dawn and before
sunset. Fully functional daytime running lamps
are required on all vehicles rst sold in Canada.
The DRL will activate when the following
conditions are met:
The ignition is on.
The exterior lamps knob is in automatic
headlamp mode.
The light sensor detects daytime light.
The transmission is not in PARK (P).
When DRL are on, either your turn signal lamps or
headlamps will be on. If your vehicle is equipped
with the High Intensity Discharge (HID) lighting
system option, the DRL system will turn on your
turn signal lamps. If your vehicle is not equipped
with HID, the DRL system will turn on yourheadlamps at reduced brightness. The taillamps,
sidemarker and other lamps won’t be on. The
instrument panel won’t be lit up either.
When it begins to get dark, the headlamps will
automatically switch from DRL to the regular
headlamps.
Automatic Headlamp System
When it is dark enough outside, the Automatic
Headlamp System turns on the headlamps when
the vehicle is started and after the transaxle
has been shifted out of the PARK (P) position.
The headlamps, taillamps, sidemarker, and parking
lamps will come on. The instrument panel lights
and radio lights will also turn on at normal
brightness. Once on, the system remains on
during these conditions even if the vehicle
is shifted back into PARK (P).
The vehicle has a light sensor on the top of the
instrument panel. Make sure it is not covered
or the system may come on whenever the
ignition is on and the vehicle is shifted out of the
PARK (P) position.
The system could also turn on the lamps when
driving through a parking garage, heavy overcast
weather or a tunnel. This is normal.
161
ProCarManuals.com

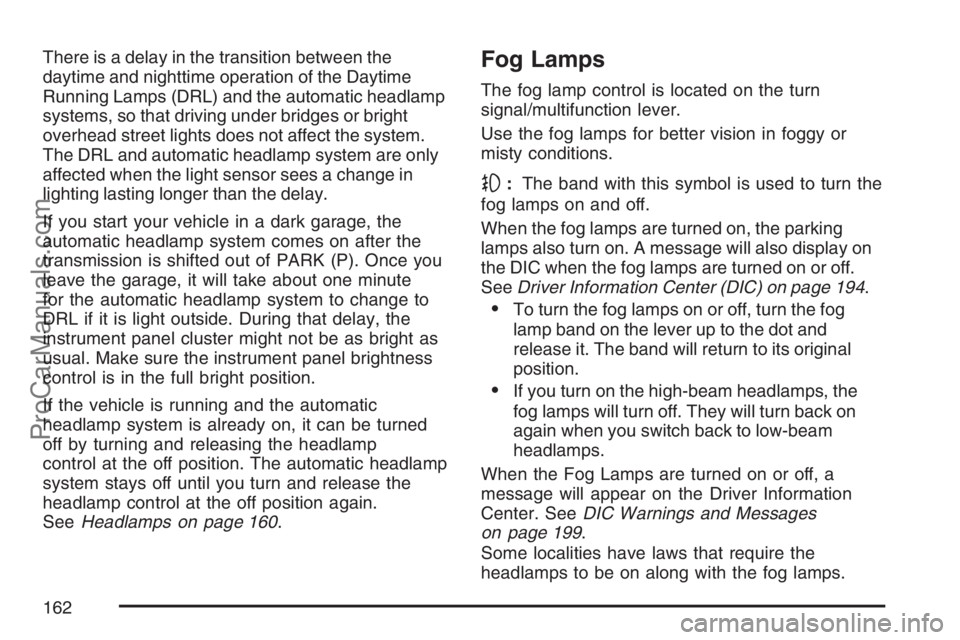

Page 162 of 498
There is a delay in the transition between the
daytime and nighttime operation of the Daytime
Running Lamps (DRL) and the automatic headlamp
systems, so that driving under bridges or bright
overhead street lights does not affect the system.
The DRL and automatic headlamp system are only
affected when the light sensor sees a change in
lighting lasting longer than the delay.
If you start your vehicle in a dark garage, the
automatic headlamp system comes on after the
transmission is shifted out of PARK (P). Once you
leave the garage, it will take about one minute
for the automatic headlamp system to change to
DRL if it is light outside. During that delay, the
instrument panel cluster might not be as bright as
usual. Make sure the instrument panel brightness
control is in the full bright position.
If the vehicle is running and the automatic
headlamp system is already on, it can be turned
off by turning and releasing the headlamp
control at the off position. The automatic headlamp
system stays off until you turn and release the
headlamp control at the off position again.
SeeHeadlamps on page 160.Fog Lamps
The fog lamp control is located on the turn
signal/multifunction lever.
Use the fog lamps for better vision in foggy or
misty conditions.
-:The band with this symbol is used to turn the
fog lamps on and off.
When the fog lamps are turned on, the parking
lamps also turn on. A message will also display on
the DIC when the fog lamps are turned on or off.
SeeDriver Information Center (DIC) on page 194.
To turn the fog lamps on or off, turn the fog
lamp band on the lever up to the dot and
release it. The band will return to its original
position.
If you turn on the high-beam headlamps, the
fog lamps will turn off. They will turn back on
again when you switch back to low-beam
headlamps.
When the Fog Lamps are turned on or off, a
message will appear on the Driver Information
Center. SeeDIC Warnings and Messages
on page 199.
Some localities have laws that require the
headlamps to be on along with the fog lamps.
162
ProCarManuals.com
Page 178 of 498
Airbag Readiness Light
There is an airbag readiness light on the
instrument panel, which shows the airbag symbol.
The system checks the airbag’s electrical
system for malfunctions. The light tells you if there
is an electrical problem. The system check
includes the airbag sensors, the airbag modules,
the wiring and the crash sensing and diagnostic
module. For more information on the airbag
system, seeAirbag System on page 64.
This light will come on
when you start your
vehicle, and it will ash
for a few seconds.
Then the light should go out. This means the
system is ready.{CAUTION:
If the airbag readiness light stays on after
you start your vehicle, it means the airbag
system may not be working properly. The
airbags in your vehicle may not in ate in
a crash, or they could even in ate without
a crash. To help avoid injury to yourself
or others, have your vehicle serviced right
away if the airbag readiness light stays on
after you start your vehicle.
If the airbag readiness light stays on after you
start the vehicle or comes on when you are driving,
your airbag system may not work properly.
Have your vehicle serviced right away.
The airbag readiness light should ash for a few
seconds when you turn the ignition key to RUN.
If the light does not come on then, have it xed so
it will be ready to warn you if there is a problem.
178
ProCarManuals.com
Page 204 of 498
SERVICE TIRE MONITOR
This message displays if a part on the Tire
Pressure Monitor (TPM) system is not working
properly. If you drive your vehicle while any of the
four sensors are missing or inoperable, the
warning comes on in about 20 minutes. A sensor
would be missing, for example, if you put
different wheels on your vehicle without
transferring the sensors. If the warning comes on
and stays on, there may be a problem with the
TPM. See your dealer.
STABILITRAK ACTIVE
This message displays anytime the StabiliTrak®
system activates to maintain vehicle stability.
Any combination of engine speed management,
brake traction control, and stability control displays
this message.
STABILITRAK NOT READY
This message may display if driving conditions
delay StabiliTrak®system initialization. This
is normal. Once the system initializes, this
message will no longer be displayed on the DIC.
STABILITRAK OFF
This message displays when you press the
StabiliTrak®button for more than ve seconds or
when stability control has been automatically
disabled. The StabiliTrak
®button is located on the
transmission shift handle. To limit wheel spin
and realize the full bene ts of the stability
enhancement system, you should normally leave
StabiliTrak
®on. However, you should turn
StabiliTrak®off if your vehicle gets stuck in sand,
mud, ice, or snow and you want to rock your
vehicle to attempt to free it, or if you are driving in
extreme off-road conditions and require more
wheel spin. SeeIf Your Vehicle is Stuck in Sand,
Mud, Ice, or Snow on page 295. To turn the
StabiliTrak
®system back on, press the
StabiliTrak®button again.
The message may display if the brake system
warning light is on. SeeBrake System Warning
Light on page 183.
The message turns off as soon as the conditions
that caused the message to be displayed are
no longer present.
204
ProCarManuals.com
Page 303 of 498
Your vehicle was not designed to be towed with
any of its wheels on the ground. If your vehicle
must be towed, see “Towing Your Vehicle” earlier
in this section.
Notice:Towing an all-wheel-drive vehicle with
all four wheels on the ground, or even with
only two of its wheels on the ground, will
damage drivetrain components. Do not tow an
all-wheel-drive vehicle if any of its wheels
will be on the ground.
Electronically Controlled Air
Suspension System
Your vehicle is equipped with an electronically
controlled air suspension system that automatically
keeps your vehicle level as you load and unload.
The system includes a compressor, two height
sensors, and two air springs supporting the
rear axle.
The system also has an internal clock to prevent
overheating if the in ator is used for prolonged
periods. If the system overheats, all levelingfunction stops until the system cools down.
During this time, the indicator light on the air
in ator switch will be ashing.
The ignition has to be on for the system to in ate,
in order to raise the vehicle to the standard ride
height after loading. The system can lower
the vehicle to the standard ride height after
unloading with the ignition on and also for up to
30 minutes after the ignition has been turned off.
You may hear the compressor operating when you
load your vehicle, and periodically as the system
adjusts the vehicle to the standard ride height.
Load leveling will not function normally with the
in ator hose attached to the in ator outlet. Remove
the in ator hose from the outlet during loading
and unloading.
If the vehicle is parked for an extended period of
time, some bleed down of the suspension is
normal. Upon starting the vehicle, proper height
will be achieved.
303
ProCarManuals.com
Page 391 of 498
Tire Pressure Monitor System
The Tire Pressure Monitor System (TPMS) uses
radio and sensor technology to check tire pressure
levels. TPMS sensors are mounted on each tire
and wheel assembly, except the spare tire.
The TPMS sensors monitor the air pressure in
your vehicle’s tires and transmit tire pressure
readings to a receiver located in the vehicle.
The TPMS is designed to alert the driver if a low
tire pressure condition exists. Tire pressure
levels may also be checked by using the Driver
Information Center (DIC) Trip Information
button, located on the instrument panel. See “Tire
Pressures” underDIC Operation and Displays
on page 195for additional information.
When a low tire pressure condition is detected,
the TPMS will illuminate the low tire pressure
warning symbol located on the instrument panel
cluster, and at the same time a message will also
appear on the DIC display. The low tire pressure
warning symbol on the instrument panel cluster
and the CHECK TIRE PRESSURE warning
message on the DIC will appear at each ignitioncycle until the tires are in ated to the correct
in ation pressure. For additional information and
details about the DIC operation and displays
seeDIC Operation and Displays on page 195and
DIC Warnings and Messages on page 199.
You may notice, during cooler weather conditions,
that the tire pressure monitor light, located on
the instrument panel cluster, and the CHECK TIRE
PRESSURE message will appear when the
vehicle is rst started, and then turn off as you
start to drive the vehicle. This could be an
early indicator that the tire pressures are getting
low and need to be in ated to the proper pressure.
Each tire, including the spare (if provided),
should be checked monthly when cold and in ated
to the in ation pressure recommended by the
vehicle manufacturer on the vehicle placard or tire
in ation pressure label. (If your vehicle has tires
of a different size than the size indicated on
the vehicle placard or tire in ation pressure label,
you should determine the proper tire in ation
pressure for those tires.)
391
ProCarManuals.com
