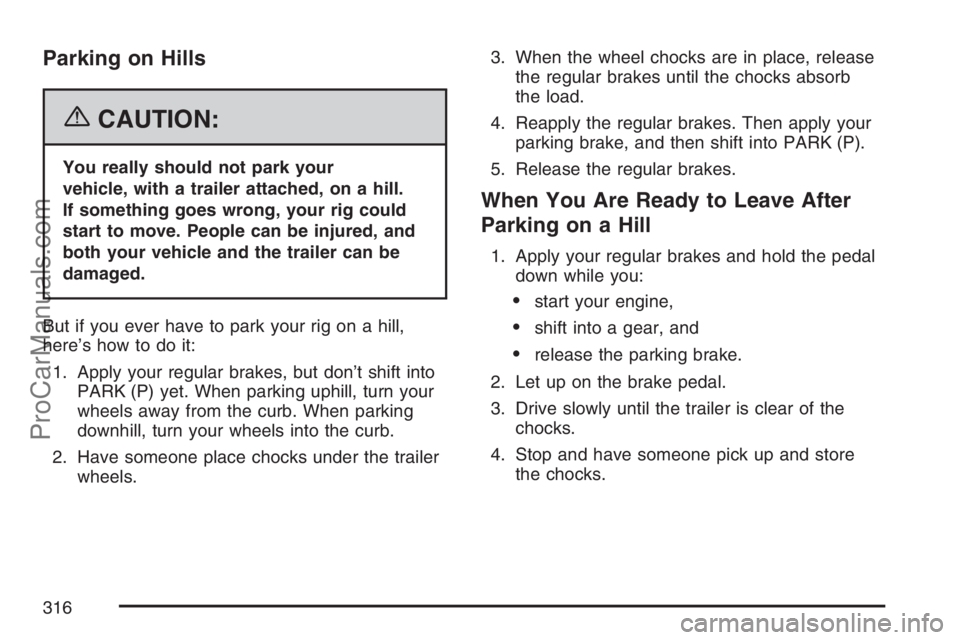

Parking on Hills
{CAUTION:
You really should not park your
vehicle, with a trailer attached, on a hill.
If something goes wrong, your rig could
start to move. People can be injured, and
both your vehicle and the trailer can be
damaged.
But if you ever have to park your rig on a hill,
here’s how to do it:
1. Apply your regular brakes, but don’t shift into
PARK (P) yet. When parking uphill, turn your
wheels away from the curb. When parking
downhill, turn your wheels into the curb.
2. Have someone place chocks under the trailer
wheels.3. When the wheel chocks are in place, release
the regular brakes until the chocks absorb
the load.
4. Reapply the regular brakes. Then apply your
parking brake, and then shift into PARK (P).
5. Release the regular brakes.
When You Are Ready to Leave After
Parking on a Hill
1. Apply your regular brakes and hold the pedal
down while you:
start your engine,
shift into a gear, and
release the parking brake.
2. Let up on the brake pedal.
3. Drive slowly until the trailer is clear of the
chocks.
4. Stop and have someone pick up and store
the chocks.
316
ProCarManuals.com
Page 317 of 498

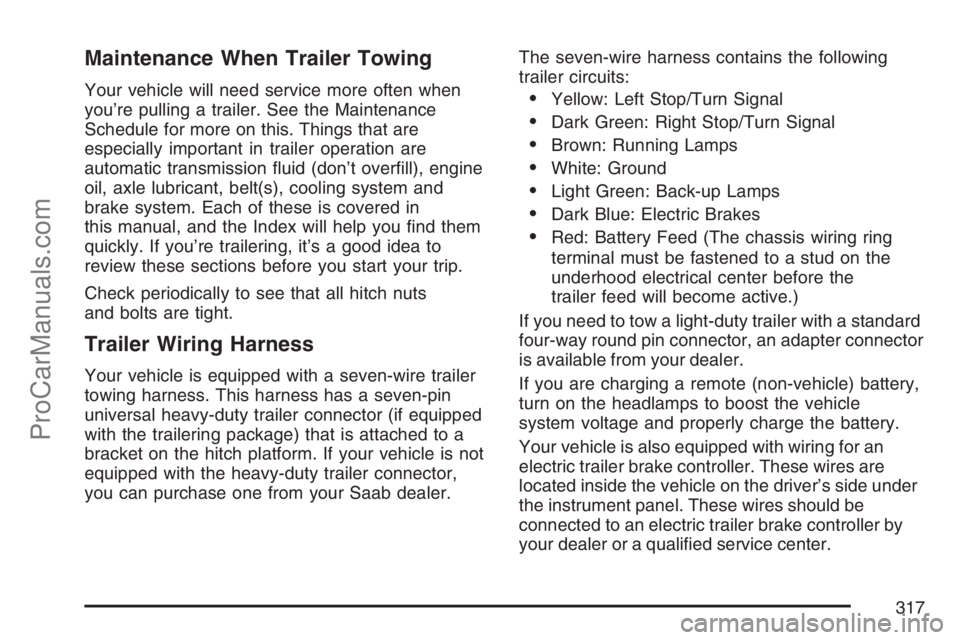

Maintenance When Trailer Towing
Your vehicle will need service more often when
you’re pulling a trailer. See the Maintenance
Schedule for more on this. Things that are
especially important in trailer operation are
automatic transmission uid (don’t over ll), engine
oil, axle lubricant, belt(s), cooling system and
brake system. Each of these is covered in
this manual, and the Index will help you nd them
quickly. If you’re trailering, it’s a good idea to
review these sections before you start your trip.
Check periodically to see that all hitch nuts
and bolts are tight.
Trailer Wiring Harness
Your vehicle is equipped with a seven-wire trailer
towing harness. This harness has a seven-pin
universal heavy-duty trailer connector (if equipped
with the trailering package) that is attached to a
bracket on the hitch platform. If your vehicle is not
equipped with the heavy-duty trailer connector,
you can purchase one from your Saab dealer.The seven-wire harness contains the following
trailer circuits:
Yellow: Left Stop/Turn Signal
Dark Green: Right Stop/Turn Signal
Brown: Running Lamps
White: Ground
Light Green: Back-up Lamps
Dark Blue: Electric Brakes
Red: Battery Feed (The chassis wiring ring
terminal must be fastened to a stud on the
underhood electrical center before the
trailer feed will become active.)
If you need to tow a light-duty trailer with a standard
four-way round pin connector, an adapter connector
is available from your dealer.
If you are charging a remote (non-vehicle) battery,
turn on the headlamps to boost the vehicle
system voltage and properly charge the battery.
Your vehicle is also equipped with wiring for an
electric trailer brake controller. These wires are
located inside the vehicle on the driver’s side under
the instrument panel. These wires should be
connected to an electric trailer brake controller by
your dealer or a quali ed service center.
317
ProCarManuals.com
Page 319 of 498

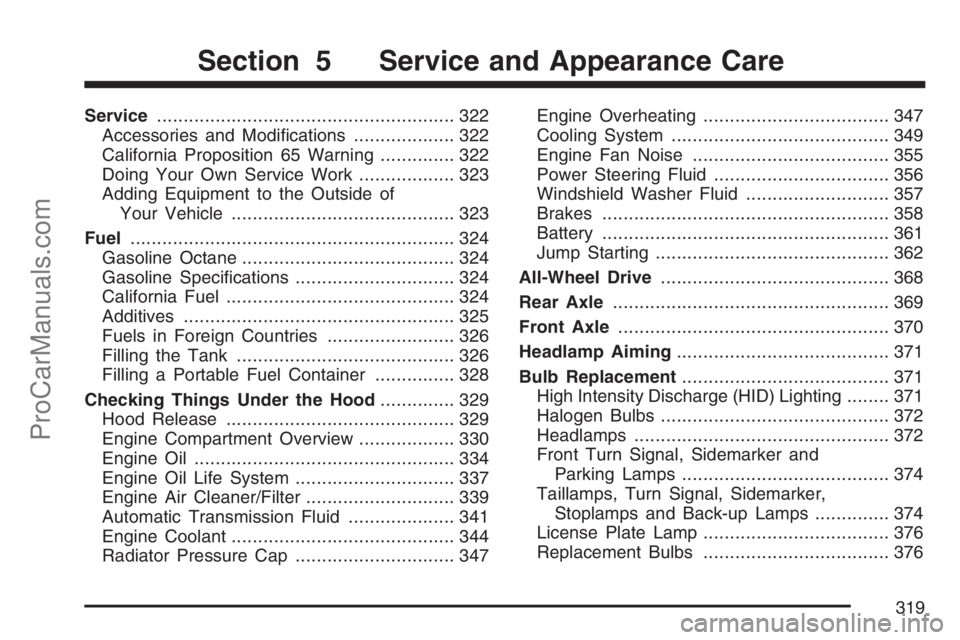

Service........................................................ 322
Accessories and Modi cations................... 322
California Proposition 65 Warning.............. 322
Doing Your Own Service Work.................. 323
Adding Equipment to the Outside of
Your Vehicle.......................................... 323
Fuel............................................................. 324
Gasoline Octane........................................ 324
Gasoline Speci cations.............................. 324
California Fuel........................................... 324
Additives................................................... 325
Fuels in Foreign Countries........................ 326
Filling the Tank......................................... 326
Filling a Portable Fuel Container............... 328
Checking Things Under the Hood.............. 329
Hood Release........................................... 329
Engine Compartment Overview.................. 330
Engine Oil................................................. 334
Engine Oil Life System.............................. 337
Engine Air Cleaner/Filter............................ 339
Automatic Transmission Fluid.................... 341
Engine Coolant.......................................... 344
Radiator Pressure Cap.............................. 347Engine Overheating................................... 347
Cooling System......................................... 349
Engine Fan Noise..................................... 355
Power Steering Fluid ................................. 356
Windshield Washer Fluid........................... 357
Brakes...................................................... 358
Battery...................................................... 361
Jump Starting............................................ 362
All-Wheel Drive........................................... 368
Rear Axle.................................................... 369
Front Axle................................................... 370
Headlamp Aiming........................................ 371
Bulb Replacement....................................... 371
High Intensity Discharge (HID) Lighting........ 371
Halogen Bulbs........................................... 372
Headlamps................................................ 372
Front Turn Signal, Sidemarker and
Parking Lamps....................................... 374
Taillamps, Turn Signal, Sidemarker,
Stoplamps and Back-up Lamps.............. 374
License Plate Lamp................................... 376
Replacement Bulbs................................... 376
Section 5 Service and Appearance Care
319
ProCarManuals.com
Page 392 of 498
As an added safety
feature, your vehicle
has been equipped
with a tire pressure
monitoring system
(TPMS) that illuminates
a low tire pressure
telltale when one
or more of your tires
is signi cantly
under-in ated.
Accordingly, when the low tire pressure telltale
illuminates, you should stop and check your tires
as soon as possible, and in ate them to the
proper pressure. Driving on a signi cantly
under-in ated tire causes the tire to overheat and
can lead to tire failure. Under-in ation also
reduces fuel efficiency and tire tread life, and may
affect the vehicle’s handling and stopping ability.Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver’s
responsibility to maintain correct tire pressure,
even if under-in ation has not reached the level
to trigger illumination of the TPMS low tire
pressure telltale.
Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate when the
system is not operating properly. The TPMS
malfunction indicator is combined with the low tire
pressure telltale. When the system detects a
malfunction, the telltale will ash for approximately
one minute and then remain continuously
illuminated. This sequence will continue upon
subsequent vehicle start-ups as long as the
malfunction exists.
When the malfunction indicator is illuminated,
the system may not be able to detect or
signal low tire pressure as intended. TPMS
malfunctions may occur for a variety of reasons,
including the installation of replacement or
alternate tires or wheels on the vehicle that
prevent the TPMS from functioning properly.
392
ProCarManuals.com
Page 394 of 498
You will have two minutes to match the rst
tire/wheel position, and ve minutes overall to
match all four tire/wheel positions. If it takes longer
than two minutes, to match the rst tire and
wheel, or more than ve minutes to match all
four tire and wheel positions the matching process
stops and you will need to start over.
The TPMS sensor matching process is outlined
below:
1. Set the parking brake.
2. Turn the ignition switch to RUN with the
engine off.
3. Turn the headlamp control from off to parking
lamps four times within three seconds.
A double horn chirp will sound and the TPMS
low tire warning light will begin to ash.
The double horn chirp and ashing TPMS
warning light indicate that the TPMS matching
process has started. The TPMS warning
light should continue ashing throughout the
matching procedure.4. Start with the driver’s side front tire.
5. Remove the valve cap from the valve cap
stem. Activate the TPMS sensor by
increasing or decreasing the tire’s air pressure
for 10 seconds, then stop and listen for a
single horn chirp. The single horn chirp should
sound within 15 seconds, con rming that
the sensor identi cation code has been
matched to this tire and wheel position.
If you do not hear the con rming single horn
chirp, you will need to start over with step
number one. To let air-pressure out of a tire
you can use the pointed end of the valve cap,
a pencil-style air pressure gage, or a key.
6. Proceed to the passenger’s side front tire, and
repeat the procedure in Step 5.
7. Proceed to the passenger’s side rear tire, and
repeat the procedure in Step 5.
8. Proceed to the driver’s side rear tire, and
repeat the procedure in Step 5.
394
ProCarManuals.com
Page 405 of 498

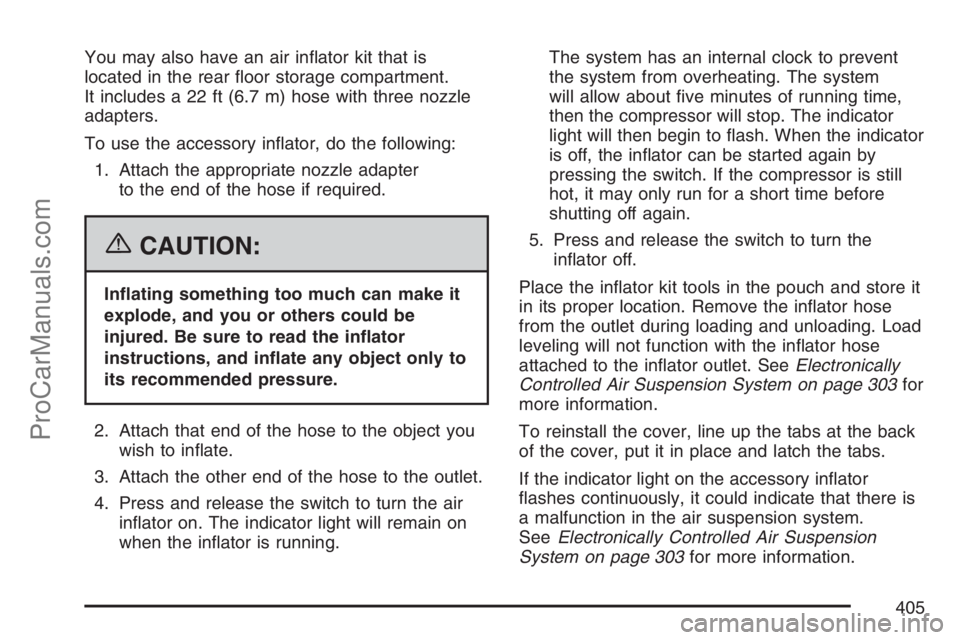

You may also have an air in ator kit that is
located in the rear oor storage compartment.
It includes a 22 ft (6.7 m) hose with three nozzle
adapters.
To use the accessory in ator, do the following:
1. Attach the appropriate nozzle adapter
to the end of the hose if required.
{CAUTION:
In ating something too much can make it
explode, and you or others could be
injured. Be sure to read the in ator
instructions, and in ate any object only to
its recommended pressure.
2. Attach that end of the hose to the object you
wish to in ate.
3. Attach the other end of the hose to the outlet.
4. Press and release the switch to turn the air
in ator on. The indicator light will remain on
when the in ator is running.The system has an internal clock to prevent
the system from overheating. The system
will allow about ve minutes of running time,
then the compressor will stop. The indicator
light will then begin to ash. When the indicator
is off, the in ator can be started again by
pressing the switch. If the compressor is still
hot, it may only run for a short time before
shutting off again.
5. Press and release the switch to turn the
in ator off.
Place the in ator kit tools in the pouch and store it
in its proper location. Remove the in ator hose
from the outlet during loading and unloading. Load
leveling will not function with the in ator hose
attached to the in ator outlet. SeeElectronically
Controlled Air Suspension System on page 303for
more information.
To reinstall the cover, line up the tabs at the back
of the cover, put it in place and latch the tabs.
If the indicator light on the accessory in ator
ashes continuously, it could indicate that there is
a malfunction in the air suspension system.
SeeElectronically Controlled Air Suspension
System on page 303for more information.
405
ProCarManuals.com
Page 438 of 498
J-Case Fuses Usage
14 Trailer Stoplamp/Turn Signal
32 Trailer
33 Anti-lock Brake System
34 Ignition A
35 Driver’s Side Headlamp
36 Blower Motor
56 Air Pump
58 Passenger’s Side Headlamp
62Vehicle Stability Enhancement
System (StabiliTrak
®)
Relays Usage
37 Headlamp Washer
38 Rear Windshield Wiper/Washer
39 Fog Lamps
40 Horn
41 Fuel Pump
Relays Usage
42 Windshield Washer
43 High-Beam Headlamp
44 Air Conditioning
45 Cooling Fan
46 Headlamp Driver Module
47 Starter
49 Electric Adjustable Pedals
55 Air Injection Reactor Solenoid
59 Low-Beam Headlamp
60 Ignition 1
61 Powertrain
62Vehicle Stability Enhancement
System (StabiliTrak
®)
Misc. Usage
48 Instrument Panel Battery
438
ProCarManuals.com
Page 441 of 498
J-Case Fuses Usage
17 Trailer Turn Signal, Stoplamps
32 Trailer
33 Anti-lock Brake System
34 Ignition A
35 Blower Motor
36 Driver’s Side Headlamp
62 Passenger’s Side Headlamp
65Vehicle Stability Enhancement
System (StabiliTrak
®)
Relays Usage
37 Headlamp Washer
38 Rear Wiper
39 Fog Lamps
40 Horn
41 Fuel Pump
42 Windshield Washer
Relays Usage
43 High-Beam Headlamp
44 Air Conditioning
45 Cooling Fan
46 Headlamp Driver Module
47 Starter
49 Electric Adjustable Pedals
60 Powertrain
63 Low-Beam Headlamp
64 Ignition 1
Misc. Usage
48 Instrument Panel Battery
441
ProCarManuals.com
Page 496 of 498
Spare Tire................................................... 423
Accessory In ator..................................... 404
Installing.................................................. 410
Removing................................................ 408
Storing..................................................... 420
Speci cations, Capacities............................ 445
Speedometer............................................... 176
StabiliTrak
®System..................................... 271
StabiliTrak®Indicator Light........................... 185
StabiliTrak®Service Light............................. 185
Starting Your Engine................................... 108
Steering...................................................... 276
Steering Wheel Controls, Audio................... 259
Steering Wheel, Tilt Wheel.......................... 151
Storage Areas
Center Console Storage Area................... 140
Cupholder(s)............................................ 139
Glove Box................................................ 139
Luggage Carrier....................................... 141
Overhead Console................................... 140
Rear Floor Storage Lid............................ 142
Stuck in Sand, Mud, Ice, or Snow............... 295
Sun Visors.................................................. 101
Suspension................................................. 303
T
Tachometer................................................. 176
Taillamps
Turn Signal, Sidemarker, Stoplamps,
and Back-Up Lamps............................. 374
Theft-Deterrent, Radio................................. 258
Theft-Deterrent Systems.............................. 101
Content Theft-Deterrent............................ 102
PASS-Key
®III .......................................... 103
PASS-Key®III Operation.......................... 104
Throttle, Adjustable...................................... 110
Tilt Wheel.................................................... 151
Tire
Pressure Light.......................................... 186
Tires........................................................... 380
Aluminum Wheels, Cleaning..................... 429
Buying New Tires..................................... 398
Chains..................................................... 404
Changing a Flat Tire................................ 406
Cleaning.................................................. 430
Different Size........................................... 400
High-Speed Operation.............................. 390
If a Tire Goes Flat................................... 406
In ation - Tire Pressure............................ 388
In ator, Accessory.................................... 404
Inspection and Rotation............................ 396
Installing the Spare Tire........................... 410
496
ProCarManuals.com
