SATURN ASTRA 2009 Owners Manual

A.Engine Air Cleaner/Filter on
page 9-11.
B. Engine Oil Fill Cap.Engine Oil
on page 9-7.
C. Brake Fluid Reservoir.Brakes
on page 9-22.
D. Coolant Reservoir.Cooling
System on page 9-12.
E. Coolant Reservoir Pressure Cap.
Pressure Cap on page 9-18.
F.Engine Compartment Fuse Block
on page 9-35.
G.Battery on page 9-25.
H.Windshield Washer Fluid on
page 9-20.
I. Engine Oil Dipstick.Engine Oil
on page 9-7.Engine Oil
If the low oil level light appears on
the instrument cluster, check the
engine oil level right away. SeeLow
Oil Level Light on page 4-22.
Check the engine oil level regularly;
this is just a reminder.
Checking Engine Oil
It is a good idea to check the
engine oil level at each fuel ll.
In order to get an accurate reading,
the oil must be warm and the
vehicle must be on level ground.The engine oil dipstick handle
is a yellow loop. SeeEngine
Compartment Overview on page 9-6
for the location of the engine oil
dipstick.
1. Turn off the engine and give the
oil several minutes to drain back
into the oil pan. If this is not
done, the oil dipstick might not
show the actual level.
2. Pull the dipstick and clean it with
a paper towel or cloth, then push
it back in all the way. Remove
it again, keeping the tip down and
check the level.
Vehicle Service and Care 9-7
ProCarManuals.com

When to Add Engine Oil
If the oil is below the MIN (minimum)
mark, add at least one quart/liter of
the recommended oil. This section
explains what kind of oil to use.
For engine oil crankcase capacity,
seeCapacities and Specifications
on page 10-2.
Notice:Do not add too much oil.
If the engine has so much oil
that the oil level gets above the
upper mark that shows the proper
operating range, the engine
could be damaged.
SeeEngine Compartment Overview
on page 9-6for the location of the
engine oil ll cap.
Add enough oil to put the level
somewhere in the proper operating
range. Push the dipstick all the
way back in when through.

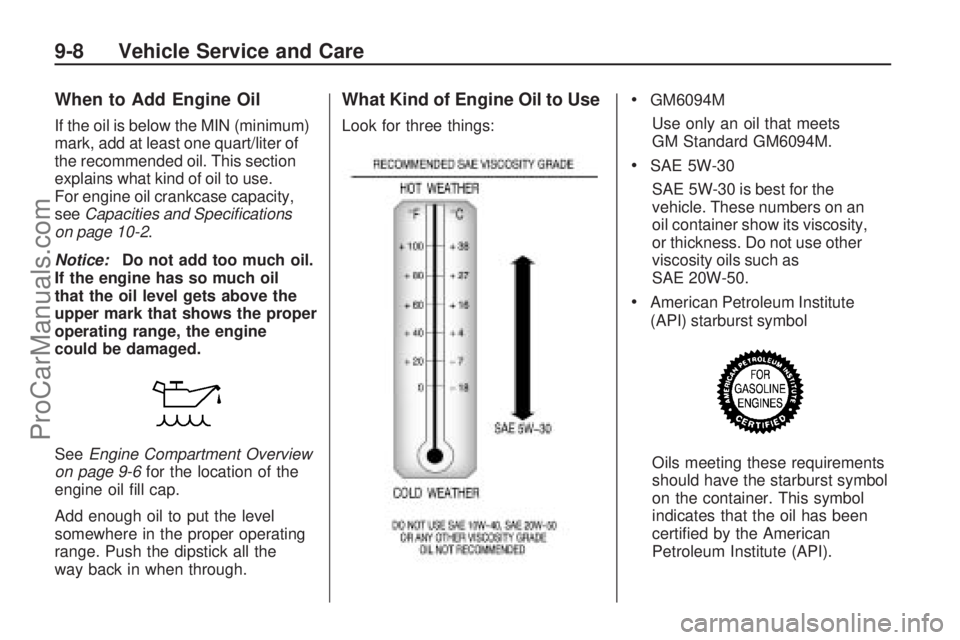

What Kind of Engine Oil to Use
Look for three things:
GM6094M
Use only an oil that meets
GM Standard GM6094M.
SAE 5W-30
SAE 5W-30 is best for the
vehicle. These numbers on an
oil container show its viscosity,
or thickness. Do not use other
viscosity oils such as
SAE 20W-50.
American Petroleum Institute
(API) starburst symbol
Oils meeting these requirements
should have the starburst symbol
on the container. This symbol
indicates that the oil has been
certied by the American
Petroleum Institute (API).
9-8 Vehicle Service and Care
ProCarManuals.com

Notice:Use only engine oil
identied as meeting GM Standard
GM6094M and showing the
American Petroleum Institute
Certied For Gasoline Engines
starburst symbol. Failure to use
the recommended oil can result
in engine damage not covered by
the vehicle warranty.
Cold Temperature Operation
If in an area of extreme cold, where
the temperature falls below−20°F
(−29°C), use either an SAE 5W-30
synthetic oil or an SAE 0W-30
engine oil. Both provide easier cold
starting for the engine at extremely
low temperatures. Always use
an oil that meets the required
specication, GM6094M.
See “What Kind of Engine Oil to
Use” for more information.
Engine Oil Additives / Engine
Oil Flushes
Do not add anything to the oil.
The recommended oils with
the starburst symbol that meet
GM Standard GM6094M are all that
is needed for good performance
and engine protection.
Engine oil system ushes are not
recommended and could cause
engine damage not covered by the
vehicle warranty.
Engine Oil Life System
When to Change Engine Oil
This vehicle has a computer system
that indicates when to change the
engine oil and lter. This is based on
engine revolutions and engine
temperature, and not on mileage.
Based on driving conditions,
the mileage at which an oil change
is indicated can vary considerably.
For the oil life system to work
properly, the system must be reset
every time the oil is changed.When the system has calculated
that oil life has been diminished,
it indicates that an oil change
is necessary. The letters InSP will
appear in the odometer display.
Change the oil as soon as possible
within the mileage indicated on
the display. If driving under the
best conditions, the oil life system
might indicate that an oil change
is necessary once a year.
The engine oil and lter must be
changed at least once a year and
at this time the system must be
reset. Your dealer/retailer has
trained service people who will
perform this work using genuine
parts and reset the system. It is also
important to check the oil regularly
and keep it at the proper level.
If the system is ever reset
accidentally, the oil must be
changed at 3,000 miles (5 000 km)
since the last oil change.
Remember to reset the oil life
system whenever the oil is changed.
Vehicle Service and Care 9-9
ProCarManuals.com

How to Reset the Engine Oil
Life System
The Engine Oil Life System
calculates when to change the
engine oil and lter based on vehicle
use. Whenever the oil is changed,
reset the system so it can calculate
when the next oil change is required.
If a situation occurs where the oil is
changed prior to the letters InSP
appearing in the odometer display,
reset the system.
After changing the engine oil, reset
the system:
1. Turn the ignition key to
LOCK/OFF.
2. Press the instrument panel
cluster stem until the odometer is
displayed, then release the stem.3. Re-press and hold the cluster
stem until the letters InSP are
displayed.
4. Press and hold the brake pedal
down, hold the cluster stem
down, and turn the ignition key
to ON/RUN.
5. The letters InSP in the instrument
panel cluster display will ash.
6. Keep the cluster stem down for
at least 10 seconds and release
the stem and the brake pedal
when the message “new
remaining milage” is displayed.
What to Do with Used Oil
Used engine oil contains certain
elements that can be unhealthy for
your skin and could even cause
cancer. Do not let used oil stay on
your skin for very long. Clean your
skin and nails with soap and water,
or a good hand cleaner. Wash or
properly dispose of clothing or rags
containing used engine oil. See the
manufacturer’s warnings about the
use and disposal of oil products.
Used oil can be a threat to the
environment. If you change your own
oil, be sure to drain all the oil from the
lter before disposal. Never dispose
of oil by putting it in the trash, pouring
it on the ground, into sewers, or into
streams or bodies of water. Recycle
it by taking it to a place that collects
used oil.
9-10 Vehicle Service and Care
ProCarManuals.com

Engine Air Cleaner/Filter
SeeEngine Compartment Overview
on page 9-6for the location of
the engine air cleaner/lter.
When to Inspect the Engine
Air Cleaner/Filter
Inspect the air cleaner/lter at the
MaintenanceIIintervals and replace
it at the rst oil change after each
50,000 mile (83 000 km) interval.
See “Schedule Maintenance”
in Service and Maintenance formore information. If you are driving
in dusty/dirty conditions, inspect
the lter at each engine oil change.
How to Inspect the Engine
Air Cleaner/Filter
To inspect the air cleaner/lter,
remove the lter from the vehicle
and lightly shake the lter to release
loose dust and dirt. If the lter
remains caked with dirt, a new lter
is required.
To inspect or replace the engine air
cleaner/lter.
1. Remove the screws that hold the
cover on.
2. Disconnect the electrical
connector.
3. Lift off the cover.
4. Inspect or replace the engine air
cleaner/lter.
5. Reverse Steps 1 through 3 to
reinstall the cover and reconnect
the electrical connector.
{CAUTION
Operating the engine with the air
cleaner/lter off can cause you
or others to be burned. The air
cleaner not only cleans the air; it
helps to stop ames if the engine
backres. If it is not there and the
engine backres, you could be
burned. Do not drive with it off, and
be careful working on the engine
with the air cleaner/lter off.
Notice:If the air cleaner/lter
is off, a backre can cause
a damaging engine re. And, dirt
can easily get into the engine,
which will damage it. Always have
the air cleaner/lter in place when
you are driving.
Vehicle Service and Care 9-11
ProCarManuals.com

Automatic Transmission
Fluid
It is not necessary to check
the transmission uid level.
A transmission uid leak is the
only reason for uid loss. If a leak
occurs, take your vehicle to the
dealer/retailer service department
and have it repaired as soon
as possible.
Change the uid and lter at the
intervals listed in the Maintenance
Schedule. See “Additional
Required Services” in Service and
Maintenance. Be sure to use
the transmission uid listed in
“Recommended Fluids and
Lubricants” in Service and
Maintenance.
Notice:Use of the incorrect
automatic transmission uid
may damage your vehicle, and
the damages may not be
covered by your warranty.See “Recommended Fluids and
Lubricants” in the Limited
Warranty, Maintenance and Owner
Assistance Information manual.
Manual Transmission
Fluid
It is not necessary to check the
manual transmission uid level.
A transmission uid leak is the
only reason for uid loss. If a leak
occurs, take the vehicle to the
dealer/retailer service department
and have it repaired as soon
as possible. You may also have
your uid level checked by your
dealer/retailer when you have
your oil changed. See “Part D:
Recommended Fluids and
Lubricants” in Service and
Maintenance for the proper uid
to use.
Hydraulic Clutch
The hydraulic clutch linkage in
your vehicle is self-adjusting.
This system does not have its own
reservoir. It receives uid from
the brake master cylinder reservoir.
SeeBrakes on page 9-22for
more information.
Cooling System
When you decide it is safe to lift the
hood, this is what you see:
A.
Coolant Reservoir
B.Coolant Reservoir Pressure Cap
C.Engine Cooling Fans (Out of view)
9-12 Vehicle Service and Care
ProCarManuals.com

{CAUTION
An electric engine cooling fan
under the hood can start up even
when the engine is not running and
can cause injury. Keep hands,
clothing, and tools away from any
underhood electric fan.
If the coolant inside the coolant
reservoir is boiling, do not do
anything else until it cools down.
The vehicle should be parked on a
level surface.
The coolant level should be at or
above the KALT/COLD mark on the
coolant reservoir. If it is not, you
may have a leak at the coolant
reservoir pressure cap or in the
radiator hoses, heater hoses,
radiator, water pump, or somewhere
else in the cooling system.
{CAUTION
Heater and radiator hoses, and
other engine parts, can be very
hot. Do not touch them. If you do,
you can be burned.
Do not run the engine if there is a
leak. If you run the engine, it
could lose all coolant. That could
cause an engine re, and you
could be burned. Get any leak
xed before you drive the vehicle.
If there seems to be no leak,
with the engine on, check to see
if the electric engine cooling fans are
running. If the engine is overheating,
both fans should be running.
If they are not, your vehicle needs
service.Notice:Engine damage from
running the engine without
coolant is not covered by the
warranty.
Notice:Using coolant other
than DEX-COOL
®can cause
premature engine, heater core, or
radiator corrosion. In addition,
the engine coolant could require
changing sooner, at 30,000 miles
(50 000 km) or 24 months,
whichever occurs rst.
Any repairs would not be
covered by the vehicle warranty.
Always use DEX-COOL
®
(silicate-free) coolant in the
vehicle.
Vehicle Service and Care 9-13
ProCarManuals.com

How to Add Coolant to the
Coolant Reservoir
Notice:This vehicle has a
specic coolant ll procedure.
Failure to follow this procedure
could cause the engine to
overheat and be severely
damaged.
If you have not found a problem yet,
check to see if coolant is visible
in the coolant reservoir. If coolant is
visible but the coolant level is not
at or above the KALT/COLD mark,
add a 50/50 mixture of clean,
drinkable water and DEX-COOL
®
coolant at the coolant reservoir,
but be sure the cooling system,
including the coolant reservoir
pressure cap, is cool before you
do it. SeeEngine Coolant on
page 9-16for more information.If no coolant is visible in the coolant
reservoir, add coolant as follows:
{CAUTION
Steam and scalding liquids from a
hot cooling system can blow out
and burn you badly. They are
under pressure, and if you turn
the coolant reservoir pressure
cap — even a little — they can
come out at high speed. Never
turn the cap when the cooling
system, including the coolant
reservoir pressure cap, is hot.
Wait for the cooling system and
coolant reservoir pressure cap to
cool if you ever have to turn the
pressure cap.
{CAUTION
Adding only plain water to the
cooling system can be dangerous.
Plain water, or some other liquid
such as alcohol, can boil before
the proper coolant mixture will.
The vehicle’s coolant warning
system is set for the proper
coolant mixture. With plain water
or the wrong mixture, the engine
could get too hot but you would
not get the overheat warning.
The engine could catch re and
you or others could be burned.
Use a 50/50 mixture of clean,
drinkable water and DEX-COOL
®
coolant.
Notice:In cold weather, water
can freeze and crack the engine,
radiator, heater core and other
parts. Use the recommended
coolant and the proper coolant
mixture.
9-14 Vehicle Service and Care
ProCarManuals.com

{CAUTION
You can be burned if you spill
coolant on hot engine parts.
Coolant contains ethylene glycol
and it will burn if the engine parts
are hot enough. Do not spill
coolant on a hot engine.
1. Remove the coolant reservoir
pressure cap when the cooling
system, including the coolant
reservoir pressure cap and upper
radiator hose, is no longer hot.
Turn the coolant reservoir
pressure cap slowly
counterclockwise about two or
two and one-half turns.
If you hear a hiss, wait for that
to stop. This will allow any
pressure still left to be vented
out the discharge hose.2. Keep turning the coolant
reservoir pressure cap slowly,
and remove it.
3. Fill the coolant reservoir with
the proper mixture, to the
KALT/COLD mark. Wait about
ve minutes, then check to see
if the level is below the mark.
If the level is below the
KALT/COLD mark, add additional
coolant to bring the level up to
the mark. Repeat this procedure
until the level remains constant
at the KALT/COLD mark for
at least ve minutes.4. With the coolant reservoir
pressure cap off, start the
engine and let it run until you
can feel the upper radiator hose
getting hot. Watch out for the
engine cooling fans.
By this time, the coolant level
inside the coolant reservoir might
be lower. If the level is lower
than the KALT/COLD mark,
add more of the proper
mixture to the coolant reservoir
until the level reaches the
KALT/COLD mark.
5. Replace the coolant reservoir
pressure cap. Be sure the
pressure cap is hand-tight and
fully seated. Coolant Reservoir Pressure Cap
Vehicle Service and Care 9-15
ProCarManuals.com

Engine Coolant
The cooling system in your vehicle
is lled with DEX-COOL®engine
coolant. This coolant is designed to
remain in your vehicle for ve years
or 150,000 miles (240 000 km),
whichever occurs rst, if you add
only DEX-COOL
®extended life
coolant.
The following explains your cooling
system and how to add coolant
when it is low. If you have a problem
with engine overheating, see
Engine Overheating on page 9-18.
A 50/50 mixture of clean, drinkable
water and DEX-COOL
®coolant will:
Give freezing protection down to
−34°F (−37°C).
Give boiling protection up to
265°F (129°C).
Protect against rust and
corrosion.
Help keep the proper engine
temperature.
Let the warning lights and gages
work as they should.
Notice:Using coolant other than
DEX-COOL
®can cause premature
engine, heater core, or radiator
corrosion. In addition, the engine
coolant may require changing
sooner, at the rst maintenance
service after each 30,000 miles
(50 000 km) or 24 months,
whichever occurs rst. Any
repairs would not be covered by
the vehicle warranty. Always
use DEX-COOL
®(silicate-free)
coolant in the vehicle.
What to Use
Use a mixture of one-half clean,
drinkable water and one-half
DEX-COOL
®coolant which will not
damage aluminum parts. If you
use this coolant mixture, you do not
need to add anything else.
{CAUTION
Adding only plain water to the
cooling system can be dangerous.
Plain water, or some other liquid
such as alcohol, can boil before
the proper coolant mixture will.
The vehicle’s coolant warning
system is set for the proper
coolant mixture. With plain water
or the wrong mixture, the engine
could get too hot but would not
get the overheat warning. The
engine could catch re and you or
others could be burned. Use a
50/50 mixture of clean, drinkable
water and DEX-COOL
®coolant.
9-16 Vehicle Service and Care
ProCarManuals.com
