For vehicles with OnStar®, the
audio system will only turn off
if the ignition is OFF and OnStar
is not in use when the Ignition
Logic system is enabled.
The Ignition Logic is preset to turn
off the audio system when the
ignition is turned off. To enable or
disable Ignition Logic:
1. Press SETTINGS until Audio
displays.
2. Press
\until System displays.
3. Press OK until Ign. Logic
ON or Ign. Logic OFF displays.
4. Press
\or]to select the
setting. The setting is saved
automatically.
Press SETTINGS again to
move back one level in
the menu.
Press FM/AM, CD/MP3, or
BC to turn on that feature.Audio displays and the system
starts to play if SETTINGS, FM/AM,
CD/MP3, or BC is not pressed
within ve seconds after the setting
is saved.
System Display
The following information shows on
the system display:
FM or AM, and the current
station frequency if the radio is
active.
The station name displays if RDS
is activated.
AS displays if the AS level is
activated.
CD displays, and the CD title
number or the CD title name
if the CD player is active.
MP3 displays if the CD is an
MP3 CD.
RDM displays if the CD is being
played in random mode.
The most recent selected audio
source plays when the audio system
is turned on and the display is lit.The outside temperature, time, and
date display when the audio
system is turned off and the ignition
is ON/RUN, seeDriver Information
Center (DIC) on page 4-25.
Audio Settings
The audio settings can be set for
each audio source and are
stored separately for each radio
station and the CD player.
Adjusting the Tone (Bass/Treble)
To adjust the Bass:
1. Press SOUND until Bass
appears.
2. Press
\or]to adjust the level
from -12 through +12. The
setting is saved automatically.
Press SETTINGS again to go
back one level in the menu.
Press FM/AM, CD/MP3, or BC to
display that function.
Infotainment 6-3
ProCarManuals.com

To change the display:
1. Press CD/MP3 twice, CD info
appears on the display.
2. Press
\or]to select the
display type.
3. After about ve seconds, the
selected display type is saved.
Playing an MP3
CD/MP3:Press to play an MP3 CD
that is already loaded into the CD
player while the radio is playing.
Selecting a Track
\or]:Press to go to the next or
previous track. Press and hold to
fast forward or fast rewind within a
track. During fast forward, the
CD plays at a higher speed and a
reduced volume.
Z:Press to eject a CD, Eject CD
appears on the display and the
radio begins playing.Selecting an Album
To select a different album when
the MP3 CD contains several
albums:
1. Press CD/MP3.
2. Press
\or]until the desired
album displays.
Random Mode
MP3 CD can be played in the
following random modes:
Random album: Tracks from the
selected album are played
randomly.
Random CD: All tracks from all
albums are played randomly.
Random Off: Turns off
random play.
To use random:
1. Press CD/MP3 three times.
2. Press
\or]to select between
Random album, Random CD
and Random Off.RDM shows on the display when
random is use.
Care of CD’s and the CD
Player
Care of CDs
Store CDs in their original cases or
other protective cases and away
from direct sunlight and dust.
The CD player scans the bottom of
the disc. If the bottom of a CD is
damaged it may not play properly or
at all. Do not touch the bottom of
a CD while handling it. Pick up CDs
by grasping the outer edges or
the edge of the hole and the
outer edge.
If the surface of a CD is dirty, take a
soft, lint free cloth or dampen a
clean, soft cloth in a mild, neutral
detergent solution mixed with water,
and clean it. Make sure the wiping
process starts from the center to
the edge.
Infotainment 6-9
ProCarManuals.com

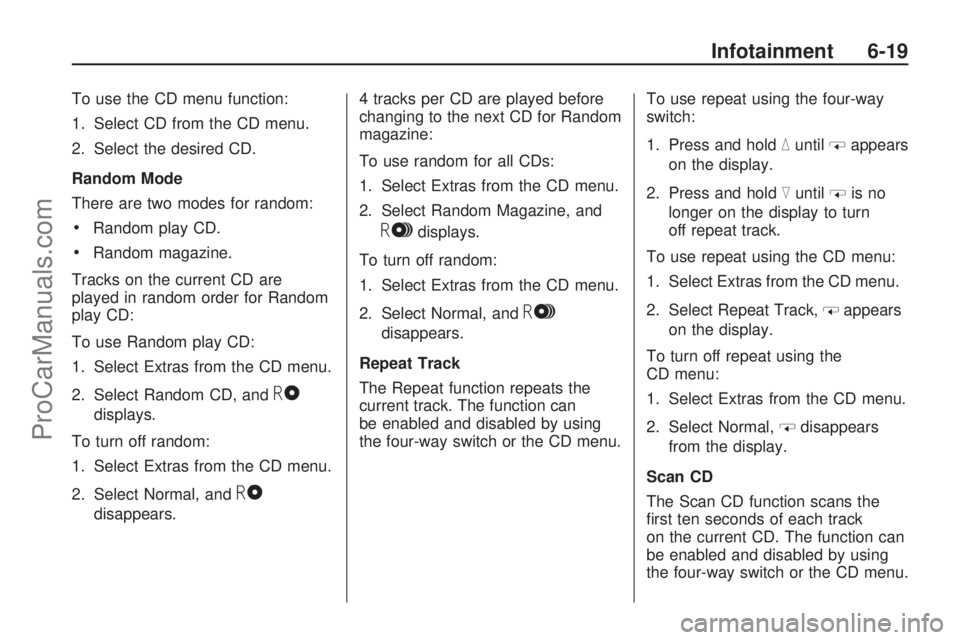

To use the CD menu function:
1. Select CD from the CD menu.
2. Select the desired CD.
Random Mode
There are two modes for random:
Random play CD.
Random magazine.
Tracks on the current CD are
played in random order for Random
play CD:
To use Random play CD:
1. Select Extras from the CD menu.
2. Select Random CD, and
T
displays.
To turn off random:
1. Select Extras from the CD menu.
2. Select Normal, and
T
disappears.4 tracks per CD are played before
changing to the next CD for Random
magazine:
To use random for all CDs:
1. Select Extras from the CD menu.
2. Select Random Magazine, and
Udisplays.
To turn off random:
1. Select Extras from the CD menu.
2. Select Normal, and
U
disappears.
Repeat Track
The Repeat function repeats the
current track. The function can
be enabled and disabled by using
the four-way switch or the CD menu.To use repeat using the four-way
switch:
1. Press and hold
_untilSappears
on the display.
2. Press and hold
^untilSis no
longer on the display to turn
off repeat track.
To use repeat using the CD menu:
1. Select Extras from the CD menu.
2. Select Repeat Track,
Sappears
on the display.
To turn off repeat using the
CD menu:
1. Select Extras from the CD menu.
2. Select Normal,
Sdisappears
from the display.
Scan CD
The Scan CD function scans the
rst ten seconds of each track
on the current CD. The function can
be enabled and disabled by using
the four-way switch or the CD menu.
Infotainment 6-19
ProCarManuals.com

Winter Driving Mode
This feature helps you accelerate in
slippery driving conditions by using
3 (Third) gear when you begin to
accelerate from a stopped position.
The winter driving mode button is
located on the center console.
Press once to turn on the winter
driving mode feature. The vehicle
will be in 3 (Third) gear when
the vehicle begins to move. Once
the vehicle is moving, the vehicle will
upshift normally.The Winter Driving Mode is turned
off by one of the following:Pressing the winter driving mode
button again.
Manually shifting to 2 (Second)
or 1 (First) gear.
Turning off the ignition.
To protect the transmission, the
winter program turns off
automatically at high transmission
oil temperatures.
Automatic Neutral Idle
The Automatic Neutral Idle shift
function automatically sets the
transmission to N (Neutral) to
reduce fuel consumption when the
vehicle is not moving.Automatic neutral is activated when
ALL of the following occurs:
The selector lever is in D (Drive),
3 (Third), 2 (Second) or
1 (First) gear.
The foot brake is pressed.
The vehicle is stopped.
The accelerator pedal is not
pressed.
The transmission uid
temperature is greater than
0° C (32° F).
The road is not steeper than 15°.
When you release the brake with
the transmission in gear, you
may feel the transmission shift from
N (Neutral) to D (Drive)
automatically. You may also feel the
transmission shift from D (Drive)
to N (Neutral) when the brake
is applied. This is normal operation
of the automatic transmission.
8-8 Driving and Operating
ProCarManuals.com

Maximum Loaded Vehicle
Weight:The sum of curb
weight, accessory weight,
vehicle capacity weight, and
production options weight.
Normal Occupant Weight
:The number of occupants
a vehicle is designed to seat
multiplied by 150 lbs (68 kg).
SeeLoading the Vehicle
on page 8-30.
Occupant Distribution
:Designated seating positions.
Outward Facing Sidewall
:The side of an asymmetrical tire
that has a particular side that
faces outward when mounted on
a vehicle. The side of the tire
that contains a whitewall,
bears white lettering, or bears
manufacturer, brand, and/or
model name molding that
is higher or deeper than the
same moldings on the
other sidewall of the tire.Passenger (P-Metric) Tire
:A tire used on passenger
cars and some light duty trucks
and multipurpose vehicles.
Recommended Ination
Pressure
:Vehicle
manufacturer’s recommended
tire ination pressure as
shown on the tire placard.
SeeInflation - Tire Pressure
on page 9-47andLoading the
Vehicle on page 8-30.
Radial Ply Tire
:A pneumatic
tire in which the ply cords
that extend to the beads are laid
at 90 degrees to the centerline
of the tread.
Rim
:A metal support for a tire
and upon which the tire beads
are seated.
Sidewall
:The portion of a tire
between the tread and the bead.
Speed Rating
:An alphanumeric
code assigned to a tire
indicating the maximum speed
at which a tire can operate.Traction
:The friction between
the tire and the road surface.
The amount of grip provided.
Tread
:The portion of a tire that
comes into contact with the road.
Treadwear Indicators
:Narrow
bands, sometimes called
wear bars, that show across
the tread of a tire when only
1/16 inch (1.6 mm) of tread
remains. SeeWhen It Is Time
for New Tires on page 9-54.
UTQGS (Uniform Tire Quality
Grading Standards)
:A tire
information system that provides
consumers with ratings for a
tire’s traction, temperature,
and treadwear. Ratings are
determined by tire manufacturers
using government testing
procedures. The ratings are
molded into the sidewall of the
tire. SeeUniform Tire Quality
Grading on page 9-57.
9-46 Vehicle Service and Care
ProCarManuals.com

Customer Information (cont.)
Reporting Safety Defects
to the United States
Government................12-14
Roadside Assistance
Program.......................12-6
Service Publications
Ordering Information.....12-15
D
Defensive Driving.................8-16
Delayed Headlamps............... 5-2
Doing Your Own
Service Work..................... 9-4
Dome Lamps ........................ 5-3
Door
Ajar Light........................4-23
Locks............................... 2-5
Power Door Locks.............. 2-6
Rear Door Security Locks.... 2-6
Driver Information
Center (DIC)....................4-25
DIC Operation and
Displays...............4-26, 4-32
DIC Warnings and
Messages....................4-36Driving
At Night..........................8-23
Before a Long Trip............8-25
Defensive........................8-16
Drunken..........................8-16
Highway Hypnosis............8-25
Hill and Mountain Roads....8-26
In Rain and on Wet
Roads.........................8-24
Rocking Your Vehicle to
Get it Out ....................8-29
Winter.............................8-27
Winter Mode Light............4-22
Driving for Better Fuel
Economy.........................8-15
E
EDR .................................12-16
Electrical System
Add-On Equipment............9-34
Engine Compartment
Fuse Block...................9-35
Fuses.............................9-35
Headlamp Wiring..............9-34
Rear Compartment Fuse
Block...........................9-37Engine
Air Cleaner/Filter...............9-11
Check and Service Engine
Soon Lamp..................4-18
Coolant...........................9-16
Coolant Temperature
Warning Light...............4-18
Drive Belt Routing...........11-15
Engine Compartment
Overview....................... 9-6
Exhaust...........................8-14
Oil ................................... 9-7
Oil Life System.................. 9-9
Overheating.....................9-18
Starting............................. 8-3
Engine Heater....................... 8-5
Entry Lighting........................ 5-3
Event Data Recorders.........12-16
Extender, Safety Belt............1-22
Exterior Lamps...................... 5-1
Exterior Lamps Off
Reminder........................4-23
INDEX i-3
ProCarManuals.com
