glove box SATURN ASTRA 2009 Owners Manual

Storage
Storage
Glove Box..........................3-1
Cupholders.........................3-1
Sunglasses Storage
Compartment....................3-1
Cargo Cover.......................3-2
Cargo Tie Downs...............3-2

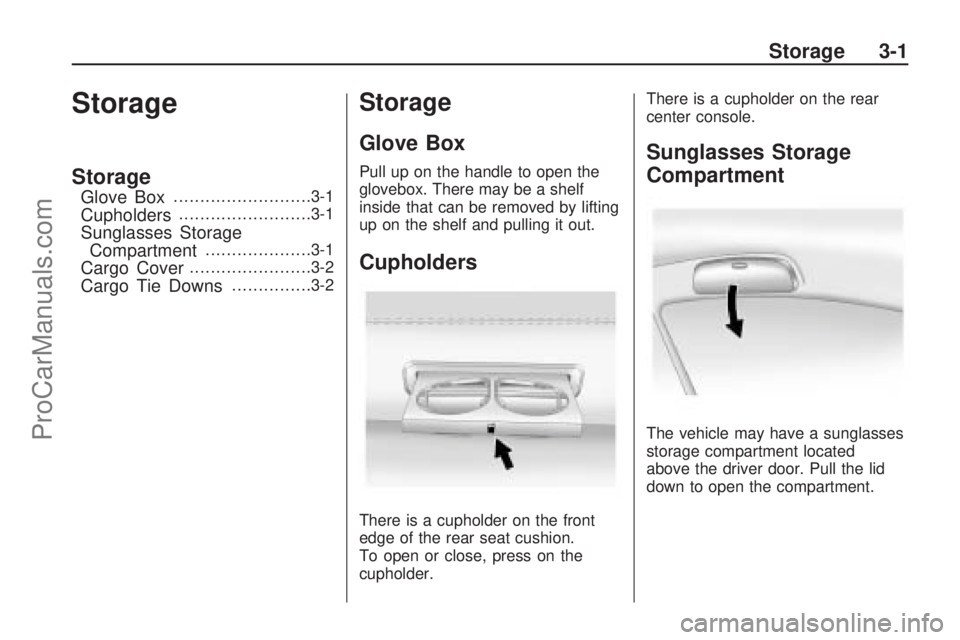

Storage
Glove Box
Pull up on the handle to open the
glovebox. There may be a shelf
inside that can be removed by lifting
up on the shelf and pulling it out.
Cupholders
There is a cupholder on the front
edge of the rear seat cushion.
To open or close, press on the
cupholder.There is a cupholder on the rear
center console.
Sunglasses Storage
Compartment
The vehicle may have a sunglasses
storage compartment located
above the driver door. Pull the lid
down to open the compartment.
Storage 3-1
ProCarManuals.com

The main components of the
instrument panel are the:
A.Exterior Lamps Controls on
page 5-1.
B. Outlets.Outlet Adjustment on
page 7-4.
C.Turn Signal/Multifunction Lever
on page 4-4.
D.DIC Operation and Displays
(Uplevel DIC and Audio) on
page 4-26orDIC Operation and
Displays (Base Level DIC and
Audio) on page 4-32andAudio
Steering Wheel Controls on
page 6-23. (If Equipped)
E.Instrument Panel Cluster on
page 4-12.F.Audio Steering Wheel Controls
on page 6-23. (If Equipped)
G.Windshield Wipers on page 4-8.
H.Heated Seats on page 1-6.
(If Equipped)
I.StabiliTrak
®System on
page 8-19. (If Equipped)
J.Driver Information Center (DIC)
on page 4-25. (If Equipped)
K.Hazard Warning Flashers on
page 4-4.
L.Power Door Locks on page 2-6.
M. Passenger Safety Belt
Reminder.Safety Belt
Reminders on page 4-13.
N. Front Passenger Airbag.
Airbag System on page 1-24.O.Fog Lamps on page 5-2.
(If Equipped)
P.Instrument Panel Brightness
on page 5-3.
Q.Hood Release on page 9-5.
R.Tilt Wheel on page 4-4.
S.Horn on page 4-4.
T.Ignition Positions on page 8-2.
U.Climate Control System on
page 7-1.
V.Accessory Power Outlet(s) on
page 4-10. (Covered)
W.Audio System(s) on page 6-1.
X.Glove Box on page 3-1.
Instruments and Controls 4-3
ProCarManuals.com

OnStar®System
OnStar uses several innovative
technologies and live advisors to
provide a wide range of safety,
security, information, and
convenience services. If the airbags
deploy, the system is designed to
make an automatic call to OnStar
Emergency advisors who can
request emergency services be sent
to your location. If the keys are
locked in the vehicle, call OnStar
at 1-888-4-ONSTAR to have a
signal sent to unlock the doors.
OnStar Hands-Free Calling,
including 30 trial minutes good for
60 days, is available on most
vehicles. OnStar Turn-by-Turn
Navigation service, with one trial
route, is available on most vehicles.Press the OnStar button to have an
OnStar advisor contact Roadside
Service.
OnStar service is provided subject
to the OnStar Terms and Conditions
included in the OnStar Subscriber
glove box literature.
Some services such as Remote
Door Unlock or Stolen Vehicle
Location Assistance may not be
available until the owner of the
vehicle registers with OnStar.
After the rst prepaid year, contact
OnStar to select a monthly or
annual subscription payment plan.
If a payment plan is not selected,
the OnStar system and all services,
including airbag notication and
emergency services, may be
deactivated and no longer available.
For more information visit
onstar.com (U.S.) or onstar.ca
(Canada), or press the OnStar
button to speak with an advisor.Not all OnStar services are available
on all vehicles. To check if this
vehicle is able to provide the
services described below, or for a
full description of OnStar services
and system limitations, see the
OnStar Owner’s Guide in the
glove box or visit onstar.com (U.S.)
or onstar.ca (Canada), contact
OnStar at 1-888-4-ONSTAR
(1-888-466-7827) or TTY
1-877-248-2080, or press the
OnStar button to speak with an
OnStar advisor 24 hours a day,
7 days a week.
OnStar Services Available with
the Safe & Sound Plan

Automatic Notication of Airbag
Deployment
Link to Emergency Services
Roadside Assistance
Stolen Vehicle Location
Assistance
4-38 Instruments and Controls
ProCarManuals.com

Remote Door Unlock/Vehicle
Alert
OnStar Vehicle Diagnostic Email
GM Goodwrench On Demand
Diagnostics (if equipped)
OnStar Hands-Free Calling with
30 trial minutes
OnStar Virtual Advisor (U.S. Only)
OnStar Services Included with
Directions & Connections Plan

All Safe and Sound Plan Services
OnStar Turn-by-Turn Navigation
(If equipped) or Driving
Directions - Advisor delivered
RideAssist
Information and Convenience
Services
OnStar Hands-Free Calling
OnStar Hands-Free Calling allows
eligible OnStar subscribers to
make and receive calls using voice
commands. Hands-Free Calling
is fully integrated into the vehicle,
and can be used with OnStar
Pre-Paid Minute Packages. Most
vehicles include 30 trial minutes
good for 60 days. Hands-Free
Calling can also be linked to a
Verizon Wireless service plan in the
U.S. or a Bell Mobility service
plan in Canada, depending on
eligibility. To nd out more, refer to
the OnStar Owner’s Guide in
the vehicle’s glove box, visit
onstar.com or onstar.ca, or speak
with an OnStar advisor by pressing
the OnStar button or calling
1-888-4-ONSTAR (1-888-466-7827).
OnStar Turn-by-Turn
Navigation
Vehicles with the OnStar
Turn-by-Turn Navigation system
can provide voice-guided driving
directions. Press the OnStar button
to have an OnStar advisor locate
a business or address and download
driving directions to the vehicle.
Voice-guided directions to the
desired destination will play
through the audio system speakers.
See the OnStar Owner’s Guide
for more information.
OnStar Virtual Advisor
OnStar Virtual Advisor is a feature of
OnStar Hands-Free Calling that uses
minutes to access location-based
weather, local traffic reports, and
stock quotes. Press the phone button
and give a few simple voice
commands to browse through the
various topics. See the OnStar
Owner’s Guide for more information.
This feature is only available in the
continental U.S.
Instruments and Controls 4-39
ProCarManuals.com

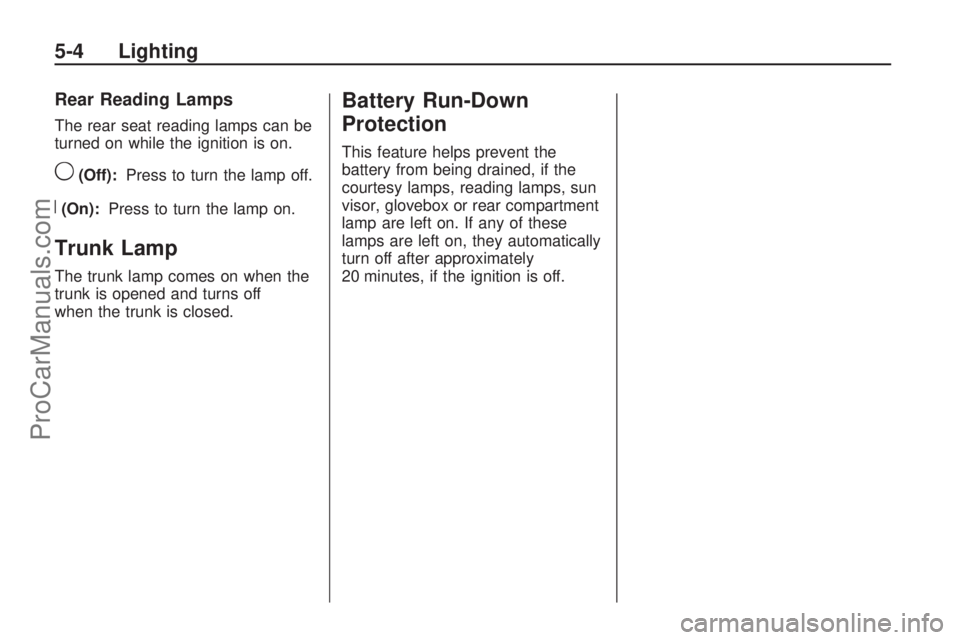

Rear Reading Lamps
The rear seat reading lamps can be
turned on while the ignition is on.
9(Off):Press to turn the lamp off.
R(On):Press to turn the lamp on.
Trunk Lamp
The trunk lamp comes on when the
trunk is opened and turns off
when the trunk is closed.
Battery Run-Down
Protection
This feature helps prevent the
battery from being drained, if the
courtesy lamps, reading lamps, sun
visor, glovebox or rear compartment
lamp are left on. If any of these
lamps are left on, they automatically
turn off after approximately
20 minutes, if the ignition is off.
5-4 Lighting
ProCarManuals.com

Engine Heater
The engine heater can provide
easier starting and better fuel
economy during engine warm-up
in cold weather conditions at or
below−4°F (−20°C). Vehicles with
an engine heater should be plugged
in at least four hours before starting.
To Use the Engine Heater
1. Turn off the engine.
2. The engine heater connector is
located in the passenger side
lower front grille. Open the cover
and insert the 110-volt AC
adapter delivered in the vehicles
glove box.
3. Plug the other end of the adapter
into a grounded 110-volt AC
outlet.{CAUTION
Plugging the cord into an
ungrounded outlet could cause an
electrical shock. Also, the wrong
kind of extension cord could
overheat and cause a re. You
could be seriously injured. Plug
the cord into a properly grounded
three-prong 110-volt AC outlet.
If the cord will not reach, use a
heavy-duty three-prong extension
cord rated for at least 15 amps.
4. Before starting the engine, be
sure to unplug both ends of
the adapter and store the adapter
to prevent damage.
The length of time the heater should
remain plugged in depends on
several factors. Ask a dealer/retailer
in the area where you will be
parking the vehicle for the best
advice on this.
Driving and Operating 8-5
ProCarManuals.com

F
Filter
Engine Air Cleaner............9-11
Final Drive
End Play Measurement....... 5-4
Finish Damage....................9-79
Fixed Mast Antenna.............6-24
Flashers, Hazard Warning....... 4-4
Flash-to-Pass........................ 4-8
Flat Tire..............................9-60
Flat Tire, Changing...............9-61
Flat Tire, Storing..................9-66
Fluid
Automatic Transmission.....9-12
Power Steering.................9-20
Windshield Washer...........9-20
Fog Lamp
Fog .................................. 5-2
Fog Lamp Light...................4-22
Fuel...................................8-34
Additives.........................8-34
California Fuel..................8-34
Driving for Better
Economy......................8-15
Filling a Portable Fuel
Container.....................8-37Fuel (cont.)
Filling the Tank.................8-36
Fuels in Foreign
Countries.....................8-35
Gage ..............................4-24
Gasoline Octane...............8-34
Gasoline Specications......8-34
Low Warning Light............4-24
Fuses.................................9-35
Engine Compartment
Fuse Block...................9-35
Rear Compartment
Fuse Block...................9-37
G
Gage
Fuel................................4-24
Speedometer...................4-13
Tachometer......................4-13
Gasoline
Octane............................8-34
Specications...................8-34
Glove Box............................ 3-1
GM Mobility Reimbursement
Program..........................12-6
H
Hazard Warning Flashers........ 4-4
Head Restraints..................... 1-5
Headlamp
Aiming ............................9-26
Headlamp Wiring.................9-34
Headlamps
Bulb Replacement.............9-28
Daytime Running Lamp....... 5-2
Delayed............................ 5-2
Exterior Lamps................... 5-1
Flash-to-Pass..................... 4-8
Front Turn Signal
Lamps .........................9-28
Halogen Bulbs..................9-28
High/Low Beam Changer..... 4-8
Heater................................. 7-1
Engine.............................. 8-5
Height Adjuster, Seat.............. 1-2
Highbeam On Light..............4-23
High-Speed Operation,
Tires...............................9-48
Highway Hypnosis................8-25
Hill and Mountain Roads.......8-26
Hood
Release............................ 9-5
i-4 INDEX
ProCarManuals.com

S
Safety Belt Reminders..........4-13
Safety Belts.......................... 1-8
Care of ...........................1-23
Check.............................1-22
How to Wear Safety
Belts Properly...............1-12
Lap-Shoulder Belt.............1-18
Replacing Parts After a
Crash..........................1-23
Safety Belt Extender.........1-22
Safety Belt Use During
Pregnancy....................1-22
Scheduled Maintenance........11-3
Seats
Head Restraints................. 1-5
Heated Seats - Rear........... 1-6
Height Adjuster.................. 1-2
Lumbar Adjustment............. 1-3
Rear Seat Operation........... 1-7
Reclining Seatbacks............ 1-3
Securing Child
Restraints................1-51, 1-53Service................................ 9-2
Accessories and
Modications.................. 9-3
Adding Equipment to the
Outside of the Vehicle..... 9-4
California Perchlorate
Materials Requirements.... 9-3
California Proposition 65
Warning......................... 9-3
Doing Your Own Work........ 9-4
Engine Soon Lamp...........4-18
Owner Checks................... 9-4
Publications Ordering
Information.................12-15
Vehicle Soon Light............4-23
Service, Scheduling
Appointments...................12-8
Servicing Your
Airbag-Equipped Vehicle....1-35
Sheet Metal Damage............9-79
Shifting Into Park.................8-11
Shifting Out of Park..............8-12
Signals, Turn and
Lane-Change..................... 4-8Spare Tire
Compact.........................9-68
Installing..........................9-63
Removing........................9-62
Storing............................9-66
Specications, Capacities......10-2
Speedometer.......................4-13
StabiliTrak
®Indicator Light.....4-17
StabiliTrak®System..............8-19
Starting the Engine................ 8-3
Steering..............................8-20
Steering Wheel Controls,
Audio..............................6-23
Steering Wheel, Tilt Wheel...... 4-4
Storage Areas
Cupholders........................ 3-1
Glove Box......................... 3-1
Sunglasses Storage
Compartment.................. 3-1
Stuck in Sand, Mud, Ice, or
Snow..............................8-29
Sun Visors..........................2-11
Sunroof..............................2-12
i-8 INDEX
ProCarManuals.com
