SATURN AURA 2007 Owners Manual

Q(Lock):Press the lock button to lock all the
doors. The interior lamps will turn off after all of the
doors are closed. If enabled through the Driver
Information Center (DIC), the remote lock feedback
can be programmed to have the horn chirp
and/or the turn signals ash when the RKE
transmitter is used to lock the vehicle’s doors. See
“LOCK HORN” and “LIGHT FLASH” underDIC
Vehicle Personalization on page 187for more
information.
Pressing the lock button may also arm the content
theft-deterrent system. SeeContent
Theft-Deterrent on page 103.
K(Unlock):Press the unlock button to unlock the
driver’s door. If the button is pressed again
within ve seconds, all remaining doors unlock.
The interior lamps turn on and stay on for
20 seconds or until the ignition is turned on. If
enabled through the DIC, the remote unlock
feedback can be programmed to have the horn
chirp and/or the turn signals ash when the
RKE transmitter is used to unlock the vehicle’s
doors. See “UNLOCK HORN” and “LIGHT FLASH”
underDIC Vehicle Personalization on page 187
for more information.If enabled through the DIC, and it is dark enough
outside, the vehicle’s high-beam headlamps,
parking lamps, and back-up lamps will turn on
each time the unlock button on the transmitter is
pressed. These exterior lamps will stay on for
20 seconds, or until a door is opened. See “EXT
(Exterior) LIGHTS” underDIC Vehicle
Personalization on page 187for additional
information.
Pressing the unlock button on the RKE transmitter
will disarm the content theft-deterrent system.
SeeContent Theft-Deterrent on page 103.
V(Remote Trunk Release):Press and hold
this button for about one second to open the trunk.
The trunk can be opened with the transmitter
when the vehicle speed is less than 2 mph
(3 km/h) or when the ignition is off.
L(Vehicle Locator/Panic Alarm):Press and
release this button to locate your vehicle. The horn
sounds three times and the headlamps and turn
signals ash three times. Press and hold the
button for about three seconds to initiate the panic
alarm. The horn sounds and the headlamps
and turn signals ash for 30 seconds. Press the
button again to cancel the panic alarm.
91
ProCarManuals.com

Matching Transmitter(s) to Your
Vehicle
Each RKE transmitter is coded to prevent another
transmitter from unlocking your vehicle. If a
transmitter is lost or stolen, a replacement can be
purchased through your retailer. Remember to
bring any remaining transmitters with you
when you go to your retailer. Each vehicle can
have a maximum of four transmitters matched to it.
Battery Replacement
Under normal use, the battery in your RKE
transmitter should last about four years.
The battery is weak if the transmitter does not work
at the normal range in any location. If you have to
get close to your vehicle before the transmitter
works, it is probably time to change the battery.
If the battery is low, a KEY FOB BATT (Battery)
LOW message will display in the vehicle’s DIC.
Notice:When replacing the battery, use
care not to touch any of the circuitry. Static
from your body transferred to these surfaces
may damage the transmitter.To replace the battery in the RKE transmitter do
the following:
1. Insert a at object, with a thin edge, into the
notch located below the vehicle locator/panic
alarm button, and separate the bottom
half from the top half of the transmitter.
2. Remove the battery and replace it with the
new one. Make sure the positive (+) side of
the battery faces up. Use one three-volt,
CR2032, or equivalent, type battery.
92
ProCarManuals.com

3. Put the two halves back together. Make sure
the cover is on tight, so water will not get
inside the transmitter.
4. Test the operation of the transmitter with the
vehicle.
Doors and Locks
Door Locks
{CAUTION:
Unlocked doors can be dangerous.
Passengers, especially children, can
easily open the doors and fall out of a
moving vehicle. When a door is
locked, the handle will not open it.
You increase the chance of being
thrown out of the vehicle in a crash if
the doors are not locked. So, wear
safety belts properly and lock the
doors whenever you drive.
CAUTION: (Continued)
CAUTION: (Continued)

Young children who get into unlocked
vehicles may be unable to get out. A
child can be overcome by extreme
heat and can suffer permanent injuries
or even death from heat stroke.
Always lock your vehicle whenever
you leave it.
Outsiders can easily enter through an
unlocked door when you slow down
or stop your vehicle. Locking your
doors can help prevent this from
happening.
There are several ways to lock and unlock your
vehicle.
From the outside, use your key or Remote
Keyless Entry (RKE) transmitter, if the vehicle has
one. Turn the key counterclockwise to unlock
the door.
From the inside, lock and unlock the door by
moving the manual lock knob down and up, or by
using the power door lock switches.
93
ProCarManuals.com

Power Door Locks
The power door lock switches are located on the
driver’s and front passenger’s door.
Press the outboard side of the switch to unlock all
doors. Press the inboard side of the switch to
lock all doors.
The rear doors do not have power door lock
switches. Rear seat passengers must use
the manual lock knob on their doors.
Door Ajar Reminder
If one of the doors is not fully closed while the
ignition is on and the shift lever is moved out of
PARK (P) or NEUTRAL (N) the following will occur:
A chime will sound.
The DOOR AJAR message will display
through the Driver Information Center (DIC)
until the door is closed. SeeDIC Warnings and
Messages on page 182.
Delayed Locking
This feature allows the driver to delay the locking
of the vehicle. It will not operate with the key
in the ignition. SeeLockout Protection on page 97.
Press the driver’s power door lock switch or the
Remote Keyless Entry (RKE) transmitter lock
button once. With the key removed from the
ignition and the driver’s door open, the following
occurs:
Three chimes sound to signal the delay.
All doors will lock and the turn signals ash
once ve seconds after the last door has
been closed.
The horn chirps if the horn chirp feature is
enabled. SeeDIC Vehicle Personalization
on page 187.
If a door is opened before the ve seconds has
elapsed, the doors do not lock until ve seconds
after all doors are closed.
If the power door lock switch or the transmitter
lock button is pressed twice when leaving
the vehicle, the doors lock immediately.
94
ProCarManuals.com

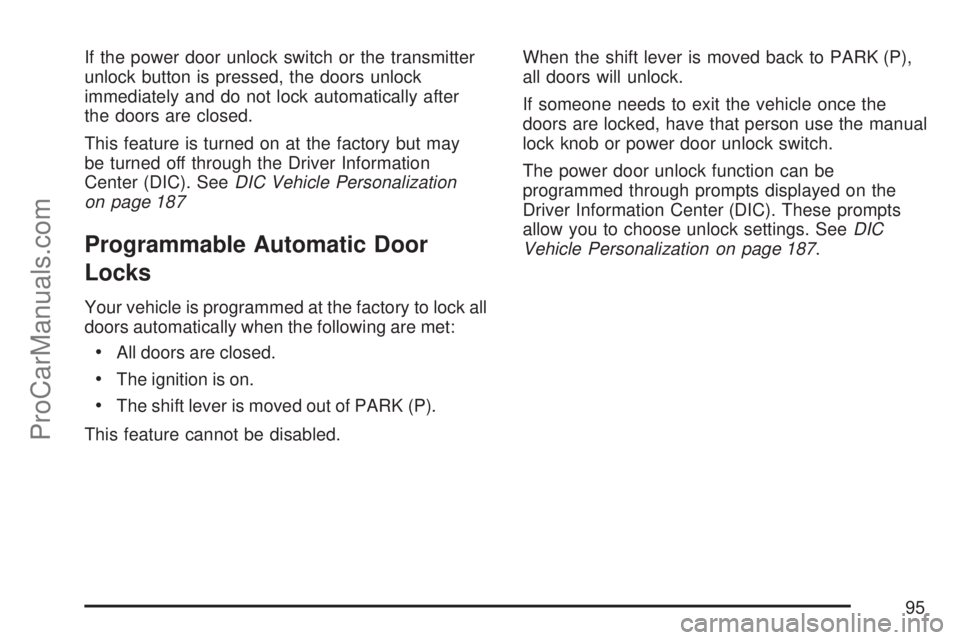

If the power door unlock switch or the transmitter
unlock button is pressed, the doors unlock
immediately and do not lock automatically after
the doors are closed.
This feature is turned on at the factory but may
be turned off through the Driver Information
Center (DIC). SeeDIC Vehicle Personalization
on page 187
Programmable Automatic Door
Locks
Your vehicle is programmed at the factory to lock all
doors automatically when the following are met:
All doors are closed.
The ignition is on.
The shift lever is moved out of PARK (P).
This feature cannot be disabled.When the shift lever is moved back to PARK (P),
all doors will unlock.
If someone needs to exit the vehicle once the
doors are locked, have that person use the manual
lock knob or power door unlock switch.
The power door unlock function can be
programmed through prompts displayed on the
Driver Information Center (DIC). These prompts
allow you to choose unlock settings. SeeDIC
Vehicle Personalization on page 187.
95
ProCarManuals.com

Rear Door Security Locks
Your vehicle has rear door security locks. These
prevent passengers from opening the rear
doors from the inside.
The rear door security
locks are located on the
inside edge of each
rear door.
The rear doors must be open to access them. The
label showing lock and unlock positions is
located near the lock.To set the locks, do the following:
1. Insert the key into the security lock slot and
turn it so the slot is in the horizontal position.
2. Close the door.
When you want to open a rear door when the
security lock is on, do the following:
1. Unlock the door by lifting the rear door
manual lock, using the power door lock switch,
or the Remote Keyless Entry (RKE)
transmitter, if the vehicle has one.
2. Open the door from the outside.
To cancel the rear door security lock, do the
following:
1. Unlock the door and open it from the outside.
2. Insert the key into the security lock slot
and turn it so the slot is in the vertical position.
Security Lock Label
shown
96
ProCarManuals.com

Lockout Protection
This feature prevents the driver’s door from being
locked using the power door locks, if the key is
left in the ignition and a door is open.
Press the power door lock switch to lock all the
doors and then unlock the driver’s door.
Press and hold the power door lock switch for
more than three seconds to override this feature.
If the key is removed from the ignition, or if
the manual door lock or the Remote Keyless Entry
(RKE) transmitter is used, the key could still be
locked inside the vehicle. Always remember
to take the key with you.
Trunk
To open the trunk from the outside, press the
trunk release button on the Remote Keyless
Entry (RKE) transmitter.
{CAUTION:
It can be dangerous to drive with the
trunk lid open because carbon monoxide
(CO) gas can come into your vehicle. You
cannot see or smell CO. It can cause
unconsciousness and even death. If you
must drive with the trunk lid open or if
electrical wiring or other cable
connections must pass through the seal
between the body and the trunk lid:
Make sure all other windows are shut.
Turn the fan on your heating or
cooling system to its highest speed
and select the control setting that will
force outside air into your vehicle. See
Climate Control System.
If you have air outlets on or under
the instrument panel, open them all
the way.
SeeEngine Exhaust on page 123.
97
ProCarManuals.com

Remote Trunk Release
Press the button located
on the driver’s door
near the map pocket to
open the trunk.
The trunk can only be opened while the vehicle is
in PARK (P).
Emergency Trunk Release Handle
Notice:Do not use the emergency trunk
release handle as a tie-down or anchor point
when securing items in the trunk as it
could damage the handle. The emergency
trunk release handle is only intended to aid a
person trapped in a latched trunk, enabling
them to open the trunk from the inside.
There is a glow-in-the-dark emergency trunk
release handle located inside the trunk on
the trunk latch. This handle glows following
exposure to light. Pull the release handle up to
open the trunk from the inside.
98
ProCarManuals.com

Windows
{CAUTION:
Leaving children, helpless adults, or pets
in a vehicle with the windows closed is
dangerous. They can be overcome by the
extreme heat and suffer permanent
injuries or even death from heat stroke.
Never leave a child, a helpless adult, or a
pet alone in a vehicle, especially with the
windows closed in warm or hot weather.
99
ProCarManuals.com

Power Windows
The power window
switches are located on
the armrest on the
driver’s door. In
addition, each
passenger door has a
switch for its own
window.
Express-Down Window
The driver’s window has an express-down feature.
This switch is labeled AUTO. Press the front of
the switch part way, and the driver’s window opens
a small amount. If the front of the switch is
pressed all the way down and released, the
window goes all the way down automatically.
To stop the window while it is lowering, pull the
front of the switch momentarily. To raise the
window, pull and hold the front of the switch.
Express-Up Window
Your vehicle may have this feature on the driver’s
window. Pull the switch up to the second
position and release the switch to activate the
express-up feature. To stop the window as
it is raising, pull up or press down briey on the
switch again.
100
ProCarManuals.com
