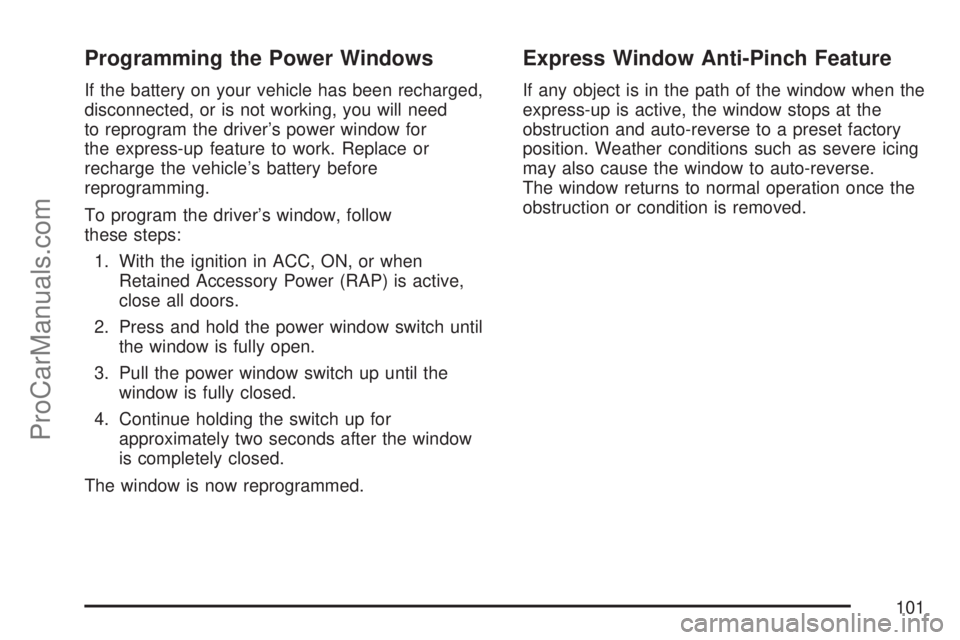

Programming the Power Windows
If the battery on your vehicle has been recharged,
disconnected, or is not working, you will need
to reprogram the driver’s power window for
the express-up feature to work. Replace or
recharge the vehicle’s battery before
reprogramming.
To program the driver’s window, follow
these steps:
1. With the ignition in ACC, ON, or when
Retained Accessory Power (RAP) is active,
close all doors.
2. Press and hold the power window switch until
the window is fully open.
3. Pull the power window switch up until the
window is fully closed.
4. Continue holding the switch up for
approximately two seconds after the window
is completely closed.
The window is now reprogrammed.
Express Window Anti-Pinch Feature
If any object is in the path of the window when the
express-up is active, the window stops at the
obstruction and auto-reverse to a preset factory
position. Weather conditions such as severe icing
may also cause the window to auto-reverse.
The window returns to normal operation once the
obstruction or condition is removed.
101
ProCarManuals.com

Express Window Anti-Pinch Override
{CAUTION:
If express override is activated, the
window will not reverse automatically.
You or others could be injured and the
window could be damaged. Before you
use express override, make sure that all
people and obstructions are clear of the
window path.
In an emergency, the anti-pinch feature can be
overridden in a supervised mode. Hold the window
switch all the way up to the second position.
The window rises for as long as the switch is held.
Once the switch is released, the express mode
is re-activated.
In this mode, the window can still close on an
object in its path. Use care when using the
override mode.
Window Lockout
The driver’s power window controls also include a
lockout button.
o(Window Lockout):Press the lockout button
to stop the rear passengers from using their
window switches. The driver and front passenger
can still operate all the windows with the lock
on. When the red part of the switch is visible you
have returned to normal window operation.
Sun Visors
To block out glare, you can swing down the
visors. You can also remove them from the center
mount and swing them to the side, to block out
glare from the side.
Your vehicle may have lighted visor vanity mirrors
located on the passenger and driver’s side
visor. When you lift the cover, the light will turn on.
102
ProCarManuals.com

Theft-Deterrent Systems
Vehicle theft is big business, especially in some
cities. Although your vehicle has a number of
theft-deterrent features, we know that nothing we
put on it can make it impossible to steal.
Content Theft-Deterrent
Your vehicle may have
a content theft-deterrent
alarm system.
Arming the System
With the ignition off, you can arm the system by
pressing the Remote Keyless Entry (RKE)
transmitter lock button.
The system will arm thirty seconds after all the
doors are closed, or sixty seconds with any
door open.
If you press the lock button on the transmitter a
second time while all the doors are closed, the
system will arm immediately. The system will still
arm in sixty seconds if a door is open. When the
open door is closed, the system will arm.
The security light, located on the instrument panel
cluster, comes on to indicate that arming has been
initiated. Once the system is armed, the security
light will ash once every three seconds.
If the security light is ashing twice per second,
this means that a door is open.
If you do not want to arm the system, lock the car
with the lock levers on the doors.
103
ProCarManuals.com

Disarming the System
To disarm the system, do one of the following:
Press the RKE transmitter unlock button.
Turn the ignition to ON.
Once the system is disarmed, the security light will
stop ashing.
How the System Alarm is Activated
To activate the system if it is armed:
Open the driver’s door or trunk. This will
cause a ten second pre-alarm chirp followed
by a thirty second full alarm of horn and lights.
Open any other door. This will immediately
cause a full alarm of horn and lights for
thirty seconds.
Open the hood. If the vehicle has the remote
start feature, it will activate the full alarm.
When an alarm event has nished, the system will
re-arm itself automatically.
How to Turn Off the System Alarm
To turn off the system alarm:
Press the lock button on the RKE transmitter.
The system will then re-arm itself.
Press the unlock button on the RKE
transmitter. This will also disarm the system.
Insert the key in the ignition and turn it on. This
will also disarm the system.
How to Detect a Tamper Condition
If you hear three chirps when the unlock or lock
button is pressed on the RKE transmitter, it means
that the content theft security system alarm was
previously triggered.
104
ProCarManuals.com

PASS-Key®III+
The PASS-Key®III+ system operates on a radio
frequency subject to Federal Communications
Commission (FCC) Rules and with Industry
Canada.
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful
interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation.
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
1. This device may not cause interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation of the device.
Changes or modications to this system by other
than an authorized service facility could void
authorization to use this equipment.PASS-Key
®III+ uses a radio frequency
transponder in the key that matches a decoder in
your vehicle.
PASS-Key®III+ Operation
Your vehicle has PASS-Key®III+ (Personalized
Automotive Security System) theft-deterrent
system. PASS-Key
®III+ is a passive
theft-deterrent system. This means you do not
have to do anything special to arm or disarm the
system. It works when you insert or remove
the key from the ignition.
When the PASS-Key
®III+ system senses that
someone is using the wrong key, it prevents the
vehicle from starting. Anyone using a
trial-and-error method to start the vehicle will be
discouraged because of the high number of
electrical key codes.
When trying to start the vehicle if the engine does
not start and the security light on the instrument
panel cluster comes on, the key may have a
damaged transponder. Turn the ignition off and
try again.
105
ProCarManuals.com

If the engine still does not start, and the key
appears to be not damaged, try another ignition
key. At this time, you may also want to check the
fuse, seeFuses on page 343. If the engine still
does not start with the other key, your vehicle
needs service. If your vehicle does start, the rst
key may be faulty. See your dealer/retailer
who can service the PASS-Key
®III+ to have a
new key made. In an emergency, contact
Roadside Assistance. SeeRoadside Assistance
Program on page 377.
It may be possible for the PASS-Key
®III+ decoder
to “learn” the transponder value of a new or
replacement key. Up to 10 keys may be
programmed for the vehicle. The following
procedure is for programming additional keys only.
If your vehicle was rst sold in Canada, or if all
the currently programmed keys are lost or do not
operate, you must see your dealer/retailer or a
locksmith who can service PASS-Key
®III+ to have
keys made and programmed to the system.
See your dealer/retailer or a locksmith who can
service PASS-Key
®III+ to get a new key blank that
is cut exactly as the ignition key that operates
the system.To program the new key:
1. Verify that the new key has a
1stamped on it.
2. Insert the already programmed key in the
ignition and start the engine. If the engine will
not start, see your dealer/retailer for service.
3. After the engine has started, turn the key to
OFF, and remove the key.
4. Insert the key to be programmed and turn it to
the ON position within ve seconds of the
original key being turned to the OFF position.
The security light will turn off once the key
has been programmed.
5. Repeat Steps 1 through 4 if additional keys
are to be programmed.
If you are ever driving and the security light comes
on and stays on, you may be able to restart
your engine if you turn it off. Your PASS-Key
®III+
system, however, is not working properly and
must be serviced by your dealer/retailer.
Your vehicle is not protected by the
PASS-Key
®III+ system at this time.
If you lose or damage your PASS-Key®III+ key,
see your dealer/retailer or a locksmith who can
service PASS-Key
®III+ to have a new key made.
Do not leave the key or device that disarms or
deactivates the theft deterrent system in the
vehicle.
106
ProCarManuals.com

Starting and Operating Your
Vehicle
New Vehicle Break-In
Notice:Your vehicle does not need an
elaborate break-in. But it will perform better in
the long run if you follow these guidelines:
Do not drive at any one constant speed,
fast or slow, for the rst 500 miles
(805 km). Do not make full-throttle starts.
Do not exceed 5,000 engine rpm. Avoid
downshifting to brake, or slow, the vehicle.
Avoid making hard stops for the rst
200 miles (322 km) or so. During this time
the new brake linings are not yet broken in.
Hard stops with new linings can mean
premature wear and earlier replacement.
Follow this breaking-in guideline every time
you get new brake linings.
Do not tow a trailer during break-in. See
Towing a Trailer on page 250for the trailer
towing capabilities of your vehicle and more
information.
Following break-in, engine speed and load can
be gradually increased.
107
ProCarManuals.com

Ignition Positions
With the key in the
ignition switch, you can
turn it to four different
positions.
Notice:Using a tool to force the key from the
ignition switch could cause damage or
break the key. Use the correct key and turn the
key only with your hand. Make sure the key
is in all the way. If none of this works,
then your vehicle needs service.
9(OFF):This is the only position from which
you can remove the key. It also locks the ignition
and transaxle. A warning chime sounds if the
driver’s door is opened while the ignition is off and
the key is left in the ignition.ACC (ACCESSORY):This position lets you use
things like the radio and windshield wipers
while the engine is not running.
Use this position if your vehicle must be pushed or
towed, but never try to push-start your vehicle.
SeeRecreational Vehicle Towing on page 247.
R(ON):This position unlocks the ignition. It
is also the position to where the key returns after
you release the switch and the engine starts.
The switch will stay in this position while the
engine is running. But even while the engine is not
running, you can use ON to operate the electrical
accessories, and to display some instrument
panel warning lights.
The battery could be drained if you leave the key
in the ACC or ON position with the engine off.
You might not be able to start your vehicle if the
battery is allowed to drain for an extended
period of time.
/(START):This position starts the engine.
When the engine starts, release the key.
The ignition switch will return to the ON position
for normal driving.
108
ProCarManuals.com

Key In the Ignition
Never leave your vehicle with the keys inside, as it
is an easy target for joy riders or thieves. If you
leave the key in the ignition and park your vehicle,
a chime sounds, when the driver’s door is
opened. Always remember to remove the key from
the ignition and take it with you. This locks your
ignition and transaxle. Also, always remember
to lock the doors.
The battery could be drained if the key is left in
the ignition while your vehicle is parked. You might
not be able to start your vehicle after it has
been parked for an extended period of time.
Retained Accessory Power (RAP)
These vehicle accessories can be used for up to
10 minutes after the engine is turned off:
Audio System
Power Windows
Heated Seats (if equipped)
Sunroof (if equipped)
These features continue to work up to 10 minutes
after the ignition is turned to LOCK/OFF.
The power windows, heated seats, and sunroof
will work until any door is opened.
The radio continues to work until the driver’s door
is opened.
All these features operate when the key is in the
ON/RUN or ACC/ACCESSORY.
109
ProCarManuals.com

Starting the Engine
(Automatic Engine Start/Stop)
The shift lever must be in PARK (P) or
NEUTRAL (N) for the vehicle to start. To restart
when the vehicle is already moving, use
NEUTRAL (N) only.
Notice:Shifting into PARK (P) with the vehicle
moving could damage the transaxle. Shift
into PARK (P) only when your vehicle is
stopped.
Starting Procedure
1. With your foot off the accelerator pedal, turn
the ignition key to START. When the engine
starts, let go of the key. The idle speed
goes down as your engine gets warm. Do not
race the engine immediately after starting
it. Operate the engine and transaxle gently to
allow the oil to warm up and lubricate all
moving parts.Your vehicle has a Computer-Controlled
Cranking System. This feature assists
in starting the engine and protects
components. If the key is turned to the
START position, and then released when the
engine begins cranking, the engine continues
cranking for a few seconds or until the
vehicle starts. If the engine does not start and
the key is held in START for many seconds,
cranking stops after 15 seconds to prevent
cranking motor damage. To prevent gear
damage, this system also prevents cranking if
the engine is already running. Engine
cranking can be stopped by turning the ignition
switch to the ACC or LOCK position.
110
ProCarManuals.com
