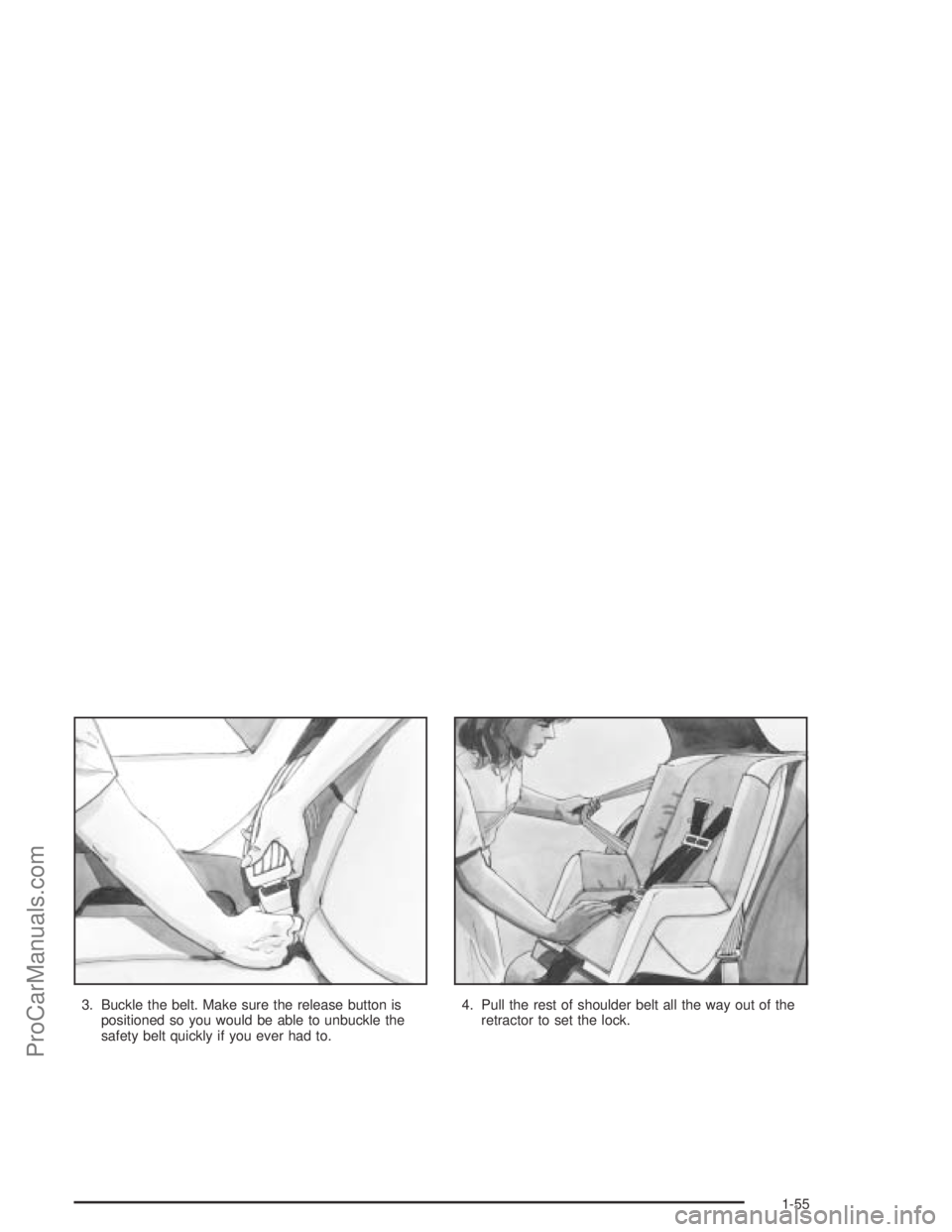

3. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.4. Pull the rest of shoulder belt all the way out of the
retractor to set the lock.
1-55
ProCarManuals.com

5. To tighten the belt, pull up on the shoulder belt
while you push down on the child restraint. If
you are using a forward-facing child restraint, you
may nd it helpful to use your knee to push down on
the child restraint as you tighten the belt.
6. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, just unbuckle the vehicle’s
safety belt and let it go back all the way. The safety
belt will move freely again and be ready to work for an
adult or larger child passenger.
Securing a Child Restraint in a
Center Rear Seat Position (Wagon)
If your child restraint is equipped with the LATCH
system, seeLower Anchorages and Top Tethers for
Children (LATCH System) on page 1-50. SeeTop Strap
on page 1-46if the child restraint has one.
If your child restraint does not have the LATCH system,
you will be using the lap belt. Be sure to follow the
instructions that came with the child restraint. Secure
the child restraint when and as the instructions say.
1-56
ProCarManuals.com

1. Make the belt as long as possible by tilting the latch
plate and pulling it along the belt.
2. Put the restraint on the seat.3. Run the vehicle’s safety belt through or around the
restraint. The child restraint instructions will show
you how.
1-57
ProCarManuals.com

4. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.
5. To tighten the belt, pull its free end while you push
down on the child restraint. If you are using a
forward-facing child restraint, you may nd it helpful
to use your knee to push the child restraint as
you tighten the belt.
6. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, just unbuckle the vehicle’s
safety belt. It will be ready to work for an adult or
larger child passenger.Securing a Child Restraint in the
Right Front Seat Position
If your child restraint is equipped with the LATCH
system, seeLower Anchorages and Top Tethers for
Children (LATCH System) on page 1-50. SeeTop Strap
on page 1-46if the child restraint has one.
1-58
ProCarManuals.com

There is no top strap anchor in the right front passenger’s
position. Do not secure a child seat in this position if a
national or local law requires that the top strap be
anchored, or if the instructions that come with the child
restraint say that the top strap must be anchored.
Your vehicle has a right front passenger air bag.Never
put a rear-facing child restraint in this seat. Here is why:
{CAUTION:
A child in a rear-facing child restraint can be
seriously injured or killed if the right front
passenger’s air bag inates. This is because
the back of the rear-facing child restraint
would be very close to the inating air bag.
Always secure a rear-facing child restraint in a
rear seat.A rear seat is a safer place to secure a forward-facing
child restraint. If you need to secure a forward-facing
child restraint in the right front seat, you will be using the
lap-shoulder belt to secure the child restraint. Be sure
to follow the instructions that came with the child
restraint. Secure the child in the child restraint when
and as the instructions say.
1. Because your vehicle has a right front passenger
air bag, always move the seat as far back as it will
go before securing a forward-facing child restraint.
SeeManual Seats on page 1-3.
2. Put the child restraint on the seat.
3. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how.
1-59
ProCarManuals.com

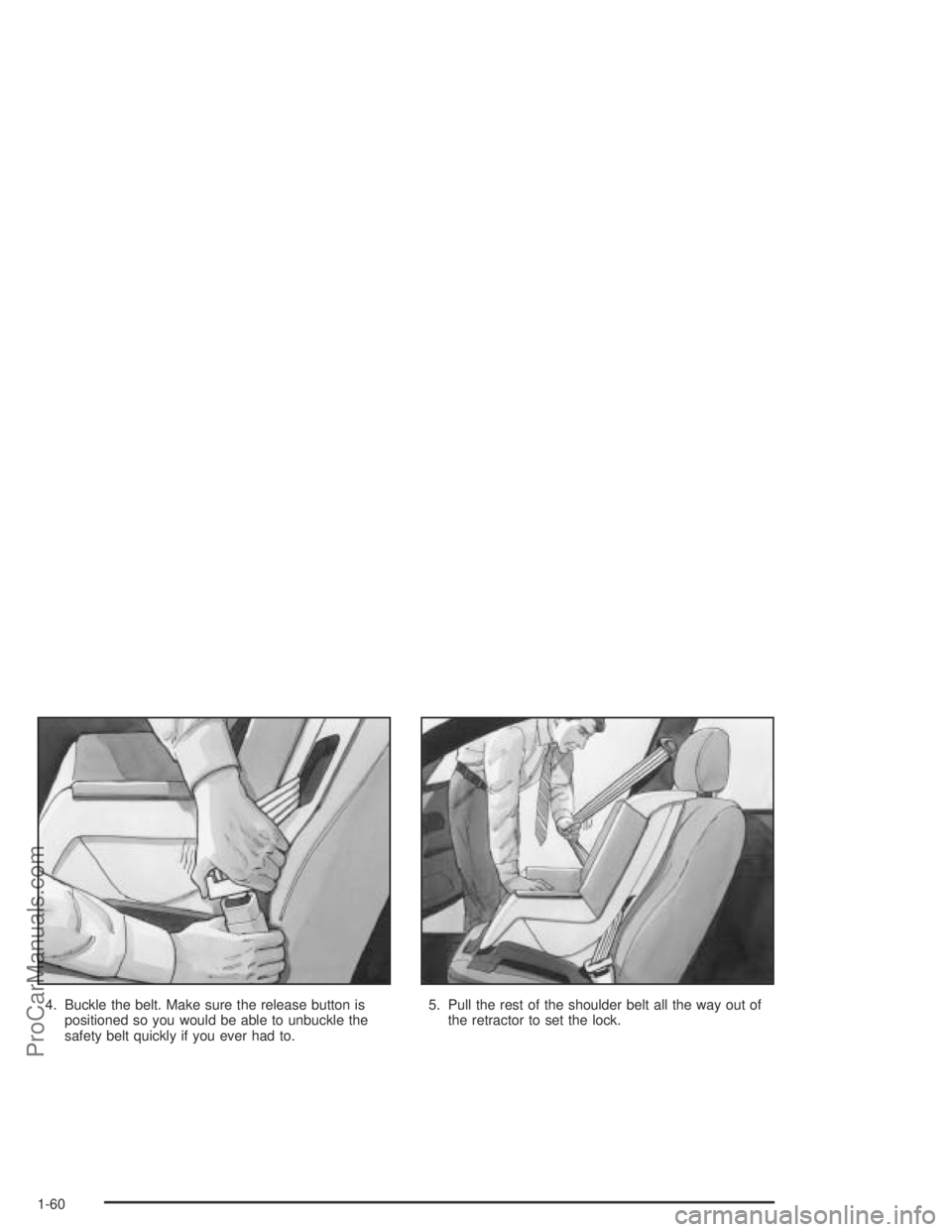

4. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.5. Pull the rest of the shoulder belt all the way out of
the retractor to set the lock.
1-60
ProCarManuals.com

6. To tighten the belt, push down on the child restraint,
pull the shoulder portion of the belt to tighten the
lap portion of the belt and feed the shoulder
belt back into the retractor. You may nd it helpful
to use your knee to push down on the child
restraint as you tighten the belt.
7. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, just unbuckle the vehicle’s
safety belt and let it go back all the way. The safety
belt will move freely again and be ready to work for an
adult or larger child passenger.
1-61
ProCarManuals.com

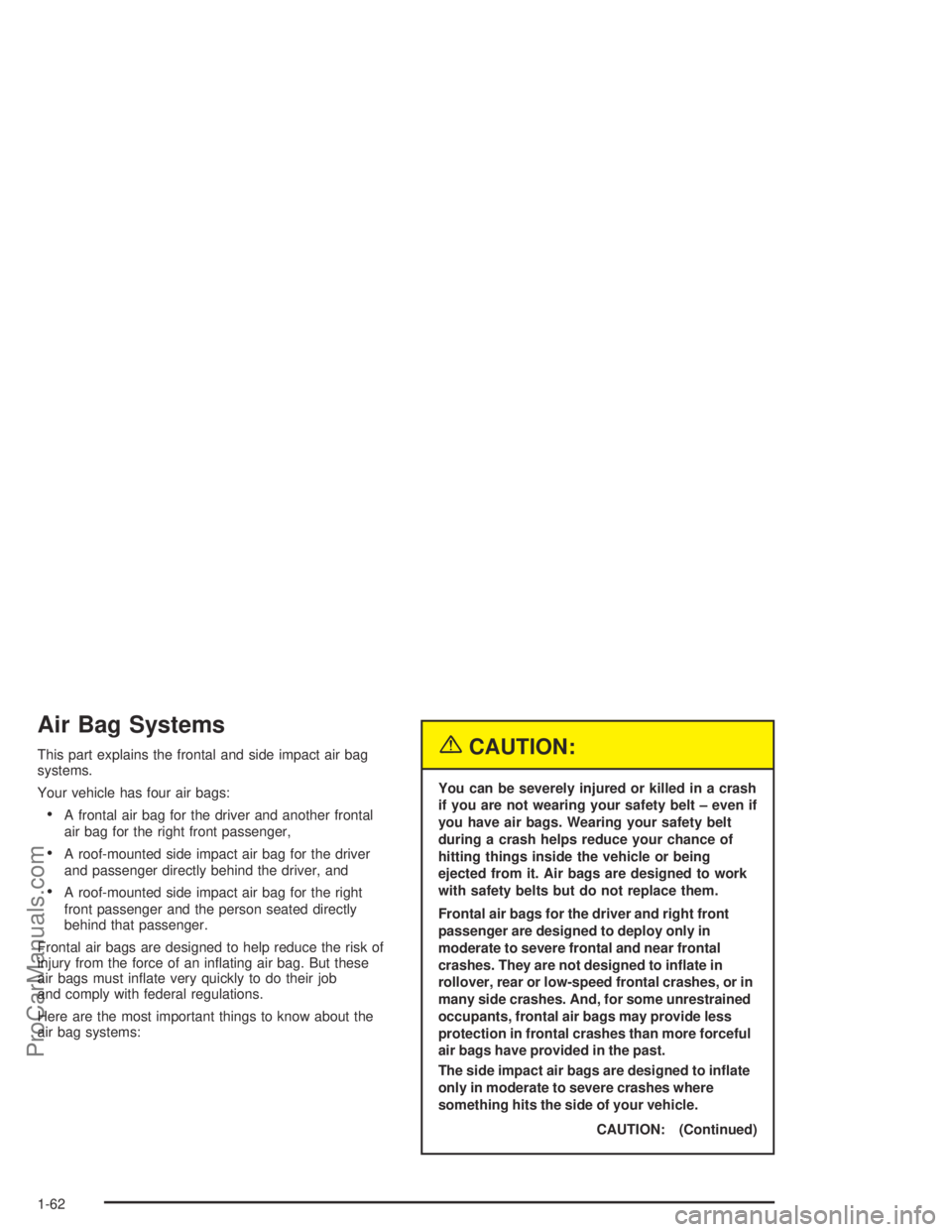

Air Bag Systems
This part explains the frontal and side impact air bag
systems.
Your vehicle has four air bags:
A frontal air bag for the driver and another frontal
air bag for the right front passenger,
A roof-mounted side impact air bag for the driver
and passenger directly behind the driver, and
A roof-mounted side impact air bag for the right
front passenger and the person seated directly
behind that passenger.
Frontal air bags are designed to help reduce the risk of
injury from the force of an inating air bag. But these
air bags must inate very quickly to do their job
and comply with federal regulations.
Here are the most important things to know about the
air bag systems:
{CAUTION:
You can be severely injured or killed in a crash
if you are not wearing your safety belt – even if
you have air bags. Wearing your safety belt
during a crash helps reduce your chance of
hitting things inside the vehicle or being
ejected from it. Air bags are designed to work
with safety belts but do not replace them.
Frontal air bags for the driver and right front
passenger are designed to deploy only in
moderate to severe frontal and near frontal
crashes. They are not designed to inate in
rollover, rear or low-speed frontal crashes, or in
many side crashes. And, for some unrestrained
occupants, frontal air bags may provide less
protection in frontal crashes than more forceful
air bags have provided in the past.
The side impact air bags are designed to inate
only in moderate to severe crashes where
something hits the side of your vehicle.
CAUTION: (Continued)
1-62
ProCarManuals.com

CAUTION: (Continued)
They are not designed to inate in frontal, in
rollover or in rear crashes.
Everyone in your vehicle should wear a safety
belt properly – whether or not there is an air
bag for that person.
{CAUTION:
Both frontal and side impact air bags inate
with great force, faster than the blink of an
eye. If you’re too close to an inating air bag,
as you would be if you were leaning forward, it
could seriously injure you. Safety belts help
keep you in position for air bag ination before
and during a crash. Always wear your safety
belt even with frontal air bags. The driver
should sit as far back as possible while still
maintaining control of the vehicle. Occupants
should not lean on or sleep against the door.
{CAUTION:
Anyone who is up against, or very close to,
any air bag when it inates can be seriously
injured or killed. Air bags plus lap-shoulder
belts offer the best protection for adults, but
not for young children and infants. Neither the
vehicle’s safety belt system nor its air bag
system is designed for them. Young children
and infants need the protection that a child
restraint system can provide. Always secure
children properly in your vehicle. To read how,
see the part of this manual called “Older
Children” or “Infants and Young Children.”
1-63
ProCarManuals.com

There is a air bag
readiness light on the
instrument panel, which
shows the air bag symbol.
The system checks the air bag electrical system for
malfunctions. The light tells you if there is an electrical
problem. SeeAir Bag Readiness Light on page 3-28
for more information.Where Are the Air Bags?
The driver’s frontal air bag is in the middle of the
steering wheel.
