The main components of the instrument panel are the following:
A. Air Outlets. SeeOutlet Adjustment on page 3-20.
B. Turn Signal/Multifunction Lever. SeeTurn
Signal/Multifunction Lever on page 3-7.
C. Cruise Control. SeeCruise Control on page 3-10.
D. Horn. SeeHorn on page 3-6.
E. Instrument Panel Cluster. SeeInstrument Panel
Cluster on page 3-23.
F. Windshield Wiper Lever. SeeWindshield Wiper
Lever on page 3-9.
G. Fog Lamps (If Equipped). SeeFog Lamps on
page 3-15.
H. Hazard Warning Flasher Button. SeeHazard
Warning Flashers on page 3-6.I. Traction Control. SeeTraction Control System (TCS)
Warning Light on page 3-29.
J. Audio System. SeeAudio System(s) on page 3-38.
K. Trunk Release Button/Dimmer Switch. SeeTrunk
on page 2-10andInstrument Panel Brightness
on page 3-15.
L. Hood Release. SeeHood Release on page 5-11.
M. Climate Control. SeeClimate Control System
on page 3-18.
N. Automatic Transaxle Shift Lever. SeeAutomatic
Transaxle Operation on page 2-18.
O. Power Windows. SeePower Windows on page 2-13.
P. Glove Box. SeeGlove Box on page 2-28.
3-5
ProCarManuals.com
Page 192 of 330

Dinghy Towing
You may dinghy tow your vehicle from the front following
these steps:
1. Set the parking brake.
2. Turn the ignition key to ACC to unlock
the steering wheel.3. Shift your transaxle to NEUTRAL (N).
4. Open the lid on the underhood fuse block and
remove the IGN 0/3/CR and IGN 1/2 fuses.
Refer to the underside of the underhood fuse block
cover for specific fuse locations.
5. Close the lid on the underhood fuse block and store
the two fuses in a safe place.
6. Close the hood.
7. Release the parking brake.
Once you have reached your destination replace the
IGN 0/3/CR and IGN 1/2 fuses.
Notice:If you exceed 65 mph (110 km/h) while
towing your vehicle, it could be damaged. Never
exceed 65 mph (110 km/h) while towing your vehicle.
4-38
ProCarManuals.com
Page 201 of 330

Service............................................................5-3
Doing Your Own Service Work.........................5-4
Adding Equipment to the Outside
of Your Vehicle...........................................5-5
Fuel................................................................5-5
Gasoline Octane............................................5-5
Gasoline Specifications....................................5-5
California Fuel...............................................5-6
Additives.......................................................5-6
Fuels in Foreign Countries...............................5-7
Filling Your Tank............................................5-8
Filling a Portable Fuel Container.....................5-10
Checking Things Under the Hood....................5-10
Hood Release..............................................5-11
Engine Compartment Overview.......................5-12
Engine Oil...................................................5-13
Engine Oil Life System..................................5-16
Engine Air Cleaner/Filter................................5-17
Automatic Transaxle Fluid..............................5-20
Engine Coolant.............................................5-20
Coolant Surge Tank Pressure Cap..................5-23
Engine Overheating.......................................5-23
Cooling System............................................5-26
Power Steering Fluid.....................................5-31
Windshield Washer Fluid................................5-32Brakes........................................................5-33
Battery........................................................5-36
Jump Starting...............................................5-37
Bulb Replacement..........................................5-42
Halogen Bulbs..............................................5-42
Headlamps, Front Turn Signal, Sidemarker,
and Parking Lamps....................................5-42
Fog Lamps..................................................5-44
Center High-Mounted Stoplamp (CHMSL).........5-45
Taillamps, Turn Signal, Stoplamps and
Back-up Lamps.........................................5-45
Replacement Bulbs.......................................5-46
Windshield Wiper Blade Replacement..............5-47
Tires..............................................................5-48
Tire Sidewall Labelling...................................5-49
Tire Terminology and Definitions.....................5-51
Inflation - Tire Pressure.................................5-54
Tire Inspection and Rotation...........................5-55
When It Is Time for New Tires.......................5-56
Buying New Tires.........................................5-57
Uniform Tire Quality Grading..........................5-58
Wheel Alignment and Tire Balance..................5-59
Wheel Replacement......................................5-60
Tire Chains..................................................5-61
If a Tire Goes Flat........................................5-62
Section 5 Service and Appearance Care
5-1
ProCarManuals.com
Page 211 of 330

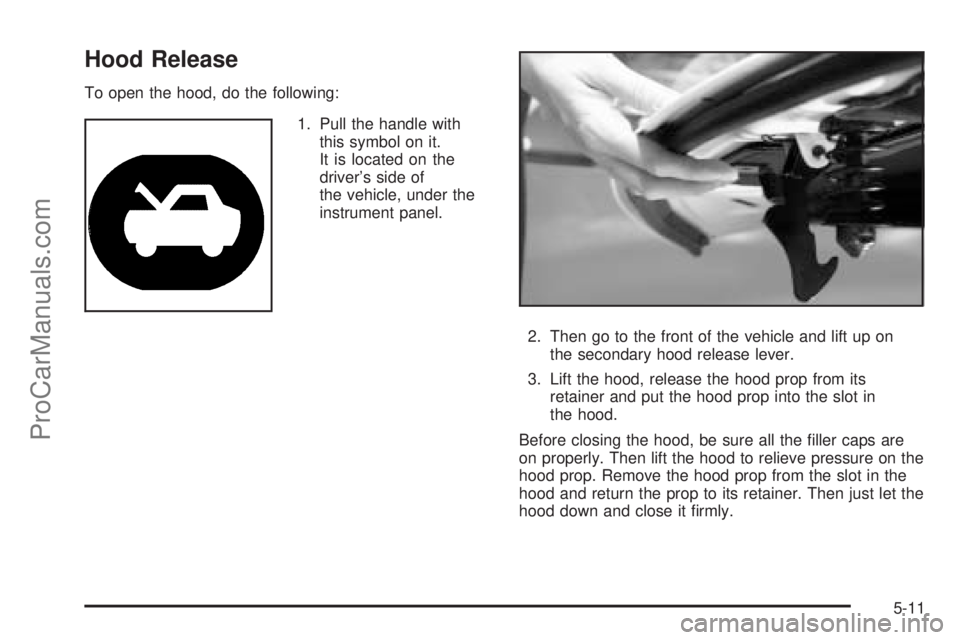

Hood Release
