light SATURN OUTLOOK 2007 User Guide

The right front passenger seat is occupied by
a smaller person, such as a child who has
outgrown child restraints.
Or, if there is a critical problem with the airbag
system or the passenger sensing system.
When the passenger sensing system has turned
off the right front passenger’s frontal airbag
and seat-mounted side impact airbag, the off
indicator will light and stay lit to remind you that
the airbags are off. SeePassenger Airbag
Status Indicator on page 214.
If a child restraint has been installed and the on
indicator is lit, turn the vehicle off. Remove
the child restraint from the vehicle and reinstall the
child restraint following the child restraint
manufacturer’s directions and refer toSecuring a
Child Restraint in the Right Front Seat Position
on page 72.If, after reinstalling the child restraint and restarting
the vehicle, the on indicator is still lit, check to
make sure that the vehicle’s seatback is not
pressing the child restraint into the seat cushion. If
this happens, slightly recline the vehicle’s
seatback and adjust the seat cushion if possible.
Also make sure the child restraint is not trapped
under the vehicle head restraint. If this happens,
adjust the head restraint. SeeHead Restraints
on page 17.
Remove any additional material from the seat
cushion before reinstalling or securing the
child restraint.
If the on indicator is still lit, secure the child in the
child restraint in a rear seat position in the
vehicle, and check with your dealer/retailer.
88
ProCarManuals.com

The passenger sensing system is designed to
enable (may inate) the right front passenger’s
frontal airbag and seat-mounted side impact airbag
anytime the system senses that a person of
adult size is sitting properly in the right front
passenger’s seat. When the passenger sensing
system has allowed the airbags to be enabled, the
on indicator will light and stay lit to remind you
that the airbags are active.
For some children who have outgrown child
restraints and for very small adults, the passenger
sensing system may or may not turn off the right
front passenger’s frontal airbag and seat-mounted
side impact airbag, depending upon the person’s
seating posture and body build. Everyone in your
vehicle who has outgrown child restraints should
wear a safety belt properly — whether or not there
is an airbag for that person.If a person of adult-size is sitting in the right front
passenger’s seat, but the off indicator is lit, it
could be because that person is not sitting properly
in the seat. If this happens, turn the vehicle off
and ask the person to place the seatback in
the fully upright position, then sit upright in the
seat, centered on the seat cushion, with the
person’s legs comfortably extended. Restart the
vehicle and have the person remain in this position
for two to three minutes. This will allow the
system to detect that person and then enable the
right front passenger’s frontal airbag and
seat-mounted side impact airbag.
89
ProCarManuals.com

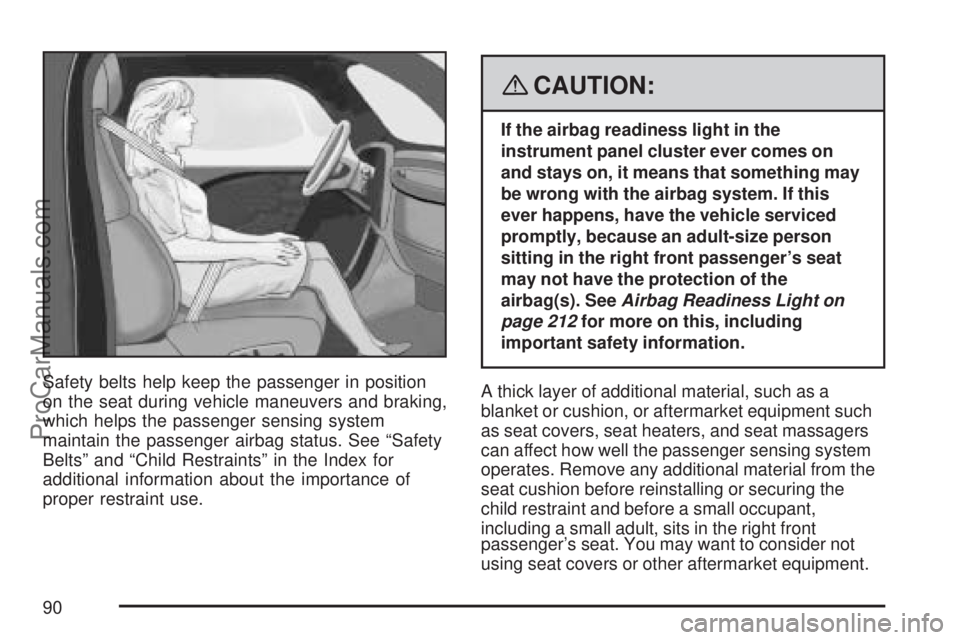

Safety belts help keep the passenger in position
on the seat during vehicle maneuvers and braking,
which helps the passenger sensing system
maintain the passenger airbag status. See “Safety
Belts” and “Child Restraints” in the Index for
additional information about the importance of
proper restraint use.
{CAUTION:
If the airbag readiness light in the
instrument panel cluster ever comes on
and stays on, it means that something may
be wrong with the airbag system. If this
ever happens, have the vehicle serviced
promptly, because an adult-size person
sitting in the right front passenger’s seat
may not have the protection of the
airbag(s). SeeAirbag Readiness Light on
page 212for more on this, including
important safety information.
A thick layer of additional material, such as a
blanket or cushion, or aftermarket equipment such
as seat covers, seat heaters, and seat massagers
can affect how well the passenger sensing system
operates. Remove any additional material from the
seat cushion before reinstalling or securing the
child restraint and before a small occupant,
including a small adult, sits in the right front
passenger’s seat. You may want to consider not
using seat covers or other aftermarket equipment.
90
ProCarManuals.com

Restraint System Check
Checking the Restraint Systems
Safety Belts
Now and then, make sure the safety belt reminder
light and all your belts, buckles, latch plates,
retractors, and anchorages are working properly.
SeeSafety Belt Reminder Light on page 211
for more information.
Look for any other loose or damaged safety belt
system parts. If you see anything that might keep a
safety belt system from doing its job, have it
repaired. Keep safety belts clean and dry. See
Care of Safety Belts on page 467for more
information.
Torn or frayed safety belts may not protect you in
a crash. They can rip apart under impact forces.
If a belt is torn or frayed, get a new one right away.
Airbag System
The airbag system does not need regularly
scheduled maintenance or replacement. Make
sure the airbag readiness light is working.
SeeAirbag Readiness Light on page 212for more
information.
Notice:If an airbag covering is damaged,
opened, or broken, the airbag may not work
properly. Do not open or break the airbag
coverings. If there are any opened or broken
airbag covers, have the airbag covering and/or
airbag module replaced. For the location of
the airbag modules, seeWhat Makes an Airbag
Inflate? on page 83. See your dealer/retailer
for service.
93
ProCarManuals.com

Replacing Restraint System Parts
After a Crash
{CAUTION:
A crash can damage the restraint systems
in your vehicle. A damaged restraint
system may not properly protect the
person using it, resulting in serious injury
or even death in a crash. To help make sure
your restraint systems are working
properly after a crash, have them inspected
and any necessary replacements made as
soon as possible.
If you have had a crash, do you need new belts or
LATCH system parts?
After a very minor collision, nothing may be
necessary. But if the belts were stretched, as they
would be if worn during a more severe crash, then
you need new parts.
If the LATCH system was being used during a
more severe crash, you may need new LATCH
system parts.If belts are cut or damaged, replace them.
Collision damage also may mean you will need to
have LATCH system, safety belt or seat parts
repaired or replaced. New parts and repairs may
be necessary even if the belt or LATCH system
was not being used at the time of the collision.
If an airbag inates, you will need to replace airbag
system parts. See the part on the airbag system
earlier in this section.
If any airbag inates, you will also need to replace
the driver and front passenger’s safety belt
assembly. Be sure to do so. Then the new
assembly will be there to help protect you in a
collision.
After a crash you may need to replace the driver
and front passenger’s safety belt assemblies,
even if the frontal airbags have not deployed. The
driver and front passenger’s safety belt
assemblies contain the safety belt pretensioners.
Have your safety belt pretensioners checked if
your vehicle has been in a collision, or if your
airbag readiness light stays on after you start your
vehicle or while you are driving. SeeAirbag
Readiness Light on page 212.
94
ProCarManuals.com

/(Remote Start):This button will be on the
RKE transmitter if you have remote start.
To start the vehicle using the remote start feature,
do the following:
1. Aim the transmitter at the vehicle.
2. Press and release the transmitter’s lock
button, then immediately press and hold
the transmitter’s remote start button until the
turn signal lights ash. If you cannot see
the vehicle’s lights, press and hold the remote
start button for at least four seconds. The
vehicle’s doors will lock. Pressing the remote
start button again, after the vehicle has
started, will turn off the ignition.
When the vehicle starts, the parking lamps will
turn on and remain on while the vehicle is
running.
3. If it is the rst remote start since the vehicle
has been driven, repeat these steps while the
engine is still running, to extend the time
by 10 minutes for the engine to continue to
run. Remote start can be extended one time.
After entering the vehicle during a remote start,
insert and turn the key to the ON position to drive
the vehicle.If the vehicle is left running it will automatically
shut off after 10 minutes unless a time extension
has been done.
To manually shut off a remote start, do any of the
following:
Aim the RKE transmitter at the vehicle and
press the remote start button until the
parking lamps turn off.
Turn on the hazard warning ashers.
Turn the ignition switch on and then off.
The vehicle can be remote started two separate
times between driving sequences. The engine will
run for 10 minutes after each remote start.
Or, you can extend the engine run time by another
10 minutes within the rst 10 minute remote
start time frame, and before the engine stops.
For example, if the lock button and then the
remote start buttons are pressed again after the
vehicle has been running for ve minutes,
10 minutes are added, allowing the engine to run
for 15 minutes.
The additional 10 minutes are considered a
second remote vehicle start.
104
ProCarManuals.com

If you shift the transmission out of PARK (P) while
the power function is in progress, the liftgate
power function will continue to completion. If you
shift the transmission out of PARK (P) and
accelerate before the power liftgate latches closed,
the liftgate may reverse to the open position.
Cargo could fall out of the vehicle. Always make
sure the power liftgate is closed and latched before
you drive away.
If you power open the liftgate and the liftgate
support struts have lost pressure, the lights will
ash and a chime will sound. The liftgate will stay
open temporarily, then slowly close. See your
dealer/retailer for service before using the liftgate.
Obstacle Detection Features
If the liftgate encounters an obstacle during a
power open or close cycle, a warning chime will
sound and the liftgate will automatically reverse
direction to the full closed or open position.
After removing the obstruction, the power liftgate
operation can be used again. If the liftgateencounters multiple obstacles on the same power
cycle, the power function will deactivate, and
you must manually open or close the liftgate. The
LIFTGATE OPEN warning message in the
Driver Information Center (DIC) will indicate that
the liftgate is open. After removing the
obstructions, manually open the liftgate to the full
open position or close the liftgate to the fully
closed and latched position. The liftgate will now
resume normal power operation.
Your vehicle has pinch sensors located on the
side edges of the liftgate. If an object is caught
between the liftgate and the body and presses
against this sensor, the liftgate will reverse
direction and open fully. The liftgate will remain
open until it is activated again or closed manually.
Do not force the liftgate open or closed during
a power cycle.
113
ProCarManuals.com

Manual Operation of Power Liftgate
To change the liftgate to
manual operation, press
the switch on the
center console to the
OFF position.
With the power liftgate disabled and all of the
doors unlocked, the liftgate can be manually
opened and closed.
To open the liftgate, press the touchpad on the
handle on the outside of the liftgate, and lift
the gate open. To close the liftgate, use the pull
cup to lower the liftgate and close. The liftgate
latch will power close. Always close the liftgate
before driving.If the RKE button or the power close button on the
liftgate is pressed while power operation is
disabled, the lights will ash three times, but the
liftgate will not move.
It is not recommended that you drive with the
liftgate open, however, if you must drive with the
liftgate open, the liftgate should be set to
manual operation by pressing the OFF switch on
the center console.
The liftgate has an electric latch. If the battery is
disconnected or has low voltage, the liftgate
will not open. The liftgate will resume operation
when the battery is reconnected and charged.
If the battery is properly connected with adequate
voltage, the switch is not disabled, and the
liftgate still will not function, your vehicle should be
taken to a dealer/retailer for service.
114
ProCarManuals.com

Anti-Pinch Feature
The anti-pinch feature is on windows with the
express-up feature. If an object is in the way of the
window as it is express-closing, or in certain
weather conditions like severe icing, the window
will stop and open to a factory preset position. The
window functions normally once the obstruction
is removed.
Window Lockout
o
(Window Lockout):The window lockout
switch is located with the power window switches
on the driver’s door armrest. This feature
prevents the rear passenger windows from
operating, except from the driver’s position. Press
the switch to turn the lockout feature on or off.
An indicator light will come on to show the lockout
feature is on.
Sun Visors
Pull the sun visor down to block glare. Detach the
sun visor from the center mount and slide it
along the rod from side-to-side to cover the driver
or passenger side of the front window. Swing
the sun visor to the side to cover the side window.
It can be moved along the rod from side-to-side
in this position also.
Lighted Visor Vanity Mirror
Your vehicle has lighted visor vanity mirrors on
both the driver’s and passenger’s sun visors. Pull
the sun visor down and lift the mirror cover to
turn the lamps on.
118
ProCarManuals.com

Theft-Deterrent Systems
Vehicle theft is big business, especially in some
cities. Although your vehicle has a number of
theft-deterrent features, we know that nothing we
put on it can make it impossible to steal.
Content Theft-Deterrent
Your vehicle may have a content theft-deterrent
alarm system.
To activate the theft-deterrent system, do one of
the following:
Press the lock button on the Remote Keyless
Entry (RKE) transmitter when any door is open.
The security light should come on and ash.
When the door is closed, the security light will
stop ashing and stay on solid and then go offafter approximately 30 seconds. The content
theft deterrent alarm is not armed until the
security light goes off.
If the delayed locking feature is active, the
alarm will not be activated until all doors are
closed and the security light goes off.
Press the lock button on the RKE transmitter
when the driver door is closed.
The security light will come on solid for
approximately 30 seconds and then go off. The
content theft deterrent alarm is not armed until
the security light goes off.
If a locked door is opened without using the key
in the driver’s door key cylinder or the RKE
transmitter, a ten second pre-alarm will occur. The
horn will chirp and the lights will ash. If the key is
not placed in the ignition and turned to START or
the door is not unlocked by pressing the unlock
button on the RKE transmitter during the
ten second pre-alarm, the alarm will go off. Your
vehicle’s headlamps will ash and the horn will
sound for about two minutes, then will turn off to
save the battery power.
119
ProCarManuals.com
