maintenance SATURN OUTLOOK 2007 Owner's Manual

Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver’s
responsibility to maintain correct tire pressure,
even if under-ination has not reached the level to
trigger illumination of the TPMS low tire pressure
telltale.
Your vehicle has also been equipped with a TPMS
malfunction indicator to indicate when the
system is not operating properly. The TPMS
malfunction indicator is combined with the low tire
pressure telltale. When the system detects a
malfunction, the telltale will ash for approximately
one minute and then remain continuously
illuminated. This sequence will continue upon
subsequent vehicle start-ups as long as the
malfunction exists.
When the malfunction indicator is illuminated, the
system may not be able to detect or signal low tire
pressure as intended. TPMS malfunctions may
occur for a variety of reasons, including the
installation of replacement or alternate tires or
wheels on the vehicle that prevent the TPMS fromfunctioning properly. Always check the TPMS
malfunction telltale after replacing one or more tires
or wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow the
TPMS to continue to function properly.
The Tire and Loading Information label (tire
information placard) shows the size of your
vehicle’s original tires and the correct ination
pressure for your vehicle’s tires when they
are cold. SeeInflation - Tire Pressure on
page 432. For the location of the tire and loading
information label, seeLoading Your Vehicle
on page 353.
Your vehicle’s TPMS can alert you about a low
tire pressure condition but it does not replace
normal tire maintenance. SeeTire Inspection and
Rotation on page 438andTires on page 425.
Notice:Do not use a tire sealant if your
vehicle has Tire Pressure Monitors. The liquid
sealant can damage the tire pressure monitor
sensors.
435
ProCarManuals.com

Federal Communications Commission
(FCC) and Industry and Science
Canada
The Tire Pressure Monitor System (TPMS)
operates on a radio frequency and complies with
Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
1. This device may not cause harmful
interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation.
The Tire Pressure Monitor System (TPMS)
operates on a radio frequency and complies with
RSS-210 of Industry and Science Canada.
Operation is subject to the following two
conditions:
1. This device may not cause interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation of the device.
Changes or modications to this system by other
than an authorized service facility could void
authorization to use this equipment.
Tire Inspection and Rotation
Tires should be rotated every 5,000 to 8,000 miles
(8 000 to 13 000 km).
Any time you notice unusual wear, rotate your
tires as soon as possible and check wheel
alignment. Also check for damaged tires or wheels.
SeeWhen It Is Time for New Tires on page 440
andWheel Replacement on page 444for
more information.
The purpose of regular rotation is to achieve more
uniform wear for all tires on the vehicle. The
rst rotation is the most important. SeeScheduled
Maintenance on page 488.
438
ProCarManuals.com

If a Tire Goes Flat
It is unusual for a tire to blowout while you are
driving, especially if you maintain your vehicle’s
tires properly. If air goes out of a tire, it is
much more likely to leak out slowly. But if you
should ever have a blowout, here are a few tips
about what to expect and what to do:
If a front tire fails, the at tire creates a drag that
pulls the vehicle toward that side. Take your
foot off the accelerator pedal and grip the steering
wheel rmly. Steer to maintain lane position,
and then gently brake to a stop well out of the
traffic lane.
A rear blowout, particularly on a curve, acts much
like a skid and may require the same correction
you would use in a skid. In any rear blowout
remove your foot from the accelerator pedal. Get
the vehicle under control by steering the way
you want the vehicle to go. It may be very bumpy
and noisy, but you can still steer. Gently brake
to a stop, well off the road if possible.{CAUTION:
Lifting a vehicle and getting under it to
do maintenance or repairs is dangerous
without the appropriate safety equipment
and training. The jack provided with your
vehicle is designed only for changing a
at tire. If it is used for anything else, you
or others could be badly injured or killed
if the vehicle slips off the jack. Use the
jack provided with your vehicle only for
changing a at tire.
If a tire goes at, the next part shows how to use the
jacking equipment to change a at tire safely.
446
ProCarManuals.com

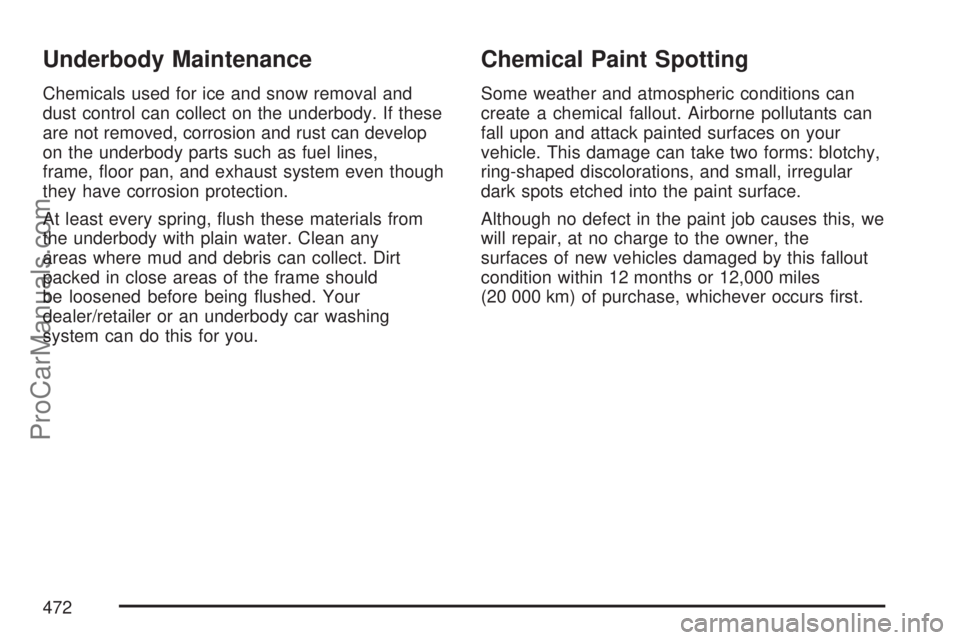

Underbody Maintenance
Chemicals used for ice and snow removal and
dust control can collect on the underbody. If these
are not removed, corrosion and rust can develop
on the underbody parts such as fuel lines,
frame, oor pan, and exhaust system even though
they have corrosion protection.
At least every spring, ush these materials from
the underbody with plain water. Clean any
areas where mud and debris can collect. Dirt
packed in close areas of the frame should
be loosened before being ushed. Your
dealer/retailer or an underbody car washing
system can do this for you.
Chemical Paint Spotting
Some weather and atmospheric conditions can
create a chemical fallout. Airborne pollutants can
fall upon and attack painted surfaces on your
vehicle. This damage can take two forms: blotchy,
ring-shaped discolorations, and small, irregular
dark spots etched into the paint surface.
Although no defect in the paint job causes this, we
will repair, at no charge to the owner, the
surfaces of new vehicles damaged by this fallout
condition within 12 months or 12,000 miles
(20 000 km) of purchase, whichever occurs rst.
472
ProCarManuals.com

Maintenance Schedule................................ 486
Introduction............................................... 486
Maintenance Requirements........................ 486
Your Vehicle and the Environment............ 486
Using the Maintenance Schedule............... 486
Scheduled Maintenance............................. 488
Additional Required Services..................... 491
Maintenance Footnotes.............................. 492Owner Checks and Services..................... 493
At Each Fuel Fill....................................... 494
At Least Once a Month............................. 494
At Least Once a Year............................... 495
Recommended Fluids and Lubricants........ 497
Normal Maintenance Replacement Parts..... 498
Engine Drive Belt Routing......................... 499
Maintenance Record.................................. 500
Section 6 Maintenance Schedule
485
ProCarManuals.com

Maintenance Schedule
Introduction
Important: Keep engine oil at the proper level
and change as recommended.
Maintenance Requirements
Notice:Maintenance intervals, checks,
inspections, replacement parts, and
recommended uids and lubricants as
prescribed in this manual are necessary to keep
your vehicle in good working condition. Any
damage caused by failure to follow scheduled
maintenance might not be covered by warranty.
Your Vehicle and the Environment
Proper vehicle maintenance not only helps to
keep your vehicle in good working condition, but
also helps the environment. All recommended
maintenance is important. Improper vehicle
maintenance can even affect the quality of the
air we breathe. Improper uid levels or the wrong
tire ination can increase the level of emissions
from your vehicle. To help protect our environment,
and to keep your vehicle in good condition,
be sure to maintain your vehicle properly.
Using the Maintenance Schedule
We want to help you keep your vehicle in
good working condition. But we do not know
exactly how you will drive it. You might drive
very short distances only a few times a week.
Or you might drive long distances all the time
in very hot, dusty weather. You might use
your vehicle in making deliveries. Or you might
drive it to work, to do errands, or in many
other ways.
486
ProCarManuals.com

Because of all the different ways people use their
vehicles, maintenance needs vary. You might
need more frequent checks and replacements.
So please read the following and note how
you drive. If you have any questions on how
to keep your vehicle in good condition, see
your dealer/retailer.
This schedule is for vehicles that:
carry passengers and cargo within
recommended limits. You will nd these limits
on the Tire and Loading Information label.
SeeLoading Your Vehicle on page 353.
are driven on reasonable road surfaces within
legal driving limits.
use the recommended fuel. SeeGasoline
Octane on page 379.
The services inScheduled Maintenance on page 488
should be performed when indicated. See
Additional Required Services on page 491and
Maintenance Footnotes on page 492for further
information.
{CAUTION:
Performing maintenance work on a
vehicle can be dangerous. In trying to do
some jobs, you can be seriously injured.
Do your own maintenance work only if
you have the required know-how and the
proper tools and equipment for the job.
If you have any doubt, see your
dealer/retailer to have a qualied
technician do the work. SeeDoing
Your Own Service Work on page 378.
Some maintenance services can be complex.
So, unless you are technically qualied and
have the necessary equipment, you should
have your dealer/retailer do these jobs.
When you go to your dealer/retailer for your
service needs, you will know that trained and
supported service technicians will perform the
work using genuine parts.
487
ProCarManuals.com

If you want to purchase service information, see
Service Publications Ordering Information on
page 518.
Owner Checks and Services on page 493tells
you what should be checked, when to check it,
and what you can easily do to help keep your
vehicle in good condition.
The proper replacement parts, uids, and
lubricants to use are listed inRecommended
Fluids and Lubricants on page 497andNormal
Maintenance Replacement Parts on page 498.
When your vehicle is serviced, make sure these
are used. All parts should be replaced and all
necessary repairs done before you or anyone
else drives the vehicle. We recommend the use
of genuine parts from your dealer/retailer.Scheduled Maintenance
When the CHANGE ENGINE OIL SOON message
comes on, it means that service is required for your
vehicle. Have your vehicle serviced as soon as
possible within the next 600 miles (1 000 km).
It is possible that, if you are driving under the best
conditions, the engine oil life system might not
indicate that vehicle service is necessary for over
a year. However, the engine oil and lter must be
changed at least once a year and at this time the
system must be reset. Your dealer/retailer has
trained service technicians who will perform this
work using genuine parts and reset the system.
If the engine oil life system is ever reset
accidentally, you must service your vehicle within
3,000 miles (5 000 km) since your last service.
Remember to reset the oil life system whenever
the oil is changed. SeeEngine Oil Life System on
page 390for information on the Engine Oil Life
System and resetting the system.
488
ProCarManuals.com

When the CHANGE ENGINE OIL SOON message
appears, certain services, checks, and inspections
are required. Required services are described
in the following for “MaintenanceI” and
“MaintenanceII.” Generally, it is recommended
that your rst service be MaintenanceI, your
second service be MaintenanceII, and that you
alternate MaintenanceIand MaintenanceII
thereafter. However, in some cases,
MaintenanceIImay be required more often.MaintenanceI— Use MaintenanceIif the
CHANGE ENGINE OIL SOON message comes on
within 10 months since the vehicle was purchased
or MaintenanceIIwas performed.
MaintenanceII— Use MaintenanceIIif the
previous service performed was MaintenanceI.
Always use MaintenanceIIwhenever the message
comes on 10 months or more since the last
service or if the message has not come on at
all for one year.
Scheduled Maintenance
Service MaintenanceIMaintenanceII
Change engine oil and lter. SeeEngine Oil on page 387. Reset oil life system.
SeeEngine Oil Life System on page 390.An Emission Control Service.••
Visually check for any leaks or damage.See footnote (g).••
Inspect engine air cleaner lter. If necessary, replace lter. SeeEngine Air
Cleaner/Filter on page 392.See footnote (l).•
Rotate tires and check ination pressures and wear. SeeTire Inspection and
Rotation on page 438and “Tire Wear Inspection” inAt Least Once a Month on
page 494.••
Inspect brake system.See footnote (a).••
489
ProCarManuals.com

Scheduled Maintenance (cont’d)
Service MaintenanceIMaintenanceII
Check engine coolant and windshield washer uid levels and add uid as
needed.••
Perform any needed additional services. See “Additional Required Services” in
this section.••
Inspect suspension and steering components.See footnote (b).•
Inspect engine cooling system.See footnote (c).•
Inspect wiper blades.See footnote (d).•
Inspect restraint system components.See footnote (e).•
Lubricate body components.See footnote (f).•
Check transmission uid level and add uid as needed.•
Inspect throttle system.See footnote (j).•
490
ProCarManuals.com
