4. To identify the appropriate jacking location, nd
the triangle (A) about 12 inches (30.5 cm) from
the front tire or (B) about 10.5 inches (27 cm)
from the rear tire.
The triangle is located near each wheel on the
vehicle’s exterior.
Notice:If a jack is used to raise the vehicle
without positioning it correctly, your vehicle
could be damaged. When raising your vehicle
on a jack, avoid contact with the rear axle
control arms.
5. Do not raise the vehicle yet. Put the compact
spare tire near you.
{CAUTION:
Getting under a vehicle when it is jacked
up is dangerous. If the vehicle slips off
the jack you could be badly injured or
killed. Never get under a vehicle when it
is supported only by a jack.
{CAUTION:
Raising your vehicle with the jack
improperly positioned can damage the
vehicle and even make the vehicle fall.
To help avoid personal injury and vehicle
damage, be sure to t the jack lift head
into the proper location before raising
the vehicle.
452
ProCarManuals.com

6. Attach the lug wrench to the jack, and turn the
wrench clockwise to raise the jack head
3 inches (7.6 cm).
7. Place the jack under the vehicle as identied
in Step 3. Raise the vehicle by turning the lug
wrench clockwise in the jack. Raise the
vehicle far enough off the ground so that there
is enough room for the spare tire to t
under the wheel well.
8. Remove all the wheel nuts and the at tire.
9. Remove the plastic spare tire heat shield by
pulling the rubber latch. Store the plastic
spare tire heat shield. SeeStoring a Flat or
Spare Tire and Tools on page 459for
more information.
453
ProCarManuals.com

{CAUTION:
Rust or dirt on the wheel, or on the parts
to which it is fastened, can make the
wheel nuts become loose after time. The
wheel could come off and cause an
accident. When changing a wheel, remove
any rust or dirt from the places where the
wheel attaches to the vehicle. In an
emergency, a cloth or a paper towel can
be used to do this; but be sure to use a
scraper or wire brush later, if needed, to
get all the rust or dirt off.
{CAUTION:
Never use oil or grease on studs or nuts.
Because the nuts might come loose. The
vehicle’s wheel could fall off, causing a
serious accident.10. Remove any rust or
dirt from the wheel
bolts, mounting
surfaces, and spare
wheel.
11. Install the compact spare tire.
12. Lower the vehicle by attaching the lug wrench
to the jack and turning the wrench
counterclockwise. Lower the jack completely.
454
ProCarManuals.com

{CAUTION:
Incorrect wheel nuts or improperly
tightened wheel nuts can cause the wheel
to come loose and even come off. This
could lead to an accident. Be sure to use
the correct wheel nuts. If you have to
replace them, be sure to get new GM
original equipment wheel nuts. Stop
somewhere as soon as you can and have
the nuts tightened with a torque wrench to
the proper torque specication. See
Capacities and Specifications on page 483
for wheel nut torque specication.Notice:Improperly tightened wheel nuts can
lead to brake pulsation and rotor damage.
To avoid expensive brake repairs, evenly
tighten the wheel nuts in the proper sequence
and to the proper torque specication. See
Capacities and Specifications on page 483for
the wheel nut torque specication.
13. Tighten the wheel
nuts rmly in a
crisscross sequence,
as shown.
Notice:Wheel covers will not t on your
vehicle’s compact spare. If you try to put a
wheel cover on the compact spare, the cover or
the spare could be damaged.
455
ProCarManuals.com

2. Turn the folding wrench counterclockwise until
approximately 6 inches (15 cm) of cable is
exposed.3. Attach the folding wrench to the jack and
raise the jack at least 10 turns.
4. Place the jack under the vehicle, ahead of the
rear bumper. Position the center lift point of
the jack under the center of the spare tire.
5. Turn the folding wrench clockwise to raise the
jack until it lifts the secondary latch spring.
All-Wheel-Drive Vehicle shownFront-Wheel-Drive Vehicle shown
457
ProCarManuals.com

6. Keep raising the jack until the spare tire stops
moving upward and is held rmly in place.
This lets you know that the secondary
latch has released and the spare tire is
balancing on the jack.
7. Lower the jack by turning the folding wrench
counterclockwise. Keep lowering the jack until
the spare tire slides off the jack.8. Disconnect the folding wrench from the jack
and carefully remove the jack. Use one hand to
push against the spare tire while rmly pulling
the jack out from under the spare tire with the
other hand.
9. Tilt the retainer and slip it through the wheel
opening when the spare tire has been
completely lowered.
10. Turn the folding wrench clockwise to raise the
cable back up if the cable is hanging.
Have the hoist assembly inspected as soon as
you can. You will not be able to store a spare tire
using the hoist assembly until it has been repaired
or replaced.
458
ProCarManuals.com

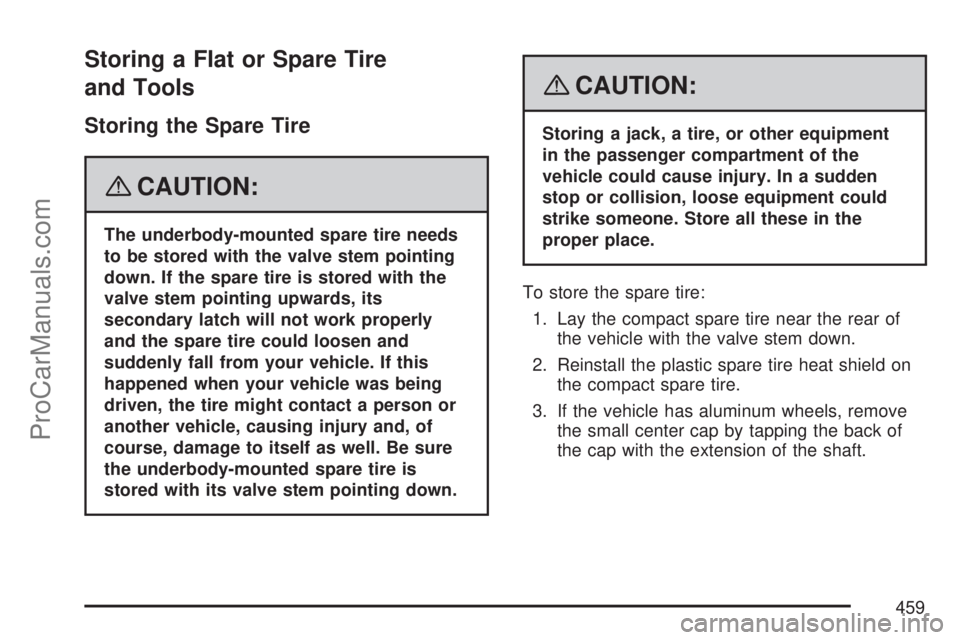

Storing a Flat or Spare Tire
and Tools
Storing the Spare Tire
{CAUTION:
The underbody-mounted spare tire needs
to be stored with the valve stem pointing
down. If the spare tire is stored with the
valve stem pointing upwards, its
secondary latch will not work properly
and the spare tire could loosen and
suddenly fall from your vehicle. If this
happened when your vehicle was being
driven, the tire might contact a person or
another vehicle, causing injury and, of
course, damage to itself as well. Be sure
the underbody-mounted spare tire is
stored with its valve stem pointing down.
{CAUTION:
Storing a jack, a tire, or other equipment
in the passenger compartment of the
vehicle could cause injury. In a sudden
stop or collision, loose equipment could
strike someone. Store all these in the
proper place.
To store the spare tire:
1. Lay the compact spare tire near the rear of
the vehicle with the valve stem down.
2. Reinstall the plastic spare tire heat shield on
the compact spare tire.
3. If the vehicle has aluminum wheels, remove
the small center cap by tapping the back of
the cap with the extension of the shaft.
459
ProCarManuals.com

4. Slide the cable retainer through the center of
the wheel and start to raise the compact
spare tire.
Make sure the retainer is fully seated across
the underside of the wheel.
5. When the compact spare tire is almost in the
stored position, turn the tire so the valve is
toward the rear of the vehicle.
This position helps when checking the air
pressure in the compact spare tire.
6. Raise the tire fully against the underside of
the vehicle. Continue turning the lug wrench
until you feel more than two clicks. This
indicates that the compact spare tire is secure
and the cable is tight. The spare tire hoist
cannot be overtightened.
7. Make sure the tire is stored securely. Push,
pull (A), and then try to turn (B) the tire. If the
tire moves, use the lug wrench to tighten
the cable.
460
ProCarManuals.com

Storing the Flat Tire
Notice:Storing the full-size at tire in the
underbody hoist system can expose it to heat
from the exhaust system. This can damage
the tire and underbody hoist system. Do
not store the full-size at tire in the underbody
hoist system.
1. Remove the cable package from the jack
storage area.
2. Remove the small center cap by tapping the
back of the cap with the extension of the
shaft, if the vehicle has aluminum wheels.
3. Put the at tire in the rear storage area with
the valve stem pointing toward the rear of the
vehicle.4. Hook on end of the cable onto the outside
portion of the liftgate hinge opposite (B).
5. Pull the cable (A) through the door striker (E),
the center of the wheel (D), and the plastic
spare tire heat shield (C), as shown.
461
ProCarManuals.com

Put back all tools as they were stored in the jack
storage compartment and put the compartment
cover back on.
1. Make that the bottom of the jack is facing
toward you.
2. Turn the jack (C) on its side and place it down
on the holding bracket.
3. Reinstall the wing bolt (B) by turning it
clockwise.
4. To replace the cover, line up the tabs on the
bottom of the cover with the slots in the cover
opening. Push the cover in place, insuring
that the upper front and rear tabs are in
the opening and push the cover closed. Make
sure that the center latch is fully engaged.
This secures the cover in place.
Store the center cap or the plastic bolt-on wheel
covers until a full size tire is put back on the
vehicle. When you replace the compact spare with
a full-size tire, reinstall the bolt-on wheel covers
or the center cap. Hand-tighten them over
the wheel nuts, using the lug wrench.Compact Spare Tire
Although the compact spare tire was fully inated
when the vehicle was new, it can lose air after
a time. Check the ination pressure regularly. It
should be 60 psi (420 kPa).
After installing the compact spare on the vehicle,
stop as soon as possible and make sure the
spare tire is correctly inated. The compact spare
is made to perform well at speeds up to 65 mph
(105 km/h) for distances up to 3,000 miles
(5 000 km), so you can nish your trip and have
the full-size tire repaired or replaced at your
convenience. Of course, it is best to replace the
spare with a full-size tire as soon as possible. The
spare tire will last longer and be in good shape
in case it is needed again.
Notice:When the compact spare is installed,
do not take your vehicle through an automatic
car wash with guide rails. The compact
spare can get caught on the rails. That can
damage the tire and wheel, and maybe
other parts of your vehicle.
Do not use the compact spare on other vehicles.
