SATURN RELAY 2006 Owners Manual

Seats and Restraint Systems........................... 1-1
Front Seats
............................................... 1-2
Rear Seats
............................................... 1-6
Safety Belts
.............................................1-22
Child Restraints
.......................................1-42
Airbag System
.........................................1-65
Restraint System Check
............................1-79
Features and Controls..................................... 2-1
Keys
........................................................ 2-3
Doors and Locks
......................................2-11
Windows
.................................................2-26
Theft-Deterrent Systems
............................2-29
Starting and Operating Your Vehicle
...........2-33
Mirrors
....................................................2-43
OnStar
®System
......................................2-44
Universal Home Remote System
................2-46
Storage Areas
.........................................2-50
Instrument Panel............................................. 3-1
Instrument Panel Overview
.......................... 3-4
Climate Controls
......................................3-26
Warning Lights, Gages, and Indicators
........3-33
Driver Information Center (DIC)
..................3-49
Audio System(s)
.......................................3-81Driving Your Vehicle....................................... 4-1
Your Driving, the Road, and Your Vehicle
..... 4-2
Towing
...................................................4-38
Service and Appearance Care.......................... 5-1
Service
..................................................... 5-3
Fuel
......................................................... 5-4
Checking Things Under the Hood
...............5-10
All-Wheel Drive
........................................5-46
Bulb Replacement
....................................5-48
Windshield Wiper Blade Replacement
.........5-52
Tires
......................................................5-53
Appearance Care
.....................................5-88
Vehicle Identication
.................................5-96
Electrical System
......................................5-96
Capacities and Specications
...................5-103
Maintenance Schedule..................................... 6-1
Maintenance Schedule
................................ 6-2
Customer Assistance and Information.............. 7-1
Customer Assistance and Information
........... 7-2
Reporting Safety Defects
...........................7-11
Index................................................................ 1
2006 Saturn RELAY Owner ManualM
ProCarManuals.com

SATURN, SATURN Emblem, and the name RELAY are
registered trademarks of Saturn Corporation. GENERAL
MOTORS and GM are registered trademarks of
General Motors Corporation.
This manual includes the latest information at the time it
was printed. We reserve the right to make changes
after that time without further notice.
Keep this manual in the vehicle, so it will be there if it is
needed while you are on the road. If the vehicle is
sold, leave this manual in the vehicle.
Canadian Owners
A French language copy of this manual can be obtained
from your dealer or from:
Helm, Incorporated
P.O. Box 07130
Detroit, MI 48207
How to Use This Manual
Many people read the owner manual from beginning to
end when they rst receive their new vehicle. If this
is done, it can help you learn about the features
and controls for the vehicle. Pictures and words work
together in the owner manual to explain things.
Index
A good place to quickly locate information about the
vehicle is the Index in the back of the manual. It is an
alphabetical list of what is in the manual and the
page number where it can be found.
Litho in U.S.A.
Part No. 06RELAY A First Printing
©2005 General Motors Corporation. All Rights Reserved.
ii
ProCarManuals.com

Safety Warnings and Symbols
There are a number of safety cautions in this book. We
use a box and the word CAUTION to tell about things
that could hurt you if you were to ignore the warning.
{CAUTION:
These mean there is something that could hurt
you or other people.
In the caution area, we tell you what the hazard is.
Then we tell you what to do to help avoid or reduce the
hazard. Please read these cautions. If you do not,
you or others could be hurt.You will also nd a circle
with a slash through it in
this book. This safety
symbol means “Do Not,”
“Do Not do this” or “Do Not
let this happen.”
iii
ProCarManuals.com

Vehicle Damage Warnings
Also, in this manual you will nd these notices:
Notice:These mean there is something that could
damage your vehicle.
A notice tells about something that can damage the
vehicle. Many times, this damage would not be covered
by your vehicle’s warranty, and it could be costly. But
the notice will tell what to do to help avoid the damage.
When you read other manuals, you might see
CAUTION and NOTICE warnings in different colors or in
different words.
There are also warning labels on the vehicle. They use
the same words, CAUTION or NOTICE.
Vehicle Symbols
The vehicle has components and labels that use
symbols instead of text. Symbols are shown along with
the text describing the operation or information
relating to a specic component, control, message,
gage, or indicator.
If you need help guring out a specic name of a
component, gage, or indicator, reference the following
topics:
Seats and Restraint Systems in Section 1
Features and Controls in Section 2
Instrument Panel Overview in Section 3
Climate Controls in Section 3
Warning Lights, Gages, and Indicators in Section 3
Audio System(s) in Section 3
Engine Compartment Overview in Section 5
iv
ProCarManuals.com

These are some examples of symbols that may be found on the vehicle:
v
ProCarManuals.com

✍NOTES
vi
ProCarManuals.com

Front Seats......................................................1-2
Manual Seats................................................1-2
Six-Way Power Seats.....................................1-3
Heated Seats.................................................1-3
Reclining Seatbacks........................................1-4
Head Restraints.............................................1-6
Rear Seats.......................................................1-6
Rear Seat Operation.......................................1-6
Bucket Seats.................................................1-7
Captain Chairs.............................................1-14
Third Row Seat............................................1-19
Safety Belts...................................................1-22
Safety Belts: They Are for Everyone................1-22
Questions and Answers About Safety Belts......1-27
How to Wear Safety Belts Properly.................1-27
Driver Position..............................................1-28
Shoulder Belt Height Adjustment.....................1-35
Safety Belt Use During Pregnancy..................1-36
Right Front Passenger Position.......................1-36
Rear Seat Passengers..................................1-36
Rear Safety Belt Comfort Guides....................1-39
Safety Belt Pretensioners...............................1-41
Safety Belt Extender.....................................1-42Child Restraints.............................................1-42
Older Children..............................................1-42
Infants and Young Children............................1-45
Child Restraint Systems.................................1-48
Where to Put the Restraint.............................1-52
Lower Anchors and Tethers for Children
(LATCH)..................................................1-53
Securing a Child Restraint in a Rear Seat
Position...................................................1-59
Securing a Child Restraint in the Right
Front Seat Position....................................1-61
Airbag System...............................................1-65
Where Are the Airbags?................................1-68
When Should an Airbag Inate?.....................1-71
What Makes an Airbag Inate?.......................1-72
How Does an Airbag Restrain?.......................1-72
What Will You See After an Airbag Inates?.....1-73
Passenger Sensing System............................1-74
Servicing Your Airbag-Equipped Vehicle...........1-78
Adding Equipment to Your Airbag-Equipped
Vehicle....................................................1-78
Restraint System Check..................................1-79
Checking the Restraint Systems......................1-79
Replacing Restraint System Parts After a
Crash......................................................1-80
Section 1 Seats and Restraint Systems
1-1
ProCarManuals.com

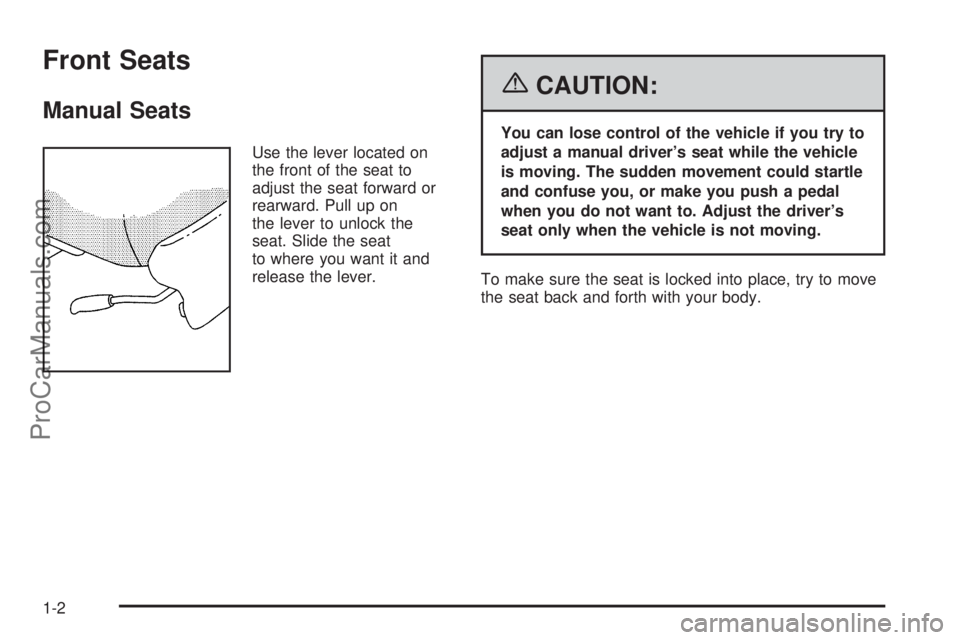

Front Seats
Manual Seats
Use the lever located on
the front of the seat to
adjust the seat forward or
rearward. Pull up on
the lever to unlock the
seat. Slide the seat
to where you want it and
release the lever.
{CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver’s seat while the vehicle
is moving. The sudden movement could startle
and confuse you, or make you push a pedal
when you do not want to. Adjust the driver’s
seat only when the vehicle is not moving.
To make sure the seat is locked into place, try to move
the seat back and forth with your body.
1-2
ProCarManuals.com

Six-Way Power Seats
Your vehicle may have this
feature. If it does, the
six-way power seat control
is located on the outboard
side of the driver’s
seat. Your vehicle may
also have a passenger’s
six-way power seat.
Move the front of the control up or down to adjust
the front portion of the seat up or down.
Move the rear of the control up or down to adjust
the rear portion of the seat up or down.
Slide the control forward or rearward to move the
seat forward or rearward.
Heated Seats
Your vehicle may have this feature. If it does, the heated
seat buttons are located on the climate control panel.
This feature will heat the lower cushions of the driver’s
and front passenger’s seats.
Press this button once to
turn the heated seat on to
the high setting.
Both indicator lights next to the heated seat symbol will
be lit to indicate that it is on the high setting. Press
the button a second time to go to the low setting.
One indicator will be lit. Press the button a third time to
turn the heated seat off.
This feature will turn off automatically when the ignition is
turned off.
Driver’s Side Button
shown, Passenger’s
Side similar
1-3
ProCarManuals.com

Reclining Seatbacks
To adjust a seatback, pull up on the lever located on
the outboard side of the driver’s or front passenger’s
seats. Release the lever to lock the seatback where you
want it. Push and pull on the seat to make sure it is
locked into position.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.
Pull up on the lever, and the seat will go to its original
upright position.
1-4
ProCarManuals.com
