To put the cover back on, line up the tabs on the right
of the cover with the slots in the cover opening. Push the
cover in place and push down the tab so that it rests
in the groove. This secures the cover in place.
Store the center cap or the plastic bolt-on wheel covers
until a full size tire is put back on the vehicle. When you
replace the compact spare with a full-size tire, reinstall
the bolt-on wheel covers or the center cap. Hand-tighten
them over the wheel nuts, using the folding wrench.
Compact Spare Tire
Although the compact spare tire was fully inated when
the vehicle was new, it can lose air after a time.
Check the ination pressure regularly. It should be
60 psi (420 kPa).
After installing the compact spare on the vehicle, stop
as soon as possible and make sure the spare tire
is correctly inated. The compact spare is made to
perform well at speeds up to 65 mph (105 km/h)
for distances up to 3,000 miles (5 000 km), so you can
nish your trip and have the full-size tire repaired or
replaced at your convenience. Of course, it is best
to replace the spare with a full-size tire as soon as
possible. The spare tire will last longer and be in good
shape in case it is needed again.Notice:When the compact spare is installed, do
not take your vehicle through an automatic car wash
with guide rails. The compact spare can get
caught on the rails. That can damage the tire and
wheel, and maybe other parts of your vehicle.
Do not use the compact spare on other vehicles.
And do not mix the compact spare tire or wheel with
other wheels or tires. They will not t. Keep the
spare tire and its wheel together.
Notice:Tire chains will not t your compact spare.
Using them can damage your vehicle and can
damage the chains too. Do not use tire chains on
your compact spare.
5-87
ProCarManuals.com

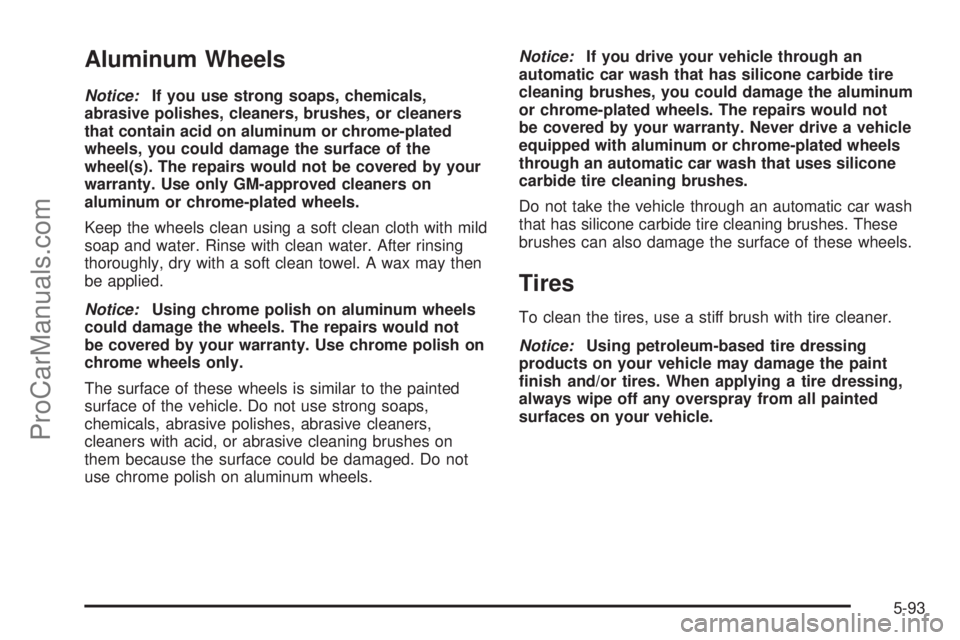

Aluminum Wheels
Notice:If you use strong soaps, chemicals,
abrasive polishes, cleaners, brushes, or cleaners
that contain acid on aluminum or chrome-plated
wheels, you could damage the surface of the
wheel(s). The repairs would not be covered by your
warranty. Use only GM-approved cleaners on
aluminum or chrome-plated wheels.
Keep the wheels clean using a soft clean cloth with mild
soap and water. Rinse with clean water. After rinsing
thoroughly, dry with a soft clean towel. A wax may then
be applied.
Notice:Using chrome polish on aluminum wheels
could damage the wheels. The repairs would not
be covered by your warranty. Use chrome polish on
chrome wheels only.
The surface of these wheels is similar to the painted
surface of the vehicle. Do not use strong soaps,
chemicals, abrasive polishes, abrasive cleaners,
cleaners with acid, or abrasive cleaning brushes on
them because the surface could be damaged. Do not
use chrome polish on aluminum wheels.Notice:If you drive your vehicle through an
automatic car wash that has silicone carbide tire
cleaning brushes, you could damage the aluminum
or chrome-plated wheels. The repairs would not
be covered by your warranty. Never drive a vehicle
equipped with aluminum or chrome-plated wheels
through an automatic car wash that uses silicone
carbide tire cleaning brushes.
Do not take the vehicle through an automatic car wash
that has silicone carbide tire cleaning brushes. These
brushes can also damage the surface of these wheels.
Tires
To clean the tires, use a stiff brush with tire cleaner.
Notice:Using petroleum-based tire dressing
products on your vehicle may damage the paint
nish and/or tires. When applying a tire dressing,
always wipe off any overspray from all painted
surfaces on your vehicle.
5-93
ProCarManuals.com

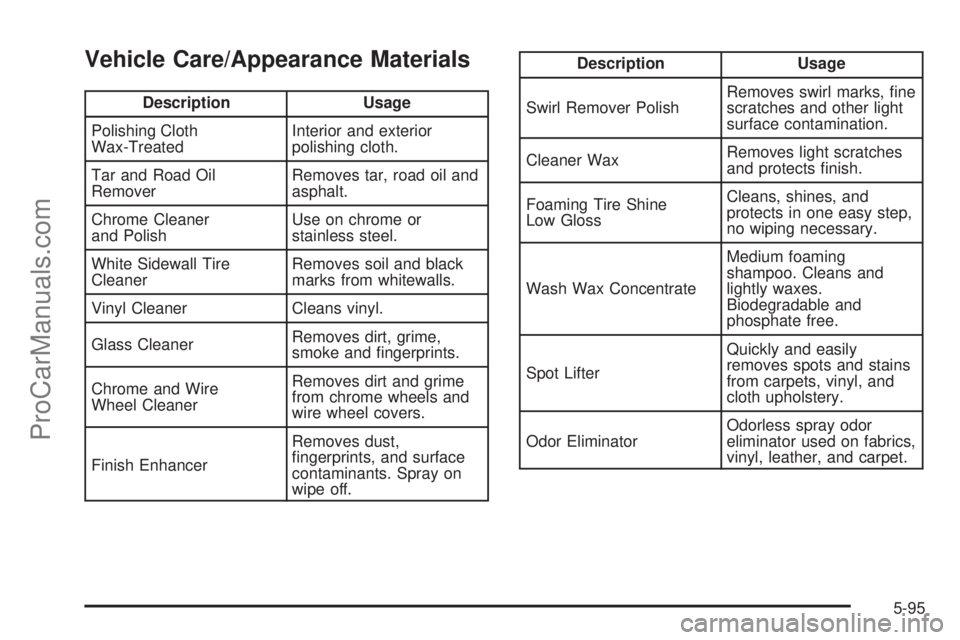

Vehicle Care/Appearance Materials
Description Usage
Polishing Cloth
Wax-TreatedInterior and exterior
polishing cloth.
Tar and Road Oil
RemoverRemoves tar, road oil and
asphalt.
Chrome Cleaner
and PolishUse on chrome or
stainless steel.
White Sidewall Tire
CleanerRemoves soil and black
marks from whitewalls.
Vinyl Cleaner Cleans vinyl.
Glass CleanerRemoves dirt, grime,
smoke and ngerprints.
Chrome and Wire
Wheel CleanerRemoves dirt and grime
from chrome wheels and
wire wheel covers.
Finish EnhancerRemoves dust,
ngerprints, and surface
contaminants. Spray on
wipe off.
Description Usage
Swirl Remover PolishRemoves swirl marks, ne
scratches and other light
surface contamination.
Cleaner WaxRemoves light scratches
and protects nish.
Foaming Tire Shine
Low GlossCleans, shines, and
protects in one easy step,
no wiping necessary.
Wash Wax ConcentrateMedium foaming
shampoo. Cleans and
lightly waxes.
Biodegradable and
phosphate free.
Spot LifterQuickly and easily
removes spots and stains
from carpets, vinyl, and
cloth upholstery.
Odor EliminatorOdorless spray odor
eliminator used on fabrics,
vinyl, leather, and carpet.
5-95
ProCarManuals.com

Fuses Usage
1 Trunk, Door Locks
2 Electronic Level Control
3 Rear Wiper
4 Radio Amplier
5 Interior Lamps
6 OnStar
®
7 Keyless Entry Module
8Cluster, Heating, Ventilation,
Air Conditioning
9 Cruise Switch
10 Steering Wheel Illumination
11 Power Mirror
12 Stoplamp, Turn Lamps
13 Heated Seats
14 Blank
15 Electronic Level Control
16 Heated Mirror
17Center High-Mounted Stoplamp,
Back-up Lamps
18 Blank
19 Canister Ventilation
Fuses Usage
20 Park Lamps
21 Power Sliding Door
22 Blank
23 Blank
24 Left Power Sliding Door
25 Right Power Sliding Door
Relays Usage
26 Blank
27 Blank
28 Park Lamps
29 Retained Accessory Power
30 Rear Defog
PLR Fuse Puller
Circuit
Breakers Usage
31 Power Seats
32 Power Window
5-99
ProCarManuals.com

Fuses Usage
1 Right High Beam
2 Fuel Pump
3 Diode
SPARE Spare
SPARE Spare
4 Left High Beam
SPARE Spare
SPARE Spare
SPARE Spare
5 Not Used
6 Air Conditioning Clutch
7 Horn
8 Left Low Beam
9Powertrain Control Module,
Electronic Throttle Control
10 Not Used
11 Transmission Solenoid
12 Right Low BeamFuses Usage
13 Anti-lock Brake System
14 Powertrain Control Module Ignition
15 Electronic Ignition
16 Fuel Injector
17Climate Control, RPA, Cruise
Control
18 Electronic Throttle Control
19 Engine Sensor, Evaporator
20 Airbag
21 Not Used
22 Emission, All-Wheel Drive
23 Auxiliary Power
24 Front Windshield Washer
25 AC/DC Inverter
26 Rear Blower
27 Front Blower
28 Front Windshield Wiper
5-101
ProCarManuals.com

Capacities and Specications
The following approximate capacities are given in English and metric measurements. SeeRecommended Fluids and
Lubricants on page 6-11for more information.
ApplicationCapacities
English Metric
Automatic Transaxle — Pan Removal and Replacement 7.4 qt 7.0 L
AWD Automatic Transaxle — Pan Removal and Replacement 8.7 qt 8.3 L
Cooling System
Front A/C 11.3 qt 10.7 L
Front and Rear A/C 12.8 qt 12.2 L
Engine Oil with Filter 4.0 qt 3.8 L
Fuel Capacity 25.1 gal 95.0 L
Wheel Nut Torque 100 ft-lb 140Y
All capacities are approximate. When adding, be sure to ll to the approximate level, as recommended in this
manual. Recheck uid level after lling.
Engine VIN Code Transaxle Spark Plug Gap
3.5L V6 L Automatic 0.060 inches (1.5 mm)
3.9L V6 1 Automatic 0.040 inches (1.1 mm)
5-103
ProCarManuals.com

GM Mobility Reimbursement
Program
This program, available to qualied applicants, can
reimburse you up to $1,000 toward eligible aftermarket
driver or passenger adaptive equipment you may
require for your vehicle such as hand controls,
wheelchair/scooter lifts, etc.
The offer is available for a limited period of time from
the date of vehicle purchase/lease.
For more details, or to determine your vehicle’s
eligibility, visit your Saturn retailer or call the Saturn
Customer Assistance Center at 1-800-553-6000. Text
telephone (TTY) users, call 1-800-833-6000.
In Canada, customers may call the Saturn Customer
Communication Centre at 1-800-263-1999. TTY users in
Canada may call 1-800-263-3830.
Roadside Assistance Program
For vehicles purchased in the U.S. call1-800-553-6000
(TTY: 1-800-833-6000).
For vehicles purchased in Canada call1-800-268-6800.
As the proud owner of a new Saturn vehicle, you are
automatically enrolled in the Saturn Roadside
Assistance Program. This value-added service is
intended to provide you with peace of mind as you drive
in the city or travel the open road. Saturn’s Roadside
Assistance toll-free number is staffed by courteous and
capable Roadside Assistance Representatives who
are available 24 hours a day, 365 days a year.
We will provide the following services during the
Bumper-to-Bumper warranty period at no expense
to you:
Fuel Delivery:Delivery of enough fuel
($5 maximum) for the customer to get to the
nearest service station.
Lock-out Service (identication required):
Replacement keys or locksmith service will
be covered at no charge if you are unable to gain
entry into your vehicle. Delivery of the replacement
key will be covered within 10 miles (16 km).
7-5
ProCarManuals.com

Vehicle Data Collection and Event
Data Recorders
Your vehicle, like other modern motor vehicles, has a
number of sophisticated computer systems that monitor
and control several aspects of the vehicle’s performance.
Your vehicle uses on-board vehicle computers to monitor
emission control components to optimize fuel economy,
to monitor conditions for airbag deployment and, if so
equipped, to provide anti-lock braking and to help the
driver control the vehicle in difficult driving situations.
Some information may be stored during regular
operations to facilitate repair of detected malfunctions;
other information is stored only in a crash event by
computer systems, such as those commonly called event
data recorders (EDR).
In a crash event, computer systems, such as the Airbag
Sensing and Diagnostic Module (SDM) in your vehicle
may record information about the condition of the vehicle
and how it was operated, such as data related to
engine speed, brake application, throttle position, vehicle
speed, safety belt usage, airbag readiness, airbag
performance, and the severity of a collision. If your
vehicle is equipped with StabiliTrak
®, steering
performance, including yaw rate, steering wheel angle,
and lateral acceleration, is also recorded. This
information has been used to improve vehicle crash
performance and may be used to improve crash
performance of future vehicles and driving safety.Unlike the data recorders on many airplanes, these
on-board systems do not record sounds, such as
conversation of vehicle occupants.
To read this information, special equipment is needed
and access to the vehicle or the device that stores
the data is required. GM will not access information
about a crash event or share it with others other than:
with the consent of the vehicle owner or, if the
vehicle is leased, with the consent of the lessee,
in response to an official request of police or similar
government office,
as part of GM’s defense of litigation through the
discovery process, or
as required by law.
In addition, once GM collects or receives data, GM may:
use the data for GM research needs,
make it available for research where appropriate
condentiality is to be maintained and need is
shown, or
share summary data which is not tied to a specic
vehicle with non-GM organizations for research
purposes.
7-7
ProCarManuals.com

A
Accessories and Modications............................ 5-3
Accessory Inator...........................................5-68
Accessory Power Outlet(s)...............................3-24
Adding Equipment to Your Airbag-Equipped
Vehicle.......................................................1-78
Additives, Fuel................................................. 5-5
Add-On Electrical Equipment............................5-96
Air Cleaner/Filter, Engine.................................5-20
Air Conditioning..............................................3-26
Airbag
Passenger Status Indicator...........................3-38
Readiness Light..........................................3-37
Airbag Sensing and Diagnostic Module (SDM)...... 7-7
Airbag System................................................1-65
Adding Equipment to Your Airbag-Equipped
Vehicle...................................................1-78
How Does an Airbag Restrain?......................1-72
Passenger Sensing System...........................1-74
Servicing Your Airbag-Equipped Vehicle..........1-78
What Makes an Airbag Inate?......................1-72
What Will You See After an Airbag Inates?....1-73
When Should an Airbag Inate?....................1-71
Where Are the Airbags?...............................1-68
All-Wheel Drive...............................................5-46
All-Wheel-Drive (AWD) System.........................4-12Antenna, Fixed Mast......................................3-119
Antenna, XMâ„¢ Satellite Radio Antenna
System.....................................................3-120
Anti-Lock Brake System (ABS)........................... 4-7
Anti-Lock Brake, System Warning Light..............3-41
Appearance Care
Aluminum Wheels........................................5-93
Care of Safety Belts....................................5-91
Chemical Paint Spotting...............................5-94
Cleaning Exterior Lamps/Lenses....................5-91
Cleaning the Inside of Your Vehicle................5-88
Fabric/Carpet..............................................5-89
Finish Care.................................................5-92
Finish Damage............................................5-94
Instrument Panel, Vinyl, and Other Plastic
Surfaces.................................................5-90
Leather......................................................5-90
Sheet Metal Damage...................................5-94
Tires..........................................................5-93
Underbody Maintenance...............................5-94
Vehicle Care/Appearance Materials................5-95
Washing Your Vehicle...................................5-91
Weatherstrips..............................................5-91
Windshield, Backglass, and Wiper Blades.......5-92
Audio System(s).............................................3-81
Audio Steering Wheel Controls....................3-117
Care of Your CD and DVD Player................3-119
1
ProCarManuals.com

Cargo Lamp...................................................3-20
Chains, Tire...................................................5-67
Charging System Light....................................3-40
Check
Engine Light...............................................3-43
Checking Things Under the Hood......................5-10
Chemical Paint Spotting...................................5-94
Child Restraints
Child Restraint Systems...............................1-48
Infants and Young Children...........................1-45
Lower Anchors and Tethers for Children..........1-53
Older Children.............................................1-42
Securing a Child Restraint in a Rear Seat
Position..................................................1-59
Securing a Child Restraint in the Right
Front Seat Position...................................1-61
Where to Put the Restraint...........................1-52
Chime Level Adjustment.................................3-120
Cigarette Lighter.............................................3-25
Cleaning
Aluminum Wheels........................................5-93
Exterior Lamps/Lenses.................................5-91
Fabric/Carpet..............................................5-89
Finish Care.................................................5-92
Inside of Your Vehicle..................................5-88
Instrument Panel, Vinyl, and Other Plastic
Surfaces.................................................5-90
Leather......................................................5-90
Tires..........................................................5-93Cleaning (cont.)
Underbody Maintenance...............................5-94
Washing Your Vehicle...................................5-91
Weatherstrips..............................................5-91
Windshield, Backglass, and Wiper Blades.......5-92
Climate Control System...................................3-26
Air Filter, Passenger Compartment.................3-31
Outlet Adjustment........................................3-28
Rear..........................................................3-29
Collision Damage Repair................................... 7-8
Comfort Guides, Rear Safety Belt.....................1-39
Compact Spare Tire........................................5-87
Content Theft-Deterrent....................................2-29
Control of a Vehicle.......................................... 4-5
Convenience Net............................................2-55
Coolant
Engine Temperature Gage............................3-42
Heater, Engine............................................2-35
Cooling System..............................................5-28
Cruise Control................................................3-11
Cruise Control Light........................................3-47
Cupholder(s)..................................................2-50
Customer Assistance Information
Customer Assistance for Text Telephone (TTY)
Users....................................................... 7-4
Customer Satisfaction Procedure..................... 7-2
GM Mobility Reimbursement Program............... 7-5
Reporting Safety Defects to Saturn................7-12
3
ProCarManuals.com
