SATURN RELAY 2007 Owners Manual

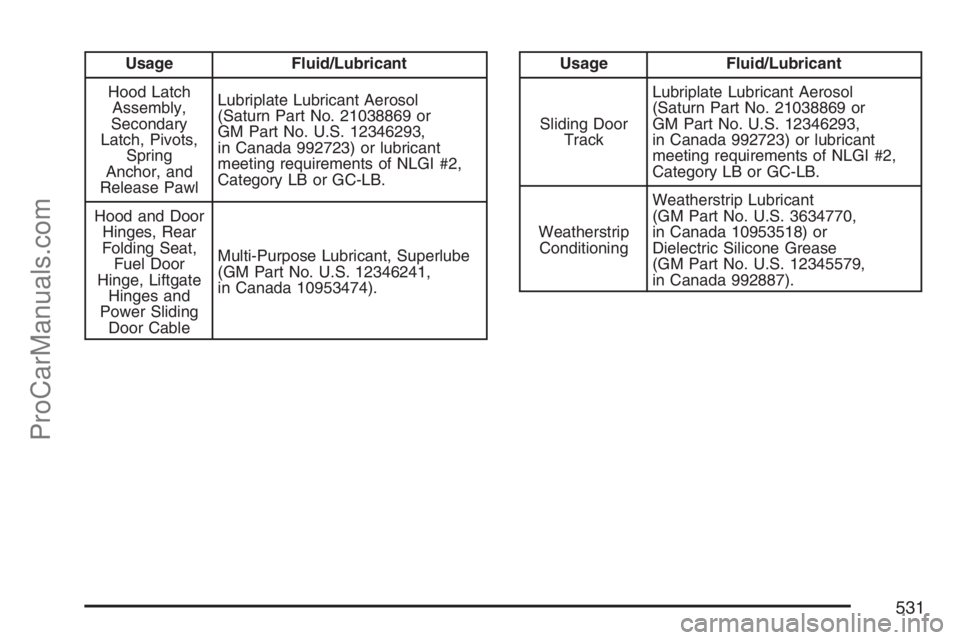

Usage Fluid/Lubricant
Hood Latch
Assembly,
Secondary
Latch, Pivots,
Spring
Anchor, and
Release PawlLubriplate Lubricant Aerosol
(Saturn Part No. 21038869 or
GM Part No. U.S. 12346293,
in Canada 992723) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Hood and Door
Hinges, Rear
Folding Seat,
Fuel Door
Hinge, Liftgate
Hinges and
Power Sliding
Door CableMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241,
in Canada 10953474).Usage Fluid/Lubricant
Sliding Door
TrackLubriplate Lubricant Aerosol
(Saturn Part No. 21038869 or
GM Part No. U.S. 12346293,
in Canada 992723) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Weatherstrip
ConditioningWeatherstrip Lubricant
(GM Part No. U.S. 3634770,
in Canada 10953518) or
Dielectric Silicone Grease
(GM Part No. U.S. 12345579,
in Canada 992887).
531
ProCarManuals.com

Normal Maintenance Replacement Parts
Replacement parts identied below by name, part number, or specication can be obtained from your
Saturn retailer.
Part GM Part Number ACDelco®Part Number
Engine Air Cleaner/Filter 15222510 —
Engine Oil Filter 89017342 PF61
Spark Plugs 12591131 41-100
Windshield Wiper Blades
Driver’s Side — 22.0 inches (55.0 cm) 12335833 —
Passenger’s Side — 24.0 inches (60.0 cm) 12335834 —
Rear — 16.0 inches (40.0 cm) 15192147 —
532
ProCarManuals.com

Engine Drive Belt Routing
3.9L V6 Engine
533
ProCarManuals.com

Maintenance Record
After the scheduled services are performed, record the date, odometer reading, who performed the service,
and the type of services performed in the boxes provided. SeeMaintenance Requirements on page 520.
Any additional information fromOwner Checks and Services on page 526can be added on the following
record pages. You should retain all maintenance receipts.
Maintenance Record
DateOdometer
ReadingServiced ByMaintenanceIor
MaintenanceIIServices Performed
534
ProCarManuals.com

Maintenance Record (cont’d)
DateOdometer
ReadingServiced ByMaintenanceIor
MaintenanceIIServices Performed
535
ProCarManuals.com

Maintenance Record (cont’d)
DateOdometer
ReadingServiced ByMaintenanceIor
MaintenanceIIServices Performed
536
ProCarManuals.com

Customer Assistance and Information....... 538
Customer Satisfaction Procedure............... 538
Online Owner Center................................. 541
Customer Assistance for Text
Telephone (TTY) Users.......................... 542
Customer Assistance Offices..................... 542
GM Mobility Reimbursement Program........ 543
Roadside Assistance Program................... 543
Vehicle Data Collection and Event
Data Recorders...................................... 547
Collision Damage Repair........................... 548Reporting Safety Defects............................ 552
Reporting Safety Defects to the
United States Government..................... 552
Reporting Safety Defects to the
Canadian Government............................ 552
Reporting Safety Defects to Saturn............ 552
Service Publications Ordering
Information............................................. 553
Section 7 Customer Assistance Information
537
ProCarManuals.com

Customer Assistance and
Information
Customer Satisfaction Procedure
Your satisfaction and goodwill are important
to your retailer and to Saturn. Together we are
committed to providing our customers with
unparalleled service, before, during and after the
purchase of a Saturn vehicle, for total customer
satisfaction. We call this the Saturn Difference.
Normally, any concerns with the sales transaction
or the operation of your vehicle will be resolved
by your retailer’s sales or service departments.
If, for any reason, your ownership experience falls
below your expectations, we suggest you take
the following action:
STEP ONE:Contact the Retail Customer
Assistance Liaison. Any member of the retail
management team has the authority and the desire
to resolve your concerns. Normally, concerns
can be quickly resolved at this level.STEP TWO:Should you need additional
assistance, in the U.S., contact the Saturn
Customer Assistance Center by calling
1-800-553-6000. In Canada, contact the
Saturn Customer Communication Centre at
1-800-263-1999. A Saturn Customer Assistance
Center team member will handle your call and
assist in providing product and warranty
information, the nearest retailer location, roadside
assistance, brochures, literature and discuss any
concerns you may have.
We encourage you to call the toll-free number in
order to give your inquiry prompt attention. Please
have the following information available to give the
Customer Assistance Representative:
Vehicle Identication Number. This 17-digit
number can be found on the vehicle registration
or title, on the upper driver’s side corner of the
dash, or on your roadside assistance key card.
The name of your selling and servicing retail
facility.
Vehicle delivery date and present mileage.
Your daytime and evening phone numbers.
538
ProCarManuals.com

When contacting Saturn, please remember that
your concern will likely be resolved at a retailer’s
facility. That is why we suggest you follow
Step One rst if you have a concern.
STEP THREE (U.S. Owners):Both Saturn and its
retailers are committed to making sure you are
completely satised with your Saturn vehicle.
However, if you continue to remain unsatised after
following the procedure outlined in Steps One and
Two, Saturn and its retailers offer the additional
assistance of a neutral party through our voluntary
participation in a mediation/arbitration program
called BBB Auto Line.
The BBB Auto Line Program is an out-of-court
program administered by the Council of Better
Business Bureaus to settle automotive disputes
regarding vehicle repairs or the interpretation of the
New Vehicle Limited Warranty. This program is
available at no cost to you, our customer.Although you may be required to resort to this
informal dispute resolution program prior to ling a
court action, use of the program is free of charge
and your case will generally be heard within
40 days. If you do not agree with the decision given
in your case, you may reject it and proceed with any
other venue for relief available to you.
You may contact the BBB Auto Line Program by
using the toll-free telephone number or by writing
them at the following address:
BBB Auto Line Program
Council of Better Business Bureaus, Inc.
4200 Wilson Boulevard
Suite 800
Arlington, VA 22203-1838
Telephone: 1-800-955-5100
This program is available in all 50 states and the
District of Columbia. Eligibility is limited by
vehicle age, mileage and other factors. Saturn
Corporation reserves the right to change eligibility
limitations and/or discontinue its participation in
this program.
539
ProCarManuals.com

STEP THREE (Canadian Owners):
General Motors Participation in the
Mediation/Arbitration Program
In the event that you do not feel your concerns
have been addressed after following the procedure
outlined in Steps 1 and 2, General Motors of
Canada Limited has committed to binding
arbitration of owner disputes involving
factory-related vehicle service claims. The
program provides for the review of the facts
involved by an impartial third party arbiter, and
may include an informal hearing before the arbiter.
The program is designed so that the entire
dispute settlement process, from the time you le
your complaint to the nal decision, should be
completed in approximately 70 days. We believe
our impartial program offers advantages over
courts in most jurisdictions because it is informal,
quick, and free of charge.For further information concerning eligibility in the
Canadian Motor Vehicle Arbitration Plan
(CAMVAP), call toll-free 1-800-207-0685.
Alternatively, you may call the Saturn Customer
Communication Centre, 1-800-263-1999, or
you may write to:
Mediation/Arbitration Program
c/o Customer Communication Centre
General Motors of Canada Limited
Mail Code: CA1-163-005
1908 Colonel Sam Drive
Oshawa, Ontario L1H 8P7
Telephone: 1-800-955-5100
Your inquiry should be accompanied by your
Vehicle Identication Number (VIN).
