Safety Belt Use During Pregnancy
Safety belts work for everyone, including pregnant
women. Like all occupants, they are more likely
to be seriously injured if they do not wear
safety belts.
A pregnant woman should wear a lap-shoulder
belt, and the lap portion should be worn as low as
possible, below the rounding, throughout the
pregnancy.The best way to protect the fetus is to protect the
mother. When a safety belt is worn properly, it
is more likely that the fetus will not be hurt
in a crash. For pregnant women, as for anyone,
the key to making safety belts effective is wearing
them properly.
Right Front Passenger Position
To learn how to wear the right front passenger’s
safety belt properly, seeDriver Position on
page 38.
The right front passenger’s safety belt works the
same way as the driver’s safety belt — except
for one thing. If you ever pull the shoulder portion
of the belt out all the way, you will engage the
child restraint locking feature which may turn off
the passenger’s frontal airbag. If this happens, just
let the belt go back all the way and start again.
48
ProCarManuals.com

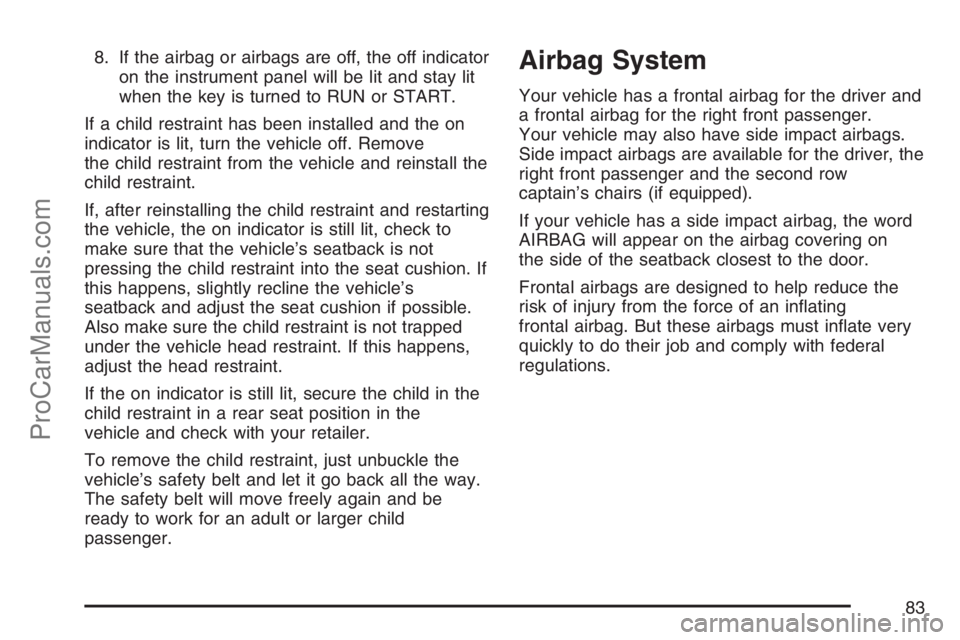

8. If the airbag or airbags are off, the off indicator
on the instrument panel will be lit and stay lit
when the key is turned to RUN or START.
If a child restraint has been installed and the on
indicator is lit, turn the vehicle off. Remove
the child restraint from the vehicle and reinstall the
child restraint.
If, after reinstalling the child restraint and restarting
the vehicle, the on indicator is still lit, check to
make sure that the vehicle’s seatback is not
pressing the child restraint into the seat cushion. If
this happens, slightly recline the vehicle’s
seatback and adjust the seat cushion if possible.
Also make sure the child restraint is not trapped
under the vehicle head restraint. If this happens,
adjust the head restraint.
If the on indicator is still lit, secure the child in the
child restraint in a rear seat position in the
vehicle and check with your retailer.
To remove the child restraint, just unbuckle the
vehicle’s safety belt and let it go back all the way.
The safety belt will move freely again and be
ready to work for an adult or larger child
passenger.Airbag System
Your vehicle has a frontal airbag for the driver and
a frontal airbag for the right front passenger.
Your vehicle may also have side impact airbags.
Side impact airbags are available for the driver, the
right front passenger and the second row
captain’s chairs (if equipped).
If your vehicle has a side impact airbag, the word
AIRBAG will appear on the airbag covering on
the side of the seatback closest to the door.
Frontal airbags are designed to help reduce the
risk of injury from the force of an inating
frontal airbag. But these airbags must inate very
quickly to do their job and comply with federal
regulations.
83
ProCarManuals.com

In many crashes severe enough to inate an airbag,
windshields are broken by vehicle deformation.
Additional windshield breakage may also occur
from the right front passenger airbag.
Airbags are designed to inate only once. After
they inate, you will need some new parts for
your airbag system. If you do not get them, the
airbag system will not be there to help protect
you in another crash. A new system will include
airbag modules and possibly other parts. The
service manual for your vehicle covers the need
to replace other parts.
Your vehicle has a crash sensing and
diagnostic module which records information
after a crash. SeeVehicle Data Collection and
Event Data Recorders on page 547.
Let only qualied technicians work on your
airbag system. Improper service can mean that
an airbag system will not work properly. See
your retailer for service.
Passenger Sensing System
Your vehicle has a passenger sensing system.
The passenger airbag status indicator on the
instrument panel will be visible when you turn your
ignition key to RUN or START.
The words ON and OFF or the symbol for on and
off, will be visible during the system check.
When the system check is complete, either the
word ON or the word OFF, or the symbol for on or
the symbol for off will be visible. SeePassenger
Airbag Status Indicator on page 224.
United StatesCanada
93
ProCarManuals.com

Servicing Your Airbag-Equipped
Vehicle
Airbags affect how your vehicle should be
serviced. There are parts of the airbag system in
several places around your vehicle. You do
not want the system to inate while someone is
working on your vehicle. Your retailer and the
service manual have information about servicing
your vehicle and the airbag system. To purchase a
service manual, seeService Publications
Ordering Information on page 553.
{CAUTION:
For up to 10 seconds after the ignition
key is turned off and the battery is
disconnected, an airbag can still inate
during improper service. You can be
injured if you are close to an airbag when
it inates. Avoid yellow connectors. They
are probably part of the airbag system. Be
sure to follow proper service procedures,
and make sure the person performing
work for you is qualied to do so.
The airbag system does not need regular
maintenance.
99
ProCarManuals.com

Keys............................................................ 105
Remote Keyless Entry System.................. 106
Remote Keyless Entry System
Operation............................................... 107
Doors and Locks........................................ 114
Door Locks................................................ 114
Power Door Locks..................................... 116
Delayed Locking........................................ 116
Automatic Door Lock................................. 117
Programmable Automatic Door Unlock....... 118
Lockout Protection..................................... 118
Dual Sliding Doors.................................... 118
Power Sliding Door (PSD)......................... 121
Liftgate...................................................... 128
Windows...................................................... 130
Power Windows........................................ 131
Manual Rear Quarter Windows.................. 131
Power Rear Quarter Windows................... 132
Sun Visors................................................ 132Theft-Deterrent Systems............................. 133
Content Theft-Deterrent............................. 133
PASS-Key
®III ........................................... 135
PASS-Key®III Operation........................... 136
Starting and Operating Your Vehicle......... 138
New Vehicle Break-In................................ 138
Ignition Positions....................................... 138
Retained Accessory Power (RAP)............. 139
Starting the Engine.................................... 140
Engine Coolant Heater.............................. 141
Automatic Transaxle Operation.................. 143
Parking Brake........................................... 147
Shifting Into Park (P) ................................. 148
Shifting Out of Park (P)............................. 149
Parking Over Things That Burn................. 150
Engine Exhaust......................................... 151
Running the Engine While Parked............. 152
Section 2 Features and Controls
103
ProCarManuals.com

Keys
{CAUTION:
Leaving children in a vehicle with the
ignition key is dangerous for many
reasons. They could operate the power
windows or other controls or even make
the vehicle move. The children or others
could be badly injured or even killed.
Do not leave the keys in a vehicle with
children.
105
ProCarManuals.com

This vehicle has a double sided key for the
ignition and the driver’s door lock.
Your vehicle has the PASS-Key
®III vehicle theft
system. The key has a transponder in the key
head that matches a decoder in the vehicle’s
steering column. If a replacement key or
any additional key is needed, you must purchase
this key from your retailer. The key will have
PK3 stamped on it. Keep the bar code tag that
came with the original keys. Give this tag to your
retailer if you need a new key made.
Any new PASS-Key
®III key must be programmed
before it will start your vehicle. SeePASS-Key®
III on page 135for more information on
programming your new key.
Notice:If you ever lock your keys in your
vehicle, you may have to damage the vehicle
to get in. Be sure you have spare keys.
If you ever do get locked out of your vehicle,
seeRoadside Assistance Program on page 543
for more information.
Remote Keyless Entry System
If equipped, the keyless entry system operates
on a radio frequency subject to Federal
Communications Commission (FCC) Rules and
with Industry Canada.
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions:
1. This device may not cause interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation of the device.
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
1. This device may not cause interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation of the device.
Changes or modications to this system by other
than an authorized service facility could void
authorization to use this equipment.
106
ProCarManuals.com

At times you may notice a decrease in range.
This is normal for any remote keyless entry
system. If the transmitter does not work or if you
have to stand closer to your vehicle for the
transmitter to work, try this:
Check the distance. You may be too far from
your vehicle. You may need to stand closer
during rainy or snowy weather.
Check the location. Other vehicles or objects
may be blocking the signal. Take a few steps
to the left or right, hold the transmitter
higher, and try again.
Check to determine if battery replacement
is necessary. See “Battery Replacement”
underRemote Keyless Entry System
Operation on page 107.
If you are still having trouble, see your retailer
or a qualied technician for service.
Remote Keyless Entry System
Operation
You can lock and unlock the vehicle’s doors and
the liftgate using the remote keyless entry
transmitter supplied with your vehicle.
The remote keyless
entry transmitter shown
here is for a vehicle
equipped with the
remote vehicle start
feature and dual power
sliding doors.
107
ProCarManuals.com

The remote keyless entry transmitter supplied with
your vehicle will only contain the buttons specic
to your vehicle’s factory installed remote
system features.
/(Remote Vehicle Start):If your vehicle has
this feature, you can start the engine from outside
the vehicle. See “Remote Vehicle Start” at the
end of this section for more detailed information.
Q(Lock):To lock all doors and the liftgate,
press the lock button on the remote keyless entry
transmitter. SeePower Door Locks on page 116
for more details on the power door lock features.
If your vehicle has the content theft-deterrent
system, the remote keyless entry transmitter’s lock
button may arm the system. SeeContent
Theft-Deterrent on page 133for more details.
When you use the remote keyless entry transmitter
to lock your vehicle, the turn signal lamps may
ash to let you know the command has been
received. If you press the lock button again, within
ve seconds, the horn will sound and the turn
signal lamps may ash to let you know the vehicle
is already locked. See “FOB LOCK FEEDBACK”
underDIC Vehicle Personalization (Uplevel
Only) on page 261for additional information.
"(Unlock):When you press unlock on the
remote keyless entry transmitter, only the driver’s
door will unlock. If you press unlock again
within ve seconds, all the doors and the liftgate
will unlock. If you would like all the doors to unlock
the rst time you press unlock, see “FOB
UNLOCK ON 1ST PRESS” underDIC Vehicle
Personalization (Uplevel Only) on page 261.
If your vehicle has the content theft-deterrent
system, the unlock button on the remote keyless
entry transmitter will disarm the system. See
Content Theft-Deterrent on page 133for more
details.
When you use your remote keyless entry
transmitter to unlock your vehicle the turn signal
lamps will ash to let you know the command was
received.
L(Remote Alarm):When you press the horn
button on the remote keyless entry transmitter, the
turn signal lamps will ash and the horn will sound.
This will allow you to attract attention, if needed.
Press this button again to stop the alarm from
sounding.
108
ProCarManuals.com
